SAXSdb — 3aa7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

F-actin-capping protein subunit alpha-1

Gallus gallus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	F-actin-capping protein subunit beta isoforms 1 and 2 × 1 （P14315） BARIUM ION × 1 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CAZA1_CHICK
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–286； UniProt 1–286

F-actin-capping protein subunit beta isoforms 1 and 2

Gallus gallus

UniProt P14315

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	F-actin-capping protein subunit alpha-1 × 1 （P13127） BARIUM ION × 1 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CAPZB_CHICK
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–244； UniProt 1–244

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3aa7
Deposition date deposition_date	2009-11-11
Structure title title	Crystal structure of Actin capping protein
Keywords keywords	;ACTIN CAPPING PROTEIN, BARBED END REGULATION, CARMIL FAMILY PROTEIN, CONFORMATIONAL CHANGE, CELL MOTILITY, Actin capping, Actin-binding, Cytoskeleton, PROTEIN BINDING ;; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3aa7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3aa7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

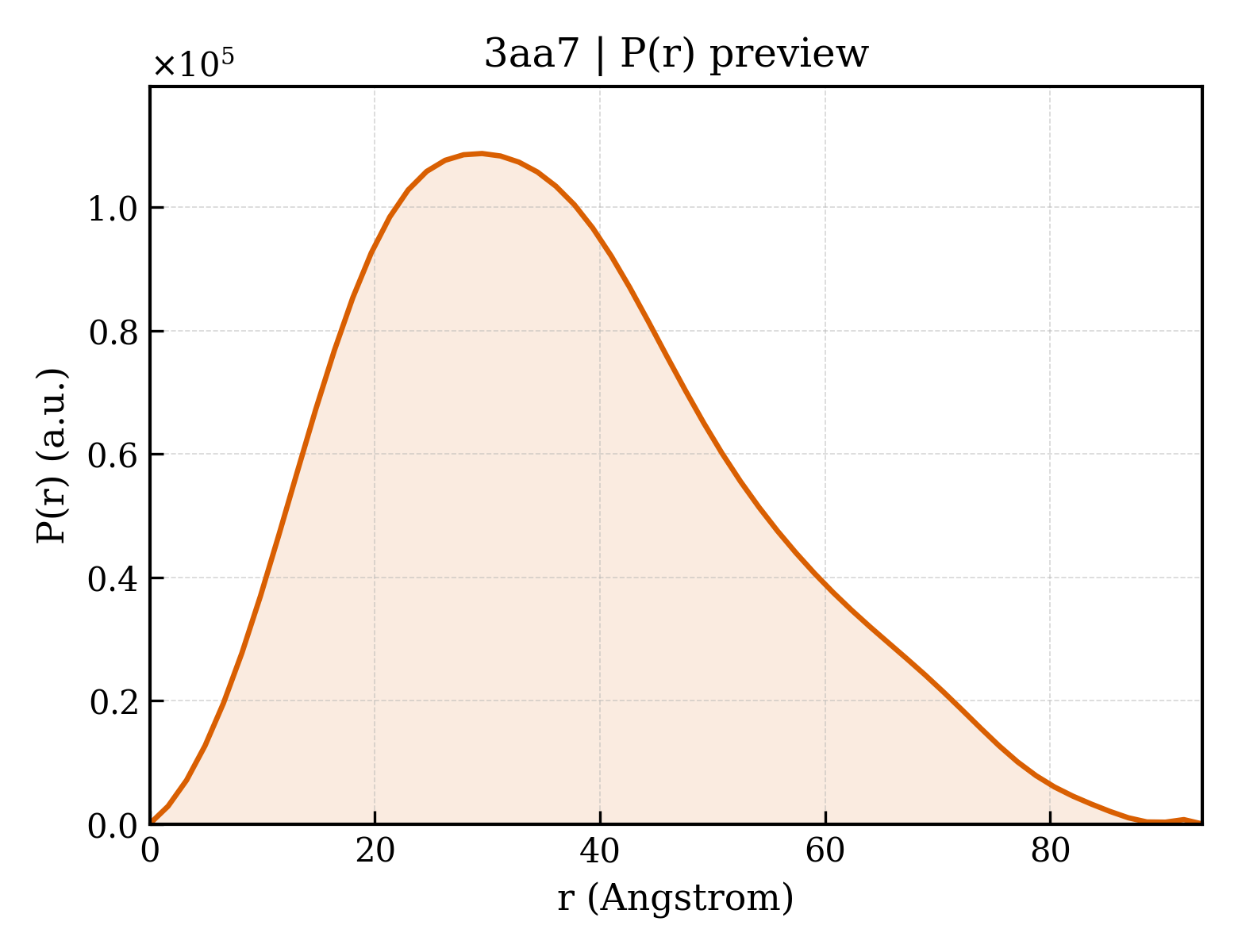

3aa7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.01 Å
Rg (electron density)	27.30 Å
Total Rg	27.96 Å
Atom count	4114
Residues	512
Excluded volume	72648 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3aa7__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	F-actin-capping protein subunit alpha-1
Molecular weight formula_weight	33001.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4420

MADFEDRVSDEEKVRIAAKFITHAPPGEFNEVFNDVRLLLNNDNLLREGAAHAFAQYNMDQFTPVKIEGYDDQVLITEHGDLGNGRFLDPRNKISFKFDHLRKEASDPQPEDTESALKQWRDACDSALRAYVKDHYPNGFCTVYGKSIDGQQTIIACIESHQFQPKNFWNGRWRSEWKFTITPPTAQVAAVLKIQVHYYEDGNVQLVSHKDIQDSVQVSSDVQTAKEFIKIIENAENEYQTAISENYQTMSDTTFKALRRQLPVTRTKIDWNKILSYKIGKEMQNA

Source Source

Source organism organism	Gallus gallus
Common name common_name	Chicken
NCBI taxonomy ID ncbi_taxonomy_id	9031
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	F-actin-capping protein subunit beta isoforms 1 and 2
Molecular weight formula_weight	27473.1 kDa
Mutation mutation	residues 244-277 deletion mutation
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSDQQLDCALDLMRRLPPQQIEKNLSDLIDLVPSLCEDLLSSVDQPLKIARDKVVGKDYLLCDYNRDGDSYRSPWSNKYDPPLEDGAMPSARLRKLEVEANNAFDQYRDLYFEGGVSSVYLWDLDHGFAGVILIKKAGDGSKKIKGCWDSIHVVEVQEKSSGRTAHYKLTSTVMLWLQTNKTGSGTMNLGGSLTRQMEKDETVSDSSPHIANIGRLVEDMENKIRSTLNEIYFGKTKDIVNGLR

Source Source

Source organism organism	Gallus gallus
Common name common_name	Chicken
NCBI taxonomy ID ncbi_taxonomy_id	9031
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	BARIUM ION
Molecular weight formula_weight	137.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	2-(N-MORPHOLINO)-ETHANESULFONIC ACID
Molecular weight formula_weight	195.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	281

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d3aa7a_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.43 — Subunits of heterodimeric actin filament capping protein Capz
Superfamily Superfamily superfamily	e.43.1 — Subunits of heterodimeric actin filament capping protein Capz
Family Family family	e.43.1.1 — Capz alpha-1 subunit

Domain ID domain_id	d3aa7b_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.43 — Subunits of heterodimeric actin filament capping protein Capz
Superfamily Superfamily superfamily	e.43.1 — Subunits of heterodimeric actin filament capping protein Capz
Family Family family	e.43.1.2 — Capz beta-1 subunit

CATH v4.4 (4 domains)

Domain ID domain_id	3aa7A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1140 — Ribosomal protein S3 C-terminal domain
Homologous superfamily homologous superfamily	60 — F-actin capping protein, alpha subunit

Domain ID domain_id	3aa7A02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	210 — F-actin capping protein, beta subunit

Domain ID domain_id	3aa7B01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	570 — F-actin capping protein, alpha/beta subunit, N-terminal domain

Domain ID domain_id	3aa7B02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	210 — F-actin capping protein, beta subunit

▶

Unit-cell length a length_a	53.913 Å
Unit-cell length b length_b	68.680 Å
Unit-cell length c length_c	130.086 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	49.805 Å
R factor r_factor	0.2114
R_work r_work	0.2087
R_free r_free	0.2607

Crystal structure of Actin capping protein
