3aa6

Crystal structure of Actin capping protein in complex with the Cp-binding motif derived from CD2AP

Method: X-RAY DIFFRACTION D_max: 93.8 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

F-actin-capping protein subunit alpha-1

Gallus gallus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 1–286	Not recorded	F-actin-capping protein subunit beta isoforms 1 and 2 × 1 （P14315） 23mer peptide from CD2-associated protein × 1 （Q9Y5K6） BA BARIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；10% PEG 400, 20MM BACL2, 100MM MES-NAOH, PH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.90 Å R-free 0.238

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3AA6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1IZN Crystal Structure of Actin Filament Capping Protein CapZ Deposited 2002-10-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–286（286 aa）	Not recorded	NO3 NITRATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；PEG3350, magnesium nitrate, MES-NAOH, Jeffamine M-600, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.10 Å R-free 0.262
1IZN Crystal Structure of Actin Filament Capping Protein CapZ Deposited 2002-10-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–286（286 aa）	Not recorded	NO3 NITRATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；PEG3350, magnesium nitrate, MES-NAOH, Jeffamine M-600, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.10 Å R-free 0.262
2KXP Solution NMR structure of V-1 bound to capping protein (CP) Deposited 2010-05-11	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 7–281（275 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；305 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 0.35 mM [U-100% 15N; U-99% 2H] capping protein alpha1 subunit, 0.35 mM [U-100% 15N; U-99% 2H] capping protein beta1 subunit, 0.35 mM [U-99% 2H] V-1, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.35 mM [U-99% 2H] capping protein alpha1 subunit, 0.35 mM [U-99% 2H] capping protein beta1 subunit, 0.35 mM [U-100% 15N; U-99% 2H] V-1, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.35 mM [U-100% 15N; U-99% 2H] capping protein alpha1 subunit, 0.35 mM [U-100% 15N; U-99% 2H] capping protein beta1 subunit, 0.35 mM [U-99% 2H] M7C V-1, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2KZ7 Solution structure of the CARMIL CAH3a/b domain bound to capping protein (CP) Deposited 2010-06-12	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；305 K；Ionic strength (raw mmCIF value) 100；Pressure ambient NMR sample composition 0.35 mM [U-99% 15N; U-80% 2H] CPalpha subunit, 0.35 mM [U-99% 15N; U-80% 2H] CPbeta subunit, 0.39 mM [U-2H] CARMIL CAH3a/b domain, 93% H2O/7% D2O \| 93% H2O/7% D2O NMR sample composition 0.35 mM [U-99% 15N; U-80% 2H] CARMIL CAH3a/b domain, 0.39 mM [U-2H] CPalpha subunit, 0.39 mM [U-2H] CPbeta subunit, 93% H2O/7% D2O \| 93% H2O/7% D2O NMR sample composition 0.35 mM [U-99% 15N; U-80% 2H] CPalpha subunit, 0.35 mM [U-99% 15N; U-80% 2H] CPbeta subunit, 0.39 mM [U-2H; spin labeled at 1 or 5 postions] CARMIL CAH3a/b domain, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided
3AA0 Crystal structure of Actin Capping Protein in complex with the Cp-binding motif derived from CARMIL Deposited 2009-11-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	CO3 CARBONATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；18% PEG 400, 40MM BACL2, 100MM MES-NAOH, PH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.70 Å R-free 0.239
3AA1 Crystal structure of Actin capping protein in complex with the Cp-binding motif derived from CKIP-1 Deposited 2009-11-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；17.5% PEG 400, 30MM BACL2, 100MM MES-NAOH, PH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.90 Å R-free 0.263
3AA7 Crystal structure of Actin capping protein Deposited 2009-11-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–286（286 aa）	Not recorded	BA BARIUM ION × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；12.5% PEG 400, 20MM BACL2, 100MM MES-NAOH, PH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.90 Å R-free 0.261
3AAA Crystal Structure of Actin capping protein in complex with V-1 Deposited 2009-11-12	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–286（286 aa）	Not recorded	IPA ISOPROPYL ALCOHOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.35；293 K；10% PEG 4000, 20% ISOPROPANOL, 20MM EDTA, 0.1M TRIS-HCL, pH 8.35, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.20 Å R-free 0.237
3AAE Crystal structure of Actin capping protein in complex with CARMIL fragment Deposited 2009-11-16	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；14% PEG 3350, 180MM TRI-AMMONIUM CITRATE, 100MM MES-NAOH, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.271
3AAE Crystal structure of Actin capping protein in complex with CARMIL fragment Deposited 2009-11-16	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；14% PEG 3350, 180MM TRI-AMMONIUM CITRATE, 100MM MES-NAOH, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.271
3AAE Crystal structure of Actin capping protein in complex with CARMIL fragment Deposited 2009-11-16	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；14% PEG 3350, 180MM TRI-AMMONIUM CITRATE, 100MM MES-NAOH, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.271
3AAE Crystal structure of Actin capping protein in complex with CARMIL fragment Deposited 2009-11-16	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；14% PEG 3350, 180MM TRI-AMMONIUM CITRATE, 100MM MES-NAOH, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.271
3AAE Crystal structure of Actin capping protein in complex with CARMIL fragment Deposited 2009-11-16	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；14% PEG 3350, 180MM TRI-AMMONIUM CITRATE, 100MM MES-NAOH, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.271
3LK2 Crystal structure of CapZ bound to the uncapping motif from CARMIL Deposited 2010-01-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；10% w/v PEG 20000, 100mM MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.20 Å R-free 0.268
3LK3 Crystal structure of CapZ bound to the CPI and CSI uncapping motifs from CARMIL Deposited 2010-01-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；0.2M KCl, 20% (w/v) PEG 3350 , pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.68 Å R-free 0.248
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 10 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain 1 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 11 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain 4 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 12 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain 7 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain J 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain M 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain P 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain S 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain V 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 9 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Y 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
7DS2 Crystal structure of actin capping protein in complex with twinflin-1 C-terminus tail Deposited 2020-12-30	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；22.5% (w/v) PEG 400, 0.1M HEPES-NaOH (pH = 7.0)	Resolution 1.95 Å R-free 0.183
7DS3 Crystal structure of actin capping protein in complex with twinflin-2 C-terminus tail Deposited 2020-12-30	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；5% (w/v) PEG 3350, 50mM Tris-HCl (pH = 7.0)	Resolution 2.09 Å R-free 0.251
7DS4 Crystal structure of actin capping protein in complex with twinflin-1 C-terminus tail F323K mutant Deposited 2020-12-30	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；5% (w/v) PEG 3350, 5% (v/v) ethanol, 50mM Tris-HCl (pH = 7.0)	Resolution 1.85 Å R-free 0.259
7DS6 Crystal structure of actin capping protein in complex with twinflin-1/CD2AP CPI chimera peptide (TWN-CDC) Deposited 2020-12-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；5% (w/v) PEG 3350, 5% (v/v) ethanol, 50mM Tris-HCl (pH = 7.0)	Resolution 1.69 Å R-free 0.253
7DS8 Crystal structure of actin capping protein in complex with twinflin-1/CD2AP CPI chimera peptide (CDN-TWC) Deposited 2020-12-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；4% (w/v) PEG 3350, 50mM Tris-HCl (pH = 7.0)	Resolution 1.95 Å R-free 0.233
7DSA Crystal structure of actin capping protein in complex with V-1 (space group P62) Deposited 2020-12-30	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20% (w/v) PEG 3350, 0.2M Magnesium Acetate	Resolution 2.80 Å R-free 0.254
7DSB Crystal structure of actin capping protein in complex with V-1 and twinfilin C-terminal tail Deposited 2020-12-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；10% (w/v) PEG 3350, 5% (v/v) isopropanol, 0.1M HEPES-NaOH (pH = 7.5)	Resolution 2.44 Å R-free 0.248
9BLI Crystal structure of Actin capping protein in complex with a fragment of Legionella pneumophila RavB Deposited 2024-04-30	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	FMT FORMIC ACID × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；10 mM Tris pH 8.0, 0.2 M ammonium formate, 0.15 M NaCl, 21% w/v PEG 3350, 30% ethylene glycol	Resolution 2.00 Å R-free 0.208

19 other PDB entries and 35 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CAZA1_CHICK
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–286； UniProt 1–286

F-actin-capping protein subunit beta isoforms 1 and 2

Gallus gallus

UniProt P14315

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 1–244	Mutation：residues 244-277 deletion mutation	F-actin-capping protein subunit alpha-1 × 1 （P13127） 23mer peptide from CD2-associated protein × 1 （Q9Y5K6） BA BARIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；10% PEG 400, 20MM BACL2, 100MM MES-NAOH, PH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.90 Å R-free 0.238

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 3AA6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1IZN Crystal Structure of Actin Filament Capping Protein CapZ Deposited 2002-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–277（277 aa）	Not recorded	NO3 NITRATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；PEG3350, magnesium nitrate, MES-NAOH, Jeffamine M-600, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.10 Å R-free 0.262
1IZN Crystal Structure of Actin Filament Capping Protein CapZ Deposited 2002-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–277（277 aa）	Not recorded	NO3 NITRATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；PEG3350, magnesium nitrate, MES-NAOH, Jeffamine M-600, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.10 Å R-free 0.262
2KXP Solution NMR structure of V-1 bound to capping protein (CP) Deposited 2010-05-11	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 2–271（270 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；305 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 0.35 mM [U-100% 15N; U-99% 2H] capping protein alpha1 subunit, 0.35 mM [U-100% 15N; U-99% 2H] capping protein beta1 subunit, 0.35 mM [U-99% 2H] V-1, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.35 mM [U-99% 2H] capping protein alpha1 subunit, 0.35 mM [U-99% 2H] capping protein beta1 subunit, 0.35 mM [U-100% 15N; U-99% 2H] V-1, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.35 mM [U-100% 15N; U-99% 2H] capping protein alpha1 subunit, 0.35 mM [U-100% 15N; U-99% 2H] capping protein beta1 subunit, 0.35 mM [U-99% 2H] M7C V-1, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2KZ7 Solution structure of the CARMIL CAH3a/b domain bound to capping protein (CP) Deposited 2010-06-12	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–277（277 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；305 K；Ionic strength (raw mmCIF value) 100；Pressure ambient NMR sample composition 0.35 mM [U-99% 15N; U-80% 2H] CPalpha subunit, 0.35 mM [U-99% 15N; U-80% 2H] CPbeta subunit, 0.39 mM [U-2H] CARMIL CAH3a/b domain, 93% H2O/7% D2O \| 93% H2O/7% D2O NMR sample composition 0.35 mM [U-99% 15N; U-80% 2H] CARMIL CAH3a/b domain, 0.39 mM [U-2H] CPalpha subunit, 0.39 mM [U-2H] CPbeta subunit, 93% H2O/7% D2O \| 93% H2O/7% D2O NMR sample composition 0.35 mM [U-99% 15N; U-80% 2H] CPalpha subunit, 0.35 mM [U-99% 15N; U-80% 2H] CPbeta subunit, 0.39 mM [U-2H; spin labeled at 1 or 5 postions] CARMIL CAH3a/b domain, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided
3AA0 Crystal structure of Actin Capping Protein in complex with the Cp-binding motif derived from CARMIL Deposited 2009-11-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–244（244 aa）	Mutation：residues 244-277 deletion mutation	CO3 CARBONATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；18% PEG 400, 40MM BACL2, 100MM MES-NAOH, PH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.70 Å R-free 0.239
3AA1 Crystal structure of Actin capping protein in complex with the Cp-binding motif derived from CKIP-1 Deposited 2009-11-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–244（244 aa）	Mutation：residues 244-277 deletion mutation	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；17.5% PEG 400, 30MM BACL2, 100MM MES-NAOH, PH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.90 Å R-free 0.263
3AA7 Crystal structure of Actin capping protein Deposited 2009-11-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–244（244 aa）	Mutation：residues 244-277 deletion mutation	BA BARIUM ION × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；12.5% PEG 400, 20MM BACL2, 100MM MES-NAOH, PH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.90 Å R-free 0.261
3AAA Crystal Structure of Actin capping protein in complex with V-1 Deposited 2009-11-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–277（277 aa）	Not recorded	IPA ISOPROPYL ALCOHOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.35；293 K；10% PEG 4000, 20% ISOPROPANOL, 20MM EDTA, 0.1M TRIS-HCL, pH 8.35, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.20 Å R-free 0.237
3AAE Crystal structure of Actin capping protein in complex with CARMIL fragment Deposited 2009-11-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；14% PEG 3350, 180MM TRI-AMMONIUM CITRATE, 100MM MES-NAOH, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.271
3AAE Crystal structure of Actin capping protein in complex with CARMIL fragment Deposited 2009-11-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；14% PEG 3350, 180MM TRI-AMMONIUM CITRATE, 100MM MES-NAOH, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.271
3AAE Crystal structure of Actin capping protein in complex with CARMIL fragment Deposited 2009-11-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；14% PEG 3350, 180MM TRI-AMMONIUM CITRATE, 100MM MES-NAOH, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.271
3AAE Crystal structure of Actin capping protein in complex with CARMIL fragment Deposited 2009-11-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；14% PEG 3350, 180MM TRI-AMMONIUM CITRATE, 100MM MES-NAOH, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.271
3AAE Crystal structure of Actin capping protein in complex with CARMIL fragment Deposited 2009-11-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain J 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；14% PEG 3350, 180MM TRI-AMMONIUM CITRATE, 100MM MES-NAOH, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.271
3LK2 Crystal structure of CapZ bound to the uncapping motif from CARMIL Deposited 2010-01-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–243（243 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；10% w/v PEG 20000, 100mM MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.20 Å R-free 0.268
3LK3 Crystal structure of CapZ bound to the CPI and CSI uncapping motifs from CARMIL Deposited 2010-01-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；0.2M KCl, 20% (w/v) PEG 3350 , pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.68 Å R-free 0.248
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 10 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain 2 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 11 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain 5 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 12 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain 8 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain K 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain N 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Q 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain T 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain W 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 9 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Z 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
7DS2 Crystal structure of actin capping protein in complex with twinflin-1 C-terminus tail Deposited 2020-12-30	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–244（244 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；22.5% (w/v) PEG 400, 0.1M HEPES-NaOH (pH = 7.0)	Resolution 1.95 Å R-free 0.183
7DS3 Crystal structure of actin capping protein in complex with twinflin-2 C-terminus tail Deposited 2020-12-30	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–244（244 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；5% (w/v) PEG 3350, 50mM Tris-HCl (pH = 7.0)	Resolution 2.09 Å R-free 0.251
7DS4 Crystal structure of actin capping protein in complex with twinflin-1 C-terminus tail F323K mutant Deposited 2020-12-30	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–244（244 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；5% (w/v) PEG 3350, 5% (v/v) ethanol, 50mM Tris-HCl (pH = 7.0)	Resolution 1.85 Å R-free 0.259
7DS6 Crystal structure of actin capping protein in complex with twinflin-1/CD2AP CPI chimera peptide (TWN-CDC) Deposited 2020-12-30	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–244（244 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；5% (w/v) PEG 3350, 5% (v/v) ethanol, 50mM Tris-HCl (pH = 7.0)	Resolution 1.69 Å R-free 0.253
7DS8 Crystal structure of actin capping protein in complex with twinflin-1/CD2AP CPI chimera peptide (CDN-TWC) Deposited 2020-12-30	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–244（244 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；4% (w/v) PEG 3350, 50mM Tris-HCl (pH = 7.0)	Resolution 1.95 Å R-free 0.233
7DSA Crystal structure of actin capping protein in complex with V-1 (space group P62) Deposited 2020-12-30	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–244（244 aa）	Not recorded	MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20% (w/v) PEG 3350, 0.2M Magnesium Acetate	Resolution 2.80 Å R-free 0.254
7DSB Crystal structure of actin capping protein in complex with V-1 and twinfilin C-terminal tail Deposited 2020-12-30	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–244（244 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；10% (w/v) PEG 3350, 5% (v/v) isopropanol, 0.1M HEPES-NaOH (pH = 7.5)	Resolution 2.44 Å R-free 0.248
9BLI Crystal structure of Actin capping protein in complex with a fragment of Legionella pneumophila RavB Deposited 2024-04-30	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–244（244 aa）	Not recorded	FMT FORMIC ACID × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；10 mM Tris pH 8.0, 0.2 M ammonium formate, 0.15 M NaCl, 21% w/v PEG 3350, 30% ethylene glycol	Resolution 2.00 Å R-free 0.208

19 other PDB entries and 35 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CAPZB_CHICK
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–244； UniProt 1–244

23mer peptide from CD2-associated protein

OrganismNot specified

UniProt Q9Y5K6

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 485–507	Fragment：recidues 485-507	F-actin-capping protein subunit alpha-1 × 1 （P13127） F-actin-capping protein subunit beta isoforms 1 and 2 × 1 （P14315） BA BARIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；10% PEG 400, 20MM BACL2, 100MM MES-NAOH, PH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.90 Å R-free 0.238

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 3AA6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2FEI Solution structure of the second SH3 domain of Human CMS protein Deposited 2005-12-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 111–166（56 aa） Fragment：The second SH3 domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.85；295 K；Pressure 1 NMR sample composition 1.0-2.0mM 15N, 13C-labeled CMS SH3 domain, 20mM phosphate buffer (pH 6.85), 50mM sodium chloride, 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 1.0-2.0mM 15N, 13C-labeled CMS SH3 domain, 20mM phosphate buffer (pH 6.85), 50mM sodium chloride, 100% D2O \| 100% D2O	Resolution not provided
2J6F N-TERMINAL SH3 DOMAIN OF CMS (CD2AP HUMAN HOMOLOG) BOUND TO CBL-B PEPTIDE Deposited 2006-09-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–62（62 aa） Fragment：SH3, RESIDUES 1-62	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；20% PEG3000, 0.1M ACETATE PH 5.5	Resolution 1.70 Å R-free 0.218
2J6K N-TERMINAL SH3 DOMAIN OF CMS (CD2AP HUMAN HOMOLOG) Deposited 2006-09-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–62（62 aa） Fragment：SH3, RESIDUES 1-62	Not recorded	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.1；0.1 M SODIUM CITRATE PH 6.1, 25% PEG 4000, 20% ISOPROPANOL	Resolution 2.77 Å R-free 0.274
2J6K N-TERMINAL SH3 DOMAIN OF CMS (CD2AP HUMAN HOMOLOG) Deposited 2006-09-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 10 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain J 1–62（62 aa） Fragment：SH3, RESIDUES 1-62	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.1；0.1 M SODIUM CITRATE PH 6.1, 25% PEG 4000, 20% ISOPROPANOL	Resolution 2.77 Å R-free 0.274
2J6K N-TERMINAL SH3 DOMAIN OF CMS (CD2AP HUMAN HOMOLOG) Deposited 2006-09-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 11 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain K 1–62（62 aa） Fragment：SH3, RESIDUES 1-62	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.1；0.1 M SODIUM CITRATE PH 6.1, 25% PEG 4000, 20% ISOPROPANOL	Resolution 2.77 Å R-free 0.274
2J6K N-TERMINAL SH3 DOMAIN OF CMS (CD2AP HUMAN HOMOLOG) Deposited 2006-09-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 12 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain L 1–62（62 aa） Fragment：SH3, RESIDUES 1-62	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.1；0.1 M SODIUM CITRATE PH 6.1, 25% PEG 4000, 20% ISOPROPANOL	Resolution 2.77 Å R-free 0.274
2J6K N-TERMINAL SH3 DOMAIN OF CMS (CD2AP HUMAN HOMOLOG) Deposited 2006-09-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–62（62 aa） Fragment：SH3, RESIDUES 1-62	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.1；0.1 M SODIUM CITRATE PH 6.1, 25% PEG 4000, 20% ISOPROPANOL	Resolution 2.77 Å R-free 0.274
2J6K N-TERMINAL SH3 DOMAIN OF CMS (CD2AP HUMAN HOMOLOG) Deposited 2006-09-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–62（62 aa） Fragment：SH3, RESIDUES 1-62	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.1；0.1 M SODIUM CITRATE PH 6.1, 25% PEG 4000, 20% ISOPROPANOL	Resolution 2.77 Å R-free 0.274
2J6K N-TERMINAL SH3 DOMAIN OF CMS (CD2AP HUMAN HOMOLOG) Deposited 2006-09-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–62（62 aa） Fragment：SH3, RESIDUES 1-62	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.1；0.1 M SODIUM CITRATE PH 6.1, 25% PEG 4000, 20% ISOPROPANOL	Resolution 2.77 Å R-free 0.274
2J6K N-TERMINAL SH3 DOMAIN OF CMS (CD2AP HUMAN HOMOLOG) Deposited 2006-09-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 1–62（62 aa） Fragment：SH3, RESIDUES 1-62	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.1；0.1 M SODIUM CITRATE PH 6.1, 25% PEG 4000, 20% ISOPROPANOL	Resolution 2.77 Å R-free 0.274
2J6K N-TERMINAL SH3 DOMAIN OF CMS (CD2AP HUMAN HOMOLOG) Deposited 2006-09-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 1–62（62 aa） Fragment：SH3, RESIDUES 1-62	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.1；0.1 M SODIUM CITRATE PH 6.1, 25% PEG 4000, 20% ISOPROPANOL	Resolution 2.77 Å R-free 0.274
2J6K N-TERMINAL SH3 DOMAIN OF CMS (CD2AP HUMAN HOMOLOG) Deposited 2006-09-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain G 1–62（62 aa） Fragment：SH3, RESIDUES 1-62	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.1；0.1 M SODIUM CITRATE PH 6.1, 25% PEG 4000, 20% ISOPROPANOL	Resolution 2.77 Å R-free 0.274
2J6K N-TERMINAL SH3 DOMAIN OF CMS (CD2AP HUMAN HOMOLOG) Deposited 2006-09-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain H 1–62（62 aa） Fragment：SH3, RESIDUES 1-62	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.1；0.1 M SODIUM CITRATE PH 6.1, 25% PEG 4000, 20% ISOPROPANOL	Resolution 2.77 Å R-free 0.274
2J6K N-TERMINAL SH3 DOMAIN OF CMS (CD2AP HUMAN HOMOLOG) Deposited 2006-09-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 9 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain I 1–62（62 aa） Fragment：SH3, RESIDUES 1-62	Not recorded	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.1；0.1 M SODIUM CITRATE PH 6.1, 25% PEG 4000, 20% ISOPROPANOL	Resolution 2.77 Å R-free 0.274
2J6O ATYPICAL POLYPROLINE RECOGNITION BY THE CMS N-TERMINAL SH3 DOMAIN. CMS:CD2 HETEROTRIMER Deposited 2006-10-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–62（62 aa） Fragment：SH3 DOMAIN, RESIDUES 1-62	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；20% PEG3000, 0.1M ACETATE PH 5.5	Resolution 2.23 Å R-free 0.286
2J7I ATYPICAL POLYPROLINE RECOGNITION BY THE CMS N-TERMINAL SH3 DOMAIN. CMS:CD2 HETERODIMER Deposited 2006-10-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–62（62 aa） Fragment：SH3 DOMAIN, RESIDUES 1-62	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；30% PEG8000, 0.2M NACL, 0.1M TRIS-HCL PH 8.0	Resolution 2.90 Å R-free 0.295
2J7I ATYPICAL POLYPROLINE RECOGNITION BY THE CMS N-TERMINAL SH3 DOMAIN. CMS:CD2 HETERODIMER Deposited 2006-10-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–62（62 aa） Fragment：SH3 DOMAIN, RESIDUES 1-62	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；30% PEG8000, 0.2M NACL, 0.1M TRIS-HCL PH 8.0	Resolution 2.90 Å R-free 0.295
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 475–503（29 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 10 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain 3 475–503（29 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 11 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain 6 475–503（29 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 12 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain 9 475–503（29 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 475–503（29 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 475–503（29 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 475–503（29 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain O 475–503（29 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain R 475–503（29 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain U 475–503（29 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain X 475–503（29 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 9 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain 0 475–503（29 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3U23 Atomic resolution crystal structure of the 2nd SH3 domain from human CD2AP (CMS) in complex with a proline-rich peptide from human RIN3 Deposited 2011-09-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 109–168（60 aa） Fragment：unp residues 109-168	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；0.1 M HEPES pH 7.5, 1.4 M tri-sodium citrate dihydrate, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.11 Å R-free 0.167
4WCI Crystal structure of the 1st SH3 domain from human CD2AP (CMS) in complex with a proline-rich peptide (aa 378-393) from human RIN3 Deposited 2014-09-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–60（60 aa） Fragment：UNP residues 1-60	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M Ca(ac) pH 4.2, 0.2 M Li2SO4 and 25% PEG 10 000	Resolution 1.65 Å R-free 0.219
4WCI Crystal structure of the 1st SH3 domain from human CD2AP (CMS) in complex with a proline-rich peptide (aa 378-393) from human RIN3 Deposited 2014-09-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–60（60 aa） Fragment：UNP residues 1-60	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M Ca(ac) pH 4.2, 0.2 M Li2SO4 and 25% PEG 10 000	Resolution 1.65 Å R-free 0.219
4WCI Crystal structure of the 1st SH3 domain from human CD2AP (CMS) in complex with a proline-rich peptide (aa 378-393) from human RIN3 Deposited 2014-09-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1–60（60 aa） Fragment：UNP residues 1-60	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M Ca(ac) pH 4.2, 0.2 M Li2SO4 and 25% PEG 10 000	Resolution 1.65 Å R-free 0.219
4X1V Crystal structure of the 2nd SH3 domain from human CD2AP (CMS) in complex with a proline-rich peptide (aa 76-91) from human ARAP1 Deposited 2014-11-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 109–168（60 aa） Fragment：UNP residues 109-168	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；0.1 M HEPES pH 7.5, 1.4 M tri-sodium citrate dehydrate	Resolution 1.58 Å R-free 0.200
7DS6 Crystal structure of actin capping protein in complex with twinflin-1/CD2AP CPI chimera peptide (TWN-CDC) Deposited 2020-12-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 496–507（12 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；5% (w/v) PEG 3350, 5% (v/v) ethanol, 50mM Tris-HCl (pH = 7.0)	Resolution 1.69 Å R-free 0.253
7DS8 Crystal structure of actin capping protein in complex with twinflin-1/CD2AP CPI chimera peptide (CDN-TWC) Deposited 2020-12-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 485–493（9 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；4% (w/v) PEG 3350, 50mM Tris-HCl (pH = 7.0)	Resolution 1.95 Å R-free 0.233

11 other PDB entries and 36 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CD2AP_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–23； UniProt 485–507

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3aa6
Deposition date deposition_date	2009-11-11
Structure title title	Crystal structure of Actin capping protein in complex with the Cp-binding motif derived from CD2AP
Keywords keywords	;ACTIN CAPPING PROTEIN, BARBED END REGULATION, CARMIL FAMILY PROTEIN, CONFORMATIONAL CHANGE, CELL MOTILITY, CD2AP, Actin capping, Actin-binding, Cytoskeleton, Cell cycle, Cell division, Cell projection, Mitosis, SH3 domain, SH3-binding, PROTEIN BINDING ;; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.85 Å
Radius of gyration Rg (electron density) rg_electron	27.09 Å
Forward intensity I(0) i0	63635000.00
Molecular weight molecular_weight	61036.0 kDa
Excluded volume excluded_volume	75774 Å³
Envelope volume envelope_volume	92252 Å³
Hydration-shell volume shell_volume	29130 Å³
Envelope diameter envelope_diameter	97.1 Å
Shell Rg shell_rg	33.74 Å
Envelope Rg envelope_rg	27.37 Å
Shape Rg shape_rg	27.09 Å
Total Rg total_rg	27.78 Å
Total atoms total_atoms	4291
Residues n_residues	535
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

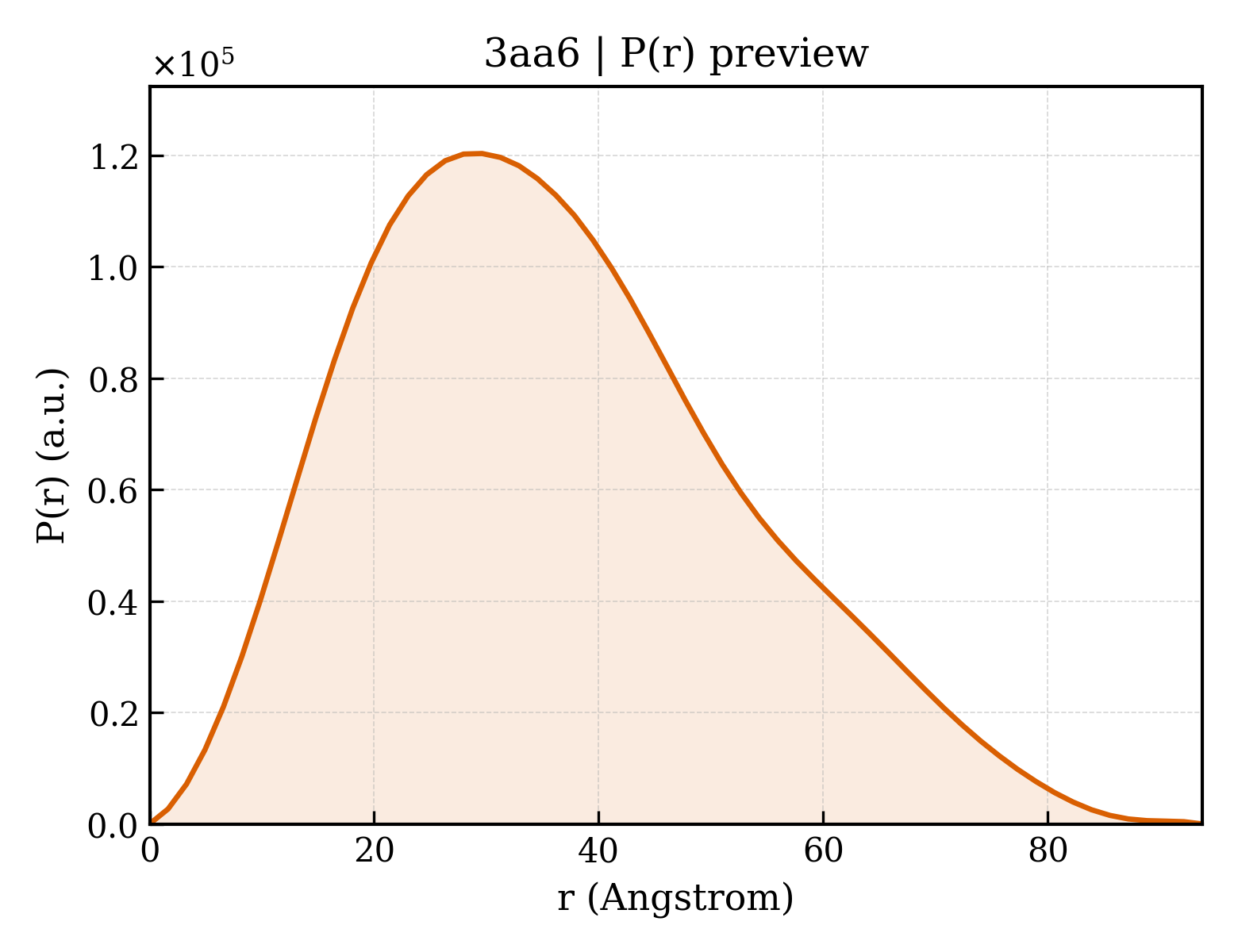

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	93.8 Å
Rg (real space) rg_real	27.98 Å
Rg uncertainty (real space) rg_real_error	0.63 Å
I(0) (real space) i0_real	6.3630e+07
I(0) uncertainty (real space) i0_real_error	1.0100e+06
Rg (reciprocal space) rg_reciprocal	27.94 Å
I(0) (reciprocal space) i0_reciprocal	63630000.0000
Solution quality estimate total_estimate	0.8746
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	29.6 Å
Skewness Skewness skewness	0.461
Kurtosis Kurtosis kurtosis	-0.310
Angular range angular_range	— – 0.2850 Å⁻¹
Current regularization parameter α current_alpha	0.0001
Highest regularization parameter α highest_alpha	23270000.0000
Real-space data points n_real_points	58
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.826; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.929; Smooth: 0.958

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	F-actin-capping protein subunit alpha-1
Molecular weight formula_weight	33001.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4829

MADFEDRVSDEEKVRIAAKFITHAPPGEFNEVFNDVRLLLNNDNLLREGAAHAFAQYNMDQFTPVKIEGYDDQVLITEHGDLGNGRFLDPRNKISFKFDHLRKEASDPQPEDTESALKQWRDACDSALRAYVKDHYPNGFCTVYGKSIDGQQTIIACIESHQFQPKNFWNGRWRSEWKFTITPPTAQVAAVLKIQVHYYEDGNVQLVSHKDIQDSVQVSSDVQTAKEFIKIIENAENEYQTAISENYQTMSDTTFKALRRQLPVTRTKIDWNKILSYKIGKEMQNA

来源 Source

来源生物 organism	Gallus gallus
通用名 common_name	Chicken
NCBI Class编号 ncbi_taxonomy_id	9031
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	F-actin-capping protein subunit beta isoforms 1 and 2
Molecular weight formula_weight	27473.1 kDa
Mutation mutation	residues 244-277 deletion mutation
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSDQQLDCALDLMRRLPPQQIEKNLSDLIDLVPSLCEDLLSSVDQPLKIARDKVVGKDYLLCDYNRDGDSYRSPWSNKYDPPLEDGAMPSARLRKLEVEANNAFDQYRDLYFEGGVSSVYLWDLDHGFAGVILIKKAGDGSKKIKGCWDSIHVVEVQEKSSGRTAHYKLTSTVMLWLQTNKTGSGTMNLGGSLTRQMEKDETVSDSSPHIANIGRLVEDMENKIRSTLNEIYFGKTKDIVNGLR

来源 Source

来源生物 organism	Gallus gallus
通用名 common_name	Chicken
NCBI Class编号 ncbi_taxonomy_id	9031
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	23mer peptide from CD2-associated protein
Molecular weight formula_weight	2622.1 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

NLLHLTANRPKMPGRRLPGRFNG

Entity 4 Entity 4 non-polymer

Description description	BARIUM ION
Molecular weight formula_weight	137.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	411

▼

7. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d3aa6a_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.43 — Subunits of heterodimeric actin filament capping protein Capz
Superfamily Superfamily superfamily	e.43.1 — Subunits of heterodimeric actin filament capping protein Capz
Family Family family	e.43.1.1 — Capz alpha-1 subunit

CATH v4.4 (4 domains)

Domain ID domain_id	3aa6A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1140 — Ribosomal protein S3 C-terminal domain
Homologous superfamily homologous superfamily	60 — F-actin capping protein, alpha subunit

Domain ID domain_id	3aa6A02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	210 — F-actin capping protein, beta subunit

Domain ID domain_id	3aa6B01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	570 — F-actin capping protein, alpha/beta subunit, N-terminal domain

Domain ID domain_id	3aa6B02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	210 — F-actin capping protein, beta subunit

▶

8. Citations (1)

▶

Unit-cell length a length_a	59.119 Å
Unit-cell length b length_b	63.871 Å
Unit-cell length c length_c	141.089 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	45.311 Å
R factor r_factor	0.1865
R_work r_work	0.1837
R_free r_free	0.2380

fit	/app/data/saxs_computation/aa/3aa6/3aa6.fit
pddf	/app/data/pr_computation/aa/3aa6/3aa6.pr.out
profile	/app/data/saxs_computation/aa/3aa6/3aa6.dat

Crystal structure of Actin capping protein in complex with the Cp-binding motif derived from CD2AP

1. Protein Identity and Related Structures Protein Identity & Related Structures

F-actin-capping protein subunit alpha-1

State in the Current Structure

Other States of the Same Protein in the Database

F-actin-capping protein subunit beta isoforms 1 and 2

State in the Current Structure

Other States of the Same Protein in the Database

23mer peptide from CD2-associated protein

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

7. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (1 domains)

CATH v4.4 (4 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
