7ds2

Crystal structure of actin capping protein in complex with twinflin-1 C-terminus tail

Method: X-RAY DIFFRACTION D_max: 92.6 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

F-actin-capping protein subunit alpha-1

Gallus gallus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 1–286	Not recorded	F-actin-capping protein subunit beta isoforms 1 × 1 （P14315） Twinfilin-1 × 1 （Q91YR1）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；22.5% (w/v) PEG 400, 0.1M HEPES-NaOH (pH = 7.0)	Resolution 1.95 Å R-free 0.183

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7DS2	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1IZN Crystal Structure of Actin Filament Capping Protein CapZ Deposited 2002-10-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–286（286 aa）	Not recorded	NO3 NITRATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；PEG3350, magnesium nitrate, MES-NAOH, Jeffamine M-600, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.10 Å R-free 0.262
1IZN Crystal Structure of Actin Filament Capping Protein CapZ Deposited 2002-10-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–286（286 aa）	Not recorded	NO3 NITRATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；PEG3350, magnesium nitrate, MES-NAOH, Jeffamine M-600, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.10 Å R-free 0.262
2KXP Solution NMR structure of V-1 bound to capping protein (CP) Deposited 2010-05-11	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 7–281（275 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；305 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 0.35 mM [U-100% 15N; U-99% 2H] capping protein alpha1 subunit, 0.35 mM [U-100% 15N; U-99% 2H] capping protein beta1 subunit, 0.35 mM [U-99% 2H] V-1, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.35 mM [U-99% 2H] capping protein alpha1 subunit, 0.35 mM [U-99% 2H] capping protein beta1 subunit, 0.35 mM [U-100% 15N; U-99% 2H] V-1, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.35 mM [U-100% 15N; U-99% 2H] capping protein alpha1 subunit, 0.35 mM [U-100% 15N; U-99% 2H] capping protein beta1 subunit, 0.35 mM [U-99% 2H] M7C V-1, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2KZ7 Solution structure of the CARMIL CAH3a/b domain bound to capping protein (CP) Deposited 2010-06-12	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；305 K；Ionic strength (raw mmCIF value) 100；Pressure ambient NMR sample composition 0.35 mM [U-99% 15N; U-80% 2H] CPalpha subunit, 0.35 mM [U-99% 15N; U-80% 2H] CPbeta subunit, 0.39 mM [U-2H] CARMIL CAH3a/b domain, 93% H2O/7% D2O \| 93% H2O/7% D2O NMR sample composition 0.35 mM [U-99% 15N; U-80% 2H] CARMIL CAH3a/b domain, 0.39 mM [U-2H] CPalpha subunit, 0.39 mM [U-2H] CPbeta subunit, 93% H2O/7% D2O \| 93% H2O/7% D2O NMR sample composition 0.35 mM [U-99% 15N; U-80% 2H] CPalpha subunit, 0.35 mM [U-99% 15N; U-80% 2H] CPbeta subunit, 0.39 mM [U-2H; spin labeled at 1 or 5 postions] CARMIL CAH3a/b domain, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided
3AA0 Crystal structure of Actin Capping Protein in complex with the Cp-binding motif derived from CARMIL Deposited 2009-11-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	CO3 CARBONATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；18% PEG 400, 40MM BACL2, 100MM MES-NAOH, PH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.70 Å R-free 0.239
3AA1 Crystal structure of Actin capping protein in complex with the Cp-binding motif derived from CKIP-1 Deposited 2009-11-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；17.5% PEG 400, 30MM BACL2, 100MM MES-NAOH, PH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.90 Å R-free 0.263
3AA6 Crystal structure of Actin capping protein in complex with the Cp-binding motif derived from CD2AP Deposited 2009-11-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	BA BARIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；10% PEG 400, 20MM BACL2, 100MM MES-NAOH, PH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.90 Å R-free 0.238
3AA7 Crystal structure of Actin capping protein Deposited 2009-11-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–286（286 aa）	Not recorded	BA BARIUM ION × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；12.5% PEG 400, 20MM BACL2, 100MM MES-NAOH, PH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.90 Å R-free 0.261
3AAA Crystal Structure of Actin capping protein in complex with V-1 Deposited 2009-11-12	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–286（286 aa）	Not recorded	IPA ISOPROPYL ALCOHOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.35；293 K；10% PEG 4000, 20% ISOPROPANOL, 20MM EDTA, 0.1M TRIS-HCL, pH 8.35, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.20 Å R-free 0.237
3AAE Crystal structure of Actin capping protein in complex with CARMIL fragment Deposited 2009-11-16	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；14% PEG 3350, 180MM TRI-AMMONIUM CITRATE, 100MM MES-NAOH, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.271
3AAE Crystal structure of Actin capping protein in complex with CARMIL fragment Deposited 2009-11-16	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；14% PEG 3350, 180MM TRI-AMMONIUM CITRATE, 100MM MES-NAOH, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.271
3AAE Crystal structure of Actin capping protein in complex with CARMIL fragment Deposited 2009-11-16	Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；14% PEG 3350, 180MM TRI-AMMONIUM CITRATE, 100MM MES-NAOH, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.271
3AAE Crystal structure of Actin capping protein in complex with CARMIL fragment Deposited 2009-11-16	Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；14% PEG 3350, 180MM TRI-AMMONIUM CITRATE, 100MM MES-NAOH, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.271
3AAE Crystal structure of Actin capping protein in complex with CARMIL fragment Deposited 2009-11-16	Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；14% PEG 3350, 180MM TRI-AMMONIUM CITRATE, 100MM MES-NAOH, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.271
3LK2 Crystal structure of CapZ bound to the uncapping motif from CARMIL Deposited 2010-01-27	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；10% w/v PEG 20000, 100mM MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.20 Å R-free 0.268
3LK3 Crystal structure of CapZ bound to the CPI and CSI uncapping motifs from CARMIL Deposited 2010-01-27	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；0.2M KCl, 20% (w/v) PEG 3350 , pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.68 Å R-free 0.248
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different experimental conditions Different structure-quality metrics	Assembly 10 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain 1 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different experimental conditions Different structure-quality metrics	Assembly 11 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain 4 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different experimental conditions Different structure-quality metrics	Assembly 12 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain 7 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain J 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain M 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain P 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain S 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain V 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different experimental conditions Different structure-quality metrics	Assembly 9 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Y 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
7DS3 Crystal structure of actin capping protein in complex with twinflin-2 C-terminus tail Deposited 2020-12-30	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；5% (w/v) PEG 3350, 50mM Tris-HCl (pH = 7.0)	Resolution 2.09 Å R-free 0.251
7DS4 Crystal structure of actin capping protein in complex with twinflin-1 C-terminus tail F323K mutant Deposited 2020-12-30	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；5% (w/v) PEG 3350, 5% (v/v) ethanol, 50mM Tris-HCl (pH = 7.0)	Resolution 1.85 Å R-free 0.259
7DS6 Crystal structure of actin capping protein in complex with twinflin-1/CD2AP CPI chimera peptide (TWN-CDC) Deposited 2020-12-30	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；5% (w/v) PEG 3350, 5% (v/v) ethanol, 50mM Tris-HCl (pH = 7.0)	Resolution 1.69 Å R-free 0.253
7DS8 Crystal structure of actin capping protein in complex with twinflin-1/CD2AP CPI chimera peptide (CDN-TWC) Deposited 2020-12-30	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；4% (w/v) PEG 3350, 50mM Tris-HCl (pH = 7.0)	Resolution 1.95 Å R-free 0.233
7DSA Crystal structure of actin capping protein in complex with V-1 (space group P62) Deposited 2020-12-30	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20% (w/v) PEG 3350, 0.2M Magnesium Acetate	Resolution 2.80 Å R-free 0.254
7DSB Crystal structure of actin capping protein in complex with V-1 and twinfilin C-terminal tail Deposited 2020-12-30	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–286（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；10% (w/v) PEG 3350, 5% (v/v) isopropanol, 0.1M HEPES-NaOH (pH = 7.5)	Resolution 2.44 Å R-free 0.248
9BLI Crystal structure of Actin capping protein in complex with a fragment of Legionella pneumophila RavB Deposited 2024-04-30	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–286（286 aa）	Not recorded	FMT FORMIC ACID × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；10 mM Tris pH 8.0, 0.2 M ammonium formate, 0.15 M NaCl, 21% w/v PEG 3350, 30% ethylene glycol	Resolution 2.00 Å R-free 0.208

19 other PDB entries and 35 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CAZA1_CHICK
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–286； UniProt 1–286

F-actin-capping protein subunit beta isoforms 1

Gallus gallus

UniProt P14315

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 1–244	Not recorded	F-actin-capping protein subunit alpha-1 × 1 （P13127） Twinfilin-1 × 1 （Q91YR1）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；22.5% (w/v) PEG 400, 0.1M HEPES-NaOH (pH = 7.0)	Resolution 1.95 Å R-free 0.183

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 7DS2	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1IZN Crystal Structure of Actin Filament Capping Protein CapZ Deposited 2002-10-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–277（277 aa）	Not recorded	NO3 NITRATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；PEG3350, magnesium nitrate, MES-NAOH, Jeffamine M-600, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.10 Å R-free 0.262
1IZN Crystal Structure of Actin Filament Capping Protein CapZ Deposited 2002-10-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–277（277 aa）	Not recorded	NO3 NITRATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；PEG3350, magnesium nitrate, MES-NAOH, Jeffamine M-600, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.10 Å R-free 0.262
2KXP Solution NMR structure of V-1 bound to capping protein (CP) Deposited 2010-05-11	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 2–271（270 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；305 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 0.35 mM [U-100% 15N; U-99% 2H] capping protein alpha1 subunit, 0.35 mM [U-100% 15N; U-99% 2H] capping protein beta1 subunit, 0.35 mM [U-99% 2H] V-1, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.35 mM [U-99% 2H] capping protein alpha1 subunit, 0.35 mM [U-99% 2H] capping protein beta1 subunit, 0.35 mM [U-100% 15N; U-99% 2H] V-1, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.35 mM [U-100% 15N; U-99% 2H] capping protein alpha1 subunit, 0.35 mM [U-100% 15N; U-99% 2H] capping protein beta1 subunit, 0.35 mM [U-99% 2H] M7C V-1, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2KZ7 Solution structure of the CARMIL CAH3a/b domain bound to capping protein (CP) Deposited 2010-06-12	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–277（277 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；305 K；Ionic strength (raw mmCIF value) 100；Pressure ambient NMR sample composition 0.35 mM [U-99% 15N; U-80% 2H] CPalpha subunit, 0.35 mM [U-99% 15N; U-80% 2H] CPbeta subunit, 0.39 mM [U-2H] CARMIL CAH3a/b domain, 93% H2O/7% D2O \| 93% H2O/7% D2O NMR sample composition 0.35 mM [U-99% 15N; U-80% 2H] CARMIL CAH3a/b domain, 0.39 mM [U-2H] CPalpha subunit, 0.39 mM [U-2H] CPbeta subunit, 93% H2O/7% D2O \| 93% H2O/7% D2O NMR sample composition 0.35 mM [U-99% 15N; U-80% 2H] CPalpha subunit, 0.35 mM [U-99% 15N; U-80% 2H] CPbeta subunit, 0.39 mM [U-2H; spin labeled at 1 or 5 postions] CARMIL CAH3a/b domain, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided
3AA0 Crystal structure of Actin Capping Protein in complex with the Cp-binding motif derived from CARMIL Deposited 2009-11-11	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–244（244 aa）	Mutation：residues 244-277 deletion mutation	CO3 CARBONATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；18% PEG 400, 40MM BACL2, 100MM MES-NAOH, PH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.70 Å R-free 0.239
3AA1 Crystal structure of Actin capping protein in complex with the Cp-binding motif derived from CKIP-1 Deposited 2009-11-11	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–244（244 aa）	Mutation：residues 244-277 deletion mutation	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；17.5% PEG 400, 30MM BACL2, 100MM MES-NAOH, PH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.90 Å R-free 0.263
3AA6 Crystal structure of Actin capping protein in complex with the Cp-binding motif derived from CD2AP Deposited 2009-11-11	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–244（244 aa）	Mutation：residues 244-277 deletion mutation	BA BARIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；10% PEG 400, 20MM BACL2, 100MM MES-NAOH, PH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.90 Å R-free 0.238
3AA7 Crystal structure of Actin capping protein Deposited 2009-11-11	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–244（244 aa）	Mutation：residues 244-277 deletion mutation	BA BARIUM ION × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；12.5% PEG 400, 20MM BACL2, 100MM MES-NAOH, PH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.90 Å R-free 0.261
3AAA Crystal Structure of Actin capping protein in complex with V-1 Deposited 2009-11-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–277（277 aa）	Not recorded	IPA ISOPROPYL ALCOHOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.35；293 K；10% PEG 4000, 20% ISOPROPANOL, 20MM EDTA, 0.1M TRIS-HCL, pH 8.35, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.20 Å R-free 0.237
3AAE Crystal structure of Actin capping protein in complex with CARMIL fragment Deposited 2009-11-16	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；14% PEG 3350, 180MM TRI-AMMONIUM CITRATE, 100MM MES-NAOH, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.271
3AAE Crystal structure of Actin capping protein in complex with CARMIL fragment Deposited 2009-11-16	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；14% PEG 3350, 180MM TRI-AMMONIUM CITRATE, 100MM MES-NAOH, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.271
3AAE Crystal structure of Actin capping protein in complex with CARMIL fragment Deposited 2009-11-16	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；14% PEG 3350, 180MM TRI-AMMONIUM CITRATE, 100MM MES-NAOH, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.271
3AAE Crystal structure of Actin capping protein in complex with CARMIL fragment Deposited 2009-11-16	Different construct Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；14% PEG 3350, 180MM TRI-AMMONIUM CITRATE, 100MM MES-NAOH, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.271
3AAE Crystal structure of Actin capping protein in complex with CARMIL fragment Deposited 2009-11-16	Different construct Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain J 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；14% PEG 3350, 180MM TRI-AMMONIUM CITRATE, 100MM MES-NAOH, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.271
3LK2 Crystal structure of CapZ bound to the uncapping motif from CARMIL Deposited 2010-01-27	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–243（243 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；10% w/v PEG 20000, 100mM MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.20 Å R-free 0.268
3LK3 Crystal structure of CapZ bound to the CPI and CSI uncapping motifs from CARMIL Deposited 2010-01-27	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；0.2M KCl, 20% (w/v) PEG 3350 , pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.68 Å R-free 0.248
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different experimental conditions Different structure-quality metrics	Assembly 10 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain 2 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different experimental conditions Different structure-quality metrics	Assembly 11 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain 5 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different experimental conditions Different structure-quality metrics	Assembly 12 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain 8 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain K 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain N 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Q 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain T 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain W 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
3LK4 Crystal structure of CapZ bound to the uncapping motif from CD2AP Deposited 2010-01-27	Different construct Different experimental conditions Different structure-quality metrics	Assembly 9 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Z 1–277（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 400, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.99 Å R-free 0.272
7DS3 Crystal structure of actin capping protein in complex with twinflin-2 C-terminus tail Deposited 2020-12-30	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–244（244 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；5% (w/v) PEG 3350, 50mM Tris-HCl (pH = 7.0)	Resolution 2.09 Å R-free 0.251
7DS4 Crystal structure of actin capping protein in complex with twinflin-1 C-terminus tail F323K mutant Deposited 2020-12-30	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–244（244 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；5% (w/v) PEG 3350, 5% (v/v) ethanol, 50mM Tris-HCl (pH = 7.0)	Resolution 1.85 Å R-free 0.259
7DS6 Crystal structure of actin capping protein in complex with twinflin-1/CD2AP CPI chimera peptide (TWN-CDC) Deposited 2020-12-30	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–244（244 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；5% (w/v) PEG 3350, 5% (v/v) ethanol, 50mM Tris-HCl (pH = 7.0)	Resolution 1.69 Å R-free 0.253
7DS8 Crystal structure of actin capping protein in complex with twinflin-1/CD2AP CPI chimera peptide (CDN-TWC) Deposited 2020-12-30	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–244（244 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；4% (w/v) PEG 3350, 50mM Tris-HCl (pH = 7.0)	Resolution 1.95 Å R-free 0.233
7DSA Crystal structure of actin capping protein in complex with V-1 (space group P62) Deposited 2020-12-30	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–244（244 aa）	Not recorded	MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20% (w/v) PEG 3350, 0.2M Magnesium Acetate	Resolution 2.80 Å R-free 0.254
7DSB Crystal structure of actin capping protein in complex with V-1 and twinfilin C-terminal tail Deposited 2020-12-30	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–244（244 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；10% (w/v) PEG 3350, 5% (v/v) isopropanol, 0.1M HEPES-NaOH (pH = 7.5)	Resolution 2.44 Å R-free 0.248
9BLI Crystal structure of Actin capping protein in complex with a fragment of Legionella pneumophila RavB Deposited 2024-04-30	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–244（244 aa）	Not recorded	FMT FORMIC ACID × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；10 mM Tris pH 8.0, 0.2 M ammonium formate, 0.15 M NaCl, 21% w/v PEG 3350, 30% ethylene glycol	Resolution 2.00 Å R-free 0.208

19 other PDB entries and 35 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CAPZB_CHICK
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–244； UniProt 1–244

Twinfilin-1

Mus musculus

UniProt Q91YR1

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 315–350	Not recorded	F-actin-capping protein subunit alpha-1 × 1 （P13127） F-actin-capping protein subunit beta isoforms 1 × 1 （P14315）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；22.5% (w/v) PEG 400, 0.1M HEPES-NaOH (pH = 7.0)	Resolution 1.95 Å R-free 0.183

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 7DS2	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1M4J CRYSTAL STRUCTURE OF THE N-TERMINAL ADF-H DOMAIN OF MOUSE TWINFILIN ISOFORM-1 Deposited 2002-07-03	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–142（142 aa） Fragment：N-terminal ADF-H Domain Chain B 1–142（142 aa） Fragment：N-terminal ADF-H Domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；1.6M Na-Citrate, 3% PEG 400, 0.1M Na-Hepes, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.60 Å R-free 0.251
1M4J CRYSTAL STRUCTURE OF THE N-TERMINAL ADF-H DOMAIN OF MOUSE TWINFILIN ISOFORM-1 Deposited 2002-07-03	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–142（142 aa） Fragment：N-terminal ADF-H Domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；1.6M Na-Citrate, 3% PEG 400, 0.1M Na-Hepes, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.60 Å R-free 0.251
2D8B Solution structure of the second tandem cofilin-domain of mouse twinfilin Deposited 2005-12-02	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 161–313（153 aa） Fragment：COFILIN HOMOLOGY DOMAIN, UNP Residues 161-313	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition 1.44mM COFILIN HOMOLOGY DOMAIN, 20mM d-Tris-HCL, 100mM NaCl, 1mM d-DTT, 0.02 % NaN3; 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
2HD7 Solution structure of C-teminal domain of twinfilin-1. Deposited 2006-06-20	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 176–316（141 aa） Fragment：C-terminal domain, residues 176-316	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；298 K；Ionic strength (raw mmCIF value) 60；Pressure ambient NMR sample composition 1 mM C-terminal domain of twinfilin U-15N, C13, 10 mM Bis-Tris, pH 6.8, 50 mM NaCl, 1 mM DTT, 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
3DAW Structure of the actin-depolymerizing factor homology domain in complex with actin Deposited 2008-05-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 167–322（156 aa） Fragment：C-terminal domain, ADF-H 2, UNP RESIDUES 167-322	Mutation：V168M	CA CALCIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；10mM Tris pH 7.5, 50mM NaCl, 0.2mM ATP, 0.2mM DTT, 0.2mM CaCl2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.55 Å R-free 0.279
6RSW HFD domain of mouse CAP1 bound to the pointed end of G-actin Deposited 2019-05-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 176–316（141 aa）	Not recorded	MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.1M HEPES, 0.1 mM KCl, 10% PEG4000 (w/v)	Resolution 1.95 Å R-free 0.194
6YP9 Rabbit muscle actin in complex with ADF-H and ATP-ATTO-488 Deposited 2020-04-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 176–315（140 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；0.1 M sodium cacodylate (pH 6.0) and 15% (w/v) PEG 4000	Resolution 2.56 Å R-free 0.230
7DS4 Crystal structure of actin capping protein in complex with twinflin-1 C-terminus tail F323K mutant Deposited 2020-12-30	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 315–344（30 aa）	Mutation：F323K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；5% (w/v) PEG 3350, 5% (v/v) ethanol, 50mM Tris-HCl (pH = 7.0)	Resolution 1.85 Å R-free 0.259
7DS6 Crystal structure of actin capping protein in complex with twinflin-1/CD2AP CPI chimera peptide (TWN-CDC) Deposited 2020-12-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 315–327（13 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；5% (w/v) PEG 3350, 5% (v/v) ethanol, 50mM Tris-HCl (pH = 7.0)	Resolution 1.69 Å R-free 0.253
7DS8 Crystal structure of actin capping protein in complex with twinflin-1/CD2AP CPI chimera peptide (CDN-TWC) Deposited 2020-12-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 326–344（19 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；4% (w/v) PEG 3350, 50mM Tris-HCl (pH = 7.0)	Resolution 1.95 Å R-free 0.233
7DSB Crystal structure of actin capping protein in complex with V-1 and twinfilin C-terminal tail Deposited 2020-12-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 315–344（30 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；10% (w/v) PEG 3350, 5% (v/v) isopropanol, 0.1M HEPES-NaOH (pH = 7.5)	Resolution 2.44 Å R-free 0.248

10 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TWF1_MOUSE
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 6–41； UniProt 315–350

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

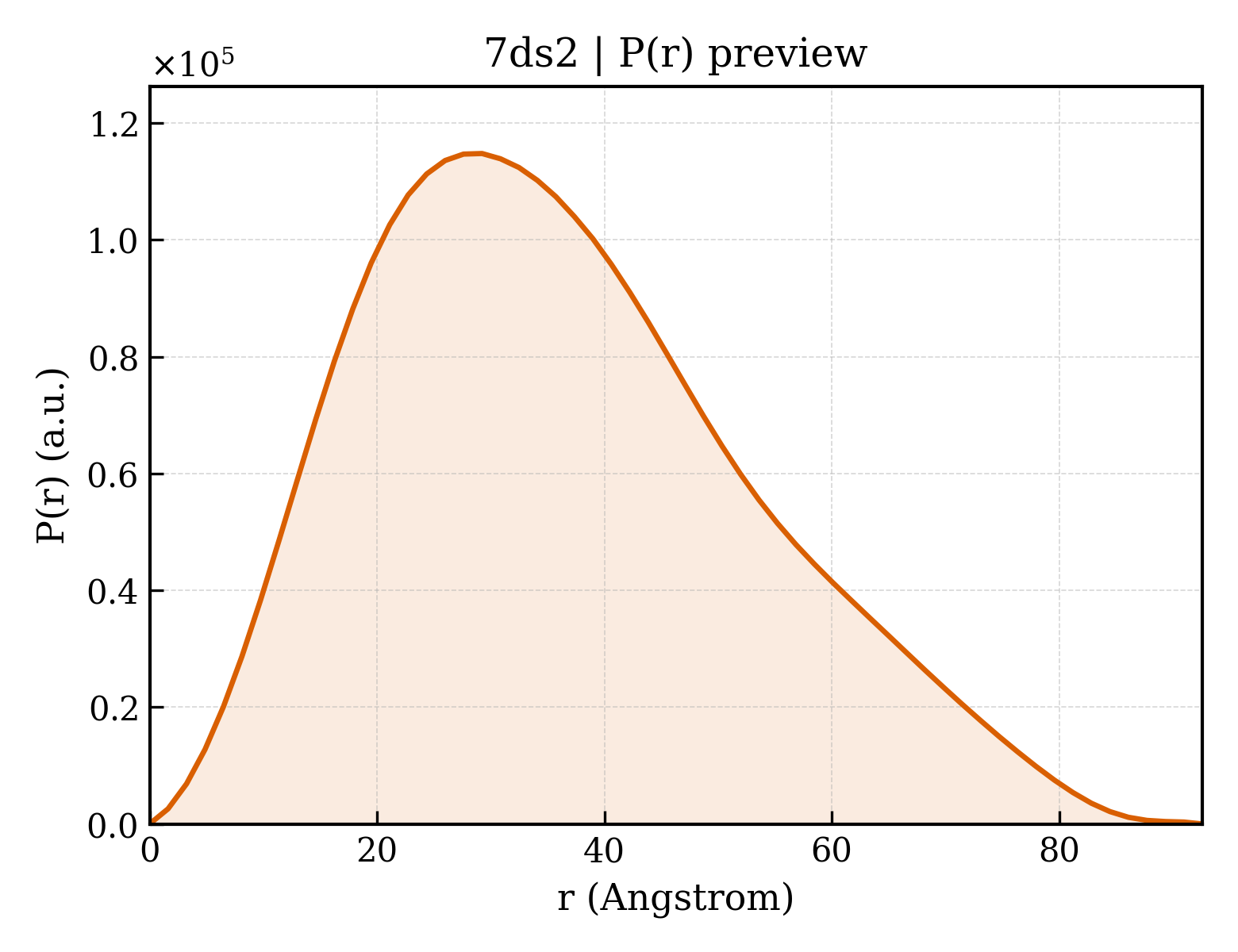

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7ds2
Deposition date deposition_date	2020-12-30
Structure title title	Crystal structure of actin capping protein in complex with twinflin-1 C-terminus tail
Keywords keywords	actin dynamics, actin capping protein, twinfilin, CARMIL, V-1, CYTOSOLIC PROTEIN; CYTOSOLIC PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	28.03 Å
Radius of gyration Rg (electron density) rg_electron	27.33 Å
Forward intensity I(0) i0	61375300.00
Molecular weight molecular_weight	60161.0 kDa
Excluded volume excluded_volume	74821 Å³
Envelope volume envelope_volume	91683 Å³
Hydration-shell volume shell_volume	28828 Å³
Envelope diameter envelope_diameter	95.6 Å
Shell Rg shell_rg	33.85 Å
Envelope Rg envelope_rg	27.49 Å
Shape Rg shape_rg	27.33 Å
Total Rg total_rg	27.98 Å
Total atoms total_atoms	4241
Residues n_residues	531
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	92.6 Å
Rg (real space) rg_real	28.17 Å
Rg uncertainty (real space) rg_real_error	0.55 Å
I(0) (real space) i0_real	6.1380e+07
I(0) uncertainty (real space) i0_real_error	8.2360e+05
Rg (reciprocal space) rg_reciprocal	28.13 Å
I(0) (reciprocal space) i0_reciprocal	61370000.0000
Solution quality estimate total_estimate	0.8757
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	29.2 Å
Skewness Skewness skewness	0.458
Kurtosis Kurtosis kurtosis	-0.358
Angular range angular_range	— – 0.2850 Å⁻¹
Current regularization parameter α current_alpha	0.0002
Highest regularization parameter α highest_alpha	20720000.0000
Real-space data points n_real_points	58
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.856; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.930; Smooth: 0.881

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	F-actin-capping protein subunit alpha-1
Molecular weight formula_weight	33001.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4883

MADFEDRVSDEEKVRIAAKFITHAPPGEFNEVFNDVRLLLNNDNLLREGAAHAFAQYNMDQFTPVKIEGYDDQVLITEHGDLGNGRFLDPRNKISFKFDHLRKEASDPQPEDTESALKQWRDACDSALRAYVKDHYPNGFCTVYGKSIDGQQTIIACIESHQFQPKNFWNGRWRSEWKFTITPPTAQVAAVLKIQVHYYEDGNVQLVSHKDIQDSVQVSSDVQTAKEFIKIIENAENEYQTAISENYQTMSDTTFKALRRQLPVTRTKIDWNKILSYKIGKEMQNA

来源 Source

来源生物 organism	Gallus gallus
通用名 common_name	Chicken
NCBI Class编号 ncbi_taxonomy_id	9031
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	F-actin-capping protein subunit beta isoforms 1
Molecular weight formula_weight	27473.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSDQQLDCALDLMRRLPPQQIEKNLSDLIDLVPSLCEDLLSSVDQPLKIARDKVVGKDYLLCDYNRDGDSYRSPWSNKYDPPLEDGAMPSARLRKLEVEANNAFDQYRDLYFEGGVSSVYLWDLDHGFAGVILIKKAGDGSKKIKGCWDSIHVVEVQEKSSGRTAHYKLTSTVMLWLQTNKTGSGTMNLGGSLTRQMEKDETVSDSSPHIANIGRLVEDMENKIRSTLNEIYFGKTKDIVNGLR

来源 Source

来源生物 organism	Gallus gallus
通用名 common_name	Chicken
NCBI Class编号 ncbi_taxonomy_id	9031
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Twinfilin-1
Molecular weight formula_weight	4332.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

GPLGSKQHAHKQSFAKPKGPAGKRGIRRLIRGPAEAEATTD

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	433

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d7ds2a_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.43 — Subunits of heterodimeric actin filament capping protein Capz
Superfamily Superfamily superfamily	e.43.1 — Subunits of heterodimeric actin filament capping protein Capz
Family Family family	e.43.1.1 — Capz alpha-1 subunit

Domain ID domain_id	d7ds2b_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.43 — Subunits of heterodimeric actin filament capping protein Capz
Superfamily Superfamily superfamily	e.43.1 — Subunits of heterodimeric actin filament capping protein Capz
Family Family family	e.43.1.2 — Capz beta-1 subunit

▶

8. Citations (1)

▶

Unit-cell length a length_a	52.040 Å
Unit-cell length b length_b	61.540 Å
Unit-cell length c length_c	161.470 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	orthorhombic

Resolution resolution	1.950 Å
Low-resolution limit resolution_low	48.940 Å
R factor r_factor	0.1675
R_work r_work	0.1666
R_free r_free	0.1835

fit	/app/data/saxs_computation/ds/7ds2/7ds2.fit
pddf	/app/data/pr_computation/ds/7ds2/7ds2.pr.out
profile	/app/data/saxs_computation/ds/7ds2/7ds2.dat

Crystal structure of actin capping protein in complex with twinflin-1 C-terminus tail

1. Protein Identity and Related Structures Protein Identity & Related Structures

F-actin-capping protein subunit alpha-1

State in the Current Structure

Other States of the Same Protein in the Database

F-actin-capping protein subunit beta isoforms 1

State in the Current Structure

Other States of the Same Protein in the Database

Twinfilin-1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 water

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (2 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
