3g76

Crystal structure of XIAP-BIR3 in complex with a bivalent compound

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Baculoviral IAP repeat-containing protein 4

Homo sapiens

UniProt P98170

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein monomer Monomer Protein 1 ZINC ION × 1 ;1,1'-{hexa-2,4-diyne-1,6-diylbis[oxy{(2S,3R)-2-[(N-methyl-L-alanyl)amino]-1-oxobutane-3,1-diyl}(2S)pyrrolidine-1,2-diylmethanediyl]}bis[5-(phenylsulfanyl)-1H-tetrazole] ; × 1 water × 1 Consistent with protein count
2 Protein monomer Monomer Protein 1 ZINC ION × 1 ;1,1'-{hexa-2,4-diyne-1,6-diylbis[oxy{(2S,3R)-2-[(N-methyl-L-alanyl)amino]-1-oxobutane-3,1-diyl}(2S)pyrrolidine-1,2-diylmethanediyl]}bis[5-(phenylsulfanyl)-1H-tetrazole] ; × 1 water × 1 Consistent with protein count
3 Protein monomer Monomer Protein 1 ZINC ION × 1 ;1,1'-{hexa-2,4-diyne-1,6-diylbis[oxy{(2S,3R)-2-[(N-methyl-L-alanyl)amino]-1-oxobutane-3,1-diyl}(2S)pyrrolidine-1,2-diylmethanediyl]}bis[5-(phenylsulfanyl)-1H-tetrazole] ; × 1 water × 1 Consistent with protein count
4 Protein monomer Monomer Protein 1 ZINC ION × 1 ;1,1'-{hexa-2,4-diyne-1,6-diylbis[oxy{(2S,3R)-2-[(N-methyl-L-alanyl)amino]-1-oxobutane-3,1-diyl}(2S)pyrrolidine-1,2-diylmethanediyl]}bis[5-(phenylsulfanyl)-1H-tetrazole] ; × 1 water × 1 Consistent with protein count
5 Protein monomer Monomer Protein 1 ZINC ION × 1 ;1,1'-{hexa-2,4-diyne-1,6-diylbis[oxy{(2S,3R)-2-[(N-methyl-L-alanyl)amino]-1-oxobutane-3,1-diyl}(2S)pyrrolidine-1,2-diylmethanediyl]}bis[5-(phenylsulfanyl)-1H-tetrazole] ; × 1 water × 1 Consistent with protein count
6 Protein monomer Monomer Protein 1 ZINC ION × 1 ;1,1'-{hexa-2,4-diyne-1,6-diylbis[oxy{(2S,3R)-2-[(N-methyl-L-alanyl)amino]-1-oxobutane-3,1-diyl}(2S)pyrrolidine-1,2-diylmethanediyl]}bis[5-(phenylsulfanyl)-1H-tetrazole] ; × 1 water × 1 Consistent with protein count
7 Protein monomer Monomer Protein 1 ZINC ION × 1 ;1,1'-{hexa-2,4-diyne-1,6-diylbis[oxy{(2S,3R)-2-[(N-methyl-L-alanyl)amino]-1-oxobutane-3,1-diyl}(2S)pyrrolidine-1,2-diylmethanediyl]}bis[5-(phenylsulfanyl)-1H-tetrazole] ; × 1 water × 1 Consistent with protein count
8 Protein monomer Monomer Protein 1 ZINC ION × 1 ;1,1'-{hexa-2,4-diyne-1,6-diylbis[oxy{(2S,3R)-2-[(N-methyl-L-alanyl)amino]-1-oxobutane-3,1-diyl}(2S)pyrrolidine-1,2-diylmethanediyl]}bis[5-(phenylsulfanyl)-1H-tetrazole] ; × 1 water × 1 Consistent with protein count

Other States of the Same Protein in the Database

Monomer
1c9q 1f9x 1tfq 1tft 2ecg 2jk7 2kna 3clx 3clx 3clx 3clx 3cm2

81 assemblies; showing the first 12

Homodimer
2opy 2poi 2qra 2qra 3clx 3clx 3cm2 3cm2 3cm2 3cm2 3cm2 3cm7

35 assemblies; showing the first 12

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex
1g3f 1g73 1g73 1i3o 1i4o 1i4o 1i4o 1i51 1kmc 1nw9 2opz 2opz

29 assemblies; showing the first 12

View Construct and Data Evidence
UniProt name XIAP_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–116； UniProt 241–356 Author chain B； PDBConstruct 1–116； UniProt 241–356 Author chain C； PDBConstruct 1–116； UniProt 241–356 Author chain D； PDBConstruct 1–116； UniProt 241–356 Author chain E； PDBConstruct 1–116； UniProt 241–356 Author chain F； PDBConstruct 1–116； UniProt 241–356 Author chain G； PDBConstruct 1–116； UniProt 241–356 Author chain H； PDBConstruct 1–116； UniProt 241–356

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id3g76
Deposition date deposition_date2009-02-09
Structure title titleCrystal structure of XIAP-BIR3 in complex with a bivalent compound
Keywords keywords;Apoptosis, IAP, SmacDIABLO, peptidomimetics, pro-apoptotic drugs, Cytoplasm, Ligase, Metal-binding, Phosphoprotein, Polymorphism, Protease inhibitor, Thiol protease inhibitor, Ubl conjugation, Ubl conjugation pathway, Zinc, Zinc-finger ;; LIGASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3g76__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

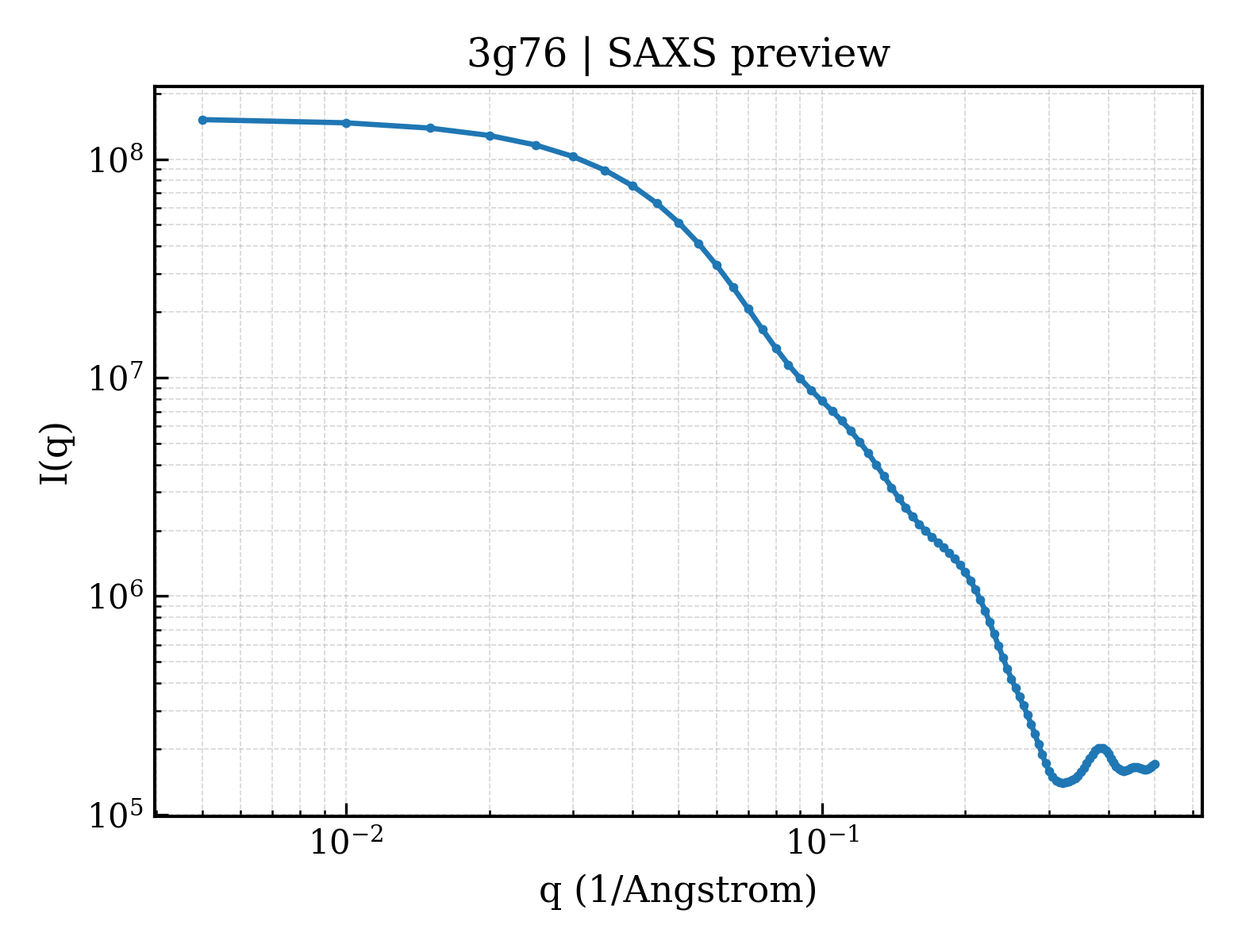

3g76__assembly_1__model_1 | I(q)

10-2 10-1 105 106 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

3g76__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）14.27 Å
Rg (electron density)13.22 Å
Total Rg14.47 Å
Atom count822
Residues97
Excluded volume14465 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 3g76__assembly_1__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
2 1 3g76__assembly_2__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
3 1 3g76__assembly_3__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
4 1 3g76__assembly_4__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
5 1 3g76__assembly_5__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
6 1 3g76__assembly_6__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
7 1 3g76__assembly_7__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
8 1 3g76__assembly_8__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
▶
