SAXSdb — 3iqm

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein translocase subunit secA

Bacillus subtilis subsp. subtilis

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–802	Fragment：UNP residues 1-802 Mutation：E208Q	SO4 SULFATE ION × 22	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；299 K；20 mM BES pH 7.0, 2.12 M Ammonium sulfate, 31% Glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 299K	Resolution 3.40 Å R-free 0.267

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3IQM	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1M6N Crystal structure of the SecA translocation ATPase from Bacillus subtilis Deposited 2002-07-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–802（802 aa）	Not recorded	SO4 SULFATE ION × 14	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；299 K；2 M ammonium sulfate, 30% glycerol, 1 mM DTT, 100 mM BES, pH 7.0, VAPOR DIFFUSION, HANGING DROP at 299K	Resolution 2.70 Å R-free 0.301
1M74 Crystal structure of Mg-ADP-bound SecA from Bacillus subtilis Deposited 2002-07-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–802（802 aa）	Not recorded	MG MAGNESIUM ION × 2 SO4 SULFATE ION × 10 ADP ADENOSINE-5'-DIPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；299 K；5 mM ADP, 5 mM MgCl, 2 M ammonium sulfate, 30% glycerol, 1 mM DTT, 100 mM BES, pH 7.0, VAPOR DIFFUSION, HANGING DROP at 299K	Resolution 3.00 Å R-free 0.291
1TF2 Crystal structure of SecA:ADP in an open conformation from Bacillus Subtilis Deposited 2004-05-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–841（841 aa）	Not recorded	MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M HEPES, 250mM Magnesium Acetate, 7-12% PEG 8000, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.90 Å R-free 0.292
1TF5 Crystal structure of SecA in an open conformation from Bacillus Subtilis Deposited 2004-05-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–841（841 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M HEPES, 250mM Magnesium Acetate, 7-12% PEG 8000, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.18 Å R-free 0.273
2IBM A novel dimer interface and conformational changes revealed by an X-ray structure of B. subtilis SecA Deposited 2006-09-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–780（780 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；301 K；1.8 M malonate, pH 6.8, VAPOR DIFFUSION, SITTING DROP, temperature 301K	Resolution 3.20 Å R-free 0.323
2IBM A novel dimer interface and conformational changes revealed by an X-ray structure of B. subtilis SecA Deposited 2006-09-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–780（780 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；301 K；1.8 M malonate, pH 6.8, VAPOR DIFFUSION, SITTING DROP, temperature 301K	Resolution 3.20 Å R-free 0.323
2IBM A novel dimer interface and conformational changes revealed by an X-ray structure of B. subtilis SecA Deposited 2006-09-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–780（780 aa） Chain B 1–780（780 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；301 K；1.8 M malonate, pH 6.8, VAPOR DIFFUSION, SITTING DROP, temperature 301K	Resolution 3.20 Å R-free 0.323
2IBM A novel dimer interface and conformational changes revealed by an X-ray structure of B. subtilis SecA Deposited 2006-09-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–780（780 aa） Chain B 1–780（780 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；301 K；1.8 M malonate, pH 6.8, VAPOR DIFFUSION, SITTING DROP, temperature 301K	Resolution 3.20 Å R-free 0.323
3DL8 Structure of the complex of aquifex aeolicus SecYEG and bacillus subtilis SecA Deposited 2008-06-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–779（779 aa） Fragment：UNP residues 1-779	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；26-28% (w/v) PEG 3350 and 250mM lithium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 7.50 Å R-free 0.390
3DL8 Structure of the complex of aquifex aeolicus SecYEG and bacillus subtilis SecA Deposited 2008-06-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–779（779 aa） Fragment：UNP residues 1-779	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；26-28% (w/v) PEG 3350 and 250mM lithium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 7.50 Å R-free 0.390
3IQY Active site mutants of B. subtilis SecA Deposited 2009-08-21	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–841（841 aa）	Mutation：E208Q, R489K	SO4 SULFATE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；299 K；20 mM BES pH 7.0, 2.1 M Ammonium sulfate, 32 % Glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 299K	Resolution 3.30 Å R-free 0.269
5EUL Structure of the SecA-SecY complex with a translocating polypeptide substrate Deposited 2015-11-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–742（742 aa） Chain A 744–780（37 aa）	Not recorded	MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 TBR HEXATANTALUM DODECABROMIDE × 18	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；295 K；21-24% polyethylene glycol 1500, 100mM Tris-HCl pH8.5, 50-100 mM MgAc2, 2% 2-methyl-2,4-pentandiol	Resolution 3.70 Å R-free 0.315
6ITC Structure of a substrate engaged SecA-SecY protein translocation machine Deposited 2018-11-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 1–780（780 aa）	Not recorded	MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 PGV (1R)-2-{[{[(2S)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL (11E)-OCTADEC-11-ENOATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.45 Å
7XHA Structure of the SecA/SecYE/proOmpA(4Y)-sfGFP complex with ADP.BeF3-. Deposited 2022-04-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–778（778 aa）	Not recorded	MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.35 Å
7XHB Structure of the SecA/SecYE/proOmpA(4Y)-sfGFP complex with ADP Deposited 2022-04-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–778（778 aa）	Not recorded	MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.33 Å
8Y9Y Structure of the SecA-SecY complex with the substrate FtsQ-LacY(+1C) Deposited 2024-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–778（778 aa）	Not recorded	MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.29 Å
8Y9Z Structure of the SecA-SecY complex with the substrate HmBRI-3TM Deposited 2024-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–778（778 aa）	Not recorded	MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.41 Å
8YA0 Structure of the SecA-SecY complex with the substrate FtsQ-LacY(+7C) Deposited 2024-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 14–778（765 aa）	Not recorded	MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.97 Å
8YA2 Structure of the SecA-SecY complex with the substrate FtsQ-LacY(+20C) Deposited 2024-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–778（778 aa）	Not recorded	MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.84 Å
8YAS Structure of the SecA-SecY complex with the substrate HmBRI-7TM Deposited 2024-02-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–778（778 aa）	Not recorded	MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.97 Å

16 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SECA_BACSU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–802； UniProt 1–802

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3iqm
Deposition date deposition_date	2009-08-20
Structure title title	Active site mutants of B. subtilis SecA
Keywords keywords	;alpha-beta protein, ATP-binding, Cell membrane, Membrane, Metal-binding, Nucleotide-binding, Protein transport, Translocation, Transport ;; PROTEIN TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.29 Å
Radius of gyration Rg (electron density) rg_electron	33.17 Å
Forward intensity I(0) i0	143595000.00
Molecular weight molecular_weight	92283.0 kDa
Excluded volume excluded_volume	114200 Å³
Envelope volume envelope_volume	151990 Å³
Hydration-shell volume shell_volume	38961 Å³
Envelope diameter envelope_diameter	110.8 Å
Shell Rg shell_rg	39.14 Å
Envelope Rg envelope_rg	33.13 Å
Shape Rg shape_rg	33.17 Å
Total Rg total_rg	33.65 Å
Total atoms total_atoms	6456
Residues n_residues	802
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

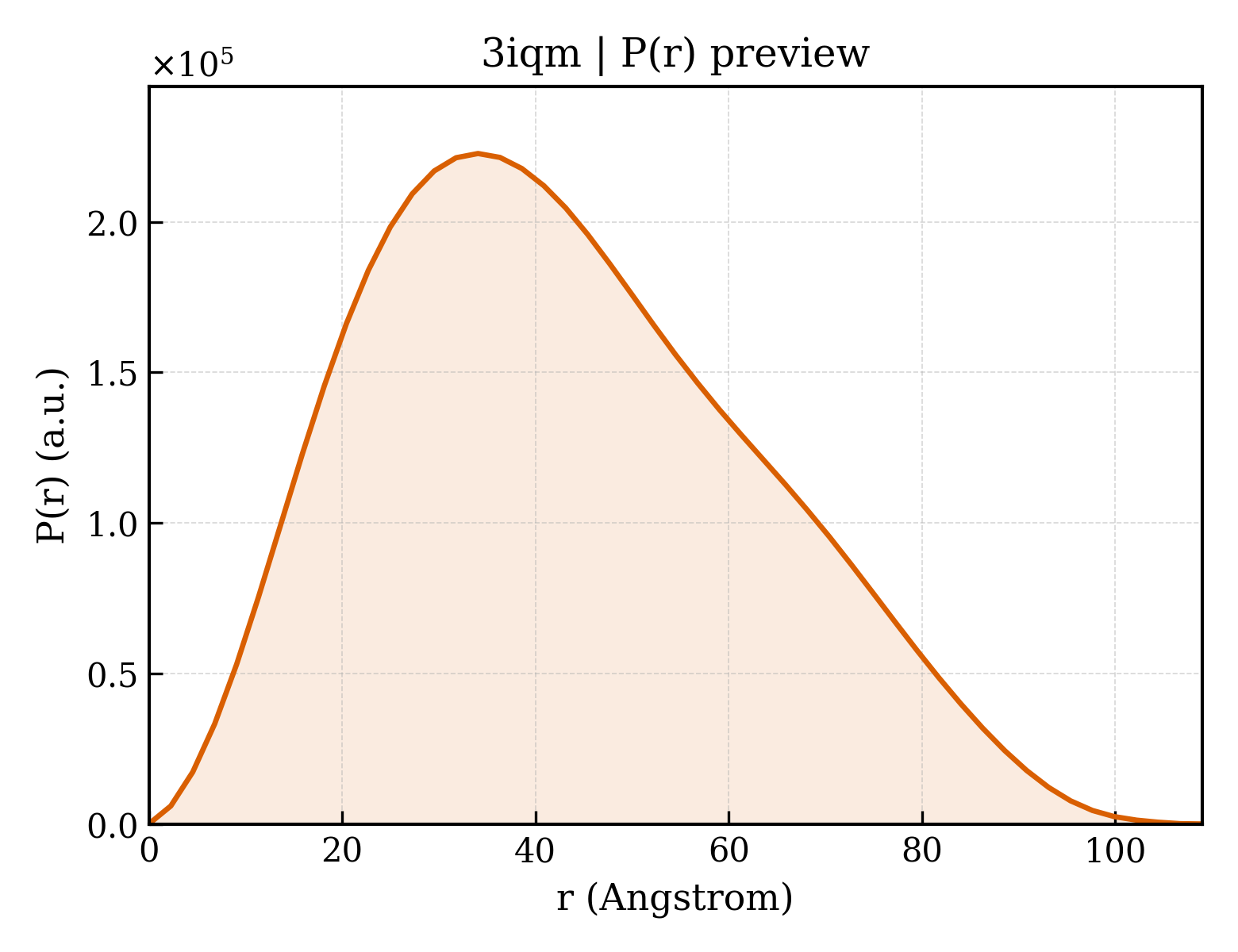

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	109.0 Å
Rg (real space) rg_real	33.40 Å
Rg uncertainty (real space) rg_real_error	0.85 Å
I(0) (real space) i0_real	1.4360e+08
I(0) uncertainty (real space) i0_real_error	2.5320e+06
Rg (reciprocal space) rg_reciprocal	33.36 Å
I(0) (reciprocal space) i0_reciprocal	143600000.0000
Solution quality estimate total_estimate	0.8836
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	34.1 Å
Skewness Skewness skewness	0.372
Kurtosis Kurtosis kurtosis	-0.522
Angular range angular_range	— – 0.2400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	33080000.0000
Real-space data points n_real_points	49
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.891; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.944; Smooth: 0.865

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Protein translocase subunit secA
Molecular weight formula_weight	91392.8 kDa
Mutation mutation	E208Q
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6495

MLGILNKMFDPTKRTLNRYEKIANDIDAIRGDYENLSDDALKHKTIEFKERLEKGATTDDLLVEAFAVVREASRRVTGMFPFKVQLMGGVALHDGNIAEMKTGEGKTLTSTLPVYLNALTGKGVHVVTVNEYLASRDAEQMGKIFEFLGLTVGLNLNSMSKDEKREAYAADITYSTNNELGFDYLRDNMVLYKEQMVQRPLHFAVIDQVDSILIDEARTPLIISGQAAKSTKLYVQANAFVRTLKAEKDYTYDIKTKAVQLTEEGMTKAEKAFGIDNLFDVKHVALNHHINQALKAHVAMQKDVDYVVEDGQVVIVDSFTGRLMKGRRYSEGLHQAIEAKEGLEIQNESMTLATITFQNYFRMYEKLAGMTGTAKTEEEEFRNIYNMQVVTIPTNRPVVRDDRPDLIYRTMEGKFKAVAEDVAQRYMTGQPVLVGTVAVETSELISKLLKNKGIPHQVLNAKNHEREAQIIEEAGQKGAVTIATNMAGRGTDIKLGEGVKELGGLAVVGTERHESRRIDNQLRGRSGRQGDPGITQFYLSMEDELMRRFGAERTMAMLDRFGMDDSTPIQSKMVSRAVESSQKRVEGNNFDSRKQLLQYDDVLRQQREVIYKQRFEVIDSENLREIVENMIKSSLERAIAAYTPREELPEEWKLDGLVDLINTTYLDEGALEKSDIFGKEPDEMLELIMDRIITKYNEKEEQFGKEQMREFEKVIVLRAVDSKWMDHIDAMDQLRQGIHLRAYAQTNPLREYQMEGFAMFEHMIESIEDEVAKFVMKAEIENNLEREEVVQGQTTAHQPQEG

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis
NCBI Class编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	11

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	39

▼

7. Fold Classification (SCOP + CATH) 5 domains

CATH v4.4 (5 domains)

Domain ID domain_id	3iqmA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3iqmA02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1440 — Pre-protein croslinking domain of SecA
Homologous superfamily homologous superfamily	10 — SecA, preprotein cross-linking domain

Domain ID domain_id	3iqmA03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3iqmA04
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3060 — Helical scaffold and wing domains of SecA
Homologous superfamily homologous superfamily	10 — Helical scaffold and wing domains of SecA

Domain ID domain_id	3iqmA05
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1200 — Non-ribosomal Peptide Synthetase Peptidyl Carrier Protein; Chain A
Homologous superfamily homologous superfamily	230 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	130.136 Å
Unit-cell length b length_b	130.136 Å
Unit-cell length c length_c	153.948 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 1 2
Space-group number int_tables_number	151
Crystal system crystal_system	—

Resolution resolution	3.400 Å
Low-resolution limit resolution_low	19.980 Å
R factor r_factor	0.2090
R_work r_work	0.2090
R_free r_free	0.2670

fit	/app/data/saxs_computation/iq/3iqm/3iqm.fit
pddf	/app/data/pr_computation/iq/3iqm/3iqm.pr.out
profile	/app/data/saxs_computation/iq/3iqm/3iqm.dat
