SAXSdb — 3l4k

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA topoisomerase 2

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Monomer Protein × 1 DNA 4 PDB declaration: pentameric（5） Consistent with all polymer counts	Chain A； UniProt 421–1177	Fragment：RESIDUES 421-1177 Non-standard monomer：Yes (specific site not provided by mmCIF)	;DNA (5'-D(PCPCPTPAPCPTPGPCPTPAPC)-3') ; × 1 ;DNA (5'-D(CPGPCPGPGPTPAPGPCPAPGPTPAPGPG)-3') ; × 1 ;DNA (5'-D(PGPGPAPTPGPAPCPGPAPTP)-3') ; × 1 ;DNA (5'-D(CPGPCPGPAPAPTPCPGPTPCPAPTPCPC)-3') ; × 1 ZN ZINC ION × 8 TSP 3'-THIO-THYMIDINE-5'-PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；20% 1,4-BUTANEDIOL, 0.1M SODIUM ACETATE, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.98 Å R-free 0.273

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3L4K	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BGW TOPOISOMERASE RESIDUES 410-1202, Deposited 1996-02-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 409–1201（793 aa） Fragment：RESIDUES 410 - 1202	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.70 Å R-free 0.277
1BJT TOPOISOMERASE II RESIDUES 409-1201 Deposited 1998-06-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 409–1201（793 aa） Fragment：DNA-BINDING AND CLEAVAGE CORE, RESIDUES 409-1201	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；pH 8.0	Resolution 2.50 Å R-free 0.269
1PVG Crystal Structure of the ATPase region of Saccharomyces Cerevisiae topoisomerase II Deposited 2003-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–413（413 aa） Fragment：N-terminal ATPase region Chain B 1–413（413 aa） Fragment：N-terminal ATPase region	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 2 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions microbatch under oil；pH 6.5；293 K；PEG 1500, Potassium Chloride, Glycerol, Sodium Cacodylate, pH 6.5, microbatch under oil, temperature 293K	Resolution 1.80 Å R-free 0.241
1QZR CRYSTAL STRUCTURE OF THE ATPASE REGION OF SACCHAROMYCES CEREVISIAE TOPOISOMERASE II BOUND TO ICRF-187 (DEXRAZOXANE) Deposited 2003-09-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–413（413 aa） Fragment：N-terminal ATPase Region Chain B 1–413（413 aa） Fragment：N-terminal ATPase Region	Not recorded	MG MAGNESIUM ION × 2 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 CDX (S)-4,4'-(1-METHYL-1,2-ETHANEDIYL)BIS-2,6-PIPERAZINEDIONE × 1	X-RAY DIFFRACTION X-ray crystallization conditions microbatch under oil；pH 6.5；293 K；PEG 1500, POTASSIUM CHLORIDE, GLYCEROL, SODIUM CACODYLATE, pH 6.5, microbatch under oil, temperature 293K	Resolution 1.90 Å R-free 0.237
2RGR Topoisomerase IIA bound to G-segment DNA Deposited 2007-10-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: hexameric	Chain A 419–1177（759 aa） Fragment：DNA binding and cleavage domain (residues 419-1177)	Not recorded	MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；12-20% PEG 1000, 100-250 mM MgCl2, 100 mM sodium cacodylate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.00 Å R-free 0.278
3L4J Topoisomerase II-DNA cleavage complex, apo Deposited 2009-12-20	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: pentameric	Chain A 421–1177（757 aa） Fragment：RESIDUES 421-1177	Non-standard monomer：Yes (specific site not provided by mmCIF)	TSP 3'-THIO-THYMIDINE-5'-PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；291 K；20% 1,4-BUTANEDIOL, 0.1M SODIUM ACETATE, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.48 Å R-free 0.259
4GFH Topoisomerase II-DNA-AMPPNP complex Deposited 2012-08-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: decameric	Chain A 1–1177（1177 aa） Fragment：UNP RESIDUES 1-1177 Chain F 1–1177（1177 aa） Fragment：UNP RESIDUES 1-1177	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 2 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；23% PEG 300, 100 mM Tris (8.0), VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 4.41 Å R-free 0.275

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TOP2_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–757； UniProt 421–1177

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3l4k
Deposition date deposition_date	2009-12-20
Structure title title	Topoisomerase II-DNA cleavage complex, metal-bound
Keywords keywords	;TOPOISOMERASE, PROTEIN-DNA COMPLEX, COVALENTLY LINKED COMPLEX, DNA SUPERCOILING, DNA REPLICATION, ATP-binding, DNA-binding, Isomerase, Nucleotide-binding, Nucleus, Phosphoprotein, Isomerase-DNA complex ;; Isomerase/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	31.57 Å
Radius of gyration Rg (electron density) rg_electron	31.68 Å
Forward intensity I(0) i0	143824000.00
Molecular weight molecular_weight	92486.0 kDa
Excluded volume excluded_volume	114350 Å³
Envelope volume envelope_volume	151840 Å³
Hydration-shell volume shell_volume	40751 Å³
Envelope diameter envelope_diameter	113.3 Å
Shell Rg shell_rg	37.89 Å
Envelope Rg envelope_rg	32.05 Å
Shape Rg shape_rg	31.68 Å
Total Rg total_rg	32.17 Å
Total atoms total_atoms	6466
Residues n_residues	746
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	107.0 Å
Rg (real space) rg_real	31.63 Å
Rg uncertainty (real space) rg_real_error	0.88 Å
I(0) (real space) i0_real	1.4380e+08
I(0) uncertainty (real space) i0_real_error	2.1870e+06
Rg (reciprocal space) rg_reciprocal	31.61 Å
I(0) (reciprocal space) i0_reciprocal	143800000.0000
Solution quality estimate total_estimate	0.8727
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	34.2 Å
Skewness Skewness skewness	0.428
Kurtosis Kurtosis kurtosis	-0.240
Angular range angular_range	— – 0.2500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	27590000.0000
Real-space data points n_real_points	51
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.819; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.894

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	DNA topoisomerase 2
Molecular weight formula_weight	88025.2 kDa
EC 编号 ec_number	5.99.1.3
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	7028

SRITNYPKLEDANKAGTKEGYKCTLVLTEGDSALSLAVAGLAVVGRDYYGCYPLRGKMLNVREASADQILKNAEIQAIKKIMGLQHRKKYEDTKSLRYGHLMIMTDQDHDGSHIKGLIINFLESSFPGLLDIQGFLLEFITPIIKVSITKPTKNTIAFYNMPDYEKWREEESHKFTWKQKYYKGLGTSLAQEVREYFSNLDRHLKIFHSLQGNDKDYIDLAFSKKKADDRKEWLRQYEPGTVLDPTLKEIPISDFINKELILFSLADNIRSIPNVLDGFKPGQRKVLYGCFKKNLKSELKVAQLAPYVSECTAYHHGEQSLAQTIIGLAQNFVGSNNIYLLLPNGAFGTRATGGKDAAAARYIYTELNKLTRKIFHPADDPLYKYIQEDEKTVEPEWYLPILPMILVNGAEGIGTGWSTYIPPFNPLEIIKNIRHLMNDEELEQMHPWFRGWTGTIEEIEPLRYRMYGRIEQIGDNVLEITELPARTWTSTIKEYLLLGLSGNDKIKPWIKDMEEQHDDNIKFIITLSPEEMAKTRKIGFYERFKLISPISLMNMVAFDPHGKIKKYNSVNEILSEFYYVRLEYYQKRKDHMSERLQWEVEKYSFQVKFIKMIIEKELTVTNKPRNAIIQELENLGFPRFNKEGKPYYGSPNDEIAEQINDVKGATSDEEDEESSHEDTENVINGPEELYGTYEYLLGMRIWSLTKERYQKLLKQKQEKETELENLLKLSAKDIWNTDLKAFEVGYQEFLQRDAEAR

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast,lager beer yeast,yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	SACCHAROMYCES CEREVISIAE

Entity 2 Entity 2 polymer

Description description	;DNA (5'-D(PCPCPTPAPCPTPGPCPTPAP*C)-3') ;
Molecular weight formula_weight	3269.1 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	B

CCTACTGCTAC

Entity 3 Entity 3 polymer

Description description	;DNA (5'-D(CPGPCPGPGPTPAPGPCPAPGPTPAPGP*G)-3') ;
Molecular weight formula_weight	4675.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C

CGCGGTAGCAGTAGG

Entity 4 Entity 4 polymer

Description description	;DNA (5'-D(PGPGPAPTPGPAPCPGPAPTP*)-3') ;
Molecular weight formula_weight	3109.1 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D

GGATGACGAT

Entity 5 Entity 5 polymer

Description description	;DNA (5'-D(CPGPCPGPAPAPTPCPGPTPCPAPTPCP*C)-3') ;
Molecular weight formula_weight	4529.9 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	E

CGCGAATCGTCATCC

Entity 6 Entity 6 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 7 Entity 7 non-polymer

Description description	3'-THIO-THYMIDINE-5'-PHOSPHATE
Molecular weight formula_weight	338.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	20

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d3l4ka_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.11 — Type II DNA topoisomerase C-terminal domain-like
Superfamily Superfamily superfamily	e.11.1 — Type II DNA topoisomerase C-terminal domain-like
Family Family family	e.11.1.1 — Type II DNA topoisomerase C-terminal domain-like

CATH v4.4 (5 domains)

Domain ID domain_id	3l4kA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	670 —

Domain ID domain_id	3l4kA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1490 — Dna Ligase; domain 1
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	3l4kA03
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	199 — Topoisomerase II; domain 5
Homologous superfamily homologous superfamily	10 — Topoisomerase II, domain 5

Domain ID domain_id	3l4kA04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1360 — Gyrase A; domain 2
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	3l4kA05
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	268 — Topoisomerase; domain 3
Homologous superfamily homologous superfamily	10 — Topoisomerase, domain 3

▶

8. Citations (1)

▶

Unit-cell length a length_a	86.064 Å
Unit-cell length b length_b	91.851 Å
Unit-cell length c length_c	115.939 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 2 21
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.980 Å
Low-resolution limit resolution_low	49.023 Å
R factor r_factor	0.2408
R_work r_work	0.2391
R_free r_free	0.2733

fit	/app/data/saxs_computation/l4/3l4k/3l4k.fit
pddf	/app/data/pr_computation/l4/3l4k/3l4k.pr.out
profile	/app/data/saxs_computation/l4/3l4k/3l4k.dat

Topoisomerase II-DNA cleavage complex, metal-bound

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA topoisomerase 2

State in the Current Structure

Other States of the Same Protein in the Database

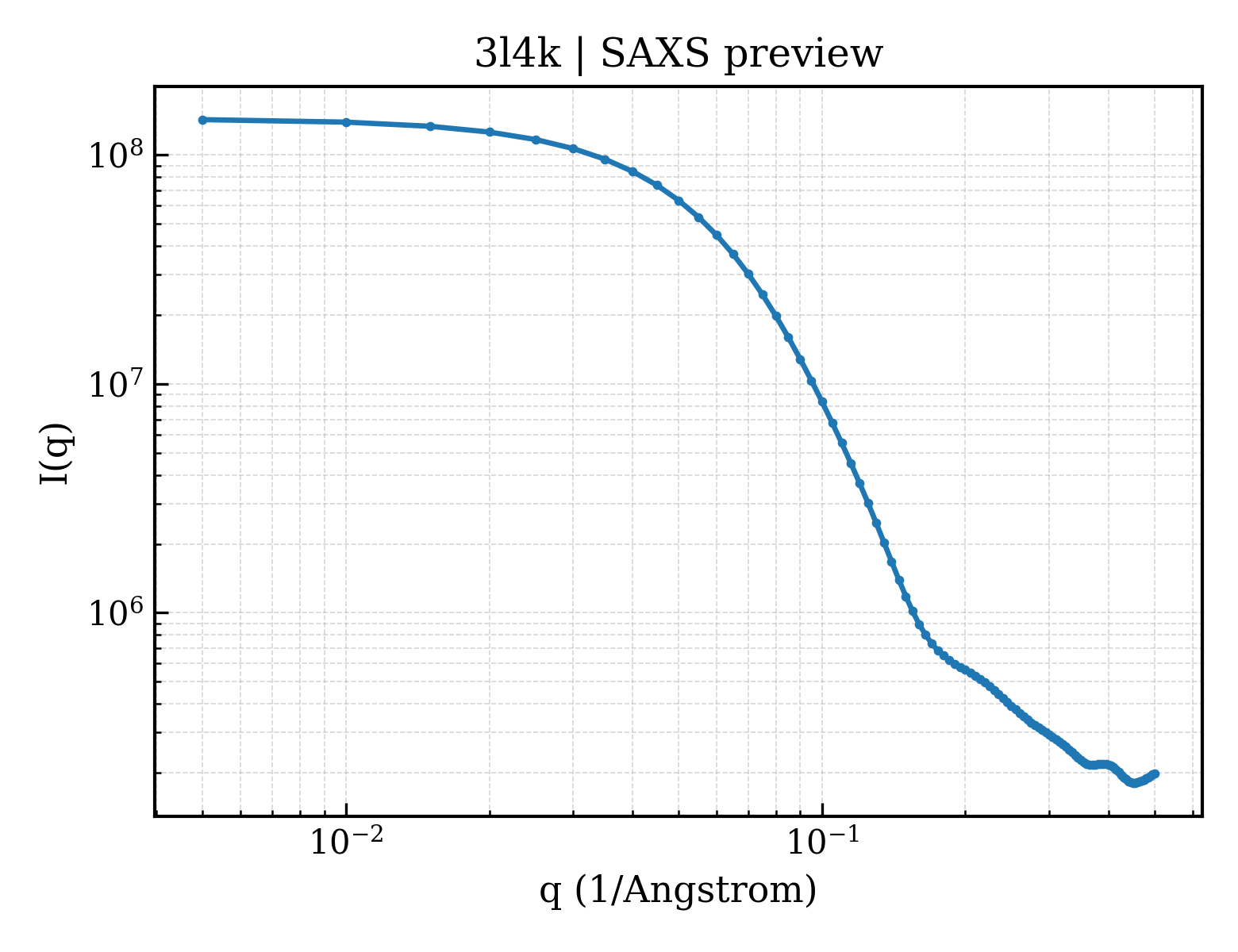

SAXS scattering curve SAXS Profile
