SAXSdb — 3mmy

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

mRNA export factor

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Nuclear pore complex protein Nup98 × 1 （P52948） 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Nuclear pore complex protein Nup98 × 1 （P52948） 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	Nuclear pore complex protein Nup98 × 1 （P52948） 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 water × 2	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 2	Nuclear pore complex protein Nup98 × 1 （P52948） 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RAE1L_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–368； UniProt 1–368 Author chain C； PDBConstruct 1–368； UniProt 1–368 Author chain E； PDBConstruct 1–368； UniProt 1–368 Author chain G； PDBConstruct 1–368； UniProt 1–368

Nuclear pore complex protein Nup98

Homo sapiens

UniProt P52948

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	mRNA export factor × 1 （P78406） 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	mRNA export factor × 1 （P78406） 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	mRNA export factor × 1 （P78406） 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 water × 2	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 2	mRNA export factor × 1 （P78406） 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NUP98_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–56； UniProt 158–213 Author chain D； PDBConstruct 1–56； UniProt 158–213 Author chain F； PDBConstruct 1–56； UniProt 158–213 Author chain H； PDBConstruct 1–56； UniProt 158–213

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3mmy
Deposition date deposition_date	2010-04-20
Structure title title	Structural and functional analysis of the interaction between the nucleoporin Nup98 and the mRNA export factor Rae1
Keywords keywords	Nuclear Pore Complex, mRNA export, NUCLEAR PROTEIN; NUCLEAR PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3mmy__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3mmy__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

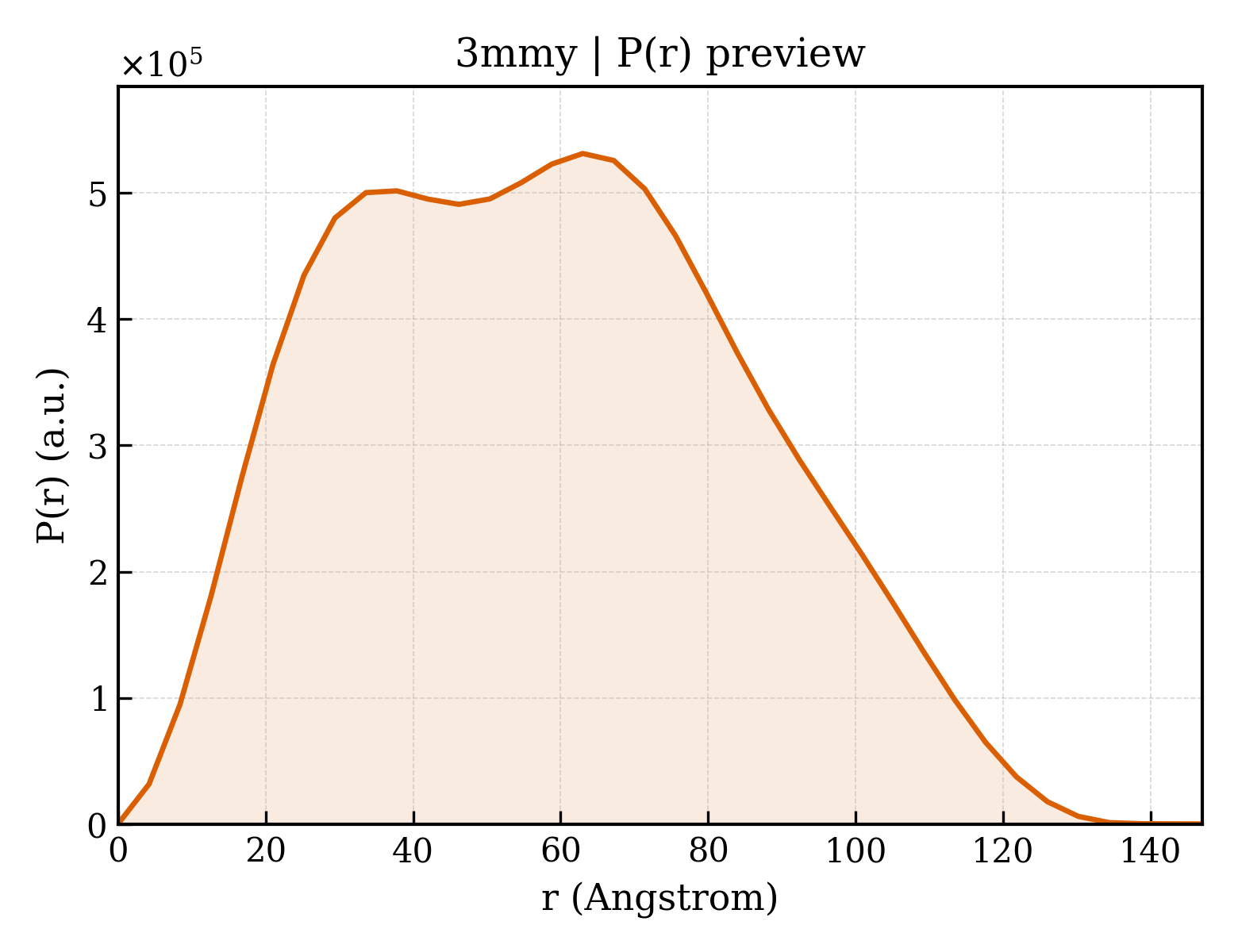

3mmy__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.55 Å
Rg (electron density)	20.41 Å
Total Rg	21.40 Å
Atom count	3201
Residues	405
Excluded volume	56392 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3mmy__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3mmy__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`3mmy__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`3mmy__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	mRNA export factor
Molecular weight formula_weight	41017.1 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G
Atom count atom_count	13731

MSLFGTTSGFGTSGTSMFGSATTDNHNPMKDIEVTSSPDDSIGCLSFSPPTLPGNFLIAGSWANDVRCWEVQDSGQTIPKAQQMHTGPVLDVCWSDDGSKVFTASCDKTAKMWDLSSNQAIQIAQHDAPVKTIHWIKAPNYSCVMTGSWDKTLKFWDTRSSNPMMVLQLPERCYCADVIYPMAVVATAERGLIVYQLENQPSEFRRIESPLKHQHRCVAIFKDKQNKPTGFALGSIEGRVAIHYINPPNPAKDNFTFKCHRSNGTNTSAPQDIYAVNGIAFHPVHGTLATVGSDGRFSFWDKDARTKLKTSEQLDQPISACCFNHNGNIFAYASSYDWSKGHEFYNPQKKNYIFLRNAAEELKPRNKK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Nuclear pore complex protein Nup98
Molecular weight formula_weight	6273.1 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H

TGTTIKFNPPTGTDTMVKAGVSTNISTKHQCITAMKEYESKSLEELRLEDYQANRK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 non-polymer

Description description	2-(N-MORPHOLINO)-ETHANESULFONIC ACID
Molecular weight formula_weight	195.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	798

▼

6. Fold Classification (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

Domain ID domain_id	3mmyA00
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	3mmyB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	2360 —

Domain ID domain_id	3mmyC00
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	3mmyD00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	2360 —

Domain ID domain_id	3mmyE00
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	3mmyF00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	2360 —

Domain ID domain_id	3mmyG00
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	3mmyH00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	2360 —

▶

Unit-cell length a length_a	56.396 Å
Unit-cell length b length_b	79.298 Å
Unit-cell length c length_c	93.407 Å
Unit-cell angle α angle_alpha	76.63 °
Unit-cell angle β angle_beta	89.96 °
Unit-cell angle γ angle_gamma	89.94 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.650 Å
Low-resolution limit resolution_low	19.820 Å
R factor r_factor	0.2077
R_work r_work	0.2061
R_free r_free	0.2374
