3qhs

Crystal structure of full-length Hfq from Escherichia coli

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein hfq

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	water × 6	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 6	water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HFQ_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–102； UniProt 1–102 Author chain B； PDBConstruct 1–102； UniProt 1–102 Author chain C； PDBConstruct 1–102； UniProt 1–102 Author chain D； PDBConstruct 1–102； UniProt 1–102 Author chain E； PDBConstruct 1–102； UniProt 1–102 Author chain F； PDBConstruct 1–102； UniProt 1–102 Author chain G； PDBConstruct 1–102； UniProt 1–102 Author chain H； PDBConstruct 1–102； UniProt 1–102 Author chain I； PDBConstruct 1–102； UniProt 1–102 Author chain J； PDBConstruct 1–102； UniProt 1–102 Author chain K； PDBConstruct 1–102； UniProt 1–102 Author chain L； PDBConstruct 1–102； UniProt 1–102

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3qhs
Deposition date deposition_date	2011-01-26
Structure title title	Crystal structure of full-length Hfq from Escherichia coli
Keywords keywords	RNA BINDING PROTEIN, SM-LIKE, PLEIOTROPIC REGULATOR; RNA BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3qhs__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3qhs__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

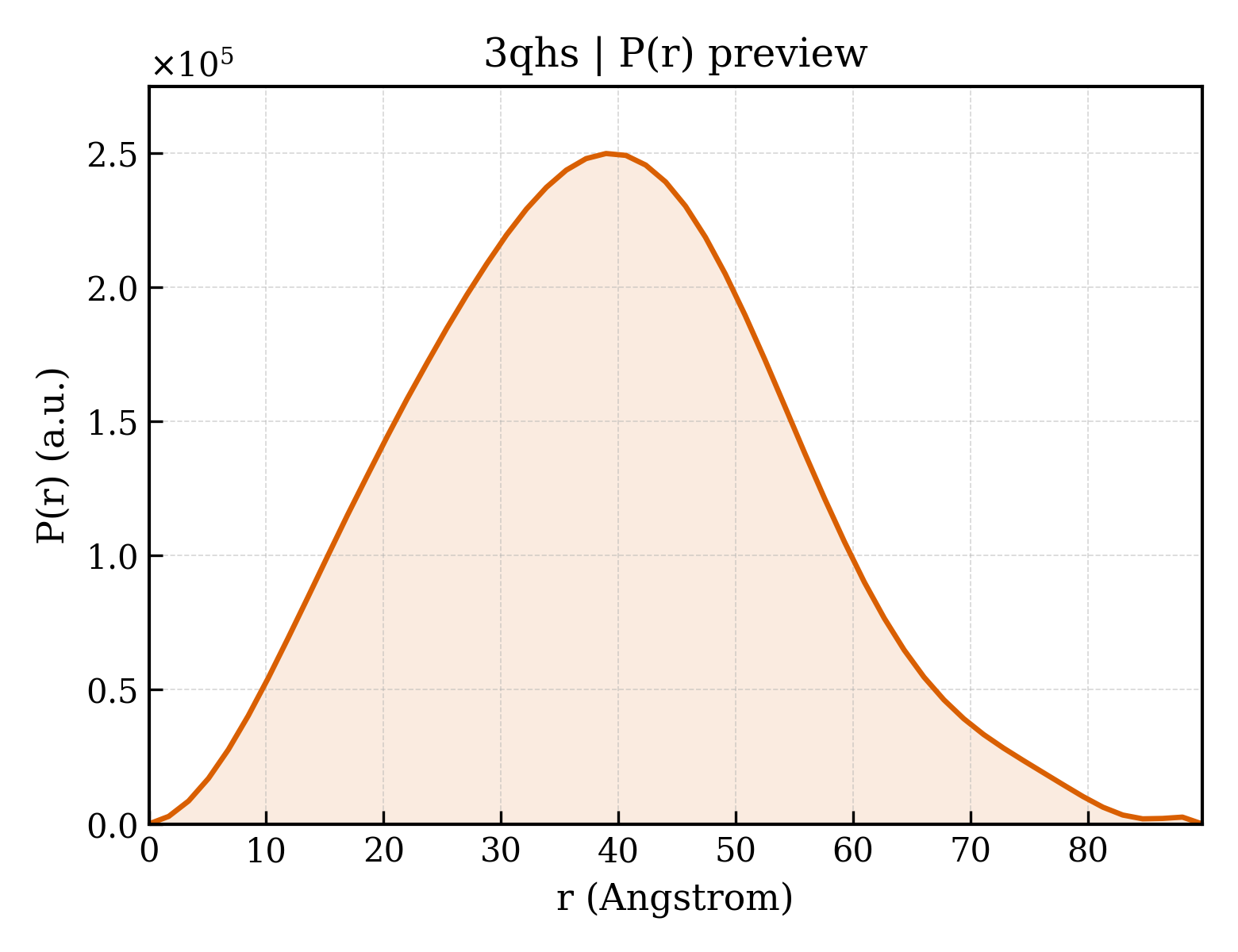

3qhs__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.45 Å
Rg (electron density)	22.95 Å
Total Rg	23.85 Å
Atom count	3267
Residues	409
Excluded volume	58748 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3qhs__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3qhs__assembly_2__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d3qhsa_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

Domain ID domain_id	d3qhsb_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

Domain ID domain_id	d3qhsc_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

Domain ID domain_id	d3qhsd_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

Domain ID domain_id	d3qhse_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

Domain ID domain_id	d3qhsf_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

Domain ID domain_id	d3qhsg_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

Domain ID domain_id	d3qhsh_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

Domain ID domain_id	d3qhsi_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

Domain ID domain_id	d3qhsj_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

Domain ID domain_id	d3qhsk_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

Domain ID domain_id	d3qhsl_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

CATH v4.4 (12 domains)

Domain ID domain_id	3qhsA00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	3qhsB00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	3qhsC00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	3qhsD00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	3qhsE00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	3qhsF00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	3qhsG00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	3qhsH00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	3qhsI00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	3qhsJ00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	3qhsK00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	3qhsL00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

▶

Unit-cell length a length_a	61.910 Å
Unit-cell length b length_b	62.150 Å
Unit-cell length c length_c	81.260 Å
Unit-cell angle α angle_alpha	78.56 °
Unit-cell angle β angle_beta	86.16 °
Unit-cell angle γ angle_gamma	59.86 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.850 Å
Low-resolution limit resolution_low	45.214 Å
R factor r_factor	0.2092
R_work r_work	0.2069
R_free r_free	0.2497

Description description	Protein hfq
Molecular weight formula_weight	11179.4 kDa
Source method src_method	man
Copy count entity_count	12

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L
Atom count atom_count	6563

Crystal structure of full-length Hfq from Escherichia coli

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein hfq

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

3qhs__assembly_1__model_1

3qhs__assembly_1__model_1 | I(q)

3qhs__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

CATH v4.4 (12 domains)

7. Citations (1)

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	71

Crystal structure of full-length Hfq from Escherichia coli

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein hfq

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

3qhs__assembly_1__model_1

3qhs__assembly_1__model_1 | I(q)

3qhs__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

CATH v4.4 (12 domains)

7. Citations (1)
