1. Protein Identity and Related Structures Protein Identity & Related Structures

Nuclear factor of activated T-cells, cytoplasmic 2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 3 DNA 2 PDB declaration: pentameric（5） Consistent with all polymer counts	Chain N； UniProt 396–678	Fragment：human NFAT1 DNA Binding Domain	Forkhead box protein P3 × 2 （Q9BZS1） human hARRE2 DNA (Plus Strand) × 1 human hARRE2 DNA (Minus Strand) × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.63；291 K；5 mM HEPES, pH 7.63, 2 mM dithiothreitol (DTT), 0.5 mM EDTA, and 150 mM NaCl, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.80 Å R-free 0.283
2	Protein–DNA Heteromer Protein × 3 DNA 2 PDB declaration: pentameric（5） Consistent with all polymer counts	Chain M； UniProt 396–678	Fragment：human NFAT1 DNA Binding Domain	Forkhead box protein P3 × 2 （Q9BZS1） human hARRE2 DNA (Plus Strand) × 1 human hARRE2 DNA (Minus Strand) × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.63；291 K；5 mM HEPES, pH 7.63, 2 mM dithiothreitol (DTT), 0.5 mM EDTA, and 150 mM NaCl, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.80 Å R-free 0.283

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3QRF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A02 STRUCTURE OF THE DNA BINDING DOMAINS OF NFAT, FOS AND JUN BOUND TO DNA Deposited 1997-12-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain N 396–678（283 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；THE COMPLEX WAS CRYSTALLIZED IN 300-400 MM AMMONIUM ACETATE SALT, PH 7.5 (10 MM)., VAPOR DIFFUSION, HANGING DROP	Resolution 2.70 Å R-free 0.303
1OWR CRYSTAL STRUCTURE OF HUMAN NFAT1 BOUND MONOMERICALLY TO DNA Deposited 2003-03-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain M 396–678（283 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；289 K；sodium cacodylate, magnesium chloride, peg 3000, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 3.00 Å R-free 0.273
1OWR CRYSTAL STRUCTURE OF HUMAN NFAT1 BOUND MONOMERICALLY TO DNA Deposited 2003-03-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain N 396–678（283 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；289 K；sodium cacodylate, magnesium chloride, peg 3000, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 3.00 Å R-free 0.273
1OWR CRYSTAL STRUCTURE OF HUMAN NFAT1 BOUND MONOMERICALLY TO DNA Deposited 2003-03-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain P 396–678（283 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；289 K；sodium cacodylate, magnesium chloride, peg 3000, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 3.00 Å R-free 0.273
1OWR CRYSTAL STRUCTURE OF HUMAN NFAT1 BOUND MONOMERICALLY TO DNA Deposited 2003-03-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain Q 396–678（283 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；289 K；sodium cacodylate, magnesium chloride, peg 3000, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 3.00 Å R-free 0.273
1P7H Structure of NFAT1 bound as a dimer to the HIV-1 LTR kB element Deposited 2003-05-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain L 393–678（286 aa） Fragment：NFAT1 Chain M 393–678（286 aa） Fragment：NFAT1	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.1；291 K；pH 8.1, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.60 Å R-free 0.265
1P7H Structure of NFAT1 bound as a dimer to the HIV-1 LTR kB element Deposited 2003-05-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain N 393–678（286 aa） Fragment：NFAT1 Chain O 393–678（286 aa） Fragment：NFAT1	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.1；291 K；pH 8.1, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.60 Å R-free 0.265
1PZU An asymmetric NFAT1-RHR homodimer on a pseudo-palindromic, Kappa-B site Deposited 2003-07-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain B 396–678（283 aa） Fragment：NFAT1 DNA-binding domain Chain D 396–678（283 aa） Fragment：NFAT1 DNA-binding domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；pH 8；292 K；HEPES, NaCl, glycerol, NH4OAc, MgCl2, spermine, PEG4000, Tris-HCl, pH 8.0, microbatch, temperature 292.0K	Resolution 3.10 Å R-free 0.319
1PZU An asymmetric NFAT1-RHR homodimer on a pseudo-palindromic, Kappa-B site Deposited 2003-07-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain H 396–678（283 aa） Fragment：NFAT1 DNA-binding domain Chain I 396–678（283 aa） Fragment：NFAT1 DNA-binding domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；pH 8；292 K；HEPES, NaCl, glycerol, NH4OAc, MgCl2, spermine, PEG4000, Tris-HCl, pH 8.0, microbatch, temperature 292.0K	Resolution 3.10 Å R-free 0.319
1PZU An asymmetric NFAT1-RHR homodimer on a pseudo-palindromic, Kappa-B site Deposited 2003-07-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain L 396–678（283 aa） Fragment：NFAT1 DNA-binding domain Chain M 396–678（283 aa） Fragment：NFAT1 DNA-binding domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；pH 8；292 K；HEPES, NaCl, glycerol, NH4OAc, MgCl2, spermine, PEG4000, Tris-HCl, pH 8.0, microbatch, temperature 292.0K	Resolution 3.10 Å R-free 0.319
1S9K Crystal Structure of Human NFAT1 and Fos-Jun on the IL-2 ARRE1 Site Deposited 2004-02-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain C 399–678（280 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289 K；300-400 mM Ammonium Acetate Salt, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 3.10 Å R-free 0.275
2AS5 Structure of the DNA binding domains of NFAT and FOXP2 bound specifically to DNA. Deposited 2005-08-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain N 392–678（287 aa） Fragment：NFAT1 DNA BINDING DOMAIN	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；Cacodylic Acid, PEG 4k, Sodium Chloride, Magnesium Chloride, Glycerol, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.70 Å R-free 0.287
2AS5 Structure of the DNA binding domains of NFAT and FOXP2 bound specifically to DNA. Deposited 2005-08-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain M 392–678（287 aa） Fragment：NFAT1 DNA BINDING DOMAIN	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；Cacodylic Acid, PEG 4k, Sodium Chloride, Magnesium Chloride, Glycerol, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.70 Å R-free 0.287
2O93 Crystal structure of NFAT bound to the HIV-1 LTR tandem kappaB enhancer element Deposited 2006-12-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 3 PDB declaration: pentameric	Chain L 392–678（287 aa） Fragment：RHR domain Chain M 392–678（287 aa） Fragment：RHR domain Chain O 392–678（287 aa） Fragment：RHR domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；50mM Hepes pH 7.0, 15mM Magnesium Acetate, 250mM Ammonium Acetate, 7.5% PEG 4000, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.05 Å R-free 0.283
8OW4 2.75 angstrom crystal structure of human NFAT1 with bound DNA Deposited 2023-04-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 391–678（288 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；295 K；0.1 M sodium cacodylate pH 6.0, 8% w/v PEG 8000	Resolution 2.75 Å R-free 0.273
8OW4 2.75 angstrom crystal structure of human NFAT1 with bound DNA Deposited 2023-04-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain B 391–678（288 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；295 K；0.1 M sodium cacodylate pH 6.0, 8% w/v PEG 8000	Resolution 2.75 Å R-free 0.273
8R07 C-terminal Rel-homology Domain of NFAT1 Deposited 2023-10-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 356–459（104 aa） Chain B 356–459（104 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；25% PEG 3350, 200mM Sodium Chloride and 100 mM BIS-TRIS buffer at a pH of 6.5	Resolution 1.74 Å R-free 0.184
8R3F C-terminal Rel-homology Domain of NFAT1 Deposited 2023-11-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 356–459（104 aa） Chain B 356–459（104 aa）	Not recorded	XS8 (4~{S})-6-fluoranyl-3,4-dihydro-2~{H}-chromen-4-amine × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；containing 25% PEG 3350, 200 mM Sodium Chloride and 100 mM BIS-TRIS buffer at a pH of 6.5	Resolution 1.55 Å R-free 0.236
9VRQ Crystal structure of FOXC2/NFAT1 complex bound to ARRE2 DNA Deposited 2025-07-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain N 392–678（287 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM MES 5.93, 200 mM NaCl, 10 mM MgCl2, 1 mM TCEP and 12-15% PEG 4K (w/v)	Resolution 2.80 Å R-free 0.288

11 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NFAC2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain M； PDBConstruct 4–286； UniProt 396–678 Author chain N； PDBConstruct 4–286； UniProt 396–678

Forkhead box protein P3

Homo sapiens

UniProt Q9BZS1

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 3 DNA 2 PDB declaration: pentameric（5） Consistent with all polymer counts	Chain F； UniProt 336–417 Chain G； UniProt 336–417	Fragment：human FOXP3 DNA Binding Domain	Nuclear factor of activated T-cells, cytoplasmic 2 × 1 （Q13469） human hARRE2 DNA (Plus Strand) × 1 human hARRE2 DNA (Minus Strand) × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.63；291 K；5 mM HEPES, pH 7.63, 2 mM dithiothreitol (DTT), 0.5 mM EDTA, and 150 mM NaCl, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.80 Å R-free 0.283
2	Protein–DNA Heteromer Protein × 3 DNA 2 PDB declaration: pentameric（5） Consistent with all polymer counts	Chain H； UniProt 336–417 Chain I； UniProt 336–417	Fragment：human FOXP3 DNA Binding Domain	Nuclear factor of activated T-cells, cytoplasmic 2 × 1 （Q13469） human hARRE2 DNA (Plus Strand) × 1 human hARRE2 DNA (Minus Strand) × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.63；291 K；5 mM HEPES, pH 7.63, 2 mM dithiothreitol (DTT), 0.5 mM EDTA, and 150 mM NaCl, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.80 Å R-free 0.283

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3QRF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4WK8 FOXP3 forms a domain-swapped dimer to bridge DNA Deposited 2014-10-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain F 336–417（82 aa） Fragment：UNP residues 336-417 Chain G 336–417（82 aa） Fragment：UNP residues 336-417	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；PEG 8000	Resolution 3.40 Å R-free 0.253

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FOXP3_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain F； PDBConstruct 1–82； UniProt 336–417 Author chain G； PDBConstruct 1–82； UniProt 336–417 Author chain H； PDBConstruct 1–82； UniProt 336–417 Author chain I； PDBConstruct 1–82； UniProt 336–417

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3qrf
Deposition date deposition_date	2011-02-17
Structure title title	Structure of a domain-swapped FOXP3 dimer
Keywords keywords	;Beta Barrel, Domain Swap, Forkhead Domain, Immnoglobulin Fold, Protein-DNA Complex, Double Helix, Transcription Regulation, DNA Binding, Nucleus, DNA BINDING PROTEIN-DNA complex ;; DNA BINDING PROTEIN/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	37.71 Å
Radius of gyration Rg (electron density) rg_electron	36.25 Å
Forward intensity I(0) i0	330750000.00
Molecular weight molecular_weight	130490.0 kDa
Excluded volume excluded_volume	156530 Å³
Envelope volume envelope_volume	229650 Å³
Hydration-shell volume shell_volume	53086 Å³
Envelope diameter envelope_diameter	116.4 Å
Shell Rg shell_rg	42.68 Å
Envelope Rg envelope_rg	34.90 Å
Shape Rg shape_rg	36.19 Å
Total Rg total_rg	36.85 Å
Total atoms total_atoms	9098
Residues n_residues	984
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

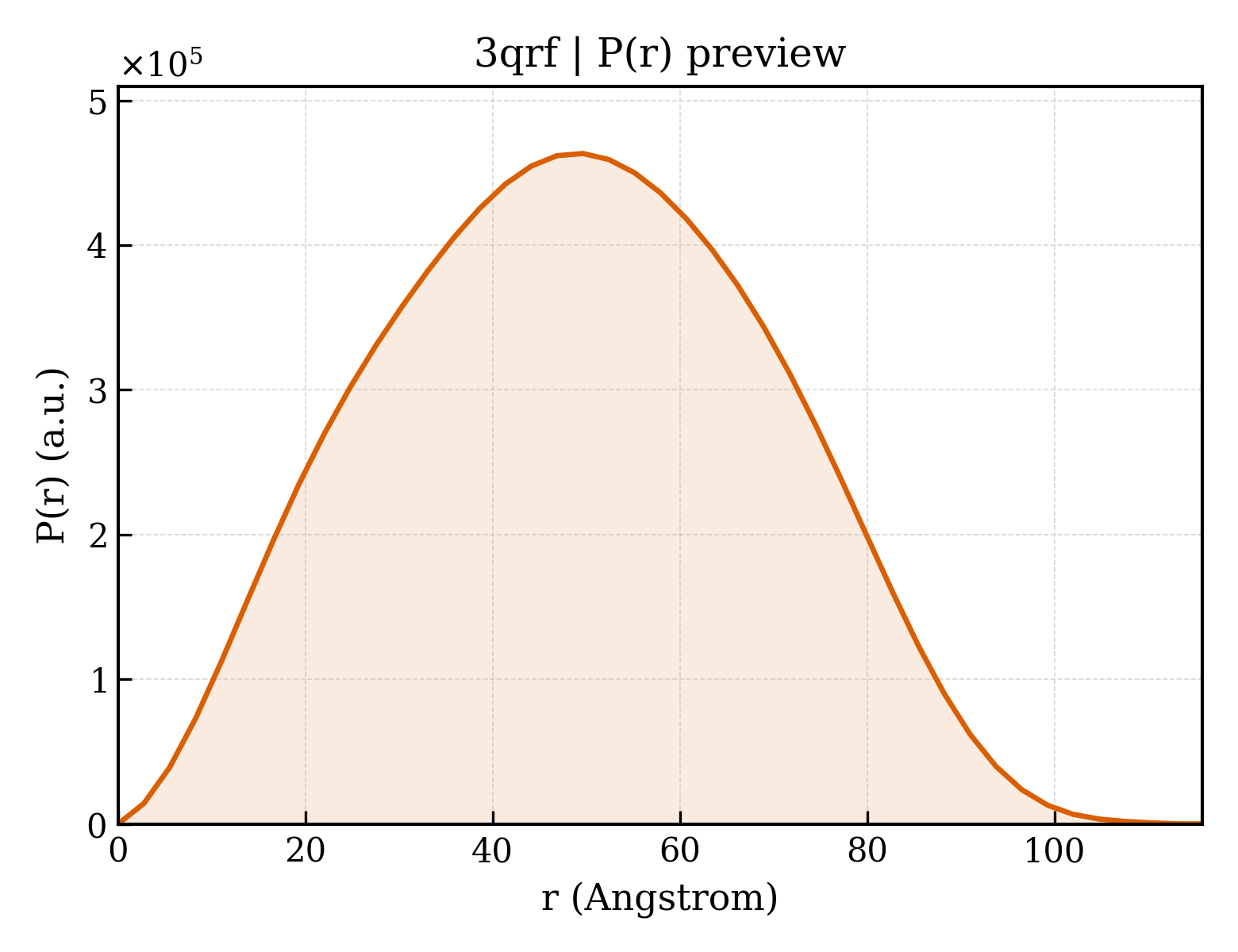

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	115.8 Å
Rg (real space) rg_real	37.49 Å
Rg uncertainty (real space) rg_real_error	0.65 Å
I(0) (real space) i0_real	3.3080e+08
I(0) uncertainty (real space) i0_real_error	5.5850e+06
Rg (reciprocal space) rg_reciprocal	37.63 Å
I(0) (reciprocal space) i0_reciprocal	330800000.0000
Solution quality estimate total_estimate	0.9106
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	49.6 Å
Skewness Skewness skewness	0.054
Kurtosis Kurtosis kurtosis	-0.662
Angular range angular_range	— – 0.2100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	21100000.0000
Real-space data points n_real_points	43
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.965; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.946

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Nuclear factor of activated T-cells, cytoplasmic 2
Molecular weight formula_weight	32209.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N,M
Atom count atom_count	9105

SSVPLEWPLSSQSGSYELRIEVQPKPHHRAHYETEGSRGAVKAPTGGHPVVQLHGYMENKPLGLQIFIGTADERILKPHAFYQVHRITGKTVTTTSYEKIVGNTKVLEIPLEPKNNMRATIDCAGILKLRNADIELRKGETDIGRKNTRVRLVFRVHIPESSGRIVSLQTASNPIECSQRSAHELPMVERQDTDSCLVYGGQQMILTGQNFTSESKVVFTEKTTDGQQIWEMEATVAAAAAAPNMLFVEIPEYRNKHIRTPVKVNFYVINGKRKRSQPQHFTYHPV

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Forkhead box protein P3
Molecular weight formula_weight	10082.7 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,G,H,I

MRPPFTYATLIRWAILEAPEKQRTLNEIYHWFTRMFAFFRNHPATWKNAIRHNLSLHKCFVRVESEKGAVWTVDELEFRKKR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	human hARRE2 DNA (Plus Strand)
Molecular weight formula_weight	6491.2 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C,A

TTAGGAAAATTTGTTTCATAG

Entity 4 Entity 4 polymer

Description description	human hARRE2 DNA (Minus Strand)
Molecular weight formula_weight	6389.2 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D,B

AACTATGAAACAAATTTTCCT

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	7

▼

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d3qrff_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.14 — Forkhead DNA-binding domain

Domain ID domain_id	d3qrfg_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.14 — Forkhead DNA-binding domain

Domain ID domain_id	d3qrfh_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.14 — Forkhead DNA-binding domain

Domain ID domain_id	d3qrfi_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.14 — Forkhead DNA-binding domain

CATH v4.4 (8 domains)

Domain ID domain_id	3qrfF00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	3qrfG00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	3qrfH00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	3qrfI00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	3qrfM01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	340 — Rel homology domain (RHD), DNA-binding domain

Domain ID domain_id	3qrfM02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3qrfN01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	340 — Rel homology domain (RHD), DNA-binding domain

Domain ID domain_id	3qrfN02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	83.667 Å
Unit-cell length b length_b	131.234 Å
Unit-cell length c length_c	68.665 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	89.95 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	—
R_work r_work	0.2478
R_free r_free	0.2828

fit	/app/data/saxs_computation/qr/3qrf/3qrf.fit
pddf	/app/data/pr_computation/qr/3qrf/3qrf.pr.out
profile	/app/data/saxs_computation/qr/3qrf/3qrf.dat

Structure of a domain-swapped FOXP3 dimer

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nuclear factor of activated T-cells, cytoplasmic 2

State in the Current Structure

Other States of the Same Protein in the Database

Forkhead box protein P3

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

Entity 4 Entity 4 polymer

Polymer Polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 water

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (4 domains)

CATH v4.4 (8 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
