1. Protein Identity and Related Structures Protein Identity & Related Structures

Bacteriorhodopsin (GROUND STATE)

Halobacterium sp. NRC-1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	RETINAL × 3 1-[2,6,10.14-TETRAMETHYL-HEXADECAN-16-YL]-2-[2,10,14-TRIMETHYLHEXADECAN-16-YL]GLYCEROL × 11 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BACR_HALSA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–225； UniProt 20–244 Author chain B； PDBConstruct 1–225； UniProt 20–244 Author chain C； PDBConstruct 1–225； UniProt 20–244

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3t45
Deposition date deposition_date	2011-07-25
Structure title title	Crystal structure of bacteriorhodopsin mutant A215T, a phototaxis signaling mutant at 3.0 A resolution
Keywords keywords	;Bacteriorhodopsins, Sensory Rhodopsin II, Microbial Rhodopsins, Lipids, Retinaldehyde, Schiff Bases, Light-Sensor, Phototaxis, SIGNALING PROTEIN ;; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3t45__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

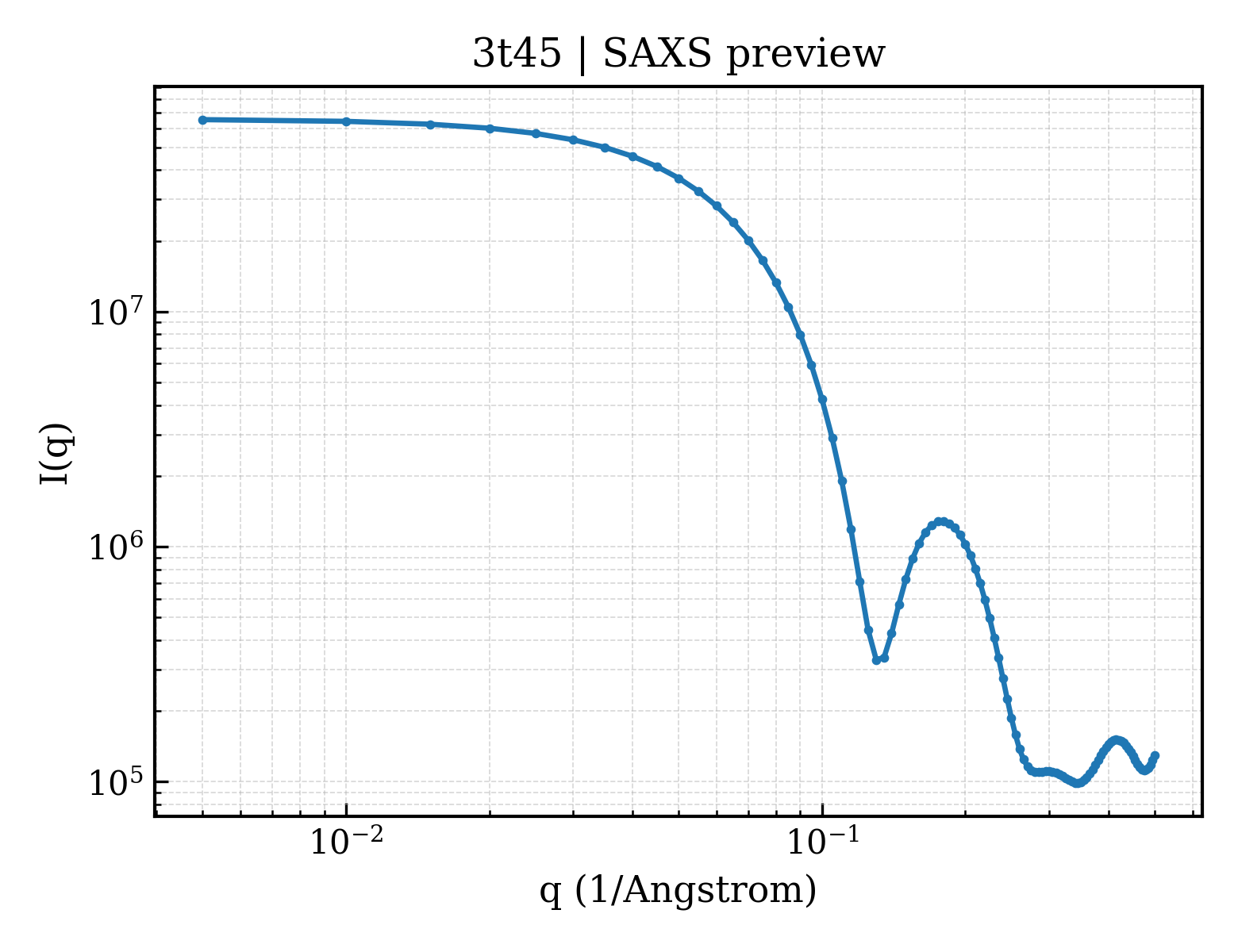

3t45__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

3t45__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.07 Å
Rg (electron density)	24.88 Å
Total Rg	26.10 Å
Atom count	5626
Residues	675
Excluded volume	106390 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3t45__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Bacteriorhodopsin (GROUND STATE)
Molecular weight formula_weight	24733.3 kDa
Mutation mutation	A228T
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	5664

RPEWIWLALGTALMGLGTLYFLVKGMGVSDPDAKKFYAITTLVPAIAFTMYLSMLLGYGLTMVPFGGEQNPIYWARYADWLFTTPLLLLDLALLVDADQGTILALVGADGIMIGTGLVGALTKVYSYRFVWWAISTAAMLYILYVLFFGFTSKAESMRPEVASTFKVLRNVTVVLWSAYPVVWLIGSEGAGIVPLNIETLLFMVLDVSTKVGFGLILLRSRAIFG

Source Source

Source organism organism	Halobacterium sp. NRC-1
NCBI taxonomy ID ncbi_taxonomy_id	64091
Host organism host_organism	Halobacterium salinarum

Entity 2 Entity 2 non-polymer

Description description	RETINAL
Molecular weight formula_weight	284.4 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	1-[2,6,10.14-TETRAMETHYL-HEXADECAN-16-YL]-2-[2,10,14-TRIMETHYLHEXADECAN-16-YL]GLYCEROL
Molecular weight formula_weight	639.1 kDa
Source method src_method	syn
Copy count entity_count	11

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	38

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d3t45a_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.13 — Class A G protein-coupled receptor (GPCR)-like
Superfamily Superfamily superfamily	f.13.1 — Class A G protein-coupled receptor (GPCR)-like
Family Family family	f.13.1.1 — Bacteriorhodopsin-like

Domain ID domain_id	d3t45b_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.13 — Class A G protein-coupled receptor (GPCR)-like
Superfamily Superfamily superfamily	f.13.1 — Class A G protein-coupled receptor (GPCR)-like
Family Family family	f.13.1.1 — Bacteriorhodopsin-like

Domain ID domain_id	d3t45c_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.13 — Class A G protein-coupled receptor (GPCR)-like
Superfamily Superfamily superfamily	f.13.1 — Class A G protein-coupled receptor (GPCR)-like
Family Family family	f.13.1.1 — Bacteriorhodopsin-like

CATH v4.4 (3 domains)

Domain ID domain_id	3t45A00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1070 — Rhopdopsin 7-helix transmembrane proteins
Homologous superfamily homologous superfamily	10 — Rhodopsin 7-helix transmembrane proteins

Domain ID domain_id	3t45B00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1070 — Rhopdopsin 7-helix transmembrane proteins
Homologous superfamily homologous superfamily	10 — Rhodopsin 7-helix transmembrane proteins

Domain ID domain_id	3t45C00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1070 — Rhopdopsin 7-helix transmembrane proteins
Homologous superfamily homologous superfamily	10 — Rhodopsin 7-helix transmembrane proteins

▶

Unit-cell length a length_a	61.452 Å
Unit-cell length b length_b	106.139 Å
Unit-cell length c length_c	124.845 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.08 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	3.010 Å
Low-resolution limit resolution_low	32.670 Å
R factor r_factor	0.2396
R_work r_work	0.2370
R_free r_free	0.2875
