SAXSdb — 4aq5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ACETYLCHOLINE RECEPTOR SUBUNIT ALPHA

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain A； UniProt 1–461 Chain D； UniProt 1–461	Not recorded	ACETYLCHOLINE RECEPTOR BETA SUBUNIT × 1 （Q6S3I0） ACETYLCHOLINE RECEPTOR DELTA SUBUNIT × 1 （Q6S3H8） ACETYLCHOLINE RECEPTOR GAMMA SUBUNIT × 1 （Q6S3H9）	ELECTRON MICROSCOPY cryo-EM buffer：100MM SODIUM CACODYLATE, 1MM CALCIUM CHLORIDE；pH 7；100MM SODIUM CACODYLATE, 1MM CALCIUM CHLORIDE cryo-EM vitrification conditions：Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, HUMIDITY- 85 TEMPERATURE- 120 INSTRUMENT- HOMEMADE PLUNGER METHOD- BLOT UNTIL APPLIED DROPLET LOSES CONTACT WITH FILTER PAPER (INDICATED BY LOSS OF TRANSPARENCY TYPICALLY 6S) TIMERESOLVEDSTATE- VITRIFIED WITHIN 10MS OF EXPOSURE TO ACETYLCHOLINE (APPLIED AS THE GRID IS BEING PLUNGED USING A FINE FOCUSSED SPRAY POSITIONED ABOUT 1CM ABOVE THE ETHANE SURFACE) DETAILS- VITRIFICATION CARRIED OUT AT AN AMBIENT TEMPERATURE OF 8 DEGREES	Resolution 6.20 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4AQ5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1L4W NMR structure of an AChR-peptide (Torpedo Californica, alpha-subunit residues 182-202) in complex with alpha-Bungarotoxin Deposited 2002-03-06	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 206–226（21 aa） Fragment：Acetylcholine receptor peptide (residues 206-226)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4；303 K；Ionic strength (raw mmCIF value) 50 mM Ac；Pressure ambient NMR sample composition 1.8 mM alpha-Bungarotoxin/AChR-peptide, buffer,pH 4 \| 90% H2O/10% D2O NMR sample composition 1.8 mM alpha-Bungarotoxin/AChR-peptide, buffer,pH 4 \| 100% D2O	Resolution not provided
1LJZ NMR structure of an AChR-peptide (Torpedo Californica, alpha-subunit residues 182-202) in complex with alpha-Bungarotoxin Deposited 2002-04-23	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 206–226（21 aa） Fragment：Acetylcholine receptor peptide (residues 182-202)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4；298 K；Ionic strength (raw mmCIF value) 50 mM NH4Ac；Pressure ambient NMR measurement conditions pH 4；298 K；Ionic strength (raw mmCIF value) 50 mM NH4Ac；Pressure ambient NMR sample composition acetylcholine receptor peptide/alpha-bungarotoxin \| 90% H2O/10% D2O NMR sample composition acetylcholine receptor peptide/alpha-bungarotoxin \| 100% D2O	Resolution not provided
1OED STRUCTURE OF ACETYLCHOLINE RECEPTOR PORE FROM ELECTRON IMAGES Deposited 2003-03-24	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 235–461（227 aa） Fragment：MEMBRANE-SPANNING DOMAIN, RESIDUES 235-461 Chain D 235–461（227 aa） Fragment：MEMBRANE-SPANNING DOMAIN, RESIDUES 235-461	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer SODIUM CACODYLATE；pH 6.8 cryo-EM vitrification conditions LIQUID ETHANE	Resolution 4.00 Å
2BG9 REFINED STRUCTURE OF THE NICOTINIC ACETYLCHOLINE RECEPTOR AT 4A RESOLUTION. Deposited 2004-12-17	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 25–330（306 aa） Chain A 398–461（64 aa） Chain D 25–330（306 aa） Chain D 398–461（64 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 100MM SODIUM CACODYLATE；pH 6.8；100MM SODIUM CACODYLATE cryo-EM vitrification conditions LIQUID ETHANE	Resolution 4.00 Å
4AQ9 Gating movement in acetylcholine receptor analysed by time- resolved electron cryo-microscopy (open class) Deposited 2012-04-13	Parsed fields agree	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–461（461 aa） Chain D 1–461（461 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 100MM SODIUM CACODYLATE, 1MM CALCIUM CHLORIDE；pH 7；100MM SODIUM CACODYLATE, 1MM CALCIUM CHLORIDE cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, HUMIDITY- 85 TEMPERATURE- 120 INSTRUMENT- HOMEMADE PLUNGER METHOD- BLOT UNTIL APPLIED DROPLET LOSES CONTACT WITH FILTER PAPER (INDICATED BY LOSS OF TRANSPARENCY TYPICALLY 6S) TIMERESOLVEDSTATE- VITRIFIED WITHIN 10MS OF EXPOSURE TO ACETYLCHOLINE (APPLIED AS THE GRID IS BEING PLUNGED USING A FINE FOCUSSED SPRAY POSITIONED ABOUT 1CM ABOVE THE ETHANE SURFACE) DETAILS- VITRIFICATION CARRIED OUT AT AN AMBIENT TEMPERATURE OF 8 DEGREES	Resolution 6.20 Å
4BOG The structure and super-organization of acetylcholine receptor-rapsyn complexes Deposited 2013-05-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric	Chain 2 1–461（461 aa） Chain A 1–461（461 aa） Chain D 1–461（461 aa） Chain F 1–461（461 aa） Chain I 1–461（461 aa） Chain K 1–461（461 aa） Chain N 1–461（461 aa） Chain P 1–461（461 aa） Chain S 1–461（461 aa） Chain U 1–461（461 aa） Chain X 1–461（461 aa） Chain Z 1–461（461 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L；pH 7.4；400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L cryo-EM vitrification conditions Cryogen ETHANE；ETHANE	Resolution 50.00 Å
4BOI The structure and super-organization of acetylcholine receptor-rapsyn complexes class A Deposited 2013-05-20	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–461（461 aa） Chain D 1–461（461 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L；pH 7.4；400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, HUMIDITY- 90, TEMPERATURE- 78, INSTRUMENT- HOMEMADE PLUNGER, METHOD- BLOT FROM THE CARBON SIDE	Resolution 41.00 Å
4BON The structure and super-organization of acetylcholine receptor-rapsyn complexes class B Deposited 2013-05-21	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–461（461 aa） Chain D 1–461（461 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 40.00 Å
4BOO The structure and super-organization of acetylcholine receptor-rapsyn complexes class C Deposited 2013-05-21	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–461（461 aa） Chain D 1–461（461 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L；pH 7.4；400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L cryo-EM vitrification conditions Cryogen ETHANE；CRYOGEN- ETHANE, HUMIDITY- 90, TEMPERATURE- 78, INSTRUMENT- HOMEMADE PLUNGER, METHOD- BLOT FROM THE CARBON SIDE	Resolution 42.00 Å
4BOR The structure and super-organization of acetylcholine receptor-rapsyn complexes class D Deposited 2013-05-22	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–461（461 aa） Chain D 1–461（461 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 42.00 Å
4BOT The structure and super-organization of acetylcholine receptor- rapsyn complexes class E Deposited 2013-05-22	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–461（461 aa） Chain D 1–461（461 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L；pH 7.4；400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, HUMIDITY- 90, TEMPERATURE- 78, INSTRUMENT- HOMEMADE PLUNGER, METHOD- BLOT FROM THE CARBON SIDE,	Resolution 42.00 Å

11 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ACHA_TORMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–461； UniProt 1–461 Author chain D； PDBConstruct 1–461； UniProt 1–461

ACETYLCHOLINE RECEPTOR BETA SUBUNIT

OrganismNot specified

UniProt Q6S3I0

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain B； UniProt 1–493	Not recorded	ACETYLCHOLINE RECEPTOR SUBUNIT ALPHA × 2 （P02711） ACETYLCHOLINE RECEPTOR DELTA SUBUNIT × 1 （Q6S3H8） ACETYLCHOLINE RECEPTOR GAMMA SUBUNIT × 1 （Q6S3H9）	ELECTRON MICROSCOPY cryo-EM buffer：100MM SODIUM CACODYLATE, 1MM CALCIUM CHLORIDE；pH 7；100MM SODIUM CACODYLATE, 1MM CALCIUM CHLORIDE cryo-EM vitrification conditions：Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, HUMIDITY- 85 TEMPERATURE- 120 INSTRUMENT- HOMEMADE PLUNGER METHOD- BLOT UNTIL APPLIED DROPLET LOSES CONTACT WITH FILTER PAPER (INDICATED BY LOSS OF TRANSPARENCY TYPICALLY 6S) TIMERESOLVEDSTATE- VITRIFIED WITHIN 10MS OF EXPOSURE TO ACETYLCHOLINE (APPLIED AS THE GRID IS BEING PLUNGED USING A FINE FOCUSSED SPRAY POSITIONED ABOUT 1CM ABOVE THE ETHANE SURFACE) DETAILS- VITRIFICATION CARRIED OUT AT AN AMBIENT TEMPERATURE OF 8 DEGREES	Resolution 6.20 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4AQ5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1OED STRUCTURE OF ACETYLCHOLINE RECEPTOR PORE FROM ELECTRON IMAGES Deposited 2003-03-24	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 241–490（250 aa） Fragment：MEMBRANE-SPANNING DOMAIN, RESIDUES 241-490	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer SODIUM CACODYLATE；pH 6.8 cryo-EM vitrification conditions LIQUID ETHANE	Resolution 4.00 Å
2BG9 REFINED STRUCTURE OF THE NICOTINIC ACETYLCHOLINE RECEPTOR AT 4A RESOLUTION. Deposited 2004-12-17	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 25–188（164 aa） Chain B 198–336（139 aa） Chain B 427–493（67 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 100MM SODIUM CACODYLATE；pH 6.8；100MM SODIUM CACODYLATE cryo-EM vitrification conditions LIQUID ETHANE	Resolution 4.00 Å
4AQ9 Gating movement in acetylcholine receptor analysed by time- resolved electron cryo-microscopy (open class) Deposited 2012-04-13	Parsed fields agree	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–493（493 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 100MM SODIUM CACODYLATE, 1MM CALCIUM CHLORIDE；pH 7；100MM SODIUM CACODYLATE, 1MM CALCIUM CHLORIDE cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, HUMIDITY- 85 TEMPERATURE- 120 INSTRUMENT- HOMEMADE PLUNGER METHOD- BLOT UNTIL APPLIED DROPLET LOSES CONTACT WITH FILTER PAPER (INDICATED BY LOSS OF TRANSPARENCY TYPICALLY 6S) TIMERESOLVEDSTATE- VITRIFIED WITHIN 10MS OF EXPOSURE TO ACETYLCHOLINE (APPLIED AS THE GRID IS BEING PLUNGED USING A FINE FOCUSSED SPRAY POSITIONED ABOUT 1CM ABOVE THE ETHANE SURFACE) DETAILS- VITRIFICATION CARRIED OUT AT AN AMBIENT TEMPERATURE OF 8 DEGREES	Resolution 6.20 Å
4BOG The structure and super-organization of acetylcholine receptor-rapsyn complexes Deposited 2013-05-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric	Chain 0 1–493（493 aa） Chain B 1–493（493 aa） Chain G 1–493（493 aa） Chain L 1–493（493 aa） Chain Q 1–493（493 aa） Chain V 1–493（493 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L；pH 7.4；400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L cryo-EM vitrification conditions Cryogen ETHANE；ETHANE	Resolution 50.00 Å
4BOI The structure and super-organization of acetylcholine receptor-rapsyn complexes class A Deposited 2013-05-20	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–493（493 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L；pH 7.4；400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, HUMIDITY- 90, TEMPERATURE- 78, INSTRUMENT- HOMEMADE PLUNGER, METHOD- BLOT FROM THE CARBON SIDE	Resolution 41.00 Å
4BON The structure and super-organization of acetylcholine receptor-rapsyn complexes class B Deposited 2013-05-21	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–493（493 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 40.00 Å
4BOO The structure and super-organization of acetylcholine receptor-rapsyn complexes class C Deposited 2013-05-21	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–493（493 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L；pH 7.4；400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L cryo-EM vitrification conditions Cryogen ETHANE；CRYOGEN- ETHANE, HUMIDITY- 90, TEMPERATURE- 78, INSTRUMENT- HOMEMADE PLUNGER, METHOD- BLOT FROM THE CARBON SIDE	Resolution 42.00 Å
4BOR The structure and super-organization of acetylcholine receptor-rapsyn complexes class D Deposited 2013-05-22	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–493（493 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 42.00 Å
4BOT The structure and super-organization of acetylcholine receptor- rapsyn complexes class E Deposited 2013-05-22	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–493（493 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L；pH 7.4；400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, HUMIDITY- 90, TEMPERATURE- 78, INSTRUMENT- HOMEMADE PLUNGER, METHOD- BLOT FROM THE CARBON SIDE,	Resolution 42.00 Å

9 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q6S3I0_TORMA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–493； UniProt 1–493

ACETYLCHOLINE RECEPTOR DELTA SUBUNIT

OrganismNot specified

UniProt Q6S3H8

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain C； UniProt 1–522	Not recorded	ACETYLCHOLINE RECEPTOR SUBUNIT ALPHA × 2 （P02711） ACETYLCHOLINE RECEPTOR BETA SUBUNIT × 1 （Q6S3I0） ACETYLCHOLINE RECEPTOR GAMMA SUBUNIT × 1 （Q6S3H9）	ELECTRON MICROSCOPY cryo-EM buffer：100MM SODIUM CACODYLATE, 1MM CALCIUM CHLORIDE；pH 7；100MM SODIUM CACODYLATE, 1MM CALCIUM CHLORIDE cryo-EM vitrification conditions：Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, HUMIDITY- 85 TEMPERATURE- 120 INSTRUMENT- HOMEMADE PLUNGER METHOD- BLOT UNTIL APPLIED DROPLET LOSES CONTACT WITH FILTER PAPER (INDICATED BY LOSS OF TRANSPARENCY TYPICALLY 6S) TIMERESOLVEDSTATE- VITRIFIED WITHIN 10MS OF EXPOSURE TO ACETYLCHOLINE (APPLIED AS THE GRID IS BEING PLUNGED USING A FINE FOCUSSED SPRAY POSITIONED ABOUT 1CM ABOVE THE ETHANE SURFACE) DETAILS- VITRIFICATION CARRIED OUT AT AN AMBIENT TEMPERATURE OF 8 DEGREES	Resolution 6.20 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4AQ5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1OED STRUCTURE OF ACETYLCHOLINE RECEPTOR PORE FROM ELECTRON IMAGES Deposited 2003-03-24	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 246–505（260 aa） Fragment：MEMBRANE-SPANNING DOMAIN, RESIDUES 246-505	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer SODIUM CACODYLATE；pH 6.8 cryo-EM vitrification conditions LIQUID ETHANE	Resolution 4.00 Å
2BG9 REFINED STRUCTURE OF THE NICOTINIC ACETYLCHOLINE RECEPTOR AT 4A RESOLUTION. Deposited 2004-12-17	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 22–183（162 aa） Chain C 199–341（143 aa） Chain C 442–505（64 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 100MM SODIUM CACODYLATE；pH 6.8；100MM SODIUM CACODYLATE cryo-EM vitrification conditions LIQUID ETHANE	Resolution 4.00 Å
4AQ9 Gating movement in acetylcholine receptor analysed by time- resolved electron cryo-microscopy (open class) Deposited 2012-04-13	Parsed fields agree	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–522（522 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 100MM SODIUM CACODYLATE, 1MM CALCIUM CHLORIDE；pH 7；100MM SODIUM CACODYLATE, 1MM CALCIUM CHLORIDE cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, HUMIDITY- 85 TEMPERATURE- 120 INSTRUMENT- HOMEMADE PLUNGER METHOD- BLOT UNTIL APPLIED DROPLET LOSES CONTACT WITH FILTER PAPER (INDICATED BY LOSS OF TRANSPARENCY TYPICALLY 6S) TIMERESOLVEDSTATE- VITRIFIED WITHIN 10MS OF EXPOSURE TO ACETYLCHOLINE (APPLIED AS THE GRID IS BEING PLUNGED USING A FINE FOCUSSED SPRAY POSITIONED ABOUT 1CM ABOVE THE ETHANE SURFACE) DETAILS- VITRIFICATION CARRIED OUT AT AN AMBIENT TEMPERATURE OF 8 DEGREES	Resolution 6.20 Å
4BOG The structure and super-organization of acetylcholine receptor-rapsyn complexes Deposited 2013-05-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric	Chain 1 1–522（522 aa） Chain C 1–522（522 aa） Chain H 1–522（522 aa） Chain M 1–522（522 aa） Chain R 1–522（522 aa） Chain W 1–522（522 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L；pH 7.4；400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L cryo-EM vitrification conditions Cryogen ETHANE；ETHANE	Resolution 50.00 Å
4BOI The structure and super-organization of acetylcholine receptor-rapsyn complexes class A Deposited 2013-05-20	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–522（522 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L；pH 7.4；400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, HUMIDITY- 90, TEMPERATURE- 78, INSTRUMENT- HOMEMADE PLUNGER, METHOD- BLOT FROM THE CARBON SIDE	Resolution 41.00 Å
4BON The structure and super-organization of acetylcholine receptor-rapsyn complexes class B Deposited 2013-05-21	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–522（522 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 40.00 Å
4BOO The structure and super-organization of acetylcholine receptor-rapsyn complexes class C Deposited 2013-05-21	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–522（522 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L；pH 7.4；400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L cryo-EM vitrification conditions Cryogen ETHANE；CRYOGEN- ETHANE, HUMIDITY- 90, TEMPERATURE- 78, INSTRUMENT- HOMEMADE PLUNGER, METHOD- BLOT FROM THE CARBON SIDE	Resolution 42.00 Å
4BOR The structure and super-organization of acetylcholine receptor-rapsyn complexes class D Deposited 2013-05-22	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–522（522 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 42.00 Å
4BOT The structure and super-organization of acetylcholine receptor- rapsyn complexes class E Deposited 2013-05-22	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–522（522 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L；pH 7.4；400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, HUMIDITY- 90, TEMPERATURE- 78, INSTRUMENT- HOMEMADE PLUNGER, METHOD- BLOT FROM THE CARBON SIDE,	Resolution 42.00 Å

9 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q6S3H8_TORMA
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–522； UniProt 1–522

ACETYLCHOLINE RECEPTOR GAMMA SUBUNIT

OrganismNot specified

UniProt Q6S3H9

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain E； UniProt 18–505	Not recorded	ACETYLCHOLINE RECEPTOR SUBUNIT ALPHA × 2 （P02711） ACETYLCHOLINE RECEPTOR BETA SUBUNIT × 1 （Q6S3I0） ACETYLCHOLINE RECEPTOR DELTA SUBUNIT × 1 （Q6S3H8）	ELECTRON MICROSCOPY cryo-EM buffer：100MM SODIUM CACODYLATE, 1MM CALCIUM CHLORIDE；pH 7；100MM SODIUM CACODYLATE, 1MM CALCIUM CHLORIDE cryo-EM vitrification conditions：Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, HUMIDITY- 85 TEMPERATURE- 120 INSTRUMENT- HOMEMADE PLUNGER METHOD- BLOT UNTIL APPLIED DROPLET LOSES CONTACT WITH FILTER PAPER (INDICATED BY LOSS OF TRANSPARENCY TYPICALLY 6S) TIMERESOLVEDSTATE- VITRIFIED WITHIN 10MS OF EXPOSURE TO ACETYLCHOLINE (APPLIED AS THE GRID IS BEING PLUNGED USING A FINE FOCUSSED SPRAY POSITIONED ABOUT 1CM ABOVE THE ETHANE SURFACE) DETAILS- VITRIFICATION CARRIED OUT AT AN AMBIENT TEMPERATURE OF 8 DEGREES	Resolution 6.20 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4AQ5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1OED STRUCTURE OF ACETYLCHOLINE RECEPTOR PORE FROM ELECTRON IMAGES Deposited 2003-03-24	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 235–494（260 aa） Fragment：MEMBRANE-SPANNING DOMAIN, RESIDUES 236-495	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer SODIUM CACODYLATE；pH 6.8 cryo-EM vitrification conditions LIQUID ETHANE	Resolution 4.00 Å
2BG9 REFINED STRUCTURE OF THE NICOTINIC ACETYLCHOLINE RECEPTOR AT 4A RESOLUTION. Deposited 2004-12-17	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 18–181（164 aa） Chain E 189–332（144 aa） Chain E 432–493（62 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 100MM SODIUM CACODYLATE；pH 6.8；100MM SODIUM CACODYLATE cryo-EM vitrification conditions LIQUID ETHANE	Resolution 4.00 Å
4AQ9 Gating movement in acetylcholine receptor analysed by time- resolved electron cryo-microscopy (open class) Deposited 2012-04-13	Parsed fields agree	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 18–505（488 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 100MM SODIUM CACODYLATE, 1MM CALCIUM CHLORIDE；pH 7；100MM SODIUM CACODYLATE, 1MM CALCIUM CHLORIDE cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, HUMIDITY- 85 TEMPERATURE- 120 INSTRUMENT- HOMEMADE PLUNGER METHOD- BLOT UNTIL APPLIED DROPLET LOSES CONTACT WITH FILTER PAPER (INDICATED BY LOSS OF TRANSPARENCY TYPICALLY 6S) TIMERESOLVEDSTATE- VITRIFIED WITHIN 10MS OF EXPOSURE TO ACETYLCHOLINE (APPLIED AS THE GRID IS BEING PLUNGED USING A FINE FOCUSSED SPRAY POSITIONED ABOUT 1CM ABOVE THE ETHANE SURFACE) DETAILS- VITRIFICATION CARRIED OUT AT AN AMBIENT TEMPERATURE OF 8 DEGREES	Resolution 6.20 Å
4BOG The structure and super-organization of acetylcholine receptor-rapsyn complexes Deposited 2013-05-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric	Chain 3 1–505（505 aa） Chain E 1–505（505 aa） Chain J 1–505（505 aa） Chain O 1–505（505 aa） Chain T 1–505（505 aa） Chain Y 1–505（505 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L；pH 7.4；400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L cryo-EM vitrification conditions Cryogen ETHANE；ETHANE	Resolution 50.00 Å
4BOI The structure and super-organization of acetylcholine receptor-rapsyn complexes class A Deposited 2013-05-20	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–505（505 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L；pH 7.4；400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, HUMIDITY- 90, TEMPERATURE- 78, INSTRUMENT- HOMEMADE PLUNGER, METHOD- BLOT FROM THE CARBON SIDE	Resolution 41.00 Å
4BON The structure and super-organization of acetylcholine receptor-rapsyn complexes class B Deposited 2013-05-21	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–505（505 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 40.00 Å
4BOO The structure and super-organization of acetylcholine receptor-rapsyn complexes class C Deposited 2013-05-21	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–505（505 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L；pH 7.4；400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L cryo-EM vitrification conditions Cryogen ETHANE；CRYOGEN- ETHANE, HUMIDITY- 90, TEMPERATURE- 78, INSTRUMENT- HOMEMADE PLUNGER, METHOD- BLOT FROM THE CARBON SIDE	Resolution 42.00 Å
4BOR The structure and super-organization of acetylcholine receptor-rapsyn complexes class D Deposited 2013-05-22	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–505（505 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 42.00 Å
4BOT The structure and super-organization of acetylcholine receptor- rapsyn complexes class E Deposited 2013-05-22	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–505（505 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L；pH 7.4；400 MM NACL, 20 MM PHOSPHATE BUFFER, LEUPEPTIN 0.3 MG/L, PEPSTATIN 1 MG/L cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, HUMIDITY- 90, TEMPERATURE- 78, INSTRUMENT- HOMEMADE PLUNGER, METHOD- BLOT FROM THE CARBON SIDE,	Resolution 42.00 Å

9 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q6S3H9_TORMA
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain E； PDBConstruct 1–488； UniProt 18–505

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4aq5
Deposition date deposition_date	2012-04-12
Structure title title	Gating movement in acetylcholine receptor analysed by time-resolved electron cryo-microscopy (closed class)
Keywords keywords	MEMBRANE PROTEIN, FREEZE-TRAPPING, ASYMMETRIC GATING, ALLOSTERIC MECHANISM; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

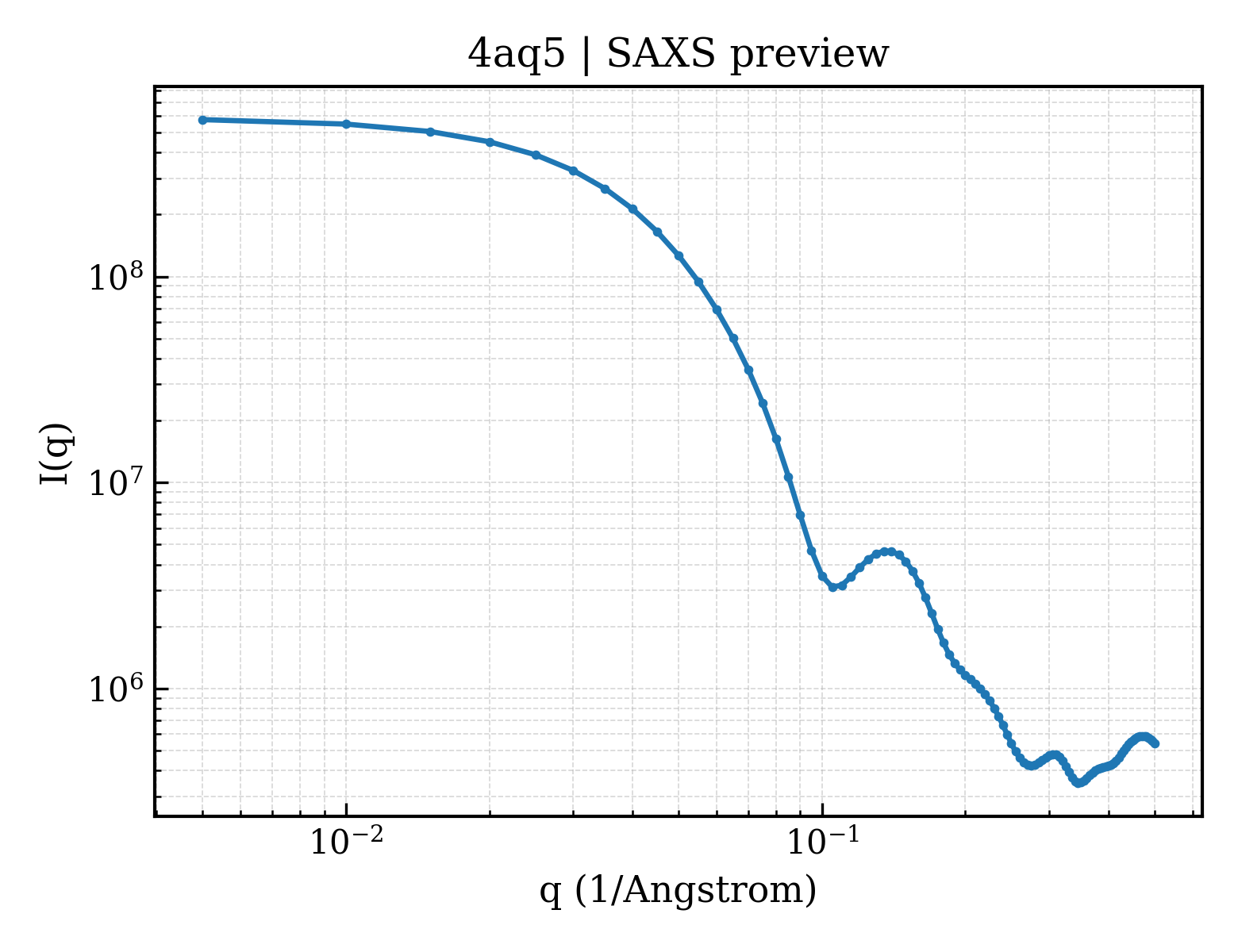

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	44.46 Å
Radius of gyration Rg (electron density) rg_electron	43.75 Å
Forward intensity I(0) i0	586878000.00
Molecular weight molecular_weight	211500.0 kDa
Excluded volume excluded_volume	269810 Å³
Envelope volume envelope_volume	383430 Å³
Hydration-shell volume shell_volume	74584 Å³
Envelope diameter envelope_diameter	163.7 Å
Shell Rg shell_rg	47.71 Å
Envelope Rg envelope_rg	43.36 Å
Shape Rg shape_rg	43.75 Å
Total Rg total_rg	43.93 Å
Total atoms total_atoms	14924
Residues n_residues	1851
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

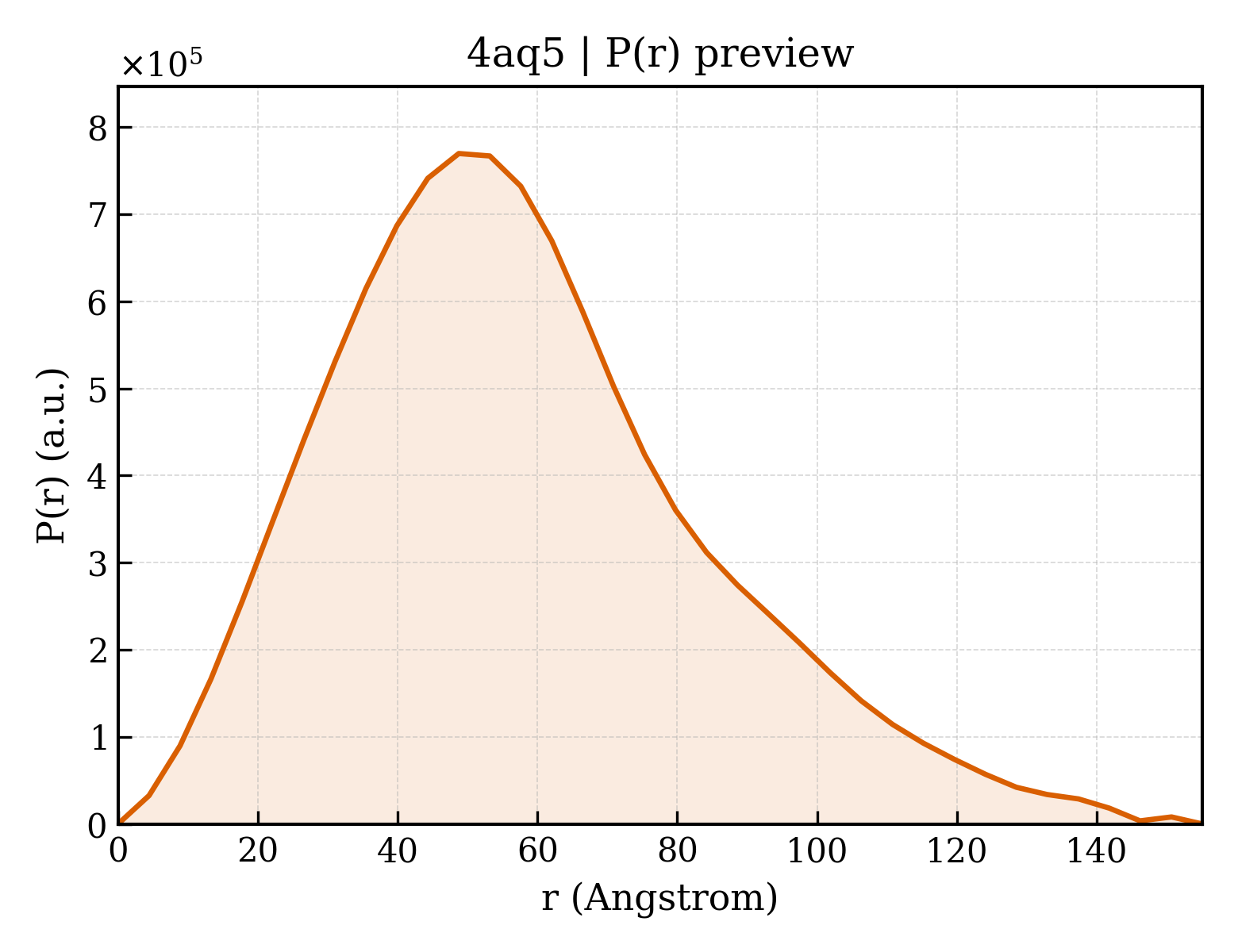

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	155.1 Å
Rg (real space) rg_real	44.69 Å
Rg uncertainty (real space) rg_real_error	1.93 Å
I(0) (real space) i0_real	5.8690e+08
I(0) uncertainty (real space) i0_real_error	9.7880e+06
Rg (reciprocal space) rg_reciprocal	44.46 Å
I(0) (reciprocal space) i0_reciprocal	586700000.0000
Solution quality estimate total_estimate	0.8188
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	48.7 Å
Skewness Skewness skewness	0.607
Kurtosis Kurtosis kurtosis	0.162
Angular range angular_range	— – 0.1750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	86990000.0000
Real-space data points n_real_points	36
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.649; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.713

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ACETYLCHOLINE RECEPTOR SUBUNIT ALPHA
Molecular weight formula_weight	52845.5 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	14924

MILCSYWHVGLVLLLFSCCGLVLGSEHETRLVANLLENYNKVIRPVEHHTHFVDITVGLQLIQLINVDEVNQIVETNVRLRQQWIDVRLRWNPADYGGIKKIRLPSDDVWLPDLVLYNNADGDFAIVHMTKLLLDYTGKIMWTPPAIFKSYCEIIVTHFPFDQQNCTMKLGIWTYDGTKVSISPESDRPDLSTFMESGEWVMKDYRGWKHWVYYTCCPDTPYLDITYHFIMQRIPLYFVVNVIIPCLLFSFLTVLVFYLPTDSGEKMTLSISVLLSLTVFLLVIVELIPSTSSAVPLIGKYMLFTMIFVISSIIVTVVVINTHHRSPSTHTMPQWVRKIFINTIPNVMFFSTMKRASKEKQENKIFADDIDISDISGKQVTGEVIFQTPLIKNPDVKSAIEGVKYIAEHMKSDEESSNAAEEWKYVAMVIDHILLCVFMLICIIGTVSVFAGRLIELSQEG

Entity 2 Entity 2 polymer

Description description	ACETYLCHOLINE RECEPTOR BETA SUBUNIT
Molecular weight formula_weight	56123.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MEDVRRMALGLVVMMALALSGVGASVMEDTLLSVLFENYNPKVRPSQTVGDKVTVRVGLTLTSLLILNEKNEEMTTSVFLNLAWTDYRLQWDPAAYEGIKDLSIPSDDVWQPDIVLMNNNDGSFEITLHVNVLVQHTGAVSWHPSAIYRSSCTIKVMYFPFDWQNCTMVFKSYTYDTSEVILQHALDAKGEREVKEIMINQDAFTENGQWSIEHKPSRKNWRSDDPSYEDVTFYLIIQRKPLFYIVYTIVPCILISILAILVFYLPPDAGEKMSLSISALLALTVFLLLLADKVPETSLSVPIIISYLMFIMILVAFSVILSVVVLNLHHRSPNTHTMPNWIRQIFIETLPPFLWIQRPVTTPSPDSKPTIISRANDEYFIRKPAGDFVCPVDNARVAVQPERLFSEMKWHLNGLTQPVTLPQDLKEAVEAIKYIAEQLESASEFDDLKKDWQYVAMVADRLFLYIFITMCSIGTFSIFLDASHNVPPDNPFA

Entity 3 Entity 3 polymer

Description description	ACETYLCHOLINE RECEPTOR DELTA SUBUNIT
Molecular weight formula_weight	60017.7 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MGNIHFVYLLISCLYYSGCSGVNEEERLINDLLIVNKYNKHVRPVKHNNEVVNIALSLTLSNLISLKETDETLTTNVWMDHAWYDHRLTWNASEYSDISILRLRPELIWIPDIVLQNNNDGQYNVAYFCNVLVRPNGYVTWLPPAIFRSSCPINVLYFPFDWQNCSLKFTALNYNANEISMDLMTDTIDGKDYPIEWIIIDPEAFTENGEWEIIHKPAKKNIYGDKFPNGTNYQDVTFYLIIRRKPLFYVINFITPCVLISFLAALAFYLPAESGEKMSTAICVLLAQAVFLLLTSQRLPETALAVPLIGKYLMFIMSLVTGVVVNCGIVLNFHFRTPSTHVLSTRVKQIFLEKLPRILHMSRVDEIEQPDWQNDLKLRRSSSVGYISKAQEYFNIKSRSELMFEKQSERHGLVPRVTPRIGFGNNNENIAASDQLHDEIKSGIDSTNYIVKQIKEKNAYDEEVGNWNLVGQTIDRLSMFIITPVMVLGTIFIFVMGNFNRPPAKPFEGDPFDYSSDHPRCA

Entity 4 Entity 4 polymer

Description description	ACETYLCHOLINE RECEPTOR GAMMA SUBUNIT
Molecular weight formula_weight	56234.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

NEEGRLIEKLLGDYDKRIKPAKTLDHVIDVTLKLTLTNLISLNEKEEALTTNVWIEIQWNDYRLSWNTSEYEGIDLVRIPSELLWLPDVVLENNVDGQFEVAYYANVLVYNDGSMYWLPPAIYRSTCPIAVTYFPFDWQNCSLVFRSQTYNAHEVNLQLSAEEGEVVEWIHIDPEDFTENGEWTIRHRPAKKNYNWQLTKDDIDFQEIIFFLIIQRKPLFYIINIIAPCVLISSLVVLVYFLPAQAGGQKCTLSISVLLAQTIFLFLIAQKVPETSLNVPLIGKYLIFVMFVSLVIVTNCVIVLNVSLRTPNTHSLSEKIKHLFLEFLPKYLGMHLEPSEETPEKPQPRRRSSFGIMIKAEEYILKKPRSELMFEEQKDRHGLKRVNKMTSDIDIGTTVDLYKDLANFAPEIKSCVEACNFIAKSTKEQNDSGSENENWVLIGKVIDKACFWIALLLFSLGTLAIFLTGHLNQVPEFPFPGDPRKYVP

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	6.200 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	6.20 Å
Resolution测定方法 resolution_method	STANDARD FOURIER-BESSEL SYNTHESIS
颗粒数 num_particles	—

fit	/app/data/saxs_computation/aq/4aq5/4aq5.fit
pddf	/app/data/pr_computation/aq/4aq5/4aq5.pr.out
profile	/app/data/saxs_computation/aq/4aq5/4aq5.dat
