SAXSdb — 4bon

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ACETYLCHOLINE RECEPTOR SUBUNIT ALPHA

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	ACETYLCHOLINE RECEPTOR BETA SUBUNIT × 1 （Q6S3I0） ACETYLCHOLINE RECEPTOR DELTA SUBUNIT × 1 （Q6S3H8） ACETYLCHOLINE RECEPTOR GAMMA SUBUNIT × 1 （Q6S3H9）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACHA_TORMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–461； UniProt 1–461 Author chain D； PDBConstruct 1–461； UniProt 1–461

ACETYLCHOLINE RECEPTOR BETA SUBUNIT

OrganismNot specified

UniProt Q6S3I0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	ACETYLCHOLINE RECEPTOR SUBUNIT ALPHA × 2 （P02711） ACETYLCHOLINE RECEPTOR DELTA SUBUNIT × 1 （Q6S3H8） ACETYLCHOLINE RECEPTOR GAMMA SUBUNIT × 1 （Q6S3H9）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q6S3I0_TORMA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–493； UniProt 1–493

ACETYLCHOLINE RECEPTOR DELTA SUBUNIT

OrganismNot specified

UniProt Q6S3H8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	ACETYLCHOLINE RECEPTOR SUBUNIT ALPHA × 2 （P02711） ACETYLCHOLINE RECEPTOR BETA SUBUNIT × 1 （Q6S3I0） ACETYLCHOLINE RECEPTOR GAMMA SUBUNIT × 1 （Q6S3H9）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q6S3H8_TORMA
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–522； UniProt 1–522

ACETYLCHOLINE RECEPTOR GAMMA SUBUNIT

OrganismNot specified

UniProt Q6S3H9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	ACETYLCHOLINE RECEPTOR SUBUNIT ALPHA × 2 （P02711） ACETYLCHOLINE RECEPTOR BETA SUBUNIT × 1 （Q6S3I0） ACETYLCHOLINE RECEPTOR DELTA SUBUNIT × 1 （Q6S3H8）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q6S3H9_TORMA
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain E； PDBConstruct 1–505； UniProt 1–505

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4bon
Deposition date deposition_date	2013-05-21
Structure title title	The structure and super-organization of acetylcholine receptor-rapsyn complexes class B
Keywords keywords	TRANSPORT PROTEIN, NEUROTRANSMITTER RECEPTOR, CLUSTERING, SYNAPSE, NEUROMUSCULAR JUNCTION, NICOTINIC, 43K; TRANSPORT PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4bon__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

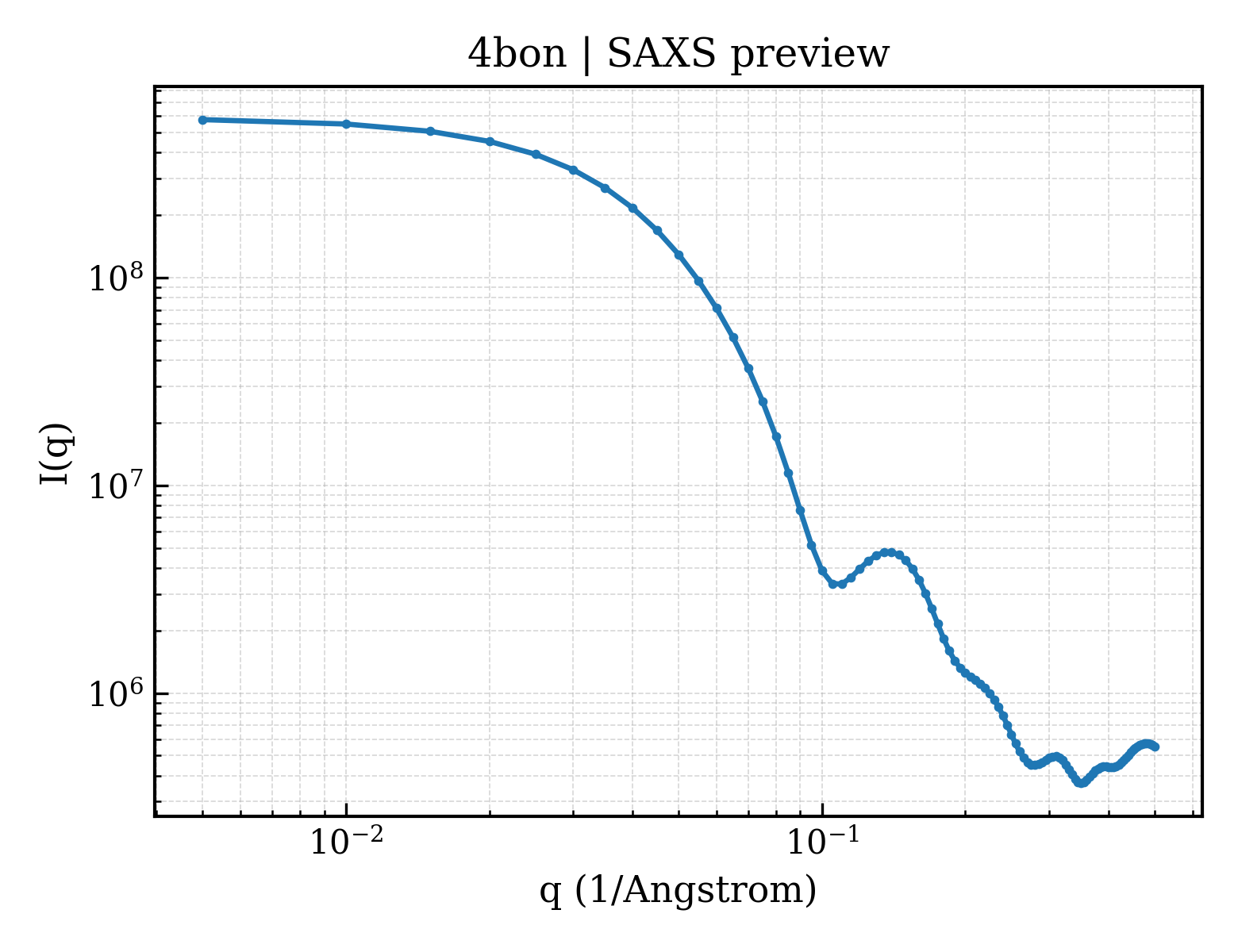

4bon__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

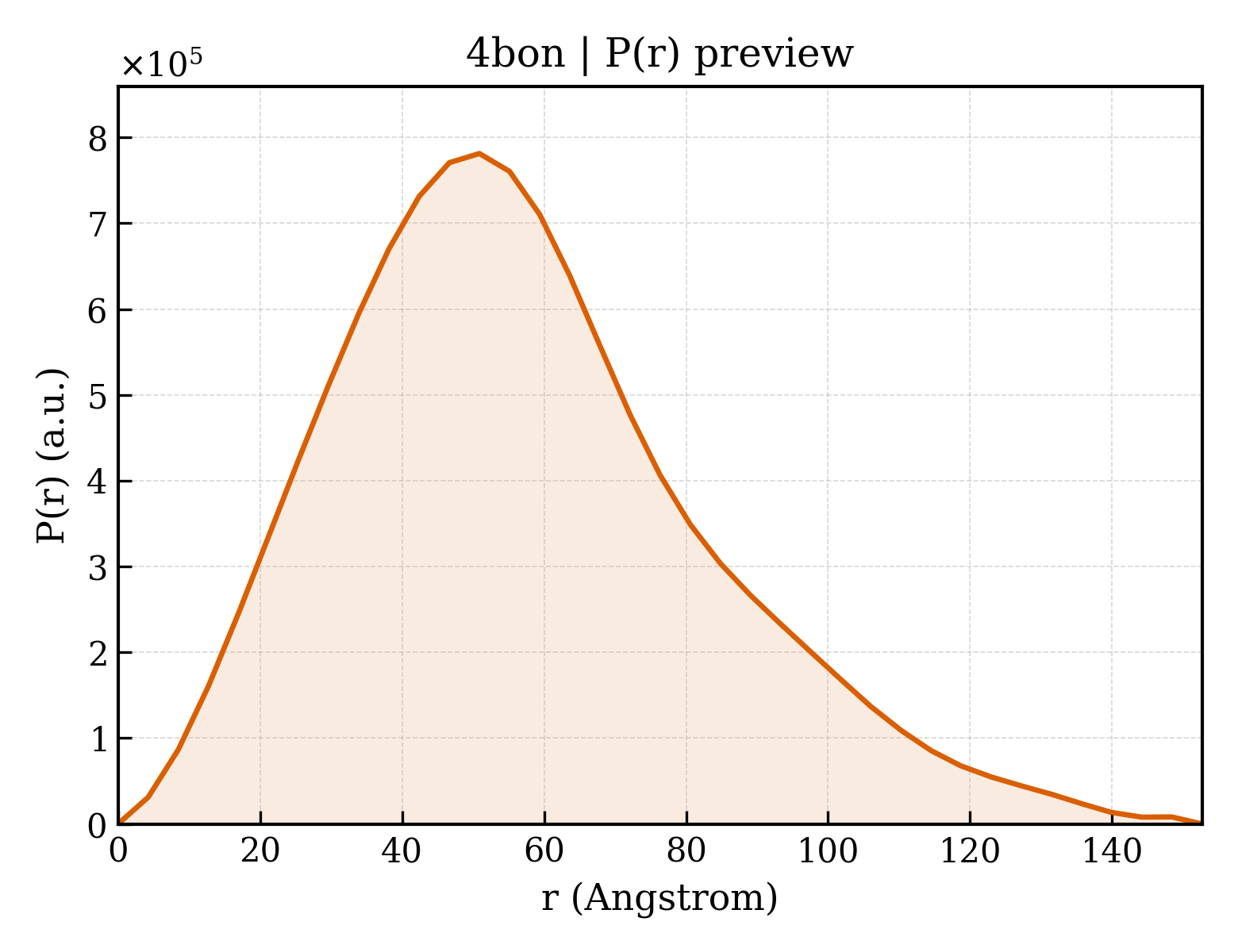

4bon__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	43.92 Å
Rg (electron density)	43.21 Å
Total Rg	43.42 Å
Atom count	14924
Residues	1851
Excluded volume	269810 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4bon__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ACETYLCHOLINE RECEPTOR SUBUNIT ALPHA
Molecular weight formula_weight	52845.5 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	14924

MILCSYWHVGLVLLLFSCCGLVLGSEHETRLVANLLENYNKVIRPVEHHTHFVDITVGLQLIQLINVDEVNQIVETNVRLRQQWIDVRLRWNPADYGGIKKIRLPSDDVWLPDLVLYNNADGDFAIVHMTKLLLDYTGKIMWTPPAIFKSYCEIIVTHFPFDQQNCTMKLGIWTYDGTKVSISPESDRPDLSTFMESGEWVMKDYRGWKHWVYYTCCPDTPYLDITYHFIMQRIPLYFVVNVIIPCLLFSFLTVLVFYLPTDSGEKMTLSISVLLSLTVFLLVIVELIPSTSSAVPLIGKYMLFTMIFVISSIIVTVVVINTHHRSPSTHTMPQWVRKIFINTIPNVMFFSTMKRASKEKQENKIFADDIDISDISGKQVTGEVIFQTPLIKNPDVKSAIEGVKYIAEHMKSDEESSNAAEEWKYVAMVIDHILLCVFMLICIIGTVSVFAGRLIELSQEG

Entity 2 Entity 2 polymer

Description description	ACETYLCHOLINE RECEPTOR BETA SUBUNIT
Molecular weight formula_weight	56123.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MEDVRRMALGLVVMMALALSGVGASVMEDTLLSVLFENYNPKVRPSQTVGDKVTVRVGLTLTSLLILNEKNEEMTTSVFLNLAWTDYRLQWDPAAYEGIKDLSIPSDDVWQPDIVLMNNNDGSFEITLHVNVLVQHTGAVSWHPSAIYRSSCTIKVMYFPFDWQNCTMVFKSYTYDTSEVILQHALDAKGEREVKEIMINQDAFTENGQWSIEHKPSRKNWRSDDPSYEDVTFYLIIQRKPLFYIVYTIVPCILISILAILVFYLPPDAGEKMSLSISALLALTVFLLLLADKVPETSLSVPIIISYLMFIMILVAFSVILSVVVLNLHHRSPNTHTMPNWIRQIFIETLPPFLWIQRPVTTPSPDSKPTIISRANDEYFIRKPAGDFVCPVDNARVAVQPERLFSEMKWHLNGLTQPVTLPQDLKEAVEAIKYIAEQLESASEFDDLKKDWQYVAMVADRLFLYIFITMCSIGTFSIFLDASHNVPPDNPFA

Entity 3 Entity 3 polymer

Description description	ACETYLCHOLINE RECEPTOR DELTA SUBUNIT
Molecular weight formula_weight	60017.7 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MGNIHFVYLLISCLYYSGCSGVNEEERLINDLLIVNKYNKHVRPVKHNNEVVNIALSLTLSNLISLKETDETLTTNVWMDHAWYDHRLTWNASEYSDISILRLRPELIWIPDIVLQNNNDGQYNVAYFCNVLVRPNGYVTWLPPAIFRSSCPINVLYFPFDWQNCSLKFTALNYNANEISMDLMTDTIDGKDYPIEWIIIDPEAFTENGEWEIIHKPAKKNIYGDKFPNGTNYQDVTFYLIIRRKPLFYVINFITPCVLISFLAALAFYLPAESGEKMSTAICVLLAQAVFLLLTSQRLPETALAVPLIGKYLMFIMSLVTGVVVNCGIVLNFHFRTPSTHVLSTRVKQIFLEKLPRILHMSRVDEIEQPDWQNDLKLRRSSSVGYISKAQEYFNIKSRSELMFEKQSERHGLVPRVTPRIGFGNNNENIAASDQLHDEIKSGIDSTNYIVKQIKEKNAYDEEVGNWNLVGQTIDRLSMFIITPVMVLGTIFIFVMGNFNRPPAKPFEGDPFDYSSDHPRCA

Entity 4 Entity 4 polymer

Description description	ACETYLCHOLINE RECEPTOR GAMMA SUBUNIT
Molecular weight formula_weight	58118.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MVLTLLLIICLALEVRSNEEGRLIEKLLGDYDKRIKPAKTLDHVIDVTLKLTLTNLISLNEKEEALTTNVWIEIQWNDYRLSWNTSEYEGIDLVRIPSELLWLPDVVLENNVDGQFEVAYYANVLVYNDGSMYWLPPAIYRSTCPIAVTYFPFDWQNCSLVFRSQTYNAHEVNLQLSAEEGEVVEWIHIDPEDFTENGEWTIRHRPAKKNYNWQLTKDDIDFQEIIFFLIIQRKPLFYIINIIAPCVLISSLVVLVYFLPAQAGGQKCTLSISVLLAQTIFLFLIAQKVPETSLNVPLIGKYLIFVMFVSLVIVTNCVIVLNVSLRTPNTHSLSEKIKHLFLEFLPKYLGMHLEPSEETPEKPQPRRRSSFGIMIKAEEYILKKPRSELMFEEQKDRHGLKRVNKMTSDIDIGTTVDLYKDLANFAPEIKSCVEACNFIAKSTKEQNDSGSENENWVLIGKVIDKACFWIALLLFSLGTLAIFLTGHLNQVPEFPFPGDPRKYVP

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	40.000 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	40.00 Å
Resolution测定Method resolution_method	SIMULTANEOUS ITERATIVE RECONSTRUCTION TECHNIQUE (SIRT)
颗粒数 num_particles	3564

The structure and super-organization of acetylcholine receptor-rapsyn complexes class B
