SAXSdb — 4dm8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Retinoic acid receptor beta

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Nuclear receptor coactivator 1 × 1 （Q15788） RETINOIC ACID × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Nuclear receptor coactivator 1 × 1 （Q15788） RETINOIC ACID × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RARB_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 22–267； UniProt 176–421 Author chain B； PDBConstruct 22–267； UniProt 176–421

Nuclear receptor coactivator 1

OrganismNot specified

UniProt Q15788

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Retinoic acid receptor beta × 1 （P10826） RETINOIC ACID × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Retinoic acid receptor beta × 1 （P10826） RETINOIC ACID × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NCOA1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–25； UniProt 676–700 Author chain D； PDBConstruct 1–25； UniProt 676–700

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4dm8
Deposition date deposition_date	2012-02-07
Structure title title	Crystal structure of RARb LBD in complex with 9cis retinoic acid
Keywords keywords	;nuclear receptor, RARb, 9cis retinoic acid, alpha helical sandwich, transcription factor, retinoic acid, TRANSCRIPTION-protein binding complex ;; TRANSCRIPTION/protein binding
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4dm8__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

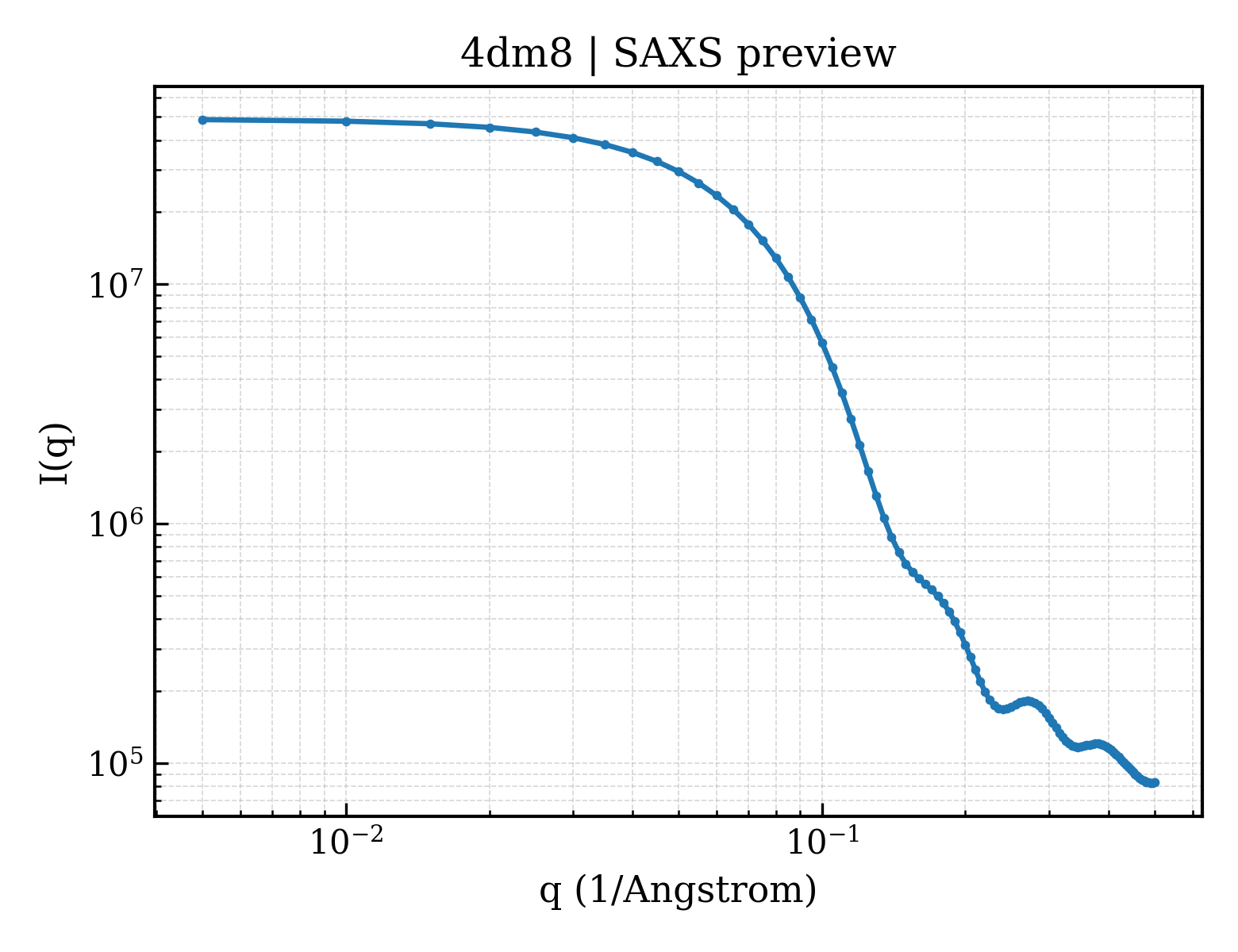

4dm8__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

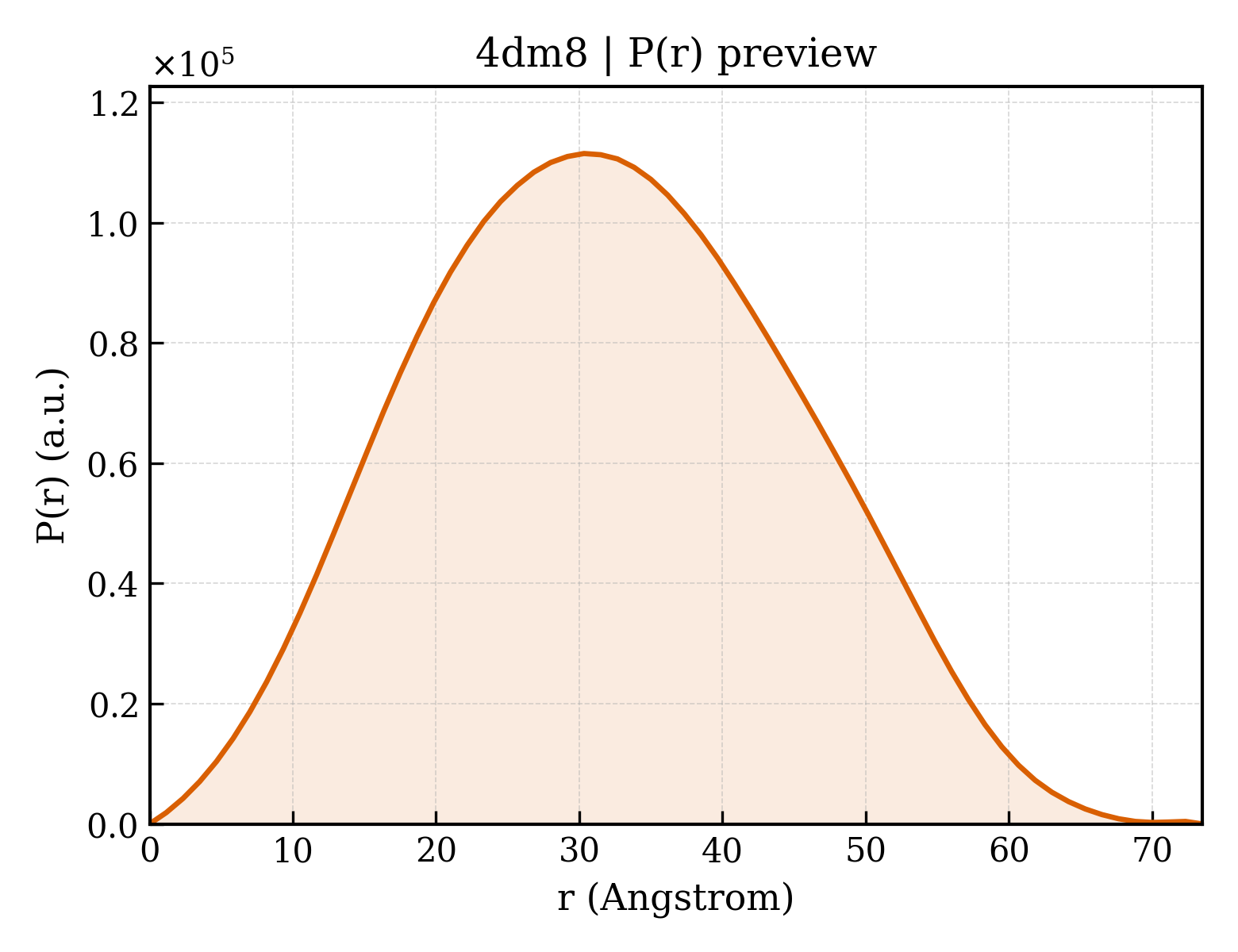

4dm8__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.50 Å
Rg (electron density)	18.15 Å
Total Rg	19.09 Å
Atom count	1972
Residues	246
Excluded volume	35821 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4dm8__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`4dm8__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Retinoic acid receptor beta
Molecular weight formula_weight	30179.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4083

MGSSHHHHHHSSGLVPRGSHMESYEMTAELDDLTEKIRKAHQETFPSLCQLGKYTTNSSADHRVRLDLGLWDKFSELATKCIIKIVEFAKRLPGFTGLTIADQITLLKAACLDILILRICTRYTPEQDTMTFSDGLTLNRTQMHNAGFGPLTDLVFTFANQLLPLEMDDTETGLLSAICLICGDRQDLEEPTKVDKLQEPLLEALKIYIRKRRPSKPHMFPKILMKITDLRSISAKGAERVITLKMEIPGSMPPLIQEMLENSEGHE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Nuclear receptor coactivator 1
Molecular weight formula_weight	2806.2 kDa
EC 编号 ec_number	2.3.1.48
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

CPSSHSSLTERHKILHRLLQEGSPS

Entity 3 Entity 3 non-polymer

Description description	RETINOIC ACID
Molecular weight formula_weight	300.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	128

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	4dm8A00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	565 — Retinoid X Receptor
Homologous superfamily homologous superfamily	10 — Retinoid X Receptor

Domain ID domain_id	4dm8B00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	565 — Retinoid X Receptor
Homologous superfamily homologous superfamily	10 — Retinoid X Receptor

▶

Unit-cell length a length_a	58.482 Å
Unit-cell length b length_b	83.622 Å
Unit-cell length c length_c	108.779 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2240
R_work r_work	0.2240
R_free r_free	0.2770

Crystal structure of RARb LBD in complex with 9cis retinoic acid
