SAXSdb — 4j46

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

E3 ubiquitin-protein ligase XIAP

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	PEPTIDE (ALA-VAL-PRO-ILE) × 1 ZINC ION × 1 water × 2	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	ZINC ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	XIAP_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–86； UniProt 152–236 Author chain C； PDBConstruct 2–86； UniProt 152–236

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4j46
Deposition date deposition_date	2013-02-06
Structure title title	Crystal structure of XIAP-BIR2 domain with AVPI bound
Keywords keywords	IAP, XIAP, CASPASE, APOPTOSIS, SMAC, APOPTOSIS INHIBITOR; APOPTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4j46__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

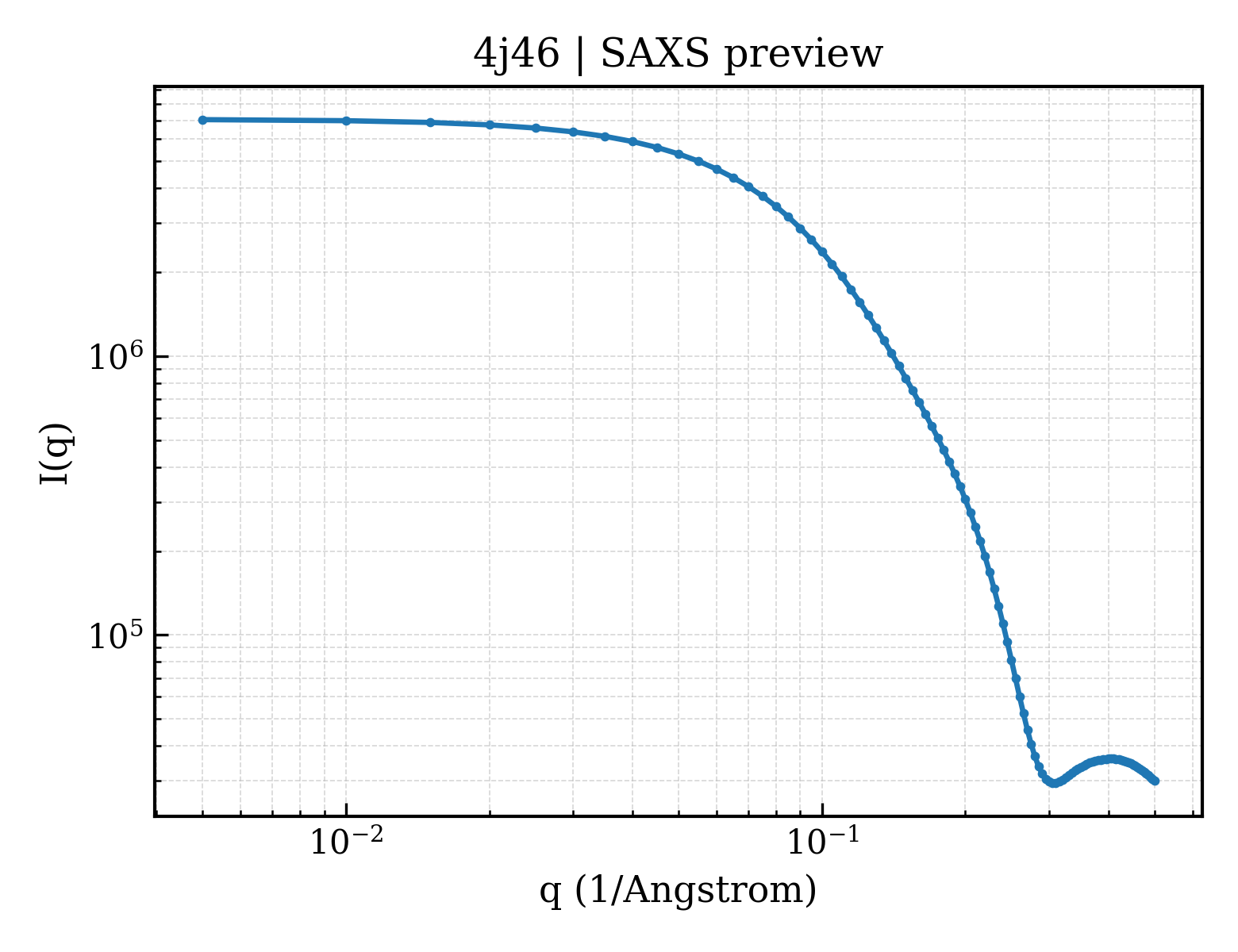

4j46__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

4j46__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	13.22 Å
Rg (electron density)	12.02 Å
Total Rg	13.35 Å
Atom count	706
Residues	87
Excluded volume	12415 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4j46__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`4j46__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	E3 ubiquitin-protein ligase XIAP
Molecular weight formula_weight	9936.1 kDa
EC 编号 ec_number	6.3.2.-
Mutation mutation	C202A, C213G
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	1449

GTIYPRNPAMYSEEARLKSFQNWPDYAHLTPRELASAGLYYTGIGDQVQCFACGGKLKNWEPGDRAWSEHRRHFPNCFFVLGRNLN

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	PEPTIDE (ALA-VAL-PRO-ILE)
Molecular weight formula_weight	398.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

AVPI

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	121

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	4j46A00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1170 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A
Homologous superfamily homologous superfamily	10 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A

Domain ID domain_id	4j46C00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1170 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A
Homologous superfamily homologous superfamily	10 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A

▶

Unit-cell length a length_a	74.815 Å
Unit-cell length b length_b	74.815 Å
Unit-cell length c length_c	108.640 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	I 4 2 2
Space-group number int_tables_number	97
Crystal system crystal_system	—

Resolution resolution	1.420 Å
Low-resolution limit resolution_low	37.900 Å
R factor r_factor	0.1734
R_work r_work	0.1721
R_free r_free	0.1988
