4toi

Crystal structure of E.coli ribosomal protein S2 in complex with N-terminal domain of S1

Method: X-RAY DIFFRACTION D_max: 91.7 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

30S ribosomal protein S2,Ribosomal protein S1

Escherichia coli TA206

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Homooligomer Protein × 2 PDB declaration: Dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–236	Fragment：1-236,3-84	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.4；295.15 K；0.1 M HEPES-KOH, pH 7.4, 3 mM MgCl2, 7.5% w/v PEG 6000, 3% w/v 2-methyl-pentanediol-2,4, 100 mM KCl	Resolution 2.30 Å R-free 0.229

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4TOI	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4V85 Crystal Structure of Release Factor RF3 Trapped in the GTP State on a Rotated Conformation of the Ribosome. Deposited 2011-06-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 55 PDB declaration: 59-meric	Chain AB 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 493 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；295 K；Tris Ac PH.7.0, 25-35 mM KCL, 6.1% PEG 20000, 1% glycerol, 50mM sucrose, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 3.20 Å R-free 0.250
6LKQ The Structural Basis for Inhibition of Ribosomal Translocation by Viomycin Deposited 2019-12-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 59 PDB declaration: 63-meric	Chain A 9–226（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；Tris Ac PH.7.0, 25-35 mM KCL, 6.1% PEG 20000, 1% glycerol, 50mM sucrose	Resolution 3.10 Å R-free 0.240
6ORE Release complex 70S Deposited 2019-04-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric	Chain g 3–227（225 aa）	Not recorded	MG MAGNESIUM ION × 436 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 2.90 Å
6ORL RF1 pre-accommodated 70S complex at 24 ms Deposited 2019-04-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric	Chain g 3–227（225 aa）	Not recorded	MG MAGNESIUM ION × 295 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.50 Å
6OSK RF1 accommodated 70S complex at 60 ms Deposited 2019-05-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric	Chain g 3–227（225 aa）	Not recorded	MG MAGNESIUM ION × 307 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.60 Å
6OSQ RF1 accommodated state bound Release complex 70S at long incubation time point Deposited 2019-05-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric	Chain g 3–227（225 aa）	Not recorded	MG MAGNESIUM ION × 436 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.50 Å
6OST RF2 pre-accommodated state bound Release complex 70S at 24ms Deposited 2019-05-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric	Chain g 3–227（225 aa）	Not recorded	MG MAGNESIUM ION × 12 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 4.20 Å
6OT3 RF2 accommodated state bound Release complex 70S at 24 ms Deposited 2019-05-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric	Chain g 3–227（225 aa）	Not recorded	MG MAGNESIUM ION × 12 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.90 Å
6OUO RF2 accommodated state bound 70S complex at long incubation time Deposited 2019-05-05	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric	Chain g 3–227（225 aa）	Not recorded	MG MAGNESIUM ION × 12 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.70 Å
6VU3 Cryo-EM structure of Escherichia coli transcription-translation complex A (TTC-A) containing mRNA with a 12 nt long spacer Deposited 2020-02-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 58 PDB declaration: 66-meric	Chain G 3–227（225 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
6VZ3 Escherichia coli transcription-translation complex D2 (TTC-D2) containing mRNA with a 27 nt long spacer Deposited 2020-02-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 56 PDB declaration: 65-meric	Chain G 3–227（225 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.90 Å
6VZ7 Escherichia coli transcription-translation complex C1 (TTC-C1) containing a 27 nt long mRNA spacer, NusG, and fMet-tRNAs at P-site and E-site Deposited 2020-02-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 56 PDB declaration: 65-meric	Chain G 3–227（225 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.00 Å
6WD0 Cryo-EM of elongating ribosome with EF-Tu*GTP elucidates tRNA proofreading (Cognate Structure I-A) Deposited 2020-03-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 57-meric	Chain G 2–226（225 aa）	Not recorded	FME N-FORMYLMETHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
6WD1 Cryo-EM of elongating ribosome with EF-Tu*GTP elucidates tRNA proofreading (Cognate Structure I-B) Deposited 2020-03-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric	Chain G 2–226（225 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
6WD2 Cryo-EM of elongating ribosome with EF-Tu*GTP elucidates tRNA proofreading (Cognate Structure II-A) Deposited 2020-03-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 59-meric	Chain G 2–226（225 aa）	Not recorded	FME N-FORMYLMETHIONINE × 1 PHE PHENYLALANINE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
6WD3 Cryo-EM of elongating ribosome with EF-Tu*GTP elucidates tRNA proofreading (Cognate Structure II-B1) Deposited 2020-03-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 59-meric	Chain G 2–226（225 aa）	Not recorded	FME N-FORMYLMETHIONINE × 1 PHE PHENYLALANINE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
6WD4 Cryo-EM of elongating ribosome with EF-Tu*GTP elucidates tRNA proofreading (Cognate Structure II-B2) Deposited 2020-03-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 59-meric	Chain G 2–226（225 aa）	Not recorded	FME N-FORMYLMETHIONINE × 1 PHE PHENYLALANINE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
6WD5 Cryo-EM of elongating ribosome with EF-Tu*GTP elucidates tRNA proofreading (Cognate Structure II-C1) Deposited 2020-03-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 59-meric	Chain G 2–226（225 aa）	Not recorded	FME N-FORMYLMETHIONINE × 1 PHE PHENYLALANINE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
6WD7 Cryo-EM of elongating ribosome with EF-Tu*GTP elucidates tRNA proofreading (Cognate Structure II-D) Deposited 2020-03-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 59-meric	Chain G 2–226（225 aa）	Not recorded	FME N-FORMYLMETHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
6WD8 Cryo-EM of elongating ribosome with EF-Tu*GTP elucidates tRNA proofreading (Cognate Structure III-A) Deposited 2020-03-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 59-meric	Chain G 2–226（225 aa）	Not recorded	FME N-FORMYLMETHIONINE × 1 PHE PHENYLALANINE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
6WD9 Cryo-EM of elongating ribosome with EF-Tu*GTP elucidates tRNA proofreading (Cognate Structure III-B) Deposited 2020-03-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 59-meric	Chain G 2–226（225 aa）	Not recorded	FME N-FORMYLMETHIONINE × 1 PHE PHENYLALANINE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
6WDA Cryo-EM of elongating ribosome with EF-Tu*GTP elucidates tRNA proofreading (Cognate Structure III-C) Deposited 2020-03-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 59-meric	Chain G 2–226（225 aa）	Not recorded	FME N-FORMYLMETHIONINE × 1 PHE PHENYLALANINE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
6YSR Structure of the P+9 stalled ribosome complex Deposited 2020-04-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 57-meric	Chain b 1–240（240 aa）	Not recorded	MG MAGNESIUM ION × 332 ZN ZINC ION × 2 CL CHLORIDE ION × 1 NA SODIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；50 mM HEPES, 30 mM KCl, 7 mM MgCl2 cryo-EM vitrification conditions Cryogen ETHANE；Manual blotting & plunge-freezing	Resolution 3.10 Å
6YSS Structure of the P+9 ArfB-ribosome complex in the post-hydrolysis state Deposited 2020-04-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 58-meric	Chain b 1–240（240 aa）	Not recorded	MG MAGNESIUM ION × 387 ZN ZINC ION × 2 NA SODIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；50 mM HEPES, 30 mM KCl, 7 mM MgCl2 cryo-EM vitrification conditions Cryogen ETHANE；Manual blotting & plunge-freezing	Resolution 2.60 Å
6YST Structure of the P+9 ArfB-ribosome complex with P/E hybrid tRNA in the post-hydrolysis state Deposited 2020-04-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 58-meric	Chain b 1–240（240 aa）	Not recorded	MG MAGNESIUM ION × 253 ZN ZINC ION × 2 NA SODIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；50 mM HEPES, 30 mM KCl, 7 mM MgCl2 cryo-EM vitrification conditions Cryogen ETHANE；Manual blotting & plunge-freezing	Resolution 3.20 Å
6YSU Structure of the P+0 ArfB-ribosome complex in the post-hydrolysis state Deposited 2020-04-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 57-meric	Chain b 1–240（240 aa）	Not recorded	MG MAGNESIUM ION × 356 ZN ZINC ION × 1 NA SODIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；50 mM HEPES, 30 mM KCl, 7 mM MgCl2, 0.1 % w/v DDM cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
6ZTJ E. coli 70S-RNAP expressome complex in NusG-coupled state (38 nt intervening mRNA) Deposited 2020-07-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 58 PDB declaration: 66-meric	Chain AB 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 479 PHE PHENYLALANINE × 1 ZN ZINC ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
6ZTM E. coli 70S-RNAP expressome complex in collided state without NusG Deposited 2020-07-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 52 PDB declaration: 60-meric	Chain AB 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 421 PHE PHENYLALANINE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
6ZTN E. coli 70S-RNAP expressome complex in NusG-coupled state (42 nt intervening mRNA) Deposited 2020-07-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 54 PDB declaration: 63-meric	Chain AB 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 487 PHE PHENYLALANINE × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
6ZTO E. coli 70S-RNAP expressome complex in uncoupled state 1 Deposited 2020-07-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 54 PDB declaration: 62-meric	Chain AB 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 487 PHE PHENYLALANINE × 1 ZN ZINC ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
6ZTP E. coli 70S-RNAP expressome complex in uncoupled state 6 Deposited 2020-07-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 54 PDB declaration: 62-meric	Chain AB 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 487 PHE PHENYLALANINE × 1 ZN ZINC ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
6ZU1 E. coli 70S-RNAP expressome complex in uncoupled state 2 Deposited 2020-07-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 54 PDB declaration: 62-meric	Chain AB 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 487 PHE PHENYLALANINE × 1 ZN ZINC ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
7AF3 Bacterial 30S ribosomal subunit assembly complex state M (head domain) Deposited 2020-09-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 8 PDB declaration: nonameric	Chain B 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 51 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.82 Å
7AF5 Bacterial 30S ribosomal subunit assembly complex state I (head domain) Deposited 2020-09-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 8 PDB declaration: nonameric	Chain B 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 52 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.96 Å
7AF8 Bacterial 30S ribosomal subunit assembly complex state E (head domain) Deposited 2020-09-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 8 PDB declaration: nonameric	Chain B 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 51 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.75 Å
7AFA Bacterial 30S ribosomal subunit assembly complex state F (head domain) Deposited 2020-09-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 8 PDB declaration: nonameric	Chain B 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 25 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.95 Å
7AFD Bacterial 30S ribosomal subunit assembly complex state A (head domain) Deposited 2020-09-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 8 PDB declaration: nonameric	Chain B 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 22 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.44 Å
7AFH Bacterial 30S ribosomal subunit assembly complex state C (head domain) Deposited 2020-09-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 8 PDB declaration: nonameric	Chain B 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 11 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.59 Å
7AFK Bacterial 30S ribosomal subunit assembly complex state D (head domain) Deposited 2020-09-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 8 PDB declaration: nonameric	Chain B 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 12 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.90 Å
7AFN Bacterial 30S ribosomal subunit assembly complex state B (head domain) Deposited 2020-09-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 8 PDB declaration: nonameric	Chain B 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 11 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.86 Å
7CPJ ycbZ-stalled 70S ribosome Deposited 2020-08-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric	Chain b 1–240（240 aa）	Not recorded	ILE ISOLEUCINE × 1 PRO PROLINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
7M5D Cryo-EM structure of a non-rotated E.coli 70S ribosome in complex with RF3-GTP, RF1 and P-tRNA (state I) Deposited 2021-03-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 59-meric	Chain g 3–227（225 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
7NAX Complete Bacterial 30S ribosomal subunit assembly complex state I (Consensus Refinement) Deposited 2021-01-25	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 19 PDB declaration: eicosameric	Chain B 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 181 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.96 Å
7NWT Initiated 70S ribosome in complex with 2A protein from encephalomyocarditis virus (EMCV) Deposited 2021-03-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 59-meric	Chain g 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 437 FME N-FORMYLMETHIONINE × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；Initiated 70S ribosomes in 50 mM Tris-HCl pH 7.5, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2 were diluted tenfold into 20 mM HEPES pH 7.5, 100 mM potassium acetate, 1.5 mM MgCl2, 2.0 mM DTT. 2A protein was dialysed (3K MWCO, 277K, 16 h) into the same buffer. Crosslinking reactions of 50 microliters comprising 75 nM ribosomes, 3.0 micromolar 2A and 2.0 mM bis(sulfosuccinimidyl)suberate (BS3) were performed on ice (30 min) immediately prior to grid preparation. cryo-EM vitrification conditions Cryogen ETHANE；Quantifoil R 2/2 400-mesh copper supports were coated with an additional ~ 60 angstrom layer of amorphous, evaporated carbon by flotation and thoroughly dried before use. Grids were made hydrophilic by glow-discharge in air for 30 s. Three microliters of crosslinking reaction was applied to grids which were then blotted for 4.5 s and vitrified by plunging into liquid ethane using a Vitrobot MK IV (FEI) at 277K, 100% relative humidity.	Resolution 2.66 Å
7PJS Structure of the 70S ribosome with tRNAs in the classical pre-translocation state and apramycin (C) Deposited 2021-08-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric	Chain b 1–240（240 aa）	Not recorded	MG MAGNESIUM ION × 363 ZN ZINC ION × 2 NA SODIUM ION × 2 AM2 APRAMYCIN × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；50 mM HEPES, 70 mM NH4Cl, 30 mM KCl, 3.5 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine cryo-EM vitrification conditions Cryogen ETHANE；Manual blotting & plunge-freezing	Resolution 2.35 Å
7PJT Structure of the 70S ribosome with tRNAs in hybrid state 1 (H1) Deposited 2021-08-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric	Chain b 1–240（240 aa）	Not recorded	ZN ZINC ION × 2 AM2 APRAMYCIN × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；Manual blotting & plunge-freezing	Resolution 6.00 Å
7PJW Structure of the 70S-EF-G-GDP-Pi ribosome complex with tRNAs in hybrid state 2 (H2-EF-G-GDP-Pi) Deposited 2021-08-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 59-meric	Chain b 1–240（240 aa）	Not recorded	AM2 APRAMYCIN × 1 PO4 PHOSPHATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；50 mM HEPES, 70 mM NH4Cl, 30 mM KCl, 3.5 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine cryo-EM vitrification conditions Cryogen ETHANE；Manual blotting & plunge-freezing	Resolution 4.00 Å
7PJX Structure of the 70S-EF-G-GDP ribosome complex with tRNAs in hybrid state 1 (H1-EF-G-GDP) Deposited 2021-08-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 59-meric	Chain b 1–240（240 aa）	Not recorded	AM2 APRAMYCIN × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；50 mM HEPES, 70 mM NH4Cl, 30 mM KCl, 3.5 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine cryo-EM vitrification conditions Cryogen ETHANE；Manual blotting & plunge-freezing	Resolution 6.50 Å
7PJZ Structure of the 70S-EF-G-GDP ribosome complex with tRNAs in chimeric state 2 (CHI2-EF-G-GDP) Deposited 2021-08-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 59-meric	Chain b 1–240（240 aa）	Not recorded	ZN ZINC ION × 1 AM2 APRAMYCIN × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；50 mM HEPES, 70 mM NH4Cl, 30 mM KCl, 3.5 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine cryo-EM vitrification conditions Cryogen ETHANE；Manual blotting & plunge-freezing	Resolution 6.00 Å
7Q4K Erythromycin-stalled Escherichia coli 70S ribosome with streptococcal MsrDL nascent chain Deposited 2021-10-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric	Chain AB 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 172 ERY ERYTHROMYCIN A × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
7QGN Structure of the SmrB-bound E. coli disome - stalled 70S ribosome Deposited 2021-12-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 58-meric	Chain 1 1–239（239 aa）	Not recorded	MG MAGNESIUM ION × 2 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.37 Å
7S1I Wild-type Escherichia coli stalled ribosome with antibiotic radezolid Deposited 2021-09-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric	Chain D 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 209 RD8 Radezolid × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.48 Å
7S1J Wild-type Escherichia coli ribosome with antibiotic radezolid Deposited 2021-09-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric	Chain D 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 199 RD8 Radezolid × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.47 Å
7TOS E. coli 70S ribosomes bound with the ALS/FTD-associated dipeptide repeat protein PR20 Deposited 2022-01-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 56-meric	Chain S02 2–226（225 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
8EIU E. coli 70S ribosome with A-loop mutations U2554C and U2555C Deposited 2022-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric	Chain B 1–241（241 aa）	Not recorded	ZN ZINC ION × 2 PAR PAROMOMYCIN × 1 MG MAGNESIUM ION × 268 SPD SPERMIDINE × 16 8AN 3'-amino-3'-deoxyadenosine 5'-(dihydrogen phosphate) × 2 SPM SPERMINE × 1 MET METHIONINE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.24 Å
8EMM Composite 70S ribosome structure for "Atomistic simulations of the E. coli ribosome provide selection criteria for translationally active substrates Deposited 2022-09-28	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric	Chain B 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 321 SPD SPERMIDINE × 17 SPM SPERMINE × 1 K POTASSIUM ION × 10 ZN ZINC ION × 2 MET METHIONINE × 2 PAR PAROMOMYCIN × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.10 Å
8EYT 30S_delta_ksgA+KsgA complex Deposited 2022-10-28	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 20 PDB declaration: 21-meric	Chain B 1–241（241 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
8FIZ Cryo-EM structure of E. coli 70S Ribosome containing mRNA and tRNA (in the transcription-translation complex) Deposited 2022-12-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric	Chain AJ 1–241（241 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8FTO E. coli 70S ribosome with an improved MS2 tag inserted in H98 Deposited 2023-01-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric	Chain B 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 284 FME N-FORMYLMETHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 1.85 Å
8G6W Structure of WT E.coli 70S ribosome complexed with mRNA, P-site fMet-NH-tRNAfMet and A-site ortho-aminobenzoic acid charged NH-tRNAPhe Deposited 2023-02-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric	Chain B 1–241（241 aa）	Not recorded	ZN ZINC ION × 2 PAR PAROMOMYCIN × 1 MG MAGNESIUM ION × 320 2AE 2-AMINO-BENZAMIDE × 1 8AN 3'-amino-3'-deoxyadenosine 5'-(dihydrogen phosphate) × 1 FME N-FORMYLMETHIONINE × 1 K POTASSIUM ION × 14 SPD SPERMIDINE × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.02 Å
8UPO Escherichia coli transcription-translation coupled complex class A (TTC-A) containing RfaH bound to ops signal, mRNA with a 21 nt long spacer, and fMet-tRNAs in E-site and P-site of the ribosome Deposited 2023-10-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 58 PDB declaration: 66-meric	Chain G 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.50 Å
8UPR Escherichia coli transcription-translation coupled complex class A (TTC-A) containing RfaH bound to ops signal, mRNA with a 21 nt long spacer, and fMet-tRNAs in E-site and P-site of the ribosome Deposited 2023-10-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 59 PDB declaration: 67-meric	Chain G 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.30 Å
8UQL Escherichia coli transcription-translation coupled complex class B (TTC-B) containing RfaH in loaded state, mRNA with a 24 nt long spacer, and fMet-tRNAs in E-site and P-site of the ribosome Deposited 2023-10-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 59 PDB declaration: 67-meric	Chain G 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8UQM Escherichia coli transcription-translation coupled complex class B (TTC-B) containing RfaH in loaded state, NusA, mRNA with a 24 nt long spacer, and fMet-tRNAs in E-site and P-site of the ribosome Deposited 2023-10-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 68-meric	Chain G 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.30 Å
8UQP Escherichia coli transcription-translation coupled complex class B (TTC-B) containing RfaH bound to ops signal, mRNA with a 24 nt long spacer, and fMet-tRNAs in E-site and P-site of the ribosome Deposited 2023-10-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 59 PDB declaration: 67-meric	Chain G 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8UR0 Escherichia coli transcription-translation coupled complex class B (TTC-B) containing RfaH bound to ops signal, NusA, mRNA with a 24 nt long spacer, and fMet-tRNAs in E-site and P-site of the ribosome Deposited 2023-10-25	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 68-meric	Chain G 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8URH Escherichia coli transcription-translation coupled complex class B (TTC-B) containing RfaH bound to ops signal, mRNA with a 27 nt long spacer, and fMet-tRNAs in E-site and P-site of the ribosome Deposited 2023-10-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 59 PDB declaration: 67-meric	Chain G 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.70 Å
8URI Escherichia coli transcription-translation coupled complex class B (TTC-B) containing RfaH bound to ops signal, NusA, mRNA with a 27 nt long spacer, and fMet-tRNAs in E-site and P-site of the ribosome Deposited 2023-10-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 68-meric	Chain G 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.30 Å
8URM E. coli 70S ribosome with unmodified tRNAPro(GGG) bound to slippery P-site CCC-C codon and tRNAVal(UAC) in the A site Deposited 2023-10-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric	Chain g 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 395	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8URX Escherichia coli transcription-translation coupled complex class B (TTC-B) containing RfaH bound to ops signal, mRNA with a 30 nt long spacer, and fMet-tRNAs in E-site and P-site of the ribosome Deposited 2023-10-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 59 PDB declaration: 67-meric	Chain G 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.60 Å
8URY Escherichia coli transcription-translation coupled complex class B (TTC-B) containing RfaH bound to ops signal, NusA, mRNA with a 30 nt long spacer, and fMet-tRNA in E-site and P-site of the ribosome Deposited 2023-10-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 68-meric	Chain G 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8UTJ E. coli 70S ribosome with unmodified lys-tRNAPro(GGG) bound to slippery P-site CCC-C codon in the 0 frame Deposited 2023-10-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric	Chain g 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 530 LYS LYSINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
8UX8 E. coli 70S ribosome with unmodified Lys-tRNAPro(GGG) bound to slippery P-site CCC-C codon in the +1 mRNA reading frame Deposited 2023-11-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric	Chain g 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 395 LYS LYSINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8UXB E. coli 70S ribosome with unmodified P/E-tRNAPro(GGG) bound to slippery P-site CCC-C codon Deposited 2023-11-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 48 PDB declaration: 53-meric	Chain g 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 287	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
8V03 E. coli 70S ribosome with unmodified P/E-tRNAPro(GGG) bound to slippery P-site CCC-C codon Deposited 2023-11-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 48 PDB declaration: 53-meric	Chain g 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 281	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8VKV Escherichia coli transcription-translation coupled complex (TTC-B) containing mRNA with a 33 nt long spacer, ops signal, RfaH, NusA, and fMet-tRNAs in E-site and P-site Deposited 2024-01-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 68-meric	Chain G 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8VL1 Escherichia coli transcription-translation loosely coupled complex (TTC-LC) containing mRNA with a 36 nt long spacer, ops signal, RfaH, NusA, and fMet-tRNAs in E-site and P-site Deposited 2024-01-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 68-meric	Chain G 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.30 Å
8VOO Escherichia coli transcription-translation loosely coupled complex (TTC-LC) containing mRNA with a 39 nt long spacer, ops signal, RfaH, NusA, and fMet-tRNAs in E-site and P-site Deposited 2024-01-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 68-meric	Chain G 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8VOP Escherichia coli transcription-translation coupled complex (TTC-B) containing mRNA with a 36 nt long spacer, NusG, NusA, and fMet-tRNAs in E-site and P-site Deposited 2024-01-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 68-meric	Chain G 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.00 Å
8VOQ Escherichia coli transcription-translation loosely coupled complex (TTC-LC) containing mRNA with a 39 nt long spacer, NusG, NusA, and fMet-tRNAs in E-site and P-site Deposited 2024-01-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 68-meric	Chain G 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 9.30 Å
8VOR Escherichia coli transcription-translation loosely coupled complex (TTC-LC) containing mRNA with a 51 nt long spacer, NusG, NusA, and fMet-tRNAs in E-site and P-site Deposited 2024-01-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 68-meric	Chain G 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8VOS Escherichia coli transcription-translation loosely coupled complex (TTC-LC) containing mRNA with a 60 nt long spacer, NusG, NusA, and fMet-tRNAs in E-site and P-site Deposited 2024-01-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 68-meric	Chain G 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.60 Å
8VS9 Endogenous trans-translation complex with tmRNA*SmpB in the P site and alanyl-tRNA in the A site and deacyl-tRNA in the E site of E. coli 70S ribosome Deposited 2024-01-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 59-meric	Chain S02 1–241（241 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
8VSA Endogenous trans-translation complex with tmRNA*SmpB in the P site and alanyl-tRNA in the A site of E. coli 70S ribosome Deposited 2024-01-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 58-meric	Chain S02 1–241（241 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8VV4 E. coli 70S ribosome with unmodified Lys-tRNAPro(GGG) in the P/P conformation on a slippery CCC-C codon Deposited 2024-01-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric	Chain g 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 424 LYS LYSINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8VWQ E. coli 70S ribosome with unmodified Lys-tRNAPro(GGG) in the P/P conformation on a slippery CCC-C codon and Elongation Factor P bound (uL1 in the closed conformation) Deposited 2024-02-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric	Chain g 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 586 LYS LYSINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8W2N E. coli 70S ribosome with unmodified Lys-tRNAPro(GGG) in the P/P conformation on a slippery CCC-C codon and Elongation Factor P bound (uL1 in the open conformation) Deposited 2024-02-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric	Chain g 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 481	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9AX7 70S initiation complex (tRNA-fMet M1 + CUG start codon) Deposited 2024-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric	Chain B 1–241（241 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 309 IAS BETA-L-ASPARTIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.63 Å
9B4Z E. coli 70S ribosome complex (N1-methylated 16S A1408 + arbekacin) Deposited 2024-03-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 56-meric	Chain AB 1–240（240 aa）	Not recorded	MG MAGNESIUM ION × 309 84G Arbekacin × 2 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.20 Å
9B50 E. coli 70S ribosome complex (unmethylated 16S A1408 + arbekacin) Deposited 2024-03-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric	Chain AB 1–240（240 aa）	Not recorded	MG MAGNESIUM ION × 309 84G Arbekacin × 2 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
9B51 E. coli 70S ribosome complex (N1-methylated 16S A1408 + G418) Deposited 2024-03-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 56-meric	Chain AB 1–240（240 aa）	Not recorded	MG MAGNESIUM ION × 309 GET GENETICIN × 2 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.40 Å
9CG5 70S initiation complex (tRNA-fMet M1 + UUG start codon) Deposited 2024-06-28	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric	Chain B 1–241（241 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 309 IAS BETA-L-ASPARTIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.59 Å
9CG6 70S initiation complex (tRNA-fMet M1 + GUG start codon) Deposited 2024-06-28	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric	Chain B 1–241（241 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 309 IAS BETA-L-ASPARTIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.61 Å
9CG7 70S initiation complex (tRNA-fMet M1 + AUG start codon) Deposited 2024-06-28	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric	Chain B 1–241（241 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 309 IAS BETA-L-ASPARTIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.75 Å
9MKK Structure of arbekacin bound Escherichia coli 70S ribosome Deposited 2024-12-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 47 PDB declaration: 52-meric	Chain B 1–241（241 aa）	Not recorded	84G Arbekacin × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9MOR Damaged 70S ribosome with PrfH bound Deposited 2024-12-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric	Chain g 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 439 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.65 Å
9MQ4 Damaged 70S ribosome with PrfH bound Deposited 2025-01-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric	Chain g 1–241（241 aa）	Not recorded	MG MAGNESIUM ION × 439 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.78 Å
9O2X Structure of WT E.coli ribosome 70S subunit with complexed with mRNA, P-site fMet-NH-tRNAfMet and A-site (S)-betahydroxyBocK charged NH-tRNAPyl Deposited 2025-04-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric	Chain B 1–241（241 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 320 FME N-FORMYLMETHIONINE × 1 K POTASSIUM ION × 10 PAR PAROMOMYCIN × 1 SPD SPERMIDINE × 14 SPM SPERMINE × 1 A1B71 (2S)-6-[(tert-butoxycarbonyl)amino]-2-(hydroxymethyl)hexanoic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.29 Å
9O2Y Structure of WT E.coli ribosome 70S subunit with complexed with mRNA, P-site fMet-NH-tRNAfMet and A-site (R) beta-2-hydroxy-BocLysine acid charged NH-tRNAPyl Deposited 2025-04-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric	Chain B 1–241（241 aa）	Not recorded	PAR PAROMOMYCIN × 1 MG MAGNESIUM ION × 320 SPD SPERMIDINE × 13 FME N-FORMYLMETHIONINE × 1 SPM SPERMINE × 1 K POTASSIUM ION × 10 ZN ZINC ION × 2 A1B70 (2R)-6-[(tert-butoxycarbonyl)amino]-2-(hydroxymethyl)hexanoic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.14 Å
9PIH E. coli 70S ribosome bound to Doxycycline Deposited 2025-07-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric	Chain B 1–241（241 aa）	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 276 K POTASSIUM ION × 92 DXT (4S,4AR,5S,5AR,6R,12AS)-4-(DIMETHYLAMINO)-3,5,10,12,12A-PENTAHYDROXY-6-METHYL-1,11-DIOXO-1,4,4A,5,5A,6,11,12A-OCTAHYDROTETRACENE-2-CARBOXAMIDE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.40 Å
9PII E. coli 70S ribosome bound to Sarecycline Deposited 2025-07-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric	Chain B 1–241（241 aa）	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 281 K POTASSIUM ION × 100 V7A Sarecycline × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.40 Å
9PIJ E. coli 70S ribosome bound to Minocycline Deposited 2025-07-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric	Chain B 1–241（241 aa）	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 340 K POTASSIUM ION × 148 MIY (4S,4AS,5AR,12AS)-4,7-BIS(DIMETHYLAMINO)-3,10,12,12A-TETRAHYDROXY-1,11-DIOXO-1,4,4A,5,5A,6,11,12A-OCTAHYDROTETRACENE-2- CARBOXAMIDE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.20 Å
9SX2 30S Doxycycline Bound E. coli Ribosome Deposited 2025-10-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 21 PDB declaration: 22-meric	Chain B 1–241（241 aa）	Not recorded	ZN ZINC ION × 1 DXT (4S,4AR,5S,5AR,6R,12AS)-4-(DIMETHYLAMINO)-3,5,10,12,12A-PENTAHYDROXY-6-METHYL-1,11-DIOXO-1,4,4A,5,5A,6,11,12A-OCTAHYDROTETRACENE-2-CARBOXAMIDE × 1 MG MAGNESIUM ION × 142 K POTASSIUM ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；BS100 ribosomal resuspension buffer cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.08 Å
9Y79 Escherichia coli transcription-translation loosely coupled complex (TTC-LC^walked) containing mRNA with a 39 nt long spacer, NusG, NusA, and fMet-tRNAs in E-site and P-site Deposited 2025-09-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 68-meric	Chain G 1–241（241 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.20 Å

104 other PDB entries and 104 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	C3TPN2_ECOLX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–239； UniProt 1–236

30S ribosomal protein S2,Ribosomal protein S1

Escherichia coli TA206

UniProt F4TQ64

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Homooligomer Protein × 2 PDB declaration: Dimeric（2） Consistent with protein copy count	Chain A； UniProt 3–84	Fragment：1-236,3-84	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.4；295.15 K；0.1 M HEPES-KOH, pH 7.4, 3 mM MgCl2, 7.5% w/v PEG 6000, 3% w/v 2-methyl-pentanediol-2,4, 100 mM KCl	Resolution 2.30 Å R-free 0.229

Other States of the Same Protein in the Database

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	F4TQ64_ECOLX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 245–326； UniProt 3–84

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4toi
Deposition date deposition_date	2014-06-05
Structure title title	Crystal structure of E.coli ribosomal protein S2 in complex with N-terminal domain of S1
Keywords keywords	ribosomal protein, complex, translation; RIBOSOMAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	28.20 Å
Radius of gyration Rg (electron density) rg_electron	27.96 Å
Forward intensity I(0) i0	19878300.00
Molecular weight molecular_weight	33794.0 kDa
Excluded volume excluded_volume	42309 Å³
Envelope volume envelope_volume	63263 Å³
Hydration-shell volume shell_volume	20756 Å³
Envelope diameter envelope_diameter	94.8 Å
Shell Rg shell_rg	32.16 Å
Envelope Rg envelope_rg	28.74 Å
Shape Rg shape_rg	27.97 Å
Total Rg total_rg	28.48 Å
Total atoms total_atoms	2376
Residues n_residues	307
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

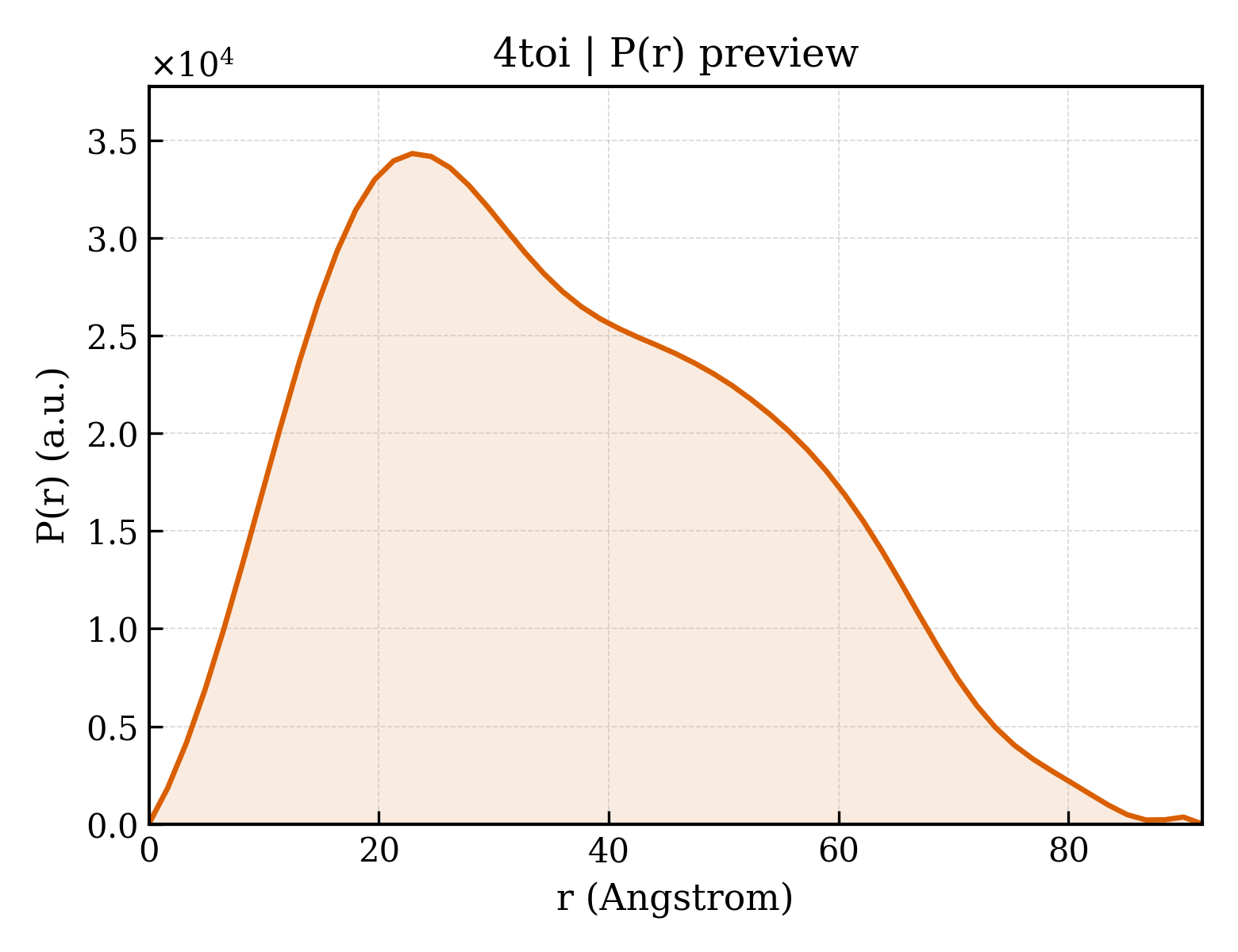

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	91.7 Å
Rg (real space) rg_real	28.42 Å
Rg uncertainty (real space) rg_real_error	0.98 Å
I(0) (real space) i0_real	1.9880e+07
I(0) uncertainty (real space) i0_real_error	3.4690e+05
Rg (reciprocal space) rg_reciprocal	28.36 Å
I(0) (reciprocal space) i0_reciprocal	19880000.0000
Solution quality estimate total_estimate	0.6819
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	22.9 Å
Skewness Skewness skewness	0.350
Kurtosis Kurtosis kurtosis	-0.697
Angular range angular_range	— – 0.2800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1773000.0000
Real-space data points n_real_points	57
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.864; Stabil: 1.000; Sysdev: 0.242; Positv: 1.000; Valcen: 0.695; Smooth: 0.846

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	30S ribosomal protein S2,Ribosomal protein S1
Molecular weight formula_weight	35924.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2574

AEFMATVSMRDMLKAGVHFGHQTRYWNPKMKPFIFGARNKVHIINLEKTVPMFNEALAELNKIASRKGKILFVGTKRAASEAVKDAALSCDQFFVNHRWLGGMLTNWKTVRQSIKRLKDLETQSQDGTFDKLTKKEALMRTRELEKLENSLGGIKDMGGLPDALFVIDADHEHIAIKEANNLGIPVFAIVDTNSDPDGVDFVIPGNDDAIRAVTLYLGAVAATVREGRSQDLASQAEESLYFQGESFAQLFEESLKEIETRPGSIVRGVVVAIDKDVVLVDAGLKSESAIPAEQFKNAQGELEIQVGDEVDVALDAVEDGFGETLL

来源 Source

来源生物 organism	Escherichia coli TA206
NCBI Class编号 ncbi_taxonomy_id	656440
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	168

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	4toiA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10490 — Glucose-6-phosphate isomerase like protein; domain 1

Domain ID domain_id	4toiA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	610 — Helix hairpin bin

▶

8. Citations (1)

▶

Unit-cell length a length_a	87.280 Å
Unit-cell length b length_b	87.280 Å
Unit-cell length c length_c	94.360 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	37.790 Å
R factor r_factor	0.1668
R_work r_work	0.1636
R_free r_free	0.2287

fit	/app/data/saxs_computation/to/4toi/4toi.fit
pddf	/app/data/pr_computation/to/4toi/4toi.pr.out
profile	/app/data/saxs_computation/to/4toi/4toi.dat

Crystal structure of E.coli ribosomal protein S2 in complex with N-terminal domain of S1

1. Protein Identity and Related Structures Protein Identity & Related Structures

30S ribosomal protein S2,Ribosomal protein S1

State in the Current Structure

Other States of the Same Protein in the Database

30S ribosomal protein S2,Ribosomal protein S1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 water

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
