8vsa

Endogenous trans-translation complex with tmRNA*SmpB in the P site and alanyl-tRNA in the A site of E. coli 70S ribosome

Method: ELECTRON MICROSCOPY D_max: 225.4 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

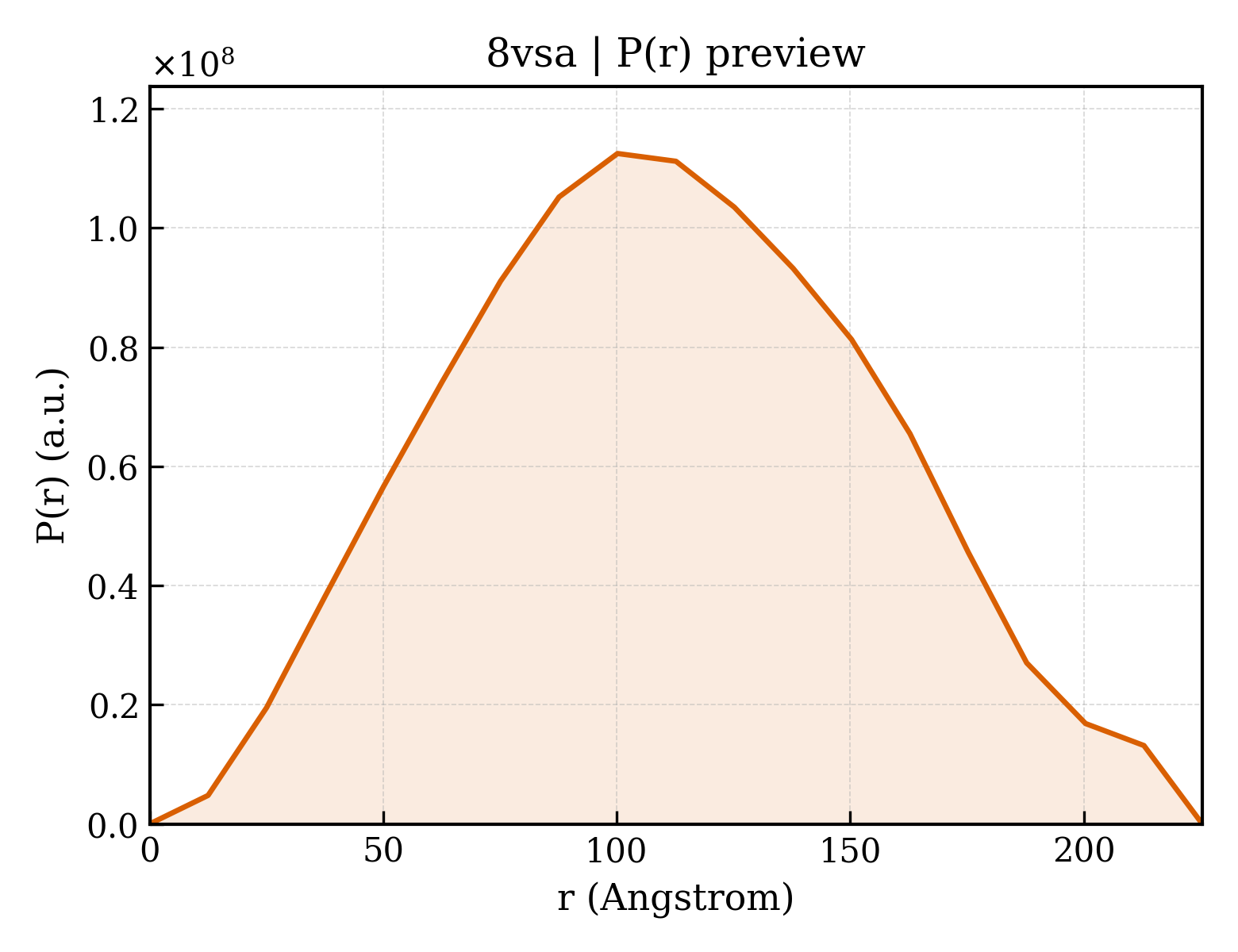

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8vsa
沉积日期 deposition_date	2024-01-23
最后修订 last_revision	2024-05-01
结构标题 title	Endogenous trans-translation complex with tmRNA*SmpB in the P site and alanyl-tRNA in the A site of E. coli 70S ribosome
关键词 keywords	endogenous tmRNA, tmRNA decoding, A-minor interactions, SmpB, cryo-EM, alanyl-tRNA, RIBOSOME; RIBOSOME
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	86.66 Å
回转半径 Rg (电子) rg_electron	87.05 Å
零角强度 I(0) i0	174850000000.00
分子量 molecular_weight	2316500.0 kDa
排除体积 excluded_volume	2381200 Å³
包络体积 envelope_volume	4172100 Å³
水化壳体积 shell_volume	366150 Å³
包络直径 envelope_diameter	301.5 Å
壳层 Rg shell_rg	101.10 Å
包络 Rg envelope_rg	85.92 Å
形状 Rg shape_rg	87.07 Å
总 Rg total_rg	87.05 Å
总原子数 total_atoms	155832
残基数 n_residues	11219
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	225.4 Å
Rg (实空间) rg_real	84.01 Å
Rg 误差 (实空间) rg_real_error	0.37 Å
I(0) (实空间) i0_real	1.6670e+11
I(0) 误差 (实空间) i0_real_error	3.0630e+09
Rg (倒空间) rg_reciprocal	87.90 Å
I(0) (倒空间) i0_reciprocal	175500000000.0000
解质量估计 total_estimate	0.9056
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	100.2 Å
偏度 Skewness skewness	0.109
峰度 Kurtosis kurtosis	-0.575
角度范围 angular_range	— – 0.0900 Å⁻¹
当前正则化参数 α current_alpha	1.1120
最高正则化参数 α highest_alpha	8229000000.0000
实空间数据点数 n_real_points	19
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.999; Stabil: 0.956; Sysdev: 1.000; Positv: 1.000; Valcen: 0.914; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (58)

Entity 1 polymer

描述 description	50S ribosomal protein L2
分子量 formula_weight	29923.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L02
原子数 atom_count	155832

MAVVKCKPTSPGRRHVVKVVNPELHKGKPFAPLLEKNSKSGGRNNNGRITTRHIGGGHKQAYRIVDFKRNKDGIPAVVERLEYDPNRSANIALVLYKDGERRYILAPKGLKAGDQIQSGVDAAIKPGNTLPMRNIPVGSTVHNVEMKPGKGGQLARSAGTYVQIVARDGAYVTLRLRSGEMRKVEADCRATLGEVGNAEHMLRVLGKAGAARWRGVRPTVRGTAMNPVDHPHGGGEGRNFGKHPVTPWGVQTKGKKTRSNKRTDKFIVRRRSK

Entity 2 polymer

描述 description	50S ribosomal protein L3
分子量 formula_weight	22277.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L03

MIGLVGKKVGMTRIFTEDGVSIPVTVIEVEANRVTQVKDLANDGYRAIQVTTGAKKANRVTKPEAGHFAKAGVEAGRGLWEFRLAEGEEFTVGQSISVELFADVKKVDVTGTSKGKGFAGTVKRWNFRTQDATHGNSLSHRVPGSIGQNQTPGKVFKGKKMAGQMGNERVTVQSLDVVRVDAERNLLLVKGAVPGATGSDLIVKPAVKA

Entity 3 polymer

描述 description	50S ribosomal protein L4
分子量 formula_weight	22121.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L04

MELVLKDAQSALTVSETTFGRDFNEALVHQVVVAYAAGARQGTRAQKTRAEVTGSGKKPWRQKGTGRARSGSIKSPIWRSGGVTFAARPQDHSQKVNKKMYRGALKSILSELVRQDRLIVVEKFSVEAPKTKLLAQKLKDMALEDVLIITGELDENLFLAARNLHKVDVRDATGIDPVSLIAFDKVVMTADAVKQVEEMLA

Entity 4 polymer

描述 description	50S ribosomal protein L5
分子量 formula_weight	20333.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L05

MAKLHDYYKDEVVKKLMTEFNYNSVMQVPRVEKITLNMGVGEAIADKKLLDNAAADLAAISGQKPLITKARKSVAGFKIRQGYPIGCKVTLRGERMWEFFERLITIAVPRIRDFRGLSAKSFDGRGNYSMGVREQIIFPEIDYDKVDRVRGLDITITTTAKSDEEGRALLAAFDFPFRK

Entity 5 polymer

描述 description	50S ribosomal protein L6
分子量 formula_weight	18932.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L06

MSRVAKAPVVVPAGVDVKINGQVITIKGKNGELTRTLNDAVEVKHADNTLTFGPRDGYADGWAQAGTARALLNSMVIGVTEGFTKKLQLVGVGYRAAVKGNVINLSLGFSHPVDHQLPAGITAECPTQTEIVLKGADKQVIGQVAADLRAYRRPEPYKGKGVRYADEVVRTKEAKKK

Entity 6 polymer

描述 description	Large ribosomal subunit protein bL9
分子量 formula_weight	15789.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L09

MQVILLDKVANLGSLGDQVNVKAGYARNFLVPQGKAVPATKKNIEFFEARRAELEAKLAEVLAAANARAEKINALETVTIASKAGDEGKLFGSIGTRDIADAVTAAGVEVAKSEVRLPNGVLRTTGEHEVSFQVHSEVFAKVIVNVVAE

Entity 7 polymer

描述 description	50S ribosomal protein L1
分子量 formula_weight	24765.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L1

MAKLTKRMRVIREKVDATKQYDINEAIALLKELATAKFVESVDVAVNLGIDARKSDQNVRGATVLPHGTGRSVRVAVFTQGANAEAAKAAGAELVGMEDLADQIKKGEMNFDVVIASPDAMRVVGQLGQVLGPRGLMPNPKVGTVTPNVAEAVKNAKAGQVRYRNDKNGIIHTTIGKVDFDADKLKENLEALLVALKKAKPTQAKGVYIKKVSISTTMGAGVAVDQAGLSASVN

Entity 8 polymer

描述 description	50S ribosomal protein L10
分子量 formula_weight	17736.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L10

MALNLQDKQAIVAEVSEVAKGALSAVVADSRGVTVDKMTELRKAGREAGVYMRVVRNTLLRRAVEGTPFECLKDAFVGPTLIAYSMEHPGAAARLFKEFAKANAKFEVKAAAFEGELIPASQIDRLATLPTYEEAIARLMATMKEASAGKLVRTLAAVRDAKEAA

Entity 9 polymer

描述 description	50S ribosomal protein L11
分子量 formula_weight	14894.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L11

MAKKVQAYVKLQVAAGMANPSPPVGPALGQQGVNIMEFCKAFNAKTDSIEKGLPIPVVITVYADRSFTFVTKTPPAAVLLKKAAGIKSGSGKPNKDKVGKISRAQLQEIAQTKAADMTGADIEAMTRSIEGTARSMGLVVED

Entity 10 polymer

描述 description	50S ribosomal protein L13
分子量 formula_weight	16050.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L13

MKTFTAKPETVKRDWYVVDATGKTLGRLATELARRLRGKHKAEYTPHVDTGDYIIVLNADKVAVTGNKRTDKVYYHHTGHIGGIKQATFEEMIARRPERVIEIAVKGMLPKGPLGRAMFRKLKVYAGNEHNHAAQQPQVLDI

Entity 11 polymer

描述 description	50S ribosomal protein L14
分子量 formula_weight	13565.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L14

MIQEQTMLNVADNSGARRVMCIKVLGGSHRRYAGVGDIIKITIKEAIPRGKVKKGDVLKAVVVRTKKGVRRPDGSVIRFDGNACVLLNNNSEQPIGTRIFGPVTRELRSEKFMKIISLAPEVL

Entity 12 polymer

描述 description	50S ribosomal protein L15
分子量 formula_weight	15008.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L15

MRLNTLSPAEGSKKAGKRLGRGIGSGLGKTGGRGHKGQKSRSGGGVRRGFEGGQMPLYRRLPKFGFTSRKAAITAEIRLSDLAKVEGGVVDLNTLKAANIIGIQIEFAKVILAGEVTTPVTVRGLRVTKGARAAIEAAGGKIEE

Entity 13 polymer

描述 description	50S ribosomal protein L16
分子量 formula_weight	15312.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L16

MLQPKRTKFRKMHKGRNRGLAQGTDVSFGSFGLKAVGRGRLTARQIEAARRAMTRAVKRQGKIWIRVFPDKPITEKPLAVRMGKGKGNVEYWVALIQPGKVLYEMDGVPEELAREAFKLAAAKLPIKTTFVTKTVM

Entity 14 polymer

描述 description	Large ribosomal subunit protein bL17
分子量 formula_weight	14393.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L17

MRHRKSGRQLNRNSSHRQAMFRNMAGSLVRHEIIKTTLPKAKELRRVVEPLITLAKTDSVANRRLAFARTRDNEIVAKLFNELGPRFASRAGGYTRILKCGFRAGDNAPMAYIELVDRSEKAEAAAE

Entity 15 polymer

描述 description	50S ribosomal protein L18
分子量 formula_weight	12794.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L18

MDKKSARIRRATRARRKLQELGATRLVVHRTPRHIYAQVIAPNGSEVLVAASTVEKAIAEQLKYTGNKDAAAAVGKAVAERALEKGIKDVSFDRSGFQYHGRVQALADAAREAGLQF

Entity 16 polymer

描述 description	50S ribosomal protein L19
分子量 formula_weight	13159.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L19

MSNIIKQLEQEQMKQDVPSFRPGDTVEVKVWVVEGSKKRLQAFEGVVIAIRNRGLHSAFTVRKISNGEGVERVFQTHSPVVDSISVKRRGAVRKAKLYYLRERTGKAARIKERLN

Entity 17 polymer

描述 description	50S ribosomal protein L20
分子量 formula_weight	13528.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L20

MARVKRGVIARARHKKILKQAKGYYGARSRVYRVAFQAVIKAGQYAYRDRRQRKRQFRQLWIARINAAARQNGISYSKFINGLKKASVEIDRKILADIAVFDKVAFTALVEKAKAALA

Entity 18 polymer

描述 description	Ribosomal protein L21
分子量 formula_weight	11586.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L21

MYAVFQSGGKQHRVSEGQTVRLEKLDIATGETVEFAEVLMIANGEEVKIGVPFVDGGVIKAEVVAHGRGEKVKIVKFRRRKHYRKQQGHRQWFTDVKITGISA

Entity 19 polymer

描述 description	50S ribosomal protein L22
分子量 formula_weight	12253.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L22

METIAKHRHARSSAQKVRLVADLIRGKKVSQALDILTYTNKKAAVLVKKVLESAIANAEHNDGADIDDLKVTKIFVDEGPSMKRIMPRAKGRADRILKRTSHITVVVSDR

Entity 20 polymer

描述 description	50S ribosomal protein L23
分子量 formula_weight	11222.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L23

MIREERLLKVLRAPHVSEKASTAMEKSNTIVLKVAKDATKAEIKAAVQKLFEVEVEVVNTLVVKGKVKRHGQRIGRRSDWKKAYVTLKEGQNLDFVGGAE

Entity 21 polymer

描述 description	50S ribosomal protein L24
分子量 formula_weight	11339.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L24

MAAKIRRDDEVIVLTGKDKGKRGKVKNVLSSGKVIVEGINLVKKHQKPVPALNQPGGIVEKEAAIQVSNVAIFNAATGKADRVGFRFEDGKKVRFFKSNSETIK

Entity 22 polymer

描述 description	50S ribosomal protein L25
分子量 formula_weight	10713.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L25

MFTINAEVRKEQGKGASRRLRAANKFPAIIYGGKEAPLAIELDHDKVMNMQAKAEFYSEVLTIVVDGKEIKVKAQDVQRHPYKPKLQHIDFVRA

Entity 23 polymer

描述 description	50S ribosomal protein L27
分子量 formula_weight	9146.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L27

MAHKKAGGSTRNGRDSEAKRLGVKRFGGESVLAGSIIVRQRGTKFHAGANVGCGRDHTLFAKADGKVKFEVKGPKNRKFISIEAE

Entity 24 polymer

描述 description	50S ribosomal protein L28
分子量 formula_weight	9027.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L28

MSRVCQVTGKRPVTGNNRSHALNATKRRFLPNLHSHRFWVESEKRFVTLRVSAKGMRVIDKKGIDTVLAELRARGEKY

Entity 25 polymer

描述 description	50S ribosomal protein L29
分子量 formula_weight	7286.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L29

MKAKELREKSVEELNTELLNLLREQFNLRMQAASGQLQQSHLLKQVRRDVARVKTLLNEKAGA

Entity 26 polymer

描述 description	Large ribosomal subunit protein uL30
分子量 formula_weight	6554.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L30

MAKTIKITQTRSAIGRLPKHKATLLGLGLRRIGHTVEREDTPAIRGMINAVSFMVKVEE

Entity 27 polymer

描述 description	Large ribosomal subunit protein bL31
分子量 formula_weight	5093.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L31

MKKDIHPKYEEITASCSCGNVMKIRSTVGHDLNLDVCSKCHPFFT

Entity 28 polymer

描述 description	50S ribosomal protein L32
分子量 formula_weight	6463.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L32

MAVQQNKPTRSKRGMRRSHDALTAVTSLSVDKTSGEKHLRHHITADGYYRGRKVIAK

Entity 29 polymer

描述 description	Large ribosomal subunit protein bL33
分子量 formula_weight	6388.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L33

MAKGIREKIKLVSSAGTGHFYTTTKNKRTKPEKLELKKFDPVVRQHVIYKEAKIK

Entity 30 polymer

描述 description	50S ribosomal protein L34
分子量 formula_weight	5397.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L34

MKRTFQPSVLKRNRSHGFRARMATKNGRQVLARRRAKGRARLTVSK

Entity 31 polymer

描述 description	50S ribosomal protein L35
分子量 formula_weight	7313.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L35

MPKIKTVRGAAKRFKKTGKGGFKHKHANLRHILTKKATKRKRHLRPKAMVSKGDLGLVIACLPYA

Entity 32 polymer

描述 description	50S ribosomal protein L36
分子量 formula_weight	4377.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L36

MKVRASVKKLCRNCKIVKRDGVIRVICSAEPKHKQRQG

Entity 33 polymer

描述 description	23S ribosomal RNA
分子量 formula_weight	941305.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	23S

GGUUAAGCGACUAAGCGUACACGGUGGAUGCCCUGGCAGUCAGAGGCGAUGAAGGACGUGCUAAUCUGCGAUAAGCGUCGGUAAGGUGAUAUGAACCGUUAUAACCGGCGAUUUCCGAAUGGGGAAACCCAGUGUGUUUCGACACACUAUCAUUAACUGAAUCCAUAGGUUAAUGAGGCGAACCGGGGGAACUGAAACAUCUAAGUACCCCGAGGAAAAGAAAUCAACCGAGAUUCCCCCAGUAGCGGCGAGCGAACGGGGAGCAGCCCAGAGCCUGAAUCAGUGUGUGUGUUAGUGGAAGCGUCUGGAAAGGCGCGCGAUACAGGGUGACAGCCCCGUACACAAAAAUGCACAUGCUGUGAGCUCGAUGAGUAGGGCGGGACACGUGGUAUCCUGUCUGAAUAUGGGGGGACCAUCCUCCAAGGCUAAAUACUCCUGACUGACCGAUAGUGAACCAGUACCGUGAGGGAAAGGCGAAAAGAACCCCGGCGAGGGGAGUGAAAAAGAACCUGAAACCGUGUACGUACAAGCAGUGGGAGCACGCUUAGGCGUGUGACUGCGUACCUUUUGUAUAAUGGGUCAGCGACUUAUAUUCUGUAGCAAGGUUAACCGAAUAGGGGAGCCGAAGGGAAACCGAGUCUUAACUGGGCGUUAAGUUGCAGGGUAUAGACCCGAAACCCGGUGAUCUAGCCAUGGGCAGGUUGAAGGUUGGGUAACACUAACUGGAGGACCGAACCGACUAAUGUCGAAAAAUUAGCGGAUGACUUGUGGCUGGGGGUGAAAGGCCAAUCAAACCGGGAGAUAGCUGGUUCUCCCCGAAAGCUAUUUAGGUAGCGCCUCGUGAAUUCAUCUCCGGGGGUAGAGCACUGUUUCGGCAAGGGGGUCAUCCCGACUUACCAACCCGAUGCAAACUGCGAAUACCGGAGAAUGUUAUCACGGGAGACACACGGCGGGUGCUAACGUCCGUCGUGAAGAGGGAAACAACCCAGACCGCCAGCUAAGGUCCCAAAGUCAUGGUUAAGUGGGAAACGAUGUGGGAAGGCCCAGACAGCCAGGAUGUUGGCUUAGAAGCAGCCAUCAUUUAAAGAAAGCGUAAUAGCUCACUGGUCGAGUCGGCCUGCGCGGAAGAUGUAACGGGGCUAAACCAUGCACCGAAGCUGCGGCAGCGACGCUUAUGCGUUGUUGGGUAGGGGAGCGUUCUGUAAGCCUGCGAAGGUGUGCUGUGAGGCAUGCUGGAGGUAUCAGAAGUGCGAAUGCUGACAUAAGUAACGAUAAAGCGGGUGAAAAGCCCGCUCGCCGGAAGACCAAGGGUUCCUGUCCAACGUUAAUCGGGGCAGGGUGAGUCGACCCCUAAGGCGAGGCCGAAAGGCGUAGUCGAUGGGAAACAGGUUAAUAUUCCUGUACUUGGUGUUACUGCGAAGGGGGGACGGAGAAGGCUAUGUUGGCCGGGCGACGGUUGUCCCGGUUUAAGCGUGUAGGCUGGUUUUCCAGGCAAAUCCGGAAAAUCAAGGCUGAGGCGUGAUGACGAGGCACUACGGUGCUGAAGCAACAAAUGCCCUGCUUCCAGGAAAAGCCUCUAAGCAUCAGGUAACAUCAAAUCGUACCCCAAACCGACACAGGUGGUCAGGUAGAGAAUACCAAGGCGCUUGAGAGAACUCGGGUGAAGGAACUAGGCAAAAUGGUGCCGUAACUUCGGGAGAAGGCACGCUGAUAUGUAGGUGAGGUCCCUCGCGGAUGGAGCUGAAAUCAGUCGAAGAUACCAGCUGGCUGCAACUGUUUAUUAAAAACACAGCACUGUGCAAACACGAAAGUGGACGUAUACGGUGUGACGCCUGCCCGGUGCCGGAAGGUUAAUUGAUGGGGUUAGCGCAAGCGAAGCUCUUGAUCGAAGCCCCGGUAAACGGCGGCCGUAACUAUAACGGUCCUAAGGUAGCGAAAUUCCUUGUCGGGUAAGUUCCGACCUGCACGAAUGGCGUAAUGAUGGCCAGGCUGUCUCCACCCGAGACUCAGUGAAAUUGAACUCGCUGUGAAGAUGCAGUGUACCCGCGGCAAGACGGAAAGACCCCGUGAACCUUUACUAUAGCUUGACACUGAACAUUGAGCCUUGAUGUGUAGGAUAGGUGGGAGGCUUUGAAGUGUGGACGCCAGUCUGCAUGGAGCCGACCUUGAAAUACCACCCUUUAAUGUUUGAUGUUCUAACGUUGACCCGUAAUCCGGGUUGCGGACAGUGUCUGGUGGGUAGUUUGACUGGGGCGGUCUCCUCCUAAAGAGUAACGGAGGAGCACGAAGGUUGGCUAAUCCUGGUCGGACAUCAGGAGGUUAGUGCAAUGGCAUAAGCCAGCUUGACUGCGAGCGUGACGGCGCGAGCAGGUGCGAAAGCAGGUCAUAGUGAUCCGGUGGUUCUGAAUGGAAGGGCCAUCGCUCAACGGAUAAAAGGUACUCCGGGGAUAACAGGCUGAUACCGCCCAAGAGUUCAUAUCGACGGCGGUGUUUGGCACCUCGAUGUCGGCUCAUCACAUCCUGGGGCUGAAGUAGGUCCCAAGGGUAUGGCUGUUCGCCAUUUAAAGUGGUACGCGAGCUGGGUUUAGAACGUCGUGAGACAGUUCGGUCCCUAUCUGCCGUGGGCGCUGGAGAACUGAGGGGGGCUGCUCCUAGUACGAGAGGACCGGAGUGGACGCAUCACUGGUGUUCGGGUUGUCAUGCCAAUGGCACUGCCCGGUAGCUAAAUGCGGAAGAGAUAAGUGCUGAAAGCAUCUAAGCACGAAACUUGCCCCGAGAUGAGUUCUCCCUGACCCUUUAAGGGUCCUGAAGGAACGUUGAAGACGACGACGUUGAUAGGCCGGGUGUGUAAGCGCAGCGAUGCGUUGAGCUAACCGGUACUAAUGAACCGUGAGGCUUAACCU

Entity 34 polymer

描述 description	5S ribosomal RNA
分子量 formula_weight	38813.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	5S

UGCCUGGCGGCCGUAGCGCGGUGGUCCCACCUGACCCCAUGCCGAACUCAGAAGUGAAACGCCGUAGCGCCGAUGGUAGUGUGGGGUCUCCCCAUGCGAGAGUAGGGAACUGCCAGGCAA

Entity 35 polymer

描述 description	TMRN
分子量 formula_weight	117198.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	TMRN

GGGGCUGAUUCUGGAUUCGACGGGAUUUGCGAAACCCAAGGUGCAUGCCGAGGGGCGGUUGGCCUCGUAAAAAGCCGCAAAAAAUAGUCGCAAACGACGAAAACUACGCUUUAGCAGCUUAAUAACCUGCUUAGAGCCCUCUCUCCCUAGCCUCCGCUCUUAGGACGGGGAUCAAGAGAGGUCAAACCCAAAAGAGAUCGCGUGGAAGCCCUGCCUGGGGUUGAAGCGUUAAAACUUAAUCAGGCUAGUUUGUUAGUGGCGUGUCCGUCCGCAGCUGGCAAGCGAAUGUAAAGACUGACUAAGCAUGUAGUACCGAGGAUGUAGGAAUUUCGGACGCGGGUUCAACUCCCGCCAGCUCCACCA

Entity 36 polymer

描述 description	16S ribosomal RNA
分子量 formula_weight	498725.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	16S

AAUUGAAGAGUUUGAUCAUGGCUCAGAUUGAACGCUGGCGGCAGGCCUAACACAUGCAAGUCGAACGGUAACAGGAAGAAGCUUGCUUCUUUGCUGACGAGUGGCGGACGGGUGAGUAAUGUCUGGGAAACUGCCUGAUGGAGGGGGAUAACUACUGGAAACGGUAGCUAAUACCGCAUAACGUCGCAAGACCAAAGAGGGGGACCUUCGGGCCUCUUGCCAUCGGAUGUGCCCAGAUGGGAUUAGCUAGUAGGUGGGGUAACGGCUCACCUAGGCGACGAUCCCUAGCUGGUCUGAGAGGAUGACCAGCCACACUGGAACUGAGACACGGUCCAGACUCCUACGGGAGGCAGCAGUGGGGAAUAUUGCACAAUGGGCGCAAGCCUGAUGCAGCCAUGCCGCGUGUAUGAAGAAGGCCUUCGGGUUGUAAAGUACUUUCAGCGGGGAGGAAGGGAGUAAAGUUAAUACCUUUGCUCAUUGACGUUACCCGCAGAAGAAGCACCGGCUAACUCCGUGCCAGCAGCCGCGGUAAUACGGAGGGUGCAAGCGUUAAUCGGAAUUACUGGGCGUAAAGCGCACGCAGGCGGUUUGUUAAGUCAGAUGUGAAAUCCCCGGGCUCAACCUGGGAACUGCAUCUGAUACUGGCAAGCUUGAGUCUCGUAGAGGGGGGUAGAAUUCCAGGUGUAGCGGUGAAAUGCGUAGAGAUCUGGAGGAAUACCGGUGGCGAAGGCGGCCCCCUGGACGAAGACUGACGCUCAGGUGCGAAAGCGUGGGGAGCAAACAGGAUUAGAUACCCUGGUAGUCCACGCCGUAAACGAUGUCGACUUGGAGGUUGUGCCCUUGAGGCGUGGCUUCCGGAGCUAACGCGUUAAGUCGACCGCCUGGGGAGUACGGCCGCAAGGUUAAAACUCAAAUGAAUUGACGGGGGCCCGCACAAGCGGUGGAGCAUGUGGUUUAAUUCGAUGCAACGCGAAGAACCUUACCUGGUCUUGACAUCCACGGAAGUUUUCAGAGAUGAGAAUGUGCCUUCGGGAACCGUGAGACAGGUGCUGCAUGGCUGUCGUCAGCUCGUGUUGUGAAAUGUUGGGUUAAGUCCCGCAACGAGCGCAACCCUUAUCCUUUGUUGCCAGCGGUCCGGCCGGGAACUCAAAGGAGACUGCCAGUGAUAAACUGGAGGAAGGUGGGGAUGACGUCAAGUCAUCAUGGCCCUUACGACCAGGGCUACACACGUGCUACAAUGGCGCAUACAAAGAGAAGCGACCUCGCGAGAGCAAGCGGACCUCAUAAAGUGCGUCGUAGUCCGGAUUGGAGUCUGCAACUCGACUCCAUGAAGUCGGAAUCGCUAGUAAUCGUGGAUCAGAAUGCCACGGUGAAUACGUUCCCGGGCCUUGUACACACCGCCCGUCACACCAUGGGAGUGGGUUGCAAAAGAAGUAGGUAGCUUAACCUUCGGGAGGGCGCUUACCACUUUGUGAUUCAUGACUGGGGUGAAGUCGUAACAAGGUAACCGUAGGGGAACCUGCGGUUGGAUCACCUCCU

Entity 37 polymer

描述 description	A-tRNA
分子量 formula_weight	24476.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	ATRN

GGGGCUAUAGCUCAGCUGGGAGAGCGCCUGCUUUGCACGCAGGAGGUCUGCGGUUCGAUCCCGCAUAGCUCCACCA

Entity 38 polymer

描述 description	30S ribosomal protein S2
分子量 formula_weight	26781.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S02

MATVSMRDMLKAGVHFGHQTRYWNPKMKPFIFGARNKVHIINLEKTVPMFNEALAELNKIASRKGKILFVGTKRAASEAVKDAALSCDQFFVNHRWLGGMLTNWKTVRQSIKRLKDLETQSQDGTFDKLTKKEALMRTRELEKLENSLGGIKDMGGLPDALFVIDADHEHIAIKEANNLGIPVFAIVDTNSDPDGVDFVIPGNDDAIRAVTLYLGAVAATVREGRSQDLASQAEESFVEAE

Entity 39 polymer

描述 description	30S ribosomal protein S3
分子量 formula_weight	26031.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S03

MGQKVHPNGIRLGIVKPWNSTWFANTKEFADNLDSDFKVRQYLTKELAKASVSRIVIERPAKSIRVTIHTARPGIVIGKKGEDVEKLRKVVADIAGVPAQINIAEVRKPELDAKLVADSITSQLERRVMFRRAMKRAVQNAMRLGAKGIKVEVSGRLGGAEIARTEWYREGRVPLHTLRADIDYNTSEAHTTYGVIGVKVWIFKGEILGGMAAVEQPEKPAAQPKKQQRKGRK

Entity 40 polymer

描述 description	30S ribosomal protein S4
分子量 formula_weight	23514.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S04

MARYLGPKLKLSRREGTDLFLKSGVRAIDTKCKIEQAPGQHGARKPRLSDYGVQLREKQKVRRIYGVLERQFRNYYKEAARLKGNTGENLLALLEGRLDNVVYRMGFGATRAEARQLVSHKAIMVNGRVVNIASYQVSPNDVVSIREKAKKQSRVKAALELAEQREKPTWLEVDAGKMEGTFKRKPERSDLSADINEHLIVELYSK

Entity 41 polymer

描述 description	30S ribosomal protein S5
分子量 formula_weight	17629.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S05

MAHIEKQAGELQEKLIAVNRVSKTVKGGRIFSFTALTVVGDGNGRVGFGYGKAREVPAAIQKAMEKARRNMINVALNNGTLQHPVKGVHTGSRVFMQPASEGTGIIAGGAMRAVLEVAGVHNVLAKAYGSTNPINVVRATIDGLENMNSPEMVAAKRGKSVEEILGK

Entity 42 polymer

描述 description	30S ribosomal protein S6
分子量 formula_weight	15727.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S06

MRHYEIVFMVHPDQSEQVPGMIERYTAAITGAEGKIHRLEDWGRRQLAYPINKLHKAHYVLMNVEAPQEVIDELETTFRFNDAVIRSMVMRTKHAVTEASPMVKAKDERRERRDDFANETADDAEAGDSEEEEEE

Entity 43 polymer

描述 description	30S ribosomal protein S7
分子量 formula_weight	20055.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S07

MPRRRVIGQRKILPDPKFGSELLAKFVNILMVDGKKSTAESIVYSALETLAQRSGKSELEAFEVALENVRPTVEVKSRRVGGSTYQVPVEVRPVRRNALAMRWIVEAARKRGDKSMALRLANELSDAAENKGTAVKKREDVHRMAEANKAFAHYRWLSLRSFSHQAGASSKQPALGYLN

Entity 44 polymer

描述 description	30S ribosomal protein S8
分子量 formula_weight	14146.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S08

MSMQDPIADMLTRIRNGQAANKAAVTMPSSKLKVAIANVLKEEGFIEDFKVEGDTKPELELTLKYFQGKAVVESIQRVSRPGLRIYKRKDELPKVMAGLGIAVVSTSKGVMTDRAARQAGLGGEIICYVA

Entity 45 polymer

描述 description	Small ribosomal subunit protein uS9
分子量 formula_weight	14886.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S09

MAENQYYGTGRRKSSAARVFIKPGNGKIVINQRSLEQYFGRETARMVVRQPLELVDMVEKLDLYITVKGGGISGQAGAIRHGITRALMEYDESLRSELRKAGFVTRDARQVERKKVGLRKARRRPQFSKR

Entity 46 polymer

描述 description	30S ribosomal protein S10
分子量 formula_weight	11755.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S10

MQNQRIRIRLKAFDHRLIDQATAEIVETAKRTGAQVRGPIPLPTRKERFTVLISPHVNKDARDQYEIRTHLRLVDIVEPTEKTVDALMRLDLAAGVDVQISLG

Entity 47 polymer

描述 description	30S ribosomal protein S11
分子量 formula_weight	13871.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S11

MAKAPIRARKRVRKQVSDGVAHIHASFNNTIVTITDRQGNALGWATAGGSGFRGSRKSTPFAAQVAAERCADAVKEYGIKNLEVMVKGPGPGRESTIRALNAAGFRITNITDVTPIPHNGCRPPKKRRV

Entity 48 polymer

描述 description	30S ribosomal protein S12
分子量 formula_weight	13768.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S12

MATVNQLVRKPRARKVAKSNVPALEACPQKRGVCTRVYTTTPKKPNSALRKVCRVRLTNGFEVTSYIGGEGHNLQEHSVILIRGGRVKDLPGVRYHTVRGALDCSGVKDRKQARSKYGVKRPKA

Entity 49 polymer

描述 description	30S ribosomal protein S13
分子量 formula_weight	13128.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S13

MARIAGINIPDHKHAVIALTSIYGVGKTRSKAILAAAGIAEDVKISELSEGQIDTLRDEVAKFVVEGDLRREISMSIKRLMDLGCYRGLRHRRGLPVRGQRTKTNARTRKGPRKPIKK

Entity 50 polymer

描述 description	Small ribosomal subunit protein uS14
分子量 formula_weight	11606.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S14

MAKQSMKAREVKRVALADKYFAKRAELKAIISDVNASDEDRWNAVLKLQTLPRDSSPSRQRNRCRQTGRPHGFLRKFGLSRIKVREAAMRGEIPGLKKASW

Entity 51 polymer

描述 description	Small ribosomal subunit protein uS15
分子量 formula_weight	10290.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S15

MSLSTEATAKIVSEFGRDANDTGSTEVQVALLTAQINHLQGHFAEHKKDHHSRRGLLRMVSQRRKLLDYLKRKDVARYTQLIERLGLRR

Entity 52 polymer

描述 description	30S ribosomal protein S16
分子量 formula_weight	9207.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S16

MVTIRLARHGAKKRPFYQVVVADSRNARNGRFIERVGFFNPIASEKEEGTRLDLDRIAHWVGQGATISDRVAALIKEVNKAA

Entity 53 polymer

描述 description	Small ribosomal subunit protein uS17
分子量 formula_weight	9724.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S17

MTDKIRTLQGRVVSDKMEKSIVVAIERFVKHPIYGKFIKRTTKLHVHDENNECGIGDVVEIRECRPLSKTKSWTLVRVVEKAVL

Entity 54 polymer

描述 description	30S ribosomal protein S18
分子量 formula_weight	9005.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S18

MARYFRRRKFCRFTAEGVQEIDYKDIATLKNYITESGKIVPSRITGTRAKYQRQLARAIKRARYLSLLPYTDRHQ

Entity 55 polymer

描述 description	30S ribosomal protein S19
分子量 formula_weight	10455.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S19

MPRSLKKGPFIDLHLLKKVEKAVESGDKKPLRTWSRRSTIFPNMIGLTIAVHNGRQHVPVFVTDEMVGHKLGEFAPTRTYRGHAADKKAKKK

Entity 56 polymer

描述 description	30S ribosomal protein S20
分子量 formula_weight	9708.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S20

MANIKSAKKRAIQSEKARKHNASRRSMMRTFIKKVYAAIEAGDKAAAQKAFNEMQPIVDRQAAKGLIHKNKAARHKANLTAQINKLA

Entity 57 polymer

描述 description	30S ribosomal protein S21
分子量 formula_weight	8524.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S21

MPVIKVRENEPFDVALRRFKRSCEKAGVLAEVRRREFYEKPTTERKRAKASAVKRHAKKLARENARRTRLY

Entity 58 polymer

描述 description	SsrA-binding protein
分子量 formula_weight	17192.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	SMPB

SATIALNKRARHEYFIEEEFEAGLALQGWEVKSLRAGKANISDSYVLLRDGEAFLFGANITPMAVASTHVVCDPTRTRKLLLNQRELDSLYGRVNREGYTVVALSLYWKNAWCKVKIGVAKGKKQHDKRSDIKEREWQVDKARIMKNAHR

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	3.70 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	5956

fit	/app/data/saxs_computation/vs/8vsa/8vsa.fit
pddf	/app/data/pr_computation/vs/8vsa/8vsa.pr.out
profile	/app/data/saxs_computation/vs/8vsa/8vsa.dat

Endogenous trans-translation complex with tmRNA*SmpB in the P site and alanyl-tRNA in the A site of E. coli 70S ribosome

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

冷冻电镜 EM 3D

5. 实体与聚合体信息 (58)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

Entity 29 polymer

聚合体 Polymer

Entity 30 polymer

聚合体 Polymer

Entity 31 polymer

聚合体 Polymer

Entity 32 polymer

聚合体 Polymer

Entity 33 polymer

聚合体 Polymer

Entity 34 polymer

聚合体 Polymer

Entity 35 polymer
