1. Protein Identity and Related Structures Protein Identity & Related Structures

CRISPR-associated endonuclease Cas9

Staphylococcus aureus subsp. aureus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Monomer Protein × 1 DNA 2 RNA 1 PDB declaration: tetrameric（4） Consistent with all polymer counts	Chain A； UniProt 1–1053	Mutation：N580A/C946A	RNA (73-MER) × 1 DNA (28-MER) × 1 ;DNA (5'-D(TPTPGPGPGPTPAPG)-3') ; × 1 NA SODIUM ION × 4 PO4 PHOSPHATE ION × 1 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；PEG4000, NaCl, Na2HPO4, NaN3	Resolution 2.70 Å R-free 0.230

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5AXW	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5CZZ Crystal structure of Staphylococcus aureus Cas9 in complex with sgRNA and target DNA (TTGAAT PAM) Deposited 2015-08-01	Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 1–1053（1053 aa）	Mutation：N580A/C946A	NA SODIUM ION × 5 PO4 PHOSPHATE ION × 1 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG4000, NaCl, Na2HPO4, NaN3	Resolution 2.60 Å R-free 0.241
7EL1 Structure of a protein from bacteria Deposited 2021-04-07	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: pentameric	Chain A 1–1053（1053 aa）	Mutation：N580A, C946A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1.0M sodium citrate dihydrate, 0.3M imidazol-Hcl (pH 10.0), 0.02M sodium malonate (pH 7.0)	Resolution 2.22 Å R-free 0.242
7ENH Crystal structure of cas and anti-cas protein complex Deposited 2021-04-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 481–646（166 aa） Fragment：HNH domain	Not recorded	NI NICKEL (II) ION × 11	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289.15 K；PEG 3350, sodium iodide	Resolution 2.10 Å R-free 0.208
7ENI Crystal structure of cas and anti-cas protein complex Deposited 2021-04-17	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 2 PDB declaration: trimeric	Chain A 1–1053（1053 aa）	Not recorded	PO4 PHOSPHATE ION × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289.15 K；Tris, Ammonium phosphate dibasic	Resolution 2.63 Å R-free 0.237
7ENR Crystal structure of cas and anti-cas protein complex Deposited 2021-04-19	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 2 PDB declaration: trimeric	Chain A 1–1053（1053 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289.15 K；PEG 3350, EG, Bicine	Resolution 4.21 Å R-free 0.307
7VW3 Cryo-EM structure of SaCas9-sgRNA-DNA ternary complex Deposited 2021-11-09	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 2–1053（1052 aa）	Mutation：D10A N580A	MG MAGNESIUM ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20mM Tris-Cl (pH 7.5), 100mM KCl, 5mM MgCl2, 1mM DTT cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8JFT Cryo-EM structure of SaCas9-AcrIIA15 CTD-sgRNA complex Deposited 2023-05-18	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 2 PDB declaration: trimeric	Chain A 1–1053（1053 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.31 Å
8JG9 Cryo-EM structure of the SaCas9-sgRNA-AcrIIA15-promoter DNA dimer Deposited 2023-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: octameric	Chain A 1–1053（1053 aa） Chain D 1–1053（1053 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.82 Å
8Y0D Crystal structure of SauCas9 in complex with sgRNA and 20nt ssDNA target Deposited 2024-01-22	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1–1053（1053 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；0.2 M Sodium chloride, 0.1 M Sodium HEPES, pH 7.0, 11% PEG 8000	Resolution 3.92 Å R-free 0.318
8ZCY Cryo-EM structure of eSaCas9_NNG-guide RNA-target DNA complex in an interrogation state Deposited 2024-04-30	Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 1–1053（1053 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.17 Å
8ZCZ Cryo-EM structure of eSaCas9_NNG-guide RNA-target DNA complex in an intermediate state Deposited 2024-04-30	Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 1–1053（1053 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
8ZD0 Cryo-EM structure of eSaCas9_NNG-guide RNA-target DNA complex in a translocation state Deposited 2024-04-30	Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 1–1053（1053 aa）	Not recorded	MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.76 Å
8ZDA Cryo-EM structure of eSaCas9_NNG-guide RNA-target DNA complex in a catalytically active state Deposited 2024-05-01	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: pentameric	Chain A 1–1053（1053 aa）	Not recorded	MG MAGNESIUM ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.14 Å
9MB6 Cryo-EM structure of wild-type SaCas9-guide RNA-mismatched target DNA complex Deposited 2025-03-15	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 1–1053（1053 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.01 Å
9MB7 Cryo-EM structure of eSaCas9-NNG-guide RNA-mismatched target DNA complex Deposited 2025-03-15	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 1–1053（1053 aa）	Not recorded	MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.88 Å

15 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	J7RUA5_STAAU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–1056； UniProt 1–1053

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5axw
Deposition date deposition_date	2015-08-01
Structure title title	Crystal structure of Staphylococcus aureus Cas9 in complex with sgRNA and target DNA (TTGGGT PAM)
Keywords keywords	CRISPR-Cas9, genome engineering, HYDROLASE-RNA-DNA complex; HYDROLASE/RNA/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	37.13 Å
Radius of gyration Rg (electron density) rg_electron	37.12 Å
Forward intensity I(0) i0	474425000.00
Molecular weight molecular_weight	153870.0 kDa
Excluded volume excluded_volume	182630 Å³
Envelope volume envelope_volume	253930 Å³
Hydration-shell volume shell_volume	55966 Å³
Envelope diameter envelope_diameter	126.8 Å
Shell Rg shell_rg	44.34 Å
Envelope Rg envelope_rg	36.29 Å
Shape Rg shape_rg	37.16 Å
Total Rg total_rg	37.43 Å
Total atoms total_atoms	10705
Residues n_residues	1152
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	120.7 Å
Rg (real space) rg_real	37.03 Å
Rg uncertainty (real space) rg_real_error	1.12 Å
I(0) (real space) i0_real	4.7440e+08
I(0) uncertainty (real space) i0_real_error	9.0490e+06
Rg (reciprocal space) rg_reciprocal	37.09 Å
I(0) (reciprocal space) i0_reciprocal	474500000.0000
Solution quality estimate total_estimate	0.8969
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	44.9 Å
Skewness Skewness skewness	0.228
Kurtosis Kurtosis kurtosis	-0.477
Angular range angular_range	— – 0.2150 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	52150000.0000
Real-space data points n_real_points	44
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.916; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.910

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	CRISPR-associated endonuclease Cas9
Molecular weight formula_weight	124365.9 kDa
EC 编号 ec_number	3.1.-.-
Mutation mutation	N580A/C946A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	10823

GSHMKRNYILGLDIGITSVGYGIIDYETRDVIDAGVRLFKEANVENNEGRRSKRGARRLKRRRRHRIQRVKKLLFDYNLLTDHSELSGINPYEARVKGLSQKLSEEEFSAALLHLAKRRGVHNVNEVEEDTGNELSTKEQISRNSKALEEKYVAELQLERLKKDGEVRGSINRFKTSDYVKEAKQLLKVQKAYHQLDQSFIDTYIDLLETRRTYYEGPGEGSPFGWKDIKEWYEMLMGHCTYFPEELRSVKYAYNADLYNALNDLNNLVITRDENEKLEYYEKFQIIENVFKQKKKPTLKQIAKEILVNEEDIKGYRVTSTGKPEFTNLKVYHDIKDITARKEIIENAELLDQIAKILTIYQSSEDIQEELTNLNSELTQEEIEQISNLKGYTGTHNLSLKAINLILDELWHTNDNQIAIFNRLKLVPKKVDLSQQKEIPTTLVDDFILSPVVKRSFIQSIKVINAIIKKYGLPNDIIIELAREKNSKDAQKMINEMQKRNRQTNERIEEIIRTTGKENAKYLIEKIKLHDMQEGKCLYSLEAIPLEDLLNNPFNYEVDHIIPRSVSFDNSFNNKVLVKQEEASKKGNRTPFQYLSSSDSKISYETFKKHILNLAKGKGRISKTKKEYLLEERDINRFSVQKDFINRNLVDTRYATRGLMNLLRSYFRVNNLDVKVKSINGGFTSFLRRKWKFKKERNKGYKHHAEDALIIANADFIFKEWKKLDKAKKVMENQMFEEKQAESMPEIETEQEYKEIFITPHQIKHIKDFKDYKYSHRVDKKPNRELINDTLYSTRKDDKGNTLIVNNLNGLYDKDNDKLKKLINKSPEKLLMYHHDPQTYQKLKLIMEQYGDEKNPLYKYYEETGNYLTKYSKKDNGPVIKKIKYYGNKLNAHLDITDDYPNSRNKVVKLSLKPYRFDVYLDNGVYKFVTVKNLDVIKKENYYEVNSKAYEEAKKLKKISNQAEFIASFYNNDLIKINGELYRVIGVNNDLLNRIEVNMIDITYREYLENMNDKRPPRIIKTIASKTQSIKKYSTDILGNLYEVKSKKHPQIIKKG

来源 Source

来源生物 organism	Staphylococcus aureus subsp. aureus
NCBI Class编号 ncbi_taxonomy_id	46170
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	RNA (73-MER)
Molecular weight formula_weight	23526.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	B

GGAAAUUAGGUGCGCUUGGCGUUUUAGUACUCUGGAAACAGAAUCUACUAAAACAAGGCAAAAUGCCGUGUUU

Entity 3 Entity 3 polymer

Description description	DNA (28-MER)
Molecular weight formula_weight	8439.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C

CTACCCAAGCCAAGCGCACCTAATTTCC

Entity 4 Entity 4 polymer

Description description	;DNA (5'-D(TPTPGPGPGPTPAPG)-3') ;
Molecular weight formula_weight	2497.7 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D

TTGGGTAG

Entity 5 Entity 5 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	76

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d5axwa1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.3 — Ribonuclease H-like
Family Family family	c.55.3.16 — RuvC-like domain from CRISPR-associated protein Cas9

Domain ID domain_id	d5axwa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.4 — His-Me finger endonucleases
Superfamily Superfamily superfamily	d.4.1 — His-Me finger endonucleases
Family Family family	d.4.1.8 — HNH domain from CRISPR-associated protein Cas9

Domain ID domain_id	d5axwa3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.393 — CRISPR-associated endonuclease Cas9/Csn1, Target recognition (REC) lobe
Superfamily Superfamily superfamily	d.393.1 — CRISPR-associated endonuclease Cas9/Csn1, Target recognition (REC) lobe
Family Family family	d.393.1.1 — CRISPR-associated endonuclease Cas9/Csn1, Target recognition (REC) lobe

Domain ID domain_id	d5axwa4
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.80 — CRISPR-associated endonuclease Cas9/Csn1, Protospace-adjacent motif (PAM)-interacting domain
Superfamily Superfamily superfamily	e.80.1 — CRISPR-associated endonuclease Cas9/Csn1, PAM-interacting (PI) domain
Family Family family	e.80.1.1 — CRISPR-associated endonuclease Cas9/Csn1, PAM-interacting (PI) domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	67.596 Å
Unit-cell length b length_b	345.664 Å
Unit-cell length c length_c	98.052 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	49.670 Å
R factor r_factor	0.2046
R_work r_work	0.2033
R_free r_free	0.2303

fit	/app/data/saxs_computation/ax/5axw/5axw.fit
pddf	/app/data/pr_computation/ax/5axw/5axw.pr.out
profile	/app/data/saxs_computation/ax/5axw/5axw.dat

Crystal structure of Staphylococcus aureus Cas9 in complex with sgRNA and target DNA (TTGGGT PAM)

1. Protein Identity and Related Structures Protein Identity & Related Structures

CRISPR-associated endonuclease Cas9

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

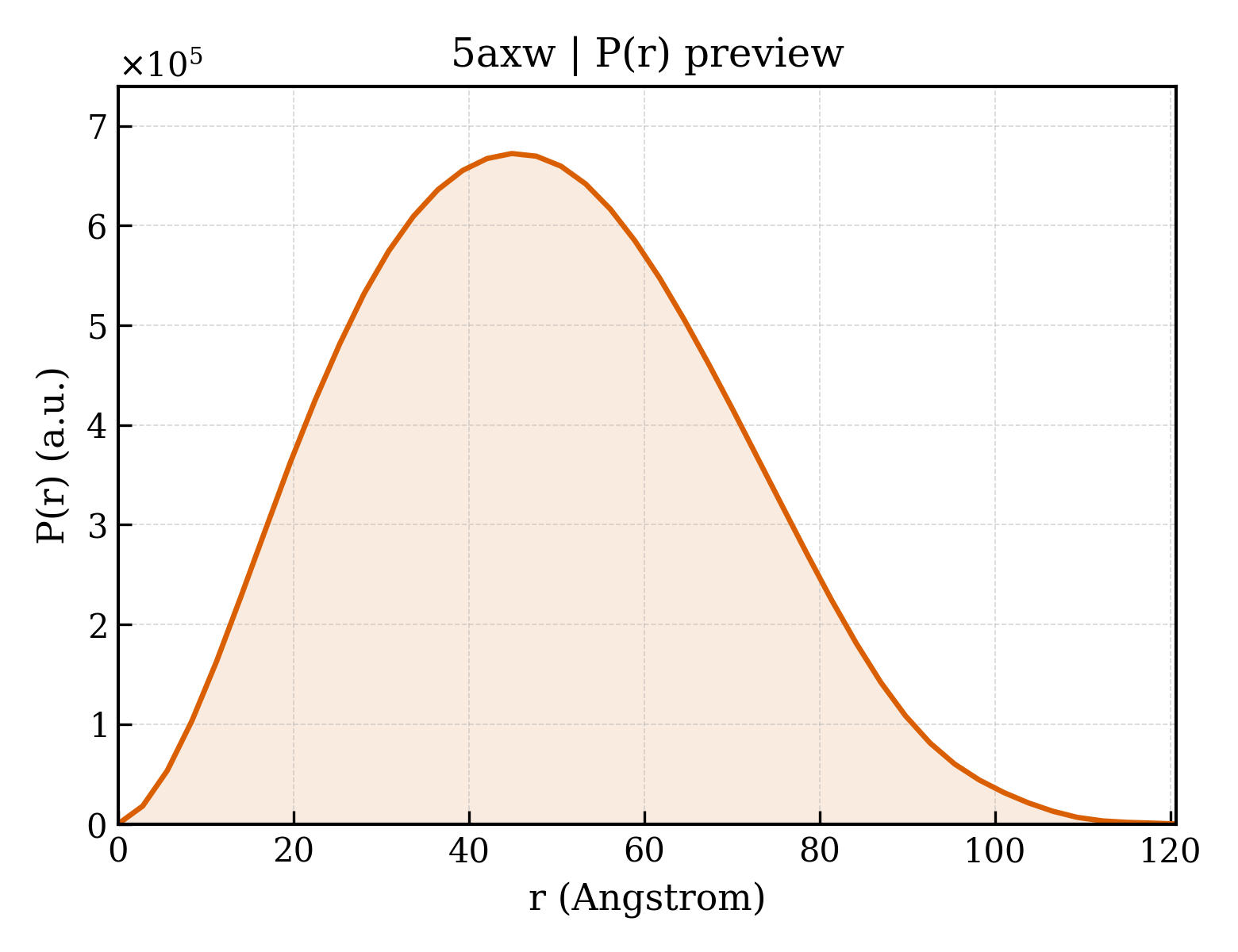

P(r) Distance Distribution P(r) Distribution
