Homo sapiens
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 2 | Fibronectin × 1 water × 2 | Consistent with protein count |
| UniProt name | ABL1_HUMAN |
| Isoform | P00519-2 |
| PDB entities | 2 |
| Chains and sequence ranges | Author chain B； PDBConstruct 1–121； UniProt 131–251 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 5dc0 |
| Deposition date deposition_date | 2015-08-22 |
| Structure title title | CRYSTAL STRUCTURE OF MONOBODY GG3/ABL1 SH2 DOMAIN COMPLEX |
| Keywords keywords | ENGINEERED BINDING PROTEIN, ANTIBODY MIMIC, PROTEIN-PROTEIN COMPLEX, SH2 DOMAIN, TYROSINE-PROTEIN KINASE, PROTEIN BINDING; PROTEIN BINDING |
| Experimental Method method | X-RAY DIFFRACTION |
This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

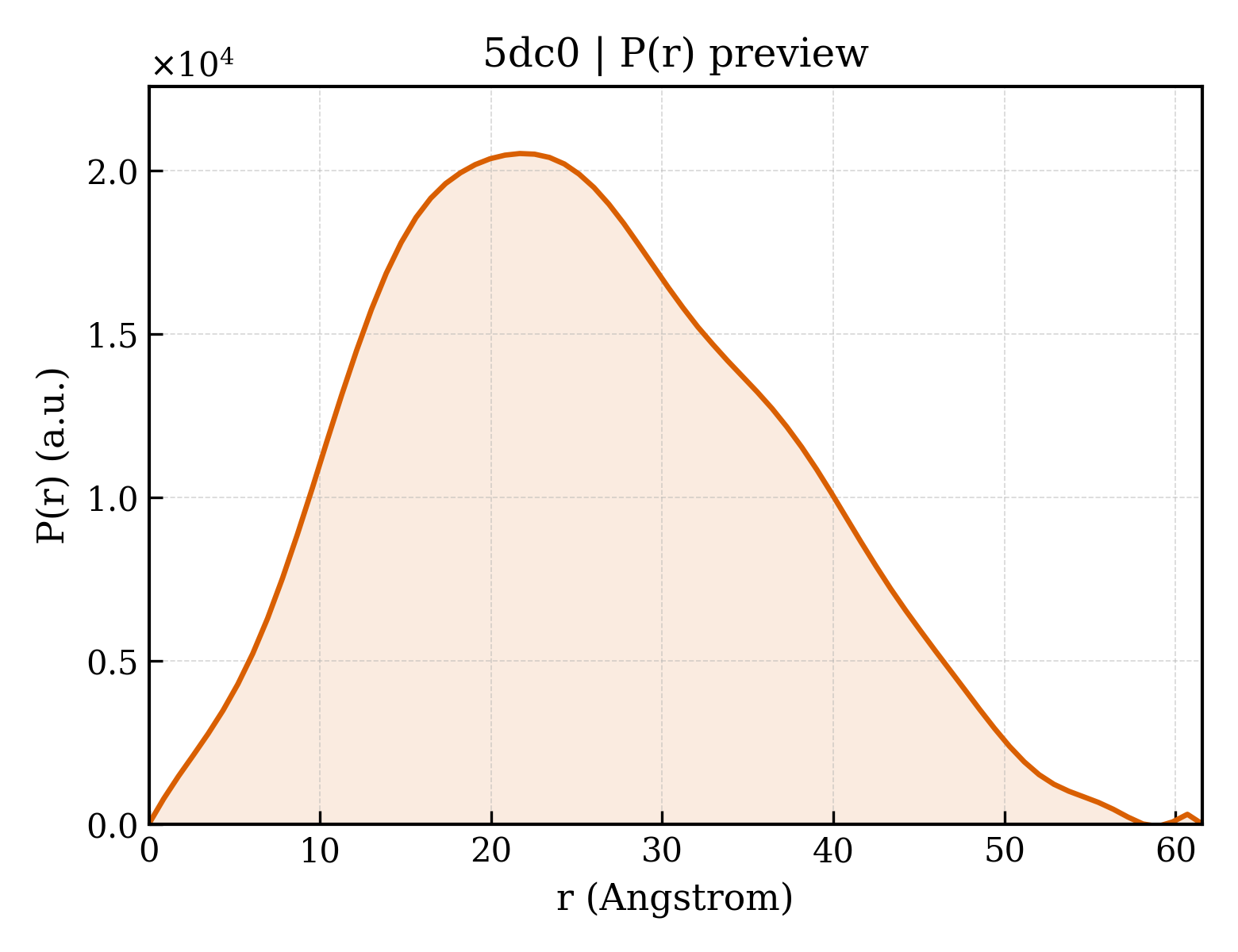

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 19.55 Å |
| Rg (electron density) | 18.54 Å |
| Total Rg | 19.39 Å |
| Atom count | 1463 |
| Residues | 189 |
| Excluded volume | 25875 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d5dc0a_ |
| Class class | b — All beta proteins |
| Fold Fold fold | b.1 — Immunoglobulin-like beta-sandwich |
| Superfamily Superfamily superfamily | b.1.2 — Fibronectin type III |
| Family Family family | b.1.2.0 — automated matches |
| Domain ID domain_id | d5dc0b_ |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.93 — SH2-like |
| Superfamily Superfamily superfamily | d.93.1 — SH2 domain |
| Family Family family | d.93.1.1 — SH2 domain |
| Domain ID domain_id | 5dc0A00 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 60 — Sandwich |
| Topology topology | 40 — Immunoglobulin-like |
| Homologous superfamily homologous superfamily | 10 — Immunoglobulins |
| Domain ID domain_id | 5dc0B00 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 30 — 2-Layer Sandwich |
| Topology topology | 505 — SHC Adaptor Protein |
| Homologous superfamily homologous superfamily | 10 — SH2 domain |
