SAXSdb — 5um9

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Flap endonuclease 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Monomer Protein × 1 DNA 3 PDB declaration: tetrameric（4） Consistent with all polymer counts	Chain A； UniProt 2–336	Mutation：D86N	;DNA (5'-D(APCPTPCPTPGPCPCPTPCPAPAPGPAPCPGPGPT)-3') ; × 1 ;DNA (5'-D(PTPCPTPTPGPAPGPGPCPAPGPAPGPT)-3') ; × 1 ;DNA (5'-D(APCPCPGPTPCP*C)-3') ; × 1 K POTASSIUM ION × 1 SM SAMARIUM (III) ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；283 K；6% MPEG 2K, 10% KCl, 50 mM HEPES pH 7.5, 2.5% Ethylene glycol, 1.06 mM SmSO4	Resolution 2.81 Å R-free 0.266

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5UM9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1U7B Crystal structure of hPCNA bound to residues 331-350 of the flap endonuclease-1 (FEN1) Deposited 2004-08-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 331–350（20 aa） Fragment：PIP-box region of FEN-1 (residues 331-350)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；ammonium sulfate, sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.88 Å R-free 0.265
1UL1 Crystal structure of the human FEN1-PCNA complex Deposited 2003-09-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain X 2–380（379 aa） Chain Y 2–380（379 aa） Chain Z 2–380（379 aa）	Not recorded	MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；283 K；6% PEG1000, 50mM MES, 50mM Sodium chloride, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 283K	Resolution 2.90 Å R-free 0.284
3Q8K Crystal Structure of Human Flap Endonuclease FEN1 (WT) in complex with product 5'-flap DNA, SM3+, and K+ Deposited 2011-01-06	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 2–336（335 aa）	Not recorded	SM SAMARIUM (III) ION × 4 K POTASSIUM ION × 1 OH HYDROXIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；288 K；16% mPEG 2k, 20% saturated KCl, 0.5 mM Sm2(SO4)3, 10 mM Mg(NO3)2, 100 mM Hepes pH 7.0, 5% ethylene glycol, VAPOR DIFFUSION, temperature 288K	Resolution 2.20 Å R-free 0.213
3Q8L Crystal Structure of Human Flap Endonuclease FEN1 (WT) in complex with substrate 5'-flap DNA, SM3+, and K+ Deposited 2011-01-06	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 2–336（335 aa）	Not recorded	SM SAMARIUM (III) ION × 4 K POTASSIUM ION × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；288 K；17% mPEG 2k, 20% KCl, 0.5 mM Sm2(SO4)3, 50 mM Bis-Tris pH 7.0 and 5% Ethylene Glycol, vapor diffusion, temperature 288K	Resolution 2.32 Å R-free 0.202
3Q8M Crystal Structure of Human Flap Endonuclease FEN1 (D181A) in complex with substrate 5'-flap DNA and K+ Deposited 2011-01-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 2–336（335 aa） Fragment：D181A	Not recorded	K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；288 K；20% mPEG 2k, 20% KCl, 10 mM CaCl2, 50 mM Bis-Tris pH 7.5, 5% ethylene glycol, vapor diffusion, temperature 288K	Resolution 2.60 Å R-free 0.272
3Q8M Crystal Structure of Human Flap Endonuclease FEN1 (D181A) in complex with substrate 5'-flap DNA and K+ Deposited 2011-01-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: tetrameric	Chain B 2–336（335 aa） Fragment：D181A	Not recorded	K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；288 K；20% mPEG 2k, 20% KCl, 10 mM CaCl2, 50 mM Bis-Tris pH 7.5, 5% ethylene glycol, vapor diffusion, temperature 288K	Resolution 2.60 Å R-free 0.272
3UVU Structural basis of nuclear import of Flap endonuclease 1 (FEN1) Deposited 2011-11-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 352–370（19 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；293 K；Sodium citrate, DTT, pH 5.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.38 Å R-free 0.215
5FV7 Human Fen1 in complex with an N-hydroxyurea compound Deposited 2016-02-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–336（336 aa） Fragment：RESIDUES 1-336	Not recorded	MG MAGNESIUM ION × 2 R3Z 1-[(2S)-2,3-dihydro-1,4-benzodioxin-2-ylmethyl]-3-hydroxythieno[3,2-d]pyrimidine-2,4(1H,3H)-dione × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；25% PEG3350, 0.1M MOPS 7.0, 5% 2-PROPANOL, 2% GLYCEROL, pH 7.5	Resolution 2.84 Å R-free 0.300
5FV7 Human Fen1 in complex with an N-hydroxyurea compound Deposited 2016-02-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–336（336 aa） Fragment：RESIDUES 1-336	Not recorded	MG MAGNESIUM ION × 2 R3Z 1-[(2S)-2,3-dihydro-1,4-benzodioxin-2-ylmethyl]-3-hydroxythieno[3,2-d]pyrimidine-2,4(1H,3H)-dione × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；25% PEG3350, 0.1M MOPS 7.0, 5% 2-PROPANOL, 2% GLYCEROL, pH 7.5	Resolution 2.84 Å R-free 0.300
5K97 Flap endonuclease 1 (FEN1) D233N with cleaved product fragment and Sm3+ Deposited 2016-05-31	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: pentameric	Chain A 2–336（335 aa）	Mutation：D233N	SM SAMARIUM (III) ION × 8 K POTASSIUM ION × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；283 K；24% MPEG 2K, 20% KCl, 5% ethylene glycol, 100 mM HEPES pH 7.5	Resolution 2.10 Å R-free 0.219
5KSE Flap endonuclease 1 (FEN1) R100A with 5'-flap substrate DNA and Sm3+ Deposited 2016-07-08	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 2–336（335 aa）	Mutation：R100A	SM SAMARIUM (III) ION × 5 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；288 K；22% mPEG 2000, 20% saturated KCl, 5% ethylene glycol, 100 mM HEPES pH 7.5	Resolution 2.10 Å R-free 0.245
5ZOD Crystal Structure of hFen1 in apo form Deposited 2018-04-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–333（333 aa） Fragment：nuclease core	Not recorded	MG MAGNESIUM ION × 2 K POTASSIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；298 K；PEG 3350, MgCl2, Tris, KCl	Resolution 1.90 Å R-free 0.226
5ZOE Crystal Structure of D181A hFen1 in complex with DNA Deposited 2018-04-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 1–333（333 aa） Fragment：nuclease core (1-333)	Mutation：D181A	K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；298 K；PEG 3350, MgCl2, Tris, KCl	Resolution 1.95 Å R-free 0.227
5ZOF Crystal Structure of D181A/R192F hFen1 in complex with DNA Deposited 2018-04-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 1–333（333 aa） Fragment：nuclease core (1-333)	Mutation：D181A, R192F	K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；298 K；PEG 3350, MgCl2, Tris, KCl	Resolution 2.25 Å R-free 0.269
5ZOG Crystal Structure of R192F hFen1 in complex with DNA Deposited 2018-04-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 1–333（333 aa） Fragment：nuclease core (1-333)	Mutation：R192F	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；298 K；PEG 3350, MgCl2, Tris, KCl	Resolution 2.30 Å R-free 0.231
6TNZ Human polymerase delta-FEN1-PCNA toolbelt Deposited 2019-12-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain H 1–380（380 aa）	Not recorded	ZN ZINC ION × 1 SF4 IRON/SULFUR CLUSTER × 1 TTP THYMIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.05 Å
7QO1 complex of DNA ligase I and FEN1 on PCNA and DNA Deposited 2021-12-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: octameric	Chain Y 1–380（380 aa）	Mutation：D181A	AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
8YJH Structure of the human endogenous PCNA-FEN1 complex - State A Deposited 2024-03-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: octameric	Chain D 1–380（380 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.68 Å
8YJL Structure of the human endogenous PCNA-FEN1 complex - State B Deposited 2024-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: octameric	Chain D 1–380（380 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.51 Å
8YJQ Structure of the human endogenous PCNA-FEN1 complex - State C Deposited 2024-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: octameric	Chain D 1–380（380 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.51 Å
8YJR Structure of the human endogenous PCNA-FEN1 complex - State D Deposited 2024-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: octameric	Chain D 1–380（380 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.51 Å
8YJS Structure of the human endogenous PCNA-FEN1 complex - State E Deposited 2024-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: octameric	Chain D 1–380（380 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.55 Å
8YJU Structure of the human endogenous PCNA-FEN1 complex - State F Deposited 2024-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: octameric	Chain D 1–380（380 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.78 Å
8YJV Structure of the human endogenous PCNA-FEN1 complex - State G Deposited 2024-03-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: octameric	Chain D 1–380（380 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.51 Å
8YJW Structure of the human endogenous PCNA-FEN1 complex - State H Deposited 2024-03-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: octameric	Chain D 1–380（380 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.55 Å
8YJZ Structure of the human endogenous PCNA-FEN1-RNase H2 complex - State D Deposited 2024-03-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 7 PDB declaration: decameric	Chain D 1–380（380 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.15 Å
9RCI Crystal Structure of Flap Endonuclease FEN1 with Compound 28 Deposited 2025-05-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–336（336 aa）	Not recorded	MG MAGNESIUM ION × 2 EDO 1,2-ETHANEDIOL × 1 A1JD4 (3~{S})-13-[(1~{S})-1-(2-methylquinolin-7-yl)ethoxy]-11-oxidanyl-5-oxa-1,8-diazatricyclo[8.4.0.0^{3,8}]tetradeca-10,13-diene-9,12-dione × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；277 K；21 % PEG MME 5000, 0.1 M MES pH 6.5, 10 mM ammonium sulphate	Resolution 1.66 Å R-free 0.283
9RCI Crystal Structure of Flap Endonuclease FEN1 with Compound 28 Deposited 2025-05-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–336（336 aa）	Not recorded	MG MAGNESIUM ION × 2 EDO 1,2-ETHANEDIOL × 1 A1JD4 (3~{S})-13-[(1~{S})-1-(2-methylquinolin-7-yl)ethoxy]-11-oxidanyl-5-oxa-1,8-diazatricyclo[8.4.0.0^{3,8}]tetradeca-10,13-diene-9,12-dione × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；277 K；21 % PEG MME 5000, 0.1 M MES pH 6.5, 10 mM ammonium sulphate	Resolution 1.66 Å R-free 0.283
9RDI Crystal Structure of Flap Endonuclease FEN1 with Compound 5 Deposited 2025-06-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–336（336 aa）	Not recorded	A1JED 2-methyl-9-oxidanyl-6-(phenylmethyl)-3,4-dihydropyrazino[1,2-c]pyrimidine-1,8-dione × 1 TEW 6-tungstotellurate(VI) × 4 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；277 K；21 % PEG MME 5000, 0.1 M MES pH 6.5, 10 mM ammonium sulphate	Resolution 2.10 Å R-free 0.232
9RDI Crystal Structure of Flap Endonuclease FEN1 with Compound 5 Deposited 2025-06-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–336（336 aa）	Not recorded	A1JED 2-methyl-9-oxidanyl-6-(phenylmethyl)-3,4-dihydropyrazino[1,2-c]pyrimidine-1,8-dione × 1 TEW 6-tungstotellurate(VI) × 5 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；277 K；21 % PEG MME 5000, 0.1 M MES pH 6.5, 10 mM ammonium sulphate	Resolution 2.10 Å R-free 0.232

26 other PDB entries and 30 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FEN1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–335； UniProt 2–336

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5um9
Deposition date deposition_date	2017-01-26
Structure title title	Flap endonuclease 1 (FEN1) D86N with 5'-flap substrate DNA and Sm3+
Keywords keywords	;dna repair, endonuclease, 5' nuclease, DNA binding, Hydrolase-DNA complex ;; Hydrolase/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	24.47 Å
Radius of gyration Rg (electron density) rg_electron	23.38 Å
Forward intensity I(0) i0	59335100.00
Molecular weight molecular_weight	51143.0 kDa
Excluded volume excluded_volume	60090 Å³
Envelope volume envelope_volume	77309 Å³
Hydration-shell volume shell_volume	27485 Å³
Envelope diameter envelope_diameter	81.8 Å
Shell Rg shell_rg	30.59 Å
Envelope Rg envelope_rg	23.58 Å
Shape Rg shape_rg	23.33 Å
Total Rg total_rg	24.25 Å
Total atoms total_atoms	6666
Residues n_residues	380
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	78.0 Å
Rg (real space) rg_real	24.42 Å
Rg uncertainty (real space) rg_real_error	0.43 Å
I(0) (real space) i0_real	5.9340e+07
I(0) uncertainty (real space) i0_real_error	7.6350e+05
Rg (reciprocal space) rg_reciprocal	24.43 Å
I(0) (reciprocal space) i0_reciprocal	59340000.0000
Solution quality estimate total_estimate	0.8966
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	29.7 Å
Skewness Skewness skewness	0.328
Kurtosis Kurtosis kurtosis	-0.297
Angular range angular_range	— – 0.3250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	7471000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.887; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.991

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Flap endonuclease 1
Molecular weight formula_weight	38510.2 kDa
EC 编号 ec_number	3.1.-.-
Mutation mutation	D86N
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6701

GIQGLAKLIADVAPSAIRENDIKSYFGRKVAIDASMSIYQFLIAVRQGGDVLQNEEGETTSHLMGMFYRTIRMMENGIKPVYVFNGKPPQLKSGELAKRSERRAEAEKQLQQAQAAGAEQEVEKFTKRLVKVTKQHNDECKHLLSLMGIPYLDAPSEAEASCAALVKAGKVYAAATEDMDCLTFGSPVLMRHLTASEAKKLPIQEFHLSRILQELGLNQEQFVDLCILLGSDYCESIRGIGPKRAVDLIQKHKSIEEIVRRLDPNKYPVPENWLHKEAHQLFLEPEVLDPESVELKWSEPNEEELIKFMCGEKQFSEERIRSGVKRLSKSRQGSTLEVLFQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	;DNA (5'-D(APCPTPCPTPGPCPCPTPCPAPAPGPAPCPGPGPT)-3') ;
Molecular weight formula_weight	5476.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D

ACTCTGCCTCAAGACGGT

Entity 3 Entity 3 polymer

Description description	;DNA (5'-D(PTPCPTPTPGPAPGPGPCPAPGPAPGPT)-3') ;
Molecular weight formula_weight	5266.4 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	E

ATATCTTGAGGCAGAGT

Entity 4 Entity 4 polymer

Description description	;DNA (5'-D(APCPCPGPTPCP*C)-3') ;
Molecular weight formula_weight	2058.4 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	F

ACCGTCC

Entity 5 Entity 5 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	SAMARIUM (III) ION
Molecular weight formula_weight	150.4 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	35

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	5um9A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1010 — 5'-nuclease

Domain ID domain_id	5um9A02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	20 — 5' to 3' exonuclease, C-terminal subdomain

▶

8. Citations (1)

▶

Unit-cell length a length_a	105.846 Å
Unit-cell length b length_b	105.846 Å
Unit-cell length c length_c	100.709 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.805 Å
Low-resolution limit resolution_low	19.672 Å
R factor r_factor	0.2107
R_work r_work	0.2078
R_free r_free	0.2659

fit	/app/data/saxs_computation/um/5um9/5um9.fit
pddf	/app/data/pr_computation/um/5um9/5um9.pr.out
profile	/app/data/saxs_computation/um/5um9/5um9.dat

Flap endonuclease 1 (FEN1) D86N with 5'-flap substrate DNA and Sm3+

1. Protein Identity and Related Structures Protein Identity & Related Structures

Flap endonuclease 1

State in the Current Structure

Other States of the Same Protein in the Database

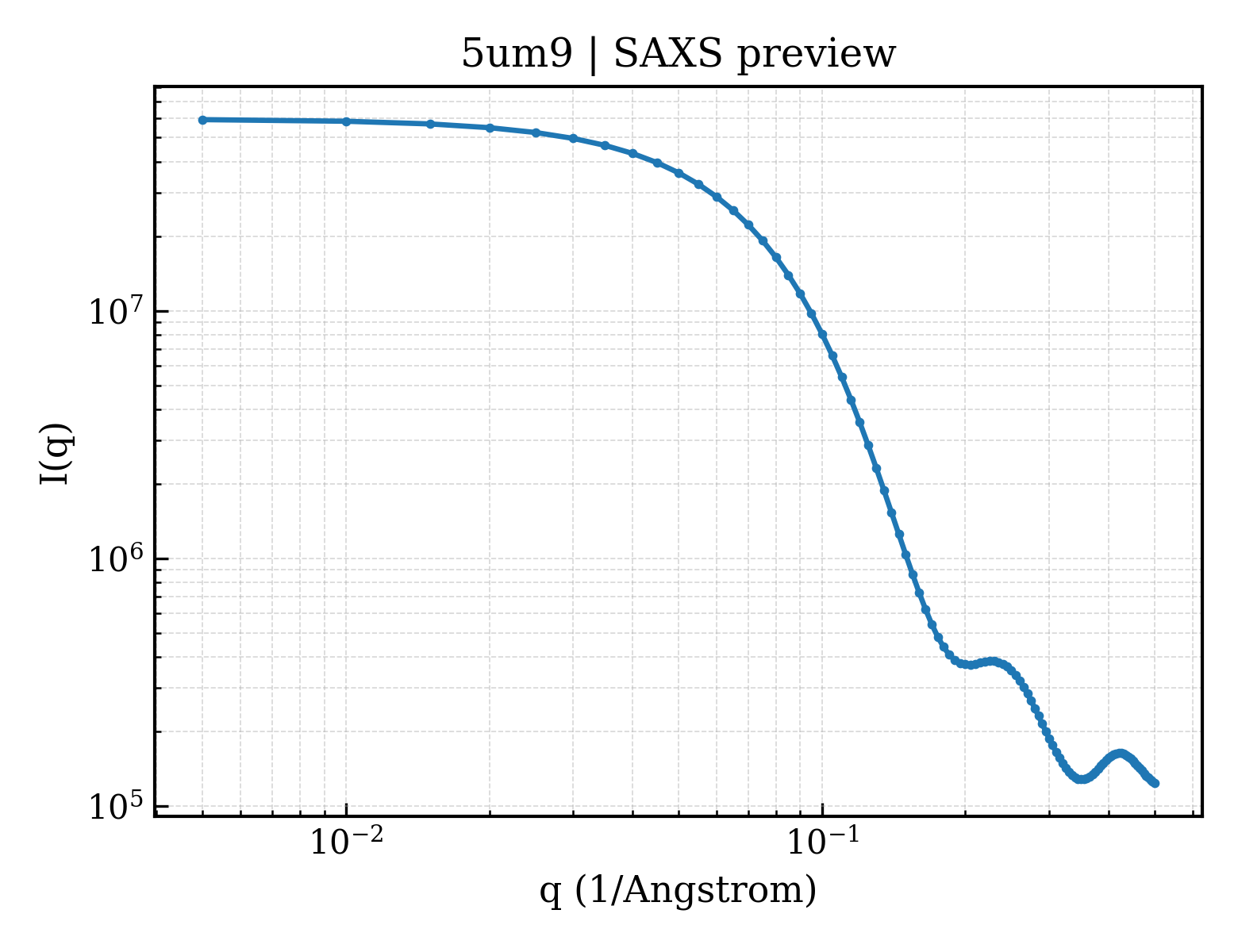

SAXS scattering curve SAXS Profile
