1. Protein Identity and Related Structures Protein Identity & Related Structures

Na(+)/H(+) exchange regulatory cofactor NHE-RF3

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 374–460	Not recorded	Solute carrier family 15 member 2 × 1 （Q16348） GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；292.15 K；0.1 M Trisodium citrate pH 6.45 20% PEG 4000 20 %(v/v) isopropanol	Resolution 1.50 Å R-free 0.214

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6EZI	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2EEI Solution Structure of Second PDZ domain of PDZ Domain Containing Protein 1 Deposited 2007-02-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 132–224（93 aa） Fragment：pdz domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition 3.36mM PDZ domain U-13C,15N; 20mM d-Tris-HCl(pH 7.0); 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 10% D20, 90% H2O \| 10% D20, 90% H2O	Resolution not provided
2EEJ Solution Structure of Fourth PDZ domain of PDZ Domain Containing Protein 1 Deposited 2007-02-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 376–458（83 aa） Fragment：PDZ domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；296 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition 2.65mM PDZ domain U-13C,15N; 20mM d-Tris-HCl(pH 7.0); 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 10% D20, 90% H2O \| 90% H2O/10% D2O	Resolution not provided
2VSP Crystal structure of the fourth PDZ domain of PDZ domain-containing protein 1 Deposited 2008-04-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 375–459（85 aa） Fragment：FOURTH PDZ DOMAIN, RESIDUES 375-459	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 50% PEG 300; 0.20M NACL; 0.1M NA/K-PO4 PH 6.2	Resolution 2.41 Å R-free 0.267
2VSP Crystal structure of the fourth PDZ domain of PDZ domain-containing protein 1 Deposited 2008-04-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 375–459（85 aa） Fragment：FOURTH PDZ DOMAIN, RESIDUES 375-459	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 50% PEG 300; 0.20M NACL; 0.1M NA/K-PO4 PH 6.2	Resolution 2.41 Å R-free 0.267
2VSP Crystal structure of the fourth PDZ domain of PDZ domain-containing protein 1 Deposited 2008-04-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 375–459（85 aa） Fragment：FOURTH PDZ DOMAIN, RESIDUES 375-459	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 50% PEG 300; 0.20M NACL; 0.1M NA/K-PO4 PH 6.2	Resolution 2.41 Å R-free 0.267
2VSP Crystal structure of the fourth PDZ domain of PDZ domain-containing protein 1 Deposited 2008-04-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 375–459（85 aa） Fragment：FOURTH PDZ DOMAIN, RESIDUES 375-459	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 50% PEG 300; 0.20M NACL; 0.1M NA/K-PO4 PH 6.2	Resolution 2.41 Å R-free 0.267
3TMH Crystal structure of dual-specific A-kinase anchoring protein 2 in complex with cAMP-dependent protein kinase A type II alpha and PDZK1 Deposited 2011-08-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric	Chain A 375–459（85 aa） Fragment：UNP RESIDUES 375-459 Chain E 375–459（85 aa） Fragment：UNP RESIDUES 375-459 Chain I 375–459（85 aa） Fragment：UNP RESIDUES 375-459	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；pH 7；293 K；100 mM HEPES, pH 7, 20% PEG MME, Microbatch, temperature 293K	Resolution 3.80 Å R-free 0.328
4Q2P NHERF3 PDZ2 in Complex with a Phage-Derived Peptide Deposited 2014-04-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 132–215（84 aa） Fragment：unp residues 132-215 Chain B 132–215（84 aa） Fragment：unp residues 132-215 Chain C 132–215（84 aa） Fragment：unp residues 132-215	Not recorded	TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 4.6；292 K；30% PEG 4000, 0.1 M sodium acetate (pH 4.6), 0.1 M magnesium chloride, VAPOR DIFFUSION, temperature 292K	Resolution 2.05 Å R-free 0.252
9RXN Structure of the PDZ1 domain from human PDZK1 (NHERF3) with the C-terminal residues (KSTQF) of human URAT1 transporter (SLC22A12) Deposited 2025-07-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 6–106（101 aa）	Not recorded	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.4；293 K；50 mM Bicine pH 8.4, 12% PEG 600, 3.5% PEG 2000 MME	Resolution 1.36 Å R-free 0.161
9RXN Structure of the PDZ1 domain from human PDZK1 (NHERF3) with the C-terminal residues (KSTQF) of human URAT1 transporter (SLC22A12) Deposited 2025-07-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 6–106（101 aa）	Not recorded	NA SODIUM ION × 1 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.4；293 K；50 mM Bicine pH 8.4, 12% PEG 600, 3.5% PEG 2000 MME	Resolution 1.36 Å R-free 0.161
9RXO Structure of the PDZ2 domain from human PDZK1 (NHERF3) with the C-terminal residues (KSTQF) of human URAT1 transporter (SLC22A12) Deposited 2025-07-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 131–215（85 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；26% PEG 1500	Resolution 1.20 Å R-free 0.203
9RXO Structure of the PDZ2 domain from human PDZK1 (NHERF3) with the C-terminal residues (KSTQF) of human URAT1 transporter (SLC22A12) Deposited 2025-07-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 131–215（85 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；26% PEG 1500	Resolution 1.20 Å R-free 0.203
9RXP Structure of the PDZ4 domain from human PDZK1 (NHERF3) with the C-terminal residues (KSTQF) of human URAT1 transporter (SLC22A12) Deposited 2025-07-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 375–458（84 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1% 2-methyl-2,4-pentanediol, 2.5 M ammonium sulfate	Resolution 1.43 Å R-free 0.231
9RXP Structure of the PDZ4 domain from human PDZK1 (NHERF3) with the C-terminal residues (KSTQF) of human URAT1 transporter (SLC22A12) Deposited 2025-07-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 375–458（84 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1% 2-methyl-2,4-pentanediol, 2.5 M ammonium sulfate	Resolution 1.43 Å R-free 0.231
9RXR Structure of the PDZ1 domain from human PDZK1 (NHERF3) with the C-terminal residues (VLKSTQF) of human URAT1 transporter (SLC22A12) Deposited 2025-07-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 6–106（101 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；100 mM MES, pH 6.5, 700 mM NaCl, 18% PEG 4000	Resolution 1.69 Å R-free 0.210
9RXS Structure of the PDZ4 domain from human PDZK1 (NHERF3) with the C-terminal residues (VLKSTQF) of human URAT1 transporter (SLC22A12) Deposited 2025-07-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 375–458（84 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；100 mM Tris pH 8.5, 100mM NaCl, 18% PEG 10000, 20% Glycerol	Resolution 2.00 Å R-free 0.242
9RXS Structure of the PDZ4 domain from human PDZK1 (NHERF3) with the C-terminal residues (VLKSTQF) of human URAT1 transporter (SLC22A12) Deposited 2025-07-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 375–458（84 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；100 mM Tris pH 8.5, 100mM NaCl, 18% PEG 10000, 20% Glycerol	Resolution 2.00 Å R-free 0.242

10 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NHRF3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–89； UniProt 374–460

Solute carrier family 15 member 2

OrganismNot specified

UniProt Q16348

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 720–729	Not recorded	Na(+)/H(+) exchange regulatory cofactor NHE-RF3 × 1 （Q5T2W1） GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；292.15 K；0.1 M Trisodium citrate pH 6.45 20% PEG 4000 20 %(v/v) isopropanol	Resolution 1.50 Å R-free 0.214

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6EZI	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7PMY HsPepT2 bound to Ala-Phe in the inward facing partially occluded conformation Deposited 2021-09-04	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–729（729 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen PROPANE	Resolution 3.80 Å
9UDC Cryo-EM Structure of SLC15A2 with NAD+ (Pose 1) Deposited 2025-04-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–729（729 aa）	Not recorded	NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.38 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	S15A2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–10； UniProt 720–729

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6ezi
Deposition date deposition_date	2017-11-15
Structure title title	PDZK1 domain 4 in complex with C-terminal peptide of human PepT2.
Keywords keywords	PDZK1 Human peptide transporter Na(+)-H(+) exchange regulatory cofactor NHE-RF3 Protein complex binding, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	13.44 Å
Radius of gyration Rg (electron density) rg_electron	12.07 Å
Forward intensity I(0) i0	2031030.00
Molecular weight molecular_weight	9920.0 kDa
Excluded volume excluded_volume	12559 Å³
Envelope volume envelope_volume	13859 Å³
Hydration-shell volume shell_volume	9861 Å³
Envelope diameter envelope_diameter	43.6 Å
Shell Rg shell_rg	17.67 Å
Envelope Rg envelope_rg	12.48 Å
Shape Rg shape_rg	12.04 Å
Total Rg total_rg	13.57 Å
Total atoms total_atoms	696
Residues n_residues	94
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	44.5 Å
Rg (real space) rg_real	13.34 Å
Rg uncertainty (real space) rg_real_error	0.25 Å
I(0) (real space) i0_real	2.0310e+06
I(0) uncertainty (real space) i0_real_error	2.1850e+04
Rg (reciprocal space) rg_reciprocal	13.35 Å
I(0) (reciprocal space) i0_reciprocal	2031000.0000
Solution quality estimate total_estimate	0.7866
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	18.0 Å
Skewness Skewness skewness	0.074
Kurtosis Kurtosis kurtosis	-0.278
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	444700.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.742; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Na(+)/H(+) exchange regulatory cofactor NHE-RF3
Molecular weight formula_weight	9653.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	917

SMHKPKLCRLAKGENGYGFHLNAIRGLPGSFIKEVQKGGPADLAGLEDEDVIIEVNGVNVLDEPYEKVVDRIQSSGKNVTLLVCGKKAY

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Solute carrier family 15 member 2
Molecular weight formula_weight	1205.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

IKLETKKTKL

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	124

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	6eziA00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	42 — Pdz3 Domain
Homologous superfamily homologous superfamily	10 — PDZ domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	54.400 Å
Unit-cell length b length_b	54.400 Å
Unit-cell length c length_c	150.760 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 65 2 2
Space-group number int_tables_number	179
Crystal system crystal_system	—

Resolution resolution	1.503 Å
Low-resolution limit resolution_low	47.112 Å
R factor r_factor	0.1948
R_work r_work	0.1938
R_free r_free	0.2142

fit	/app/data/saxs_computation/ez/6ezi/6ezi.fit
pddf	/app/data/pr_computation/ez/6ezi/6ezi.pr.out
profile	/app/data/saxs_computation/ez/6ezi/6ezi.dat

PDZK1 domain 4 in complex with C-terminal peptide of human PepT2.

1. Protein Identity and Related Structures Protein Identity & Related Structures

Na(+)/H(+) exchange regulatory cofactor NHE-RF3

State in the Current Structure

Other States of the Same Protein in the Database

Solute carrier family 15 member 2

State in the Current Structure

Other States of the Same Protein in the Database

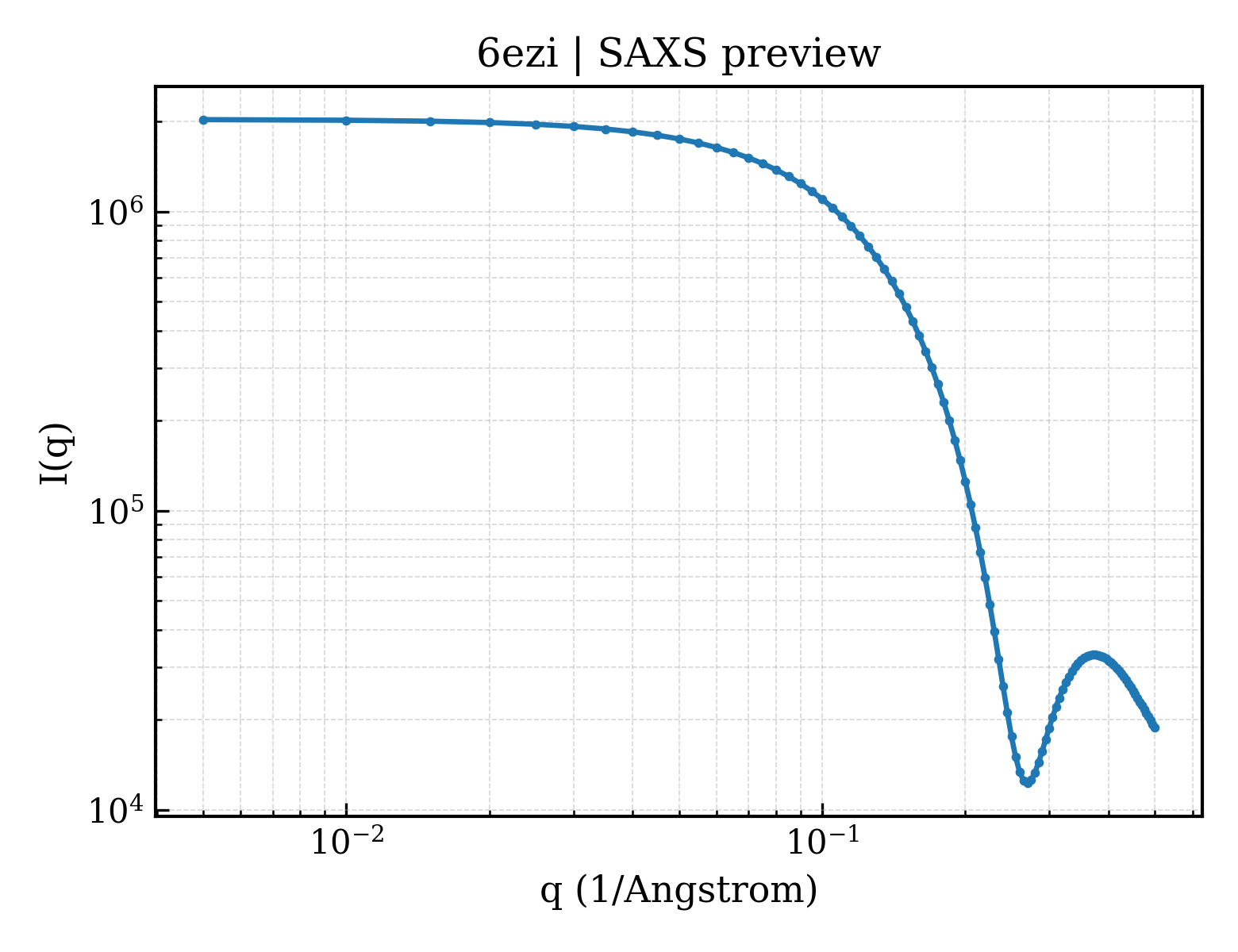

SAXS scattering curve SAXS Profile
