1. Protein Identity and Related Structures Protein Identity & Related Structures

Na(+)/H(+) exchange regulatory cofactor NHE-RF3

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 20	cAMP-dependent protein kinase type II-alpha regulatory subunit × 8 （P12368） A-kinase anchor protein 10, mitochondrial × 6 （O43572） water × 10	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NHRF3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–87； UniProt 375–459 Author chain E； PDBConstruct 3–87； UniProt 375–459 Author chain I； PDBConstruct 3–87； UniProt 375–459

cAMP-dependent protein kinase type II-alpha regulatory subunit

Rattus norvegicus

UniProt P12368

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 20	Na(+)/H(+) exchange regulatory cofactor NHE-RF3 × 6 （Q5T2W1） A-kinase anchor protein 10, mitochondrial × 6 （O43572） water × 10	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KAP2_RAT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 4–48； UniProt 1–45 Author chain C； PDBConstruct 4–48； UniProt 1–45 Author chain F； PDBConstruct 4–48； UniProt 1–45 Author chain G； PDBConstruct 4–48； UniProt 1–45

A-kinase anchor protein 10, mitochondrial

Homo sapiens

UniProt O43572

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 20	Na(+)/H(+) exchange regulatory cofactor NHE-RF3 × 6 （Q5T2W1） cAMP-dependent protein kinase type II-alpha regulatory subunit × 8 （P12368） water × 10	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AKA10_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 6–45； UniProt 623–662 Author chain H； PDBConstruct 6–45； UniProt 623–662 Author chain L； PDBConstruct 6–45； UniProt 623–662

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3tmh
Deposition date deposition_date	2011-08-31
Structure title title	Crystal structure of dual-specific A-kinase anchoring protein 2 in complex with cAMP-dependent protein kinase A type II alpha and PDZK1
Keywords keywords	alpha helical bundle, PDZ fold, Anchoring protein, PKA, PDZ proteins, membrane, TRANSPORT PROTEIN-SIGNALING PROTEIN complex; TRANSPORT PROTEIN/SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3tmh__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

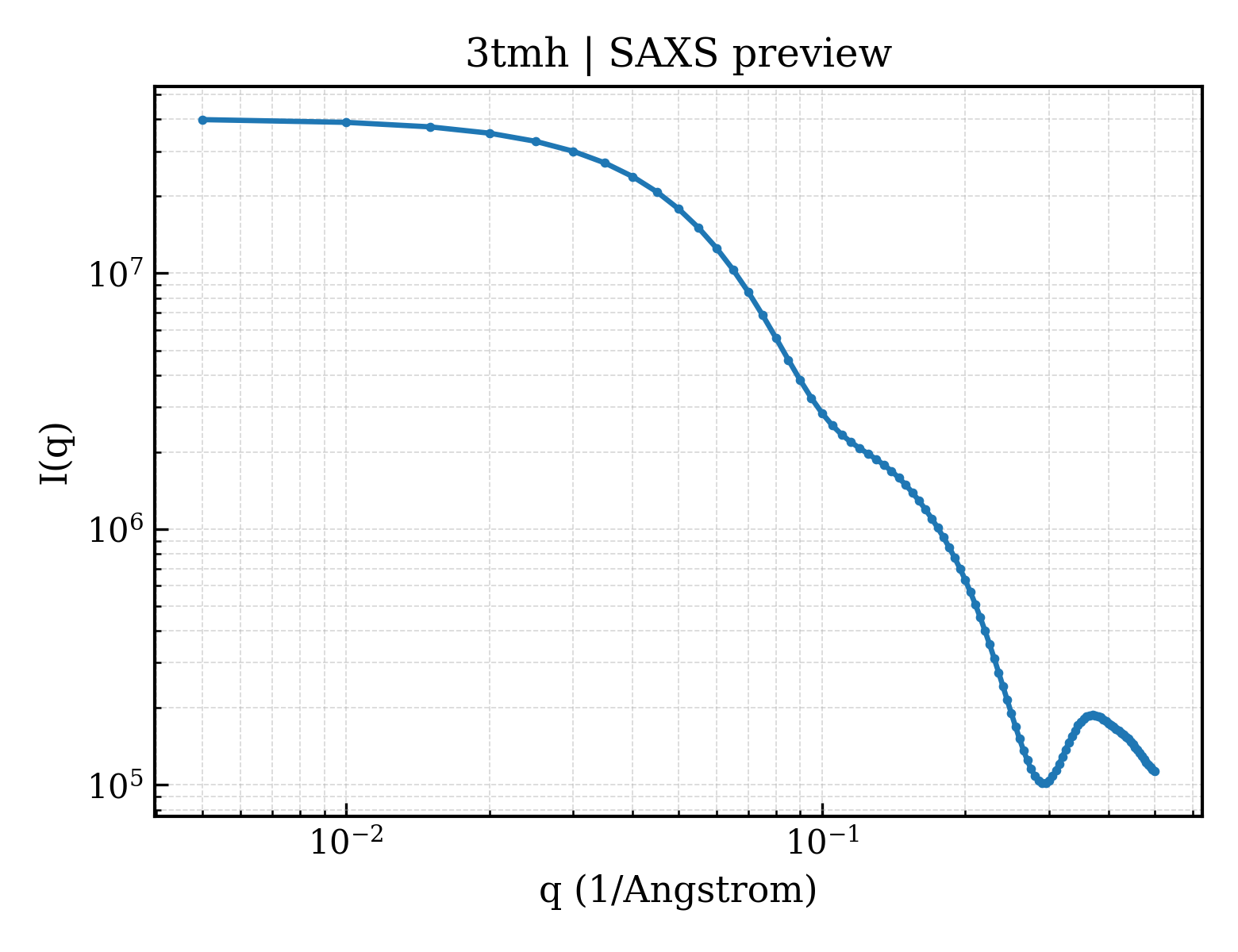

3tmh__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

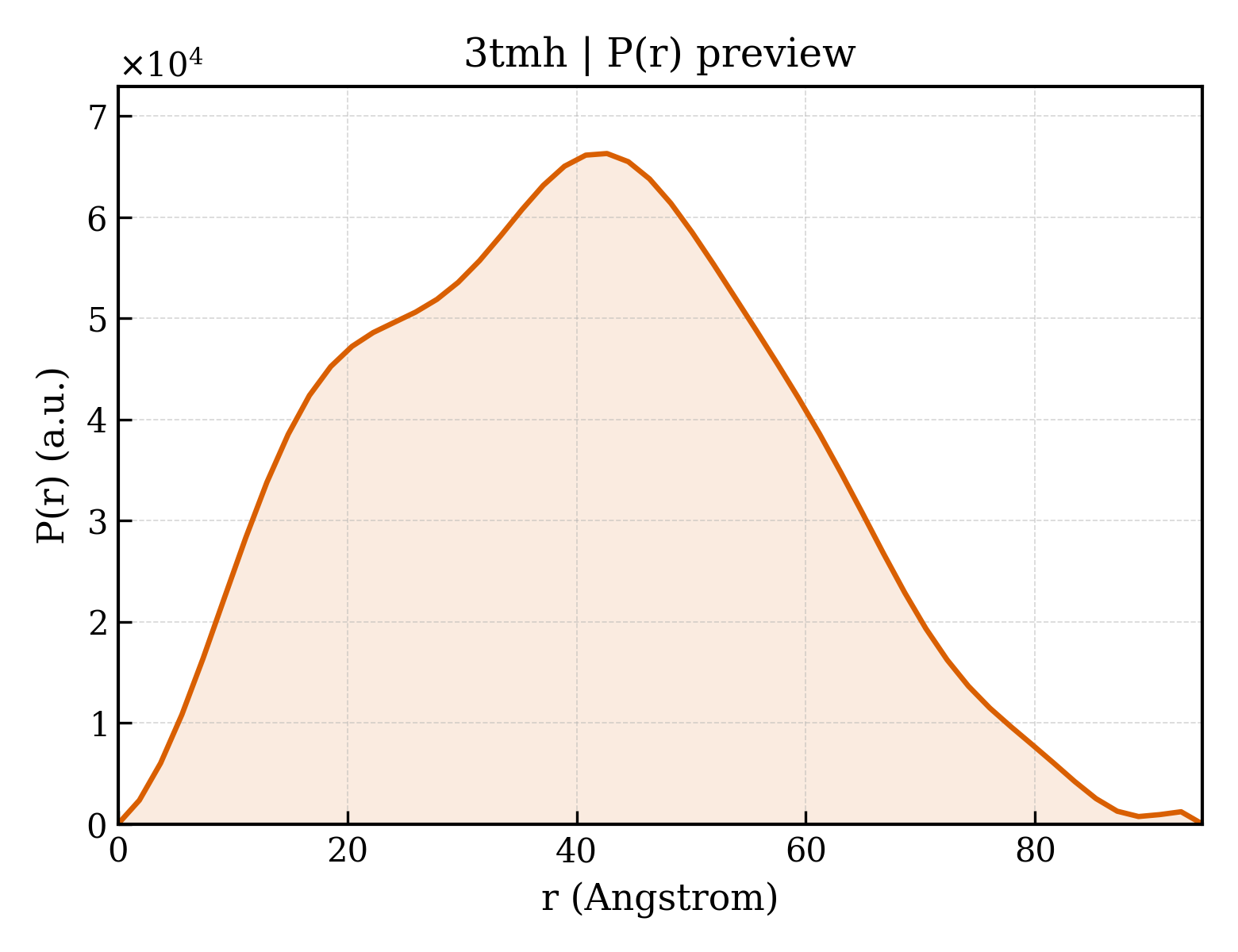

3tmh__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.51 Å
Rg (electron density)	32.67 Å
Total Rg	33.16 Å
Atom count	7090
Residues	942
Excluded volume	126810 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3tmh__assembly_1__model_1`	eicosameric （20）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Na(+)/H(+) exchange regulatory cofactor NHE-RF3
Molecular weight formula_weight	9277.6 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E,I
Atom count atom_count	3553

GSKPKLCRLAKGENGYGFHLNAIRGLPGSFIKEVQKGGPADLAGLEDEDVIIEVNGVNVLDEPYEKVVDRIQSSGKNVTLLVCGKKA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	cAMP-dependent protein kinase type II-alpha regulatory subunit
Molecular weight formula_weight	5542.3 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,C,F,G

GSHMGHIQIPPGLTELLQGYTVEVLRQQPPDLVDFAVEYFTRLREARR

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	brown rat,rat,rats
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	A-kinase anchor protein 10, mitochondrial
Molecular weight formula_weight	5086.7 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H,L

GSPEFVQGNTDEAQEELAWKIAKMIVSDVMQQAQYDQPLEKSTKL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	8

▼

6. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	3tmhA00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	42 — Pdz3 Domain
Homologous superfamily homologous superfamily	10 — PDZ domain

Domain ID domain_id	3tmhE00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	42 — Pdz3 Domain
Homologous superfamily homologous superfamily	10 — PDZ domain

Domain ID domain_id	3tmhI00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	42 — Pdz3 Domain
Homologous superfamily homologous superfamily	10 — PDZ domain

▶

Unit-cell length a length_a	121.472 Å
Unit-cell length b length_b	121.472 Å
Unit-cell length c length_c	88.282 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	3.800 Å
Low-resolution limit resolution_low	50.038 Å
R factor r_factor	0.2727
R_work r_work	0.2683
R_free r_free	0.3284

Crystal structure of dual-specific A-kinase anchoring protein 2 in complex with cAMP-dependent protein kinase A type II alpha and PDZK1
