SAXSdb — 2drn

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

cAMP-dependent protein kinase type II-alpha regulatory subunit

Rattus norvegicus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	24-residues peptide from an a-kinase anchoring protein × 1 （Q14572）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KAP2_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–46； UniProt 2–44 Author chain B； PDBConstruct 4–46； UniProt 2–44

24-residues peptide from an a-kinase anchoring protein

OrganismNot specified

UniProt Q14572

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	cAMP-dependent protein kinase type II-alpha regulatory subunit × 2 （P12368）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q14572_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–23； UniProt 493–515

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2drn
Deposition date deposition_date	2006-06-11
Structure title title	Docking and dimerization domain (D/D) of the Type II-alpha regulatory subunity of protein kinase A (PKA) in complex with a peptide from an A-kinase anchoring protein
Keywords keywords	AKAP, PKA, signal transduction, 4-helix bundle, helix-loop-helix, protein-peptide complex, TRANSFERASE; TRANSFERASE
Experimental Method method	SOLUTION NMR

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2drn__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

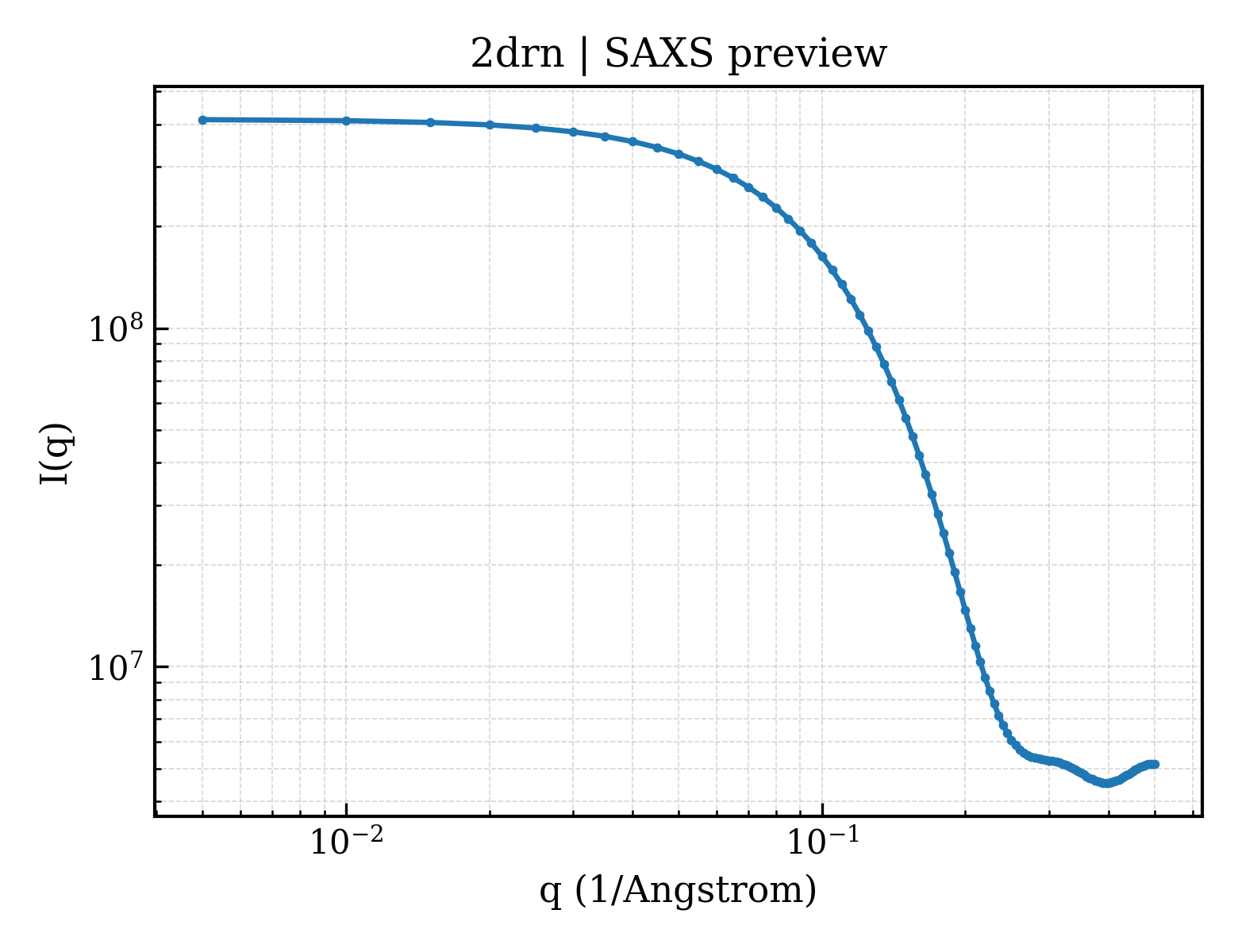

2drn__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

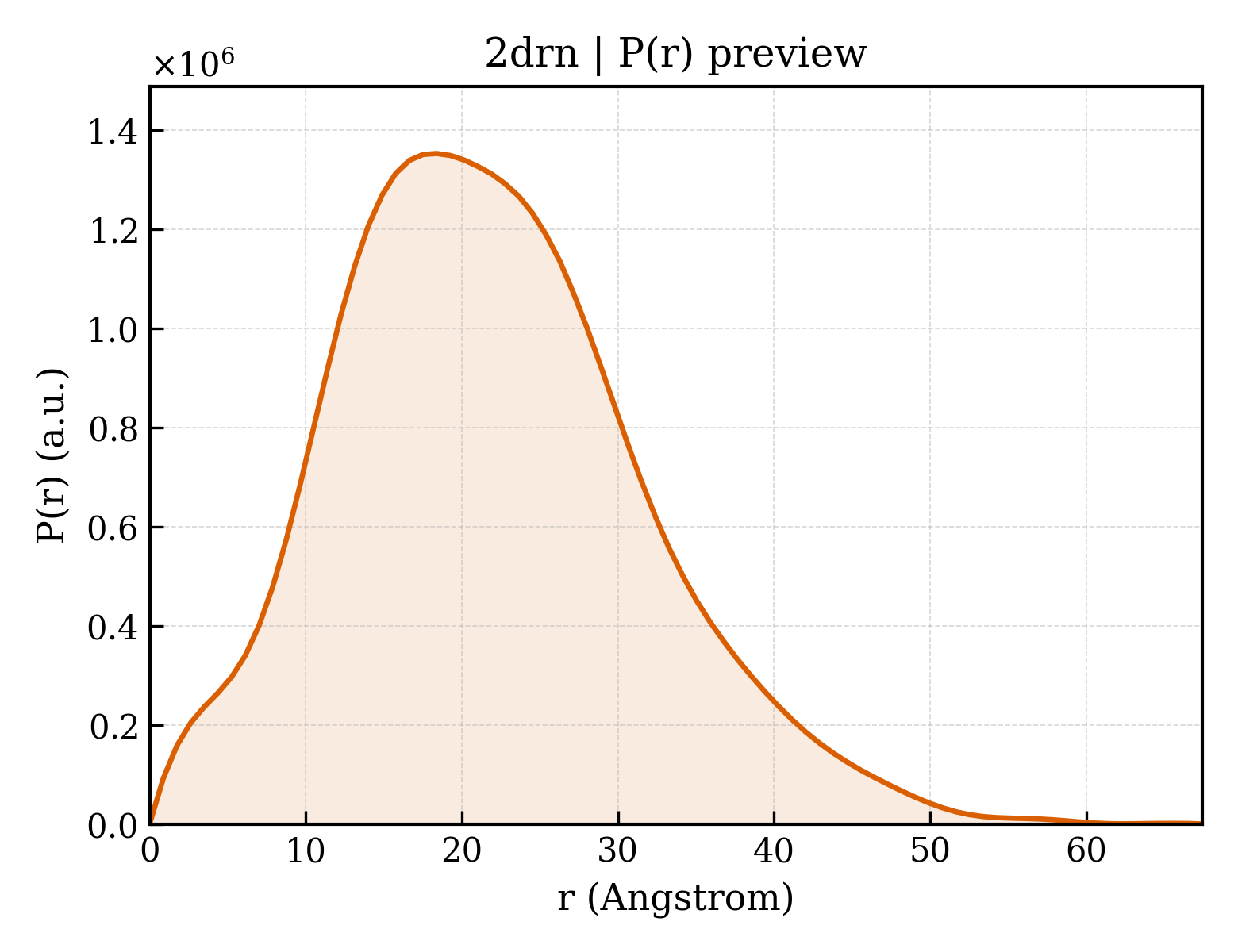

2drn__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.84 Å
Rg (electron density)	16.11 Å
Total Rg	17.42 Å
Atom count	1648
Residues	116
Excluded volume	16736 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2drn__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	2	`2drn__assembly_1__model_2`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	3	`2drn__assembly_1__model_3`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	4	`2drn__assembly_1__model_4`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	5	`2drn__assembly_1__model_5`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	6	`2drn__assembly_1__model_6`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	7	`2drn__assembly_1__model_7`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	8	`2drn__assembly_1__model_8`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	9	`2drn__assembly_1__model_9`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	10	`2drn__assembly_1__model_10`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	11	`2drn__assembly_1__model_11`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	12	`2drn__assembly_1__model_12`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	13	`2drn__assembly_1__model_13`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	cAMP-dependent protein kinase type II-alpha regulatory subunit
Molecular weight formula_weight	5398.2 kDa
EC 编号 ec_number	2.7.1.37
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	21424

HMGHIQIPPGLTELLQGYTVEVLRQQPPDLVDFAVEYFTRLREARR

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Norway rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	24-residues peptide from an a-kinase anchoring protein
Molecular weight formula_weight	2533.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

DLIEEAASRIVDAVIEQVKAAGAY

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2drna1
Class class	a — All alpha proteins
Fold Fold fold	a.31 — Dimerization-anchoring domain of cAMP-dependent PK regulatory subunit
Superfamily Superfamily superfamily	a.31.1 — Dimerization-anchoring domain of cAMP-dependent PK regulatory subunit
Family Family family	a.31.1.1 — Dimerization-anchoring domain of cAMP-dependent PK regulatory subunit

Domain ID domain_id	d2drna2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2drnb1
Class class	a — All alpha proteins
Fold Fold fold	a.31 — Dimerization-anchoring domain of cAMP-dependent PK regulatory subunit
Superfamily Superfamily superfamily	a.31.1 — Dimerization-anchoring domain of cAMP-dependent PK regulatory subunit
Family Family family	a.31.1.1 — Dimerization-anchoring domain of cAMP-dependent PK regulatory subunit

Domain ID domain_id	d2drnb2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	2drnA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	890 — cAMP-dependent Protein Kinase, Chain A
Homologous superfamily homologous superfamily	10 — cAMP-dependent protein kinase regulatory subunit, dimerization-anchoring domain

Domain ID domain_id	2drnB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	890 — cAMP-dependent Protein Kinase, Chain A
Homologous superfamily homologous superfamily	10 — cAMP-dependent protein kinase regulatory subunit, dimerization-anchoring domain

▶
