SAXSdb — 2h9r

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

cAMP-dependent protein kinase type II-alpha regulatory subunit

Rattus norvegicus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 2–44 Chain B； UniProt 2–44	Fragment：N-terminal docking and dimerization domain, residues 4-46	22-mer from A-kinase anchor protein 5 × 1 （P24588）	SOLUTION NMR NMR measurement conditions：pH 4；298 K；Pressure 1 NMR sample composition：2mM RII-alpha(1-44); 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2H9R	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2DRN Docking and dimerization domain (D/D) of the Type II-alpha regulatory subunity of protein kinase A (PKA) in complex with a peptide from an A-kinase anchoring protein Deposited 2006-06-11	Parsed fields agree	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 2–44（43 aa） Fragment：N-terminal docking and dimerization domain, residues 4-46 Chain B 2–44（43 aa） Fragment：N-terminal docking and dimerization domain, residues 4-46	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4；298 K；Pressure 1 NMR sample composition 2mM RII-alpha(1-44); 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
2HWN Crystal Structure of RII alpha Dimerization/Docking domain of PKA bound to the D-AKAP2 peptide Deposited 2006-08-01	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 0–44（45 aa） Fragment：Dimerization/docking domain, residues 0-44 Chain B 0–44（45 aa） Fragment：Dimerization/docking domain, residues 0-44	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；100mM HEPES, 20% PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.60 Å R-free 0.239
2HWN Crystal Structure of RII alpha Dimerization/Docking domain of PKA bound to the D-AKAP2 peptide Deposited 2006-08-01	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 0–44（45 aa） Fragment：Dimerization/docking domain, residues 0-44 Chain D 0–44（45 aa） Fragment：Dimerization/docking domain, residues 0-44	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；100mM HEPES, 20% PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.60 Å R-free 0.239
2HWN Crystal Structure of RII alpha Dimerization/Docking domain of PKA bound to the D-AKAP2 peptide Deposited 2006-08-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 0–44（45 aa） Fragment：Dimerization/docking domain, residues 0-44 Chain B 0–44（45 aa） Fragment：Dimerization/docking domain, residues 0-44 Chain C 0–44（45 aa） Fragment：Dimerization/docking domain, residues 0-44 Chain D 0–44（45 aa） Fragment：Dimerization/docking domain, residues 0-44	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；100mM HEPES, 20% PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.60 Å R-free 0.239
2IZY Molecular Basis of AKAP Specificity for PKA Regulatory Subunits Deposited 2006-07-27	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 2–44（43 aa） Fragment：RESIDUES 2-44 Chain B 2–44（43 aa） Fragment：RESIDUES 2-44 Chain C 2–44（43 aa） Fragment：RESIDUES 2-44 Chain D 2–44（43 aa） Fragment：RESIDUES 2-44 Chain E 2–44（43 aa） Fragment：RESIDUES 2-44 Chain F 2–44（43 aa） Fragment：RESIDUES 2-44 Chain G 2–44（43 aa） Fragment：RESIDUES 2-44 Chain H 2–44（43 aa） Fragment：RESIDUES 2-44	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.8；8-10% PEG400, 0.2-0.4 M SODIUM PHOSPHATE AND SODIUM CITRATE (PH 5.8)	Resolution 2.20 Å R-free 0.272
3TMH Crystal structure of dual-specific A-kinase anchoring protein 2 in complex with cAMP-dependent protein kinase A type II alpha and PDZK1 Deposited 2011-08-31	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric	Chain B 1–45（45 aa） Fragment：Dimerization/docking domain (D/D), UNP RESIDUES 3-44 Chain C 1–45（45 aa） Fragment：Dimerization/docking domain (D/D), UNP RESIDUES 3-44 Chain F 1–45（45 aa） Fragment：Dimerization/docking domain (D/D), UNP RESIDUES 3-44 Chain G 1–45（45 aa） Fragment：Dimerization/docking domain (D/D), UNP RESIDUES 3-44	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；pH 7；293 K；100 mM HEPES, pH 7, 20% PEG MME, Microbatch, temperature 293K	Resolution 3.80 Å R-free 0.328

4 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	KAP2_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–46； UniProt 2–44 Author chain B； PDBConstruct 4–46； UniProt 2–44

22-mer from A-kinase anchor protein 5

OrganismNot specified

UniProt P24588

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 391–412	Fragment：PKA-RII subunit binding domain	cAMP-dependent protein kinase type II-alpha regulatory subunit × 2 （P12368）	SOLUTION NMR NMR measurement conditions：pH 4；298 K；Pressure 1 NMR sample composition：2mM RII-alpha(1-44); 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2H9R	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3LL8 Crystal Structure of Calcineurin in Complex with AKAP79 Peptide Deposited 2010-01-28	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 336–346（11 aa） Fragment：UNP residues 336-346	Not recorded	PO4 PHOSPHATE ION × 1 ZN ZINC ION × 1 FE FE (III) ION × 1 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG 20,000 MgSO4 CaCl2, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.228
3LL8 Crystal Structure of Calcineurin in Complex with AKAP79 Peptide Deposited 2010-01-28	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 336–346（11 aa） Fragment：UNP residues 336-346	Not recorded	PO4 PHOSPHATE ION × 2 ZN ZINC ION × 2 FE FE (III) ION × 2 CA CALCIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG 20,000 MgSO4 CaCl2, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.228
5NIN Crystal Structure of AKAP79 calmodulin binding domain peptide in complex with Ca2+/Calmodulin Deposited 2017-03-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 77–92（16 aa） Fragment：UNP residues 77-92	Not recorded	CA CALCIUM ION × 2 SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；287 K；2.4 M ammonium sulphate, 50 mM citrate pH 5.4, 0.3 M NDSB-195	Resolution 1.70 Å R-free 0.194
5NIN Crystal Structure of AKAP79 calmodulin binding domain peptide in complex with Ca2+/Calmodulin Deposited 2017-03-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 77–92（16 aa） Fragment：UNP residues 77-92	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；287 K；2.4 M ammonium sulphate, 50 mM citrate pH 5.4, 0.3 M NDSB-195	Resolution 1.70 Å R-free 0.194

2 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AKAP5_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–22； UniProt 391–412

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2h9r
Deposition date deposition_date	2006-06-10
Structure title title	Docking and dimerization domain (D/D) of the regulatory subunit of the Type II-alpha cAMP-dependent protein kinase A associated with a Peptide derived from an A-kinase anchoring protein (AKAP)
Keywords keywords	AKAP, PKA, signal transduction, 4-helix bundle, helix-loop-helix, protein-peptide complex, TRANSFERASE; TRANSFERASE
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.75 Å
Radius of gyration Rg (electron density) rg_electron	15.70 Å
Forward intensity I(0) i0	234567000.00
Molecular weight molecular_weight	131620.0 kDa
Excluded volume excluded_volume	166610 Å³
Envelope volume envelope_volume	42132 Å³
Hydration-shell volume shell_volume	18652 Å³
Envelope diameter envelope_diameter	70.4 Å
Shell Rg shell_rg	25.26 Å
Envelope Rg envelope_rg	19.98 Å
Shape Rg shape_rg	15.62 Å
Total Rg total_rg	16.37 Å
Total atoms total_atoms	16190
Residues n_residues	1140
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

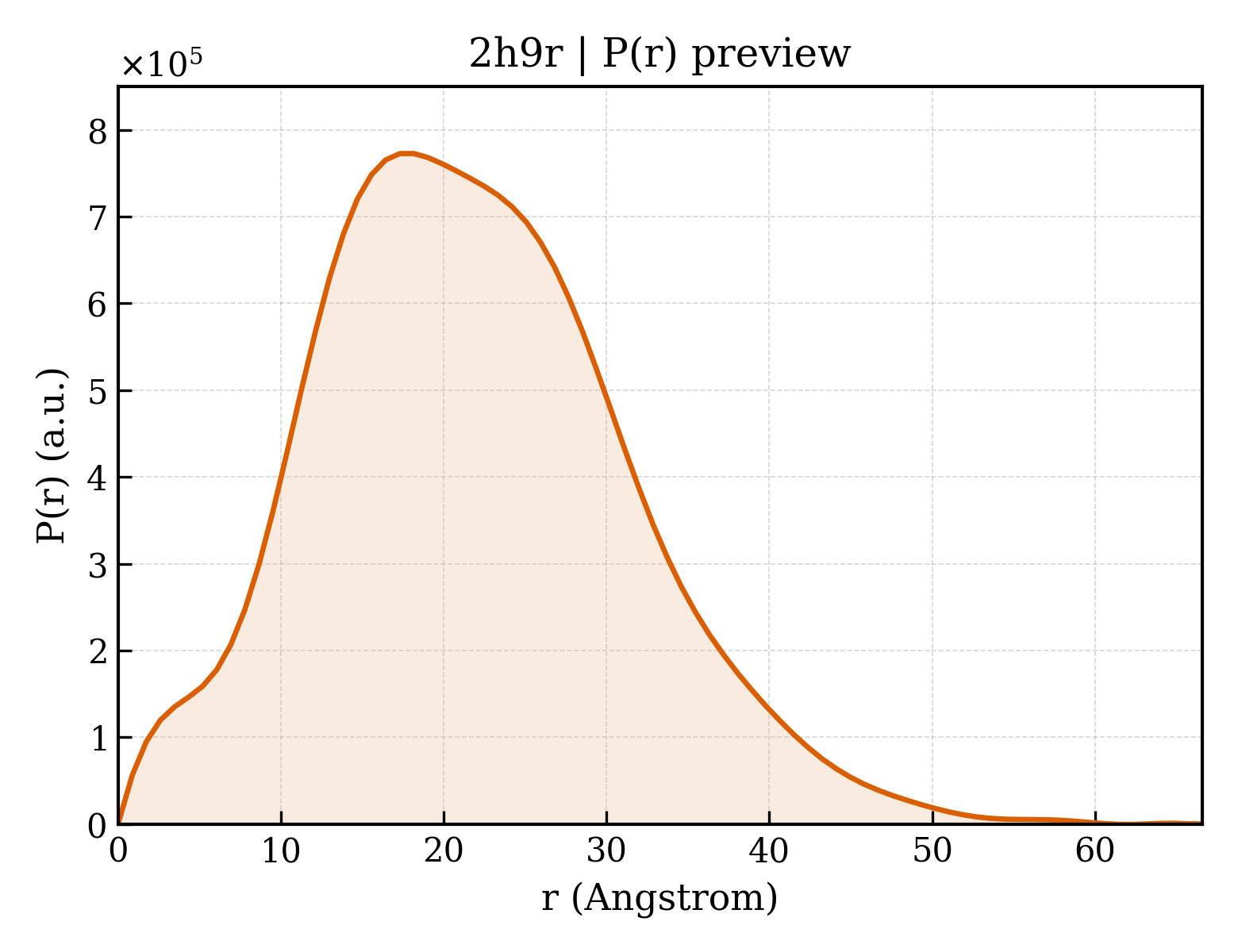

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	66.6 Å
Rg (real space) rg_real	16.75 Å
Rg uncertainty (real space) rg_real_error	0.63 Å
I(0) (real space) i0_real	2.3460e+08
I(0) uncertainty (real space) i0_real_error	3.2790e+06
Rg (reciprocal space) rg_reciprocal	16.75 Å
I(0) (reciprocal space) i0_reciprocal	234600000.0000
Solution quality estimate total_estimate	0.6749
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	18.2 Å
Skewness Skewness skewness	0.388
Kurtosis Kurtosis kurtosis	0.081
Angular range angular_range	— – 0.4750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	489200.0000
Real-space data points n_real_points	78
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.334; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.767; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	cAMP-dependent protein kinase type II-alpha regulatory subunit
Molecular weight formula_weight	5398.2 kDa
EC 编号 ec_number	2.7.1.37
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	16190

HMGHIQIPPGLTELLQGYTVEVLRQQPPDLVDFAVEYFTRLREARR

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Norway rat
NCBI Class编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	22-mer from A-kinase anchor protein 5
Molecular weight formula_weight	2383.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

LLIETASSLVKNAIQLSIEQLV

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2h9ra1
Class class	a — All alpha proteins
Fold Fold fold	a.31 — Dimerization-anchoring domain of cAMP-dependent PK regulatory subunit
Superfamily Superfamily superfamily	a.31.1 — Dimerization-anchoring domain of cAMP-dependent PK regulatory subunit
Family Family family	a.31.1.1 — Dimerization-anchoring domain of cAMP-dependent PK regulatory subunit

Domain ID domain_id	d2h9ra2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2h9rb1
Class class	a — All alpha proteins
Fold Fold fold	a.31 — Dimerization-anchoring domain of cAMP-dependent PK regulatory subunit
Superfamily Superfamily superfamily	a.31.1 — Dimerization-anchoring domain of cAMP-dependent PK regulatory subunit
Family Family family	a.31.1.1 — Dimerization-anchoring domain of cAMP-dependent PK regulatory subunit

Domain ID domain_id	d2h9rb2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	2h9rA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	890 — cAMP-dependent Protein Kinase, Chain A
Homologous superfamily homologous superfamily	10 — cAMP-dependent protein kinase regulatory subunit, dimerization-anchoring domain

Domain ID domain_id	2h9rB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	890 — cAMP-dependent Protein Kinase, Chain A
Homologous superfamily homologous superfamily	10 — cAMP-dependent protein kinase regulatory subunit, dimerization-anchoring domain

▶

8. Citations (1)

▶

fit	/app/data/saxs_computation/h9/2h9r/2h9r.fit
pddf	/app/data/pr_computation/h9/2h9r/2h9r.pr.out
profile	/app/data/saxs_computation/h9/2h9r/2h9r.dat

Docking and dimerization domain (D/D) of the regulatory subunit of the Type II-alpha cAMP-dependent protein kinase A associated with a Peptide derived from an A-kinase anchoring protein (AKAP)
