SAXSdb — 6uqg

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Potassium/sodium hyperpolarization-activated cyclic nucleotide-gated channel 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–635 Chain A； UniProt 866–890 Chain B； UniProt 1–635 Chain B； UniProt 866–890 Chain C； UniProt 1–635 Chain C； UniProt 866–890 Chain D； UniProt 1–635 Chain D； UniProt 866–890	Mutation：Y289D	CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.54 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6UQG	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5U6O Structure of the human HCN1 hyperpolarization-activated cyclic nucleotide-gated ion channel Deposited 2016-12-08	Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–635（635 aa） Fragment：UNP residues 1-635,866-890 Chain A 866–890（25 aa） Fragment：UNP residues 1-635,866-890 Chain B 1–635（635 aa） Fragment：UNP residues 1-635,866-890 Chain B 866–890（25 aa） Fragment：UNP residues 1-635,866-890 Chain C 1–635（635 aa） Fragment：UNP residues 1-635,866-890 Chain C 866–890（25 aa） Fragment：UNP residues 1-635,866-890 Chain D 1–635（635 aa） Fragment：UNP residues 1-635,866-890 Chain D 866–890（25 aa） Fragment：UNP residues 1-635,866-890	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
5U6P Structure of the human HCN1 hyperpolarization-activated cyclic nucleotide-gated ion channel in complex with cAMP Deposited 2016-12-08	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–635（635 aa） Fragment：UNP residues 1-635,866-890 Chain A 866–890（25 aa） Fragment：UNP residues 1-635,866-890 Chain B 1–635（635 aa） Fragment：UNP residues 1-635,866-890 Chain B 866–890（25 aa） Fragment：UNP residues 1-635,866-890 Chain C 1–635（635 aa） Fragment：UNP residues 1-635,866-890 Chain C 866–890（25 aa） Fragment：UNP residues 1-635,866-890 Chain D 1–635（635 aa） Fragment：UNP residues 1-635,866-890 Chain D 866–890（25 aa） Fragment：UNP residues 1-635,866-890	Not recorded	CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.51 Å
6UQF Human HCN1 channel in a hyperpolarized conformation Deposited 2019-10-19	Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–635（635 aa） Chain A 866–890（25 aa） Chain B 1–635（635 aa） Chain B 866–890（25 aa） Chain C 1–635（635 aa） Chain C 866–890（25 aa） Chain D 1–635（635 aa） Chain D 866–890（25 aa）	Mutation：F186C, S264C Mutation：F186C, S264C Mutation：F186C, S264C Mutation：F186C, S264C Mutation：F186C, S264C Mutation：F186C, S264C Mutation：F186C, S264C Mutation：F186C, S264C	CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 4 HG MERCURY (II) ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.04 Å
8T4M Closed human HCN1 F186C S264C bound to cAMP, reconstituted in LMNG + SPL Deposited 2023-06-09	Different construct Different mutation/modification Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–890（890 aa） Chain B 1–890（890 aa） Chain C 1–890（890 aa） Chain D 1–890（890 aa）	Mutation：F186C S264C Mutation：F186C S264C Mutation：F186C S264C Mutation：F186C S264C	CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.16 Å
8T4Y Human HCN1 F186C S264C C309A bound to cAMP, reconstituted in LMNG + SPL Deposited 2023-06-12	Different construct Different mutation/modification Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–890（890 aa） Chain B 1–890（890 aa） Chain C 1–890（890 aa） Chain D 1–890（890 aa）	Mutation：F186C, S264C, C309A Mutation：F186C, S264C, C309A Mutation：F186C, S264C, C309A Mutation：F186C, S264C, C309A	CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.58 Å
8T50 Open human HCN1 F186C S264C bound to cAMP, reconstituted in LMNG + SPL Deposited 2023-06-12	Different construct Different mutation/modification Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–890（890 aa） Chain B 1–890（890 aa） Chain C 1–890（890 aa） Chain D 1–890（890 aa）	Mutation：F186C, S264C Mutation：F186C, S264C Mutation：F186C, S264C Mutation：F186C, S264C	CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8UC7 HCN1 complex with propofol Deposited 2023-09-25	Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–635（635 aa） Fragment：UNP residues 1-635,866-890 Chain A 866–890（25 aa） Fragment：UNP residues 1-635,866-890 Chain B 1–635（635 aa） Fragment：UNP residues 1-635,866-890 Chain B 866–890（25 aa） Fragment：UNP residues 1-635,866-890 Chain C 1–635（635 aa） Fragment：UNP residues 1-635,866-890 Chain C 866–890（25 aa） Fragment：UNP residues 1-635,866-890 Chain D 1–635（635 aa） Fragment：UNP residues 1-635,866-890 Chain D 866–890（25 aa） Fragment：UNP residues 1-635,866-890	Not recorded	PFL 2,6-BIS(1-METHYLETHYL)PHENOL × 4 PCW 1,2-DIOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 12	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
8UC8 HCN1 nanodisc Deposited 2023-09-25	Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–635（635 aa） Fragment：UNP residues 1-635,866-890 Chain A 866–890（25 aa） Fragment：UNP residues 1-635,866-890 Chain B 1–635（635 aa） Fragment：UNP residues 1-635,866-890 Chain B 866–890（25 aa） Fragment：UNP residues 1-635,866-890 Chain C 1–635（635 aa） Fragment：UNP residues 1-635,866-890 Chain C 866–890（25 aa） Fragment：UNP residues 1-635,866-890 Chain D 1–635（635 aa） Fragment：UNP residues 1-635,866-890 Chain D 866–890（25 aa） Fragment：UNP residues 1-635,866-890	Not recorded	PCW 1,2-DIOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 16	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8Y60 Structural mechanism of human HCN1 hyperpolarization-activated channel inhibition by ivabradine Deposited 2024-02-01	Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–890（890 aa） Chain B 1–890（890 aa） Chain C 1–890（890 aa） Chain D 1–890（890 aa）	Not recorded	CLR CHOLESTEROL × 4 VNZ Ivabradine × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.23 Å
9BC6 HCN1 M305L with propofol Deposited 2024-04-07	Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–635（635 aa） Chain A 866–890（25 aa） Chain B 1–635（635 aa） Chain B 866–890（25 aa） Chain C 1–635（635 aa） Chain C 866–890（25 aa） Chain D 1–635（635 aa） Chain D 866–890（25 aa）	Mutation：M305L Mutation：M305L Mutation：M305L Mutation：M305L Mutation：M305L Mutation：M305L Mutation：M305L Mutation：M305L	PCW 1,2-DIOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 8 PFL 2,6-BIS(1-METHYLETHYL)PHENOL × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.50 Å
9BC7 HCN1 M305L holo Deposited 2024-04-08	Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–635（635 aa） Chain A 866–890（25 aa） Chain B 1–635（635 aa） Chain B 866–890（25 aa） Chain C 1–635（635 aa） Chain C 866–890（25 aa） Chain D 1–635（635 aa） Chain D 866–890（25 aa）	Mutation：M305L Mutation：M305L Mutation：M305L Mutation：M305L Mutation：M305L Mutation：M305L Mutation：M305L Mutation：M305L	PCW 1,2-DIOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 12 CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9PXN Human apo HCN1 nanodisc Deposited 2025-08-06	Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–635（634 aa） Chain B 2–635（634 aa） Chain C 2–635（634 aa） Chain D 2–635（634 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.50 Å
9R1T Structure of the human chimera HCN112 hyperpolarization-activated cyclic nucleotide-gated ion channel in complex with cAMP. Deposited 2025-04-28	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–401（401 aa） Chain B 1–401（401 aa） Chain C 1–401（401 aa） Chain D 1–401（401 aa）	Not recorded	CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.34 Å
9R1U Structure of the human HCN1dC hyperpolarization-activated cyclic nucleotide-gated ion channel. Deposited 2025-04-28	Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–401（401 aa） Chain B 1–401（401 aa） Chain C 1–401（401 aa） Chain D 1–401（401 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.92 Å
9R1V Structure of the human chimera HCN112 hyperpolarization-activated cyclic nucleotide-gated ion channel. Deposited 2025-04-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–401（401 aa） Chain B 1–401（401 aa） Chain C 1–401（401 aa） Chain D 1–401（401 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.53 Å
9Z6T Human HCN1 in complex with cAMP in nanodisc Deposited 2025-11-14	Different construct Different mutation/modification Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–635（634 aa） Chain B 2–635（634 aa） Chain C 2–635（634 aa） Chain D 2–635（634 aa）	Not recorded	CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å

16 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HCN1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–635； UniProt 1–635 Author chain A； PDBConstruct 636–660； UniProt 866–890 Author chain B； PDBConstruct 1–635； UniProt 1–635 Author chain B； PDBConstruct 636–660； UniProt 866–890 Author chain C； PDBConstruct 1–635； UniProt 1–635 Author chain C； PDBConstruct 636–660； UniProt 866–890 Author chain D； PDBConstruct 1–635； UniProt 1–635 Author chain D； PDBConstruct 636–660； UniProt 866–890

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6uqg
Deposition date deposition_date	2019-10-19
Structure title title	Human HCN1 channel Y289D mutant
Keywords keywords	Ion channel, membrane protein; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	42.70 Å
Radius of gyration Rg (electron density) rg_electron	42.38 Å
Forward intensity I(0) i0	710164000.00
Molecular weight molecular_weight	226450.0 kDa
Excluded volume excluded_volume	285940 Å³
Envelope volume envelope_volume	411420 Å³
Hydration-shell volume shell_volume	78740 Å³
Envelope diameter envelope_diameter	135.1 Å
Shell Rg shell_rg	49.73 Å
Envelope Rg envelope_rg	41.45 Å
Shape Rg shape_rg	42.40 Å
Total Rg total_rg	42.68 Å
Total atoms total_atoms	15976
Residues n_residues	2120
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

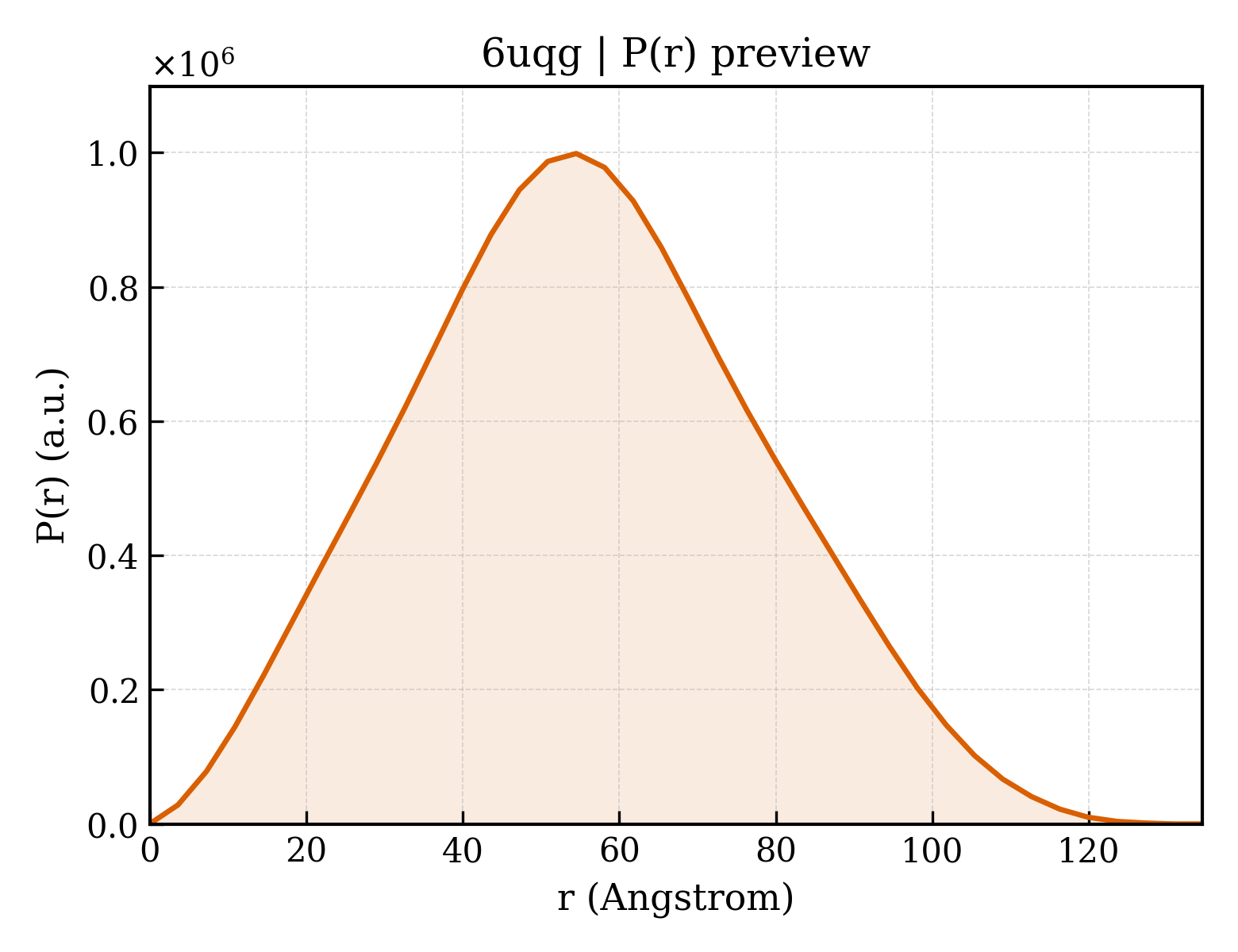

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	134.5 Å
Rg (real space) rg_real	42.48 Å
Rg uncertainty (real space) rg_real_error	0.93 Å
I(0) (real space) i0_real	7.1020e+08
I(0) uncertainty (real space) i0_real_error	1.3480e+07
Rg (reciprocal space) rg_reciprocal	42.70 Å
I(0) (reciprocal space) i0_reciprocal	710300000.0000
Solution quality estimate total_estimate	0.8840
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	54.5 Å
Skewness Skewness skewness	0.147
Kurtosis Kurtosis kurtosis	-0.421
Angular range angular_range	— – 0.1850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	55240000.0000
Real-space data points n_real_points	38
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.874; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.967; Smooth: 0.900

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Potassium/sodium hyperpolarization-activated cyclic nucleotide-gated channel 1
Molecular weight formula_weight	74595.6 kDa
Mutation mutation	Y289D
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	15976

MEGGGKPNSSSNSRDDGNSVFPAKASATGAGPAAAEKRLGTPPGGGGAGAKEHGNSVCFKVDGGGGGGGGGGGGEEPAGGFEDAEGPRRQYGFMQRQFTSMLQPGVNKFSLRMFGSQKAVEKEQERVKTAGFWIIHPYSDFRFYWDLIMLIMMVGNLVIIPVGITFFTEQTTTPWIIFNVASDTVFLLDLIMNFRTGTVNEDSSEIILDPKVIKMNYLKSWFVVDFISSIPVDYIFLIVEKGMDSEVYKTARALRIVRFTKILSLLRLLRLSRLIRYIHQWEEIFHMTDDLASAVVRIFNLIGMMLLLCHWDGCLQFLVPLLQDFPPDCWVSLNEMVNDSWGKQYSYALFKAMSHMLCIGYGAQAPVSMSDLWITMLSMIVGATCYAMFVGHATALIQSLDSSRRQYQEKYKQVEQYMSFHKLPADMRQKIHDYYEHRYQGKIFDEENILNELNDPLREEIVNFNCRKLVATMPLFANADPNFVTAMLSKLRFEVFQPGDYIIREGAVGKKMYFIQHGVAGVITKSSKEMKLTDGSYFGEICLLTKGRRTASVRADTYCRLYSLSVDNFNEVLEEYPMMRRAFETVAIDRLDRIGKKNSILLQKFQKDLNTGVFNNQENEILKQIVKHDREMVQAALPRESSSVLNTDPDAEKPRFASNL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 non-polymer

Description description	ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE
Molecular weight formula_weight	329.2 kDa
Source method src_method	syn
Copy count entity_count	4

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.54 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	43040

fit	/app/data/saxs_computation/uq/6uqg/6uqg.fit
pddf	/app/data/pr_computation/uq/6uqg/6uqg.pr.out
profile	/app/data/saxs_computation/uq/6uqg/6uqg.dat
