7kd5

Structure of the C-terminal domain of the Menangle virus phosphoprotein (residues 329 -388), fused to MBP. Space group P212121

Method: X-RAY DIFFRACTION D_max: 85.6 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Maltodextrin-binding protein and Phosphoprotein fusion protein

Menangle virus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Monomer Protein × 1 其他Polymer 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 3–372	Mutation：C352S	alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose × 1 EDO 1,2-ETHANEDIOL × 4 PIN PIPERAZINE-N,N'-BIS(2-ETHANESULFONIC ACID) × 3 PRO PROLINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.7；291.15 K；20%(w/v) PEG 5000 mono-methyl ether, 0.2 M Pipes/KOH pH 6.7, 0.1M Proline, Crystals were transferred into the following cryo-protective solution before vitrification: 20%(w/v) PEG 5000 mono-methyl ether, 0.2 M Pipes/KOH pH 6.7, 0.1M Proline, 5mM Maltose, 20%(v/v) Ethylene Glycol	Resolution 1.55 Å R-free 0.189

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7KD5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6XDJ Crystal Structure Analysis of MBP-SIN3 Deposited 2020-06-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 3–360（358 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M Bis-Tris, pH 6.0, 1.6M Ammonium sulfate	Resolution 2.20 Å R-free 0.240
6XDJ Crystal Structure Analysis of MBP-SIN3 Deposited 2020-06-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 3–360（358 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M Bis-Tris, pH 6.0, 1.6M Ammonium sulfate	Resolution 2.20 Å R-free 0.240
6XDJ Crystal Structure Analysis of MBP-SIN3 Deposited 2020-06-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain C 3–360（358 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M Bis-Tris, pH 6.0, 1.6M Ammonium sulfate	Resolution 2.20 Å R-free 0.240
6XDJ Crystal Structure Analysis of MBP-SIN3 Deposited 2020-06-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain D 3–360（358 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M Bis-Tris, pH 6.0, 1.6M Ammonium sulfate	Resolution 2.20 Å R-free 0.240
7FBB De novo design protein D12 with MBP tag Deposited 2021-07-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 6–372（367 aa）	Mutation：D84A, K85A, E174A, N175A, K241A, E361A, K364A, D365A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；25% PEG 3350, 0.1M Sodium Acetate	Resolution 2.31 Å R-free 0.264
7FBB De novo design protein D12 with MBP tag Deposited 2021-07-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 6–372（367 aa）	Mutation：D84A, K85A, E174A, N175A, K241A, E361A, K364A, D365A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；25% PEG 3350, 0.1M Sodium Acetate	Resolution 2.31 Å R-free 0.264
7FBC De novo design protein D22 with MBP tag Deposited 2021-07-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 3–371（369 aa）	Mutation：D84A,K85A,E174A,N175A,K241A,E361A,K364A,D365A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.24；289 K；50% v/v PEG 500 MME, 0.1M Sodium HEPES, pH 7.24	Resolution 1.85 Å R-free 0.215
7FBD De novo design protein D53 with MBP tag Deposited 2021-07-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 3–371（369 aa）	Mutation：D84A,K85A,E174A,N175A,K241A,E361A,K364A,D365A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2.2M Sodium malonate pH 7.0	Resolution 2.85 Å R-free 0.277
7FBD De novo design protein D53 with MBP tag Deposited 2021-07-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 3–371（369 aa）	Mutation：D84A,K85A,E174A,N175A,K241A,E361A,K364A,D365A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2.2M Sodium malonate pH 7.0	Resolution 2.85 Å R-free 0.277
7KD4 Structure of the C-terminal domain of the Menangle virus phosphoprotein (residues 329 -388), fused to MBP. Space group P21. Deposited 2020-10-08	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 3–372（370 aa）	Mutation：C352S	SO4 SULFATE ION × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291.15 K；1.65 M Ammonium sulphate, 0.2M Malic acid/KOH pH 5.5, Crystals were transferred into the following cryo-protective solution before vitrification: 1.65 M Ammonium sulphate, 0.2M Malic acid/KOH pH 5.5, 5mM Maltose, 1 M Lithium sulfate	Resolution 1.31 Å R-free 0.196
7KD4 Structure of the C-terminal domain of the Menangle virus phosphoprotein (residues 329 -388), fused to MBP. Space group P21. Deposited 2020-10-08	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 3–372（370 aa）	Mutation：C352S	SO4 SULFATE ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291.15 K；1.65 M Ammonium sulphate, 0.2M Malic acid/KOH pH 5.5, Crystals were transferred into the following cryo-protective solution before vitrification: 1.65 M Ammonium sulphate, 0.2M Malic acid/KOH pH 5.5, 5mM Maltose, 1 M Lithium sulfate	Resolution 1.31 Å R-free 0.196
7VN2 Crystal structure of MBP-fused BIL1/BZR1 (21-90) in complex with double-stranded DNA contaning ATCACGTGAT Deposited 2021-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain C 3–370（368 aa）	Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A	EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；50 mM sodium cacodylate pH 6.5, 200 mM potassium chloride, 10 mM magnesium chloride and 10% (w/v) polyethylene glycol (PEG) 4000	Resolution 2.42 Å R-free 0.248
7VN2 Crystal structure of MBP-fused BIL1/BZR1 (21-90) in complex with double-stranded DNA contaning ATCACGTGAT Deposited 2021-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 3–370（368 aa）	Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A	EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；50 mM sodium cacodylate pH 6.5, 200 mM potassium chloride, 10 mM magnesium chloride and 10% (w/v) polyethylene glycol (PEG) 4000	Resolution 2.42 Å R-free 0.248
7VN3 Crystal structure of MBP-fused BIL1/BZR1 (21-90) in complex with double-stranded DNA contaning CACACGTGTG Deposited 2021-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain C 3–370（368 aa） Chain D 3–370（368 aa）	Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A	EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；50 mM sodium cacodylate pH 6.5, 200 mM ammonium acetate and 10 mM calcium chloride and 10% (w/v) polyethylene glycol (PEG) 4000	Resolution 1.94 Å R-free 0.231
7VN3 Crystal structure of MBP-fused BIL1/BZR1 (21-90) in complex with double-stranded DNA contaning CACACGTGTG Deposited 2021-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 3–370（368 aa） Chain B 3–370（368 aa）	Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A	EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；50 mM sodium cacodylate pH 6.5, 200 mM ammonium acetate and 10 mM calcium chloride and 10% (w/v) polyethylene glycol (PEG) 4000	Resolution 1.94 Å R-free 0.231
7VN4 Crystal structure of MBP-fused BIL1/BZR1 (21-90) in complex with double-stranded DNA contaning TCCACGTGGA Deposited 2021-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain C 3–370（368 aa） Chain D 3–370（368 aa）	Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A	EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；50 mM sodium cacodylate pH 6.5, 200 mM ammonium acetate and 10 mM calcium chloride and 10% (w/v) polyethylene glycol (PEG) 4000	Resolution 2.10 Å R-free 0.245
7VN4 Crystal structure of MBP-fused BIL1/BZR1 (21-90) in complex with double-stranded DNA contaning TCCACGTGGA Deposited 2021-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 3–370（368 aa） Chain B 3–370（368 aa）	Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A	EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；50 mM sodium cacodylate pH 6.5, 200 mM ammonium acetate and 10 mM calcium chloride and 10% (w/v) polyethylene glycol (PEG) 4000	Resolution 2.10 Å R-free 0.245
7VN5 Crystal structure of MBP-fused BIL1/BZR1 (21-90) in complex with double-stranded DNA contaning TTCACGTGAA Deposited 2021-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain C 3–370（368 aa） Chain D 3–370（368 aa）	Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A	EDO 1,2-ETHANEDIOL × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；50 mM sodium cacodylate pH 6.5, 200 mM ammonium acetate and 10 mM calcium chloride and 10%	Resolution 1.95 Å R-free 0.244
7VN5 Crystal structure of MBP-fused BIL1/BZR1 (21-90) in complex with double-stranded DNA contaning TTCACGTGAA Deposited 2021-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 3–370（368 aa） Chain B 3–370（368 aa）	Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A	EDO 1,2-ETHANEDIOL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；50 mM sodium cacodylate pH 6.5, 200 mM ammonium acetate and 10 mM calcium chloride and 10%	Resolution 1.95 Å R-free 0.244
7VN6 Crystal structure of MBP-fused BIL1/BZR1 (21-90) in complex with double-stranded DNA contaning CGCACGTGCG Deposited 2021-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain C 3–370（368 aa） Chain D 3–370（368 aa）	Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A	EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；50 mM sodium cacodylate pH 6.5, 200 mM ammonium acetate and 10 mM calcium chloride and 10% (w/v) polyethylene glycol (PEG) 4000	Resolution 2.79 Å R-free 0.266
7VN6 Crystal structure of MBP-fused BIL1/BZR1 (21-90) in complex with double-stranded DNA contaning CGCACGTGCG Deposited 2021-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 3–370（368 aa） Chain B 3–370（368 aa）	Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A	EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；50 mM sodium cacodylate pH 6.5, 200 mM ammonium acetate and 10 mM calcium chloride and 10% (w/v) polyethylene glycol (PEG) 4000	Resolution 2.79 Å R-free 0.266
7VN7 Crystal structure of MBP-fused BIL1/BZR1 (21-90) in complex with double-stranded DNA contaning GACACGTGTC Deposited 2021-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain C 3–370（368 aa） Chain D 3–370（368 aa）	Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A	EDO 1,2-ETHANEDIOL × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；50 mM sodium cacodylate pH 6.5, 200 mM ammonium acetate and 10 mM calcium chloride and 10% (w/v) polyethylene glycol (PEG) 4000	Resolution 2.11 Å R-free 0.244
7VN7 Crystal structure of MBP-fused BIL1/BZR1 (21-90) in complex with double-stranded DNA contaning GACACGTGTC Deposited 2021-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 3–370（368 aa） Chain B 3–370（368 aa）	Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A	EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；50 mM sodium cacodylate pH 6.5, 200 mM ammonium acetate and 10 mM calcium chloride and 10% (w/v) polyethylene glycol (PEG) 4000	Resolution 2.11 Å R-free 0.244
7VN8 Crystal structure of MBP-fused BIL1/BZR1 (21-90) in complex with double-stranded DNA contaning GTCACGTGAC Deposited 2021-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain C 3–370（368 aa） Chain D 3–370（368 aa）	Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A	EDO 1,2-ETHANEDIOL × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；50 mM sodium cacodylate pH 6.5, 200 mM potassium chloride, 10 mM magnesium chloride and 10% (w/v) polyethylene glycol (PEG) 4000	Resolution 2.04 Å R-free 0.240
7VN8 Crystal structure of MBP-fused BIL1/BZR1 (21-90) in complex with double-stranded DNA contaning GTCACGTGAC Deposited 2021-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 3–370（368 aa） Chain B 3–370（368 aa）	Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A Mutation：D82A,K83A,E172A,N173A,K239A,E359A,K362A,D363A	EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；50 mM sodium cacodylate pH 6.5, 200 mM potassium chloride, 10 mM magnesium chloride and 10% (w/v) polyethylene glycol (PEG) 4000	Resolution 2.04 Å R-free 0.240
8DX4 Clostridioides difficile R20291 minor pilin - PilW fused with Maltose Binding Protein Deposited 2022-08-02	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 3–372（370 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；278 K；Hepes, Cesium Chloride, PEG 3350, n-Octyl-beta-D-glucoside, Sodium Chloride, ethanol	Resolution 2.49 Å R-free 0.218
8DX4 Clostridioides difficile R20291 minor pilin - PilW fused with Maltose Binding Protein Deposited 2022-08-02	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 3–372（370 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；278 K；Hepes, Cesium Chloride, PEG 3350, n-Octyl-beta-D-glucoside, Sodium Chloride, ethanol	Resolution 2.49 Å R-free 0.218
8DX4 Clostridioides difficile R20291 minor pilin - PilW fused with Maltose Binding Protein Deposited 2022-08-02	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain C 3–372（370 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 3 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；278 K；Hepes, Cesium Chloride, PEG 3350, n-Octyl-beta-D-glucoside, Sodium Chloride, ethanol	Resolution 2.49 Å R-free 0.218
8DX4 Clostridioides difficile R20291 minor pilin - PilW fused with Maltose Binding Protein Deposited 2022-08-02	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain D 3–372（370 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 7 PGE TRIETHYLENE GLYCOL × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；278 K；Hepes, Cesium Chloride, PEG 3350, n-Octyl-beta-D-glucoside, Sodium Chloride, ethanol	Resolution 2.49 Å R-free 0.218
8G3S MBP-Mcl1 in complex with ligand 11 Deposited 2023-02-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–368（367 aa）	Not recorded	FMT FORMIC ACID × 2 YLT (1'S,3aS,5R,16R,17S,19E,21S,21aR)-6'-chloro-21-methoxy-16,17-dimethyl-2,3,3',3a,4',16,17,18,21,21a-decahydro-2'H,6H,8H-15lambda~6~-spiro[10,12-etheno-15lambda~6~-furo[3,2-i][1,4]oxazepino[3,4-f][1,2,7]thiadiazacyclohexadecine-7,1'-naphthalene]-13,15,15(4H,14H)-trione × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；285 K；0.17 M Mg Formate, 25.00% (w/v) PEG3350	Resolution 1.40 Å R-free 0.194
8G3T MBP-Mcl1 in complex with ligand 12 Deposited 2023-02-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–368（367 aa）	Not recorded	FMT FORMIC ACID × 1 EDO 1,2-ETHANEDIOL × 1 YLK (1'S,3aS,5R,16R,17S,19Z,21R,21aR)-6'-chloro-20-fluoro-21-methoxy-16,17-dimethyl-2,3,3',3a,4',16,17,18,21,21a-decahydro-2'H,6H,8H-15lambda~6~-spiro[10,12-etheno-15lambda~6~-furo[3,2-i][1,4]oxazepino[3,4-f][1,2,7]thiadiazacyclohexadecine-7,1'-naphthalene]-13,15,15(4H,14H)-trione × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；285 K；0.17M Mg Formate, 23.5% (w/v) PEG3350	Resolution 1.83 Å R-free 0.233
8G3U MBP-Mcl1 in complex with ligand 21 Deposited 2023-02-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–368（367 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 2 YKT (1'S,3aS,5R,16R,17S,19Z,21R,21aR)-6'-chloro-20-fluoro-21-{[(5S,9aS)-hexahydropyrazino[2,1-c][1,4]oxazin-8(1H)-yl]methyl}-21-methoxy-16,17-dimethyl-2,3,3',3a,4',16,17,18,21,21a-decahydro-2'H,6H,8H-15lambda~6~-spiro[10,12-(ethanediylidene)-15lambda~6~-furo[3,2-i][1,4]oxazepino[3,4-f][1,2,7]thiadiazacyclohexadecine-7,1'-naphthalene]-13,15,15(4H,14H)-trione × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；285 K；0.11 M Mg Formate, 19.0% (w/v) PEG3350	Resolution 1.94 Å R-free 0.238
8G3W MBP-Mcl1 in complex with ligand 28 Deposited 2023-02-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–368（367 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 3 PEG DI(HYDROXYETHYL)ETHER × 1 YKX N-[(1'S,3aS,5R,15S,17S,19Z,21R,21aR)-6'-chloro-20-fluoro-21-methoxy-17-methyl-13,15-dioxo-2,3,3',3a,4,4',13,16,17,18,21,21a-dodecahydro-2'H,6H,8H-15lambda~6~-spiro[10,12-(ethanediylidene)-15lambda~6~-furo[3,2-i][1,4]oxazepino[3,4-f][1,2,7]thiadiazacyclohexadecine-7,1'-naphthalen]-15-yl]-3-methoxy-1-methyl-1H-pyrazole-4-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；285 K；19% (w/v) PEG3350, 0.05 M Mg Formate	Resolution 1.78 Å R-free 0.226
8G3X MBP-Mcl1 in complex with ligand 32 Deposited 2023-02-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–368（367 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 10 YLF N-[(1'S,3aS,5R,15S,17S,19Z,21R,21aR)-6'-chloro-20-fluoro-21-{[(5S,9aS)-hexahydropyrazino[2,1-c][1,4]oxazin-8(1H)-yl]methyl}-21-methoxy-17-methyl-13,15-dioxo-2,3,3',3a,4,4',13,16,17,18,21,21a-dodecahydro-2'H,6H,8H-15lambda~6~-spiro[10,12-(ethanediylidene)-15lambda~6~-furo[3,2-i][1,4]oxazepino[3,4-f][1,2,7]thiadiazacyclohexadecine-7,1'-naphthalen]-15-yl]-3-methoxy-1-methyl-1H-pyrazole-4-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；285 K；20.5% (w/v) PEG3350, 0.11M Mg formate	Resolution 1.46 Å R-free 0.206
8G3Y MBP-Mcl1 in complex with ligand 34 Deposited 2023-02-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–368（367 aa）	Not recorded	CL CHLORIDE ION × 2 EDO 1,2-ETHANEDIOL × 3 PEG DI(HYDROXYETHYL)ETHER × 1 YKL N-[(1'S,3aS,5R,15S,17S,19Z,21S,21aR)-6'-chloro-20-fluoro-21-{[(5S,9aS)-hexahydropyrazino[2,1-c][1,4]oxazin-8(1H)-yl]methyl}-21-methoxy-17-methyl-13,15-dioxo-2,3,3',3a,4,4',13,16,17,18,21,21a-dodecahydro-2'H,6H,8H-15lambda~6~-spiro[10,12-(ethanediylidene)-15lambda~6~-furo[3,2-i][1,4]oxazepino[3,4-f][1,2,7]thiadiazacyclohexadecine-7,1'-naphthalen]-15-yl]-3-methoxy-1-methyl-1H-pyrazole-4-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；285 K；25% (w/v) PEG3350, 0.11M Mg formate	Resolution 1.70 Å R-free 0.216
8R2O Huntingtin-Q17, 1-66, N-MBP fusion Deposited 2023-11-07	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 3–372（370 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.25；293 K；0.8 M KH2PO4, 0.8 M NaH2PO4, and 0.1 M TRIS/HCl pH 8.25	Resolution 3.23 Å R-free 0.238
8R2O Huntingtin-Q17, 1-66, N-MBP fusion Deposited 2023-11-07	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 3–372（370 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.25；293 K；0.8 M KH2PO4, 0.8 M NaH2PO4, and 0.1 M TRIS/HCl pH 8.25	Resolution 3.23 Å R-free 0.238
8R3E Huntingtin, 1-17, MBP-N Deposited 2023-11-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 3–372（370 aa） Chain B 3–372（370 aa） Chain C 3–372（370 aa） Chain D 3–372（370 aa） Chain E 3–372（370 aa） Chain F 3–372（370 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；20% (w/v) PEG 6K, 0.24 M Na2 malonate, 10mM ZnCl2 and 0.1 M MES-NaOH, pH6.0	Resolution 2.91 Å R-free 0.329
8ZLW Crystal Structure of RDGC IQ motif/dCaM Complex Deposited 2024-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 3–371（369 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；2 % v/v Tacsimate pH 4.0, 0.1 M Sodium acetate trihydrate pH 4.6, 16 % w/v PEG 3350	Resolution 2.20 Å R-free 0.254
9GRY Cryo-EM structure of human SLC35B1-Q113F variant with AMP-PNP Deposited 2024-09-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 2–370（369 aa）	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
9GS3 Cryo-EM structure of human SLC35B1-E33A variant with ADP in inward facing conformation Deposited 2024-09-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–370（369 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.15 Å
9I20 Cryo-EM structure of human SLC35B1 with ADP Deposited 2025-01-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 2–370（369 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 PEV (1S)-2-{[(2-AMINOETHOXY)(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.85 Å
9M73 Crystal structure of MBP-fused BIL1/BZR1 (21-104) in complex with double-stranded DNA contaning CACATATGTG Deposited 2025-03-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain C 3–371（369 aa） Chain D 3–371（369 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；50 mM sodium cacodylate pH 6.5, 200 mM potassium chloride, 10 mM magnesium chloride and 10% (w/v) polyethylene glycol (PEG) 4000	Resolution 2.31 Å R-free 0.245
9M73 Crystal structure of MBP-fused BIL1/BZR1 (21-104) in complex with double-stranded DNA contaning CACATATGTG Deposited 2025-03-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 3–371（369 aa） Chain B 3–371（369 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；50 mM sodium cacodylate pH 6.5, 200 mM potassium chloride, 10 mM magnesium chloride and 10% (w/v) polyethylene glycol (PEG) 4000	Resolution 2.31 Å R-free 0.245
9M74 Crystal structure of MBP-fused BIL1/BZR1 (21-104) in complex with double-stranded DNA contaning CACAGCTGTG Deposited 2025-03-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain C 3–371（369 aa） Chain D 3–371（369 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；50 mM sodium cacodylate pH 6.5, 200 mM ammonium acetate and 10 mM calcium chloride and 10% (w/v) polyethylene glycol (PEG) 4000	Resolution 2.23 Å R-free 0.244
9M74 Crystal structure of MBP-fused BIL1/BZR1 (21-104) in complex with double-stranded DNA contaning CACAGCTGTG Deposited 2025-03-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 3–371（369 aa） Chain B 3–371（369 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；50 mM sodium cacodylate pH 6.5, 200 mM ammonium acetate and 10 mM calcium chloride and 10% (w/v) polyethylene glycol (PEG) 4000	Resolution 2.23 Å R-free 0.244
9PW7 Myeloid cell leukemia-1 (Mcl-1) complexed with compound 13 Deposited 2025-08-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–368（367 aa）	Not recorded	A1CL6 (2S,4R,5S,12P,23R)-11-chloro-7-[3-(4-chloro-3,5-dimethylphenoxy)propyl]-27,28-dimethoxy-4,15-dimethyl-32-oxo-19-oxa-2,5,15,16,23-pentaazaheptacyclo[21.6.1.1~2,6~.1~5,8~.0~12,31~.0~13,17~.0~26,30~]dotriaconta-1(30),6,8(31),9,11,13,16,24,26,28-decaene-24-carboxylic acid (non-preferred name) × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；25-30% PEG3350, 0.1 M Bis-TRIS pH 6.5, 0.2 M MgCl2	Resolution 1.95 Å R-free 0.223

28 other PDB entries and 47 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A4P1LXE0_SERSF
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–371； UniProt 3–372

Maltodextrin-binding protein and Phosphoprotein fusion protein

Menangle virus

UniProt Q91MK1

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Monomer Protein × 1 其他Polymer 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 329–388	Mutation：C352S	alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose × 1 EDO 1,2-ETHANEDIOL × 4 PIN PIPERAZINE-N,N'-BIS(2-ETHANESULFONIC ACID) × 3 PRO PROLINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.7；291.15 K；20%(w/v) PEG 5000 mono-methyl ether, 0.2 M Pipes/KOH pH 6.7, 0.1M Proline, Crystals were transferred into the following cryo-protective solution before vitrification: 20%(w/v) PEG 5000 mono-methyl ether, 0.2 M Pipes/KOH pH 6.7, 0.1M Proline, 5mM Maltose, 20%(v/v) Ethylene Glycol	Resolution 1.55 Å R-free 0.189

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 7KD5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4KYC Structure of the C-terminal domain of the Menangle virus phosphoprotein, fused to MBP. Deposited 2013-05-28	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 339–388（50 aa） Fragment：unprot P0AEX9 residues 27-392, unprot Q91MK1 residues 339-388	Mutation：E172A, N173A, E359A, K362A, D363A, C352S	EDO 1,2-ETHANEDIOL × 1 BO3 BORIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.1；291.15 K；24 %(w/v) PEG8000, 0.2 M Boric acid/KOH, pH 9.1, VAPOR DIFFUSION, SITTING DROP, temperature 291.15K	Resolution 1.95 Å R-free 0.213
7KD4 Structure of the C-terminal domain of the Menangle virus phosphoprotein (residues 329 -388), fused to MBP. Space group P21. Deposited 2020-10-08	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 329–388（60 aa）	Mutation：C352S	SO4 SULFATE ION × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291.15 K；1.65 M Ammonium sulphate, 0.2M Malic acid/KOH pH 5.5, Crystals were transferred into the following cryo-protective solution before vitrification: 1.65 M Ammonium sulphate, 0.2M Malic acid/KOH pH 5.5, 5mM Maltose, 1 M Lithium sulfate	Resolution 1.31 Å R-free 0.196
7KD4 Structure of the C-terminal domain of the Menangle virus phosphoprotein (residues 329 -388), fused to MBP. Space group P21. Deposited 2020-10-08	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 329–388（60 aa）	Mutation：C352S	SO4 SULFATE ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291.15 K；1.65 M Ammonium sulphate, 0.2M Malic acid/KOH pH 5.5, Crystals were transferred into the following cryo-protective solution before vitrification: 1.65 M Ammonium sulphate, 0.2M Malic acid/KOH pH 5.5, 5mM Maltose, 1 M Lithium sulfate	Resolution 1.31 Å R-free 0.196

2 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q91MK1_9MONO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 372–431； UniProt 329–388

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

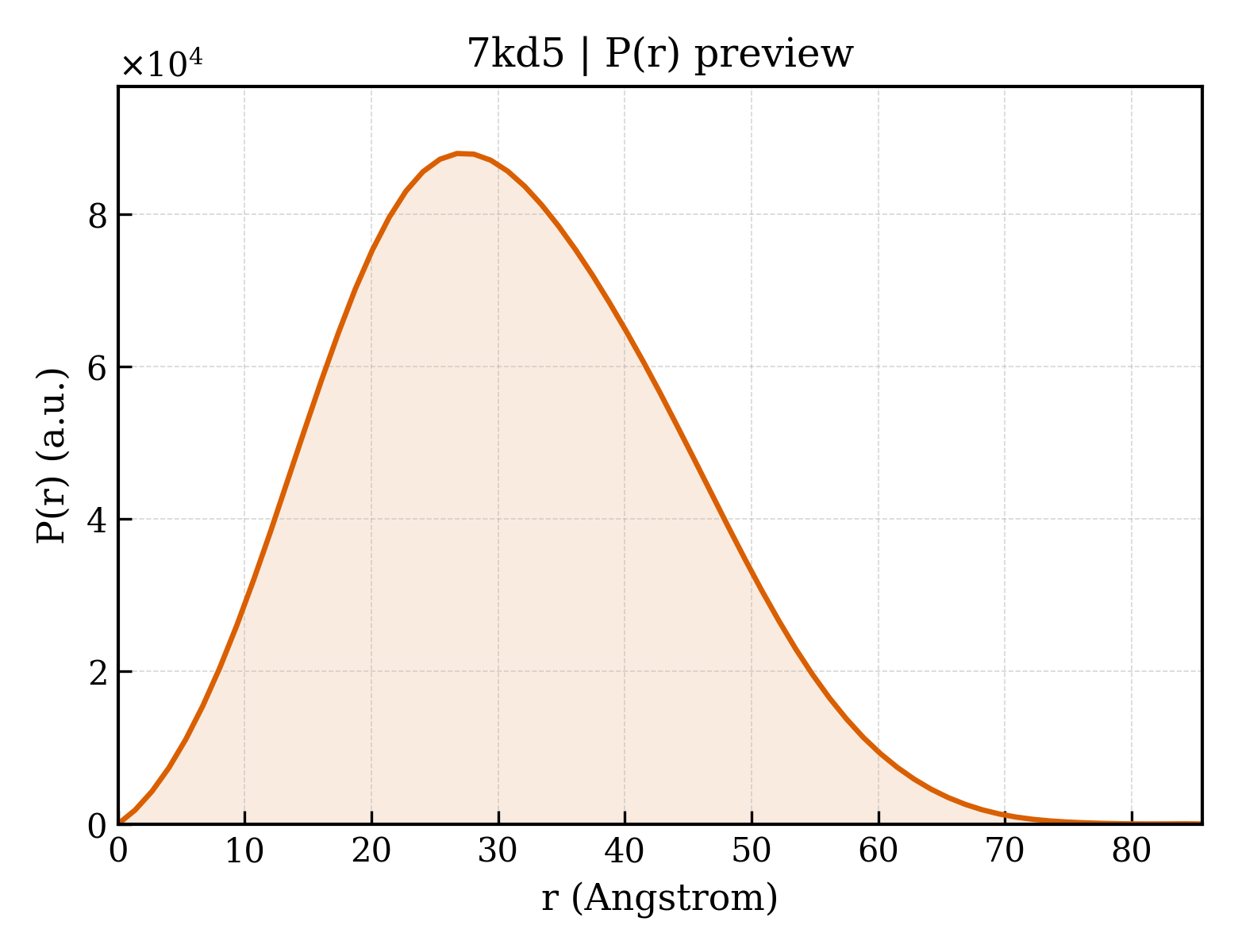

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7kd5
Deposition date deposition_date	2020-10-08
Structure title title	Structure of the C-terminal domain of the Menangle virus phosphoprotein (residues 329 -388), fused to MBP. Space group P212121
Keywords keywords	Paramyxovirus, Pararubulavirus, RNA-dependent RNA polymerase, Viral protein; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	23.79 Å
Radius of gyration Rg (electron density) rg_electron	22.64 Å
Forward intensity I(0) i0	37691200.00
Molecular weight molecular_weight	48285.0 kDa
Excluded volume excluded_volume	60847 Å³
Envelope volume envelope_volume	71907 Å³
Hydration-shell volume shell_volume	26250 Å³
Envelope diameter envelope_diameter	81.9 Å
Shell Rg shell_rg	29.92 Å
Envelope Rg envelope_rg	22.96 Å
Shape Rg shape_rg	22.56 Å
Total Rg total_rg	23.77 Å
Total atoms total_atoms	3398
Residues n_residues	428
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	85.6 Å
Rg (real space) rg_real	23.72 Å
Rg uncertainty (real space) rg_real_error	0.55 Å
I(0) (real space) i0_real	3.7690e+07
I(0) uncertainty (real space) i0_real_error	5.9350e+05
Rg (reciprocal space) rg_reciprocal	23.73 Å
I(0) (reciprocal space) i0_reciprocal	37690000.0000
Solution quality estimate total_estimate	0.7727
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	26.8 Å
Skewness Skewness skewness	0.290
Kurtosis Kurtosis kurtosis	-0.347
Angular range angular_range	— – 0.3350 Å⁻¹
Current regularization parameter α current_alpha	0.0001
Highest regularization parameter α highest_alpha	10490000.0000
Real-space data points n_real_points	65
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.696; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.953; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Maltodextrin-binding protein and Phosphoprotein fusion protein
Molecular weight formula_weight	47132.5 kDa
Mutation mutation	C352S
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4182

MKIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPAAAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDAALAAAQTNAAAKSSAASPAALSGYKMTLLALIKESIPNQAKRQKFEMQVGGIRNEQDFKNLRREIIRSAAQ

来源 Source

来源生物 organism	Menangle virus
NCBI Class编号 ncbi_taxonomy_id	152219
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 branched

Description description	alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose
Molecular weight formula_weight	342.3 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	;PIPERAZINE-N,N'-BIS(2-ETHANESULFONIC ACID) ;
Molecular weight formula_weight	302.4 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	PROLINE
Molecular weight formula_weight	115.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	505

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	7kd5A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

▶

8. Citations (1)

▶

Unit-cell length a length_a	67.617 Å
Unit-cell length b length_b	77.421 Å
Unit-cell length c length_c	79.132 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.551 Å
Low-resolution limit resolution_low	31.240 Å
R factor r_factor	—
R_work r_work	0.1637
R_free r_free	0.1887
