7n9h

Structure of the mammalian importin a1 bound to the TDP-43 NLS

Method: X-RAY DIFFRACTION D_max: 96.6 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Importin subunit alpha-1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 70–497	Not recorded	TAR DNA-binding protein 43 × 1 （Q13148）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；0.5M sodium citrate, 10 mM mercaptoethanol	Resolution 2.20 Å R-free 0.215

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7N9H	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1EFX STRUCTURE OF A COMPLEX BETWEEN THE HUMAN NATURAL KILLER CELL RECEPTOR KIR2DL2 AND A CLASS I MHC LIGAND HLA-CW3 Deposited 2000-02-10	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 204–212（9 aa） Fragment：RESIDUES 204-212	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；PEG 20000, calcium chloride, sodium cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.00 Å R-free 0.294
1QGK STRUCTURE OF IMPORTIN BETA BOUND TO THE IBB DOMAIN OF IMPORTIN ALPHA Deposited 1999-04-29	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 11–54（44 aa） Fragment：IBB DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.5	Resolution 2.50 Å R-free 0.273
1QGR STRUCTURE OF IMPORTIN BETA BOUND TO THE IBB DOMAIN OF IMPORTIN ALPHA (II CRYSTAL FORM, GROWN AT LOW PH) Deposited 1999-05-04	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 28–54（27 aa） Fragment：IBB DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 3.9；pH 3.9	Resolution 2.30 Å R-free 0.285
3FEX Crystal structure of the CBC-importin alpha complex. Deposited 2008-12-01	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 70–529（460 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；100 mM KCl, 12% PEG 8000, 100 mM Tris-HCl pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.55 Å R-free 0.292
3FEX Crystal structure of the CBC-importin alpha complex. Deposited 2008-12-01	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 70–529（460 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；100 mM KCl, 12% PEG 8000, 100 mM Tris-HCl pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.55 Å R-free 0.292
3FEY Crystal structure of the CBC-importin alpha complex. Deposited 2008-12-01	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 70–529（460 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；100 mM MES, pH 6.0, and 8% PEG 4000 , VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.20 Å R-free 0.238
3WPT Crystal structure of closed dimer of human importin-alpha1 (Rch1) Deposited 2014-01-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 75–497（423 aa） Fragment：UNP residues 75-497	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 11	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；50MM MES, 100MM AMMONIUM SULFATE, 10MM MGCL, 15-20%(w/v) PEG8000, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.63 Å R-free 0.216
3WPT Crystal structure of closed dimer of human importin-alpha1 (Rch1) Deposited 2014-01-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 75–497（423 aa） Fragment：UNP residues 75-497	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；50MM MES, 100MM AMMONIUM SULFATE, 10MM MGCL, 15-20%(w/v) PEG8000, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.63 Å R-free 0.216
4E4V The crystal structure of the dimeric human importin alpha 1 at 2.5 angstrom resolution. Deposited 2012-03-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 70–529（460 aa） Fragment：Importin alpha 1 lacking IBB domain (UNP residues 70-529)	Mutation：K486R	GOL GLYCEROL × 8 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.4；298 K；0.5 CITRATE PH 5.4 10 MM DTT, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.53 Å R-free 0.203
4E4V The crystal structure of the dimeric human importin alpha 1 at 2.5 angstrom resolution. Deposited 2012-03-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 70–529（460 aa） Fragment：Importin alpha 1 lacking IBB domain (UNP residues 70-529)	Mutation：K486R	GOL GLYCEROL × 5 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.4；298 K；0.5 CITRATE PH 5.4 10 MM DTT, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.53 Å R-free 0.203
4WV6 Heterodimer of Importin alpha 1 with nuclear localization signal of TAF8 Deposited 2014-11-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 60–529（470 aa） Fragment：UNP residues 60-529	Not recorded	EDO 1,2-ETHANEDIOL × 12	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.1；281.15 K；HEPES-NaOH, polyethylene glycole 3350, L-proline	Resolution 1.75 Å R-free 0.180
5H43 Structural and mechanistical studies of the nuclear import by Importin-alpha Deposited 2016-10-28	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 70–497（428 aa） Fragment：UNP residues 70-497	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；3%(v/v) Tacsimate pH5.0, 0.1M Sodium citrate tribasic dehydrate pH5.6, 16%(w/v) PEG 3350	Resolution 2.30 Å R-free 0.243
7CRU hnRNPK NLS in complex with Importin alpha 1 (KPNA2) Deposited 2020-08-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 73–529（457 aa）	Not recorded	ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.1 M Ammonium Acetate, 0.1 M Bis-Tris pH 5.5, 17% w/v PEG 10000	Resolution 2.80 Å R-free 0.240
7CRU hnRNPK NLS in complex with Importin alpha 1 (KPNA2) Deposited 2020-08-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 73–529（457 aa）	Not recorded	ACT ACETATE ION × 4 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.1 M Ammonium Acetate, 0.1 M Bis-Tris pH 5.5, 17% w/v PEG 10000	Resolution 2.80 Å R-free 0.240
7N8J Human importin alpha 1 in complex with Bimax2 peptide Deposited 2021-06-15	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 76–529（454 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；296 K；0.4 M Ammonium phosphate monobasic	Resolution 3.20 Å R-free 0.244
8FZK Dimeric human importin alpha subunit Deposited 2023-01-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 71–529（459 aa） Chain B 71–529（459 aa）	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；14% PEG 8000, 0.2M Magnesium chloride, 0.1M MES	Resolution 2.10 Å R-free 0.247
8FZK Dimeric human importin alpha subunit Deposited 2023-01-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 71–529（459 aa） Chain D 71–529（459 aa）	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；14% PEG 8000, 0.2M Magnesium chloride, 0.1M MES	Resolution 2.10 Å R-free 0.247
8GCN CRYO-EM STRUCTURE OF IMPORTIN ALPHA1/BETA HETERODIMER Deposited 2023-03-02	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 11–53（43 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.95 Å
9B4Y Cryo-EM structure of importin alpha-1/beta bound to TDP-43 Deposited 2024-03-21	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 11–53（43 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.74 Å
9BFC Cryo-EM structure of importin alpha-1/beta bound to FG repeats Deposited 2024-04-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: hexameric	Chain I 1–53（53 aa）	Not recorded	PHE PHENYLALANINE × 2 GLY GLYCINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9N86 Cryo-EM structure of human importin beta:importin alpha (IBB) complex Deposited 2025-02-07	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–53（53 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å

16 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IMA1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 1–428； UniProt 70–497

TAR DNA-binding protein 43

Homo sapiens

UniProt Q13148

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 79–102	Fragment：Nuclear localization signal motif, residues 79-102	Importin subunit alpha-1 × 1 （P52292）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；0.5M sodium citrate, 10 mM mercaptoethanol	Resolution 2.20 Å R-free 0.215

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 7N9H	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1WF0 Solution structure of RRM domain in TAR DNA-binding protein-43 Deposited 2004-05-25	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 193–267（75 aa） Fragment：RRM domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition 0.8mM U-15, 13C; 20mM d-Tris-HCl(pH 7.0); 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
2CQG Solution structure of the RNA binding domain of TAR DNA-binding protein-43 Deposited 2005-05-20	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 96–185（90 aa） Fragment：RNA recognition motif	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition 0.86mM 13C/15N-PROTEIN; 20mM d-Tris-HCl(pH7.0); 100mM NaCl; 1mM d-DTT; 0.02% NaN3 \| 90% H2O/10% D2O	Resolution not provided
2N2C NMR Structure of TDP-43 prion-like hydrophobic helix in DPC Deposited 2015-05-06	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 307–349（43 aa） Fragment：UNP residues 307-349	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4；313 K；Ionic strength (raw mmCIF value) 1；Pressure ambient NMR sample composition 300 uM [U-100% 15N] entity-1, 60 mM DPC-2, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2N3X Solution Structure of TDP-43 Amyloidogenic Core Region Deposited 2015-06-11	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 311–360（50 aa） Fragment：UNP residues 311-360	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 80；Pressure ambient NMR sample composition 600 uM [U-99% 13C; U-99% 15N] GB1-TDP(311 - 360)-1, 20 mM sodium phosphate-2, 50 mM sodium chloride-3, 8 v/v [U-99% 2H] D2O-4, 0.02 v/v sodium azide-5, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided
2N4G Solution Structure of the G335D Mutant of TDP-43 Amyloidogenic Core Region Deposited 2015-06-17	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 311–360（50 aa） Fragment：UNP residues 311-360	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 80；Pressure ambient NMR sample composition 600 uM [U-99% 13C; U-99% 15N] GB1-TDP(311-360)-G335D-1, 20 mM sodium phosphate-2, 50 mM sodium chloride-3, 8 % [U-99% 2H] D2O-4, 0.02 w/v sodium azide-5, 92 % H2O-6, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided
2N4H Solution Structure of the Q343R Mutant of TDP-43 Amyloidogenic Core Region Deposited 2015-06-18	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 311–360（50 aa） Fragment：UNP residues 311-360	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 80；Pressure ambient NMR sample composition 600 uM [U-99% 13C; U-99% 15N] GB1-TDP(311-360)-Q343R-1, 20 mM sodium phosphate-2, 50 mM sodium chloride-3, 0.02 w/v sodium azide-4, 8 % [U-99% 2H] D2O-5, 92 % H2O-6, 92% H2O/8% D2O \| 92% H2O/8% D2O	Resolution not provided
2N4P Solution structure of the n-terminal domain of tdp-43 Deposited 2015-06-26	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–77（77 aa） Fragment：N-terminal residues 1-77	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 3.8；298 K；Pressure ambient NMR sample composition 0.5-0.7 mM [U-13C; U-15N] NTD, TCEP, CD3COOD/ CD3COO-Na+, NaN3, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
4BS2 NMR structure of human TDP-43 tandem RRMs in complex with UG-rich RNA Deposited 2013-06-06	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 102–269（168 aa） Fragment：RNA BINDING DOMAIN, RESIDUES 102-269	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；298 K；Ionic strength (raw mmCIF value) 50 NMR sample composition 94%WATER/6%D2O	Resolution not provided
4IUF Crystal Structure of Human TDP-43 RRM1 Domain in Complex with a Single-stranded DNA Deposited 2013-01-21	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 103–179（77 aa） Fragment：RRM1 Domain (UNP residues 103-179)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；0.12M CH3COONH4, 0.05M Bis-Tris, 16% PEG 3350, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.75 Å R-free 0.259
4Y00 Crystal Structure of Human TDP-43 RRM1 Domain with D169G Mutation in Complex with an Unmodified Single-stranded DNA Deposited 2015-02-05	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 101–191（91 aa） Fragment：UNP residues 101-191	Mutation：D169G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.05 M CH3COONH4, pH 5.0, 15% v/v Jeffamine ED-2001, pH 7.0	Resolution 3.00 Å R-free 0.295
4Y00 Crystal Structure of Human TDP-43 RRM1 Domain with D169G Mutation in Complex with an Unmodified Single-stranded DNA Deposited 2015-02-05	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain B 101–191（91 aa） Fragment：UNP residues 101-191	Mutation：D169G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.05 M CH3COONH4, pH 5.0, 15% v/v Jeffamine ED-2001, pH 7.0	Resolution 3.00 Å R-free 0.295
4Y00 Crystal Structure of Human TDP-43 RRM1 Domain with D169G Mutation in Complex with an Unmodified Single-stranded DNA Deposited 2015-02-05	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain C 101–191（91 aa） Fragment：UNP residues 101-191	Mutation：D169G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.05 M CH3COONH4, pH 5.0, 15% v/v Jeffamine ED-2001, pH 7.0	Resolution 3.00 Å R-free 0.295
4Y00 Crystal Structure of Human TDP-43 RRM1 Domain with D169G Mutation in Complex with an Unmodified Single-stranded DNA Deposited 2015-02-05	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain D 101–191（91 aa） Fragment：UNP residues 101-191	Mutation：D169G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.05 M CH3COONH4, pH 5.0, 15% v/v Jeffamine ED-2001, pH 7.0	Resolution 3.00 Å R-free 0.295
4Y0F Crystal Structure of Human TDP-43 RRM1 Domain in Complex with an Unmodified Single-stranded DNA Deposited 2015-02-06	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 101–191（91 aa） Fragment：UNP residues 101-191	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；0.12M ammonium acetate, 0.08M BIS-TRIS, pH 5.5, 20% PEG 3350	Resolution 2.65 Å R-free 0.288
4Y0F Crystal Structure of Human TDP-43 RRM1 Domain in Complex with an Unmodified Single-stranded DNA Deposited 2015-02-06	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain B 101–191（91 aa） Fragment：UNP residues 101-191	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；0.12M ammonium acetate, 0.08M BIS-TRIS, pH 5.5, 20% PEG 3350	Resolution 2.65 Å R-free 0.288
5MRG Solution structure of TDP-43 (residues 1-102) Deposited 2016-12-22	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–102（102 aa） Fragment：N-terminal domain, UNP residues 1-102	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 3.9；298 K；Ionic strength (raw mmCIF value) 0；Pressure 1 NMR sample composition 0.35 mM 13C15N TDP-43(1-102), 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
5W50 Crystal structure of the segment, LIIKGI, from the RRM2 of TDP-43, residues 248-253 Deposited 2017-06-13	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 12 PDB declaration: dodecameric	Chain A 248–253（6 aa） Fragment：RRM2 peptide (UNP residues 248-253) Chain B 248–253（6 aa） Fragment：RRM2 peptide (UNP residues 248-253)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9.5；298 K；100 mM CHES, pH 9.5, 20% PEG8000, 10 mM lithium hydroxide	Resolution 1.40 Å R-free 0.207
5W52 MicroED structure of the segment, DLIIKGISVHI, from the RRM2 of TDP-43, residues 247-257 Deposited 2017-06-13	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 10 PDB declaration: decameric	Chain A 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257)	Not recorded	No recorded non-water small molecule	ELECTRON CRYSTALLOGRAPHY cryo-EM buffer pH 8.5 cryo-EM vitrification conditions Cryogen ETHANE X-ray crystallization conditions BATCH；pH 8.5；310 K；50 mM CHES, pH 8.5	Resolution 1.40 Å R-free 0.306
5W7V CryoEM structure of the segment, DLIIKGISVHI, assembled into a triple-helical fibril Deposited 2017-06-20	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 270 PDB declaration: 270-meric	Chain 0 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 1 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 2 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 3 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 4 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 5 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 6 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 7 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 8 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257)	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
5W7V CryoEM structure of the segment, DLIIKGISVHI, assembled into a triple-helical fibril Deposited 2017-06-20	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 9 PDB declaration: nonameric	Chain 0 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 1 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 2 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 3 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 4 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 5 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 6 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 7 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 8 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257)	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
5W7V CryoEM structure of the segment, DLIIKGISVHI, assembled into a triple-helical fibril Deposited 2017-06-20	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 9 PDB declaration: nonameric	Chain 0 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 1 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 2 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 3 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 4 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 5 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 6 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 7 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257) Chain 8 247–257（11 aa） Fragment：RRM2 peptide (UNP residues 247-257)	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
5WHN Crystal structure of the segment, NFGAFS, from the low complexity domain of TDP-43, residues 312-317 Deposited 2017-07-17	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 15 PDB declaration: pentadecameric	Chain A 312–317（6 aa） Fragment：UNP residues 312-317	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；298 K；100mM phosphate/citrate 4.2, 40% ethanol, 5% PEG 1000	Resolution 1.10 Å R-free 0.160
5WHP Crystal structure of the segment, NFGTFS, from the A315T familial variant of the low complexity domain of TDP-43, residues 312-317 Deposited 2017-07-17	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 10 PDB declaration: decameric	Chain A 312–317（6 aa） Fragment：UNP residues 312-317	Mutation：A315T	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；100mM sodium acetate 4.6, 200mM ammonium acetate, 30% PEG 4000	Resolution 1.00 Å R-free 0.093
5WIA Crystal structure of the segment, GNNSYS, from the low complexity domain of TDP-43, residues 370-375 Deposited 2017-07-18	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 10 PDB declaration: decameric	Chain A 370–375（6 aa） Fragment：UNP residues 370-375	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；100mM bis tris propane 8.5, 200mM sodium nitrate, 20% PEG 3350	Resolution 1.00 Å R-free 0.181
5WIQ Crystal structure of the segment, GFNGGFG, from the low complexity domain of TDP-43, residues 396-402 Deposited 2017-07-19	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 10 PDB declaration: decameric	Chain A 396–402（7 aa） Fragment：UNP residues 396-402 Chain B 396–402（7 aa） Fragment：UNP residues 396-402	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；298 K；100mM sodium acetate pH 4.5, 800mM sodium phosphate monobasic, 1200mM potassium phosphate dibasic	Resolution 1.25 Å R-free 0.168
5WKB MicroED structure of the segment, NFGEFS, from the A315E familial variant of the low complexity domain of TDP-43, residues 312-317 Deposited 2017-07-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 10 PDB declaration: decameric	Chain A 312–317（6 aa） Fragment：UNP residues 312-317	Mutation：A315E	No recorded non-water small molecule	ELECTRON CRYSTALLOGRAPHY cryo-EM buffer pH 7.5；1x PBS, pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE X-ray crystallization conditions Batch；pH 7.5；298 K；1x PBS, pH 7.5	Resolution 1.00 Å R-free 0.270
5WKD Crystal structure of the segment, GNNQGSN, from the low complexity domain of TDP-43, residues 300-306 Deposited 2017-07-25	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 10 PDB declaration: decameric	Chain A 300–306（7 aa） Fragment：UNP residues 300-306	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；100mM Bis-Tris propane, pH 7.5, 200 mM sodium sulfate, 20% PEG3350	Resolution 1.80 Å R-free 0.195
5X4F Solution Structure of the N-terminal Domain of TDP-43 Deposited 2017-02-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–77（77 aa） Fragment：UNP residues 1-77	Mutation：C39S/C50S	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 0.08；Pressure 1 NMR sample composition 1 mM U-99% 13C; U-99% 15N TDP(1-77)-GB1-C39/C50S, 20 mM sodium phosphate, 50 mM sodium chloride, 0.05 v/v sodium azide, 90 % H2O, 10 % D2O, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
6B1G Solution structure of TDP-43 N-terminal domain dimer. Deposited 2017-09-18	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–80（80 aa） Fragment：NTD domain Chain B 1–80（80 aa） Fragment：NTD domain	Mutation：S48E Mutation：Y4R	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；298 K；Ionic strength (raw mmCIF value) 0；Pressure 1 NMR sample composition 0.7 mM [U-99% 13C; U-99% 15N] TDP-43 NTD S48E, 2.0 mM TDP-43 NTD Y4R, 20 mM HEPES, 1 mM DTT, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.7 mM [U-99% 13C; U-99% 15N] TDP-43 NTD Y4R, 2 mM TDP-43 NTD S48E, 20 mM HEPES, 1 mM DTT, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
6CFH SWGMMGMLASQ segment from the low complexity domain of TDP-43 Deposited 2018-02-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 20 PDB declaration: eicosameric	Chain A 333–343（11 aa） Fragment：SWGMMGMLASQ segment Chain B 333–343（11 aa） Fragment：SWGMMGMLASQ segment	Not recorded	No recorded non-water small molecule	ELECTRON CRYSTALLOGRAPHY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE X-ray crystallization conditions Batch；pH 7.5；303 K；phosphate buffered saline, shaken for 80 hours	Resolution 1.50 Å R-free 0.313
6N37 SegA-sym, conformation of TDP-43 low complexity domain segment A sym Deposited 2018-11-14	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 10 PDB declaration: decameric	Chain A 195–244（50 aa） Chain B 195–244（50 aa） Chain C 195–244（50 aa） Chain D 195–244（50 aa） Chain E 195–244（50 aa） Chain F 195–244（50 aa） Chain G 195–244（50 aa） Chain H 195–244（50 aa） Chain I 195–244（50 aa） Chain J 195–244（50 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
6N3A SegA-long, conformation of TDP-43 low complexity domain segment A long Deposited 2018-11-14	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric	Chain A 195–244（50 aa） Chain B 195–244（50 aa） Chain C 195–244（50 aa） Chain D 195–244（50 aa） Chain E 195–244（50 aa） Chain F 195–244（50 aa） Chain G 195–244（50 aa） Chain H 195–244（50 aa） Chain I 195–244（50 aa） Chain J 195–244（50 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
6N3B SegA-asym, conformation of TDP-43 low complexity domain segment A asym Deposited 2018-11-14	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 10 PDB declaration: decameric	Chain A 195–244（50 aa） Chain B 195–244（50 aa） Chain C 195–244（50 aa） Chain D 195–244（50 aa） Chain E 195–244（50 aa） Chain F 195–244（50 aa） Chain G 195–244（50 aa） Chain H 195–244（50 aa） Chain I 195–244（50 aa） Chain J 195–244（50 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
6N3C SegB, conformation of TDP-43 low complexity domain segment A Deposited 2018-11-14	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 20 PDB declaration: eicosameric	Chain A 170–215（46 aa） Chain B 170–215（46 aa） Chain C 170–215（46 aa） Chain D 170–215（46 aa） Chain E 170–215（46 aa） Chain F 170–215（46 aa） Chain G 170–215（46 aa） Chain H 170–215（46 aa） Chain I 170–215（46 aa） Chain J 170–215（46 aa） Chain K 170–215（46 aa） Chain L 170–215（46 aa） Chain M 170–215（46 aa） Chain N 170–215（46 aa） Chain O 170–215（46 aa） Chain P 170–215（46 aa） Chain Q 170–215（46 aa） Chain R 170–215（46 aa） Chain S 170–215（46 aa） Chain T 170–215（46 aa）	Mutation：A315E Mutation：A315E Mutation：A315E Mutation：A315E Mutation：A315E Mutation：A315E Mutation：A315E Mutation：A315E Mutation：A315E Mutation：A315E Mutation：A315E Mutation：A315E Mutation：A315E Mutation：A315E Mutation：A315E Mutation：A315E Mutation：A315E Mutation：A315E Mutation：A315E Mutation：A315E	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
6T4B CRYSTAL STRUCTURE OF HUMAN TDP-43 N-TERMINAL DOMAIN AT 2.55 A RESOLUTION Deposited 2019-10-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–80（80 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.2M Sodium bromide, 0.1M Bis-Tris propane 6.5, 20% PEG 3350	Resolution 2.55 Å R-free 0.263
6T4B CRYSTAL STRUCTURE OF HUMAN TDP-43 N-TERMINAL DOMAIN AT 2.55 A RESOLUTION Deposited 2019-10-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–80（80 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.2M Sodium bromide, 0.1M Bis-Tris propane 6.5, 20% PEG 3350	Resolution 2.55 Å R-free 0.263
6T4B CRYSTAL STRUCTURE OF HUMAN TDP-43 N-TERMINAL DOMAIN AT 2.55 A RESOLUTION Deposited 2019-10-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 1–80（80 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.2M Sodium bromide, 0.1M Bis-Tris propane 6.5, 20% PEG 3350	Resolution 2.55 Å R-free 0.263
6T4B CRYSTAL STRUCTURE OF HUMAN TDP-43 N-TERMINAL DOMAIN AT 2.55 A RESOLUTION Deposited 2019-10-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain G 1–80（80 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.2M Sodium bromide, 0.1M Bis-Tris propane 6.5, 20% PEG 3350	Resolution 2.55 Å R-free 0.263
6T4B CRYSTAL STRUCTURE OF HUMAN TDP-43 N-TERMINAL DOMAIN AT 2.55 A RESOLUTION Deposited 2019-10-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain I 1–80（80 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.2M Sodium bromide, 0.1M Bis-Tris propane 6.5, 20% PEG 3350	Resolution 2.55 Å R-free 0.263
7KWZ TDP-43 LCD amyloid fibrils Deposited 2020-12-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric	Chain A 151–298（148 aa） Chain B 151–298（148 aa） Chain C 151–298（148 aa） Chain D 151–298（148 aa） Chain E 151–298（148 aa）	Mutation：low complexity domain (UNP residues 151-298) Mutation：low complexity domain (UNP residues 151-298) Mutation：low complexity domain (UNP residues 151-298) Mutation：low complexity domain (UNP residues 151-298) Mutation：low complexity domain (UNP residues 151-298)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7PY2 Structure of pathological TDP-43 filaments from ALS with FTLD Deposited 2021-10-08	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–414（414 aa） Chain B 1–414（414 aa） Chain C 1–414（414 aa） Chain D 1–414（414 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.59 Å
7Q3U Cryo-EM structure of TDP43 core peptide amyloid fiber Deposited 2021-10-28	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric	Chain A 279–360（82 aa） Chain B 279–360（82 aa） Chain C 279–360（82 aa） Chain D 279–360（82 aa） Chain E 279–360（82 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8A6I Structure of the low complexity domain of TDP-43 (fragment 309-350) with methionine sulfoxide modifications Deposited 2022-06-17	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 309–350（42 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；288 K；Ionic strength (raw mmCIF value) 10；Pressure 1 NMR sample composition 500 uM [U-13C; U-15N] TDP-43 fragment 309-350, 20 mM HEPES, 10 mM potassium chloride, 5 mM MgCl2, 1 mM ATP, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
8CG3 Structure of TDP-43 amyloid filament from type A FTLD-TDP (variant 1) Deposited 2023-02-03	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric	Chain A 1–414（414 aa） Chain B 1–414（414 aa） Chain C 1–414（414 aa） Chain D 1–414（414 aa） Chain U 1–414（414 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.39 Å
8CGG Structure of TDP-43 amyloid filament from type A FTLD-TDP (variant 2) Deposited 2023-02-04	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric	Chain A 1–414（414 aa） Chain B 1–414（414 aa） Chain C 1–414（414 aa） Chain D 1–414（414 aa） Chain U 1–414（414 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.50 Å
8CGH Structure of TDP-43 amyloid filament from type A FTLD-TDP (variant 3) Deposited 2023-02-04	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric	Chain A 1–414（414 aa） Chain B 1–414（414 aa） Chain C 1–414（414 aa） Chain D 1–414（414 aa） Chain U 1–414（414 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.68 Å
8QX9 TDP-43 amyloid fibrils: Morphology-1a Deposited 2023-10-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 12 PDB declaration: 12-meric	Chain A 1–414（414 aa） Chain B 1–414（414 aa） Chain C 1–414（414 aa） Chain D 1–414（414 aa） Chain E 1–414（414 aa） Chain F 1–414（414 aa） Chain G 1–414（414 aa） Chain H 1–414（414 aa） Chain I 1–414（414 aa） Chain J 1–414（414 aa） Chain K 1–414（414 aa） Chain L 1–414（414 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.76 Å
8QXA TDP-43 amyloid fibrils: Morphology-1b Deposited 2023-10-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 12 PDB declaration: 12-meric	Chain A 1–414（414 aa） Chain B 1–414（414 aa） Chain C 1–414（414 aa） Chain D 1–414（414 aa） Chain E 1–414（414 aa） Chain F 1–414（414 aa） Chain G 1–414（414 aa） Chain H 1–414（414 aa） Chain I 1–414（414 aa） Chain J 1–414（414 aa） Chain K 1–414（414 aa） Chain L 1–414（414 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.05 Å
8QXB TDP-43 amyloid fibrils: Morphology-2 Deposited 2023-10-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 18 PDB declaration: 18-meric	Chain A 1–414（414 aa） Chain B 1–414（414 aa） Chain C 1–414（414 aa） Chain D 1–414（414 aa） Chain E 1–414（414 aa） Chain F 1–414（414 aa） Chain G 1–414（414 aa） Chain H 1–414（414 aa） Chain I 1–414（414 aa） Chain J 1–414（414 aa） Chain K 1–414（414 aa） Chain L 1–414（414 aa） Chain M 1–414（414 aa） Chain N 1–414（414 aa） Chain O 1–414（414 aa） Chain P 1–414（414 aa） Chain Q 1–414（414 aa） Chain R 1–414（414 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.86 Å
9FOF Structure of heteromeric amyloid filament of TDP-43 and AXNA11 from FTLD-TDP Type C (variant 2) Deposited 2024-06-11	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric	Chain A 282–345（64 aa） Chain C 282–345（64 aa） Chain E 282–345（64 aa） Chain G 282–345（64 aa） Chain I 282–345（64 aa） Chain q 282–345（64 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9FOR Structure of heteromeric amyloid filament of TDP-43 and AXNA11 from FTLD-TDP Type C (variant 1) Deposited 2024-06-12	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain A 284–345（62 aa） Chain C 284–345（62 aa） Chain E 284–345（62 aa） Chain G 284–345（62 aa） Chain o 284–345（62 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.75 Å

41 other PDB entries and 51 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TADBP_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–24； UniProt 79–102

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

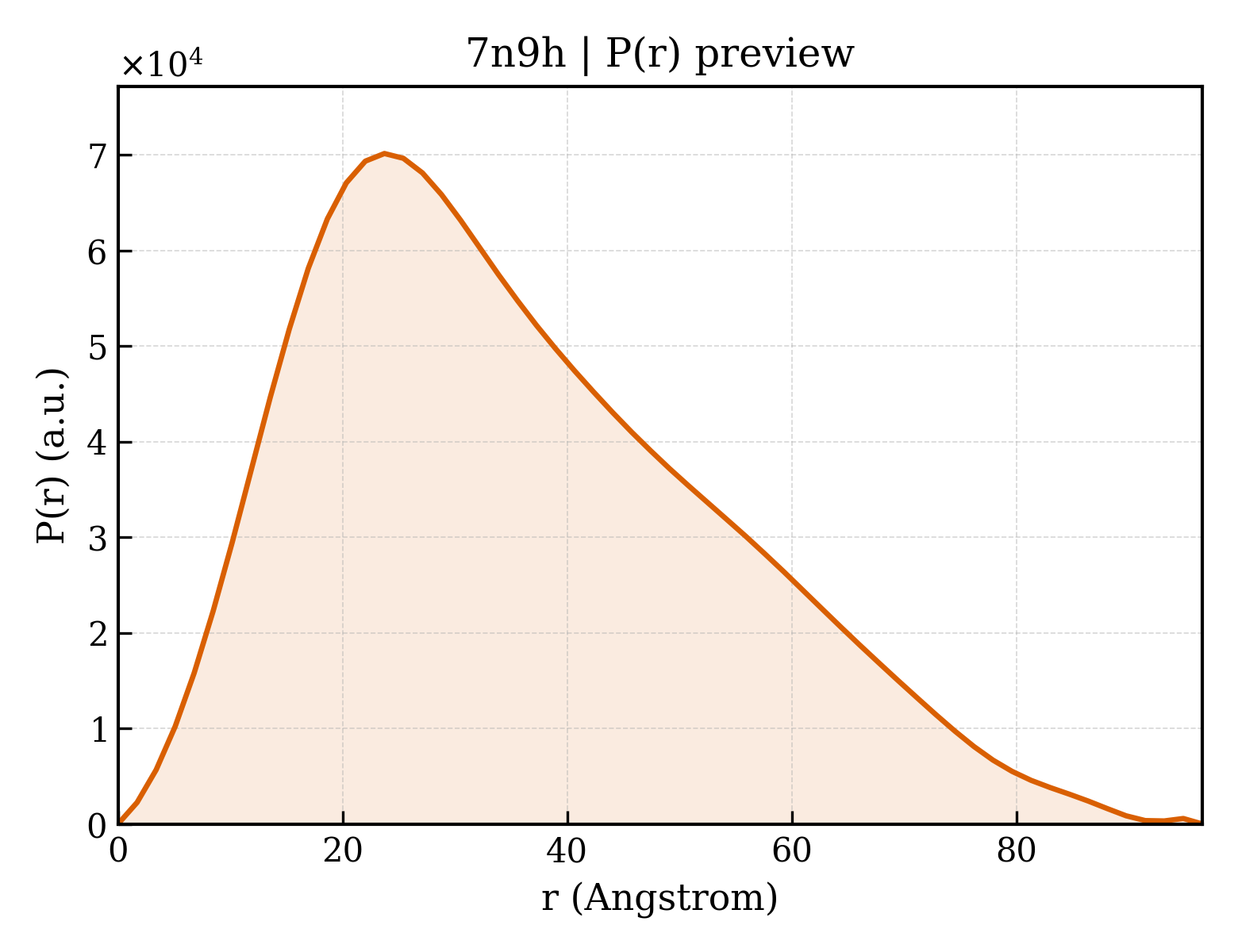

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7n9h
Deposition date deposition_date	2021-06-17
Structure title title	Structure of the mammalian importin a1 bound to the TDP-43 NLS
Keywords keywords	NUCLEAR IMPORT, IMPORTIN ALPHA, NLS, TDP-43, PROTEIN TRANSPORT; PROTEIN TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.78 Å
Radius of gyration Rg (electron density) rg_electron	27.61 Å
Forward intensity I(0) i0	36565200.00
Molecular weight molecular_weight	48186.0 kDa
Excluded volume excluded_volume	60893 Å³
Envelope volume envelope_volume	73802 Å³
Hydration-shell volume shell_volume	24086 Å³
Envelope diameter envelope_diameter	100.5 Å
Shell Rg shell_rg	32.48 Å
Envelope Rg envelope_rg	27.75 Å
Shape Rg shape_rg	27.61 Å
Total Rg total_rg	28.10 Å
Total atoms total_atoms	3391
Residues n_residues	445
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	96.6 Å
Rg (real space) rg_real	28.13 Å
Rg uncertainty (real space) rg_real_error	0.92 Å
I(0) (real space) i0_real	3.6570e+07
I(0) uncertainty (real space) i0_real_error	6.1870e+05
Rg (reciprocal space) rg_reciprocal	28.02 Å
I(0) (reciprocal space) i0_reciprocal	36560000.0000
Solution quality estimate total_estimate	0.6151
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	23.7 Å
Skewness Skewness skewness	0.564
Kurtosis Kurtosis kurtosis	-0.324
Angular range angular_range	— – 0.2850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	16810000.0000
Real-space data points n_real_points	58
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.653; Stabil: 1.000; Sysdev: 0.177; Positv: 1.000; Valcen: 0.622; Smooth: 0.882

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Importin subunit alpha-1
Molecular weight formula_weight	46386.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C
Atom count atom_count	3554

NQGTVNWSVEDIVKGINSNNLESQLQATQAARKLLSREKQPPIDNIIRAGLIPKFVSFLGKTDCSPIQFESAWALTNIASGTSEQTKAVVDGGAIPAFISLLASPHAHISEQAVWALGNIAGDGSAFRDLVIKHGAIDPLLALLAVPDLSTLACGYLRNLTWTLSNLCRNKNPAPPLDAVEQILPTLVRLLHHNDPEVLADSCWAISYLTDGPNERIEMVVKKGVVPQLVKLLGATELPIVTPALRAIGNIVTGTDEQTQKVIDAGALAVFPSLLTNPKTNIQKEATWTMSNITAGRQDQIQQVVNHGLVPFLVGVLSKADFKTQKEAAWAITNYTSGGTVEQIVYLVHCGIIEPLMNLLSAKDTKIIQVILDAISNIFQAAEKLGETEKLSIMIEECGGLDKIEALQRHENESVYKASLNLIEKYFS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	TAR DNA-binding protein 43
Molecular weight formula_weight	2741.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

KDNKRKMDETDASSAVKVKRAVQK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	163

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	7n9hC01
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

▶

8. Citations (1)

▶

Unit-cell length a length_a	78.373 Å
Unit-cell length b length_b	91.306 Å
Unit-cell length c length_c	97.890 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	14.970 Å
R factor r_factor	0.1910
R_work r_work	0.1896
R_free r_free	0.2151

fit	/app/data/saxs_computation/n9/7n9h/7n9h.fit
pddf	/app/data/pr_computation/n9/7n9h/7n9h.pr.out
profile	/app/data/saxs_computation/n9/7n9h/7n9h.dat

Structure of the mammalian importin a1 bound to the TDP-43 NLS

1. Protein Identity and Related Structures Protein Identity & Related Structures

Importin subunit alpha-1

State in the Current Structure

Other States of the Same Protein in the Database

TAR DNA-binding protein 43

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 water

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
