SAXSdb — 7siz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Voltage-gated potassium channel subunit beta-2

Rattus norvegicus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Voltage gated potassium channel Kv1.2-Kv2.1 × 4 NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 POTASSIUM ION × 24 water × 4	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 8	Voltage gated potassium channel Kv1.2-Kv2.1 × 4 NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 POTASSIUM ION × 24 water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KCAB2_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–333； UniProt 36–367 Author chain C； PDBConstruct 2–333； UniProt 36–367

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7siz
Deposition date deposition_date	2021-10-15
Structure title title	C-type inactivation in a voltage gated K+ channel
Keywords keywords	Voltage gated ion channel, C- type inactivation, Beta subunit, TRANSPORT PROTEIN, OXIDOREDUCTASE; TRANSPORT PROTEIN, OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7siz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7siz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

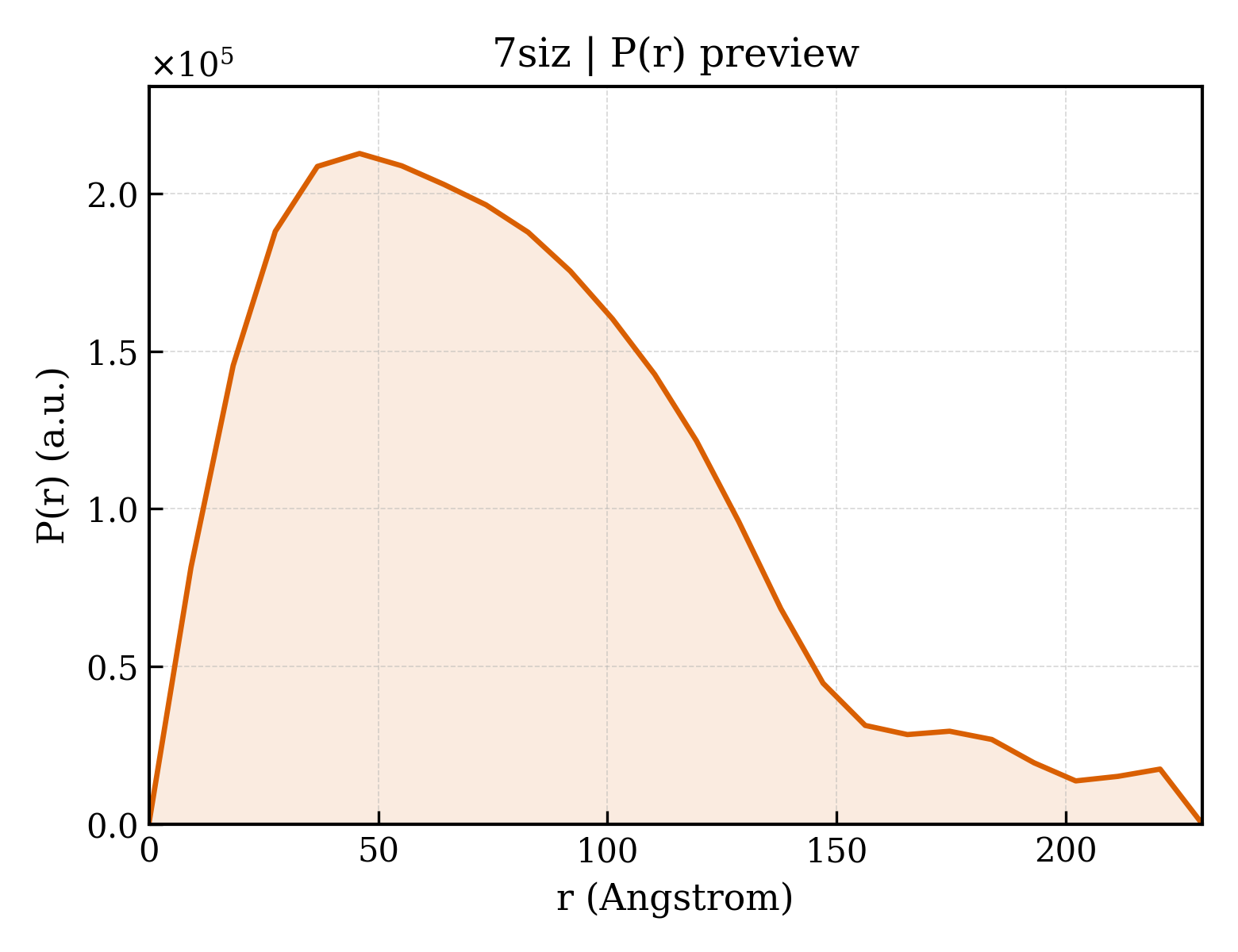

7siz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	52.13 Å
Rg (electron density)	52.64 Å
Total Rg	52.84 Å
Atom count	21330
Residues	2640
Excluded volume	384420 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7siz__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`7siz__assembly_2__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Voltage-gated potassium channel subunit beta-2
Molecular weight formula_weight	37353.1 kDa
EC 编号 ec_number	1.1.1.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	10688

MLQFYRNLGKSGLRVSCLGLGTWVTFGGQITDEMAEHLMTLAYDNGINLFDTAEVYAAGKAEVVLGNIIKKKGWRRSSLVITTKIFWGGKAETERGLSRKHIIEGLKASLERLQLEYVDVVFANRPDPNTPMEETVRAMTHVINQGMAMYWGTSRWSSMEIMEAYSVARQFNLIPPICEQAEYHMFQREKVEVQLPELFHKIGVGAMTWSPLACGIVSGKYDSGIPPYSRASLKGYQWLKDKILSEEGRRQQAKLKELQAIAERLGCTLPQLAIAWCLRNEGVSSVLLGASNAEQLMENIGAIQVLPKLSSSIVHEIDSILGNKPYSKKDYRS

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Komagataella pastoris

Entity 2 Entity 2 polymer

Description description	Voltage gated potassium channel Kv1.2-Kv2.1
Molecular weight formula_weight	58821.6 kDa
Mutation mutation	L15H, C31S, C32S, N207Q, W362F, S367T, C435S, C482S
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MAHHHHHHHHHHGLVPRGSMTVATGDPVDEAAAHPGHPQDTYDPEADHESSERVVINISGLRFETQLKTLAQFPETLLGDPKKRMRYFDPLRNEYFFDRNRPSFDAILYYYQSGGRLRRPVNVPLDIFSEEIRFYELGEEAMEMFREDEGYIKEEERPLPENEFQRQVWLLFEYPESSGPARIIAIVSVMVILISIVSFCLETLPIFRDENEDMHGGGVTFHTYSQSTIGYQQSTSFTDPFFIVETLCIIWFSFEFLVRFFACPSKAGFFTNIMNIIDIVAIIPYYVTIFLTESNKSVLQFQNVRRVVQIFRIMRILRIFKLSRHSKGLQILGQTLKASMRELGLLIFFLFIGVILFSSAVYFAEADERDSQFPSIPDAFFWAVVTMTTVGYGDMVPTTIGGKIVGSLCAIAGVLTIALPVPVIVSNFNYFYHRETEGEEQAQYLQVTSSPKIPSSPDLKKSRSASTISKSDYMEIQEGVNNSNEDFREENLKTANSTLANTNYVNITKMLTDV

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Komagataella pastoris

Entity 3 Entity 3 non-polymer

Description description	NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
Molecular weight formula_weight	743.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	38

▶

Unit-cell length a length_a	130.732 Å
Unit-cell length b length_b	130.732 Å
Unit-cell length c length_c	278.858 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 4 21 2
Space-group number int_tables_number	90
Crystal system crystal_system	tetragonal

Resolution resolution	3.100 Å
Low-resolution limit resolution_low	47.750 Å
R factor r_factor	0.2371
R_work r_work	0.2356
R_free r_free	0.2648

C-type inactivation in a voltage gated K+ channel
