1. Protein Identity and Related Structures Protein Identity & Related Structures

Voltage-gated potassium channel subunit beta-2

Rattus norvegicus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain A； UniProt 36–367	Not recorded	Paddle chimera voltage gated potassium channel Kv1.2-Kv2.1 × 4 NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 16 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 64	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；peg 400, potassium chloride, tris buffer, EDTA, DTT, TCEP, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.40 Å R-free 0.244
2	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain G； UniProt 36–367	Not recorded	Paddle chimera voltage gated potassium channel Kv1.2-Kv2.1 × 4 NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 16 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；peg 400, potassium chloride, tris buffer, EDTA, DTT, TCEP, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.40 Å R-free 0.244
3	Protein heterocomplex Heteromer Protein × 16 PDB declaration: hexadecameric（16） Consistent with protein copy count	Chain A； UniProt 36–367 Chain G； UniProt 36–367	Not recorded	Paddle chimera voltage gated potassium channel Kv1.2-Kv2.1 × 8 NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 8 K POTASSIUM ION × 32 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 68	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；peg 400, potassium chloride, tris buffer, EDTA, DTT, TCEP, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.40 Å R-free 0.244
4	Protein homooligomer Homooligomer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 36–367	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；peg 400, potassium chloride, tris buffer, EDTA, DTT, TCEP, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.40 Å R-free 0.244
6	Protein homooligomer Homooligomer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain G； UniProt 36–367	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；peg 400, potassium chloride, tris buffer, EDTA, DTT, TCEP, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.40 Å R-free 0.244

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2R9R	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1EXB STRUCTURE OF THE CYTOPLASMIC BETA SUBUNIT-T1 ASSEMBLY OF VOLTAGE-DEPENDENT K CHANNELS Deposited 2000-05-02	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 36–367（332 aa） Fragment：BETA SUBUNIT, RESIDUES 36-367	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.6；277 K；Peg 4000, glycine, pH 8.6, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.10 Å R-free 0.227
1QRQ STRUCTURE OF A VOLTAGE-DEPENDENT K+ CHANNEL BETA SUBUNIT Deposited 1999-06-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 36–360（325 aa） Fragment：BETA SUBUNIT CORE Chain B 36–360（325 aa） Fragment：BETA SUBUNIT CORE Chain C 36–360（325 aa） Fragment：BETA SUBUNIT CORE Chain D 36–360（325 aa） Fragment：BETA SUBUNIT CORE	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.50	Resolution 2.80 Å R-free 0.242
1QRQ STRUCTURE OF A VOLTAGE-DEPENDENT K+ CHANNEL BETA SUBUNIT Deposited 1999-06-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 36–360（325 aa） Fragment：BETA SUBUNIT CORE Chain B 36–360（325 aa） Fragment：BETA SUBUNIT CORE Chain C 36–360（325 aa） Fragment：BETA SUBUNIT CORE Chain D 36–360（325 aa） Fragment：BETA SUBUNIT CORE	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.50	Resolution 2.80 Å R-free 0.242
2A79 Mammalian Shaker Kv1.2 potassium channel- beta subunit complex Deposited 2005-07-05	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain A 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 24	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；peg 400, potassium chloride, tris buffer, EDTA, DTT, TCEP, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.252
3EAU Voltage-dependent K+ channel beta subunit in complex with cortisone Deposited 2008-08-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 36–361（326 aa） Fragment：cytoplasmic Kvbeta subunit	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 PDN 17,21-DIHYDROXYPREGNA-1,4-DIENE-3,11,20-TRIONE × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；6-15% glycerol, 1.5 M ammonium sulfate, 0.1 M Tris, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.82 Å R-free 0.206
3EB3 Voltage-dependent K+ channel beta subunit (W121A) in complex with cortisone Deposited 2008-08-26	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 36–361（326 aa） Fragment：cytoplasmic Kvbeta subunit	Mutation：W121A	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 PDN 17,21-DIHYDROXYPREGNA-1,4-DIENE-3,11,20-TRIONE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；6-15% glycerol, 1.5 M ammonium sulfate, 0.1 M Tris, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.00 Å R-free 0.249
3EB4 Voltage-dependent K+ channel beta subunit (I211R) in complex with cortisone Deposited 2008-08-26	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 36–361（326 aa） Fragment：cytoplasmic Kvbeta subunit	Mutation：I211R	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 PDN 17,21-DIHYDROXYPREGNA-1,4-DIENE-3,11,20-TRIONE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；6-15% glycerol, 1.5 M ammonium sulfate, 0.1 M Tris, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.00 Å R-free 0.256
3LNM F233W mutant of the Kv2.1 paddle-Kv1.2 chimera channel Deposited 2010-02-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain A 36–367（332 aa） Fragment：subunit beta-2 core	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 4 K POTASSIUM ION × 20	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；25-28% PEG 400, 50mM Tris-HCl, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.247
3LNM F233W mutant of the Kv2.1 paddle-Kv1.2 chimera channel Deposited 2010-02-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain C 36–367（332 aa） Fragment：subunit beta-2 core	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 48 K POTASSIUM ION × 20	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；25-28% PEG 400, 50mM Tris-HCl, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.247
3LUT A Structural Model for the Full-length Shaker Potassium Channel Kv1.2 Deposited 2010-02-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–367（367 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 24	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.90 Å R-free 0.221
4JTA Crystal structure of Kv1.2-2.1 paddle chimera channel in complex with Charybdotoxin Deposited 2013-03-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain A 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 12 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 64	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；PEG 400, POTASSIUM CHLORIDE, TRIS , pH 8.9, vapor diffusion, hanging drop, temperature 293K	Resolution 2.50 Å R-free 0.236
4JTA Crystal structure of Kv1.2-2.1 paddle chimera channel in complex with Charybdotoxin Deposited 2013-03-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain P 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 12 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；PEG 400, POTASSIUM CHLORIDE, TRIS , pH 8.9, vapor diffusion, hanging drop, temperature 293K	Resolution 2.50 Å R-free 0.236
4JTC Crystal structure of Kv1.2-2.1 paddle chimera channel in complex with Charybdotoxin in Cs+ Deposited 2013-03-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain A 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 CS CESIUM ION × 16 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 64	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；PEG 400, Cesium CHLORIDE, TRIS BUFFER, pH 8.9, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.56 Å R-free 0.262
4JTC Crystal structure of Kv1.2-2.1 paddle chimera channel in complex with Charybdotoxin in Cs+ Deposited 2013-03-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain G 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 CS CESIUM ION × 16 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；PEG 400, Cesium CHLORIDE, TRIS BUFFER, pH 8.9, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.56 Å R-free 0.262
4JTD Crystal structure of Kv1.2-2.1 paddle chimera channel in complex with Lys27Met mutant of Charybdotoxin Deposited 2013-03-23	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain A 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 16 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 64	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；PEG 400, POTASSIUM CHLORIDE, TRIS , pH 8.9, vapor diffusion, hanging drop, temperature 293K	Resolution 2.54 Å R-free 0.235
4JTD Crystal structure of Kv1.2-2.1 paddle chimera channel in complex with Lys27Met mutant of Charybdotoxin Deposited 2013-03-23	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain G 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 16 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；PEG 400, POTASSIUM CHLORIDE, TRIS , pH 8.9, vapor diffusion, hanging drop, temperature 293K	Resolution 2.54 Å R-free 0.235
5WIE Crystal structure of a Kv1.2-2.1 chimera K+ channel V406W mutant in an inactivated state Deposited 2017-07-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain A 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 20 K POTASSIUM ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；293 K；50 mM Tris-Cl pH 8.3, 29-31% PEG400	Resolution 3.30 Å R-free 0.243
5WIE Crystal structure of a Kv1.2-2.1 chimera K+ channel V406W mutant in an inactivated state Deposited 2017-07-19	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain G 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 4 K POTASSIUM ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；293 K；50 mM Tris-Cl pH 8.3, 29-31% PEG400	Resolution 3.30 Å R-free 0.243
6CI1 The Structure of Full-Length Kv Beta 2.1 Determined by Cryogenic Electron Microscopy Deposited 2018-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 36–361（326 aa） Chain B 36–361（326 aa） Chain C 36–361（326 aa） Chain D 36–361（326 aa） Chain E 36–361（326 aa） Chain F 36–361（326 aa） Chain G 36–361（326 aa） Chain H 36–361（326 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.90 Å
6EBK The voltage-activated Kv1.2-2.1 paddle chimera channel in lipid nanodiscs Deposited 2018-08-06	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain A 37–367（331 aa） Chain C 37–367（331 aa） Chain E 37–367（331 aa） Chain G 37–367（331 aa）	Mutation：cytosolic domain (UNP residues 37-367) Mutation：cytosolic domain (UNP residues 37-367) Mutation：cytosolic domain (UNP residues 37-367) Mutation：cytosolic domain (UNP residues 37-367)	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；A 3 microliter sample was applied to a plasma-cleaned grid and blotted for 10 seconds.	Resolution 3.30 Å
6EBL The voltage-activated Kv1.2-2.1 paddle chimera channel in lipid nanodiscs, cytosolic domain Deposited 2018-08-06	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain A 37–367（331 aa） Chain C 37–367（331 aa） Chain E 37–367（331 aa） Chain G 37–367（331 aa）	Mutation：cytosolic domain (UNP residues 37-367) Mutation：cytosolic domain (UNP residues 37-367) Mutation：cytosolic domain (UNP residues 37-367) Mutation：cytosolic domain (UNP residues 37-367)	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；A 3 microliter sample was applied to a plasma-cleaned grid and blotted for 10 seconds.	Resolution 3.00 Å
7SIT Crystal structure of Voltage gated potassium ion channel, Kv 1.2 chimera-3m Deposited 2021-10-14	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 8 O OXYGEN ATOM × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；50 mM Tris, pH 8.5, 28-32% PEG400, CHAPS	Resolution 3.32 Å R-free 0.289
7SIT Crystal structure of Voltage gated potassium ion channel, Kv 1.2 chimera-3m Deposited 2021-10-14	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；50 mM Tris, pH 8.5, 28-32% PEG400, CHAPS	Resolution 3.32 Å R-free 0.289
7SIZ C-type inactivation in a voltage gated K+ channel Deposited 2021-10-15	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 24	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.6；293 K；50 mM Tris, pH 8.6, 28-30% PEG400, 8 mM CHAPS	Resolution 3.10 Å R-free 0.265
7SIZ C-type inactivation in a voltage gated K+ channel Deposited 2021-10-15	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 24	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.6；293 K；50 mM Tris, pH 8.6, 28-30% PEG400, 8 mM CHAPS	Resolution 3.10 Å R-free 0.265

17 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	KCAB2_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–333； UniProt 36–367 Author chain G； PDBConstruct 2–333； UniProt 36–367

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2r9r
Deposition date deposition_date	2007-09-13
Structure title title	Shaker family voltage dependent potassium channel (kv1.2-kv2.1 paddle chimera channel) in association with beta subunit
Keywords keywords	;POTASSIUM CHANNEL, VOLTAGE SENSOR, VOLTAGE DEPENDENT, ION CHANNEL, SHAKER, MEMBRANE PROTEIN, EUKARYOTIC, KV1.2, KV2.1, PADDLE CHIMERA CHANNEL, Ion transport, Ionic channel, NADP, Phosphorylation, Potassium transport, Transport, Voltage-gated channel, PROTEIN TRANSPORT, TRANSPORT PROTEIN ;; MEMBRANE PROTEIN, TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	84.43 Å
Radius of gyration Rg (electron density) rg_electron	86.99 Å
Forward intensity I(0) i0	337049000.00
Molecular weight molecular_weight	163320.0 kDa
Excluded volume excluded_volume	208190 Å³
Envelope volume envelope_volume	381510 Å³
Hydration-shell volume shell_volume	45701 Å³
Envelope diameter envelope_diameter	296.5 Å
Shell Rg shell_rg	54.96 Å
Envelope Rg envelope_rg	86.70 Å
Shape Rg shape_rg	87.00 Å
Total Rg total_rg	86.17 Å
Total atoms total_atoms	11495
Residues n_residues	1401
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

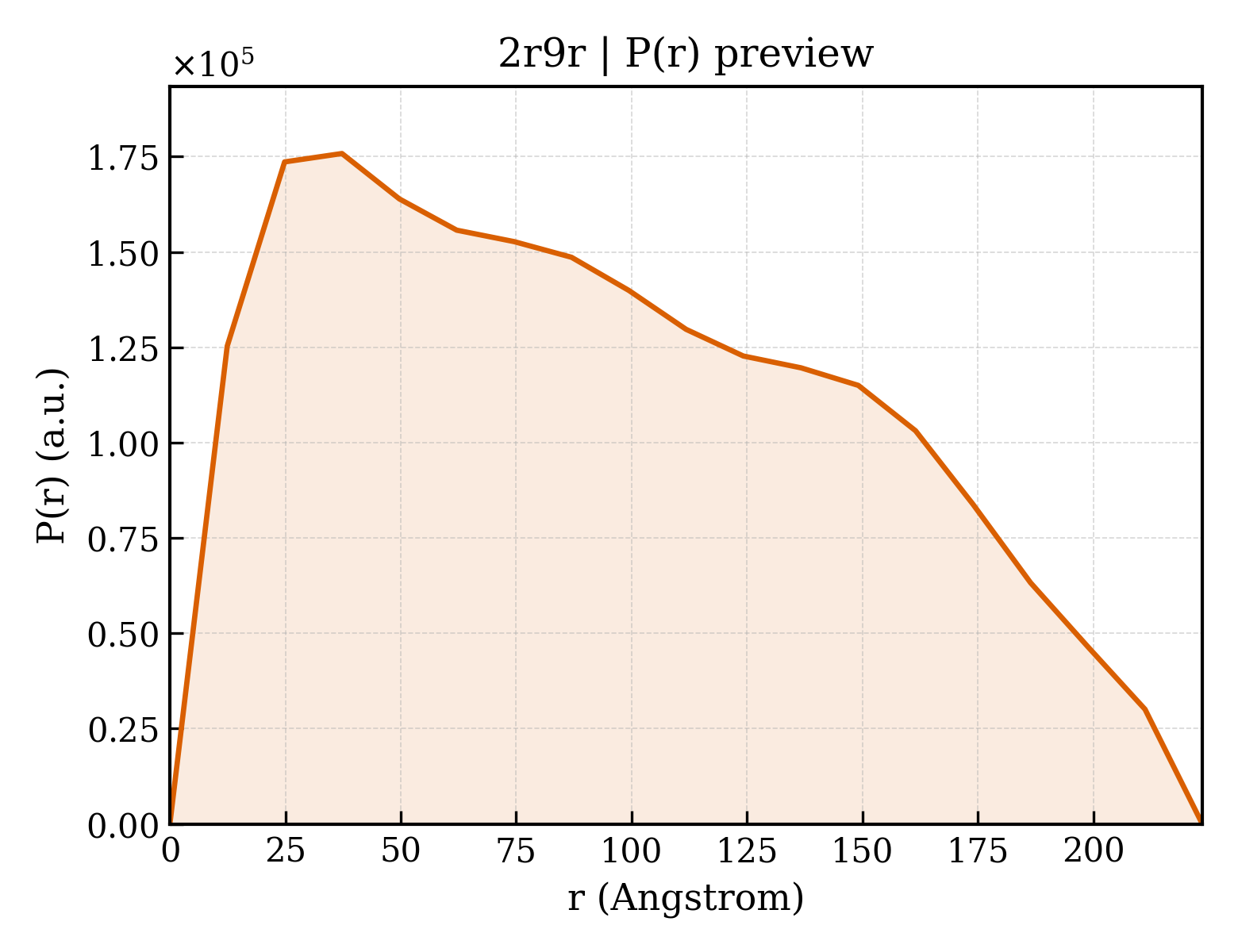

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	223.6 Å
Rg (real space) rg_real	75.94 Å
Rg uncertainty (real space) rg_real_error	1.46 Å
I(0) (real space) i0_real	3.2000e+08
I(0) uncertainty (real space) i0_real_error	7.4240e+06
Rg (reciprocal space) rg_reciprocal	77.01 Å
I(0) (reciprocal space) i0_reciprocal	330200000.0000
Solution quality estimate total_estimate	0.7417
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	37.3 Å
Skewness Skewness skewness	0.315
Kurtosis Kurtosis kurtosis	-0.951
Angular range angular_range	— – 0.0900 Å⁻¹
Current regularization parameter α current_alpha	0.3565
Highest regularization parameter α highest_alpha	8845000.0000
Real-space data points n_real_points	19
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.002; Oscil: 0.534; Stabil: 0.978; Sysdev: 1.000; Positv: 1.000; Valcen: 0.400; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Voltage-gated potassium channel subunit beta-2
Molecular weight formula_weight	37353.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,G
Atom count atom_count	11814

MLQFYRNLGKSGLRVSCLGLGTWVTFGGQITDEMAEHLMTLAYDNGINLFDTAEVYAAGKAEVVLGNIIKKKGWRRSSLVITTKIFWGGKAETERGLSRKHIIEGLKASLERLQLEYVDVVFANRPDPNTPMEETVRAMTHVINQGMAMYWGTSRWSSMEIMEAYSVARQFNLIPPICEQAEYHMFQREKVEVQLPELFHKIGVGAMTWSPLACGIVSGKYDSGIPPYSRASLKGYQWLKDKILSEEGRRQQAKLKELQAIAERLGCTLPQLAIAWCLRNEGVSSVLLGASNAEQLMENIGAIQVLPKLSSSIVHEIDSILGNKPYSKKDYRS

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Norway rat
NCBI Class编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Pichia pastoris

Entity 2 Entity 2 polymer

Description description	Paddle chimera voltage gated potassium channel Kv1.2-Kv2.1
Molecular weight formula_weight	58821.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,H

MAHHHHHHHHHHGLVPRGSMTVATGDPVDEAAALPGHPQDTYDPEADHESSERVVINISGLRFETQLKTLAQFPETLLGDPKKRMRYFDPLRNEYFFDRNRPSFDAILYYYQSGGRLRRPVNVPLDIFSEEIRFYELGEEAMEMFREDEGYIKEEERPLPENEFQRQVWLLFEYPESSGPARIIAIVSVMVILISIVSFCLETLPIFRDENEDMHGGGVTFHTYSQSTIGYQQSTSFTDPFFIVETLCIIWFSFEFLVRFFACPSKAGFFTNIMNIIDIVAIIPYYVTIFLTESNKSVLQFQNVRRVVQIFRIMRILRIFKLSRHSKGLQILGQTLKASMRELGLLIFFLFIGVILFSSAVYFAEADERDSQFPSIPDAFWWAVVSMTTVGYGDMVPTTIGGKIVGSLCAIAGVLTIALPVPVIVSNFNYFYHRETEGEEQAQYLQVTSSPKIPSSPDLKKSRSASTISKSDYMEIQEGVNNSNEDFREENLKTANSTLANTNYVNITKMLTDV

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Norway rat
NCBI Class编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Pichia pastoris

Entity 3 Entity 3 non-polymer

Description description	NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
Molecular weight formula_weight	743.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 5 Entity 5 non-polymer

Description description	(1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate
Molecular weight formula_weight	749.0 kDa
Source method src_method	syn
Copy count entity_count	17

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	319

▼

7. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2r9ra_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.7 — NAD(P)-linked oxidoreductase
Family Family family	c.1.7.1 — Aldo-keto reductases (NADP)

Domain ID domain_id	d2r9rg_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.7 — NAD(P)-linked oxidoreductase
Family Family family	c.1.7.1 — Aldo-keto reductases (NADP)

CATH v4.4 (8 domains)

Domain ID domain_id	2r9rA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	100 — NADP-dependent oxidoreductase domain

Domain ID domain_id	2r9rB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	710 — Potassium Channel Kv1.1; Chain A
Homologous superfamily homologous superfamily	10 — Potassium Channel Kv1.1; Chain A

Domain ID domain_id	2r9rB02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	350 — Voltage-gated potassium channels. Chain C

Domain ID domain_id	2r9rB03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	2r9rG00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	100 — NADP-dependent oxidoreductase domain

Domain ID domain_id	2r9rH01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	710 — Potassium Channel Kv1.1; Chain A
Homologous superfamily homologous superfamily	10 — Potassium Channel Kv1.1; Chain A

Domain ID domain_id	2r9rH02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	350 — Voltage-gated potassium channels. Chain C

Domain ID domain_id	2r9rH03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	70 —

▶

8. Citations (2)

▶

Unit-cell length a length_a	144.049 Å
Unit-cell length b length_b	144.049 Å
Unit-cell length c length_c	284.397 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 4 21 2
Space-group number int_tables_number	90
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	49.660 Å
R factor r_factor	0.2120
R_work r_work	0.2120
R_free r_free	0.2440

fit	/app/data/saxs_computation/r9/2r9r/2r9r.fit
pddf	/app/data/pr_computation/r9/2r9r/2r9r.pr.out
profile	/app/data/saxs_computation/r9/2r9r/2r9r.dat

Shaker family voltage dependent potassium channel (kv1.2-kv2.1 paddle chimera channel) in association with beta subunit
