The voltage-activated Kv1.2-2.1 paddle chimera channel in lipid nanodiscs, cytosolic domain

Method: ELECTRON MICROSCOPY D_max: 118.9 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Voltage-gated potassium channel subunit beta-2

Rattus norvegicus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain A； UniProt 37–367 Chain C； UniProt 37–367 Chain E； UniProt 37–367 Chain G； UniProt 37–367	Mutation：cytosolic domain (UNP residues 37-367)	Potassium voltage-gated channel subfamily A member 2,Potassium voltage-gated channel subfamily B member 2 chimera × 4 （P63142,Q63099） NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；A 3 microliter sample was applied to a plasma-cleaned grid and blotted for 10 seconds.	Resolution 3.00 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6EBL	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1EXB STRUCTURE OF THE CYTOPLASMIC BETA SUBUNIT-T1 ASSEMBLY OF VOLTAGE-DEPENDENT K CHANNELS Deposited 2000-05-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 36–367（332 aa） Fragment：BETA SUBUNIT, RESIDUES 36-367	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.6；277 K；Peg 4000, glycine, pH 8.6, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.10 Å R-free 0.227
1QRQ STRUCTURE OF A VOLTAGE-DEPENDENT K+ CHANNEL BETA SUBUNIT Deposited 1999-06-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 36–360（325 aa） Fragment：BETA SUBUNIT CORE Chain B 36–360（325 aa） Fragment：BETA SUBUNIT CORE Chain C 36–360（325 aa） Fragment：BETA SUBUNIT CORE Chain D 36–360（325 aa） Fragment：BETA SUBUNIT CORE	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.50	Resolution 2.80 Å R-free 0.242
1QRQ STRUCTURE OF A VOLTAGE-DEPENDENT K+ CHANNEL BETA SUBUNIT Deposited 1999-06-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 36–360（325 aa） Fragment：BETA SUBUNIT CORE Chain B 36–360（325 aa） Fragment：BETA SUBUNIT CORE Chain C 36–360（325 aa） Fragment：BETA SUBUNIT CORE Chain D 36–360（325 aa） Fragment：BETA SUBUNIT CORE	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.50	Resolution 2.80 Å R-free 0.242
2A79 Mammalian Shaker Kv1.2 potassium channel- beta subunit complex Deposited 2005-07-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain A 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 24	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；peg 400, potassium chloride, tris buffer, EDTA, DTT, TCEP, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.252
2R9R Shaker family voltage dependent potassium channel (kv1.2-kv2.1 paddle chimera channel) in association with beta subunit Deposited 2007-09-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 16 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 64	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；peg 400, potassium chloride, tris buffer, EDTA, DTT, TCEP, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.40 Å R-free 0.244
2R9R Shaker family voltage dependent potassium channel (kv1.2-kv2.1 paddle chimera channel) in association with beta subunit Deposited 2007-09-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain G 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 16 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；peg 400, potassium chloride, tris buffer, EDTA, DTT, TCEP, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.40 Å R-free 0.244
2R9R Shaker family voltage dependent potassium channel (kv1.2-kv2.1 paddle chimera channel) in association with beta subunit Deposited 2007-09-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain A 36–367（332 aa） Chain G 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 8 K POTASSIUM ION × 32 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 68	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；peg 400, potassium chloride, tris buffer, EDTA, DTT, TCEP, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.40 Å R-free 0.244
2R9R Shaker family voltage dependent potassium channel (kv1.2-kv2.1 paddle chimera channel) in association with beta subunit Deposited 2007-09-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；peg 400, potassium chloride, tris buffer, EDTA, DTT, TCEP, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.40 Å R-free 0.244
2R9R Shaker family voltage dependent potassium channel (kv1.2-kv2.1 paddle chimera channel) in association with beta subunit Deposited 2007-09-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 6 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain G 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；peg 400, potassium chloride, tris buffer, EDTA, DTT, TCEP, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.40 Å R-free 0.244
3EAU Voltage-dependent K+ channel beta subunit in complex with cortisone Deposited 2008-08-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 36–361（326 aa） Fragment：cytoplasmic Kvbeta subunit	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 PDN 17,21-DIHYDROXYPREGNA-1,4-DIENE-3,11,20-TRIONE × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；6-15% glycerol, 1.5 M ammonium sulfate, 0.1 M Tris, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.82 Å R-free 0.206
3EB3 Voltage-dependent K+ channel beta subunit (W121A) in complex with cortisone Deposited 2008-08-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 36–361（326 aa） Fragment：cytoplasmic Kvbeta subunit	Mutation：W121A	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 PDN 17,21-DIHYDROXYPREGNA-1,4-DIENE-3,11,20-TRIONE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；6-15% glycerol, 1.5 M ammonium sulfate, 0.1 M Tris, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.00 Å R-free 0.249
3EB4 Voltage-dependent K+ channel beta subunit (I211R) in complex with cortisone Deposited 2008-08-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 36–361（326 aa） Fragment：cytoplasmic Kvbeta subunit	Mutation：I211R	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 PDN 17,21-DIHYDROXYPREGNA-1,4-DIENE-3,11,20-TRIONE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；6-15% glycerol, 1.5 M ammonium sulfate, 0.1 M Tris, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.00 Å R-free 0.256
3LNM F233W mutant of the Kv2.1 paddle-Kv1.2 chimera channel Deposited 2010-02-02	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain A 36–367（332 aa） Fragment：subunit beta-2 core	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 4 K POTASSIUM ION × 20	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；25-28% PEG 400, 50mM Tris-HCl, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.247
3LNM F233W mutant of the Kv2.1 paddle-Kv1.2 chimera channel Deposited 2010-02-02	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain C 36–367（332 aa） Fragment：subunit beta-2 core	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 48 K POTASSIUM ION × 20	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；25-28% PEG 400, 50mM Tris-HCl, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.247
3LUT A Structural Model for the Full-length Shaker Potassium Channel Kv1.2 Deposited 2010-02-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–367（367 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 24	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.90 Å R-free 0.221
4JTA Crystal structure of Kv1.2-2.1 paddle chimera channel in complex with Charybdotoxin Deposited 2013-03-23	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain A 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 12 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 64	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；PEG 400, POTASSIUM CHLORIDE, TRIS , pH 8.9, vapor diffusion, hanging drop, temperature 293K	Resolution 2.50 Å R-free 0.236
4JTA Crystal structure of Kv1.2-2.1 paddle chimera channel in complex with Charybdotoxin Deposited 2013-03-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain P 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 12 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；PEG 400, POTASSIUM CHLORIDE, TRIS , pH 8.9, vapor diffusion, hanging drop, temperature 293K	Resolution 2.50 Å R-free 0.236
4JTC Crystal structure of Kv1.2-2.1 paddle chimera channel in complex with Charybdotoxin in Cs+ Deposited 2013-03-23	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain A 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 CS CESIUM ION × 16 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 64	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；PEG 400, Cesium CHLORIDE, TRIS BUFFER, pH 8.9, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.56 Å R-free 0.262
4JTC Crystal structure of Kv1.2-2.1 paddle chimera channel in complex with Charybdotoxin in Cs+ Deposited 2013-03-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain G 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 CS CESIUM ION × 16 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；PEG 400, Cesium CHLORIDE, TRIS BUFFER, pH 8.9, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.56 Å R-free 0.262
4JTD Crystal structure of Kv1.2-2.1 paddle chimera channel in complex with Lys27Met mutant of Charybdotoxin Deposited 2013-03-23	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain A 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 16 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 64	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；PEG 400, POTASSIUM CHLORIDE, TRIS , pH 8.9, vapor diffusion, hanging drop, temperature 293K	Resolution 2.54 Å R-free 0.235
4JTD Crystal structure of Kv1.2-2.1 paddle chimera channel in complex with Lys27Met mutant of Charybdotoxin Deposited 2013-03-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain G 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 16 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；PEG 400, POTASSIUM CHLORIDE, TRIS , pH 8.9, vapor diffusion, hanging drop, temperature 293K	Resolution 2.54 Å R-free 0.235
5WIE Crystal structure of a Kv1.2-2.1 chimera K+ channel V406W mutant in an inactivated state Deposited 2017-07-19	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain A 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 20 K POTASSIUM ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；293 K；50 mM Tris-Cl pH 8.3, 29-31% PEG400	Resolution 3.30 Å R-free 0.243
5WIE Crystal structure of a Kv1.2-2.1 chimera K+ channel V406W mutant in an inactivated state Deposited 2017-07-19	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain G 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 4 K POTASSIUM ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；293 K；50 mM Tris-Cl pH 8.3, 29-31% PEG400	Resolution 3.30 Å R-free 0.243
6CI1 The Structure of Full-Length Kv Beta 2.1 Determined by Cryogenic Electron Microscopy Deposited 2018-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 36–361（326 aa） Chain B 36–361（326 aa） Chain C 36–361（326 aa） Chain D 36–361（326 aa） Chain E 36–361（326 aa） Chain F 36–361（326 aa） Chain G 36–361（326 aa） Chain H 36–361（326 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.90 Å
6EBK The voltage-activated Kv1.2-2.1 paddle chimera channel in lipid nanodiscs Deposited 2018-08-06	Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain A 37–367（331 aa） Chain C 37–367（331 aa） Chain E 37–367（331 aa） Chain G 37–367（331 aa）	Mutation：cytosolic domain (UNP residues 37-367) Mutation：cytosolic domain (UNP residues 37-367) Mutation：cytosolic domain (UNP residues 37-367) Mutation：cytosolic domain (UNP residues 37-367)	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；A 3 microliter sample was applied to a plasma-cleaned grid and blotted for 10 seconds.	Resolution 3.30 Å
7SIT Crystal structure of Voltage gated potassium ion channel, Kv 1.2 chimera-3m Deposited 2021-10-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 8 O OXYGEN ATOM × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；50 mM Tris, pH 8.5, 28-32% PEG400, CHAPS	Resolution 3.32 Å R-free 0.289
7SIT Crystal structure of Voltage gated potassium ion channel, Kv 1.2 chimera-3m Deposited 2021-10-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；50 mM Tris, pH 8.5, 28-32% PEG400, CHAPS	Resolution 3.32 Å R-free 0.289
7SIZ C-type inactivation in a voltage gated K+ channel Deposited 2021-10-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 24	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.6；293 K；50 mM Tris, pH 8.6, 28-30% PEG400, 8 mM CHAPS	Resolution 3.10 Å R-free 0.265
7SIZ C-type inactivation in a voltage gated K+ channel Deposited 2021-10-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 36–367（332 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 24	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.6；293 K；50 mM Tris, pH 8.6, 28-30% PEG400, 8 mM CHAPS	Resolution 3.10 Å R-free 0.265

17 other PDB entries and 29 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	KCAB2_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–333； UniProt 37–367 Author chain C； PDBConstruct 3–333； UniProt 37–367 Author chain E； PDBConstruct 3–333； UniProt 37–367 Author chain G； PDBConstruct 3–333； UniProt 37–367

Potassium voltage-gated channel subfamily A member 2,Potassium voltage-gated channel subfamily B member 2 chimera

Rattus norvegicus

UniProt P63142

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain B； UniProt 1–266 Chain B； UniProt 303–499 Chain D； UniProt 1–266 Chain D； UniProt 303–499 Chain F； UniProt 1–266 Chain F； UniProt 303–499 Chain H； UniProt 1–266 Chain H； UniProt 303–499	Not recorded	Voltage-gated potassium channel subunit beta-2 × 4 （P62483） NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；A 3 microliter sample was applied to a plasma-cleaned grid and blotted for 10 seconds.	Resolution 3.00 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 6EBL	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1DSX KV1.2 T1 DOMAIN, RESIDUES 33-119, T46V MUTANT Deposited 2000-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 33–119（87 aa） Fragment：N-TERMINAL ASSEMBLY DOMAIN, RESIDUES 33-119 Chain B 33–119（87 aa） Fragment：N-TERMINAL ASSEMBLY DOMAIN, RESIDUES 33-119 Chain C 33–119（87 aa） Fragment：N-TERMINAL ASSEMBLY DOMAIN, RESIDUES 33-119 Chain D 33–119（87 aa） Fragment：N-TERMINAL ASSEMBLY DOMAIN, RESIDUES 33-119	Mutation：YES Mutation：YES Mutation：YES Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；22% PEG 1500, 5 % ISOPROPANOL, 200 MM NA ACETATE, 12 MM SRCL2, 50 MM TRIS, PH 8.5, pH 8.50	Resolution 1.60 Å R-free 0.279
1DSX KV1.2 T1 DOMAIN, RESIDUES 33-119, T46V MUTANT Deposited 2000-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain E 33–119（87 aa） Fragment：N-TERMINAL ASSEMBLY DOMAIN, RESIDUES 33-119 Chain F 33–119（87 aa） Fragment：N-TERMINAL ASSEMBLY DOMAIN, RESIDUES 33-119 Chain G 33–119（87 aa） Fragment：N-TERMINAL ASSEMBLY DOMAIN, RESIDUES 33-119 Chain H 33–119（87 aa） Fragment：N-TERMINAL ASSEMBLY DOMAIN, RESIDUES 33-119	Mutation：YES Mutation：YES Mutation：YES Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；22% PEG 1500, 5 % ISOPROPANOL, 200 MM NA ACETATE, 12 MM SRCL2, 50 MM TRIS, PH 8.5, pH 8.50	Resolution 1.60 Å R-free 0.279
1QDV N-TERMINAL DOMAIN, VOLTAGE-GATED POTASSIUM CHANNEL KV1.2 RESIDUES 33-131 Deposited 1999-07-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 33–131（99 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 33-131 Chain B 33–131（99 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 33-131 Chain C 33–131（99 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 33-131 Chain D 33–131（99 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 33-131	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；19% PEG 4000, 100 MM NH4 ACETATE, 21% METHANOL, MES PH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.60 Å R-free 0.278
1QDW N-TERMINAL DOMAIN, VOLTAGE-GATED POTASSIUM CHANNEL KV1.2 RESIDUES 33-119 Deposited 1999-07-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 33–119（87 aa） Fragment：N-TERMINAL DOMAIN KV1.2, RESIDUES 33-119 (CORE) Chain B 33–119（87 aa） Fragment：N-TERMINAL DOMAIN KV1.2, RESIDUES 33-119 (CORE) Chain C 33–119（87 aa） Fragment：N-TERMINAL DOMAIN KV1.2, RESIDUES 33-119 (CORE) Chain D 33–119（87 aa） Fragment：N-TERMINAL DOMAIN KV1.2, RESIDUES 33-119 (CORE)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；9% PEG 1500, 5% N-PROPANOL, 120 MM GDHCL 50 MM MES PH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.10 Å R-free 0.266
1QDW N-TERMINAL DOMAIN, VOLTAGE-GATED POTASSIUM CHANNEL KV1.2 RESIDUES 33-119 Deposited 1999-07-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain E 33–119（87 aa） Fragment：N-TERMINAL DOMAIN KV1.2, RESIDUES 33-119 (CORE) Chain F 33–119（87 aa） Fragment：N-TERMINAL DOMAIN KV1.2, RESIDUES 33-119 (CORE) Chain G 33–119（87 aa） Fragment：N-TERMINAL DOMAIN KV1.2, RESIDUES 33-119 (CORE) Chain H 33–119（87 aa） Fragment：N-TERMINAL DOMAIN KV1.2, RESIDUES 33-119 (CORE)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；9% PEG 1500, 5% N-PROPANOL, 120 MM GDHCL 50 MM MES PH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.10 Å R-free 0.266
2A79 Mammalian Shaker Kv1.2 potassium channel- beta subunit complex Deposited 2005-07-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain B 1–499（499 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 24	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；peg 400, potassium chloride, tris buffer, EDTA, DTT, TCEP, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.252
3LNM F233W mutant of the Kv2.1 paddle-Kv1.2 chimera channel Deposited 2010-02-02	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain D 1–266（266 aa） Chain D 303–499（197 aa）	Mutation：C31S, C32S, N207Q, F233W, C431S, C478S Mutation：C31S, C32S, N207Q, F233W, C431S, C478S	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 4 K POTASSIUM ION × 20	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；25-28% PEG 400, 50mM Tris-HCl, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.247
3LNM F233W mutant of the Kv2.1 paddle-Kv1.2 chimera channel Deposited 2010-02-02	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–266（266 aa） Chain B 303–499（197 aa）	Mutation：C31S, C32S, N207Q, F233W, C431S, C478S Mutation：C31S, C32S, N207Q, F233W, C431S, C478S	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 48 K POTASSIUM ION × 20	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；25-28% PEG 400, 50mM Tris-HCl, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.247
3LUT A Structural Model for the Full-length Shaker Potassium Channel Kv1.2 Deposited 2010-02-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–499（499 aa）	Mutation：N207Q	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 24	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.90 Å R-free 0.221
4JTA Crystal structure of Kv1.2-2.1 paddle chimera channel in complex with Charybdotoxin Deposited 2013-03-23	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–266（266 aa） Chain B 304–499（196 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 12 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 64	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；PEG 400, POTASSIUM CHLORIDE, TRIS , pH 8.9, vapor diffusion, hanging drop, temperature 293K	Resolution 2.50 Å R-free 0.236
4JTA Crystal structure of Kv1.2-2.1 paddle chimera channel in complex with Charybdotoxin Deposited 2013-03-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain Q 1–266（266 aa） Chain Q 304–499（196 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 12 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；PEG 400, POTASSIUM CHLORIDE, TRIS , pH 8.9, vapor diffusion, hanging drop, temperature 293K	Resolution 2.50 Å R-free 0.236
4JTC Crystal structure of Kv1.2-2.1 paddle chimera channel in complex with Charybdotoxin in Cs+ Deposited 2013-03-23	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–266（266 aa） Chain B 304–499（196 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 CS CESIUM ION × 16 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 64	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；PEG 400, Cesium CHLORIDE, TRIS BUFFER, pH 8.9, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.56 Å R-free 0.262
4JTC Crystal structure of Kv1.2-2.1 paddle chimera channel in complex with Charybdotoxin in Cs+ Deposited 2013-03-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain H 1–266（266 aa） Chain H 304–499（196 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 CS CESIUM ION × 16 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；PEG 400, Cesium CHLORIDE, TRIS BUFFER, pH 8.9, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.56 Å R-free 0.262
4JTD Crystal structure of Kv1.2-2.1 paddle chimera channel in complex with Lys27Met mutant of Charybdotoxin Deposited 2013-03-23	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–266（266 aa） Chain B 304–499（196 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 16 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 64	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；PEG 400, POTASSIUM CHLORIDE, TRIS , pH 8.9, vapor diffusion, hanging drop, temperature 293K	Resolution 2.54 Å R-free 0.235
4JTD Crystal structure of Kv1.2-2.1 paddle chimera channel in complex with Lys27Met mutant of Charybdotoxin Deposited 2013-03-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain H 1–266（266 aa） Chain H 304–499（196 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 16 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；PEG 400, POTASSIUM CHLORIDE, TRIS , pH 8.9, vapor diffusion, hanging drop, temperature 293K	Resolution 2.54 Å R-free 0.235
5WIE Crystal structure of a Kv1.2-2.1 chimera K+ channel V406W mutant in an inactivated state Deposited 2017-07-19	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–42（42 aa）	Mutation：V406W	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 20 K POTASSIUM ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；293 K；50 mM Tris-Cl pH 8.3, 29-31% PEG400	Resolution 3.30 Å R-free 0.243
5WIE Crystal structure of a Kv1.2-2.1 chimera K+ channel V406W mutant in an inactivated state Deposited 2017-07-19	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain H 1–42（42 aa）	Mutation：V406W	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 4 K POTASSIUM ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；293 K；50 mM Tris-Cl pH 8.3, 29-31% PEG400	Resolution 3.30 Å R-free 0.243
6EBK The voltage-activated Kv1.2-2.1 paddle chimera channel in lipid nanodiscs Deposited 2018-08-06	Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–266（266 aa） Chain B 303–499（197 aa） Chain D 1–266（266 aa） Chain D 303–499（197 aa） Chain F 1–266（266 aa） Chain F 303–499（197 aa） Chain H 1–266（266 aa） Chain H 303–499（197 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；A 3 microliter sample was applied to a plasma-cleaned grid and blotted for 10 seconds.	Resolution 3.30 Å
6EBM The voltage-activated Kv1.2-2.1 paddle chimera channel in lipid nanodiscs, transmembrane domain of subunit alpha Deposited 2018-08-06	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain B 1–266（266 aa） Chain B 303–499（197 aa） Chain D 1–266（266 aa） Chain D 303–499（197 aa） Chain F 1–266（266 aa） Chain F 303–499（197 aa） Chain H 1–266（266 aa） Chain H 303–499（197 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；A 3 microliter sample was applied to a plasma-cleaned grid and blotted for 10 seconds.	Resolution 4.00 Å
8VC3 Voltage gated potassium ion channel Kv1.2 in complex with DTx Deposited 2023-12-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–499（499 aa） Chain C 1–499（499 aa） Chain D 1–499（499 aa） Chain E 1–499（499 aa）	Not recorded	K POTASSIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8VC4 Voltage gated potassium ion channel Kv1.2 in Sodium Deposited 2023-12-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–499（499 aa） Chain B 1–499（499 aa） Chain C 1–499（499 aa） Chain D 1–499（499 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.17 Å
8VC6 Voltage gated potassium ion channel Kv1.2 in Potassium Deposited 2023-12-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–499（499 aa） Chain B 1–499（499 aa） Chain C 1–499（499 aa） Chain D 1–499（499 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.17 Å
8VCH Voltage gated potassium ion channel Kv1.2 W366F, C-type inactivated Deposited 2023-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–499（499 aa） Chain B 1–499（499 aa） Chain C 1–499（499 aa） Chain D 1–499（499 aa）	Mutation：W366F Mutation：W366F Mutation：W366F Mutation：W366F	K POTASSIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.55 Å

16 other PDB entries and 23 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	KCNA2_RAT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 19–284； UniProt 1–266 Author chain B； PDBConstruct 317–513； UniProt 303–499 Author chain D； PDBConstruct 19–284； UniProt 1–266 Author chain D； PDBConstruct 317–513； UniProt 303–499 Author chain F； PDBConstruct 19–284； UniProt 1–266 Author chain F； PDBConstruct 317–513； UniProt 303–499 Author chain H； PDBConstruct 19–284； UniProt 1–266 Author chain H； PDBConstruct 317–513； UniProt 303–499

Potassium voltage-gated channel subfamily A member 2,Potassium voltage-gated channel subfamily B member 2 chimera

Rattus norvegicus

UniProt Q63099

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain B； UniProt 278–309 Chain D； UniProt 278–309 Chain F； UniProt 278–309 Chain H； UniProt 278–309	Not recorded	Voltage-gated potassium channel subunit beta-2 × 4 （P62483） NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；A 3 microliter sample was applied to a plasma-cleaned grid and blotted for 10 seconds.	Resolution 3.00 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 6EBL	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6EBK The voltage-activated Kv1.2-2.1 paddle chimera channel in lipid nanodiscs Deposited 2018-08-06	Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain B 278–309（32 aa） Chain D 278–309（32 aa） Chain F 278–309（32 aa） Chain H 278–309（32 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；A 3 microliter sample was applied to a plasma-cleaned grid and blotted for 10 seconds.	Resolution 3.30 Å
6EBM The voltage-activated Kv1.2-2.1 paddle chimera channel in lipid nanodiscs, transmembrane domain of subunit alpha Deposited 2018-08-06	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain B 278–309（32 aa） Chain D 278–309（32 aa） Chain F 278–309（32 aa） Chain H 278–309（32 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；A 3 microliter sample was applied to a plasma-cleaned grid and blotted for 10 seconds.	Resolution 4.00 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	KCNB2_RAT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 285–316； UniProt 278–309 Author chain D； PDBConstruct 285–316； UniProt 278–309 Author chain F； PDBConstruct 285–316； UniProt 278–309 Author chain H； PDBConstruct 285–316； UniProt 278–309

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

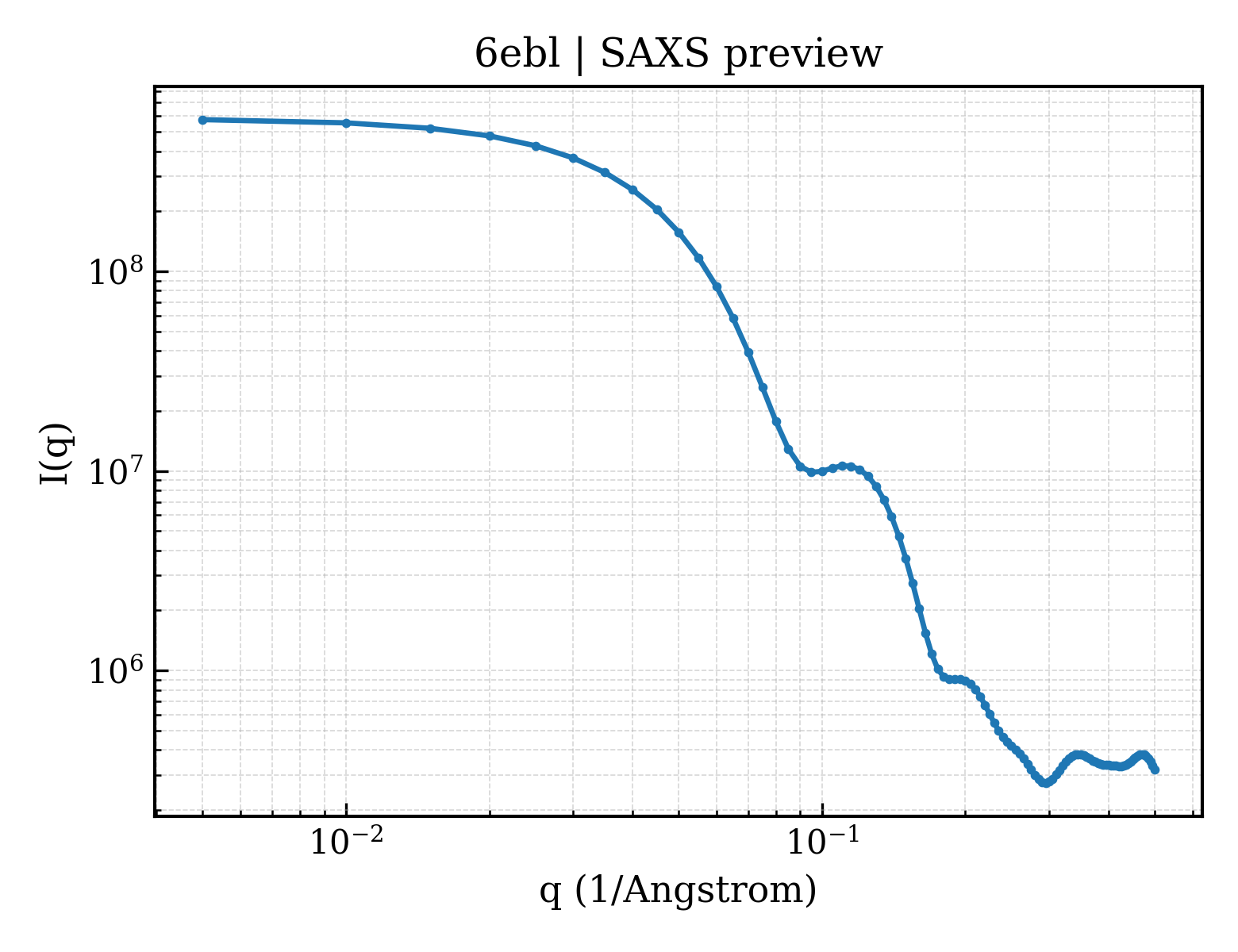

SAXS scattering curve SAXS Profile

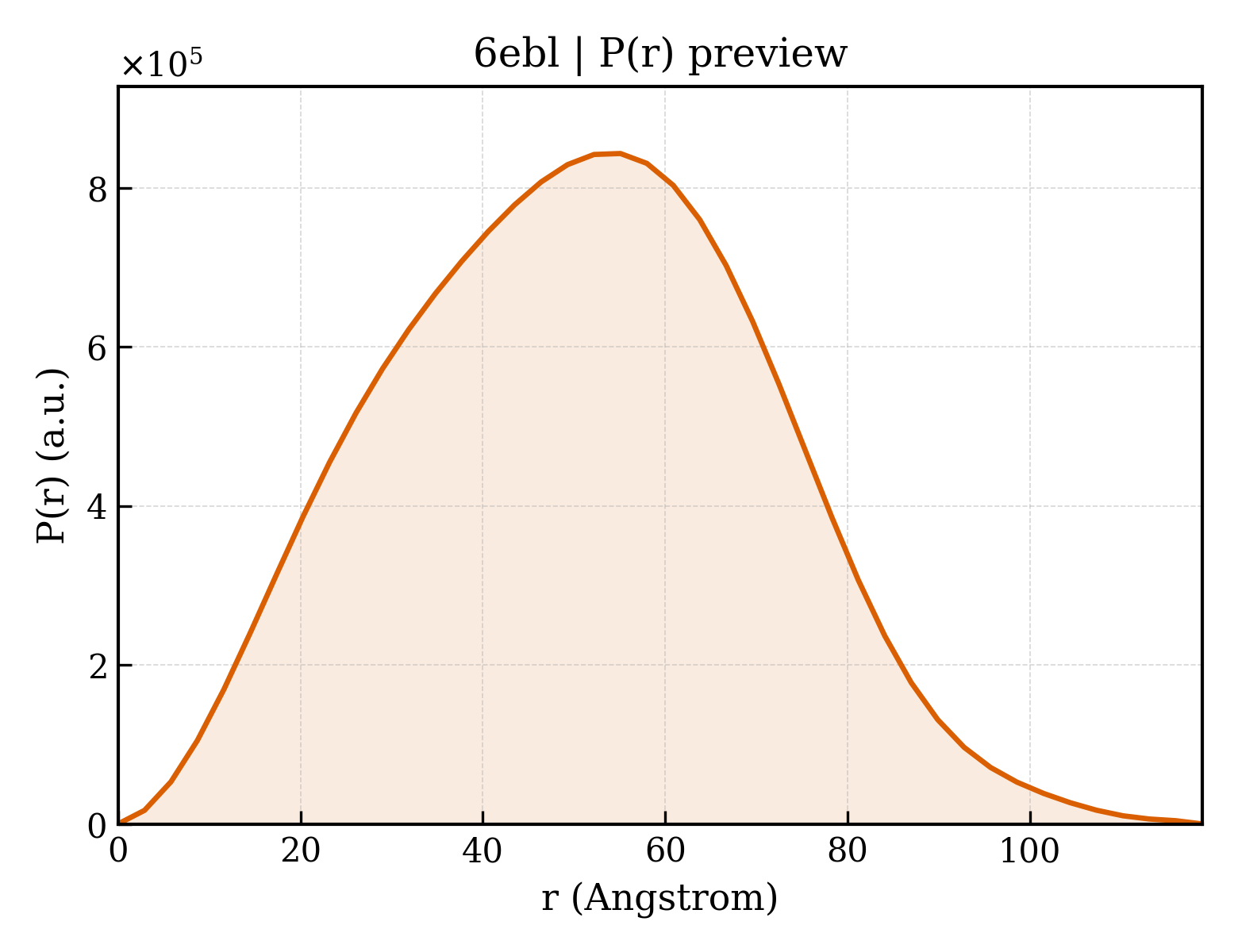

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6ebl
Deposition date deposition_date	2018-08-06
Structure title title	The voltage-activated Kv1.2-2.1 paddle chimera channel in lipid nanodiscs, cytosolic domain
Keywords keywords	MEMBRANE PROTEIN, transport protein, potassium channel, lipid nanodisc; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	38.77 Å
Radius of gyration Rg (electron density) rg_electron	37.89 Å
Forward intensity I(0) i0	582568000.00
Molecular weight molecular_weight	196840.0 kDa
Excluded volume excluded_volume	246180 Å³
Envelope volume envelope_volume	316240 Å³
Hydration-shell volume shell_volume	66819 Å³
Envelope diameter envelope_diameter	126.5 Å
Shell Rg shell_rg	45.67 Å
Envelope Rg envelope_rg	38.05 Å
Shape Rg shape_rg	37.87 Å
Total Rg total_rg	38.38 Å
Total atoms total_atoms	13824
Residues n_residues	1708
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	118.9 Å
Rg (real space) rg_real	38.50 Å
Rg uncertainty (real space) rg_real_error	0.61 Å
I(0) (real space) i0_real	5.8260e+08
I(0) uncertainty (real space) i0_real_error	8.6940e+06
Rg (reciprocal space) rg_reciprocal	38.67 Å
I(0) (reciprocal space) i0_reciprocal	582700000.0000
Solution quality estimate total_estimate	0.8879
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	55.1 Å
Skewness Skewness skewness	0.093
Kurtosis Kurtosis kurtosis	-0.461
Angular range angular_range	— – 0.2050 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	171100000.0000
Real-space data points n_real_points	42
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.917; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.811

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Voltage-gated potassium channel subunit beta-2
Molecular weight formula_weight	37339.1 kDa
Mutation mutation	cytosolic domain (UNP residues 37-367)
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G
Atom count atom_count	13952

MVQFYRNLGKSGLRVSCLGLGTWVTFGGQITDEMAEHLMTLAYDNGINLFDTAEVYAAGKAEVVLGNIIKKKGWRRSSLVITTKIFWGGKAETERGLSRKHIIEGLKASLERLQLEYVDVVFANRPDPNTPMEETVRAMTHVINQGMAMYWGTSRWSSMEIMEAYSVARQFNLIPPICEQAEYHMFQREKVEVQLPELFHKIGVGAMTWSPLACGIVSGKYDSGIPPYSRASLKGYQWLKDKILSEEGRRQQAKLKELQAIAERLGCTLPQLAIAWCLRNEGVSSVLLGASNAEQLMENIGAIQVLPKLSSSIVHEIDSILGNKPYSKKDYRS

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Rat
NCBI Class编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Komagataella pastoris

Entity 2 Entity 2 polymer

Description description	Potassium voltage-gated channel subfamily A member 2,Potassium voltage-gated channel subfamily B member 2 chimera
Molecular weight formula_weight	58905.8 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H

MAHHHHHHHHENLYFQGSMTVATGDPVDEAAAHPGHPQDTYDPEADHECCERVVINISGLRFETQLKTLAQFPETLLGDPKKRMRYFDPLRNEYFFDRNRPSFDAILYYYQSGGRLRRPVNVPLDIFSEEIRFYELGEEAMEMFREDEGYIKEEERPLPENEFQRQVWLLFEYPESSGPARIIAIVSVMVILISIVSFCLETLPIFRDENEDMHGGGVTFHTYSQSTIGYQQSTSFTDPFFIVETLCIIWFSFEFLVRFFACPSKAGFFTNIMNIIDIVAIIPYYVTIFLTESNKSVLQFQNVRRVVQIFRIMRILRIFKLSRHSKGLQILGQTLKASMRELGLLIFFLFIGVILFSSAVYFAEADERDSQFPSIPDAFWWAVVSMTTVGYGDMVPTTIGGKIVGSLCAIAGVLTIALPVPVIVSNFNYFYHRETEGEEQAQYLQVTSCPKIPSSPDLKKSRSASTISKSDYMEIQEGVNNSNEDFREENLKTANCTLANTNYVNITKMLTDV

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Rat
NCBI Class编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Komagataella pastoris

Entity 3 Entity 3 non-polymer

Description description	NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
Molecular weight formula_weight	743.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	128

▼

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d6ebla_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.7 — NAD(P)-linked oxidoreductase
Family Family family	c.1.7.1 — Aldo-keto reductases (NADP)

Domain ID domain_id	d6eblb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.42 — POZ domain
Superfamily Superfamily superfamily	d.42.1 — POZ domain
Family Family family	d.42.1.0 — automated matches

Domain ID domain_id	d6eblc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.7 — NAD(P)-linked oxidoreductase
Family Family family	c.1.7.1 — Aldo-keto reductases (NADP)

Domain ID domain_id	d6ebld_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.42 — POZ domain
Superfamily Superfamily superfamily	d.42.1 — POZ domain
Family Family family	d.42.1.0 — automated matches

Domain ID domain_id	d6eble_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.7 — NAD(P)-linked oxidoreductase
Family Family family	c.1.7.1 — Aldo-keto reductases (NADP)

Domain ID domain_id	d6eblf_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.42 — POZ domain
Superfamily Superfamily superfamily	d.42.1 — POZ domain
Family Family family	d.42.1.0 — automated matches

Domain ID domain_id	d6eblg_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.7 — NAD(P)-linked oxidoreductase
Family Family family	c.1.7.1 — Aldo-keto reductases (NADP)

Domain ID domain_id	d6eblh_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.42 — POZ domain
Superfamily Superfamily superfamily	d.42.1 — POZ domain
Family Family family	d.42.1.0 — automated matches

CATH v4.4 (8 domains)

Domain ID domain_id	6eblA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	100 — NADP-dependent oxidoreductase domain

Domain ID domain_id	6eblB00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	710 — Potassium Channel Kv1.1; Chain A
Homologous superfamily homologous superfamily	10 — Potassium Channel Kv1.1; Chain A

Domain ID domain_id	6eblC00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	100 — NADP-dependent oxidoreductase domain

Domain ID domain_id	6eblD00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	710 — Potassium Channel Kv1.1; Chain A
Homologous superfamily homologous superfamily	10 — Potassium Channel Kv1.1; Chain A

Domain ID domain_id	6eblE00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	100 — NADP-dependent oxidoreductase domain

Domain ID domain_id	6eblF00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	710 — Potassium Channel Kv1.1; Chain A
Homologous superfamily homologous superfamily	10 — Potassium Channel Kv1.1; Chain A

Domain ID domain_id	6eblG00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	100 — NADP-dependent oxidoreductase domain

Domain ID domain_id	6eblH00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	710 — Potassium Channel Kv1.1; Chain A
Homologous superfamily homologous superfamily	10 — Potassium Channel Kv1.1; Chain A

▶

8. Citations (1)

▶

Resolution resolution	3.00 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	57384

fit	/app/data/saxs_computation/eb/6ebl/6ebl.fit
pddf	/app/data/pr_computation/eb/6ebl/6ebl.pr.out
profile	/app/data/saxs_computation/eb/6ebl/6ebl.dat

The voltage-activated Kv1.2-2.1 paddle chimera channel in lipid nanodiscs, cytosolic domain

1. Protein Identity and Related Structures Protein Identity & Related Structures

Voltage-gated potassium channel subunit beta-2

State in the Current Structure

Other States of the Same Protein in the Database

Potassium voltage-gated channel subfamily A member 2,Potassium voltage-gated channel subfamily B member 2 chimera

State in the Current Structure

Other States of the Same Protein in the Database

Potassium voltage-gated channel subfamily A member 2,Potassium voltage-gated channel subfamily B member 2 chimera

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

CATH v4.4 (8 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
