7z8g

Cytoplasmic dynein-1 motor domain

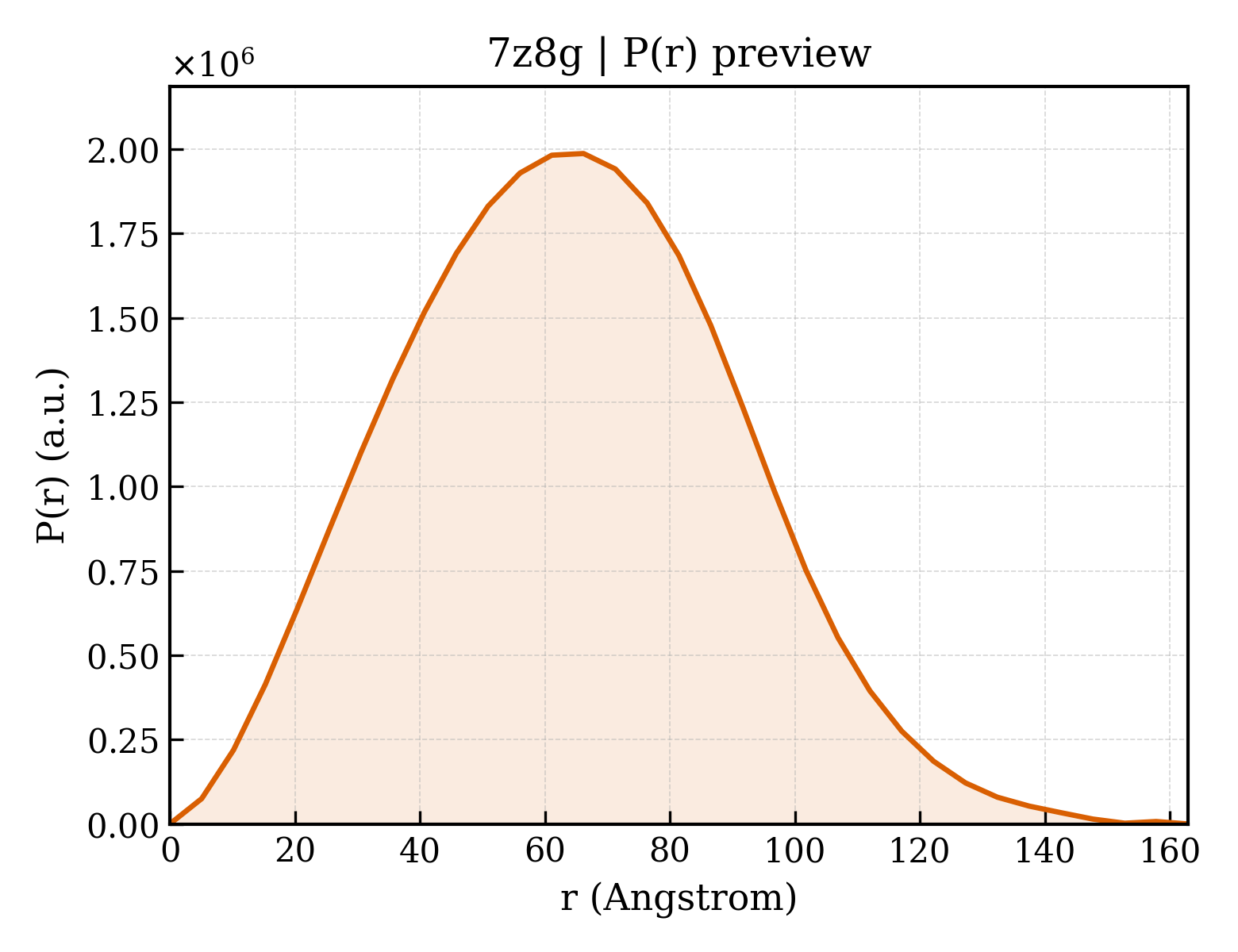

Method: ELECTRON MICROSCOPY Dmax: 162.9 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cytoplasmic dynein 1 heavy chain 1

Homo sapiens

UniProt Q14204

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 1–4646 Mutation：R1567E, K1610E ADP ADENOSINE-5'-DIPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.2 cryo-EM vitrification conditions：Cryogen ETHANE；20 second incubation Resolution 3.52 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7Z8G Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5NUG Motor domains from human cytoplasmic dynein-1 in the phi-particle conformation Deposited 2017-04-30 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；20mM HEPES pH7.4, 150 mM KCl, 1mM MgCl2, 5 mM DTT, 0.1 mM ATP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
5NUG Motor domains from human cytoplasmic dynein-1 in the phi-particle conformation Deposited 2017-04-30 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；20mM HEPES pH7.4, 150 mM KCl, 1mM MgCl2, 5 mM DTT, 0.1 mM ATP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
5OWO Human cytoplasmic Dynein N-Terminus dimerization domain at 1.8 Angstrom resolution Deposited 2017-09-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–201（201 aa）
Chain B 1–201（201 aa）
Chain C 1–201（201 aa）
Chain D 1–201（201 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 9 MG MAGNESIUM ION × 26 CA CALCIUM ION × 2 NA SODIUM ION × 1 K POTASSIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291.15 K；100mM Sodium acetate, pH 5.5, 10% Glycerol, 50mM Calcium acetate, 20% PEG 2,000 MME
Resolution 1.79 Å R-free 0.229
6F1T Cryo-EM structure of two dynein tail domains bound to dynactin and BICDR1 Deposited 2017-11-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 45 PDB declaration: 45-meric
Chain e 1–983（983 aa）
Chain f 1–983（983 aa）
Chain m 1–983（983 aa）
Chain n 1–983（983 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
6F1U N terminal region of dynein tail domains in complex with dynactin filament and BICDR-1 Deposited 2017-11-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain f 1–1186（1186 aa）
Chain m 1–1186（1186 aa）
Chain n 1–1186（1186 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
6F1V C terminal region of the dynein heavy chains in the dynein tail/dynactin/BICDR1 complex Deposited 2017-11-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain f 1–1186（1186 aa）
Chain m 1–1186（1186 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
6F1Y Dynein light intermediate chain region of the dynein tail/dynactin/BICDR1 complex Deposited 2017-11-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain f 780–927（148 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
6F38 Cryo-EM structure of two dynein tail domains bound to dynactin and HOOK3 Deposited 2017-11-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 45 PDB declaration: 45-meric
Chain e 1–1455（1455 aa）
Chain f 1–1455（1455 aa）
Chain m 1–1455（1455 aa）
Chain n 1–1455（1455 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.70 Å
6F3A Cryo-EM structure of a single dynein tail domain bound to dynactin and BICD2N Deposited 2017-11-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 36 PDB declaration: 36-meric
Chain e 1–1455（1455 aa）
Chain f 1–1455（1455 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.20 Å
7Z8F Composite structure of dynein-dynactin-BICDR on microtubules Deposited 2022-03-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 43 PDB declaration: 43-meric
Chain e 1–4646（4646 aa）
Chain f 1–4646（4646 aa）
Chain m 1–4646（4646 aa）
Chain n 1–4646（4646 aa）
Mutation：R1567E, K1610E Mutation：R1567E, K1610E Mutation：R1567E, K1610E Mutation：R1567E, K1610E ADP ADENOSINE-5'-DIPHOSPHATE × 13 MG MAGNESIUM ION × 14 ATP ADENOSINE-5'-TRIPHOSPHATE × 5 ZN ZINC ION × 3 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；20 second incubation
Resolution 20.00 Å
7Z8H Cytoplasmic dynein-1 motor domain AAA1, AAA2, and AAA3 subunits Deposited 2022-03-17 Different mutation/modification Different ligand/ion Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；20 second incubation
Resolution 3.41 Å
7Z8I The barbed end complex of dynactin bound to BICDR1 and the cytoplasmic dynein tails (A2, B1, B2) Deposited 2022-03-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain f 1–4646（4646 aa）
Chain m 1–4646（4646 aa）
Chain n 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；20 second incubation
Resolution 3.30 Å
7Z8J Cytoplasmic dynein (A2) bound to BICDR1 Deposited 2022-03-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain f 1–4646（4646 aa）
Chain m 1–4646（4646 aa）
Chain n 1–4646（4646 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；20 second incubation
Resolution 3.93 Å
7Z8K Cytoplasmic dynein (A1) bound to BICDR1 Deposited 2022-03-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain e 1–4646（4646 aa）
Chain f 1–4646（4646 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；20 second incubation
Resolution 4.37 Å
7Z8L Cytoplasmic dynein light intermediate chain (B1) bound to the motor domain (A2). Deposited 2022-03-17 Different mutation/modification Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain f 1–4646（4646 aa）
Mutation：E1518K, R1567K ADP ADENOSINE-5'-DIPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；20 second incubation
Resolution 4.90 Å
8DYU Structure of human cytoplasmic dynein-1 bound to two Lis1 proteins Deposited 2022-08-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1320–4646（3327 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8DYV Structure of human cytoplasmic dynein-1 bound to one Lis1 Deposited 2022-08-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1320–4646（3327 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.97 Å
8FCY Engineered human dynein motor domain in microtubule-bound state Deposited 2022-12-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1458–3281（1824 aa）
Chain A 3412–4646（1235 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；50 mM Tris pH 7.4, 150 mM potassium acetate, 2 mM magnesium acetate, 1 mM EGTA, 1 mM DTT, and 0.1 mM Mg-ATP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8FD6 Engineered human dynein motor domain in the microtubule-unbound state in the buffer containing ATP-Vi Deposited 2022-12-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1458–3277（1820 aa）
Chain A 3412–4646（1235 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 3 VO4 VANADATE ION × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；50 mM Tris pH 7.4, 150 mM potassium acetate, 2 mM magnesium acetate, 1 mM EGTA, 1 mM DTT, and 0.1 mM Mg-ATP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8FDT Engineered human dynein motor domain in the microtubule-unbound state with LIS1 complex in the buffer containing ATP-Vi Deposited 2022-12-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1458–3277（1820 aa）
Chain A 3412–4646（1235 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 3 VO4 VANADATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；50 mM Tris pH 7.4, 150 mM potassium acetate, 2 mM magnesium acetate, 1 mM EGTA, 1 mM DTT, and 0.1 mM Mg-ATP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8FDU Engineered human dynein motor domain in the microtubule-unbound state with LIS1 complex in the buffer containing ATP-Vi (local refined on AAA3-AAA5 and LIS1) Deposited 2022-12-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1458–3277（1820 aa）
Chain A 3412–4646（1235 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；50 mM Tris pH 7.4, 150 mM potassium acetate, 2 mM magnesium acetate, 1 mM EGTA, 1 mM DTT, and 0.1 mM Mg-ATP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8PQV Cytoplasmic dynein-1 motor domain in post-powerstroke state Deposited 2023-07-12 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Mutation：R1567E, K1610E No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8PQW Cytoplasmic dynein-1 motor domain bound to dynactin-p150glued and LIS1 Deposited 2023-07-12 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 1–4646（4646 aa）
Mutation：R1567E, K1610E ADP ADENOSINE-5'-DIPHOSPHATE × 3 MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8PQY Cytoplasmic dynein-1 motor domain bound to LIS1 Deposited 2023-07-12 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–4646（4646 aa）
Mutation：R1567E, K1610E ADP ADENOSINE-5'-DIPHOSPHATE × 3 MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8PQZ Cytoplasmic dynein-1 A1/A2 motor domains bound to LIS1 Deposited 2023-07-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain A 1–4646（4646 aa）
Chain J 1–4646（4646 aa）
Mutation：R1567E, K1610E Mutation：R1567E, K1610E ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 4 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.50 Å
8PR0 Cytoplasmic dynein-A heavy chain bound to dynactin-p150glued and IC-LC tower Deposited 2023-07-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain A 1–4646（4646 aa）
Chain B 1–4646（4646 aa）
Mutation：R1567E, K1610E Mutation：R1567E, K1610E No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.40 Å
8PR1 Cytoplasmic dynein-B heavy chain bound to IC-LC tower Deposited 2023-07-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain A 1–4646（4646 aa）
Chain G 1–4646（4646 aa）
Mutation：R1567E, K1610E Mutation：R1567E, K1610E No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.20 Å
8PR2 Cytoplasmic dynein-1 heavy chain bound to JIP3-LZI Deposited 2023-07-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain f 1–4646（4646 aa）
Chain m 1–4646（4646 aa）
Mutation：R1567E, K1610E Mutation：R1567E, K1610E No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8PR3 Cytoplasmic dynein-1 heavy chain bound to JIP3-RH1 Deposited 2023-07-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain f 1–4646（4646 aa）
Chain m 1–4646（4646 aa）
Mutation：R1567E, K1610E Mutation：R1567E, K1610E No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8PTK Composite structure of Dynein-Dynactin-JIP3-LIS1 Deposited 2023-07-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 53 PDB declaration: 53-meric
Chain e 1–4646（4646 aa）
Chain f 1–4646（4646 aa）
Chain m 1–4646（4646 aa）
Chain n 1–4646（4646 aa）
Mutation：R1567E, K1610E Mutation：R1567E, K1610E Mutation：R1567E, K1610E Mutation：R1567E, K1610E ADP ADENOSINE-5'-DIPHOSPHATE × 16 ATP ADENOSINE-5'-TRIPHOSPHATE × 6 ZN ZINC ION × 3 MG MAGNESIUM ION × 6 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 10.00 Å
9BLY Composite structure of full-length human dynein-1 in phi-particle conformation Deposited 2024-05-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain A 1–4646（4646 aa）
Chain B 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ATP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9BLZ State-1(phi motor) of full-length human dynein-1 in 5mM ATP Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ATP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.20 Å
9BM0 State-2 of motor domain from full-length human dynein-1 in 5mM ATP Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ATP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
9BM1 State-3 of motor domain from full-length human dynein-1 in 5mM ATP Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ATP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.02 Å
9BM2 State-4 of motor domain from full-length human dynein-1 in 5 mM ATP Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ATP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.82 Å
9BM3 State-5a of motor domain from full-length human dynein-1 in 5 mM ATP Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ATP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.49 Å
9BM4 State-5b of motor domain from full-length human dynein-1 in 5 mM ATP Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ATP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.48 Å
9BM5 State-6 of motor domain from full-length human dynein-1 in 5 mM ATP Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ATP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9BM6 State-7a of motor domain from full-length human dynein-1 in 5 mM ATP Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ATP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.22 Å
9BM7 State-7b of motor domain from full-length human dynein-1 in 5 mM ATP Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ATP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.58 Å
9BM8 State-7c of motor domain from full-length human dynein-1 in 5 mM ATP Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ATP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.22 Å
9BMA Motor domain from full-length human dynein-1 bound to microtubules in apo condition Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；30 mM HEPES pH 7.2, 60 mM KCl, 1 mM EGTA, 5 mM MgSO4, 1 mM DTT, 5 uM paclitaxel
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9BMB Post-1 motor domain from full-length human dynein-1 bound to microtubules in 5mM ADP condition Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；30 mM HEPES pH 7.2, 60 mM KCl, 1 mM EGTA, 5 mM MgSO4, 1 mM DTT, 5 uM paclitaxel, 5mM ADP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
9BMC Post-2 motor domain from full-length human dynein-1 bound to microtubules in 5mM ADP condition Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；30 mM HEPES pH 7.2, 60 mM KCl, 1 mM EGTA, 5 mM MgSO4, 1 mM DTT, 5 uM paclitaxel, 5mM ADP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9BMD Motor domain from full-length human dynein-1 bound to microtubules in 5mM AMPPNP condition Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；30 mM HEPES pH 7.2, 60 mM KCl, 1 mM EGTA, 5 mM MgSO4, 1 mM DTT, 5 uM paclitaxel, 5mM AMPPNP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9BMF State-1(phi motor) of full-length human dynein-1 in 5mM ATPVi Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded AOV ADP ORTHOVANADATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ATPVi
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
9BMG State-2 of full-length human dynein-1 in 5mM ATPVi Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded AOV ADP ORTHOVANADATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ATPVi
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.86 Å
9BMH State-4 of motor domain from full-length human dynein-1 in 5mM ATPVi Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded AOV ADP ORTHOVANADATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ATPVi
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
9BMJ State-1 of the motor domain from full-length human dynein-1 in 5mM AMPPNP Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM AMPPNP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9BML State-2 of the motor domain from full-length human dynein-1 in 5mM AMPPNP Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM AMPPNP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9BMM State-4 of the motor domain from full-length human dynein-1 in 5mM AMPPNP Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM AMPPNP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9BMN State-5 of motor domain from full-length human dynein-1 in 5mM AMPPNP Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM AMPPNP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
9BMO State-6 of motor domain from full-length human dynein-1 in 5mM AMPPNP Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM AMPPNP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
9BMP State-7 of the motor domain from full-length human dynein-1 in 5mM AMPPNP Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM AMPPNP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9BMR State-1 of motor domain from full-length human phi dynein-1 in 5 mM ADP Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ADP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
9BMS State-2 of motor domain from full-length human dynein-1 in 5 mM ADP Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ADP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.04 Å
9BMT State-5 of motor domain from full-length human dynein-1 in 5 mM ADP Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ADP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
9BMU State-6 of motor domain from full-length human dynein-1 in 5 mM ADP Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ADP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
9BMV State-7a-post1 of motor domain from full-length human dynein-1 in 5 mM ADP Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ADP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
9BMW State-7b-post2 of motor domain from full-length human dynein-1 in 5 mM ADP Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ADP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9BMY State-1 of motor domain from full-length human dynein-1 in apo condition Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.86 Å
9BMZ State-2 of motor domain from full-length human dynein-1 in apo condition Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
9BN0 State-7 of motor domain from full-length human dynein-1 in apo condition Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
9BN1 State-8 of motor domain from full-length human dynein-1 in apo condition Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
9BN3 The alpha registry-locked dynein motor domain mutant in 5mM ATP condition, class1 Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ATP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
9BN4 The alpha registry-locked dynein motor domain mutant in 5mM ATP condition, class2 Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ATP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9BN5 The alpha registry-locked dynein motor domain mutant in 5mM ATPVi condition, class1 Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ATPVi
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9BN6 The alpha registry-locked dynein motor domain mutant in 5mM ATPVi condition, class2 Deposited 2024-05-02 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 5 mM ATPVi
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9DH5 State-1 of the motor domain from full-length human dynein-1 in 5mM AMPPNP with 5mM Mg2+ Deposited 2024-09-03 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 5 mM MgCl2, 5 mM DTT, 5 mM AMPPNP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
9DH6 State-2 of the motor domain from full-length human dynein-1 in 5mM AMPPNP with 5mM Mg2+ Deposited 2024-09-03 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 5 mM MgCl2, 5 mM DTT, 5 mM AMPPNP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9DH7 State-4 of the motor domain from full-length human dynein-1 in 5mM AMPPNP with 5mM Mg2+ Deposited 2024-09-03 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 5 mM MgCl2, 5 mM DTT, 5 mM AMPPNP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9DH8 State-5 of the motor domain from full-length human dynein-1 in 5mM AMPPNP with 5mM Mg2+ Deposited 2024-09-03 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 5 mM MgCl2, 5 mM DTT, 5 mM AMPPNP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9DH9 State-7-Post-2 of the motor domain from full-length human dynein-1 in 5mM AMPPNP with 5mM Mg2+ Deposited 2024-09-03 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 5 mM MgCl2, 5 mM DTT, 5 mM AMPPNP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9DHA State-7-Post-1 of the motor domain from full-length human dynein-1 in 5mM AMPPNP with 5mM Mg2+ Deposited 2024-09-03 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 5 mM MgCl2, 5 mM DTT, 5 mM AMPPNP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
9DZY Cryo-EM structure of Pre-Chi dynein bound to Lis1 Deposited 2024-10-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 2–4646（4645 aa）
Chain B 2–4646（4645 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.10 Å
9E0K Cryo-EM structure of human cytoplasmic dynein-1 in the presence of ATP Deposited 2024-10-18 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–4646（4645 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.20 Å
9E0T Cryo-EM structure of human cytoplasmic dynein-1 bound to LIS1 in the presence of ATP Deposited 2024-10-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 2–4646（4645 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.10 Å
9E0U Cryo-EM structure of human cytoplasmic dynein-1 in the presence of ATP Deposited 2024-10-19 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–4646（4645 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.40 Å
9E0W Cryo-EM structure of human cytoplasmic dynein-1 bound to LIS1 in the presence of ATP Deposited 2024-10-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2–4646（4645 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.20 Å
9E0X Cryo-EM structure of Phi dynein Deposited 2024-10-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 2–4646（4645 aa）
Chain B 2–4646（4645 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.70 Å
9E0Y Cryo-EM structure of human cytoplasmic dynein-1 in the presence of ATP Deposited 2024-10-20 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–4646（4645 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.40 Å
9E0Z Dimeric motor domains from phi-like dynein-1 bound to a Lis1 dimer under Nde1-Lis1 condition Deposited 2024-10-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–4646（4646 aa）
Chain B 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 3 mM ATP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.86 Å
9E10 Dimeric motor domains from phi dynein-1 under Lis1 condition Deposited 2024-10-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–4646（4646 aa）
Chain B 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 3 mM ATP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.71 Å
9E11 Dimeric motor domains from phi-like dynein-1 bound to a Lis1 dimer under Lis1 condition Deposited 2024-10-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–4646（4646 aa）
Chain B 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.86 Å
9E12 Full-length human dynein-1 in phi comformation under Lis1 condition Deposited 2024-10-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 1–4646（4646 aa）
Chain B 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
9E13 Full-length human dynein-1 in phi-like comformation bound to a Lis1 dimer under Lis1 condition Deposited 2024-10-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain A 1–4646（4646 aa）
Chain B 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 3 mM ATP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
9E14 Full-length human dynein-1 in phi-like comformation bound to a Lis1 dimer under Nde1-Lis1 condition Deposited 2024-10-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain A 1–4646（4646 aa）
Chain B 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；25 mM HEPES pH 7.2, 150 mM KCl, 1 mM MgCl2, 5 mM DTT, 3 mM ATP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.00 Å
9E22 Cryo-EM structure of human cytoplasmic dynein-1 bound to LIS1 in the presence of ATP Deposited 2024-10-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2–4646（4645 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.30 Å
9E23 Cryo-EM structure of Pre-Chi dynein tail Deposited 2024-10-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: 16-meric
Chain A 2–4646（4645 aa）
Chain G 2–4646（4645 aa）
Chain e 2–4646（4645 aa）
Chain f 2–4646（4645 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.20 Å
9E28 Cryo-EM structure of Phi dynein tail Deposited 2024-10-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: 16-meric
Chain A 2–4646（4645 aa）
Chain G 2–4646（4645 aa）
Chain e 2–4646（4645 aa）
Chain f 2–4646（4645 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.40 Å
9HHL Structure of Dynein-Dynactin-NuMA-LIS1 Deposited 2024-11-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 41 PDB declaration: 41-meric
Chain e 1–4646（4646 aa）
Chain f 1–4646（4646 aa）
Chain m 1–4646（4646 aa）
Chain n 1–4646（4646 aa）
Mutation：R1567E, K1610E Mutation：R1567E, K1610E Mutation：R1567E, K1610E Mutation：R1567E, K1610E ADP ADENOSINE-5'-DIPHOSPHATE × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.53 Å
9YNC Motor domains of phi-like human dynein-1 bound to dynactin-p150glued and LIS1 Deposited 2025-10-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 1–4646（4646 aa）
Chain B 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.93 Å
9YND Motor domain of human dynein-1 in pre-power stroke bound to dynactin-p150glued-CC1B and LIS1 Deposited 2025-10-10 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.26 Å
9YNE Motor domain of human dynein-1 in pre-power stroke bound to dynactin-p150glued-CC1B-ICD and LIS1 Deposited 2025-10-10 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.46 Å
9YNF Motor domain of human dynein-1 in post1 state Deposited 2025-10-10 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.92 Å
9YNG Dynactin and dynein-1 tail region of dynein-dynactin complex on microtubule in the presence of LIS1 Deposited 2025-10-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 31 PDB declaration: 31-meric
Chain e 1–4646（4646 aa）
Chain f 1–4646（4646 aa）
Chain m 1–4646（4646 aa）
Chain n 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.07 Å
9YNH Full-length human cytoplasmic dynein-1 in phi-like state bound to dynactin-p150glued and LIS1 Deposited 2025-10-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain A 1–4646（4646 aa）
Chain B 1–4646（4646 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.50 Å

96 other PDB entries and 97 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name DYHC1_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–4646； UniProt 1–4646

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 7z8g

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 7z8g
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id7z8g
Deposition date deposition_date2022-03-17
Structure title titleCytoplasmic dynein-1 motor domain
Keywords keywordsDynein, dynactin, cargo transport, activating adaptor, cytoskeleton, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier49.21 Å
Radius of gyration Rg (electron density) rg_electron48.57 Å
Forward intensity I(0) i01740670000.00
Molecular weight molecular_weight350510.0 kDa
Excluded volume excluded_volume439910 ų
Envelope volume envelope_volume629130 ų
Hydration-shell volume shell_volume103970 ų
Envelope diameter envelope_diameter176.1 Å
Shell Rg shell_rg56.45 Å
Envelope Rg envelope_rg47.39 Å
Shape Rg shape_rg48.57 Å
Total Rg total_rg48.83 Å
Total atoms total_atoms24656
Residues n_residues3047
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax162.9 Å
Rg (real space) rg_real48.93 Å
Rg uncertainty (real space) rg_real_error1.32 Å
I(0) (real space) i0_real1.7410e+09
I(0) uncertainty (real space) i0_real_error3.1070e+07
Rg (reciprocal space) rg_reciprocal49.21 Å
I(0) (reciprocal space) i0_reciprocal1741000000.0000
Solution quality estimate total_estimate0.8740
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary66.2 Å
Skewness Skewness skewness0.191
Kurtosis Kurtosis kurtosis-0.317
Angular range angular_range— – 0.1600 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha224500000.0000
Real-space data points n_real_points33
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.826; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.898
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

▶

8. Citations (1)

▶

9. Files and Curves (10)
