7zyg

CryoEM structure of Ku heterodimer bound to DNA, PAXX and XLF

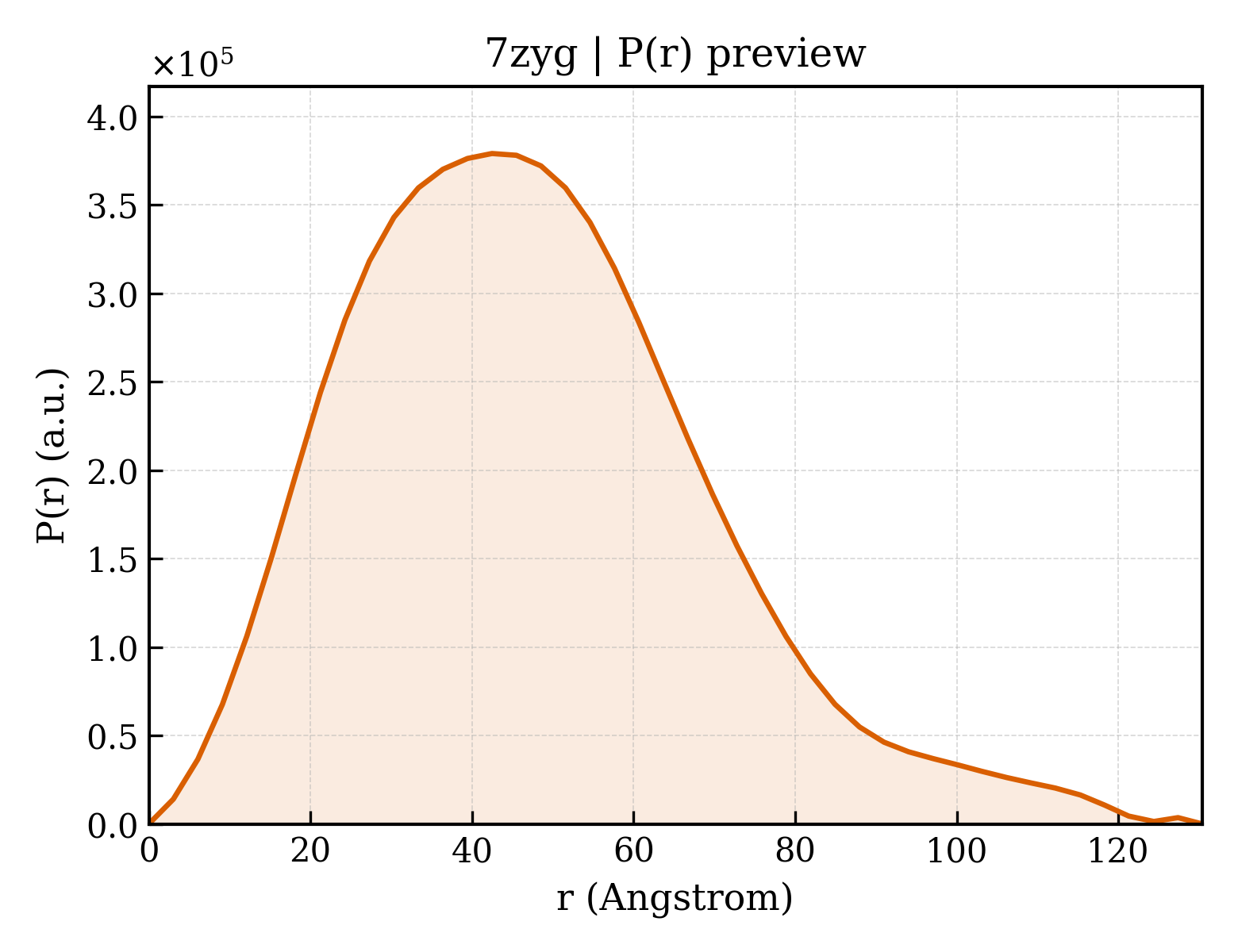

Method: ELECTRON MICROSCOPY Dmax: 130.4 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

X-ray repair cross-complementing protein 6

Homo sapiens

UniProt P12956

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 4 DNA 2 PDB declaration: hexameric（6） Consistent with all polymer counts Chain A； UniProt 1–609 Not recorded X-ray repair cross-complementing protein 5 × 1 （P13010） Protein PAXX × 1 （Q9BUH6） Non-homologous end-joining factor 1 × 1 （Q9H9Q4） DNA × 1 DNA × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.68 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7ZYG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1JEQ Crystal Structure of the Ku Heterodimer Deposited 2001-06-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 0–608（609 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；295 K；14% PEG 4000, 900 mM sarcosine, 140 mM magnesium chloride, 100 mM Tris-HCl (pH 8.5), VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.70 Å R-free 0.283
1JEY Crystal Structure of the Ku heterodimer bound to DNA Deposited 2001-06-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain A 0–608（609 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；295 K；26% polyethylene glycol 350 monomethyl ether, 50 mM Tris-HCL pH 8.0, 5 mM magnesium chloride, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.50 Å R-free 0.280
3RZX Mouse importin alpha-Ku70 NLS peptide complex Deposited 2011-05-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 537–558（22 aa） Fragment：Nuclear localization signal
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；Sodium Citrate, DTT, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.61 Å R-free 0.223
5Y3R Cryo-EM structure of Human DNA-PK Holoenzyme Deposited 2017-07-29 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain A 34–534（501 aa） Fragment：UNP residues 34-534
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.60 Å
6ERF Complex of APLF factor and Ku heterodimer bound to DNA Deposited 2017-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain A 1–544（544 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；100 mM Bris Tris propane 13% PEG 3350 150 mM Na nirate
Resolution 3.01 Å R-free 0.227
6ERF Complex of APLF factor and Ku heterodimer bound to DNA Deposited 2017-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain C 1–544（544 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；100 mM Bris Tris propane 13% PEG 3350 150 mM Na nirate
Resolution 3.01 Å R-free 0.227
6ERF Complex of APLF factor and Ku heterodimer bound to DNA Deposited 2017-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain E 1–544（544 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；100 mM Bris Tris propane 13% PEG 3350 150 mM Na nirate
Resolution 3.01 Å R-free 0.227
6ERF Complex of APLF factor and Ku heterodimer bound to DNA Deposited 2017-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain G 1–544（544 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；100 mM Bris Tris propane 13% PEG 3350 150 mM Na nirate
Resolution 3.01 Å R-free 0.227
6ERG Complex of XLF and heterodimer Ku bound to DNA Deposited 2017-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain A 1–544（544 aa）
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；18% PEG 3350, 150 mM Na sulfate , 100 mM Bis-Tris-Propane
Resolution 2.90 Å R-free 0.244
6ERG Complex of XLF and heterodimer Ku bound to DNA Deposited 2017-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain D 1–544（544 aa）
Not recorded SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；18% PEG 3350, 150 mM Na sulfate , 100 mM Bis-Tris-Propane
Resolution 2.90 Å R-free 0.244
6ERH Complex of XLF and heterodimer Ku bound to DNA Deposited 2017-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain A 1–544（544 aa）
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；18% PEG 3350, 150 mM sodium sulfate, and 100 mM Bis-Tris-Propane
Resolution 2.80 Å R-free 0.252
6ERH Complex of XLF and heterodimer Ku bound to DNA Deposited 2017-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain C 1–544（544 aa）
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；18% PEG 3350, 150 mM sodium sulfate, and 100 mM Bis-Tris-Propane
Resolution 2.80 Å R-free 0.252
6ZHA Cryo-EM structure of DNA-PK monomer Deposited 2020-06-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain B 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.91 Å
6ZHE Cryo-EM structure of DNA-PK dimer Deposited 2020-06-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: decameric
Chain B 1–609（609 aa）
Chain G 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.24 Å
7AXZ Ku70/80 complex apo form Deposited 2020-11-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7K0Y Cryo-EM structure of activated-form DNA-PK (complex VI) Deposited 2020-09-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: heptameric
Chain B 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
7K1J CryoEM structure of inactivated-form DNA-PK (Complex III) Deposited 2020-09-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: heptameric
Chain B 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
7K1K CryoEM structure of inactivated-form DNA-PK (Complex IV) Deposited 2020-09-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: heptameric
Chain B 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7K1N CryoEM structure of inactivated-form DNA-PK (Complex V) Deposited 2020-09-08 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: heptameric
Chain B 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
7LSY NHEJ Short-range synaptic complex Deposited 2021-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: heptadecameric
Chain A 1–600（600 aa）
Chain J 1–600（600 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.40 Å
7LT3 NHEJ Long-range synaptic complex Deposited 2021-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain A 1–609（609 aa）
Chain J 1–609（609 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
7NFC Cryo-EM structure of NHEJ super-complex (dimer) Deposited 2021-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: octadecameric
Chain B 1–609（609 aa）
Chain G 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.14 Å
7NFE Cryo-EM structure of NHEJ super-complex (monomer) Deposited 2021-02-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain B 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.29 Å
7SGL DNA-PK complex of DNA end processing Deposited 2021-10-06 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain B 1–609（609 aa）
Not recorded MG MAGNESIUM ION × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
7SU3 CryoEM structure of DNA-PK complex VII Deposited 2021-11-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: heptameric
Chain B 1–609（609 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7Z6O X-Ray studies of Ku70/80 reveal the binding site for IP6 Deposited 2022-03-14 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain A 1–609（609 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；24% PEG3350, 200mM Na2SO4, 100mM BTP, 5 mM b-mercaptoethanol
Resolution 3.70 Å R-free 0.271
7Z87 DNA-PK in the active state Deposited 2022-03-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain B 1–609（609 aa）
Not recorded 1IX (~{S})-[2-chloranyl-4-fluoranyl-5-(7-morpholin-4-ylquinazolin-4-yl)phenyl]-(6-methoxypyridazin-3-yl)methanol × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.91 Å
7Z88 DNA-PK in the intermediate state Deposited 2022-03-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain B 1–609（609 aa）
Not recorded 1IX (~{S})-[2-chloranyl-4-fluoranyl-5-(7-morpholin-4-ylquinazolin-4-yl)phenyl]-(6-methoxypyridazin-3-yl)methanol × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.33 Å
7ZT6 Cryo-EM structure of Ku 70/80 bound to inositol hexakisphosphate Deposited 2022-05-09 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–609（609 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
7ZVT CryoEM structure of Ku heterodimer bound to DNA Deposited 2022-05-17 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain A 1–609（609 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.74 Å
7ZWA CryoEM structure of Ku heterodimer bound to DNA and PAXX Deposited 2022-05-19 Different oligomeric state Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain A 1–609（609 aa）
Not recorded PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8AG4 Vaccinia C16 protein bound to Ku70/Ku80 Deposited 2022-07-19 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.46 Å
8AG5 Vaccinia C16 protein bound to Ku70/Ku80 Deposited 2022-07-19 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.47 Å
8ASC Ku70/80 binds to the Ku-binding motif of PAXX Deposited 2022-08-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: octadecameric
Chain A 1–544（544 aa）
Chain E 1–544（544 aa）
Chain K 1–544（544 aa）
Chain O 1–544（544 aa）
Not recorded SO4 SULFATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；290 K；12% PEG- 3350; 0.1 M Bis-Tris Propane pH 8.5; 0.3 M Ammonium Sulfate
Resolution 2.95 Å R-free 0.298
8BH3 DNA-PK Ku80 mediated dimer bound to PAXX Deposited 2022-10-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: octadecameric
Chain B 1–609（609 aa）
Chain T 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.55 Å
8BHV DNA-PK XLF mediated dimer bound to PAXX Deposited 2022-11-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain a 1–609（609 aa）
Chain h 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.51 Å
8BHY DNA-PK Ku80 mediated dimer bound to PAXX and XLF Deposited 2022-11-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain B 1–609（609 aa）
Chain T 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.33 Å
8BOT Cryo-EM structure of NHEJ supercomplex(trimer) Deposited 2022-11-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 19 PDB declaration: 25-meric
Chain B 1–609（609 aa）
Chain G 1–609（609 aa）
Chain T 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.76 Å
8EZA NHEJ Long-range complex with PAXX Deposited 2022-10-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 22-meric
Chain A 1–609（609 aa）
Chain J 1–609（609 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.39 Å
8EZB NHEJ Long-range complex with ATP Deposited 2022-10-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain A 1–609（609 aa）
Chain J 1–609（609 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.90 Å
8RD4 Telomeric RAP1:DNA-PK complex Deposited 2023-12-07 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain E 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.58 Å
9CQ3 The gap-filling complex with Pol mu engaged in the NHEJ pathway Deposited 2024-07-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain A 1–609（609 aa）
Chain a 1–609（609 aa）
Not recorded MG MAGNESIUM ION × 2 DZ4 2'-deoxy-5'-O-[(R)-hydroxy{[(R)-hydroxy(phosphonooxy)phosphoryl]amino}phosphoryl]adenosine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
9CQ6 The ligation complex in the NHEJ pathway Deposited 2024-07-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: octadecameric
Chain A 1–609（609 aa）
Chain a 1–609（609 aa）
Not recorded AMP ADENOSINE MONOPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9CQC The ligation complex like in the NHEJ pathway Deposited 2024-07-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: octadecameric
Chain A 1–609（609 aa）
Chain a 1–609（609 aa）
Not recorded DZ4 2'-deoxy-5'-O-[(R)-hydroxy{[(R)-hydroxy(phosphonooxy)phosphoryl]amino}phosphoryl]adenosine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9G9L DNA-PK + Polymerase lambda Deposited 2024-07-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric
Chain B 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.63 Å
9GD7 DNA-PK Ku80 mediated dimer bound to DNA polymerase Lambda and DNA ligase 4/XRCC4 Deposited 2024-08-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain T 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.25 Å
9GYF Ku70/80 with PAXX peptide mutation K193R Deposited 2024-10-02 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain A 1–609（609 aa）
Not recorded PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
9HZG Ku70/80 bound to WRN-exo Deposited 2025-01-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain A 1–609（609 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.33 Å
9I04 Ku70/80, DNA bound to Polymerase Mu Deposited 2025-01-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain A 37–529（493 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.05 Å
9IAX DNA-PK, LX4, XLF - Catalytic domain of L4 Deposited 2025-02-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain B 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.97 Å
9IGW Ku70/80 bound to 147 bp nucleosome Deposited 2025-02-20 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain K 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.32 Å
9IGX Ku70/80 bound to 153 bp nucleosome Deposited 2025-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain K 34–534（501 aa）
Chain M 34–534（501 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.56 Å
9IOL Cryo-EM structure of the complex of DNA, Ku70/80, and laXLF. Deposited 2024-07-09 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain B 1–609（609 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 2OP (2S)-2-HYDROXYPROPANOIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.46 Å
9N81 A gap-filling complex with Pol mu engaged in the NHEJ Pathway Deposited 2025-02-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain A 1–609（609 aa）
Chain a 1–609（609 aa）
Not recorded MG MAGNESIUM ION × 1 DZ4 2'-deoxy-5'-O-[(R)-hydroxy{[(R)-hydroxy(phosphonooxy)phosphoryl]amino}phosphoryl]adenosine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
9N82 The ligation (AMP-Lys) complex in the NHEJ pathway Deposited 2025-02-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: octadecameric
Chain A 1–609（609 aa）
Chain a 1–609（609 aa）
Not recorded AMP ADENOSINE MONOPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9N83 The ligation complex in the NHEJ pathway Deposited 2025-02-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: octadecameric
Chain A 1–609（609 aa）
Chain a 1–609（609 aa）
Not recorded AMP ADENOSINE MONOPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9Q80 Ku70/80 with Ku70 linker and SAP domain bound to a 153 bp H2AX nucleosome Deposited 2025-02-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain K 1–609（609 aa）
Chain M 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.39 Å
9Q8X Ku70/80 bound to a 153 bp H2AX nucleosome Deposited 2025-02-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain K 1–609（609 aa）
Chain M 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.94 Å
9Q9F DNA-PK bound to a 153 bp H2AX nucleosome model 1 Deposited 2025-02-26 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: 13-meric
Chain K 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.54 Å
9QCR DNA-PK bound to 153 bp H2AX nucleosome model 2 Deposited 2025-03-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: 13-meric
Chain K 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.37 Å
9QCS Ku80 mediated DNA-PK dimer bound to 153 bp H2AX nucleosome Deposited 2025-03-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 22 PDB declaration: 26-meric
Chain K 1–609（609 aa）
Chain M 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.38 Å
9QMS DNA-PK bound to 153 bp H2AX nucleosome with ATPyS Deposited 2025-03-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 26 PDB declaration: 30-meric
Chain K 1–609（609 aa）
Chain M 1–609（609 aa）
Chain k 1–609（609 aa）
Chain m 1–609（609 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.00 Å

57 other PDB entries and 62 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name XRCC6_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–609； UniProt 1–609

X-ray repair cross-complementing protein 5

Homo sapiens

UniProt P13010

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 4 DNA 2 PDB declaration: hexameric（6） Consistent with all polymer counts Chain B； UniProt 1–732 Not recorded X-ray repair cross-complementing protein 6 × 1 （P12956） Protein PAXX × 1 （Q9BUH6） Non-homologous end-joining factor 1 × 1 （Q9H9Q4） DNA × 1 DNA × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.68 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7ZYG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1JEQ Crystal Structure of the Ku Heterodimer Deposited 2001-06-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 0–564（565 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；295 K；14% PEG 4000, 900 mM sarcosine, 140 mM magnesium chloride, 100 mM Tris-HCl (pH 8.5), VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.70 Å R-free 0.283
1JEY Crystal Structure of the Ku heterodimer bound to DNA Deposited 2001-06-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain B 0–564（565 aa） Fragment：residues 1-565
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；295 K；26% polyethylene glycol 350 monomethyl ether, 50 mM Tris-HCL pH 8.0, 5 mM magnesium chloride, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.50 Å R-free 0.280
1Q2Z The 3D solution structure of the C-terminal region of Ku86 Deposited 2003-07-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 591–708（118 aa） Fragment：Ku86CTR (591-709)
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 100 mM NaCl；Pressure ambient
NMR measurement conditions pH 7；293 K；Ionic strength (raw mmCIF value) 100 mM NaCl；Pressure ambient
NMR sample composition 1mM U-15N; 20mM Phosphate; 100mM NaCl; 1mM NaN3 | 90% H2O/10% D2O
NMR sample composition 1mM U-13C,15N; 20mM Phosphate; 100mM NaCl; 1mM NaN3 | 90% H2O/10% D2O
NMR sample composition 1mM U-15N; 20mM Phosphate; 100mM NaCl; 1mM NaN3; 5% n-octyl-penta(ethylene glycol):octanol 0.96:1 | 90% H2O/10% D2O
Resolution not provided
1RW2 Three-dimensional structure of Ku80 CTD Deposited 2003-12-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 565–709（145 aa） Fragment：Ku80 C-terminal Domain
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 100 mM phosphate buffer；Pressure 1
NMR sample composition Approximately 1 mM N-15/C-13 labeled protein in 100 mM phosphate buffer, pH 6.0, and 5 mM DTT | 100% D2O
NMR sample composition Approximately 1 mM N-15/C-13 labeled protein in 100 mM phosphate buffer, pH 6.0, and 5 mM DTT | 90% H2O/10% D2O
NMR sample composition Approximately 1 mM N-15 labeled protein in 100 mM phosphate buffer, pH 6.0, an | 90% H2O/10% D2O
Resolution not provided
3RZ9 Mouse importin alpha-Ku80 NLS peptide complex Deposited 2011-05-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 559–571（13 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；Sodium Citrate, DTT, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.29 Å R-free 0.218
5Y3R Cryo-EM structure of Human DNA-PK Holoenzyme Deposited 2017-07-29 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain B 6–541（536 aa） Fragment：UNP residues 6-541
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.60 Å
6ERF Complex of APLF factor and Ku heterodimer bound to DNA Deposited 2017-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain B 2–555（554 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；100 mM Bris Tris propane 13% PEG 3350 150 mM Na nirate
Resolution 3.01 Å R-free 0.227
6ERF Complex of APLF factor and Ku heterodimer bound to DNA Deposited 2017-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain D 2–555（554 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；100 mM Bris Tris propane 13% PEG 3350 150 mM Na nirate
Resolution 3.01 Å R-free 0.227
6ERF Complex of APLF factor and Ku heterodimer bound to DNA Deposited 2017-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain F 2–555（554 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；100 mM Bris Tris propane 13% PEG 3350 150 mM Na nirate
Resolution 3.01 Å R-free 0.227
6ERF Complex of APLF factor and Ku heterodimer bound to DNA Deposited 2017-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain H 2–555（554 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；100 mM Bris Tris propane 13% PEG 3350 150 mM Na nirate
Resolution 3.01 Å R-free 0.227
6ERG Complex of XLF and heterodimer Ku bound to DNA Deposited 2017-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain B 2–555（554 aa）
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；18% PEG 3350, 150 mM Na sulfate , 100 mM Bis-Tris-Propane
Resolution 2.90 Å R-free 0.244
6ERG Complex of XLF and heterodimer Ku bound to DNA Deposited 2017-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain E 2–555（554 aa）
Not recorded SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；18% PEG 3350, 150 mM Na sulfate , 100 mM Bis-Tris-Propane
Resolution 2.90 Å R-free 0.244
6ERH Complex of XLF and heterodimer Ku bound to DNA Deposited 2017-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain B 2–555（554 aa）
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；18% PEG 3350, 150 mM sodium sulfate, and 100 mM Bis-Tris-Propane
Resolution 2.80 Å R-free 0.252
6ERH Complex of XLF and heterodimer Ku bound to DNA Deposited 2017-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain D 2–555（554 aa）
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；18% PEG 3350, 150 mM sodium sulfate, and 100 mM Bis-Tris-Propane
Resolution 2.80 Å R-free 0.252
6ZH6 Cryo-EM structure of DNA-PKcs:Ku80ct194 Deposited 2020-06-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 541–732（192 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.93 Å
6ZHA Cryo-EM structure of DNA-PK monomer Deposited 2020-06-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain C 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.91 Å
6ZHE Cryo-EM structure of DNA-PK dimer Deposited 2020-06-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: decameric
Chain C 1–732（732 aa）
Chain H 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.24 Å
7AXZ Ku70/80 complex apo form Deposited 2020-11-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7K0Y Cryo-EM structure of activated-form DNA-PK (complex VI) Deposited 2020-09-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: heptameric
Chain C 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
7K17 Re-refined crystal structure of DNA-dependent protein kinase catalytic subunit complexed with Ku80 C-terminal helix Deposited 2020-09-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 541–732（192 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Bis-Tris, 200 mM NaCl, 30% glycerol, 10 mM EDTA, 18% PEG 8000
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Bis-Tris, 200 mM NaCl, 30% glycerol, 10 mM EDTA, 8% PEG 8000
Resolution 4.30 Å R-free 0.335
7K17 Re-refined crystal structure of DNA-dependent protein kinase catalytic subunit complexed with Ku80 C-terminal helix Deposited 2020-09-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 541–732（192 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Bis-Tris, 200 mM NaCl, 30% glycerol, 10 mM EDTA, 18% PEG 8000
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Bis-Tris, 200 mM NaCl, 30% glycerol, 10 mM EDTA, 8% PEG 8000
Resolution 4.30 Å R-free 0.335
7K1J CryoEM structure of inactivated-form DNA-PK (Complex III) Deposited 2020-09-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: heptameric
Chain C 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
7K1K CryoEM structure of inactivated-form DNA-PK (Complex IV) Deposited 2020-09-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: heptameric
Chain C 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7K1N CryoEM structure of inactivated-form DNA-PK (Complex V) Deposited 2020-09-08 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: heptameric
Chain C 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
7LSY NHEJ Short-range synaptic complex Deposited 2021-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: heptadecameric
Chain B 1–732（732 aa）
Chain K 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.40 Å
7LT3 NHEJ Long-range synaptic complex Deposited 2021-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain B 1–732（732 aa）
Chain K 1–732（732 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
7NFC Cryo-EM structure of NHEJ super-complex (dimer) Deposited 2021-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: octadecameric
Chain C 1–732（732 aa）
Chain H 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.14 Å
7NFE Cryo-EM structure of NHEJ super-complex (monomer) Deposited 2021-02-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain C 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.29 Å
7SGL DNA-PK complex of DNA end processing Deposited 2021-10-06 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain C 1–732（732 aa）
Not recorded MG MAGNESIUM ION × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
7SU3 CryoEM structure of DNA-PK complex VII Deposited 2021-11-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: heptameric
Chain C 1–732（732 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7SUD CryoEM structure of DNA-PK complex VIII Deposited 2021-11-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–732（732 aa）
Not recorded MG MAGNESIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7Z6O X-Ray studies of Ku70/80 reveal the binding site for IP6 Deposited 2022-03-14 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain B 1–732（732 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；24% PEG3350, 200mM Na2SO4, 100mM BTP, 5 mM b-mercaptoethanol
Resolution 3.70 Å R-free 0.271
7Z87 DNA-PK in the active state Deposited 2022-03-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain C 1–732（732 aa）
Not recorded 1IX (~{S})-[2-chloranyl-4-fluoranyl-5-(7-morpholin-4-ylquinazolin-4-yl)phenyl]-(6-methoxypyridazin-3-yl)methanol × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.91 Å
7Z88 DNA-PK in the intermediate state Deposited 2022-03-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain C 1–732（732 aa）
Not recorded 1IX (~{S})-[2-chloranyl-4-fluoranyl-5-(7-morpholin-4-ylquinazolin-4-yl)phenyl]-(6-methoxypyridazin-3-yl)methanol × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.33 Å
7ZT6 Cryo-EM structure of Ku 70/80 bound to inositol hexakisphosphate Deposited 2022-05-09 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–732（732 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
7ZVT CryoEM structure of Ku heterodimer bound to DNA Deposited 2022-05-17 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain B 1–732（732 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.74 Å
7ZWA CryoEM structure of Ku heterodimer bound to DNA and PAXX Deposited 2022-05-19 Different oligomeric state Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain B 1–732（732 aa）
Not recorded PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8AG4 Vaccinia C16 protein bound to Ku70/Ku80 Deposited 2022-07-19 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.46 Å
8AG5 Vaccinia C16 protein bound to Ku70/Ku80 Deposited 2022-07-19 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.47 Å
8ASC Ku70/80 binds to the Ku-binding motif of PAXX Deposited 2022-08-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: octadecameric
Chain B 2–555（554 aa）
Chain F 2–555（554 aa）
Chain L 2–555（554 aa）
Chain P 2–555（554 aa）
Not recorded SO4 SULFATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；290 K；12% PEG- 3350; 0.1 M Bis-Tris Propane pH 8.5; 0.3 M Ammonium Sulfate
Resolution 2.95 Å R-free 0.298
8BH3 DNA-PK Ku80 mediated dimer bound to PAXX Deposited 2022-10-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: octadecameric
Chain C 1–732（732 aa）
Chain L 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.55 Å
8BHV DNA-PK XLF mediated dimer bound to PAXX Deposited 2022-11-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain b 1–732（732 aa）
Chain j 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.51 Å
8BHY DNA-PK Ku80 mediated dimer bound to PAXX and XLF Deposited 2022-11-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain C 1–732（732 aa）
Chain L 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.33 Å
8BOT Cryo-EM structure of NHEJ supercomplex(trimer) Deposited 2022-11-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 19 PDB declaration: 25-meric
Chain C 1–732（732 aa）
Chain H 1–732（732 aa）
Chain U 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.76 Å
8EZA NHEJ Long-range complex with PAXX Deposited 2022-10-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 22-meric
Chain B 1–732（732 aa）
Chain K 1–732（732 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.39 Å
8EZB NHEJ Long-range complex with ATP Deposited 2022-10-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain B 1–732（732 aa）
Chain K 1–732（732 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.90 Å
8RD4 Telomeric RAP1:DNA-PK complex Deposited 2023-12-07 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain F 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.58 Å
9CQ3 The gap-filling complex with Pol mu engaged in the NHEJ pathway Deposited 2024-07-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain B 1–732（732 aa）
Chain b 1–732（732 aa）
Not recorded MG MAGNESIUM ION × 2 DZ4 2'-deoxy-5'-O-[(R)-hydroxy{[(R)-hydroxy(phosphonooxy)phosphoryl]amino}phosphoryl]adenosine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
9CQ6 The ligation complex in the NHEJ pathway Deposited 2024-07-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: octadecameric
Chain B 1–732（732 aa）
Chain b 1–732（732 aa）
Not recorded AMP ADENOSINE MONOPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9CQC The ligation complex like in the NHEJ pathway Deposited 2024-07-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: octadecameric
Chain B 1–732（732 aa）
Chain b 1–732（732 aa）
Not recorded DZ4 2'-deoxy-5'-O-[(R)-hydroxy{[(R)-hydroxy(phosphonooxy)phosphoryl]amino}phosphoryl]adenosine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9G9L DNA-PK + Polymerase lambda Deposited 2024-07-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric
Chain C 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.63 Å
9GD7 DNA-PK Ku80 mediated dimer bound to DNA polymerase Lambda and DNA ligase 4/XRCC4 Deposited 2024-08-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain L 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.25 Å
9GYF Ku70/80 with PAXX peptide mutation K193R Deposited 2024-10-02 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain B 1–732（732 aa）
Not recorded PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
9HZG Ku70/80 bound to WRN-exo Deposited 2025-01-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain B 1–732（732 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.33 Å
9I04 Ku70/80, DNA bound to Polymerase Mu Deposited 2025-01-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain B 5–536（532 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.05 Å
9IAX DNA-PK, LX4, XLF - Catalytic domain of L4 Deposited 2025-02-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain C 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.97 Å
9IGW Ku70/80 bound to 147 bp nucleosome Deposited 2025-02-20 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain L 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.32 Å
9IGX Ku70/80 bound to 153 bp nucleosome Deposited 2025-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain L 6–545（540 aa）
Chain N 6–545（540 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.56 Å
9IOL Cryo-EM structure of the complex of DNA, Ku70/80, and laXLF. Deposited 2024-07-09 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain A 1–732（732 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 2OP (2S)-2-HYDROXYPROPANOIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.46 Å
9N81 A gap-filling complex with Pol mu engaged in the NHEJ Pathway Deposited 2025-02-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain B 1–732（732 aa）
Chain b 1–732（732 aa）
Not recorded MG MAGNESIUM ION × 1 DZ4 2'-deoxy-5'-O-[(R)-hydroxy{[(R)-hydroxy(phosphonooxy)phosphoryl]amino}phosphoryl]adenosine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
9N82 The ligation (AMP-Lys) complex in the NHEJ pathway Deposited 2025-02-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: octadecameric
Chain B 1–732（732 aa）
Chain b 1–732（732 aa）
Not recorded AMP ADENOSINE MONOPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9N83 The ligation complex in the NHEJ pathway Deposited 2025-02-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: octadecameric
Chain B 1–732（732 aa）
Chain b 1–732（732 aa）
Not recorded AMP ADENOSINE MONOPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9Q80 Ku70/80 with Ku70 linker and SAP domain bound to a 153 bp H2AX nucleosome Deposited 2025-02-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain L 1–732（732 aa）
Chain N 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.39 Å
9Q8X Ku70/80 bound to a 153 bp H2AX nucleosome Deposited 2025-02-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain L 1–732（732 aa）
Chain N 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.94 Å
9Q9F DNA-PK bound to a 153 bp H2AX nucleosome model 1 Deposited 2025-02-26 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: 13-meric
Chain L 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.54 Å
9QCR DNA-PK bound to 153 bp H2AX nucleosome model 2 Deposited 2025-03-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: 13-meric
Chain L 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.37 Å
9QCS Ku80 mediated DNA-PK dimer bound to 153 bp H2AX nucleosome Deposited 2025-03-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 22 PDB declaration: 26-meric
Chain L 1–732（732 aa）
Chain N 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.38 Å
9QMS DNA-PK bound to 153 bp H2AX nucleosome with ATPyS Deposited 2025-03-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 26 PDB declaration: 30-meric
Chain L 1–732（732 aa）
Chain N 1–732（732 aa）
Chain l 1–732（732 aa）
Chain n 1–732（732 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.00 Å

62 other PDB entries and 68 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name XRCC5_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–732； UniProt 1–732

Protein PAXX

Homo sapiens

UniProt Q9BUH6

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 4 DNA 2 PDB declaration: hexameric（6） Consistent with all polymer counts Chain C； UniProt 1–204 Not recorded X-ray repair cross-complementing protein 6 × 1 （P12956） X-ray repair cross-complementing protein 5 × 1 （P13010） Non-homologous end-joining factor 1 × 1 （Q9H9Q4） DNA × 1 DNA × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.68 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7ZYG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3WTD Structure of PAXX Deposited 2014-04-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–166（166 aa） Fragment：N-terminal domain, UNP RESIDUES 1-166
Chain B 1–166（166 aa） Fragment：N-terminal domain, UNP RESIDUES 1-166
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；1.5M ammonium sulfate, 12%(v/v) glycerol, 0.1M Tris, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.35 Å R-free 0.229
3WTF Structure of PAXX Deposited 2014-04-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–204（204 aa）
Chain B 1–204（204 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；1M sodium malonate, 1% (v/v) 1,4-Dioxane, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 3.45 Å R-free 0.268
4WJA Crystal Structure of PAXX Deposited 2014-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–145（145 aa） Fragment：UNP RESIDUES 1-145
Chain B 1–145（145 aa） Fragment：UNP RESIDUES 1-145
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；2.24M Ammonium sulfate, 0.1M Bis-Tris, pH 5.5
Resolution 2.60 Å R-free 0.267
7ZWA CryoEM structure of Ku heterodimer bound to DNA and PAXX Deposited 2022-05-19 Different oligomeric state Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain C 1–204（204 aa）
Not recorded PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8ASC Ku70/80 binds to the Ku-binding motif of PAXX Deposited 2022-08-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: octadecameric
Chain J 177–204（28 aa）
Chain T 177–204（28 aa）
Not recorded SO4 SULFATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；290 K；12% PEG- 3350; 0.1 M Bis-Tris Propane pH 8.5; 0.3 M Ammonium Sulfate
Resolution 2.95 Å R-free 0.298
8BH3 DNA-PK Ku80 mediated dimer bound to PAXX Deposited 2022-10-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: octadecameric
Chain D 1–204（204 aa）
Chain M 1–204（204 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.55 Å
8BHV DNA-PK XLF mediated dimer bound to PAXX Deposited 2022-11-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain c 1–204（204 aa）
Chain i 1–204（204 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.51 Å
8BHY DNA-PK Ku80 mediated dimer bound to PAXX and XLF Deposited 2022-11-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain D 1–204（204 aa）
Chain M 1–204（204 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.33 Å
8EZA NHEJ Long-range complex with PAXX Deposited 2022-10-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 22-meric
Chain S 1–204（204 aa）
Chain T 1–204（204 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.39 Å
8EZB NHEJ Long-range complex with ATP Deposited 2022-10-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain S 1–204（204 aa）
Chain T 1–204（204 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.90 Å
9CQ3 The gap-filling complex with Pol mu engaged in the NHEJ pathway Deposited 2024-07-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain G 1–204（204 aa）
Chain H 1–204（204 aa）
Not recorded MG MAGNESIUM ION × 2 DZ4 2'-deoxy-5'-O-[(R)-hydroxy{[(R)-hydroxy(phosphonooxy)phosphoryl]amino}phosphoryl]adenosine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
9CQ6 The ligation complex in the NHEJ pathway Deposited 2024-07-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: octadecameric
Chain G 1–204（204 aa）
Chain H 1–204（204 aa）
Not recorded AMP ADENOSINE MONOPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9CQC The ligation complex like in the NHEJ pathway Deposited 2024-07-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: octadecameric
Chain G 1–204（204 aa）
Chain H 1–204（204 aa）
Not recorded DZ4 2'-deoxy-5'-O-[(R)-hydroxy{[(R)-hydroxy(phosphonooxy)phosphoryl]amino}phosphoryl]adenosine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9G9L DNA-PK + Polymerase lambda Deposited 2024-07-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric
Chain M 1–204（204 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.63 Å
9GD7 DNA-PK Ku80 mediated dimer bound to DNA polymerase Lambda and DNA ligase 4/XRCC4 Deposited 2024-08-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain M 1–204（204 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.25 Å
9GYF Ku70/80 with PAXX peptide mutation K193R Deposited 2024-10-02 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain C 180–202（23 aa）
Not recorded PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
9N81 A gap-filling complex with Pol mu engaged in the NHEJ Pathway Deposited 2025-02-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain G 1–204（204 aa）
Chain H 1–204（204 aa）
Not recorded MG MAGNESIUM ION × 1 DZ4 2'-deoxy-5'-O-[(R)-hydroxy{[(R)-hydroxy(phosphonooxy)phosphoryl]amino}phosphoryl]adenosine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
9N82 The ligation (AMP-Lys) complex in the NHEJ pathway Deposited 2025-02-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: octadecameric
Chain G 1–204（204 aa）
Chain H 1–204（204 aa）
Not recorded AMP ADENOSINE MONOPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9N83 The ligation complex in the NHEJ pathway Deposited 2025-02-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: octadecameric
Chain G 1–204（204 aa）
Chain H 1–204（204 aa）
Not recorded AMP ADENOSINE MONOPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å

19 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name PAXX_HUMAN
Isoform —
PDB entities 3
Chains and sequence ranges Author chain C； PDBConstruct 1–204； UniProt 1–204

Non-homologous end-joining factor 1

Homo sapiens

UniProt Q9H9Q4

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 4 DNA 2 PDB declaration: hexameric（6） Consistent with all polymer counts Chain F； UniProt 1–299 Not recorded X-ray repair cross-complementing protein 6 × 1 （P12956） X-ray repair cross-complementing protein 5 × 1 （P13010） Protein PAXX × 1 （Q9BUH6） DNA × 1 DNA × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.68 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7ZYG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2QM4 Crystal structure of human XLF/Cernunnos, a non-homologous end-joining factor Deposited 2007-07-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–233（233 aa）
Chain B 1–233（233 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；23% PEG 6000, 0.1M Bis-Tris-Propane, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291.0K
Resolution 2.30 Å R-free 0.239
2QM4 Crystal structure of human XLF/Cernunnos, a non-homologous end-joining factor Deposited 2007-07-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1–233（233 aa）
Chain D 1–233（233 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；23% PEG 6000, 0.1M Bis-Tris-Propane, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291.0K
Resolution 2.30 Å R-free 0.239
2R9A Crystal structure of human XLF Deposited 2007-09-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–224（224 aa） Fragment：N-terminal fragment, unp residues 1-224
Chain B 1–224（224 aa） Fragment：N-terminal fragment, unp residues 1-224
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；273 K；pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 273K
Resolution 2.50 Å R-free 0.287
3Q4F Crystal structure of xrcc4/xlf-cernunnos complex Deposited 2010-12-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–224（224 aa） Fragment：unp residues 1-224
Chain B 1–224（224 aa） Fragment：unp residues 1-224
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；9% v/v MPD, 50 mM MgSO4, 0.1 M Na Cacodylate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 5.50 Å R-free 0.309
3Q4F Crystal structure of xrcc4/xlf-cernunnos complex Deposited 2010-12-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 1–224（224 aa） Fragment：unp residues 1-224
Chain F 1–224（224 aa） Fragment：unp residues 1-224
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；9% v/v MPD, 50 mM MgSO4, 0.1 M Na Cacodylate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 5.50 Å R-free 0.309
3RWR Crystal structure of the human XRCC4-XLF complex Deposited 2011-05-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain D 1–224（224 aa） Fragment：unp residues 1-224
Chain E 1–224（224 aa） Fragment：unp residues 1-224
Chain H 1–224（224 aa） Fragment：unp residues 1-224
Chain I 1–224（224 aa） Fragment：unp residues 1-224
Not recorded TBR HEXATANTALUM DODECABROMIDE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；1.8M Ammonium citrate, pH 8.0, 20 mM Barium chloride dihydrate, 400 mM sodium thiocyanate, 0.5 mM tantalum bromide, 60% PEG 8000, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.94 Å R-free 0.326
3SR2 Crystal Structure of Human XLF-XRCC4 Complex Deposited 2011-07-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain C 1–224（224 aa） Fragment：UNP Residues 1-224
Chain D 1–224（224 aa） Fragment：UNP Residues 1-224
Chain G 1–224（224 aa） Fragment：UNP Residues 1-224
Chain H 1–224（224 aa） Fragment：UNP Residues 1-224
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7；303.15 K；protein combined with equal volumes of 100 mM HEPES, pH 7.8, 13% (w/v) PEG 3350, 300 mM NaCl, 2 mM ADP, 7 mM NaF and 3 mM BeCl) and then dehydrated over 1000 ul of 19% PEG 3350, 300 mM NaCl, 100 mM HEPES, pH7.8 under argon., vapor diffusion, temperature 303.15K
Resolution 3.97 Å R-free 0.369
3SR2 Crystal Structure of Human XLF-XRCC4 Complex Deposited 2011-07-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1–224（224 aa） Fragment：UNP Residues 1-224
Chain D 1–224（224 aa） Fragment：UNP Residues 1-224
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7；303.15 K；protein combined with equal volumes of 100 mM HEPES, pH 7.8, 13% (w/v) PEG 3350, 300 mM NaCl, 2 mM ADP, 7 mM NaF and 3 mM BeCl) and then dehydrated over 1000 ul of 19% PEG 3350, 300 mM NaCl, 100 mM HEPES, pH7.8 under argon., vapor diffusion, temperature 303.15K
Resolution 3.97 Å R-free 0.369
3SR2 Crystal Structure of Human XLF-XRCC4 Complex Deposited 2011-07-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain G 1–224（224 aa） Fragment：UNP Residues 1-224
Chain H 1–224（224 aa） Fragment：UNP Residues 1-224
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7；303.15 K；protein combined with equal volumes of 100 mM HEPES, pH 7.8, 13% (w/v) PEG 3350, 300 mM NaCl, 2 mM ADP, 7 mM NaF and 3 mM BeCl) and then dehydrated over 1000 ul of 19% PEG 3350, 300 mM NaCl, 100 mM HEPES, pH7.8 under argon., vapor diffusion, temperature 303.15K
Resolution 3.97 Å R-free 0.369
3W03 XLF-XRCC4 complex Deposited 2012-10-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–233（233 aa） Fragment：UNP residues 1-233
Chain B 1–233（233 aa） Fragment：UNP residues 1-233
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1M Tris pH7.5, 2M Sodium formate, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 8.49 Å R-free 0.360
6ERG Complex of XLF and heterodimer Ku bound to DNA Deposited 2017-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain F 287–299（13 aa）
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；18% PEG 3350, 150 mM Na sulfate , 100 mM Bis-Tris-Propane
Resolution 2.90 Å R-free 0.244
6ERG Complex of XLF and heterodimer Ku bound to DNA Deposited 2017-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain C 287–299（13 aa）
Not recorded SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；18% PEG 3350, 150 mM Na sulfate , 100 mM Bis-Tris-Propane
Resolution 2.90 Å R-free 0.244
6ERH Complex of XLF and heterodimer Ku bound to DNA Deposited 2017-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain M 281–299（19 aa）
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；18% PEG 3350, 150 mM sodium sulfate, and 100 mM Bis-Tris-Propane
Resolution 2.80 Å R-free 0.252
6ERH Complex of XLF and heterodimer Ku bound to DNA Deposited 2017-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain T 281–299（19 aa）
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；18% PEG 3350, 150 mM sodium sulfate, and 100 mM Bis-Tris-Propane
Resolution 2.80 Å R-free 0.252
7LSY NHEJ Short-range synaptic complex Deposited 2021-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: heptadecameric
Chain H 1–299（299 aa）
Chain I 1–299（299 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.40 Å
7LT3 NHEJ Long-range synaptic complex Deposited 2021-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain H 1–299（299 aa）
Chain I 1–299（299 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
7NFC Cryo-EM structure of NHEJ super-complex (dimer) Deposited 2021-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: octadecameric
Chain Q 1–299（299 aa）
Chain R 1–299（299 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.14 Å
7NFE Cryo-EM structure of NHEJ super-complex (monomer) Deposited 2021-02-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain F 1–299（299 aa）
Chain G 1–299（299 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.29 Å
8BHV DNA-PK XLF mediated dimer bound to PAXX Deposited 2022-11-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain Q 1–299（299 aa）
Chain R 1–299（299 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.51 Å
8BHY DNA-PK Ku80 mediated dimer bound to PAXX and XLF Deposited 2022-11-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain f 1–299（299 aa）
Chain m 1–299（299 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.33 Å
8BOT Cryo-EM structure of NHEJ supercomplex(trimer) Deposited 2022-11-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 19 PDB declaration: 25-meric
Chain Q 1–299（299 aa）
Chain R 1–299（299 aa）
Chain X 1–299（299 aa）
Chain Y 1–299（299 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.76 Å
8EZA NHEJ Long-range complex with PAXX Deposited 2022-10-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 22-meric
Chain H 1–299（299 aa）
Chain I 1–299（299 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.39 Å
8EZB NHEJ Long-range complex with ATP Deposited 2022-10-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain H 1–299（299 aa）
Chain I 1–299（299 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.90 Å
9CQ3 The gap-filling complex with Pol mu engaged in the NHEJ pathway Deposited 2024-07-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain C 1–299（299 aa）
Chain c 1–299（299 aa）
Not recorded MG MAGNESIUM ION × 2 DZ4 2'-deoxy-5'-O-[(R)-hydroxy{[(R)-hydroxy(phosphonooxy)phosphoryl]amino}phosphoryl]adenosine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
9CQ6 The ligation complex in the NHEJ pathway Deposited 2024-07-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: octadecameric
Chain C 1–299（299 aa）
Chain c 1–299（299 aa）
Not recorded AMP ADENOSINE MONOPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9CQC The ligation complex like in the NHEJ pathway Deposited 2024-07-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: octadecameric
Chain C 1–299（299 aa）
Chain c 1–299（299 aa）
Not recorded DZ4 2'-deoxy-5'-O-[(R)-hydroxy{[(R)-hydroxy(phosphonooxy)phosphoryl]amino}phosphoryl]adenosine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9IAX DNA-PK, LX4, XLF - Catalytic domain of L4 Deposited 2025-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–299（299 aa）
Chain M 1–299（299 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.97 Å
9IOL Cryo-EM structure of the complex of DNA, Ku70/80, and laXLF. Deposited 2024-07-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain M 287–299（13 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 2OP (2S)-2-HYDROXYPROPANOIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.46 Å
9N81 A gap-filling complex with Pol mu engaged in the NHEJ Pathway Deposited 2025-02-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain C 1–299（299 aa）
Chain c 1–299（299 aa）
Not recorded MG MAGNESIUM ION × 1 DZ4 2'-deoxy-5'-O-[(R)-hydroxy{[(R)-hydroxy(phosphonooxy)phosphoryl]amino}phosphoryl]adenosine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
9N82 The ligation (AMP-Lys) complex in the NHEJ pathway Deposited 2025-02-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: octadecameric
Chain C 1–299（299 aa）
Chain c 1–299（299 aa）
Not recorded AMP ADENOSINE MONOPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9N83 The ligation complex in the NHEJ pathway Deposited 2025-02-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: octadecameric
Chain C 1–299（299 aa）
Chain c 1–299（299 aa）
Not recorded AMP ADENOSINE MONOPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å

25 other PDB entries and 31 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name NHEJ1_HUMAN
Isoform —
PDB entities 4
Chains and sequence ranges Author chain F； PDBConstruct 1–299； UniProt 1–299

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 7zyg

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 7zyg
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id7zyg
Deposition date deposition_date2022-05-24
Structure title titleCryoEM structure of Ku heterodimer bound to DNA, PAXX and XLF
Keywords keywordsNHEJ, Ku70, Ku80, DNA damage, DNA BINDING PROTEIN, XLF; DNA BINDING PROTEIN
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier36.58 Å
Radius of gyration Rg (electron density) rg_electron36.72 Å
Forward intensity I(0) i0260874000.00
Molecular weight molecular_weight127260.0 kDa
Excluded volume excluded_volume158190 ų
Envelope volume envelope_volume215760 ų
Hydration-shell volume shell_volume51005 ų
Envelope diameter envelope_diameter138.9 Å
Shell Rg shell_rg40.96 Å
Envelope Rg envelope_rg36.59 Å
Shape Rg shape_rg36.75 Å
Total Rg total_rg36.90 Å
Total atoms total_atoms8914
Residues n_residues1069
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax130.4 Å
Rg (real space) rg_real36.79 Å
Rg uncertainty (real space) rg_real_error1.46 Å
I(0) (real space) i0_real2.6090e+08
I(0) uncertainty (real space) i0_real_error5.2030e+06
Rg (reciprocal space) rg_reciprocal36.66 Å
I(0) (reciprocal space) i0_reciprocal260800000.0000
Solution quality estimate total_estimate0.6226
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary42.5 Å
Skewness Skewness skewness0.609
Kurtosis Kurtosis kurtosis0.313
Angular range angular_range— – 0.2150 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha103100000.0000
Real-space data points n_real_points44
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.689; Stabil: 1.000; Sysdev: 0.159; Positv: 1.000; Valcen: 0.901; Smooth: 0.647
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id7zygB01
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily410 — von Willebrand factor, type A domain
Domain ID domain_id7zygB02
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology1600 — Ku70; Chain: A; domain 4
Homologous superfamily homologous superfamily10 —
▶

8. Citations (1)

▶

9. Files and Curves (10)
