8eza

NHEJ Long-range complex with PAXX

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein PAXX

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 18 DNA 4	X-ray repair cross-complementing protein 6 × 2 （P12956） X-ray repair cross-complementing protein 5 × 2 （P13010） DNA-dependent protein kinase catalytic subunit × 2 （P78527） PRKDC_HUMAN DNA-dependent protein kinase catalytic subunit -- Unknown region × 2 DNA (31-MER) × 2 DNA (30-MER) × 2 Non-homologous end-joining factor 1 × 2 （Q9H9Q4） DNA repair protein XRCC4 × 4 （Q13426） DNA ligase 4 × 2 （P49917） ADENOSINE-5'-TRIPHOSPHATE × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PAXX_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain S； PDBConstruct 1–204； UniProt 1–204 Author chain T； PDBConstruct 1–204； UniProt 1–204

X-ray repair cross-complementing protein 6

Homo sapiens

UniProt P12956

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 18 DNA 4	Protein PAXX × 2 （Q9BUH6） X-ray repair cross-complementing protein 5 × 2 （P13010） DNA-dependent protein kinase catalytic subunit × 2 （P78527） PRKDC_HUMAN DNA-dependent protein kinase catalytic subunit -- Unknown region × 2 DNA (31-MER) × 2 DNA (30-MER) × 2 Non-homologous end-joining factor 1 × 2 （Q9H9Q4） DNA repair protein XRCC4 × 4 （Q13426） DNA ligase 4 × 2 （P49917） ADENOSINE-5'-TRIPHOSPHATE × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	XRCC6_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–609； UniProt 1–609 Author chain J； PDBConstruct 1–609； UniProt 1–609

X-ray repair cross-complementing protein 5

Homo sapiens

UniProt P13010

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 18 DNA 4	Protein PAXX × 2 （Q9BUH6） X-ray repair cross-complementing protein 6 × 2 （P12956） DNA-dependent protein kinase catalytic subunit × 2 （P78527） PRKDC_HUMAN DNA-dependent protein kinase catalytic subunit -- Unknown region × 2 DNA (31-MER) × 2 DNA (30-MER) × 2 Non-homologous end-joining factor 1 × 2 （Q9H9Q4） DNA repair protein XRCC4 × 4 （Q13426） DNA ligase 4 × 2 （P49917） ADENOSINE-5'-TRIPHOSPHATE × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	XRCC5_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain B； PDBConstruct 1–732； UniProt 1–732 Author chain K； PDBConstruct 1–732； UniProt 1–732

DNA-dependent protein kinase catalytic subunit

OrganismNot specified

UniProt P78527

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 18 DNA 4	Protein PAXX × 2 （Q9BUH6） X-ray repair cross-complementing protein 6 × 2 （P12956） X-ray repair cross-complementing protein 5 × 2 （P13010） PRKDC_HUMAN DNA-dependent protein kinase catalytic subunit -- Unknown region × 2 DNA (31-MER) × 2 DNA (30-MER) × 2 Non-homologous end-joining factor 1 × 2 （Q9H9Q4） DNA repair protein XRCC4 × 4 （Q13426） DNA ligase 4 × 2 （P49917） ADENOSINE-5'-TRIPHOSPHATE × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PRKDC_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain C； PDBConstruct 1–4128； UniProt 1–4128 Author chain L； PDBConstruct 1–4128； UniProt 1–4128

Non-homologous end-joining factor 1

Homo sapiens

UniProt Q9H9Q4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 18 DNA 4	Protein PAXX × 2 （Q9BUH6） X-ray repair cross-complementing protein 6 × 2 （P12956） X-ray repair cross-complementing protein 5 × 2 （P13010） DNA-dependent protein kinase catalytic subunit × 2 （P78527） PRKDC_HUMAN DNA-dependent protein kinase catalytic subunit -- Unknown region × 2 DNA (31-MER) × 2 DNA (30-MER) × 2 DNA repair protein XRCC4 × 4 （Q13426） DNA ligase 4 × 2 （P49917） ADENOSINE-5'-TRIPHOSPHATE × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NHEJ1_HUMAN
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain H； PDBConstruct 1–299； UniProt 1–299 Author chain I； PDBConstruct 1–299； UniProt 1–299

DNA repair protein XRCC4

Homo sapiens

UniProt Q13426

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 18 DNA 4	Protein PAXX × 2 （Q9BUH6） X-ray repair cross-complementing protein 6 × 2 （P12956） X-ray repair cross-complementing protein 5 × 2 （P13010） DNA-dependent protein kinase catalytic subunit × 2 （P78527） PRKDC_HUMAN DNA-dependent protein kinase catalytic subunit -- Unknown region × 2 DNA (31-MER) × 2 DNA (30-MER) × 2 Non-homologous end-joining factor 1 × 2 （Q9H9Q4） DNA ligase 4 × 2 （P49917） ADENOSINE-5'-TRIPHOSPHATE × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	XRCC4_HUMAN
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain F； PDBConstruct 1–336； UniProt 1–336 Author chain G； PDBConstruct 1–336； UniProt 1–336 Author chain O； PDBConstruct 1–336； UniProt 1–336 Author chain P； PDBConstruct 1–336； UniProt 1–336

DNA ligase 4

Homo sapiens

UniProt P49917

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 18 DNA 4	Protein PAXX × 2 （Q9BUH6） X-ray repair cross-complementing protein 6 × 2 （P12956） X-ray repair cross-complementing protein 5 × 2 （P13010） DNA-dependent protein kinase catalytic subunit × 2 （P78527） PRKDC_HUMAN DNA-dependent protein kinase catalytic subunit -- Unknown region × 2 DNA (31-MER) × 2 DNA (30-MER) × 2 Non-homologous end-joining factor 1 × 2 （Q9H9Q4） DNA repair protein XRCC4 × 4 （Q13426） ADENOSINE-5'-TRIPHOSPHATE × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DNLI4_HUMAN
Isoform	—
PDB entities	10
Chains and sequence ranges	Author chain X； PDBConstruct 1–911； UniProt 1–911 Author chain Y； PDBConstruct 1–911； UniProt 1–911

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8eza
Deposition date deposition_date	2022-10-31
Structure title title	NHEJ Long-range complex with PAXX
Keywords keywords	Complex, Kinase, NHEJ, DNA BINDING PROTEIN, DNA BINDING PROTEIN-DNA complex; DNA BINDING PROTEIN/DNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8eza__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8eza__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

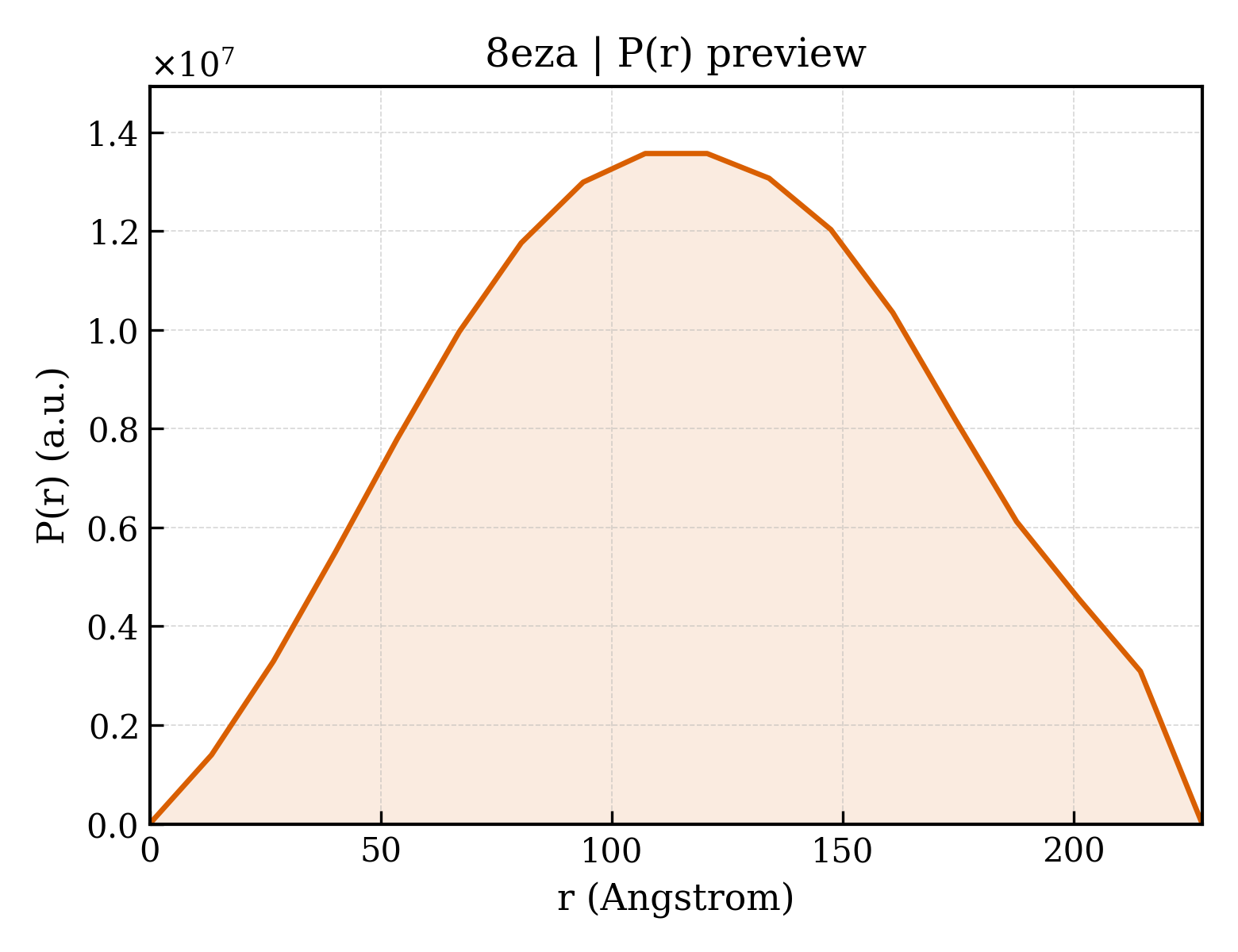

8eza__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	92.06 Å
Rg (electron density)	91.51 Å
Total Rg	91.50 Å
Atom count	93588
Residues	11469
Excluded volume	1673300 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8eza__assembly_1__model_1`	22-meric （22）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (11)

Entity 1 Entity 1 polymer

Description description	Protein PAXX
Molecular weight formula_weight	21663.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S,T
Atom count atom_count	93588

MDPLSPPLCTLPPGPEPPRFVCYCEGEESGEGDRGGFNLYVTDAAELWSTCFTPDSLAALKARFGLSAAEDITPRFRAACEQQAVALTLQEDRASLTLSGGPSALAFDLSKVPGPEAAPRLRALTLGLAKRVWSLERRLAAAEETAVSPRKSPRPAGPQLFLPDPDPQRGGPGPGVRRRCPGESLINPGFKSKKPAGGVDFDET

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	X-ray repair cross-complementing protein 6
Molecular weight formula_weight	69945.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J,A

MSGWESYYKTEGDEEAEEEQEENLEASGDYKYSGRDSLIFLVDASKAMFESQSEDELTPFDMSIQCIQSVYISKIISSDRDLLAVVFYGTEKDKNSVNFKNIYVLQELDNPGAKRILELDQFKGQQGQKRFQDMMGHGSDYSLSEVLWVCANLFSDVQFKMSHKRIMLFTNEDNPHGNDSAKASRARTKAGDLRDTGIFLDLMHLKKPGGFDISLFYRDIISIAEDEDLRVHFEESSKLEDLLRKVRAKETRKRALSRLKLKLNKDIVISVGIYNLVQKALKPPPIKLYRETNEPVKTKTRTFNTSTGGLLLPSDTKRSQIYGSRQIILEKEETEELKRFDDPGLMLMGFKPLVLLKKHHYLRPSLFVYPEESLVIGSSTLFSALLIKCLEKEVAALCRYTPRRNIPPYFVALVPQEEELDDQKIQVTPPGFQLVFLPFADDKRKMPFTEKIMATPEQVGKMKAIVEKLRFTYRSDSFENPVLQQHFRNLEALALDLMEPEQAVDLTLPKVEAMNKRLGSLVDEFKELVYPPDYNPEGKVTKRKHDNEGSGSKRPKVEYSEEELKTHISKGTLGKFTVPMLKEACRAYGLKSGLKKQELLEALTKHFQD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	unidentified baculovirus

Entity 3 Entity 3 polymer

Description description	X-ray repair cross-complementing protein 5
Molecular weight formula_weight	82812.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K,B

MVRSGNKAAVVLCMDVGFTMSNSIPGIESPFEQAKKVITMFVQRQVFAENKDEIALVLFGTDGTDNPLSGGDQYQNITVHRHLMLPDFDLLEDIESKIQPGSQQADFLDALIVSMDVIQHETIGKKFEKRHIEIFTDLSSRFSKSQLDIIIHSLKKCDISLQFFLPFSLGKEDGSGDRGDGPFRLGGHGPSFPLKGITEQQKEGLEIVKMVMISLEGEDGLDEIYSFSESLRKLCVFKKIERHSIHWPCRLTIGSNLSIRIAAYKSILQERVKKTWTVVDAKTLKKEDIQKETVYCLNDDDETEVLKEDIIQGFRYGSDIVPFSKVDEEQMKYKSEGKCFSVLGFCKSSQVQRRFFMGNQVLKVFAARDDEAAAVALSSLIHALDDLDMVAIVRYAYDKRANPQVGVAFPHIKHNYECLVYVQLPFMEDLRQYMFSSLKNSKKYAPTEAQLNAVDALIDSMSLAKKDEKTDTLEDLFPTTKIPNPRFQRLFQCLLHRALHPREPLPPIQQHIWNMLNPPAEVTTKSQIPLSKIKTLFPLIEAKKKDQVTAQEIFQDNHEDGPTAKKLKTEQGGAHFSVSSLAEGSVTSVGSVNPAENFRVLVKQKKASFEEASNQLINHIEQFLDTNETPYFMKSIDCIRAFREEAIKFSEEQRFNNFLKALQEKVEIKQLNHFWEIVVQDGITLITKEEASGSSVTAEEAKKFLAPKDKPSGDTAAVFEEGGDVDDLLDMI

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	unidentified baculovirus

Entity 4 Entity 4 polymer

Description description	DNA-dependent protein kinase catalytic subunit
Molecular weight formula_weight	469673.2 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,C

MAGSGAGVRCSLLRLQETLSAADRCGAALAGHQLIRGLGQECVLSSSPAVLALQTSLVFSRDFGLLVFVRKSLNSIEFRECREEILKFLCIFLEKMGQKIAPYSVEIKNTCTSVYTKDRAAKCKIPALDLLIKLLQTFRSSRLMDEFKIGELFSKFYGELALKKKIPDTVLEKVYELLGLLGEVHPSEMINNAENLFRAFLGELKTQMTSAVREPKLPVLAGCLKGLSSLLCNFTKSMEEDPQTSREIFNFVLKAIRPQIDLKRYAVPSAGLRLFALHASQFSTCLLDNYVSLFEVLLKWCAHTNVELKKAALSALESFLKQVSNMVAKNAEMHKNKLQYFMEQFYGIIRNVDSNNKELSIAIRGYGLFAGPCKVINAKDVDFMYVELIQRCKQMFLTQTDTGDDRVYQMPSFLQSVASVLLYLDTVPEVYTPVLEHLVVMQIDSFPQYSPKMQLVCCRAIVKVFLALAAKGPVLRNCISTVVHQGLIRICSKPVVLPKGPESESEDHRASGEVRTGKWKVPTYKDYVDLFRHLLSSDQMMDSILADEAFFSVNSSSESLNHLLYDEFVKSVLKIVEKLDLTLEIQTVGEQENGDEAPGVWMIPTSDPAANLHPAKPKDFSAFINLVEFCREILPEKQAEFFEPWVYSFSYELILQSTRLPLISGFYKLLSITVRNAKKIKYFEGVSPKSLKHSPEDPEKYSCFALFVKFGKEVAVKMKQYKDELLASCLTFLLSLPHNIIELDVRAYVPALQMAFKLGLSYTPLAEVGLNALEEWSIYIDRHVMQPYYKDILPCLDGYLKTSALSDETKNNWEVSALSRAAQKGFNKVVLKHLKKTKNLSSNEAISLEEIRIRVVQMLGSLGGQINKNLLTVTSSDEMMKSYVAWDREKRLSFAVPFREMKPVIFLDVFLPRVTELALTASDRQTKVAACELLHSMVMFMLGKATQMPEGGQGAPPMYQLYKRTFPVLLRLACDVDQVTRQLYEPLVMQLIHWFTNNKKFESQDTVALLEAILDGIVDPVDSTLRDFCGRCIREFLKWSIKQITPQQQEKSPVNTKSLFKRLYSLALHPNAFKRLGASLAFNNIYREFREEESLVEQFVFEALVIYMESLALAHADEKSLGTIQQCCDAIDHLCRIIEKKHVSLNKAKKRRLPRGFPPSASLCLLDLVKWLLAHCGRPQTECRHKSIELFYKFVPLLPGNRSPNLWLKDVLKEEGVSFLINTFEGGGCGQPSGILAQPTLLYLRGPFSLQATLCWLDLLLAALECYNTFIGERTVGALQVLGTEAQSSLLKAVAFFLESIAMHDIIAAEKCFGTGAAGNRTSPQEGERYNYSKCTVVVRIMEFTTTLLNTSPEGWKLLKKDLCNTHLMRVLVQTLCEPASIGFNIGDVQVMAHLPDVCVNLMKALKMSPYKDILETHLREKITAQSIEELCAVNLYGPDAQVDRSRLAAVVSACKQLHRAGLLHNILPSQSTDLHHSVGTELLSLVYKGIAPGDERQCLPSLDLSCKQLASGLLELAFAFGGLCERLVSLLLNPAVLSTASLGSSQGSVIHFSHGEYFYSLFSETINTELLKNLDLAVLELMQSSVDNTKMVSAVLNGMLDQSFRERANQKHQGLKLATTILQHWKKCDSWWAKDSPLETKMAVLALLAKILQIDSSVSFNTSHGSFPEVFTTYISLLADTKLDLHLKGQAVTLLPFFTSLTGGSLEELRRVLEQLIVAHFPMQSREFPPGTPRFNNYVDCMKKFLDALELSQSPMLLELMTEVLCREQQHVMEELFQSSFRRIARRGSCVTQVGLLESVYEMFRKDDPRLSFTRQSFVDRSLLTLLWHCSLDALREFFSTIVVDAIDVLKSRFTKLNESTFDTQITKKMGYYKILDVMYSRLPKDDVHAKESKINQVFHGSCITEGNELTKTLIKLCYDAFTENMAGENQLLERRRLYHCAAYNCAISVICCVFNELKFYQGFLFSEKPEKNLLIFENLIDLKRRYNFPVEVEVPMERKKKYIEIRKEAREAANGDSDGPSYMSSLSYLADSTLSEEMSQFDFSTGVQSYSYSSQDPRPATGRFRRREQRDPTVHDDVLELEMDELNRHECMAPLTALVKHMHRSLGPPQGEEDSVPRDLPSWMKFLHGKLGNPIVPLNIRLFLAKLVINTEEVFRPYAKHWLSPLLQLAASENNGGEGIHYMVVEIVATILSWTGLATPTGVPKDEVLANRLLNFLMKHVFHPKRAVFRHNLEIIKTLVECWKDCLSIPYRLIFEKFSGKDPNSKDNSVGIQLLGIVMANDLPPYDPQCGIQSSEYFQALVNNMSFVRYKEVYAAAAEVLGLILRYVMERKNILEESLCELVAKQLKQHQNTMEDKFIVCLNKVTKSFPPLADRFMNAVFFLLPKFHGVLKTLCLEVVLCRVEGMTELYFQLKSKDFVQVMRHRDDERQKVCLDIIYKMMPKLKPVELRELLNPVVEFVSHPSTTCREQMYNILMWIHDNYRDPESETDNDSQEIFKLAKDVLIQGLIDENPGLQLIIRNFWSHETRLPSNTLDRLLALNSLYSPKIEVHFLSLATNFLLEMTSMSPDYPNPMFEHPLSECEFQEYTIDSDWRFRSTVLTPMFVETQASQGTLQTRTQEGSLSARWPVAGQIRATQQQHDFTLTQTADGRSSFDWLTGSSTDPLVDHTSPSSDSLLFAHKRSERLQRAPLKSVGPDFGKKRLGLPGDEVDNKVKGAAGRTDLLRLRRRFMRDQEKLSLMYARKGVAEQKREKEIKSELKMKQDAQVVLYRSYRHGDLPDIQIKHSSLITPLQAVAQRDPIIAKQLFSSLFSGILKEMDKFKTLSEKNNITQKLLQDFNRFLNTTFSFFPPFVSCIQDISCQHAALLSLDPAAVSAGCLASLQQPVGIRLLEEALLRLLPAELPAKRVRGKARLPPDVLRWVELAKLYRSIGEYDVLRGIFTSEIGTKQITQSALLAEARSDYSEAAKQYDEALNKQDWVDGEPTEAEKDFWELASLDCYNHLAEWKSLEYCSTASIDSENPPDLNKIWSEPFYQETYLPYMIRSKLKLLLQGEADQSLLTFIDKAMHGELQKAILELHYSQELSLLYLLQDDVDRAKYYIQNGIQSFMQNYSSIDVLLHQSRLTKLQSVQALTEIQEFISFISKQGNLSSQVPLKRLLNTWTNRYPDAKMDPMNIWDDIITNRCFFLSKIEEKLTPLPEDNSMNVDQDGDPSDRMEVQEQEEDISSLIRSCKFSMKMKMIDSARKQNNFSLAMKLLKELHKESKTRDDWLVSWVQSYCRLSHCRSRSQGCSEQVLTVLKTVSLLDENNVSSYLSKNILAFRDQNILLGTTYRIIANALSSEPACLAEIEEDKARRILELSGSSSEDSEKVIAGLYQRAFQHLSEAVQAAEEEAQPPSWSCGPAAGVIDAYMTLADFCDQQLRKEEENASVIDSAELQAYPALVVEKMLKALKLNSNEARLKFPRLLQIIERYPEETLSLMTKEISSVPCWQFISWISHMVALLDKDQAVAVQHSVEEITDNYPQAIVYPFIISSESYSFKDTSTGHKNKEFVARIKSKLDQGGVIQDFINALDQLSNPELLFKDWSNDVRAELAKTPVNKKNIEKMYERMYAALGDPKAPGLGAFRRKFIQTFGKEFDKHFGKGGSKLLRMKLSDFNDITNMLLLKMNKDSKPPGNLKECSPWMSDFKVEFLRNELEIPGQYDGRGKPLPEYHVRIAGFDERVTVMASLRRPKRIIIRGHDEREHPFLVKGGEDLRQDQRVEQLFQVMNGILAQDSACSQRALQLRTYSVVPMTSRLGLIEWLENTVTLKDLLLNTMSQEEKAAYLSDPRAPPCEYKDWLTKMSGKHDVGAYMLMYKGANRTETVTSFRKRESKVPADLLKRAFVRMSTSPEAFLALRSHFASSHALICISHWILGIGDRHLNNFMVAMETGGVIGIDFGHAFGSATQFLPVPELMPFRLTRQFINLMLPMKETGLMYSIMVHALRAFRSDPGLLTNTMDVFVKEPSFDWKNFEQKMLKKGGSWIQEINVAEKNWYPRQKICYAKRKLAGANPAVITCDELLLGHEKAPAFRDYVAVARGSKDHNIRAQEPESGLSEETQVKCLMDQATDPNILGRTWEGWEPWM

Entity 5 Entity 5 polymer

Description description	PRKDC_HUMAN DNA-dependent protein kinase catalytic subunit -- Unknown region
Molecular weight formula_weight	1720.1 kDa
EC 编号 ec_number	2.7.11.1
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R,Q

XXXXXXXXXXXXXXXXXXXX

Entity 6 Entity 6 polymer

Description description	DNA (31-MER)
Molecular weight formula_weight	9510.2 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	M,D

TCTAAGAACTCTGATGTCAGTAGATTACACT

Entity 7 Entity 7 polymer

Description description	DNA (30-MER)
Molecular weight formula_weight	9237.0 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	N,E

GTGTAATCTACTGACATCAGAGTTCTTAGA

Entity 8 Entity 8 polymer

Description description	Non-homologous end-joining factor 1
Molecular weight formula_weight	33372.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,I

MEELEQGLLMQPWAWLQLAENSLLAKVFITKQGYALLVSDLQQVWHEQVDTSVVSQRAKELNKRLTAPPAAFLCHLDNLLRPLLKDAAHPSEATFSCDCVADALILRVRSELSGLPFYWNFHCMLASPSLVSQHLIRPLMGMSLALQCQVRELATLLHMKDLEIQDYQESGATLIRDRLKTEPFEENSFLEQFMIEKLPEACSIGDGKPFVMNLQDLYMAVTTQEVQVGQKHQGAGDPHTSNSASLQGIDSQCVNQPEQLVSSAPTLSAPEKESTGTSGPLQRPQLSKVKRKKPRGLFS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 9 Entity 9 polymer

Description description	DNA repair protein XRCC4
Molecular weight formula_weight	38337.7 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,G,O,P

MERKISRIHLVSEPSITHFLQVSWEKTLESGFVITLTDGHSAWTGTVSESEISQEADDMAMEKGKYVGELRKALLSGAGPADVYTFNFSKESCYFFFEKNLKDVSFRLGSFNLEKVENPAEVIRELICYCLDTIAENQAKNEHLQKENERLLRDWNDVQGRFEKCVSAKEALETDLYKRFILVLNEKKTKIRSLHNKLLNAAQEREKDIKQEGETAICSEMTADRDPVYDESTDEESENQTDLSGLASAAVSKDDSIISSLDVTDIAPSRKRRQRMQRNLGTEPKMAPQENQLQEKENSRPDSSLPETSKKEHISAENMSLETLRNSSPEDLFDEI

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 10 Entity 10 polymer

Description description	DNA ligase 4
Molecular weight formula_weight	104125.0 kDa
EC 编号 ec_number	6.5.1.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X,Y

MAASQTSQTVASHVPFADLCSTLERIQKSKGRAEKIRHFREFLDSWRKFHDALHKNHKDVTDSFYPAMRLILPQLERERMAYGIKETMLAKLYIELLNLPRDGKDALKLLNYRTPTGTHGDAGDFAMIAYFVLKPRCLQKGSLTIQQVNDLLDSIASNNSAKRKDLIKKSLLQLITQSSALEQKWLIRMIIKDLKLGVSQQTIFSVFHNDAAELHNVTTDLEKVCRQLHDPSVGLSDISITLFSAFKPMLAAIADIEHIEKDMKHQSFYIETKLDGERMQMHKDGDVYKYFSRNGYNYTDQFGASPTEGSLTPFIHNAFKADIQICILDGEMMAYNPNTQTFMQKGTKFDIKRMVEDSDLQTCYCVFDVLMVNNKKLGHETLRKRYEILSSIFTPIPGRIEIVQKTQAHTKNEVIDALNEAIDKREEGIMVKQPLSIYKPDKRGEGWLKIKPEYVSGLMDELDILIVGGYWGKGSRGGMMSHFLCAVAEKPPPGEKPSVFHTLSRVGSGCTMKELYDLGLKLAKYWKPFHRKAPPSSILCGTEKPEVYIEPCNSVIVQIKAAEIVPSDMYKTGCTLRFPRIEKIRDDKEWHECMTLDDLEQLRGKASGKLASKHLYIGGDDEPQEKKRKAAPKMKKVIGIIEHLKAPNLTNVNKISNIFEDVEFCVMSGTDSQPKPDLENRIAEFGGYIVQNPGPDTYCVIAGSENIRVKNIILSNKHDVVKPAWLLECFKTKSFVPWQPRFMIHMCPSTKEHFAREYDCYGDSYFIDTDLNQLKEVFSGIKNSNEQTPEEMASLIADLEYRYSWDCSPLSMFRRHTVYLDSYAVINDLSTKNEGTRLAIKALELRFHGAKVVSCLAEGVSHVIIGEDHSRVADFKAFRRTFKRKFKILKESWVTDSIDKCELQEENQYLI

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 11 Entity 11 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.39 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	138252

NHEJ Long-range complex with PAXX

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein PAXX

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

X-ray repair cross-complementing protein 6

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

X-ray repair cross-complementing protein 5

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA-dependent protein kinase catalytic subunit

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Non-homologous end-joining factor 1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA repair protein XRCC4

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA ligase 4

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

8eza__assembly_1__model_1

8eza__assembly_1__model_1 | I(q)

8eza__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

5. Entities and Polymers Entities & Polymers (11)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 polymer

Polymer Polymer

Source Source

Entity 4 Entity 4 polymer

Polymer Polymer

Entity 5 Entity 5 polymer
