8ca4

Cryo-EM structure NDUFS4 knockout complex I from Mus musculus heart (Class 2 N-domain).

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NADH dehydrogenase [ubiquinone] flavoprotein 2, mitochondrial

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	NADH dehydrogenase [ubiquinone] flavoprotein 1, mitochondrial × 1 （Q91YT0） NADH-ubiquinone oxidoreductase 75 kDa subunit, mitochondrial × 1 （Q91VD9） NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 2 × 1 （Q9CQ75） NADH dehydrogenase [ubiquinone] flavoprotein 3, mitochondrial × 1 （Q8BK30） FE2/S2 (INORGANIC) CLUSTER × 2 IRON/SULFUR CLUSTER × 3 FLAVIN MONONUCLEOTIDE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NDUV2_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain E； PDBConstruct 1–248； UniProt 1–248

NADH dehydrogenase [ubiquinone] flavoprotein 1, mitochondrial

OrganismNot specified

UniProt Q91YT0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	NADH dehydrogenase [ubiquinone] flavoprotein 2, mitochondrial × 1 （Q9D6J6） NADH-ubiquinone oxidoreductase 75 kDa subunit, mitochondrial × 1 （Q91VD9） NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 2 × 1 （Q9CQ75） NADH dehydrogenase [ubiquinone] flavoprotein 3, mitochondrial × 1 （Q8BK30） FE2/S2 (INORGANIC) CLUSTER × 2 IRON/SULFUR CLUSTER × 3 FLAVIN MONONUCLEOTIDE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NDUV1_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain F； PDBConstruct 1–464； UniProt 1–464

NADH-ubiquinone oxidoreductase 75 kDa subunit, mitochondrial

OrganismNot specified

UniProt Q91VD9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	NADH dehydrogenase [ubiquinone] flavoprotein 2, mitochondrial × 1 （Q9D6J6） NADH dehydrogenase [ubiquinone] flavoprotein 1, mitochondrial × 1 （Q91YT0） NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 2 × 1 （Q9CQ75） NADH dehydrogenase [ubiquinone] flavoprotein 3, mitochondrial × 1 （Q8BK30） FE2/S2 (INORGANIC) CLUSTER × 2 IRON/SULFUR CLUSTER × 3 FLAVIN MONONUCLEOTIDE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NDUS1_MOUSE
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain G； PDBConstruct 1–727； UniProt 1–727

NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 2

OrganismNot specified

UniProt Q9CQ75

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	NADH dehydrogenase [ubiquinone] flavoprotein 2, mitochondrial × 1 （Q9D6J6） NADH dehydrogenase [ubiquinone] flavoprotein 1, mitochondrial × 1 （Q91YT0） NADH-ubiquinone oxidoreductase 75 kDa subunit, mitochondrial × 1 （Q91VD9） NADH dehydrogenase [ubiquinone] flavoprotein 3, mitochondrial × 1 （Q8BK30） FE2/S2 (INORGANIC) CLUSTER × 2 IRON/SULFUR CLUSTER × 3 FLAVIN MONONUCLEOTIDE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NDUA2_MOUSE
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain S； PDBConstruct 1–99； UniProt 1–99

NADH dehydrogenase [ubiquinone] flavoprotein 3, mitochondrial

OrganismNot specified

UniProt Q8BK30

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	NADH dehydrogenase [ubiquinone] flavoprotein 2, mitochondrial × 1 （Q9D6J6） NADH dehydrogenase [ubiquinone] flavoprotein 1, mitochondrial × 1 （Q91YT0） NADH-ubiquinone oxidoreductase 75 kDa subunit, mitochondrial × 1 （Q91VD9） NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 2 × 1 （Q9CQ75） FE2/S2 (INORGANIC) CLUSTER × 2 IRON/SULFUR CLUSTER × 3 FLAVIN MONONUCLEOTIDE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NDUV3_MOUSE
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain s； PDBConstruct 1–104； UniProt 1–104

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ca4
Deposition date deposition_date	2023-01-24
Structure title title	Cryo-EM structure NDUFS4 knockout complex I from Mus musculus heart (Class 2 N-domain).
Keywords keywords	NADH ubiquinone oxidoreductase, Complex I, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8ca4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8ca4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

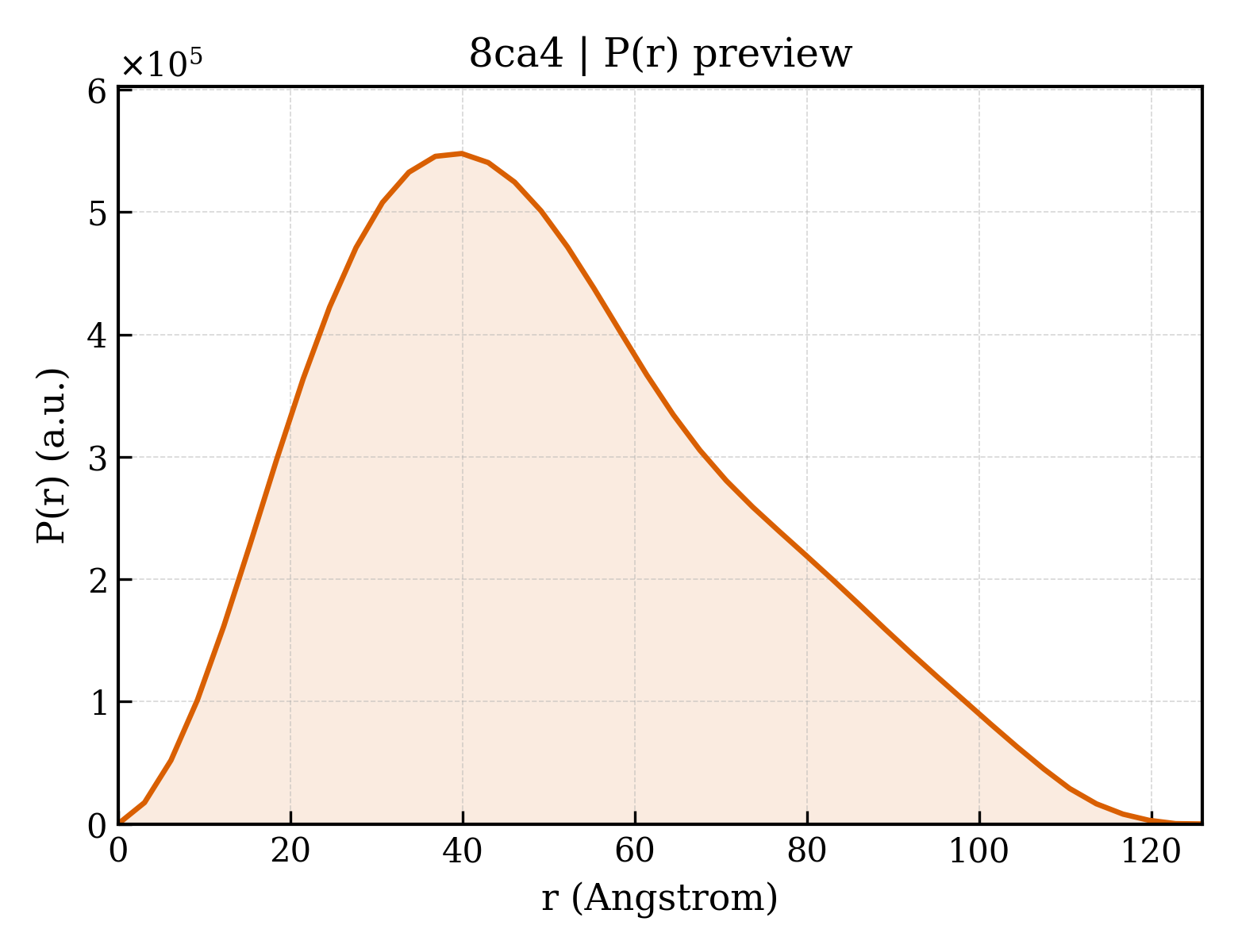

8ca4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	38.45 Å
Rg (electron density)	38.51 Å
Total Rg	38.47 Å
Atom count	11113
Residues	1439
Excluded volume	198050 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8ca4__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	NADH dehydrogenase [ubiquinone] flavoprotein 2, mitochondrial
Molecular weight formula_weight	27318.3 kDa
EC 编号 ec_number	7.1.1.2
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E
Atom count atom_count	11113

MFSLALRARATGLAAQWGRHARNLHKTAVHNGAGGALFVHRDTPENNPDTPFDFTPENYKRIEAIVKNYPEGHQAAAVLPVLDLAQRQNGWLPISAMNKVAEVLQVPPMRVYEVATFYTMYNRKPVGKYHIQVCTTTPCMLRDSDSILETLQRKLGIKVGETTPDKLFTLIEVECLGACVNAPMVQINDNYYEDLTPKDIEEIIDELKAGKVPKPGPRSGRFCCEPAGGLTSLTEPPKGPGFGVQAGL

Entity 2 Entity 2 polymer

Description description	NADH dehydrogenase [ubiquinone] flavoprotein 1, mitochondrial
Molecular weight formula_weight	50904.2 kDa
EC 编号 ec_number	7.1.1.2
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MLAARHFLGGLVPVRVSVRFSSGTTAPKKTSFGSLKDEDRIFTNLYGRHDWRLKGALRRGDWYKTKEILLKGPDWILGEMKTSGLRGRGGAGFPTGLKWSFMNKPSDGRPKYLVVNADEGEPGTCKDREIMRHDPHKLVEGCLVGGRAMGARAAYIYIRGEFYNEASNLQVAIREAYEAGLIGKNACGSDYDFDVFVVRGAGAYICGEETALIESIEGKQGKPRLKPPFPADVGVFGCPTTVANVETVAVSPTICRRGGTWFAGFGRERNSGTKLFNISGHVNHPCTVEEEMSVPLKELIEKHAGGVTGGWDNLLAVIPGGSSTPLIPKSVCETVLMDFDALVQAQTGLGTAAVIVMDRSTDIVKAIARLIEFYKHESCGQCTPCREGVDWMNKVMARFVKGDARPAEIDSLWEISKQIEGHTICALGDGAAWPVQGLIRHFRPELEDRMQRFAQQHRAWQAAS

Entity 3 Entity 3 polymer

Description description	NADH-ubiquinone oxidoreductase 75 kDa subunit, mitochondrial
Molecular weight formula_weight	79866.7 kDa
EC 编号 ec_number	7.1.1.2
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MLRIPIKRALIGLSNSPKGYVRTTGTAASNLIEVFVDGQSVMVEPGTTVLQACEKVGMQIPRFCYHERLSVAGNCRMCLVEIEKAPKVVAACAMPVMKGWNILTNSEKSKKAREGVMEFLLANHPLDCPICDQGGECDLQDQSMMFGSDRSRFLEGKRAVEDKNIGPLVKTIMTRCIQCTRCIRFASEIAGVDDLGTTGRGNDMQVGTYIEKMFMSELSGNVIDICPVGALTSKPYAFTARPWETRKTESIDVMDAVGSNIVVSTRTGEVMRILPRMHEDINEEWISDKTRFAYDGLKRQRLTEPMVRNEKGLLTYTSWEDALSRVAGMLQNFEGNAVAAIAGGLVDAEALVALKDLLNKVDSDNLCTEEIFPTEGAGTDLRSNYLLNTTIAGVEEADVVLLVGTNPRFEAPLFNARIRKSWLHNDLKVALIGSPVDLTYRYDHLGDSPKILQDIASGRHSFCEVLKDAKKPMVVLGSSALQRDDGAAILVAVSNMVQKIRVTTGVAAEWKVMNILHRIASQVAALDLGYKPGVEAIRKNPPKMLFLLGADGGCITRQDLPKDCFIVYQGHHGDVGAPMADVILPGAAYTEKSATYVNTEGRAQQTKVAVTPPGLAREDWKIIRALSEIAGITLPYDTLDQVRNRLEEVSPNLVRYDDIEETNYFQQASELAKLVNQEVLADPLVPPQLTIKDFYMTDSISRASQTMAKCVKAVTEGAQAVEEPSIC

Entity 4 Entity 4 polymer

Description description	NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 2
Molecular weight formula_weight	10932.7 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

MAAAAASRAVGAKLGLREIRVHLCQRSPGSQGVRDFIVQRYVELKKAHPNLPILIRECSEVQPKLWARYAFGQEKTVSLNNLSADEVTRAMQNVLSGKA

Entity 5 Entity 5 polymer

Description description	NADH dehydrogenase [ubiquinone] flavoprotein 3, mitochondrial
Molecular weight formula_weight	11833.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	s

MAVSLLLRGGRIRALKAVLLEARVFPGELVSVVRLSTESEKSAKEKELHPKTQSVLKEPEPTDTTTYKNLQHHDYNTYTFLDLNLDLSKFRLPQPSSGRESPRH

Entity 6 Entity 6 non-polymer

Description description	FE2/S2 (INORGANIC) CLUSTER
Molecular weight formula_weight	175.8 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	IRON/SULFUR CLUSTER
Molecular weight formula_weight	351.6 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 8 Entity 8 non-polymer

Description description	FLAVIN MONONUCLEOTIDE
Molecular weight formula_weight	456.3 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.25 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	50914
