1. Protein Identity and Related Structures Protein Identity & Related Structures

Spike glycoprotein E1

Western equine encephalitis virus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	SKW19 Fab heavy chain × 2 SKW19 Fab light chain × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	POLS_WEEV
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–439； UniProt 798–1236 Author chain F； PDBConstruct 1–439； UniProt 798–1236 Author chain J； PDBConstruct 1–439； UniProt 798–1236 Author chain B； PDBConstruct 1–418； UniProt 320–737 Author chain G； PDBConstruct 1–418； UniProt 320–737 Author chain K； PDBConstruct 1–418； UniProt 320–737

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ded
Deposition date deposition_date	2022-06-20
Structure title title	Cryo-EM Structure of Western Equine Encephalitis Virus VLP in complex with SKW19 fab
Keywords keywords	Western Equine Encephalitis virus, virus-like particle, antibody, VLP-Fab complex, VIRUS-IMMUNE SYSTEM complex; VIRUS/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8ded__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8ded__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

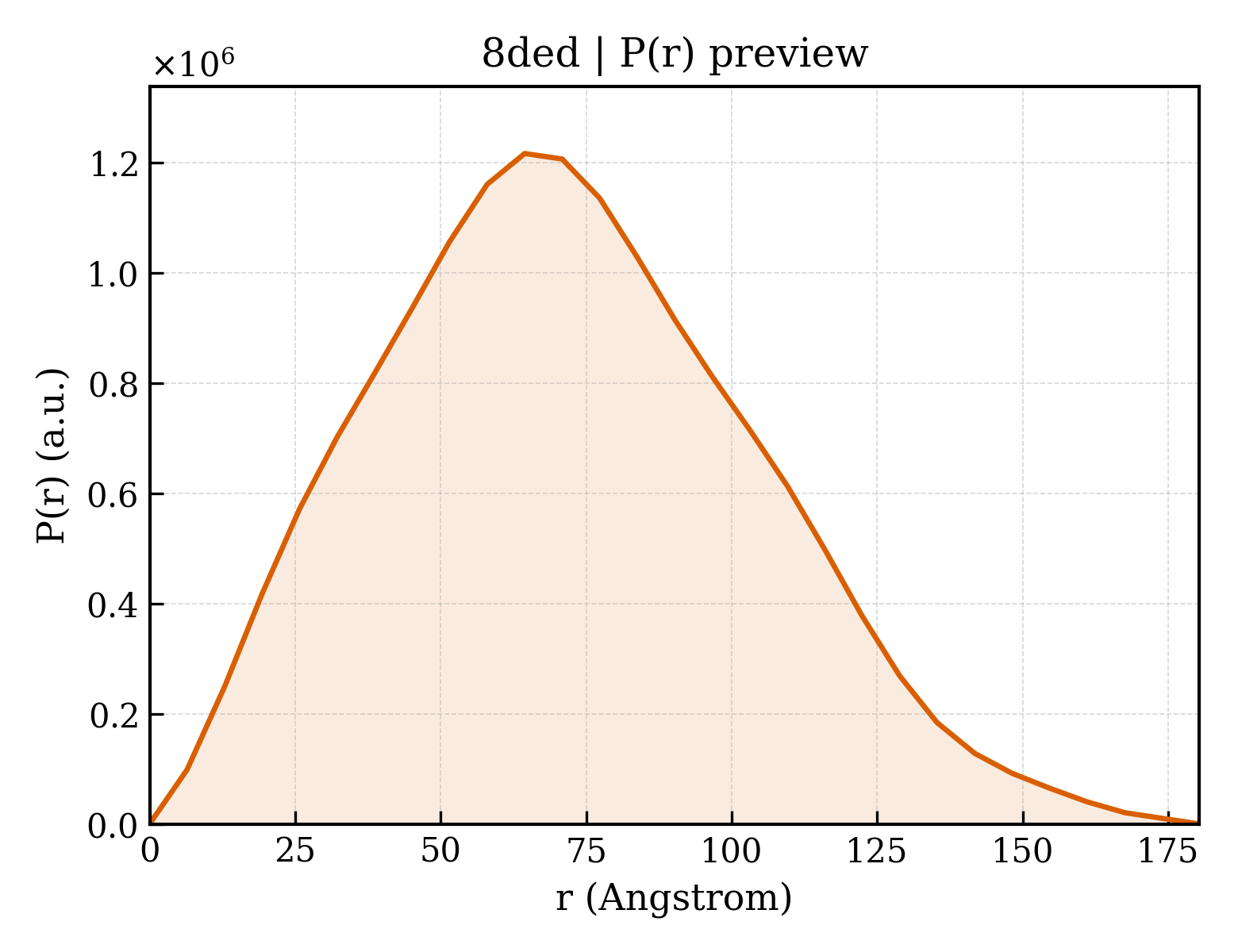

8ded__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	55.52 Å
Rg (electron density)	55.56 Å
Total Rg	55.55 Å
Atom count	20450
Residues	2662
Excluded volume	362510 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8ded__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Spike glycoprotein E1
Molecular weight formula_weight	47368.8 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,F,J
Atom count atom_count	20450

FEHATTVPNVPGIPYKALVERAGYAPLNLEITVVSSELTPSTNKEYVTCRFHTVIPSPQVKCCGSLECKASSKADYTCRVFGGVYPFMWGGAQCFCDSENTQLSEAYVEFAPDCTIDHAVALKVHTAALKVGLRIVYGNTTAHLDTFVNGVTPGSSRDLKVIAGPISAAFSPFDHKVVIRKGLVYNYDFPEYGAMKPGAFGDIQASSLDATDIVARTDIRLLKPSVKNIHVPYTQAVSGYEMWKNNSGRPLQETAPFGCKIEVEPLRASNCAYGHIPISIDIPDAAFVRSSESPTILEVSCTVADCIYSADFGGSLTLQYKADREGHCPVHSHSTTAVLKEATTHVTAVGSITLHFSTSSPQANFIVSLCGKKTTCNAECKPPADHIIGEPHKVDQEFQAAVSKTSWNWLLALFGGASSLIVVGLIVLVCSSMLINTRR

Source Source

Source organism organism	Western equine encephalitis virus
NCBI taxonomy ID ncbi_taxonomy_id	11039
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Spike glycoprotein E2
Molecular weight formula_weight	46374.8 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,G,K

SITDDFTLTSPYLGFCPYCRHSAPCFSPIKIENVWDESDDGSIRIQVSAQFGYNQAGTADVTKFRYMSFDHDHDIKEDSMDKIAISTSGPCRRLGHKGYFLLAQCPPGDSVTVSITSGASENSCTVEKKIRRKFVGREEYLFPPVHGKLVKCHVYDHLKETSAGYITMHRPGPHAYKSYLEEASGEVYIKPPSGKNVTYECKCGDYSTGIVSTRTKMNGCTKAKQCIAYKSDQTKWVFNSPDLIRHTDHSVQGKLHIPFRLTPTVCPVPLAHTPTVTKWFKGITLHLTATRPTLLTTRKLGLRADATAEWITGTTSRNFSVGREGLEYVWGNHEPVRVWAQESAPGDPHGWPHEIIIHYYHRHPVYTVIVLCGVALAILVGTASSAACIAKARRDCLTPYALAPNATVPTALAVLCCI

Source Source

Source organism organism	Western equine encephalitis virus
NCBI taxonomy ID ncbi_taxonomy_id	11039
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	SKW19 Fab heavy chain
Molecular weight formula_weight	25564.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,U

EVQLVESGGGLAKPGGSLRLSCAASGFTFSSYAMHWVRQAPGKGLEWVSVISSHYSTYYADSVKGRFTISRDNSKNTVSLQVNSLRAEDTAVYYCAKVGRSGYCTASGCNALLFDWFDVWGPGVLVTVSSASTKGPSVFPLAPSSRSTSESTAALGCLVKDYFPEPVTVSWNSGSLTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYVCNVNHKPSNTKVDKRVEIKTCGGLEVLFQ

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	SKW19 Fab light chain
Molecular weight formula_weight	23671.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,V

DVVMTQSPLSLPVTPGQPASISCRSSQSLVHSNGNTSLSWYQQKAGHPPRLLIYQVSNRYSGVPDRFSGTGAGTDFTLTISRVETEDVGVYYCGQGAHLPPAFGQGTKVEIKRTVAAPSVFIFPPSEDQVKSGTVSVVCLLNNFYPREASVKWKVDGALKTGNSQESVTEQDSKDNTYSLSSTLTLSSTEYQSHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9605
Host organism host_organism	Homo sapiens

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.10 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	1736400
