SAXSdb — 9dqz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Structural polyprotein

Western equine encephalitis virus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Structural polyprotein × 4 （C7EPF2） Capsid protein × 4 （P13897） Very low-density lipoprotein receptor × 4 （P98155） 2-acetamido-2-deoxy-beta-D-glucopyranose × 16 CALCIUM ION × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q1W678_WEEV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–438； UniProt 798–1235 Author chain D； PDBConstruct 1–438； UniProt 798–1235 Author chain G； PDBConstruct 1–438； UniProt 798–1235 Author chain J； PDBConstruct 1–438； UniProt 798–1235

Structural polyprotein

Western equine encephalitis virus

UniProt C7EPF2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Structural polyprotein × 4 （Q1W678） Capsid protein × 4 （P13897） Very low-density lipoprotein receptor × 4 （P98155） 2-acetamido-2-deoxy-beta-D-glucopyranose × 16 CALCIUM ION × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C7EPF2_WEEV
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–409； UniProt 320–728 Author chain E； PDBConstruct 1–409； UniProt 320–728 Author chain H； PDBConstruct 1–409； UniProt 320–728 Author chain K； PDBConstruct 1–409； UniProt 320–728

Capsid protein

Western equine encephalitis virus

UniProt P13897

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Structural polyprotein × 4 （Q1W678） Structural polyprotein × 4 （C7EPF2） Very low-density lipoprotein receptor × 4 （P98155） 2-acetamido-2-deoxy-beta-D-glucopyranose × 16 CALCIUM ION × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	POLS_WEEV
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–158； UniProt 102–259 Author chain F； PDBConstruct 1–158； UniProt 102–259 Author chain I； PDBConstruct 1–158； UniProt 102–259 Author chain L； PDBConstruct 1–158； UniProt 102–259

Very low-density lipoprotein receptor

Homo sapiens

UniProt P98155

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Structural polyprotein × 4 （Q1W678） Structural polyprotein × 4 （C7EPF2） Capsid protein × 4 （P13897） 2-acetamido-2-deoxy-beta-D-glucopyranose × 16 CALCIUM ION × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VLDLR_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain M； PDBConstruct 1–78； UniProt 33–110 Author chain N； PDBConstruct 1–78； UniProt 33–110 Author chain O； PDBConstruct 1–78； UniProt 33–110 Author chain P； PDBConstruct 1–78； UniProt 33–110

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9dqz
Deposition date deposition_date	2024-09-24
Structure title title	Structure of western equine encephalitis virus McMillan VLP in complex with human VLDLR
Keywords keywords	western equine encephalitis virus, WEEV, receptor binding, VLDLR, virus like particles, VIRUS LIKE PARTICLE; VIRUS LIKE PARTICLE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9dqz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9dqz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

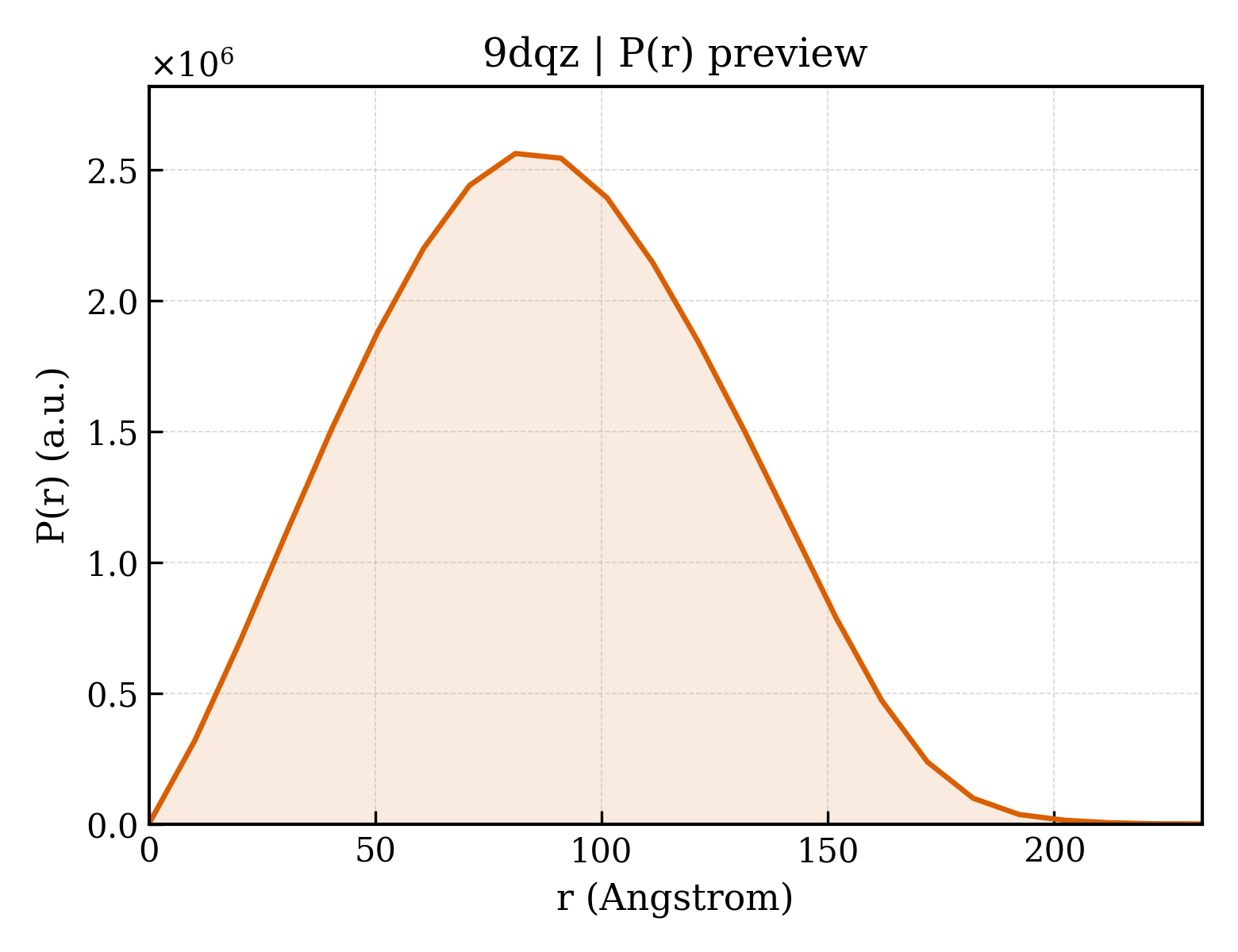

9dqz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	67.69 Å
Rg (electron density)	66.93 Å
Total Rg	67.20 Å
Atom count	33465
Residues	4327
Excluded volume	593690 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9dqz__assembly_1__model_1`	16-meric （16）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Structural polyprotein
Molecular weight formula_weight	47185.6 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,G,J,A
Atom count atom_count	33465

FEHATTVPNVPGIPYKALVERAGYAPLNLEITVVSSELTPSTNKEYVTCKFHTVIPSPQVKCCGSLECKASSKADYTCRVFGGVYPFMWGGAQCFCDSENTQLSEAYVEFAPDCTIDHAVALKVHTAALKVGLRIVYGNTTAHLDTFVNGVTPGSSRDLKVIAGPISAAFSPFDHKVVIRKGLVYNYDFPEYGAMKPGAFGDIQASSLDATDIVARTDIRLLKPSVKNIHVPYTQAVSGYEMWKNNSGRPLQETAPFGCKIEVEPLRASNCAYGHIPISIDIPDAAFVRSSESPTILEVSCTVADCIYSADFGGSLTLQYKADREGHCPVHSHSTTAVLKEATTHVTATGSITLHFSTSSPQANFIVSLCGKKTTCNAECKPPADHIIGEPHKVDQEFQAAVSKTSWNWLLALFGGASSLIVVGLIVLVCSSMLINTR

Source Source

Source organism organism	Western equine encephalitis virus
NCBI taxonomy ID ncbi_taxonomy_id	11039
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Structural polyprotein
Molecular weight formula_weight	45550.9 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,H,K,B

SITDDFTLTSPYLGFCPYCRHSAPCFSPIKIENVWDESDDGSIRIQVSAQFGYNQAGTADVTKFRYMSYDHDHDIKEDSMEKIAISTSGPCRRLGHKGYFLLAQCPPGDSVTVSITSGASENSCTVEKKIRRKFVGREEYLFPPVQGKLVKCHVYDRLKETSAGYITMHRPGPHAYKSYLKEASGEVYIKPPSGKNVTYECKCGDYSTGIVSTQTKMNGCTKARQCIAYKLDQTKWVFNSPDLIRHTDHSVQGKLHIPFRLTPTVCPVPLAHTPTVTKWFKGITLHLTATRPTLLTTRKLGLRADATAEWITGTTSRNFSVGREGLEYVWGNHEPVRVWAQESAPGDPHGWPHEIIIHYYHRHPVYTVIVLCGVALAILVGTASSAACIAKARRDCLTPYALAPNATVP

Source Source

Source organism organism	Western equine encephalitis virus
NCBI taxonomy ID ncbi_taxonomy_id	11039
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Capsid protein
Molecular weight formula_weight	17320.7 kDa
EC 编号 ec_number	3.4.21.90
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,I,L,C

MCMKLESDKTFPIMLNGQVNGYACVVGGRLMKPLHVEGKIDNEQLAAVKLKKASMYDLEYGDVPQNMKSDTLQYTSDKPPGFYNWHHGAVQYENGRFTVPRGVGGKGDSGRPILDNRGRVVAIVLGGANEGTRTALSVVTWNQKGVTIKDTPEGSEPW

Source Source

Source organism organism	Western equine encephalitis virus
NCBI taxonomy ID ncbi_taxonomy_id	11039
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Very low-density lipoprotein receptor
Molecular weight formula_weight	8654.4 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M,N,O,P

CEPSQFQCTNGRCITLLWKCDGDEDCVDGSDEKNCVKKTCAESDFVCNNGQCVPSRWKCDGDPDCEDGSDESPEQCHM

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	16

Entity 6 Entity 6 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	8

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	2.90 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	72772
