1. Protein Identity and Related Structures Protein Identity & Related Structures

Baculoviral IAP repeat-containing protein 6

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–4857 Chain B； UniProt 1–4857	Not recorded	No other associated polymer	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.07 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8E2D	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3CEG Crystal structure of the UBC domain of baculoviral IAP repeat-containing protein 6 Deposited 2008-02-29	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 4470–4792（323 aa） Fragment：UBC domain: Residues 4470-4792	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 10；298 K；11 % PEG 8000, 0.1 M Gycine buffer pH 10.0, 0.001 M DTT, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.01 Å R-free 0.252
3CEG Crystal structure of the UBC domain of baculoviral IAP repeat-containing protein 6 Deposited 2008-02-29	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 4470–4792（323 aa） Fragment：UBC domain: Residues 4470-4792	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 10；298 K；11 % PEG 8000, 0.1 M Gycine buffer pH 10.0, 0.001 M DTT, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.01 Å R-free 0.252
8ATM Structure of the giant inhibitor of apoptosis, BIRC6 (composite map) Deposited 2022-08-23	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8ATO Structure of the giant inhibitor of apoptosis, BIRC6 bound to the regulator SMAC Deposited 2022-08-23	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8ATU Cryo-EM structure of human BIRC6 Deposited 2022-08-24	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8ATX Cryo-EM structure of human BIRC6 - no substrate Deposited 2022-08-24	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.00 Å
8AUK Cryo-EM structure of human BIRC6 in complex with HTRA2. Deposited 2022-08-25	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.20 Å
8AUW Cryo-EM structure of human BIRC6 in complex with SMAC. Deposited 2022-08-25	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.20 Å
8E2E Cryo-EM structure of helical arch of BIRC6 (from local refinement 1) Deposited 2022-08-15	Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 1.98 Å
8E2F Cryo-EM structure of N-terminal arm of BIRC6 (from local refinement 2) Deposited 2022-08-15	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.47 Å
8E2G Cryo-EM structure of N-terminal arm (aa68-966) of BIRC6 (from local refinement 3) Deposited 2022-08-15	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.99 Å
8E2H Cryo-EM structure of C-terminal arm of BIRC6 (from local refinement 4) Deposited 2022-08-15	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.30 Å
8E2I Cryo-EM structure of BIRC6/Smac Deposited 2022-08-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.04 Å
8E2K Cryo-EM structure of BIRC6/HtrA2-S306A Deposited 2022-08-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.21 Å
9QGW Consensus structure of UBA6-UbDha-BIRC6 trapped ternary complex (singly loaded) Deposited 2025-03-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.62 Å
9QH5 Consensus structure of UBA6-UbDha-BIRC6 trapped ternary complex (doubly loaded) Deposited 2025-03-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.09 Å
9QHI Structure of UBA6-UbDha-BIRC6 trapped ternary complex (cluster 0) Deposited 2025-03-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.27 Å
9QIA Structure of UBA6-UbDha-BIRC6 trapped ternary complex (cluster 2) Deposited 2025-03-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.38 Å
9QIM Consensus structure of UBA6-BIRC6 Deposited 2025-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.57 Å
9QIO Structure of UBA6-BIRC6 (cluster 0) Deposited 2025-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.22 Å
9QIP Structure of UBA6-BIRC6 (cluster 4) Deposited 2025-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.15 Å
9QIV Consensus structure of UBA6-BIRC6 (alternative conformation) Deposited 2025-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.44 Å

21 other PDB entries and 22 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BIRC6_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 32–4888； UniProt 1–4857 Author chain B； PDBConstruct 32–4888； UniProt 1–4857

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8e2d
Deposition date deposition_date	2022-08-15
Structure title title	Cryo-EM structure of BIRC6 (consensus)
Keywords keywords	Ubiquitin, E3 ligase, Apoptosis, Autophagy, IAP, LIGASE; LIGASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	67.35 Å
Radius of gyration Rg (electron density) rg_electron	67.52 Å
Forward intensity I(0) i0	2512220000.00
Molecular weight molecular_weight	438100.0 kDa
Excluded volume excluded_volume	554690 Å³
Envelope volume envelope_volume	833380 Å³
Hydration-shell volume shell_volume	105060 Å³
Envelope diameter envelope_diameter	209.3 Å
Shell Rg shell_rg	66.24 Å
Envelope Rg envelope_rg	64.17 Å
Shape Rg shape_rg	67.51 Å
Total Rg total_rg	67.55 Å
Total atoms total_atoms	62110
Residues n_residues	3936
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

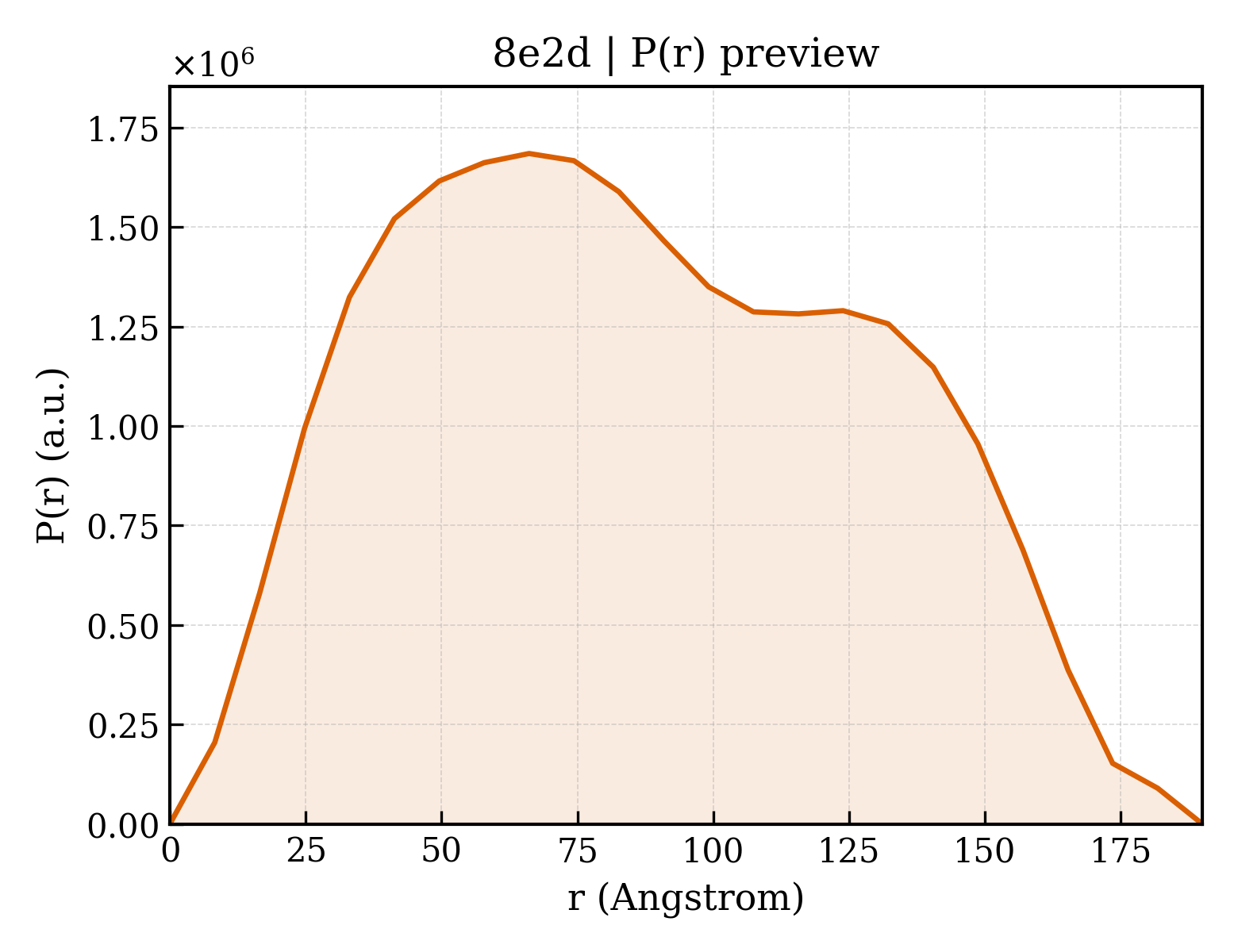

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	190.0 Å
Rg (real space) rg_real	67.40 Å
Rg uncertainty (real space) rg_real_error	1.68 Å
I(0) (real space) i0_real	2.5120e+09
I(0) uncertainty (real space) i0_real_error	5.1260e+07
Rg (reciprocal space) rg_reciprocal	66.98 Å
I(0) (reciprocal space) i0_reciprocal	2510000000.0000
Solution quality estimate total_estimate	0.8396
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	66.1 Å
Skewness Skewness skewness	0.176
Kurtosis Kurtosis kurtosis	-0.941
Angular range angular_range	— – 0.1150 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	76230000.0000
Real-space data points n_real_points	24
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.985; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.957; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Description description	Baculoviral IAP repeat-containing protein 6
Molecular weight formula_weight	534158.3 kDa
EC 编号 ec_number	6.-.-.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	62460

MDYKDDDDKLAAANSSIDLISTSLYKKAGLTMVTGGGAAPPGTVTEPLPSVIVLSAGRKMAAAAAAASGPGCSSAAGAGAAGVSEWLVLRDGCMHCDADGLHSLSYHPALNAILAVTSRGTIKVIDGTSGATLQASALSAKPGGQVKCQYISAVDKVIFVDDYAVGCRKDLNGILLLDTALQTPVSKQDDVVQLELPVTEAQQLLSACLEKVDISSTEGYDLFITQLKDGLKNTSHETAANHKVAKWATVTFHLPHHVLKSIASAIVNELKKINQNVAALPVASSVMDRLSYLLPSARPELGVGPGRSVDRSLMYSEANRRETFTSWPHVGYRWAQPDPMAQAGFYHQPASSGDDRAMCFTCSVCLVCWEPTDEPWSEHERHSPNCPFVKGEHTQNVPLSVTLATSPAQFPCTDGTDRISCFGSGSCPHFLAAATKRGKICIWDVSKLMKVHLKFEINAYDPAIVQQLILSGDPSSGVDSRRPTLAWLEDSSSCSDIPKLEGDSDDLLEDSDSEEHSRSDSVTGHTSQKEAMEVSLDITALSILQQPEKLQWEIVANVLEDTVKDLEELGANPCLTNSKSEKTKEKHQEQHNIPFPCLLAGGLLTYKSPATSPISSNSHRSLDGLSRTQGESISEQGSTDNESCTNSELNSPLVRRTLPVLLLYSIKESDEKAGKIFSQMNNIMSKSLHDDGFTVPQIIEMELDSQEQLLLQDPPVTYIQQFADAAANLTSPDSEKWNSVFPKPGTLVQCLRLPKFAEEENLCIDSITPCADGIHLLVGLRTCPVESLSAINQVEALNNLNKLNSALCNRRKGELESNLAVVNGANISVIQHESPADVQTPLIIQPEQRNVSGGYLVLYKMNYATRIVTLEEEPIKIQHIKDPQDTITSLILLPPDILDNREDDCEEPIEDMQLTSKNGFEREKTSDISTLGHLVITTQGGYVKILDLSNFEILAKVEPPKKEGTEEQDTFVSVIYCSGTDRLCACTKGGELHFLQIGGTCDDIDEADILVDGSLSKGIEPSSEGSKPLSNPSSPGISGVDLLVDQPFTLEILTSLVELTRFETLTPRFSATVPPCWVEVQQEQQQRRHPQHLHQQHHGDAAQHTRTWKLQTDSNSWDEHVFELVLPKACMVGHVDFKFVLNSNITNIPQIQVTLLKNKAPGLGKVNALNIEVEQNGKPSLVDLNEEMQHMDVEESQCLRLCPFLEDHKEDILCGPVWLASGLDLSGHAGMLTLTSPKLVKGMAGGKYRSFLIHVKAVNERGTEEICNGGMRPVVRLPSLKHQSNKGYSLASLLAKVAAGKEKSSNVKNENTSGTRKSENLRGCDLLQEVSVTIRRFKKTSISKERVQRCAMLQFSEFHEKLVNTLCRKTDDGQITEHAQSLVLDTLCWLAGVHSNGPGSSKEGNENLLSKTRKFLSDIVRVCFFEAGRSIAHKCARFLALCISNGKCDPCQPAFGPVLLKALLDNMSFLPAATTGGSVYWYFVLLNYVKDEDLAGCSTACASLLTAVSRQLQDRLTPMEALLQTRYGLYSSPFDPVLFDLEMSGSSCKNVYNSSIGVQSDEIDLSDVLSGNGKVSSCTAAEGSFTSLTGLLEVEPLHFTCVSTSDGTRIERDDAMSSFGVTPAVGGLSSGTVGEASTALSSAAQVALQSLSHAMASAEQQLQVLQEKQQQLLKLQQQKAKLEAKLHQTTAAAAAAASAVGPVHNSVPSNPVAAPGFFIHPSDVIPPTPKTTPLFMTPPLTPPNEAVSVVINAELAQLFPGSVIDPPAVNLAAHNKNSNKSRMNPLGSGLALAISHASHFLQPPPHQSIIIERMHSGARRFVTLDFGRPILLTDVLIPTCGDLASLSIDIWTLGEEVDGRRLVVATDISTHSLILHDLIPPPVCRFMKITVIGRYGSTNARAKIPLGFYYGHTYILPWESELKLMHDPLKGEGESANQPEIDQHLAMMVALQEDIQCRYNLACHRLETLLQSIDLPPLNSANNAQYFLRKPDKAVEEDSRVFSAYQDCIQLQLQLNLAHNAVQRLKVALGASRKMLSETSNPEDLIQTSSTEQLRTIIRYLLDTLLSLLHASNGHSVPAVLQSTFHAQACEELFKHLCISGTPKIRLHTGLLLVQLCGGERWWGQFLSNVLQELYNSEQLLIFPQDRVFMLLSCIGQRSLSNSGVLESLLNLLDNLLSPLQPQLPMHRRTEGVLDIPMISWVVMLVSRLLDYVATVEDEAAAAKKPLNGNQWSFINNNLHTQSLNRSSKGSSSLDRLYSRKIRKQLVHHKQQLNLLKAKQKALVEQMEKEKIQSNKGSSYKLLVEQAKLKQATSKHFKDLIRLRRTAEWSRSNLDTEVTTAKESPEIEPLPFTLAHERCISVVQKLVLFLLSMDFTCHADLLLFVCKVLARIANATRPTIHLCEIVNEPQLERLLLLLVGTDFNRGDISWGGAWAQYSLTCMLQDILAGELLAPVAAEAMEEGTVGDDVGATAGDSDDSLQQSSVQLLETIDEPLTHDITGAPPLSSLEKDKEIDLELLQDLMEVDIDPLDIDLEKDPLAAKVFKPISSTWYDYWGADYGTYNYNPYIGGLGIPVAKPPANTEKNGSQTVSVSVSQALDARLEVGLEQQAELMLKMMSTLEADSILQALTNTSPTLSQSPTGTDDSLLGGLQAANQTSQLIIQLSSVPMLNVCFNKLFSMLQVHHVQLESLLQLWLTLSLNSSSTGNKENGADIFLYNANRIPVISLNQASITSFLTVLAWYPNTLLRTWCLVLHSLTLMTNMQLNSGSSSAIGTQESTAHLLVSDPNLIHVLVKFLSGTSPHGTNQHSPQVGPTATQAMQEFLTRLQVHLSSTCPQIFSEFLLKLIHILSTERGAFQTGQGPLDAQVKLLEFTLEQNFEVVSVSTISAVIESVTFLVHHYITCSDKVMSRSGSDSSVGARACFGGLFANLIRPGDAKAVCGEMTRDQLMFDLLKLVNILVQLPLSGNREYSARVSVTTNTTDSVSDEEKVSGGKDGNGSSTSVQGSPAYVADLVLANQQIMSQILSALGLCNSSAMAMIIGASGLHLTKHENFHGGLDAISVGDGLFTILTTLSKKASTVHMMLQPILTYMACGYMGRQGSLATCQLSEPLLWFILRVLDTSDALKAFHDMGGVQLICNNMVTSTRAIVNTARSMVSTIMKFLDSGPNKAVDSTLKTRILASEPDNAEGIHNFAPLGTITSSSPTAQPAEVLLQATPPHRRARSAAWSYIFLPEEAWCDLTIHLPAAVLLKEIHIQPHLASLATCPSSVSVEVSADGVNMLPLSTPVVTSGLTYIKIQLVKAEVASAVCLRLHRPRDASTLGLSQIKLLGLTAFGTTSSATVNNPFLPSEDQVSKTSIGWLRLLHHCLTHISDLEGMMASAAAPTANLLQTCAALLMSPYCGMHSPNIEVVLVKIGLQSTRIGLKLIDILLRNCAASGSDPTDLNSPLLFGRLNGLSSDSTIDILYQLGTTQDPGTKDRIQALLKWVSDSARVAAMKRSGRMNYMCPNSSTVEYGLLMPSPSHLHCVAAILWHSYELLVEYDLPALLDQELFELLFNWSMSLPCNMVLKKAVDSLLCSMCHVHPNYFSLLMGWMGITPPPVQCHHRLSMTDDSKKQDLSSSLTDDSKNAQAPLALTESHLATLASSSQSPEAIKQLLDSGLPSLLVRSLASFCFSHISSSESIAQSIDISQDKLRRHHVPQQCNKMPITADLVAPILRFLTEVGNSHIMKDWLGGSEVNPLWTALLFLLCHSGSTSGSHNLGAQQTSARSASLSSAATTGLTTQQRTAIENATVAFFLQCISCHPNNQKLMAQVLCELFQTSPQRGNLPTSGNISGFIRRLFLQLMLEDEKVTMFLQSPCPLYKGRINATSHVIQHPMYGAGHKFRTLHLPVSTTLSDVLDRVSDTPSITAKLISEQKDDKEKKNHEEKEKVKAENGFQDNYSVVVASGLKSQSKRAVSATPPRPPSRRGRTIPDKIGSTSGAEAANKIITVPVFHLFHKLLAGQPLPAEMTLAQLLTLLYDRKLPQGYRSIDLTVKLGSRVITDPSLSKTDSYKRLHPEKDHGDLLASCPEDEALTPGDECMDGILDESLLETCPIQSPLQVFAGMGGLALIAERLPMLYPEVIQQVSAPVVTSTTQEKPKDSDQFEWVTIEQSGELVYEAPETVAAEPPPIKSAVQTMSPIPAHSLAAFGLFLRLPGYAEVLLKERKHAQCLLRLVLGVTDDGEGSHILQSPSANVLPTLPFHVLRSLFSTTPLTTDDGVLLRRMALEIGALHLILVCLSALSHHSPRVPNSSVNQTEPQVSSSHNPTSTEEQQLYWAKGTGFGTGSTASGWDVEQALTKQRLEEEHVTCLLQVLASYINPVSSAVNGEAQSSHETRGQNSNALPSVLLELLSQSCLIPAMSSYLRNDSVLDMARHVPLYRALLELLRAIASCAAMVPLLLPLSTENGEEEEEQSECQTSVGTLLAKMKTCVDTYTNRLRSKRENVKTGVKPDASDQEPEGLTLLVPDIQKTAEIVYAATTSLRQANQEKKLGEYSKKAAMKPKPLSVLKSLEEKYVAVMKKLQFDTFEMVSEDEDGKLGFKVNYHYMSQVKNANDANSAARARRLAQEAVTLSTSLPLSSSSSVFVRCDEERLDIMKVLITGPADTPYANGCFEFDVYFPQDYPSSPPLVNLETTGGHSVRFNPNLYNDGKVCLSILNTWHGRPEEKWNPQTSSFLQVLVSVQSLILVAEPYFNEPGYERSRGTPSGTQSSREYDGNIRQATVKWAMLEQIRNPSPCFKEVIHKHFYLKRVEIMAQCEEWIADIQQYSSDKRVGRTMSHHAAALKRHTAQLREELLKLPCPEGLDPDTDDAPEVCRATTGAEETLMHDQVKPSSSKELPSDFQL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.07 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	1116481

fit	/app/data/saxs_computation/e2/8e2d/8e2d.fit
pddf	/app/data/pr_computation/e2/8e2d/8e2d.pr.out
profile	/app/data/saxs_computation/e2/8e2d/8e2d.dat
