SAXSdb — 8e2h

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Baculoviral IAP repeat-containing protein 6

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–4857	Not recorded	No other associated polymer	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8E2H	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3CEG Crystal structure of the UBC domain of baculoviral IAP repeat-containing protein 6 Deposited 2008-02-29	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 4470–4792（323 aa） Fragment：UBC domain: Residues 4470-4792	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 10；298 K；11 % PEG 8000, 0.1 M Gycine buffer pH 10.0, 0.001 M DTT, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.01 Å R-free 0.252
3CEG Crystal structure of the UBC domain of baculoviral IAP repeat-containing protein 6 Deposited 2008-02-29	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 4470–4792（323 aa） Fragment：UBC domain: Residues 4470-4792	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 10；298 K；11 % PEG 8000, 0.1 M Gycine buffer pH 10.0, 0.001 M DTT, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.01 Å R-free 0.252
8ATM Structure of the giant inhibitor of apoptosis, BIRC6 (composite map) Deposited 2022-08-23	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8ATO Structure of the giant inhibitor of apoptosis, BIRC6 bound to the regulator SMAC Deposited 2022-08-23	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8ATU Cryo-EM structure of human BIRC6 Deposited 2022-08-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8ATX Cryo-EM structure of human BIRC6 - no substrate Deposited 2022-08-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.00 Å
8AUK Cryo-EM structure of human BIRC6 in complex with HTRA2. Deposited 2022-08-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.20 Å
8AUW Cryo-EM structure of human BIRC6 in complex with SMAC. Deposited 2022-08-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.20 Å
8E2D Cryo-EM structure of BIRC6 (consensus) Deposited 2022-08-15	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.07 Å
8E2E Cryo-EM structure of helical arch of BIRC6 (from local refinement 1) Deposited 2022-08-15	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 1.98 Å
8E2F Cryo-EM structure of N-terminal arm of BIRC6 (from local refinement 2) Deposited 2022-08-15	Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.47 Å
8E2G Cryo-EM structure of N-terminal arm (aa68-966) of BIRC6 (from local refinement 3) Deposited 2022-08-15	Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.99 Å
8E2I Cryo-EM structure of BIRC6/Smac Deposited 2022-08-15	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.04 Å
8E2K Cryo-EM structure of BIRC6/HtrA2-S306A Deposited 2022-08-15	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.21 Å
9QGW Consensus structure of UBA6-UbDha-BIRC6 trapped ternary complex (singly loaded) Deposited 2025-03-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.62 Å
9QH5 Consensus structure of UBA6-UbDha-BIRC6 trapped ternary complex (doubly loaded) Deposited 2025-03-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.09 Å
9QHI Structure of UBA6-UbDha-BIRC6 trapped ternary complex (cluster 0) Deposited 2025-03-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.27 Å
9QIA Structure of UBA6-UbDha-BIRC6 trapped ternary complex (cluster 2) Deposited 2025-03-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.38 Å
9QIM Consensus structure of UBA6-BIRC6 Deposited 2025-03-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.57 Å
9QIO Structure of UBA6-BIRC6 (cluster 0) Deposited 2025-03-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.22 Å
9QIP Structure of UBA6-BIRC6 (cluster 4) Deposited 2025-03-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.15 Å
9QIV Consensus structure of UBA6-BIRC6 (alternative conformation) Deposited 2025-03-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.44 Å

21 other PDB entries and 22 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BIRC6_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 32–4888； UniProt 1–4857

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8e2h
Deposition date deposition_date	2022-08-15
Structure title title	Cryo-EM structure of C-terminal arm of BIRC6 (from local refinement 4)
Keywords keywords	Ubiquitin, E3 ligase, Apoptosis, Autophagy, IAP, LIGASE; LIGASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	32.90 Å
Radius of gyration Rg (electron density) rg_electron	32.84 Å
Forward intensity I(0) i0	76044600.00
Molecular weight molecular_weight	72596.0 kDa
Excluded volume excluded_volume	92473 Å³
Envelope volume envelope_volume	116230 Å³
Hydration-shell volume shell_volume	31577 Å³
Envelope diameter envelope_diameter	113.5 Å
Shell Rg shell_rg	36.79 Å
Envelope Rg envelope_rg	33.02 Å
Shape Rg shape_rg	32.83 Å
Total Rg total_rg	33.23 Å
Total atoms total_atoms	10372
Residues n_residues	656
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

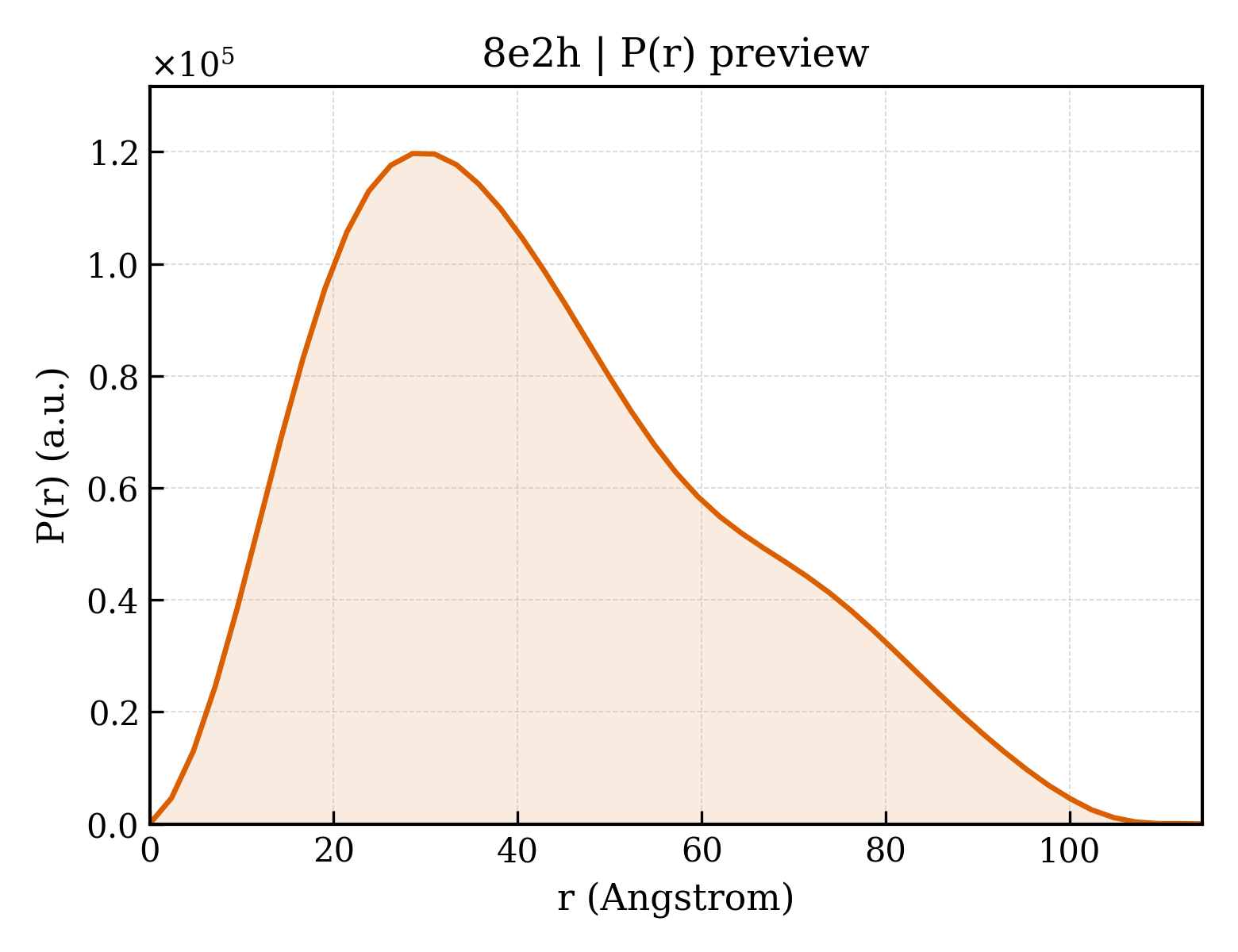

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	114.4 Å
Rg (real space) rg_real	33.31 Å
Rg uncertainty (real space) rg_real_error	1.03 Å
I(0) (real space) i0_real	7.6040e+07
I(0) uncertainty (real space) i0_real_error	1.4390e+06
Rg (reciprocal space) rg_reciprocal	33.14 Å
I(0) (reciprocal space) i0_reciprocal	76030000.0000
Solution quality estimate total_estimate	0.5951
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	28.6 Å
Skewness Skewness skewness	0.547
Kurtosis Kurtosis kurtosis	-0.402
Angular range angular_range	— – 0.2400 Å⁻¹
Current regularization parameter α current_alpha	0.0001
Highest regularization parameter α highest_alpha	14800000.0000
Real-space data points n_real_points	49
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.697; Stabil: 1.000; Sysdev: 0.049; Positv: 1.000; Valcen: 0.641; Smooth: 0.853

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Baculoviral IAP repeat-containing protein 6
Molecular weight formula_weight	534158.3 kDa
EC 编号 ec_number	2.3.2.27
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	10412

MDYKDDDDKLAAANSSIDLISTSLYKKAGLTMVTGGGAAPPGTVTEPLPSVIVLSAGRKMAAAAAAASGPGCSSAAGAGAAGVSEWLVLRDGCMHCDADGLHSLSYHPALNAILAVTSRGTIKVIDGTSGATLQASALSAKPGGQVKCQYISAVDKVIFVDDYAVGCRKDLNGILLLDTALQTPVSKQDDVVQLELPVTEAQQLLSACLEKVDISSTEGYDLFITQLKDGLKNTSHETAANHKVAKWATVTFHLPHHVLKSIASAIVNELKKINQNVAALPVASSVMDRLSYLLPSARPELGVGPGRSVDRSLMYSEANRRETFTSWPHVGYRWAQPDPMAQAGFYHQPASSGDDRAMCFTCSVCLVCWEPTDEPWSEHERHSPNCPFVKGEHTQNVPLSVTLATSPAQFPCTDGTDRISCFGSGSCPHFLAAATKRGKICIWDVSKLMKVHLKFEINAYDPAIVQQLILSGDPSSGVDSRRPTLAWLEDSSSCSDIPKLEGDSDDLLEDSDSEEHSRSDSVTGHTSQKEAMEVSLDITALSILQQPEKLQWEIVANVLEDTVKDLEELGANPCLTNSKSEKTKEKHQEQHNIPFPCLLAGGLLTYKSPATSPISSNSHRSLDGLSRTQGESISEQGSTDNESCTNSELNSPLVRRTLPVLLLYSIKESDEKAGKIFSQMNNIMSKSLHDDGFTVPQIIEMELDSQEQLLLQDPPVTYIQQFADAAANLTSPDSEKWNSVFPKPGTLVQCLRLPKFAEEENLCIDSITPCADGIHLLVGLRTCPVESLSAINQVEALNNLNKLNSALCNRRKGELESNLAVVNGANISVIQHESPADVQTPLIIQPEQRNVSGGYLVLYKMNYATRIVTLEEEPIKIQHIKDPQDTITSLILLPPDILDNREDDCEEPIEDMQLTSKNGFEREKTSDISTLGHLVITTQGGYVKILDLSNFEILAKVEPPKKEGTEEQDTFVSVIYCSGTDRLCACTKGGELHFLQIGGTCDDIDEADILVDGSLSKGIEPSSEGSKPLSNPSSPGISGVDLLVDQPFTLEILTSLVELTRFETLTPRFSATVPPCWVEVQQEQQQRRHPQHLHQQHHGDAAQHTRTWKLQTDSNSWDEHVFELVLPKACMVGHVDFKFVLNSNITNIPQIQVTLLKNKAPGLGKVNALNIEVEQNGKPSLVDLNEEMQHMDVEESQCLRLCPFLEDHKEDILCGPVWLASGLDLSGHAGMLTLTSPKLVKGMAGGKYRSFLIHVKAVNERGTEEICNGGMRPVVRLPSLKHQSNKGYSLASLLAKVAAGKEKSSNVKNENTSGTRKSENLRGCDLLQEVSVTIRRFKKTSISKERVQRCAMLQFSEFHEKLVNTLCRKTDDGQITEHAQSLVLDTLCWLAGVHSNGPGSSKEGNENLLSKTRKFLSDIVRVCFFEAGRSIAHKCARFLALCISNGKCDPCQPAFGPVLLKALLDNMSFLPAATTGGSVYWYFVLLNYVKDEDLAGCSTACASLLTAVSRQLQDRLTPMEALLQTRYGLYSSPFDPVLFDLEMSGSSCKNVYNSSIGVQSDEIDLSDVLSGNGKVSSCTAAEGSFTSLTGLLEVEPLHFTCVSTSDGTRIERDDAMSSFGVTPAVGGLSSGTVGEASTALSSAAQVALQSLSHAMASAEQQLQVLQEKQQQLLKLQQQKAKLEAKLHQTTAAAAAAASAVGPVHNSVPSNPVAAPGFFIHPSDVIPPTPKTTPLFMTPPLTPPNEAVSVVINAELAQLFPGSVIDPPAVNLAAHNKNSNKSRMNPLGSGLALAISHASHFLQPPPHQSIIIERMHSGARRFVTLDFGRPILLTDVLIPTCGDLASLSIDIWTLGEEVDGRRLVVATDISTHSLILHDLIPPPVCRFMKITVIGRYGSTNARAKIPLGFYYGHTYILPWESELKLMHDPLKGEGESANQPEIDQHLAMMVALQEDIQCRYNLACHRLETLLQSIDLPPLNSANNAQYFLRKPDKAVEEDSRVFSAYQDCIQLQLQLNLAHNAVQRLKVALGASRKMLSETSNPEDLIQTSSTEQLRTIIRYLLDTLLSLLHASNGHSVPAVLQSTFHAQACEELFKHLCISGTPKIRLHTGLLLVQLCGGERWWGQFLSNVLQELYNSEQLLIFPQDRVFMLLSCIGQRSLSNSGVLESLLNLLDNLLSPLQPQLPMHRRTEGVLDIPMISWVVMLVSRLLDYVATVEDEAAAAKKPLNGNQWSFINNNLHTQSLNRSSKGSSSLDRLYSRKIRKQLVHHKQQLNLLKAKQKALVEQMEKEKIQSNKGSSYKLLVEQAKLKQATSKHFKDLIRLRRTAEWSRSNLDTEVTTAKESPEIEPLPFTLAHERCISVVQKLVLFLLSMDFTCHADLLLFVCKVLARIANATRPTIHLCEIVNEPQLERLLLLLVGTDFNRGDISWGGAWAQYSLTCMLQDILAGELLAPVAAEAMEEGTVGDDVGATAGDSDDSLQQSSVQLLETIDEPLTHDITGAPPLSSLEKDKEIDLELLQDLMEVDIDPLDIDLEKDPLAAKVFKPISSTWYDYWGADYGTYNYNPYIGGLGIPVAKPPANTEKNGSQTVSVSVSQALDARLEVGLEQQAELMLKMMSTLEADSILQALTNTSPTLSQSPTGTDDSLLGGLQAANQTSQLIIQLSSVPMLNVCFNKLFSMLQVHHVQLESLLQLWLTLSLNSSSTGNKENGADIFLYNANRIPVISLNQASITSFLTVLAWYPNTLLRTWCLVLHSLTLMTNMQLNSGSSSAIGTQESTAHLLVSDPNLIHVLVKFLSGTSPHGTNQHSPQVGPTATQAMQEFLTRLQVHLSSTCPQIFSEFLLKLIHILSTERGAFQTGQGPLDAQVKLLEFTLEQNFEVVSVSTISAVIESVTFLVHHYITCSDKVMSRSGSDSSVGARACFGGLFANLIRPGDAKAVCGEMTRDQLMFDLLKLVNILVQLPLSGNREYSARVSVTTNTTDSVSDEEKVSGGKDGNGSSTSVQGSPAYVADLVLANQQIMSQILSALGLCNSSAMAMIIGASGLHLTKHENFHGGLDAISVGDGLFTILTTLSKKASTVHMMLQPILTYMACGYMGRQGSLATCQLSEPLLWFILRVLDTSDALKAFHDMGGVQLICNNMVTSTRAIVNTARSMVSTIMKFLDSGPNKAVDSTLKTRILASEPDNAEGIHNFAPLGTITSSSPTAQPAEVLLQATPPHRRARSAAWSYIFLPEEAWCDLTIHLPAAVLLKEIHIQPHLASLATCPSSVSVEVSADGVNMLPLSTPVVTSGLTYIKIQLVKAEVASAVCLRLHRPRDASTLGLSQIKLLGLTAFGTTSSATVNNPFLPSEDQVSKTSIGWLRLLHHCLTHISDLEGMMASAAAPTANLLQTCAALLMSPYCGMHSPNIEVVLVKIGLQSTRIGLKLIDILLRNCAASGSDPTDLNSPLLFGRLNGLSSDSTIDILYQLGTTQDPGTKDRIQALLKWVSDSARVAAMKRSGRMNYMCPNSSTVEYGLLMPSPSHLHCVAAILWHSYELLVEYDLPALLDQELFELLFNWSMSLPCNMVLKKAVDSLLCSMCHVHPNYFSLLMGWMGITPPPVQCHHRLSMTDDSKKQDLSSSLTDDSKNAQAPLALTESHLATLASSSQSPEAIKQLLDSGLPSLLVRSLASFCFSHISSSESIAQSIDISQDKLRRHHVPQQCNKMPITADLVAPILRFLTEVGNSHIMKDWLGGSEVNPLWTALLFLLCHSGSTSGSHNLGAQQTSARSASLSSAATTGLTTQQRTAIENATVAFFLQCISCHPNNQKLMAQVLCELFQTSPQRGNLPTSGNISGFIRRLFLQLMLEDEKVTMFLQSPCPLYKGRINATSHVIQHPMYGAGHKFRTLHLPVSTTLSDVLDRVSDTPSITAKLISEQKDDKEKKNHEEKEKVKAENGFQDNYSVVVASGLKSQSKRAVSATPPRPPSRRGRTIPDKIGSTSGAEAANKIITVPVFHLFHKLLAGQPLPAEMTLAQLLTLLYDRKLPQGYRSIDLTVKLGSRVITDPSLSKTDSYKRLHPEKDHGDLLASCPEDEALTPGDECMDGILDESLLETCPIQSPLQVFAGMGGLALIAERLPMLYPEVIQQVSAPVVTSTTQEKPKDSDQFEWVTIEQSGELVYEAPETVAAEPPPIKSAVQTMSPIPAHSLAAFGLFLRLPGYAEVLLKERKHAQCLLRLVLGVTDDGEGSHILQSPSANVLPTLPFHVLRSLFSTTPLTTDDGVLLRRMALEIGALHLILVCLSALSHHSPRVPNSSVNQTEPQVSSSHNPTSTEEQQLYWAKGTGFGTGSTASGWDVEQALTKQRLEEEHVTCLLQVLASYINPVSSAVNGEAQSSHETRGQNSNALPSVLLELLSQSCLIPAMSSYLRNDSVLDMARHVPLYRALLELLRAIASCAAMVPLLLPLSTENGEEEEEQSECQTSVGTLLAKMKTCVDTYTNRLRSKRENVKTGVKPDASDQEPEGLTLLVPDIQKTAEIVYAATTSLRQANQEKKLGEYSKKAAMKPKPLSVLKSLEEKYVAVMKKLQFDTFEMVSEDEDGKLGFKVNYHYMSQVKNANDANSAARARRLAQEAVTLSTSLPLSSSSSVFVRCDEERLDIMKVLITGPADTPYANGCFEFDVYFPQDYPSSPPLVNLETTGGHSVRFNPNLYNDGKVCLSILNTWHGRPEEKWNPQTSSFLQVLVSVQSLILVAEPYFNEPGYERSRGTPSGTQSSREYDGNIRQATVKWAMLEQIRNPSPCFKEVIHKHFYLKRVEIMAQCEEWIADIQQYSSDKRVGRTMSHHAAALKRHTAQLREELLKLPCPEGLDPDTDDAPEVCRATTGAEETLMHDQVKPSSSKELPSDFQL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	40

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.30 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	2232961

fit	/app/data/saxs_computation/e2/8e2h/8e2h.fit
pddf	/app/data/pr_computation/e2/8e2h/8e2h.pr.out
profile	/app/data/saxs_computation/e2/8e2h/8e2h.dat
