1. Protein Identity and Related Structures Protein Identity & Related Structures

Baculoviral IAP repeat-containing protein 6

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain A； UniProt 1–4857 Chain B； UniProt 1–4857	Not recorded	Serine protease HTRA2, mitochondrial × 3 （O43464）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.21 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8E2K	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3CEG Crystal structure of the UBC domain of baculoviral IAP repeat-containing protein 6 Deposited 2008-02-29	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 4470–4792（323 aa） Fragment：UBC domain: Residues 4470-4792	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 10；298 K；11 % PEG 8000, 0.1 M Gycine buffer pH 10.0, 0.001 M DTT, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.01 Å R-free 0.252
3CEG Crystal structure of the UBC domain of baculoviral IAP repeat-containing protein 6 Deposited 2008-02-29	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 4470–4792（323 aa） Fragment：UBC domain: Residues 4470-4792	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 10；298 K；11 % PEG 8000, 0.1 M Gycine buffer pH 10.0, 0.001 M DTT, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.01 Å R-free 0.252
8ATM Structure of the giant inhibitor of apoptosis, BIRC6 (composite map) Deposited 2022-08-23	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8ATO Structure of the giant inhibitor of apoptosis, BIRC6 bound to the regulator SMAC Deposited 2022-08-23	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8ATU Cryo-EM structure of human BIRC6 Deposited 2022-08-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8ATX Cryo-EM structure of human BIRC6 - no substrate Deposited 2022-08-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.00 Å
8AUK Cryo-EM structure of human BIRC6 in complex with HTRA2. Deposited 2022-08-25	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.20 Å
8AUW Cryo-EM structure of human BIRC6 in complex with SMAC. Deposited 2022-08-25	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.20 Å
8E2D Cryo-EM structure of BIRC6 (consensus) Deposited 2022-08-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.07 Å
8E2E Cryo-EM structure of helical arch of BIRC6 (from local refinement 1) Deposited 2022-08-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 1.98 Å
8E2F Cryo-EM structure of N-terminal arm of BIRC6 (from local refinement 2) Deposited 2022-08-15	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.47 Å
8E2G Cryo-EM structure of N-terminal arm (aa68-966) of BIRC6 (from local refinement 3) Deposited 2022-08-15	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.99 Å
8E2H Cryo-EM structure of C-terminal arm of BIRC6 (from local refinement 4) Deposited 2022-08-15	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.30 Å
8E2I Cryo-EM structure of BIRC6/Smac Deposited 2022-08-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.04 Å
9QGW Consensus structure of UBA6-UbDha-BIRC6 trapped ternary complex (singly loaded) Deposited 2025-03-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.62 Å
9QH5 Consensus structure of UBA6-UbDha-BIRC6 trapped ternary complex (doubly loaded) Deposited 2025-03-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.09 Å
9QHI Structure of UBA6-UbDha-BIRC6 trapped ternary complex (cluster 0) Deposited 2025-03-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.27 Å
9QIA Structure of UBA6-UbDha-BIRC6 trapped ternary complex (cluster 2) Deposited 2025-03-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.38 Å
9QIM Consensus structure of UBA6-BIRC6 Deposited 2025-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.57 Å
9QIO Structure of UBA6-BIRC6 (cluster 0) Deposited 2025-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.22 Å
9QIP Structure of UBA6-BIRC6 (cluster 4) Deposited 2025-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.15 Å
9QIV Consensus structure of UBA6-BIRC6 (alternative conformation) Deposited 2025-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.44 Å

21 other PDB entries and 22 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BIRC6_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 42–4898； UniProt 1–4857 Author chain B； PDBConstruct 42–4898； UniProt 1–4857

Serine protease HTRA2, mitochondrial

Homo sapiens

UniProt O43464

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain X； UniProt 134–458 Chain Y； UniProt 134–458 Chain Z； UniProt 134–458	Not recorded	Baculoviral IAP repeat-containing protein 6 × 2 （Q9NR09）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.21 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8E2K	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1LCY Crystal Structure of the Mitochondrial Serine Protease HtrA2 Deposited 2002-04-07	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 134–458（325 aa）	Mutation：S173A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；295 K；lithium sulfate, sodium chloride, pH 5.8, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.00 Å R-free 0.274
1LCY Crystal Structure of the Mitochondrial Serine Protease HtrA2 Deposited 2002-04-07	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 134–458（325 aa）	Mutation：S173A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；295 K；lithium sulfate, sodium chloride, pH 5.8, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.00 Å R-free 0.274
2PZD Crystal Structure of the HtrA2/Omi PDZ Domain Bound to a Phage-Derived Ligand (WTMFWV) Deposited 2007-05-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 359–458（100 aa） Chain B 359–458（100 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；292 K；0.1 M sodium citrate, 1.0 M monoammonium dihydrogen phosphate, pH 5.6, VAPOR DIFFUSION, temperature 292K	Resolution 2.75 Å R-free 0.254
5FHT HtrA2 protease mutant V226K Deposited 2015-12-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 134–458（325 aa）	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 CL CHLORIDE ION × 1 K POTASSIUM ION × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；MES, NaCl, KH2PO4, NaH2PO4	Resolution 1.95 Å R-free 0.228
5M3N HTRA2 wild-type structure Deposited 2016-10-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 134–458（325 aa）	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；Crystals were grown using the sitting drop vapor-diffusion method by mixing equal volumes of protein (10-15 mg/mL) and reservoir solution containing 0.1 M MES pH 6.0, 1 M LiCl, and 15-20% (w/v) PEG-6000	Resolution 1.65 Å R-free 0.175
5M3O HTRA2 A141S mutant structure Deposited 2016-10-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 134–458（325 aa）	Mutation：Mutation A141S	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；0.1 M MES pH 6.0, 1 M LiCl, and 15-20% (w/v) PEG-6000	Resolution 1.70 Å R-free 0.200
5TNY HTRA2 G399S mutant Deposited 2016-10-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 134–458（325 aa）	Mutation：G399S	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.1 M MES pH 6.0, 1 M LiCl, and 15-20% (w/v) PEG-6000	Resolution 1.70 Å R-free 0.187
5TNZ HtrA2 S142D mutant Deposited 2016-10-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 134–458（325 aa） Fragment：UNP residues 134-458	Mutation：S142D	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 3 NA SODIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；0.1 M MES pH 6.0, 1 M LiCl, and 15-20% (w/v) PEG-6000	Resolution 1.75 Å R-free 0.172
5TO0 HTRA2 S276C mutant Deposited 2016-10-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 134–458（325 aa）	Mutation：Mutation S276C	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；0.1 M MES pH 6.0, 1 M LiCl, and 15-20% (w/v) PEG-6000	Resolution 1.90 Å R-free 0.177
5TO1 HtrA2 exposed (L266R, F303A) mutant Deposited 2016-10-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 134–458（325 aa）	Mutation：L266R and F303A	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 3 CL CHLORIDE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；0.1 M MES pH 6.0, 1 M LiCl, and 15-20% (w/v) PEG-6000	Resolution 1.69 Å R-free 0.198
5WYN HtrA2 Pathogenic Mutant Deposited 2017-01-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 134–458（325 aa）	Mutation：S143C,Y295W	CL CHLORIDE ION × 18 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；Sodium phosphate monobasic monohydrate Potassium phosphate monobasic Sodium chloride	Resolution 2.05 Å R-free 0.185
7VGE Structure of the PDZ deleted variant of HtrA2 protease (S306A) Deposited 2021-09-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 140–342（203 aa） Chain B 140–342（203 aa） Chain C 140–342（203 aa）	Mutation：S306A Mutation：S306A Mutation：S306A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；0.5 M Sodium acetate trihydrate pH 6.0, 2.0 M Sodium formate, 3% glycerol	Resolution 4.00 Å R-free 0.336
7VGE Structure of the PDZ deleted variant of HtrA2 protease (S306A) Deposited 2021-09-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain D 140–341（202 aa） Chain E 140–340（201 aa） Chain F 140–341（202 aa）	Mutation：S306A Mutation：S306A Mutation：S306A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；0.5 M Sodium acetate trihydrate pH 6.0, 2.0 M Sodium formate, 3% glycerol	Resolution 4.00 Å R-free 0.336
8AUK Cryo-EM structure of human BIRC6 in complex with HTRA2. Deposited 2022-08-25	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 134–458（325 aa） Chain D 134–458（325 aa） Chain E 134–458（325 aa）	Mutation：S306A Mutation：S306A Mutation：S306A	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.20 Å

12 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HTRA2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain X； PDBConstruct 2–326； UniProt 134–458 Author chain Y； PDBConstruct 2–326； UniProt 134–458 Author chain Z； PDBConstruct 2–326； UniProt 134–458

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8e2k
Deposition date deposition_date	2022-08-15
Structure title title	Cryo-EM structure of BIRC6/HtrA2-S306A
Keywords keywords	Ubiquitin, E3 ligase, Apoptosis, Autophagy, IAP, LIGASE; LIGASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	71.43 Å
Radius of gyration Rg (electron density) rg_electron	71.55 Å
Forward intensity I(0) i0	6047490000.00
Molecular weight molecular_weight	680210.0 kDa
Excluded volume excluded_volume	860690 Å³
Envelope volume envelope_volume	1356300 Å³
Hydration-shell volume shell_volume	156820 Å³
Envelope diameter envelope_diameter	217.0 Å
Shell Rg shell_rg	72.07 Å
Envelope Rg envelope_rg	68.15 Å
Shape Rg shape_rg	71.52 Å
Total Rg total_rg	71.69 Å
Total atoms total_atoms	96469
Residues n_residues	6160
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

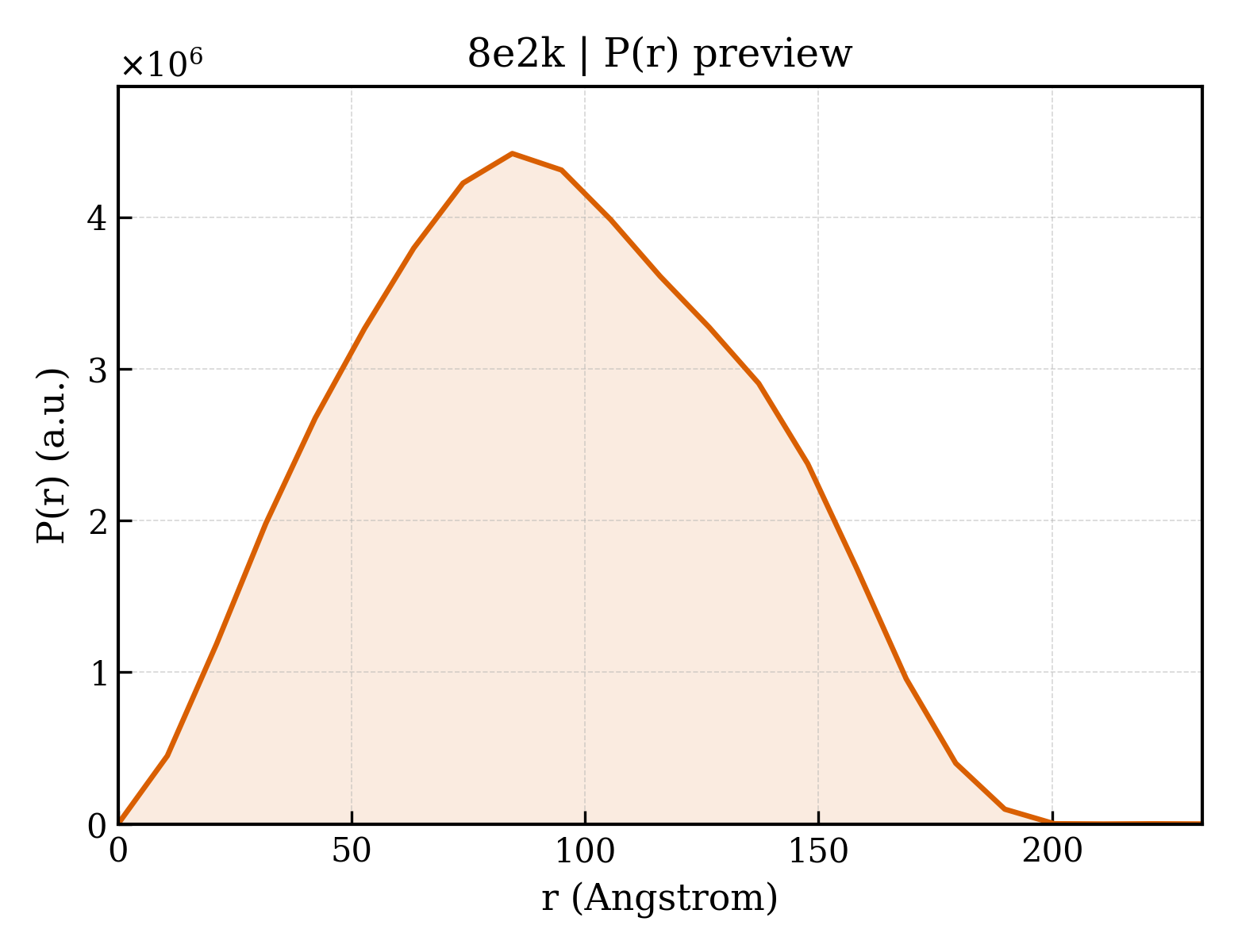

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	232.2 Å
Rg (real space) rg_real	71.24 Å
Rg uncertainty (real space) rg_real_error	1.98 Å
I(0) (real space) i0_real	6.0480e+09
I(0) uncertainty (real space) i0_real_error	1.4330e+08
Rg (reciprocal space) rg_reciprocal	71.91 Å
I(0) (reciprocal space) i0_reciprocal	6054000000.0000
Solution quality estimate total_estimate	0.8728
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	84.4 Å
Skewness Skewness skewness	0.086
Kurtosis Kurtosis kurtosis	-0.730
Angular range angular_range	— – 0.1100 Å⁻¹
Current regularization parameter α current_alpha	0.0001
Highest regularization parameter α highest_alpha	246800000.0000
Real-space data points n_real_points	23
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.930; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.977; Smooth: 0.577

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Baculoviral IAP repeat-containing protein 6
Molecular weight formula_weight	535317.2 kDa
EC 编号 ec_number	6.-.-.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	96785

MGDYKDHDGDYKDHDIDYKDDDDKGGGSGGLEVLFQGPSRTMVTGGGAAPPGTVTEPLPSVIVLSAGRKMAAAAAAASGPGCSSAAGAGAAGVSEWLVLRDGCMHCDADGLHSLSYHPALNAILAVTSRGTIKVIDGTSGATLQASALSAKPGGQVKCQYISAVDKVIFVDDYAVGCRKDLNGILLLDTALQTPVSKQDDVVQLELPVTEAQQLLSACLEKVDISSTEGYDLFITQLKDGLKNTSHETAANHKVAKWATVTFHLPHHVLKSIASAIVNELKKINQNVAALPVASSVMDRLSYLLPSARPELGVGPGRSVDRSLMYSEANRRETFTSWPHVGYRWAQPDPMAQAGFYHQPASSGDDRAMCFTCSVCLVCWEPTDEPWSEHERHSPNCPFVKGEHTQNVPLSVTLATSPAQFPCTDGTDRISCFGSGSCPHFLAAATKRGKICIWDVSKLMKVHLKFEINAYDPAIVQQLILSGDPSSGVDSRRPTLAWLEDSSSCSDIPKLEGDSDDLLEDSDSEEHSRSDSVTGHTSQKEAMEVSLDITALSILQQPEKLQWEIVANVLEDTVKDLEELGANPCLTNSKSEKTKEKHQEQHNIPFPCLLAGGLLTYKSPATSPISSNSHRSLDGLSRTQGESISEQGSTDNESCTNSELNSPLVRRTLPVLLLYSIKESDEKAGKIFSQMNNIMSKSLHDDGFTVPQIIEMELDSQEQLLLQDPPVTYIQQFADAAANLTSPDSEKWNSVFPKPGTLVQCLRLPKFAEEENLCIDSITPCADGIHLLVGLRTCPVESLSAINQVEALNNLNKLNSALCNRRKGELESNLAVVNGANISVIQHESPADVQTPLIIQPEQRNVSGGYLVLYKMNYATRIVTLEEEPIKIQHIKDPQDTITSLILLPPDILDNREDDCEEPIEDMQLTSKNGFEREKTSDISTLGHLVITTQGGYVKILDLSNFEILAKVEPPKKEGTEEQDTFVSVIYCSGTDRLCACTKGGELHFLQIGGTCDDIDEADILVDGSLSKGIEPSSEGSKPLSNPSSPGISGVDLLVDQPFTLEILTSLVELTRFETLTPRFSATVPPCWVEVQQEQQQRRHPQHLHQQHHGDAAQHTRTWKLQTDSNSWDEHVFELVLPKACMVGHVDFKFVLNSNITNIPQIQVTLLKNKAPGLGKVNALNIEVEQNGKPSLVDLNEEMQHMDVEESQCLRLCPFLEDHKEDILCGPVWLASGLDLSGHAGMLTLTSPKLVKGMAGGKYRSFLIHVKAVNERGTEEICNGGMRPVVRLPSLKHQSNKGYSLASLLAKVAAGKEKSSNVKNENTSGTRKSENLRGCDLLQEVSVTIRRFKKTSISKERVQRCAMLQFSEFHEKLVNTLCRKTDDGQITEHAQSLVLDTLCWLAGVHSNGPGSSKEGNENLLSKTRKFLSDIVRVCFFEAGRSIAHKCARFLALCISNGKCDPCQPAFGPVLLKALLDNMSFLPAATTGGSVYWYFVLLNYVKDEDLAGCSTACASLLTAVSRQLQDRLTPMEALLQTRYGLYSSPFDPVLFDLEMSGSSCKNVYNSSIGVQSDEIDLSDVLSGNGKVSSCTAAEGSFTSLTGLLEVEPLHFTCVSTSDGTRIERDDAMSSFGVTPAVGGLSSGTVGEASTALSSAAQVALQSLSHAMASAEQQLQVLQEKQQQLLKLQQQKAKLEAKLHQTTAAAAAAASAVGPVHNSVPSNPVAAPGFFIHPSDVIPPTPKTTPLFMTPPLTPPNEAVSVVINAELAQLFPGSVIDPPAVNLAAHNKNSNKSRMNPLGSGLALAISHASHFLQPPPHQSIIIERMHSGARRFVTLDFGRPILLTDVLIPTCGDLASLSIDIWTLGEEVDGRRLVVATDISTHSLILHDLIPPPVCRFMKITVIGRYGSTNARAKIPLGFYYGHTYILPWESELKLMHDPLKGEGESANQPEIDQHLAMMVALQEDIQCRYNLACHRLETLLQSIDLPPLNSANNAQYFLRKPDKAVEEDSRVFSAYQDCIQLQLQLNLAHNAVQRLKVALGASRKMLSETSNPEDLIQTSSTEQLRTIIRYLLDTLLSLLHASNGHSVPAVLQSTFHAQACEELFKHLCISGTPKIRLHTGLLLVQLCGGERWWGQFLSNVLQELYNSEQLLIFPQDRVFMLLSCIGQRSLSNSGVLESLLNLLDNLLSPLQPQLPMHRRTEGVLDIPMISWVVMLVSRLLDYVATVEDEAAAAKKPLNGNQWSFINNNLHTQSLNRSSKGSSSLDRLYSRKIRKQLVHHKQQLNLLKAKQKALVEQMEKEKIQSNKGSSYKLLVEQAKLKQATSKHFKDLIRLRRTAEWSRSNLDTEVTTAKESPEIEPLPFTLAHERCISVVQKLVLFLLSMDFTCHADLLLFVCKVLARIANATRPTIHLCEIVNEPQLERLLLLLVGTDFNRGDISWGGAWAQYSLTCMLQDILAGELLAPVAAEAMEEGTVGDDVGATAGDSDDSLQQSSVQLLETIDEPLTHDITGAPPLSSLEKDKEIDLELLQDLMEVDIDPLDIDLEKDPLAAKVFKPISSTWYDYWGADYGTYNYNPYIGGLGIPVAKPPANTEKNGSQTVSVSVSQALDARLEVGLEQQAELMLKMMSTLEADSILQALTNTSPTLSQSPTGTDDSLLGGLQAANQTSQLIIQLSSVPMLNVCFNKLFSMLQVHHVQLESLLQLWLTLSLNSSSTGNKENGADIFLYNANRIPVISLNQASITSFLTVLAWYPNTLLRTWCLVLHSLTLMTNMQLNSGSSSAIGTQESTAHLLVSDPNLIHVLVKFLSGTSPHGTNQHSPQVGPTATQAMQEFLTRLQVHLSSTCPQIFSEFLLKLIHILSTERGAFQTGQGPLDAQVKLLEFTLEQNFEVVSVSTISAVIESVTFLVHHYITCSDKVMSRSGSDSSVGARACFGGLFANLIRPGDAKAVCGEMTRDQLMFDLLKLVNILVQLPLSGNREYSARVSVTTNTTDSVSDEEKVSGGKDGNGSSTSVQGSPAYVADLVLANQQIMSQILSALGLCNSSAMAMIIGASGLHLTKHENFHGGLDAISVGDGLFTILTTLSKKASTVHMMLQPILTYMACGYMGRQGSLATCQLSEPLLWFILRVLDTSDALKAFHDMGGVQLICNNMVTSTRAIVNTARSMVSTIMKFLDSGPNKAVDSTLKTRILASEPDNAEGIHNFAPLGTITSSSPTAQPAEVLLQATPPHRRARSAAWSYIFLPEEAWCDLTIHLPAAVLLKEIHIQPHLASLATCPSSVSVEVSADGVNMLPLSTPVVTSGLTYIKIQLVKAEVASAVCLRLHRPRDASTLGLSQIKLLGLTAFGTTSSATVNNPFLPSEDQVSKTSIGWLRLLHHCLTHISDLEGMMASAAAPTANLLQTCAALLMSPYCGMHSPNIEVVLVKIGLQSTRIGLKLIDILLRNCAASGSDPTDLNSPLLFGRLNGLSSDSTIDILYQLGTTQDPGTKDRIQALLKWVSDSARVAAMKRSGRMNYMCPNSSTVEYGLLMPSPSHLHCVAAILWHSYELLVEYDLPALLDQELFELLFNWSMSLPCNMVLKKAVDSLLCSMCHVHPNYFSLLMGWMGITPPPVQCHHRLSMTDDSKKQDLSSSLTDDSKNAQAPLALTESHLATLASSSQSPEAIKQLLDSGLPSLLVRSLASFCFSHISSSESIAQSIDISQDKLRRHHVPQQCNKMPITADLVAPILRFLTEVGNSHIMKDWLGGSEVNPLWTALLFLLCHSGSTSGSHNLGAQQTSARSASLSSAATTGLTTQQRTAIENATVAFFLQCISCHPNNQKLMAQVLCELFQTSPQRGNLPTSGNISGFIRRLFLQLMLEDEKVTMFLQSPCPLYKGRINATSHVIQHPMYGAGHKFRTLHLPVSTTLSDVLDRVSDTPSITAKLISEQKDDKEKKNHEEKEKVKAENGFQDNYSVVVASGLKSQSKRAVSATPPRPPSRRGRTIPDKIGSTSGAEAANKIITVPVFHLFHKLLAGQPLPAEMTLAQLLTLLYDRKLPQGYRSIDLTVKLGSRVITDPSLSKTDSYKRLHPEKDHGDLLASCPEDEALTPGDECMDGILDESLLETCPIQSPLQVFAGMGGLALIAERLPMLYPEVIQQVSAPVVTSTTQEKPKDSDQFEWVTIEQSGELVYEAPETVAAEPPPIKSAVQTMSPIPAHSLAAFGLFLRLPGYAEVLLKERKHAQCLLRLVLGVTDDGEGSHILQSPSANVLPTLPFHVLRSLFSTTPLTTDDGVLLRRMALEIGALHLILVCLSALSHHSPRVPNSSVNQTEPQVSSSHNPTSTEEQQLYWAKGTGFGTGSTASGWDVEQALTKQRLEEEHVTCLLQVLASYINPVSSAVNGEAQSSHETRGQNSNALPSVLLELLSQSCLIPAMSSYLRNDSVLDMARHVPLYRALLELLRAIASCAAMVPLLLPLSTENGEEEEEQSECQTSVGTLLAKMKTCVDTYTNRLRSKRENVKTGVKPDASDQEPEGLTLLVPDIQKTAEIVYAATTSLRQANQEKKLGEYSKKAAMKPKPLSVLKSLEEKYVAVMKKLQFDTFEMVSEDEDGKLGFKVNYHYMSQVKNANDANSAARARRLAQEAVTLSTSLPLSSSSSVFVRCDEERLDIMKVLITGPADTPYANGCFEFDVYFPQDYPSSPPLVNLETTGGHSVRFNPNLYNDGKVCLSILNTWHGRPEEKWNPQTSSFLQVLVSVQSLILVAEPYFNEPGYERSRGTPSGTQSSREYDGNIRQATVKWAMLEQIRNPSPCFKEVIHKHFYLKRVEIMAQCEEWIADIQQYSSDKRVGRTMSHHAAALKRHTAQLREELLKLPCPEGLDPDTDDAPEVCRATTGAEETLMHDQVKPSSSKELPSDFQL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Serine protease HTRA2, mitochondrial
Molecular weight formula_weight	35961.9 kDa
EC 编号 ec_number	3.4.21.108
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X,Y,Z

MAVPSPPPASPRSQYNFIADVVEKTAPAVVYIEILDRHPFLGREVPISNGSGFVVAADGLIVTNAHVVADRRRVRVRLLSGDTYEAVVTAVDPVADIATLRIQTKEPLPTLPLGRSADVRQGEFVVAMGSPFALQNTITSGIVSSAQRPARDLGLPQTNVEYIQTDAAIDFGNAGGPLVNLDGEVIGVNTMKVTAGISFAIPSDRLREFLHRGEKKNSSSGISGSQRRYIGVMMLTLSPSILAELQLREPSFPDVQHGVLIHKVILGSPAHRAGLRPGDVILAIGEQMVQNAEDVYEAVRTQSQLAVQIRRGRETLTLYVTPEVTEHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.21 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	73712

fit	/app/data/saxs_computation/e2/8e2k/8e2k.fit
pddf	/app/data/pr_computation/e2/8e2k/8e2k.pr.out
profile	/app/data/saxs_computation/e2/8e2k/8e2k.dat
