SAXSdb — 8auw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Baculoviral IAP repeat-containing protein 6

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–4857 Chain B； UniProt 1–4857	Not recorded	Diablo IAP-binding mitochondrial protein × 2 （Q9NR28） ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 7.20 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8AUW	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3CEG Crystal structure of the UBC domain of baculoviral IAP repeat-containing protein 6 Deposited 2008-02-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 4470–4792（323 aa） Fragment：UBC domain: Residues 4470-4792	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 10；298 K；11 % PEG 8000, 0.1 M Gycine buffer pH 10.0, 0.001 M DTT, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.01 Å R-free 0.252
3CEG Crystal structure of the UBC domain of baculoviral IAP repeat-containing protein 6 Deposited 2008-02-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 4470–4792（323 aa） Fragment：UBC domain: Residues 4470-4792	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 10；298 K；11 % PEG 8000, 0.1 M Gycine buffer pH 10.0, 0.001 M DTT, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.01 Å R-free 0.252
8ATM Structure of the giant inhibitor of apoptosis, BIRC6 (composite map) Deposited 2022-08-23	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8ATO Structure of the giant inhibitor of apoptosis, BIRC6 bound to the regulator SMAC Deposited 2022-08-23	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8ATU Cryo-EM structure of human BIRC6 Deposited 2022-08-24	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8ATX Cryo-EM structure of human BIRC6 - no substrate Deposited 2022-08-24	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.00 Å
8AUK Cryo-EM structure of human BIRC6 in complex with HTRA2. Deposited 2022-08-25	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.20 Å
8E2D Cryo-EM structure of BIRC6 (consensus) Deposited 2022-08-15	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.07 Å
8E2E Cryo-EM structure of helical arch of BIRC6 (from local refinement 1) Deposited 2022-08-15	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 1.98 Å
8E2F Cryo-EM structure of N-terminal arm of BIRC6 (from local refinement 2) Deposited 2022-08-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.47 Å
8E2G Cryo-EM structure of N-terminal arm (aa68-966) of BIRC6 (from local refinement 3) Deposited 2022-08-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.99 Å
8E2H Cryo-EM structure of C-terminal arm of BIRC6 (from local refinement 4) Deposited 2022-08-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.30 Å
8E2I Cryo-EM structure of BIRC6/Smac Deposited 2022-08-15	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.04 Å
8E2K Cryo-EM structure of BIRC6/HtrA2-S306A Deposited 2022-08-15	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–4857（4857 aa） Chain B 1–4857（4857 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.21 Å
9QGW Consensus structure of UBA6-UbDha-BIRC6 trapped ternary complex (singly loaded) Deposited 2025-03-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.62 Å
9QH5 Consensus structure of UBA6-UbDha-BIRC6 trapped ternary complex (doubly loaded) Deposited 2025-03-14	Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.09 Å
9QHI Structure of UBA6-UbDha-BIRC6 trapped ternary complex (cluster 0) Deposited 2025-03-15	Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.27 Å
9QIA Structure of UBA6-UbDha-BIRC6 trapped ternary complex (cluster 2) Deposited 2025-03-18	Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.38 Å
9QIM Consensus structure of UBA6-BIRC6 Deposited 2025-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.57 Å
9QIO Structure of UBA6-BIRC6 (cluster 0) Deposited 2025-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.22 Å
9QIP Structure of UBA6-BIRC6 (cluster 4) Deposited 2025-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.15 Å
9QIV Consensus structure of UBA6-BIRC6 (alternative conformation) Deposited 2025-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 4498–4820（323 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.44 Å

21 other PDB entries and 22 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BIRC6_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–4857； UniProt 1–4857 Author chain B； PDBConstruct 1–4857； UniProt 1–4857

Diablo IAP-binding mitochondrial protein

Homo sapiens

UniProt Q9NR28

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain C； UniProt 56–239 Chain D； UniProt 56–239	Not recorded	Baculoviral IAP repeat-containing protein 6 × 2 （Q9NR09） ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 7.20 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8AUW	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1FEW CRYSTAL STRUCTURE OF SMAC/DIABLO Deposited 2000-07-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 56–239（184 aa） Fragment：SMAC/DIABLO	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；276 K；Dioxane, Ammonium Sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 276.0K	Resolution 2.20 Å R-free 0.259
1FEW CRYSTAL STRUCTURE OF SMAC/DIABLO Deposited 2000-07-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 56–239（184 aa） Fragment：SMAC/DIABLO	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；276 K；Dioxane, Ammonium Sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 276.0K	Resolution 2.20 Å R-free 0.259
1G3F NMR STRUCTURE OF A 9 RESIDUE PEPTIDE FROM SMAC/DIABLO COMPLEXED TO THE BIR3 DOMAIN OF XIAP Deposited 2000-10-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 56–64（9 aa） Fragment：9 RESIDUE PEPTIDE	Not recorded	ZN ZINC ION × 1	SOLUTION NMR NMR measurement conditions pH 7.2；300 K；Pressure 1 NMR sample composition 1 mM protein/peptide complex, 120 mM NaCl, 1mM DTT, 10mM phosphate \| 90% h20, 10% d20	Resolution not provided
1G73 CRYSTAL STRUCTURE OF SMAC BOUND TO XIAP-BIR3 DOMAIN Deposited 2000-11-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 56–217（162 aa） Fragment：RESIDUES 1-162	Mutation：F33D	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；297 K；100 mM Citrate, pH5.5 5% PEG4000 10% Isopropanol, VAPOR DIFFUSION, HANGING DROP, temperature 297K	Resolution 2.00 Å R-free 0.268
1G73 CRYSTAL STRUCTURE OF SMAC BOUND TO XIAP-BIR3 DOMAIN Deposited 2000-11-08	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 56–217（162 aa） Fragment：RESIDUES 1-162	Mutation：F33D	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；297 K；100 mM Citrate, pH5.5 5% PEG4000 10% Isopropanol, VAPOR DIFFUSION, HANGING DROP, temperature 297K	Resolution 2.00 Å R-free 0.268
1TW6 Structure of an ML-IAP/XIAP chimera bound to a 9mer peptide derived from Smac Deposited 2004-06-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 56–64（9 aa） Fragment：Smac residues 1-9	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；lithium sulfate, Bis-tris, PEG 3350, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.71 Å R-free 0.171
1TW6 Structure of an ML-IAP/XIAP chimera bound to a 9mer peptide derived from Smac Deposited 2004-06-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 56–64（9 aa） Fragment：Smac residues 1-9	Not recorded	ZN ZINC ION × 1 LI LITHIUM ION × 1 BTB 2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；lithium sulfate, Bis-tris, PEG 3350, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.71 Å R-free 0.171
1TW6 Structure of an ML-IAP/XIAP chimera bound to a 9mer peptide derived from Smac Deposited 2004-06-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 56–64（9 aa） Fragment：Smac residues 1-9 Chain D 56–64（9 aa） Fragment：Smac residues 1-9	Not recorded	ZN ZINC ION × 4 LI LITHIUM ION × 2 BTB 2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 2 EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；lithium sulfate, Bis-tris, PEG 3350, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.71 Å R-free 0.171
1TW6 Structure of an ML-IAP/XIAP chimera bound to a 9mer peptide derived from Smac Deposited 2004-06-30	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 56–64（9 aa） Fragment：Smac residues 1-9 Chain D 56–64（9 aa） Fragment：Smac residues 1-9	Not recorded	ZN ZINC ION × 2 LI LITHIUM ION × 1 BTB 2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；lithium sulfate, Bis-tris, PEG 3350, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.71 Å R-free 0.171
1TW6 Structure of an ML-IAP/XIAP chimera bound to a 9mer peptide derived from Smac Deposited 2004-06-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 56–64（9 aa） Fragment：Smac residues 1-9	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；lithium sulfate, Bis-tris, PEG 3350, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.71 Å R-free 0.171
1XB0 Structure of the BIR domain of IAP-like protein 2 Deposited 2004-08-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain G 56–62（7 aa） Chain H 56–62（7 aa） Chain I 56–62（7 aa） Chain J 56–62（7 aa） Chain K 56–62（7 aa） Chain L 56–62（7 aa）	Not recorded	ZN ZINC ION × 24	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；295 K；5% PEG3000, 100mM sodium acetate, 100mM Zinc acetate, pH 5.2, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.20 Å R-free 0.244
1XB1 The Structure of the BIR domain of IAP-like protein 2 Deposited 2004-08-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain G 56–62（7 aa） Chain H 56–62（7 aa） Chain I 56–62（7 aa） Chain J 56–62（7 aa） Chain K 56–62（7 aa） Chain L 56–62（7 aa）	Not recorded	ZN ZINC ION × 23	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；295 K；5% PEG3000, 100mM Na acetate, 100mM Zinc acetate, pH 5.2, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.70 Å R-free 0.277
1XB1 The Structure of the BIR domain of IAP-like protein 2 Deposited 2004-08-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric	Chain G 56–62（7 aa） Chain H 56–62（7 aa） Chain I 56–62（7 aa） Chain J 56–62（7 aa） Chain K 56–62（7 aa） Chain L 56–62（7 aa）	Not recorded	ZN ZINC ION × 46	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；295 K；5% PEG3000, 100mM Na acetate, 100mM Zinc acetate, pH 5.2, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.70 Å R-free 0.277
3UIH crystal structure of human Survivin in complex with Smac/DIABLO(1-15) peptide Deposited 2011-11-04	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain P 56–70（15 aa） Fragment：unp residues 1-15 Chain Q 56–70（15 aa） Fragment：unp residues 1-15	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.2 M potassium thiocyanate, 10% PEG 3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.40 Å R-free 0.245
3UIJ Crystal structure of human Survivin K62Y/H80W mutant in complex with Smac/DIABLO(1-15) peptide Deposited 2011-11-04	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain P 56–70（15 aa） Fragment：unp residues 1-15 Chain Q 56–70（15 aa） Fragment：unp residues 1-15	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.2 M sodium bromide, 12% PEG 3350, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.71 Å R-free 0.242
4TX5 Crystal structure of Smac-DIABLO (in space group P65) Deposited 2014-07-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 56–239（184 aa） Fragment：UNP Residues 56-239 Chain B 56–239（184 aa） Fragment：UNP Residues 56-239	Not recorded	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 6 ACT ACETATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；30% MPD, 0.1 M Sodium Acetate, 0.02 M Calcium Chloride.	Resolution 1.80 Å R-free 0.202
6JX6 Tetrameric form of Smac Deposited 2019-04-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 56–239（184 aa） Chain B 56–239（184 aa） Chain C 56–239（184 aa） Chain D 56–239（184 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；296 K；200mM Potassium Phosphate Monobasic, 20% PEG 3350	Resolution 2.81 Å R-free 0.264
8ATO Structure of the giant inhibitor of apoptosis, BIRC6 bound to the regulator SMAC Deposited 2022-08-23	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 56–239（184 aa） Chain D 56–239（184 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8E2I Cryo-EM structure of BIRC6/Smac Deposited 2022-08-15	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 56–239（184 aa） Chain F 56–239（184 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.04 Å
8E2J Cryo-EM structure of BIRC6/Smac (from local refinement 1) Deposited 2022-08-15	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 56–239（184 aa） Chain B 56–239（184 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.44 Å

13 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DBLOH_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–184； UniProt 56–239 Author chain D； PDBConstruct 1–184； UniProt 56–239

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8auw
Deposition date deposition_date	2022-08-25
Structure title title	Cryo-EM structure of human BIRC6 in complex with SMAC.
Keywords keywords	E3 ubiquitin ligase, E2/E3 hybrid, inhibitor of apoptosis protein, LIGASE; LIGASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	75.55 Å
Radius of gyration Rg (electron density) rg_electron	75.45 Å
Forward intensity I(0) i0	5865220000.00
Molecular weight molecular_weight	668100.0 kDa
Excluded volume excluded_volume	844450 Å³
Envelope volume envelope_volume	1502600 Å³
Hydration-shell volume shell_volume	165610 Å³
Envelope diameter envelope_diameter	223.1 Å
Shell Rg shell_rg	75.64 Å
Envelope Rg envelope_rg	71.02 Å
Shape Rg shape_rg	75.43 Å
Total Rg total_rg	75.50 Å
Total atoms total_atoms	46869
Residues n_residues	6048
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

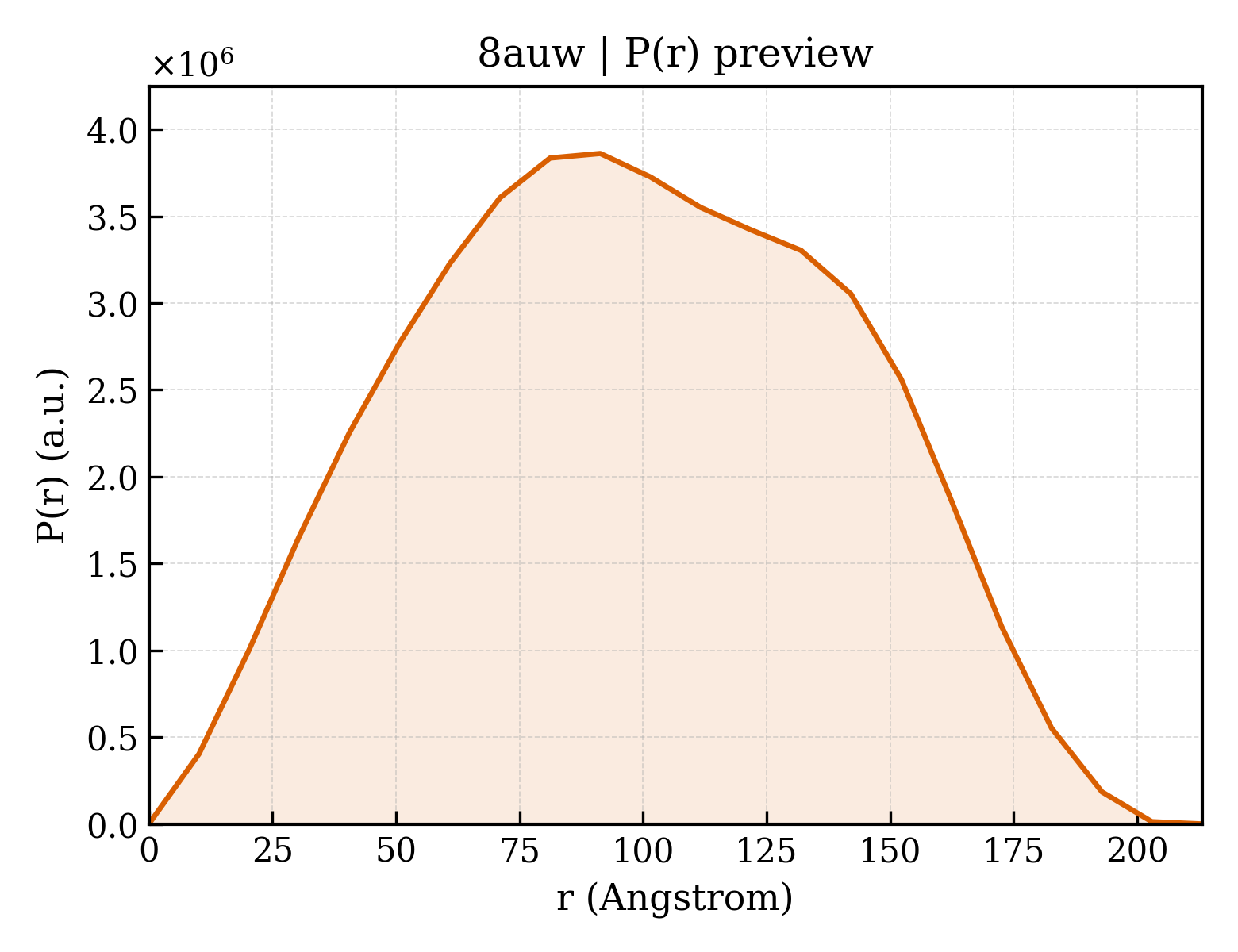

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	213.2 Å
Rg (real space) rg_real	75.29 Å
Rg uncertainty (real space) rg_real_error	1.05 Å
I(0) (real space) i0_real	5.8650e+09
I(0) uncertainty (real space) i0_real_error	1.2020e+08
Rg (reciprocal space) rg_reciprocal	76.19 Å
I(0) (reciprocal space) i0_reciprocal	5875000000.0000
Solution quality estimate total_estimate	0.8461
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	91.4 Å
Skewness Skewness skewness	0.022
Kurtosis Kurtosis kurtosis	-0.807
Angular range angular_range	— – 0.1050 Å⁻¹
Current regularization parameter α current_alpha	0.0008
Highest regularization parameter α highest_alpha	234000000.0000
Real-space data points n_real_points	22
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.999; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Baculoviral IAP repeat-containing protein 6
Molecular weight formula_weight	532009.0 kDa
EC 编号 ec_number	2.3.2.27
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	46869

MVTGGGAAPPGTVTEPLPSVIVLSAGRKMAAAAAAASGPGCSSAAGAGAAGVSEWLVLRDGCMHCDADGLHSLSYHPALNAILAVTSRGTIKVIDGTSGATLQASALSAKPGGQVKCQYISAVDKVIFVDDYAVGCRKDLNGILLLDTALQTPVSKQDDVVQLELPVTEAQQLLSACLEKVDISSTEGYDLFITQLKDGLKNTSHETAANHKVAKWATVTFHLPHHVLKSIASAIVNELKKINQNVAALPVASSVMDRLSYLLPSARPELGVGPGRSVDRSLMYSEANRRETFTSWPHVGYRWAQPDPMAQAGFYHQPASSGDDRAMCFTCSVCLVCWEPTDEPWSEHERHSPNCPFVKGEHTQNVPLSVTLATSPAQFPCTDGTDRISCFGSGSCPHFLAAATKRGKICIWDVSKLMKVHLKFEINAYDPAIVQQLILSGDPSSGVDSRRPTLAWLEDSSSCSDIPKLEGDSDDLLEDSDSEEHSRSDSVTGHTSQKEAMEVSLDITALSILQQPEKLQWEIVANVLEDTVKDLEELGANPCLTNSKSEKTKEKHQEQHNIPFPCLLAGGLLTYKSPATSPISSNSHRSLDGLSRTQGESISEQGSTDNESCTNSELNSPLVRRTLPVLLLYSIKESDEKAGKIFSQMNNIMSKSLHDDGFTVPQIIEMELDSQEQLLLQDPPVTYIQQFADAAANLTSPDSEKWNSVFPKPGTLVQCLRLPKFAEEENLCIDSITPCADGIHLLVGLRTCPVESLSAINQVEALNNLNKLNSALCNRRKGELESNLAVVNGANISVIQHESPADVQTPLIIQPEQRNVSGGYLVLYKMNYATRIVTLEEEPIKIQHIKDPQDTITSLILLPPDILDNREDDCEEPIEDMQLTSKNGFEREKTSDISTLGHLVITTQGGYVKILDLSNFEILAKVEPPKKEGTEEQDTFVSVIYCSGTDRLCACTKGGELHFLQIGGTCDDIDEADILVDGSLSKGIEPSSEGSKPLSNPSSPGISGVDLLVDQPFTLEILTSLVELTRFETLTPRFSATVPPCWVEVQQEQQQRRHPQHLHQQHHGDAAQHTRTWKLQTDSNSWDEHVFELVLPKACMVGHVDFKFVLNSNITNIPQIQVTLLKNKAPGLGKVNALNIEVEQNGKPSLVDLNEEMQHMDVEESQCLRLCPFLEDHKEDILCGPVWLASGLDLSGHAGMLTLTSPKLVKGMAGGKYRSFLIHVKAVNERGTEEICNGGMRPVVRLPSLKHQSNKGYSLASLLAKVAAGKEKSSNVKNENTSGTRKSENLRGCDLLQEVSVTIRRFKKTSISKERVQRCAMLQFSEFHEKLVNTLCRKTDDGQITEHAQSLVLDTLCWLAGVHSNGPGSSKEGNENLLSKTRKFLSDIVRVCFFEAGRSIAHKCARFLALCISNGKCDPCQPAFGPVLLKALLDNMSFLPAATTGGSVYWYFVLLNYVKDEDLAGCSTACASLLTAVSRQLQDRLTPMEALLQTRYGLYSSPFDPVLFDLEMSGSSCKNVYNSSIGVQSDEIDLSDVLSGNGKVSSCTAAEGSFTSLTGLLEVEPLHFTCVSTSDGTRIERDDAMSSFGVTPAVGGLSSGTVGEASTALSSAAQVALQSLSHAMASAEQQLQVLQEKQQQLLKLQQQKAKLEAKLHQTTAAAAAAASAVGPVHNSVPSNPVAAPGFFIHPSDVIPPTPKTTPLFMTPPLTPPNEAVSVVINAELAQLFPGSVIDPPAVNLAAHNKNSNKSRMNPLGSGLALAISHASHFLQPPPHQSIIIERMHSGARRFVTLDFGRPILLTDVLIPTCGDLASLSIDIWTLGEEVDGRRLVVATDISTHSLILHDLIPPPVCRFMKITVIGRYGSTNARAKIPLGFYYGHTYILPWESELKLMHDPLKGEGESANQPEIDQHLAMMVALQEDIQCRYNLACHRLETLLQSIDLPPLNSANNAQYFLRKPDKAVEEDSRVFSAYQDCIQLQLQLNLAHNAVQRLKVALGASRKMLSETSNPEDLIQTSSTEQLRTIIRYLLDTLLSLLHASNGHSVPAVLQSTFHAQACEELFKHLCISGTPKIRLHTGLLLVQLCGGERWWGQFLSNVLQELYNSEQLLIFPQDRVFMLLSCIGQRSLSNSGVLESLLNLLDNLLSPLQPQLPMHRRTEGVLDIPMISWVVMLVSRLLDYVATVEDEAAAAKKPLNGNQWSFINNNLHTQSLNRSSKGSSSLDRLYSRKIRKQLVHHKQQLNLLKAKQKALVEQMEKEKIQSNKGSSYKLLVEQAKLKQATSKHFKDLIRLRRTAEWSRSNLDTEVTTAKESPEIEPLPFTLAHERCISVVQKLVLFLLSMDFTCHADLLLFVCKVLARIANATRPTIHLCEIVNEPQLERLLLLLVGTDFNRGDISWGGAWAQYSLTCMLQDILAGELLAPVAAEAMEEGTVGDDVGATAGDSDDSLQQSSVQLLETIDEPLTHDITGAPPLSSLEKDKEIDLELLQDLMEVDIDPLDIDLEKDPLAAKVFKPISSTWYDYWGADYGTYNYNPYIGGLGIPVAKPPANTEKNGSQTVSVSVSQALDARLEVGLEQQAELMLKMMSTLEADSILQALTNTSPTLSQSPTGTDDSLLGGLQAANQTSQLIIQLSSVPMLNVCFNKLFSMLQVHHVQLESLLQLWLTLSLNSSSTGNKENGADIFLYNANRIPVISLNQASITSFLTVLAWYPNTLLRTWCLVLHSLTLMTNMQLNSGSSSAIGTQESTAHLLVSDPNLIHVLVKFLSGTSPHGTNQHSPQVGPTATQAMQEFLTRLQVHLSSTCPQIFSEFLLKLIHILSTERGAFQTGQGPLDAQVKLLEFTLEQNFEVVSVSTISAVIESVTFLVHHYITCSDKVMSRSGSDSSVGARACFGGLFANLIRPGDAKAVCGEMTRDQLMFDLLKLVNILVQLPLSGNREYSARVSVTTNTTDSVSDEEKVSGGKDGNGSSTSVQGSPAYVADLVLANQQIMSQILSALGLCNSSAMAMIIGASGLHLTKHENFHGGLDAISVGDGLFTILTTLSKKASTVHMMLQPILTYMACGYMGRQGSLATCQLSEPLLWFILRVLDTSDALKAFHDMGGVQLICNNMVTSTRAIVNTARSMVSTIMKFLDSGPNKAVDSTLKTRILASEPDNAEGIHNFAPLGTITSSSPTAQPAEVLLQATPPHRRARSAAWSYIFLPEEAWCDLTIHLPAAVLLKEIHIQPHLASLATCPSSVSVEVSADGVNMLPLSTPVVTSGLTYIKIQLVKAEVASAVCLRLHRPRDASTLGLSQIKLLGLTAFGTTSSATVNNPFLPSEDQVSKTSIGWLRLLHHCLTHISDLEGMMASAAAPTANLLQTCAALLMSPYCGMHSPNIEVVLVKIGLQSTRIGLKLIDILLRNCAASGSDPTDLNSPLLFGRLNGLSSDSTIDILYQLGTTQDPGTKDRIQALLKWVSDSARVAAMKRSGRMNYMCPNSSTVEYGLLMPSPSHLHCVAAILWHSYELLVEYDLPALLDQELFELLFNWSMSLPCNMVLKKAVDSLLCSMCHVHPNYFSLLMGWMGITPPPVQCHHRLSMTDDSKKQDLSSSLTDDSKNAQAPLALTESHLATLASSSQSPEAIKQLLDSGLPSLLVRSLASFCFSHISSSESIAQSIDISQDKLRRHHVPQQCNKMPITADLVAPILRFLTEVGNSHIMKDWLGGSEVNPLWTALLFLLCHSGSTSGSHNLGAQQTSARSASLSSAATTGLTTQQRTAIENATVAFFLQCISCHPNNQKLMAQVLCELFQTSPQRGNLPTSGNISGFIRRLFLQLMLEDEKVTMFLQSPCPLYKGRINATSHVIQHPMYGAGHKFRTLHLPVSTTLSDVLDRVSDTPSITAKLISEQKDDKEKKNHEEKEKVKAENGFQDNYSVVVASGLKSQSKRAVSATPPRPPSRRGRTIPDKIGSTSGAEAANKIITVPVFHLFHKLLAGQPLPAEMTLAQLLTLLYDRKLPQGYRSIDLTVKLGSRVITDPSLSKTDSYKRLHPEKDHGDLLASCPEDEALTPGDECMDGILDESLLETCPIQSPLQVFAGMGGLALIAERLPMLYPEVIQQVSAPVVTSTTQEKPKDSDQFEWVTIEQSGELVYEAPETVAAEPPPIKSAVQTMSPIPAHSLAAFGLFLRLPGYAEVLLKERKHAQCLLRLVLGVTDDGEGSHILQSPSANVLPTLPFHVLRSLFSTTPLTTDDGVLLRRMALEIGALHLILVCLSALSHHSPRVPNSSVNQTEPQVSSSHNPTSTEEQQLYWAKGTGFGTGSTASGWDVEQALTKQRLEEEHVTCLLQVLASYINPVSSAVNGEAQSSHETRGQNSNALPSVLLELLSQSCLIPAMSSYLRNDSVLDMARHVPLYRALLELLRAIASCAAMVPLLLPLSTENGEEEEEQSECQTSVGTLLAKMKTCVDTYTNRLRSKRENVKTGVKPDASDQEPEGLTLLVPDIQKTAEIVYAATTSLRQANQEKKLGEYSKKAAMKPKPLSVLKSLEEKYVAVMKKLQFDTFEMVSEDEDGKLGFKVNYHYMSQVKNANDANSAARARRLAQEAVTLSTSLPLSSSSSVFVRCDEERLDIMKVLITGPADTPYANGCFEFDVYFPQDYPSSPPLVNLETTGGHSVRFNPNLYNDGKVCLSILNTWHGRPEEKWNPQTSSFLQVLVSVQSLILVAEPYFNEPGYERSRGTPSGTQSSREYDGNIRQATVKWAMLEQIRNPSPCFKEVIHKHFYLKRVEIMAQCEEWIADIQQYSSDKRVGRTMSHHAAALKRHTAQLREELLKLPCPEGLDPDTDDAPEVCRATTGAEETLMHDQVKPSSSKELPSDFQLSAWSHPQFEK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Diablo IAP-binding mitochondrial protein
Molecular weight formula_weight	20787.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

AVPIAQKSEPHSLSSEALMRRAVSLVTDSTSTFLSQTTYALIEAITEYTKAVYTLTSLYRQYTSLLGKMNSEEEDEVWQVIIGARAEMTSKHQEYLKLETTWMTAVGLSEMAAEAAYQTGADQASITARNHIQLVKLQVEEVHQLSRKAETKLAEAQIEELRQKTQEEGEERAESEQEAYLRED

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	7.20 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	56954

fit	/app/data/saxs_computation/au/8auw/8auw.fit
pddf	/app/data/pr_computation/au/8auw/8auw.pr.out
profile	/app/data/saxs_computation/au/8auw/8auw.dat
