8e3m

E. coli 50S ribosome bound to L-linker solithromycin conjugate

Method: ELECTRON MICROSCOPY D_max: 232.1 Å Quality: GOOD

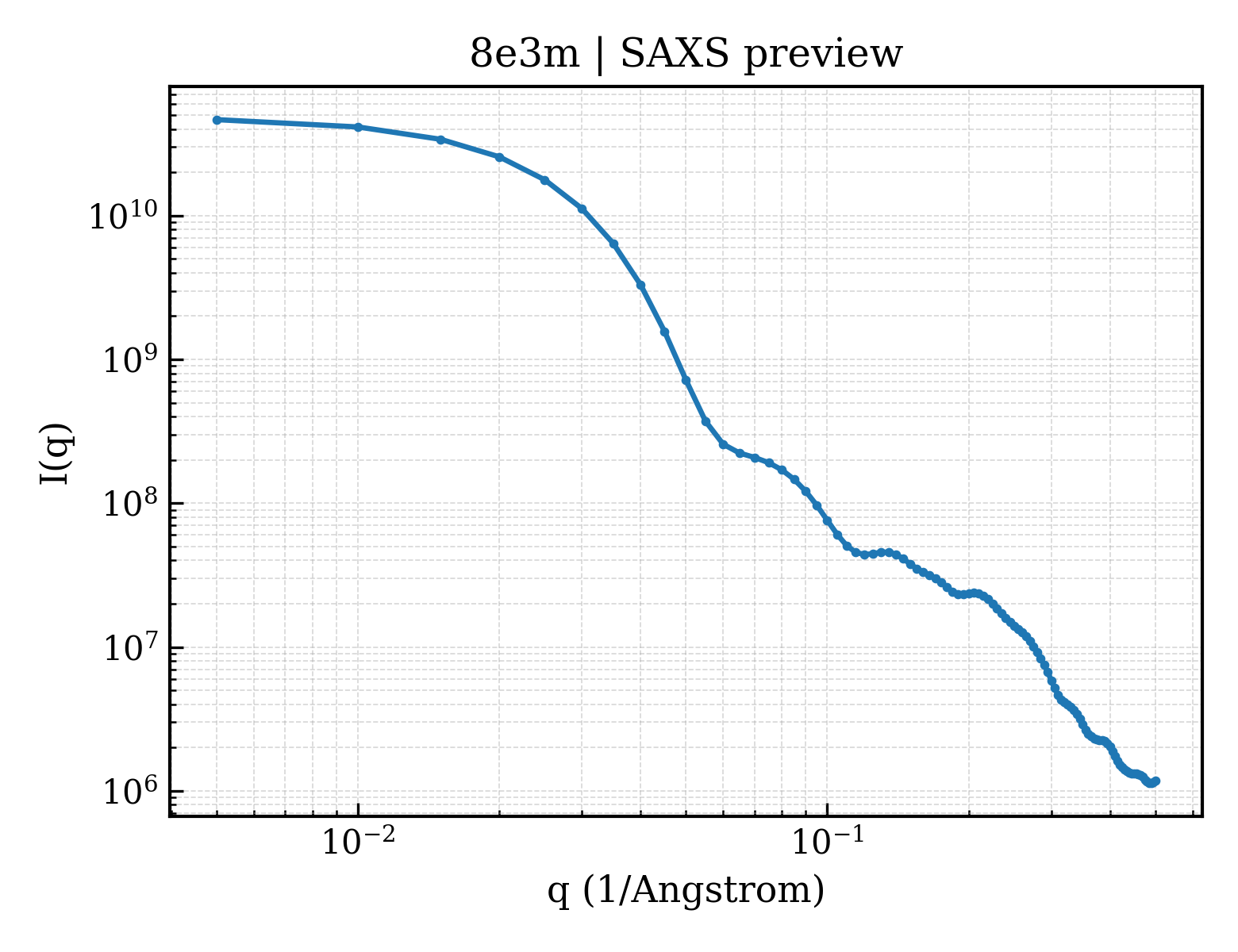

SAXS 散射曲线 SAXS Profile

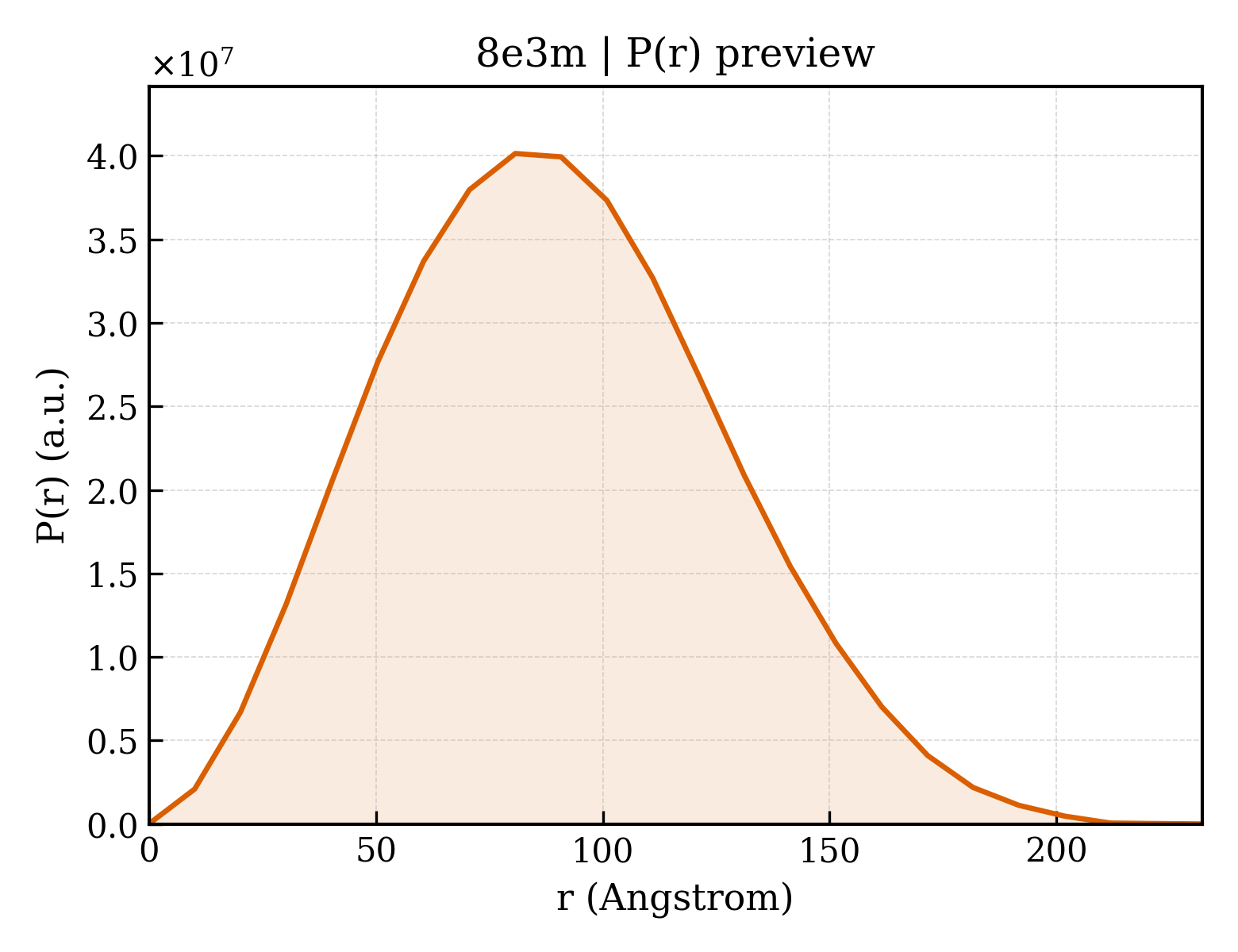

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8e3m
沉积日期 deposition_date	2022-08-17
结构标题 title	E. coli 50S ribosome bound to L-linker solithromycin conjugate
关键词 keywords	E. coli ribosome, solithromycin, siderophore conjugate, antibiotics, RIBOSOME; RIBOSOME
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	68.47 Å
回转半径 Rg (电子) rg_electron	68.13 Å
零角强度 I(0) i0	48295100000.00
分子量 molecular_weight	1111300.0 kDa
排除体积 excluded_volume	1076200 Å³
包络体积 envelope_volume	1973500 Å³
水化壳体积 shell_volume	224100 Å³
包络直径 envelope_diameter	236.4 Å
壳层 Rg shell_rg	78.77 Å
包络 Rg envelope_rg	68.04 Å
形状 Rg shape_rg	68.09 Å
总 Rg total_rg	68.27 Å
总原子数 total_atoms	116033
残基数 n_residues	4174
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	232.1 Å
Rg (实空间) rg_real	68.30 Å
Rg 误差 (实空间) rg_real_error	2.09 Å
I(0) (实空间) i0_real	4.8300e+10
I(0) 误差 (实空间) i0_real_error	9.9020e+08
Rg (倒空间) rg_reciprocal	68.97 Å
I(0) (倒空间) i0_reciprocal	48350000000.0000
解质量估计 total_estimate	0.8530
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	80.7 Å
偏度 Skewness skewness	0.261
峰度 Kurtosis kurtosis	-0.325
角度范围 angular_range	— – 0.1150 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	5285000000.0000
实空间数据点数 n_real_points	24
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.782; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.971; Smooth: 0.768

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (11)

Entity 1 polymer

描述 description	50S ribosomal RNA
分子量 formula_weight	941795.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	I
原子数 atom_count	116033

GGUUAAGCGACUAAGCGUACACGGUGGAUGCCCUGGCAGUCAGAGGCGAUGAAGGACGUGCUAAUCUGCGAUAAGCGUCGGUAAGGUGAUAUGAACCGUUAUAACCGGCGAUUUCCGAAUGGGGAAACCCAGUGUGUUUCGACACACUAUCAUUAACUGAAUCCAUAGGUUAAUGAGGCGAACCGGGGGAACUGAAACAUCUAAGUACCCCGAGGAAAAGAAAUCAACCGAGAUUCCCCCAGUAGCGGCGAGCGAACGGGGAGCAGCCCAGAGCCUGAAUCAGUGUGUGUGUUAGUGGAAGCGUCUGGAAAGGCGCGCGAUACAGGGUGACAGCCCCGUACACAAAAAUGCACAUGCUGUGAGCUCGAUGAGUAGGGCGGGACACGUGGUAUCCUGUCUGAAUAUGGGGGGACCAUCCUCCAAGGCUAAAUACUCCUGACUGACCGAUAGUGAACCAGUACCGUGAGGGAAAGGCGAAAAGAACCCCGGCGAGGGGAGUGAAAAAGAACCUGAAACCGUGUACGUACAAGCAGUGGGAGCACGCUUAGGCGUGUGACUGCGUACCUUUUGUAUAAUGGGUCAGCGACUUAUAUUCUGUAGCAAGGUUAACCGAAUAGGGGAGCCGAAGGGAAACCGAGUCUUAACUGGGCGUUAAGUUGCAGGGUAUAGACCCGAAACCCGGUGAUCUAGCCAUGGGCAGGUUGAAGGUUGGGUAACACUAACUGGAGGACCGAACCGACUAAUGUUGAAAAAUUAGCGGAUGACUUGUGGCUGGGGGUGAAAGGCCAAUCAAACCGGGAGAUAGCUGGUUCUCCCCGAAAGCUAUUUAGGUAGCGCCUCGUGAAUUCAUCUCCGGGGGUAGAGCACUGUUUCGGCAAGGGGGUCAUCCCGACUUACCAACCCGAUGCAAACUGCGAAUACCGGAGAAUGUUAUCACGGGAGACACACGGCGGGUGCUAACGUCCGUCGUGAAGAGGGAAACAACCCAGACCGCCAGCUAAGGUCCCAAAGUCAUGGUUAAGUGGGAAACGAUGUGGGAAGGCCCAGACAGCCAGGAUGUUGGCUUAGAAGCAGCCAUCAUUUAAAGAAAGCGUAAUAGCUCACUGGUCGAGUCGGCCUGCGCGGAAGAUGUAACGGGGCUAAACCAUGCACCGAAGCUGCGGCAGCGACGCUUAUGCGUUGUUGGGUAGGGGAGCGUUCUGUAAGCCUGCGAAGGUGUGCUGUGAGGCAUGCUGGAGGUAUCAGAAGUGCGAAUGCUGACAUAAGUAACGAUAAAGCGGGUGAAAAGCCCGCUCGCCGGAAGACCAAGGGUUCCUGUCCAACGUUAAUCGGGGCAGGGUGAGUCGACCCCUAAGGCGAGGCCGAAAGGCGUAGUCGAUGGGAAACAGGUUAAUAUUCCUGUACUUGGUGUUACUGCGAAGGGGGGACGGAGAAGGCUAUGUUGGCCGGGCGACGGUUGUCCCGGUUUAAGCGUGUAGGCUGGUUUUCCAGGCAAAUCCGGAAAAUCAAGGCUGAGGCGUGAUGACGAGGCACUACGGUGCUGAAGCAACAAAUGCCCUGCUUCCAGGAAAAGCCUCUAAGCAUCAGGUAACAUCAAAUCGUACCCCAAACCGACACAGGUGGUCAGGUAGAGAAUACCAAGGCGCUUGAGAGAACUCGGGUGAAGGAACUAGGCAAAAUGGUGCCGUAACUUCGGGAGAAGGCACGCUGAUAUGUAGGUGAGGUCCCUCGCGGAUGGAGCUGAAAUCAGUCGAAGAUACCAGCUGGCUGCAACUGUUUAUUAAAAACACAGCACUGUGCAAACACGAAAGUGGACGUAUACGGUGUGACGCCUGCCCGGUGCCGGAAGGUUAAUUGAUGGGGUUAGCGCAAGCGAAGCUCUUGAUCGAAGCCCCGGUAAACGGCGGCCGUAACXAUAACGGUCCUAAGGUAGCGAAAUUCCUUGUCGGGUAAGUUCCGACCUGCACGAAUGGCGUAAUGAUGGCCAGGCUGUCUCCACCCGAGACUCAGUGAAAUUGAACUCGCUGUGAAGAUGCAGUGUACCCGCGGCAAGACGGAAAGACCCCGUGAACCUUUACUAUAGCUUGACACUGAACAUUGAGCCUUGAUGUGUAGGAUAGGUGGGAGGCUUUGAAGUGUGGACGCCAGUCUGCAUGGAGCCGACCUUGAAAUACCACCCUUUAAUGUUUGAUGUUCUAACGUUGACCCGUAAUCCGGGUUGCGGACAGUGUCUGGUGGGUAGUUUGACUGGGGCGGUCUCCUCCUAAAGAGUAACGGAGGAGCACGAAGGUUGGCUAAUCCUGGUCGGACAUCAGGAGGUUAGUGCAAUGGCAUAAGCCAGCUUGACUGCGAGCGUGACGGCGCGAGCAGGUGCGAAAGCAGGUCAUAGUGAUCCGGUGGUUCUGAAUGGAAGGGCCAUCGCUCAACGGAUAAAAGGUACUCCGGGGAUAACAGGCUGAUACCGCCCAAGAGUUCAUAUCGACGGCGGUGUUUGGCACCUCGAUGUCGGCUCAUCACAUCCUGGGGCUGAAGUAGGUCCCAAGGGUAUGGCUGUUCGCCAUUUAAAGUGGUACGCGAGCUGGGUUUAGAACGUCGUGAGACAGUUCGGUCCCUAUCUGCCGUGGGCGCUGGAGAACUGAGGGGGGCUGCUCCUAGUACGAGAGGACCGGAGUGGACGCAUCACUGGUGUUCGGGUUGUCAUGCCAAUGGCACUGCCCGGUAGCUAAAUGCGGAAGAGAUAAGUGCUGAAAGCAUCUAAGCACGAAACUUGCCCCGAGAUGAGUUCUCCCUGACCCUUUAAGGGUCCUGAAGGAACGUUGAAGACGACGACGUUGAUAGGCCGGGUGUGUAAGCGCAGCGAUGCGUUGAGCUAACCGGUACUAAUGAACCGUGAGGCUUAACCUU

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	5S ribosomal RNA
分子量 formula_weight	38177.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	J

GCCUGGCGGCCGUAGCGCGGUGGUCCCACCUGACCCCAUGCCGAACUCAGAAGUGAAACGCCGUAGCGCCGAUGGUAGUGUGGGGUCUCCCCAUGCGAGAGUAGGGAACUGCCAGGCA

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	50S ribosomal protein L2
分子量 formula_weight	29663.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

AVVKCKPTSPGRRHVVKVVNPELHKGKPFAPLLEKNSKSGGRNNNGRITTRHIGGGHKQAYRIVDFKRNKDGIPAVVERLEYDPNRSANIALVLYKDGERRYILAPKGLKAGDQIQSGVDAAIKPGNTLPMRNIPVGSTVHNVEMKPGKGGQLARSAGTYVQIVARDGAYVTLRLRSGEMRKVEADCRATLGEVGNAEHMLRVLGKAGAARWRGVRPTVRGTAMNPVDHPHGGGEGRNFGKHPVTPWGVQTKGKKTRSNKRTDKFIVRRRS

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 4 polymer

描述 description	50S ribosomal protein L15
分子量 formula_weight	15008.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MRLNTLSPAEGSKKAGKRLGRGIGSGLGKTGGRGHKGQKSRSGGGVRRGFEGGQMPLYRRLPKFGFTSRKAAITAEIRLSDLAKVEGGVVDLNTLKAANIIGIQIEFAKVILAGEVTTPVTVRGLRVTKGARAAIEAAGGKIEE

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 5 polymer

描述 description	50S ribosomal protein L4
分子量 formula_weight	22121.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MELVLKDAQSALTVSETTFGRDFNEALVHQVVVAYAAGARQGTRAQKTRAEVTGSGKKPWRQKGTGRARSGSIKSPIWRSGGVTFAARPQDHSQKVNKKMYRGALKSILSELVRQDRLIVVEKFSVEAPKTKLLAQKLKDMALEDVLIITGELDENLFLAARNLHKVDVRDATGIDPVSLIAFDKVVMTADAVKQVEEMLA

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 6 polymer

描述 description	50S ribosomal protein L3
分子量 formula_weight	22277.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MIGLVGKKVGMTRIFTEDGVSIPVTVIEVEANRVTQVKDLANDGYRAIQVTTGAKKANRVTKPEAGHFAKAGVEAGRGLWEFRLAEGEEFTVGQSISVELFADVKKVDVTGTSKGKGFAGTVKRWNFRTQDATHGNSLSHRVPGSIGQNQTPGKVFKGKKMAGQMGNERVTVQSLDVVRVDAERNLLLVKGAVPGATGSDLIVKPAVKA

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 7 polymer

描述 description	50S ribosomal protein L13
分子量 formula_weight	16050.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MKTFTAKPETVKRDWYVVDATGKTLGRLATELARRLRGKHKAEYTPHVDTGDYIIVLNADKVAVTGNKRTDKVYYHHTGHIGGIKQATFEEMIARRPERVIEIAVKGMLPKGPLGRAMFRKLKVYAGNEHNHAAQQPQVLDI

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 8 polymer

描述 description	50S ribosomal protein L22
分子量 formula_weight	12253.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

METIAKHRHARSSAQKVRLVADLIRGKKVSQALDILTYTNKKAAVLVKKVLESAIANAEHNDGADIDDLKVTKIFVDEGPSMKRIMPRAKGRADRILKRTSHITVVVSDR

来源 Source

来源生物 organism	Escherichia coli K-12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli

Entity 9 polymer

描述 description	50S ribosomal protein L32
分子量 formula_weight	6332.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

AVQQNKPTRSKRGMRRSHDALTAVTSLSVDKTSGEKHLRHHITADGYYRGRKVIAK

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 10 polymer

描述 description	50S ribosomal protein L34
分子量 formula_weight	5397.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

MKRTFQPSVLKRNRSHGFRARMATKNGRQVLARRRAKGRARLTVSK

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 11 non-polymer

描述 description	;N-acetyl-L-tyrosyl-N-[(3M)-3-(1-{4-[(3aS,4R,7S,9R,10R,11R,13R,15R,15aR)-4-ethyl-7-fluoro-11-methoxy-3a,7,9,11,13,15-hexamethyl-2,6,8,14-tetraoxo-10-{[3,4,6-trideoxy-3-(dimethylamino)-beta-D-xylo-hexopyranosyl]oxy}dodecahydro-2H-oxacyclotetradecino[4,3-d][1,3]oxazol-1(4H)-yl]butyl}-1H-1,2,3-triazol-4-yl)phenyl]-L-methioninamide ;
分子量 formula_weight	1181.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

分辨率 resolution	2.25 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	250098

fit	/app/data/saxs_computation/e3/8e3m/8e3m.fit
pddf	/app/data/pr_computation/e3/8e3m/8e3m.pr.out
profile	/app/data/saxs_computation/e3/8e3m/8e3m.dat
