E. coli 50S ribosome bound to antibiotic analog SLC30

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

50S ribosomal protein L2

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 8 RNA 2	23S ribosomal RNA × 1 5S ribosomal RNA × 1 50S ribosomal protein L15 × 1 （A0A037Y8L6） 50S ribosomal protein L4 × 1 （A0A7U9FY55） 50S ribosomal protein L3 × 1 （P60438） 50S ribosomal protein L13 × 1 （S1EW51） 50S ribosomal protein L22 × 1 （P61175） 50S ribosomal protein L32 × 1 （A0A828UBL8） 50S ribosomal protein L34 × 1 （B7MGC4） ;[(2~{S},3~{S},4~{R},6~{R})-4-[[2-[[(5~{S})-3-[3-fluoranyl-4-[6-(2-methyl-1,2,3,4-tetrazol-5-yl)pyridin-3-yl]phenyl]-2-oxidanylidene-1,3-oxazolidin-5-yl]methylamino]-2-oxidanylidene-ethyl]-methyl-amino]-6-methyl-2-(phenylcarbonyloxy)oxan-3-yl] benzoate ; × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RL2_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain K； PDBConstruct 1–271； UniProt 2–272

50S ribosomal protein L15

Escherichia coli

UniProt A0A037Y8L6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 8 RNA 2	23S ribosomal RNA × 1 5S ribosomal RNA × 1 50S ribosomal protein L2 × 1 （P60422） 50S ribosomal protein L4 × 1 （A0A7U9FY55） 50S ribosomal protein L3 × 1 （P60438） 50S ribosomal protein L13 × 1 （S1EW51） 50S ribosomal protein L22 × 1 （P61175） 50S ribosomal protein L32 × 1 （A0A828UBL8） 50S ribosomal protein L34 × 1 （B7MGC4） ;[(2~{S},3~{S},4~{R},6~{R})-4-[[2-[[(5~{S})-3-[3-fluoranyl-4-[6-(2-methyl-1,2,3,4-tetrazol-5-yl)pyridin-3-yl]phenyl]-2-oxidanylidene-1,3-oxazolidin-5-yl]methylamino]-2-oxidanylidene-ethyl]-methyl-amino]-6-methyl-2-(phenylcarbonyloxy)oxan-3-yl] benzoate ; × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A037Y8L6_ECOLX
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain L； PDBConstruct 1–144； UniProt 1–144

50S ribosomal protein L4

Escherichia coli

UniProt A0A7U9FY55

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 8 RNA 2	23S ribosomal RNA × 1 5S ribosomal RNA × 1 50S ribosomal protein L2 × 1 （P60422） 50S ribosomal protein L15 × 1 （A0A037Y8L6） 50S ribosomal protein L3 × 1 （P60438） 50S ribosomal protein L13 × 1 （S1EW51） 50S ribosomal protein L22 × 1 （P61175） 50S ribosomal protein L32 × 1 （A0A828UBL8） 50S ribosomal protein L34 × 1 （B7MGC4） ;[(2~{S},3~{S},4~{R},6~{R})-4-[[2-[[(5~{S})-3-[3-fluoranyl-4-[6-(2-methyl-1,2,3,4-tetrazol-5-yl)pyridin-3-yl]phenyl]-2-oxidanylidene-1,3-oxazolidin-5-yl]methylamino]-2-oxidanylidene-ethyl]-methyl-amino]-6-methyl-2-(phenylcarbonyloxy)oxan-3-yl] benzoate ; × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A7U9FY55_ECOLX
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain M； PDBConstruct 1–201； UniProt 1–201

50S ribosomal protein L3

Escherichia coli

UniProt P60438

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 8 RNA 2	23S ribosomal RNA × 1 5S ribosomal RNA × 1 50S ribosomal protein L2 × 1 （P60422） 50S ribosomal protein L15 × 1 （A0A037Y8L6） 50S ribosomal protein L4 × 1 （A0A7U9FY55） 50S ribosomal protein L13 × 1 （S1EW51） 50S ribosomal protein L22 × 1 （P61175） 50S ribosomal protein L32 × 1 （A0A828UBL8） 50S ribosomal protein L34 × 1 （B7MGC4） ;[(2~{S},3~{S},4~{R},6~{R})-4-[[2-[[(5~{S})-3-[3-fluoranyl-4-[6-(2-methyl-1,2,3,4-tetrazol-5-yl)pyridin-3-yl]phenyl]-2-oxidanylidene-1,3-oxazolidin-5-yl]methylamino]-2-oxidanylidene-ethyl]-methyl-amino]-6-methyl-2-(phenylcarbonyloxy)oxan-3-yl] benzoate ; × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RL3_ECOLI
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain N； PDBConstruct 1–209； UniProt 1–209

50S ribosomal protein L13

Escherichia coli

UniProt S1EW51

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 8 RNA 2	23S ribosomal RNA × 1 5S ribosomal RNA × 1 50S ribosomal protein L2 × 1 （P60422） 50S ribosomal protein L15 × 1 （A0A037Y8L6） 50S ribosomal protein L4 × 1 （A0A7U9FY55） 50S ribosomal protein L3 × 1 （P60438） 50S ribosomal protein L22 × 1 （P61175） 50S ribosomal protein L32 × 1 （A0A828UBL8） 50S ribosomal protein L34 × 1 （B7MGC4） ;[(2~{S},3~{S},4~{R},6~{R})-4-[[2-[[(5~{S})-3-[3-fluoranyl-4-[6-(2-methyl-1,2,3,4-tetrazol-5-yl)pyridin-3-yl]phenyl]-2-oxidanylidene-1,3-oxazolidin-5-yl]methylamino]-2-oxidanylidene-ethyl]-methyl-amino]-6-methyl-2-(phenylcarbonyloxy)oxan-3-yl] benzoate ; × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	S1EW51_ECOLX
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain O； PDBConstruct 1–142； UniProt 1–142

50S ribosomal protein L22

Escherichia coli

UniProt P61175

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 8 RNA 2	23S ribosomal RNA × 1 5S ribosomal RNA × 1 50S ribosomal protein L2 × 1 （P60422） 50S ribosomal protein L15 × 1 （A0A037Y8L6） 50S ribosomal protein L4 × 1 （A0A7U9FY55） 50S ribosomal protein L3 × 1 （P60438） 50S ribosomal protein L13 × 1 （S1EW51） 50S ribosomal protein L32 × 1 （A0A828UBL8） 50S ribosomal protein L34 × 1 （B7MGC4） ;[(2~{S},3~{S},4~{R},6~{R})-4-[[2-[[(5~{S})-3-[3-fluoranyl-4-[6-(2-methyl-1,2,3,4-tetrazol-5-yl)pyridin-3-yl]phenyl]-2-oxidanylidene-1,3-oxazolidin-5-yl]methylamino]-2-oxidanylidene-ethyl]-methyl-amino]-6-methyl-2-(phenylcarbonyloxy)oxan-3-yl] benzoate ; × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RL22_ECOLI
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain P； PDBConstruct 1–110； UniProt 1–110

50S ribosomal protein L32

Escherichia coli

UniProt A0A828UBL8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 8 RNA 2	23S ribosomal RNA × 1 5S ribosomal RNA × 1 50S ribosomal protein L2 × 1 （P60422） 50S ribosomal protein L15 × 1 （A0A037Y8L6） 50S ribosomal protein L4 × 1 （A0A7U9FY55） 50S ribosomal protein L3 × 1 （P60438） 50S ribosomal protein L13 × 1 （S1EW51） 50S ribosomal protein L22 × 1 （P61175） 50S ribosomal protein L34 × 1 （B7MGC4） ;[(2~{S},3~{S},4~{R},6~{R})-4-[[2-[[(5~{S})-3-[3-fluoranyl-4-[6-(2-methyl-1,2,3,4-tetrazol-5-yl)pyridin-3-yl]phenyl]-2-oxidanylidene-1,3-oxazolidin-5-yl]methylamino]-2-oxidanylidene-ethyl]-methyl-amino]-6-methyl-2-(phenylcarbonyloxy)oxan-3-yl] benzoate ; × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A828UBL8_ECOLX
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain Q； PDBConstruct 1–56； UniProt 2–57

50S ribosomal protein L34

Escherichia coli

UniProt B7MGC4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 8 RNA 2	23S ribosomal RNA × 1 5S ribosomal RNA × 1 50S ribosomal protein L2 × 1 （P60422） 50S ribosomal protein L15 × 1 （A0A037Y8L6） 50S ribosomal protein L4 × 1 （A0A7U9FY55） 50S ribosomal protein L3 × 1 （P60438） 50S ribosomal protein L13 × 1 （S1EW51） 50S ribosomal protein L22 × 1 （P61175） 50S ribosomal protein L32 × 1 （A0A828UBL8） ;[(2~{S},3~{S},4~{R},6~{R})-4-[[2-[[(5~{S})-3-[3-fluoranyl-4-[6-(2-methyl-1,2,3,4-tetrazol-5-yl)pyridin-3-yl]phenyl]-2-oxidanylidene-1,3-oxazolidin-5-yl]methylamino]-2-oxidanylidene-ethyl]-methyl-amino]-6-methyl-2-(phenylcarbonyloxy)oxan-3-yl] benzoate ; × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RL34_ECO45
Isoform	—
PDB entities	10
Chains and sequence ranges	Author chain R； PDBConstruct 1–46； UniProt 1–46

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8e48
Deposition date deposition_date	2022-08-17
Structure title title	E. coli 50S ribosome bound to antibiotic analog SLC30
Keywords keywords	antibiotics, RIBOSOME; RIBOSOME
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8e48__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

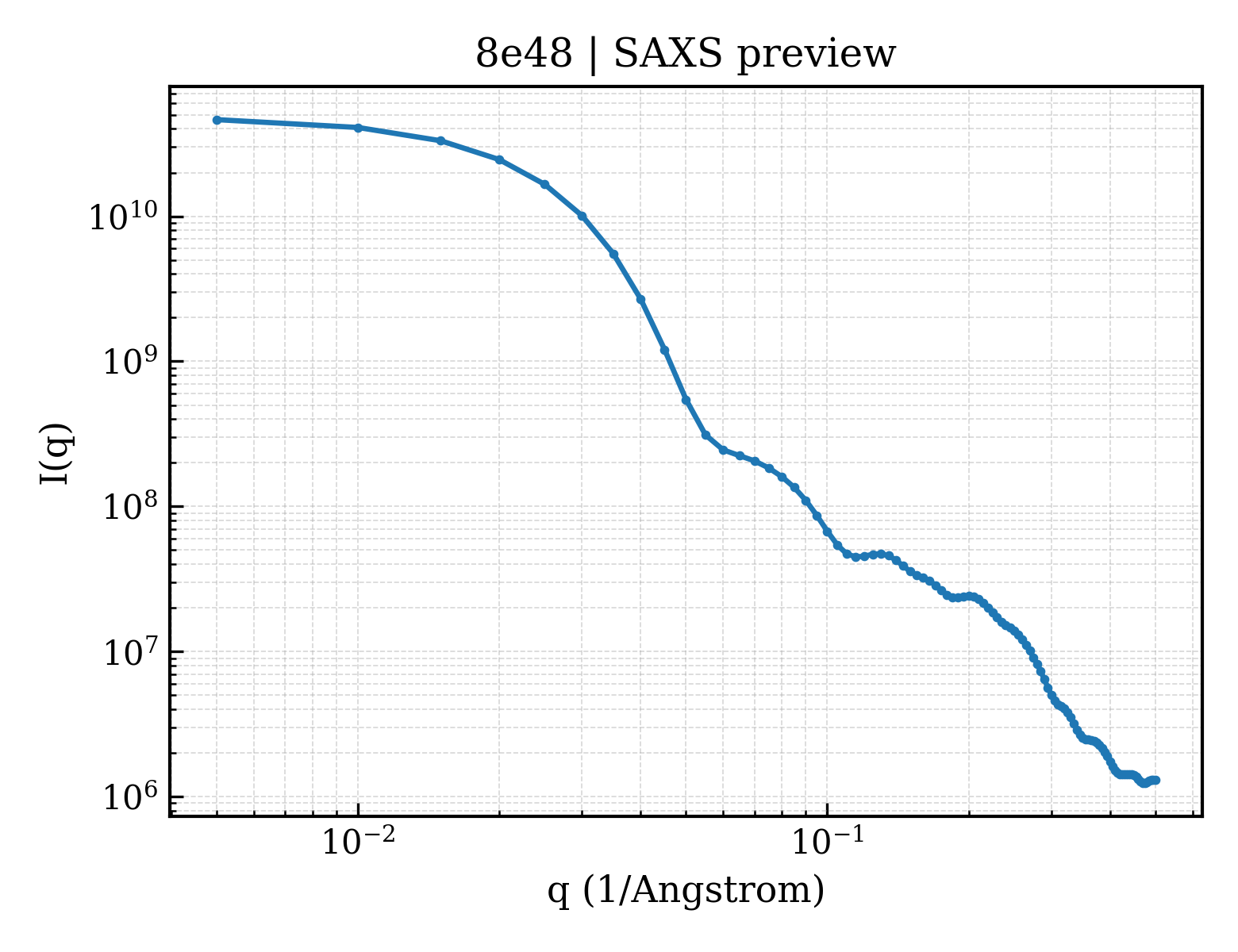

8e48__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

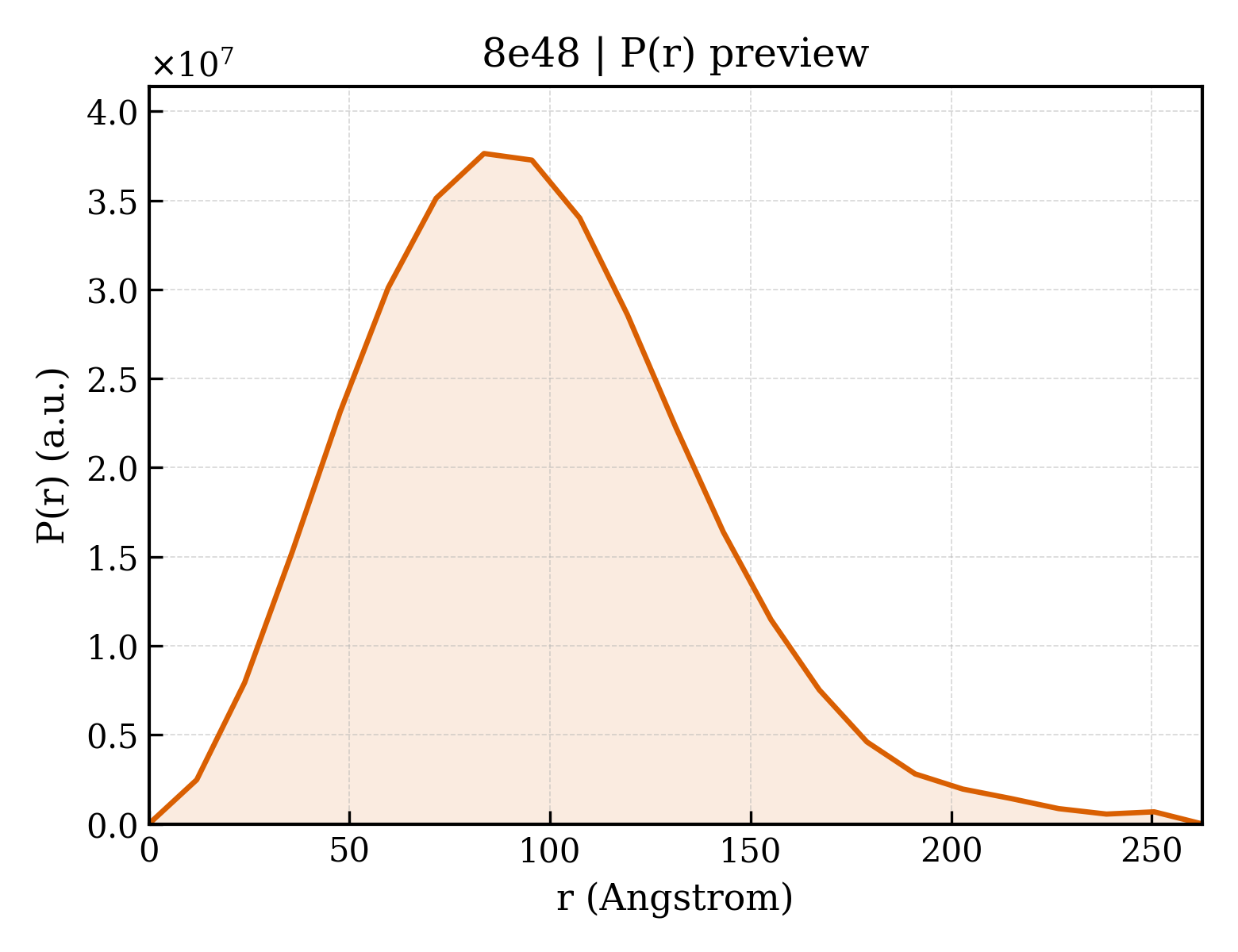

8e48__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	70.53 Å
Rg (electron density)	70.19 Å
Total Rg	70.33 Å
Atom count	115920
Residues	4174
Excluded volume	1075100 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8e48__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (11)

Entity 1 Entity 1 polymer

Description description	23S ribosomal RNA
Molecular weight formula_weight	941795.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	I
Atom count atom_count	116211

GGUUAAGCGACUAAGCGUACACGGUGGAUGCCCUGGCAGUCAGAGGCGAUGAAGGACGUGCUAAUCUGCGAUAAGCGUCGGUAAGGUGAUAUGAACCGUUAUAACCGGCGAUUUCCGAAUGGGGAAACCCAGUGUGUUUCGACACACUAUCAUUAACUGAAUCCAUAGGUUAAUGAGGCGAACCGGGGGAACUGAAACAUCUAAGUACCCCGAGGAAAAGAAAUCAACCGAGAUUCCCCCAGUAGCGGCGAGCGAACGGGGAGCAGCCCAGAGCCUGAAUCAGUGUGUGUGUUAGUGGAAGCGUCUGGAAAGGCGCGCGAUACAGGGUGACAGCCCCGUACACAAAAAUGCACAUGCUGUGAGCUCGAUGAGUAGGGCGGGACACGUGGUAUCCUGUCUGAAUAUGGGGGGACCAUCCUCCAAGGCUAAAUACUCCUGACUGACCGAUAGUGAACCAGUACCGUGAGGGAAAGGCGAAAAGAACCCCGGCGAGGGGAGUGAAAAAGAACCUGAAACCGUGUACGUACAAGCAGUGGGAGCACGCUUAGGCGUGUGACUGCGUACCUUUUGUAUAAUGGGUCAGCGACUUAUAUUCUGUAGCAAGGUUAACCGAAUAGGGGAGCCGAAGGGAAACCGAGUCUUAACUGGGCGUUAAGUUGCAGGGUAUAGACCCGAAACCCGGUGAUCUAGCCAUGGGCAGGUUGAAGGUUGGGUAACACUAACUGGAGGACCGAACCGACUAAUGUUGAAAAAUUAGCGGAUGACUUGUGGCUGGGGGUGAAAGGCCAAUCAAACCGGGAGAUAGCUGGUUCUCCCCGAAAGCUAUUUAGGUAGCGCCUCGUGAAUUCAUCUCCGGGGGUAGAGCACUGUUUCGGCAAGGGGGUCAUCCCGACUUACCAACCCGAUGCAAACUGCGAAUACCGGAGAAUGUUAUCACGGGAGACACACGGCGGGUGCUAACGUCCGUCGUGAAGAGGGAAACAACCCAGACCGCCAGCUAAGGUCCCAAAGUCAUGGUUAAGUGGGAAACGAUGUGGGAAGGCCCAGACAGCCAGGAUGUUGGCUUAGAAGCAGCCAUCAUUUAAAGAAAGCGUAAUAGCUCACUGGUCGAGUCGGCCUGCGCGGAAGAUGUAACGGGGCUAAACCAUGCACCGAAGCUGCGGCAGCGACGCUUAUGCGUUGUUGGGUAGGGGAGCGUUCUGUAAGCCUGCGAAGGUGUGCUGUGAGGCAUGCUGGAGGUAUCAGAAGUGCGAAUGCUGACAUAAGUAACGAUAAAGCGGGUGAAAAGCCCGCUCGCCGGAAGACCAAGGGUUCCUGUCCAACGUUAAUCGGGGCAGGGUGAGUCGACCCCUAAGGCGAGGCCGAAAGGCGUAGUCGAUGGGAAACAGGUUAAUAUUCCUGUACUUGGUGUUACUGCGAAGGGGGGACGGAGAAGGCUAUGUUGGCCGGGCGACGGUUGUCCCGGUUUAAGCGUGUAGGCUGGUUUUCCAGGCAAAUCCGGAAAAUCAAGGCUGAGGCGUGAUGACGAGGCACUACGGUGCUGAAGCAACAAAUGCCCUGCUUCCAGGAAAAGCCUCUAAGCAUCAGGUAACAUCAAAUCGUACCCCAAACCGACACAGGUGGUCAGGUAGAGAAUACCAAGGCGCUUGAGAGAACUCGGGUGAAGGAACUAGGCAAAAUGGUGCCGUAACUUCGGGAGAAGGCACGCUGAUAUGUAGGUGAGGUCCCUCGCGGAUGGAGCUGAAAUCAGUCGAAGAUACCAGCUGGCUGCAACUGUUUAUUAAAAACACAGCACUGUGCAAACACGAAAGUGGACGUAUACGGUGUGACGCCUGCCCGGUGCCGGAAGGUUAAUUGAUGGGGUUAGCGCAAGCGAAGCUCUUGAUCGAAGCCCCGGUAAACGGCGGCCGUAACXAUAACGGUCCUAAGGUAGCGAAAUUCCUUGUCGGGUAAGUUCCGACCUGCACGAAUGGCGUAAUGAUGGCCAGGCUGUCUCCACCCGAGACUCAGUGAAAUUGAACUCGCUGUGAAGAUGCAGUGUACCCGCGGCAAGACGGAAAGACCCCGUGAACCUUUACUAUAGCUUGACACUGAACAUUGAGCCUUGAUGUGUAGGAUAGGUGGGAGGCUUUGAAGUGUGGACGCCAGUCUGCAUGGAGCCGACCUUGAAAUACCACCCUUUAAUGUUUGAUGUUCUAACGUUGACCCGUAAUCCGGGUUGCGGACAGUGUCUGGUGGGUAGUUUGACUGGGGCGGUCUCCUCCUAAAGAGUAACGGAGGAGCACGAAGGUUGGCUAAUCCUGGUCGGACAUCAGGAGGUUAGUGCAAUGGCAUAAGCCAGCUUGACUGCGAGCGUGACGGCGCGAGCAGGUGCGAAAGCAGGUCAUAGUGAUCCGGUGGUUCUGAAUGGAAGGGCCAUCGCUCAACGGAUAAAAGGUACUCCGGGGAUAACAGGCUGAUACCGCCCAAGAGUUCAUAUCGACGGCGGUGUUUGGCACCUCGAUGUCGGCUCAUCACAUCCUGGGGCUGAAGUAGGUCCCAAGGGUAUGGCUGUUCGCCAUUUAAAGUGGUACGCGAGCUGGGUUUAGAACGUCGUGAGACAGUUCGGUCCCUAUCUGCCGUGGGCGCUGGAGAACUGAGGGGGGCUGCUCCUAGUACGAGAGGACCGGAGUGGACGCAUCACUGGUGUUCGGGUUGUCAUGCCAAUGGCACUGCCCGGUAGCUAAAUGCGGAAGAGAUAAGUGCUGAAAGCAUCUAAGCACGAAACUUGCCCCGAGAUGAGUUCUCCCUGACCCUUUAAGGGUCCUGAAGGAACGUUGAAGACGACGACGUUGAUAGGCCGGGUGUGUAAGCGCAGCGAUGCGUUGAGCUAACCGGUACUAAUGAACCGUGAGGCUUAACCUU

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	5S ribosomal RNA
Molecular weight formula_weight	38177.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	J

GCCUGGCGGCCGUAGCGCGGUGGUCCCACCUGACCCCAUGCCGAACUCAGAAGUGAAACGCCGUAGCGCCGAUGGUAGUGUGGGGUCUCCCCAUGCGAGAGUAGGGAACUGCCAGGCA

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	50S ribosomal protein L2
Molecular weight formula_weight	29663.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

AVVKCKPTSPGRRHVVKVVNPELHKGKPFAPLLEKNSKSGGRNNNGRITTRHIGGGHKQAYRIVDFKRNKDGIPAVVERLEYDPNRSANIALVLYKDGERRYILAPKGLKAGDQIQSGVDAAIKPGNTLPMRNIPVGSTVHNVEMKPGKGGQLARSAGTYVQIVARDGAYVTLRLRSGEMRKVEADCRATLGEVGNAEHMLRVLGKAGAARWRGVRPTVRGTAMNPVDHPHGGGEGRNFGKHPVTPWGVQTKGKKTRSNKRTDKFIVRRRS

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	50S ribosomal protein L15
Molecular weight formula_weight	15008.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

MRLNTLSPAEGSKKAGKRLGRGIGSGLGKTGGRGHKGQKSRSGGGVRRGFEGGQMPLYRRLPKFGFTSRKAAITAEIRLSDLAKVEGGVVDLNTLKAANIIGIQIEFAKVILAGEVTTPVTVRGLRVTKGARAAIEAAGGKIEE

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	50S ribosomal protein L4
Molecular weight formula_weight	22121.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

MELVLKDAQSALTVSETTFGRDFNEALVHQVVVAYAAGARQGTRAQKTRAEVTGSGKKPWRQKGTGRARSGSIKSPIWRSGGVTFAARPQDHSQKVNKKMYRGALKSILSELVRQDRLIVVEKFSVEAPKTKLLAQKLKDMALEDVLIITGELDENLFLAARNLHKVDVRDATGIDPVSLIAFDKVVMTADAVKQVEEMLA

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	50S ribosomal protein L3
Molecular weight formula_weight	22277.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

MIGLVGKKVGMTRIFTEDGVSIPVTVIEVEANRVTQVKDLANDGYRAIQVTTGAKKANRVTKPEAGHFAKAGVEAGRGLWEFRLAEGEEFTVGQSISVELFADVKKVDVTGTSKGKGFAGTVKRWNFRTQDATHGNSLSHRVPGSIGQNQTPGKVFKGKKMAGQMGNERVTVQSLDVVRVDAERNLLLVKGAVPGATGSDLIVKPAVKA

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 7 Entity 7 polymer

Description description	50S ribosomal protein L13
Molecular weight formula_weight	16050.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	O

MKTFTAKPETVKRDWYVVDATGKTLGRLATELARRLRGKHKAEYTPHVDTGDYIIVLNADKVAVTGNKRTDKVYYHHTGHIGGIKQATFEEMIARRPERVIEIAVKGMLPKGPLGRAMFRKLKVYAGNEHNHAAQQPQVLDI

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 8 Entity 8 polymer

Description description	50S ribosomal protein L22
Molecular weight formula_weight	12253.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P

METIAKHRHARSSAQKVRLVADLIRGKKVSQALDILTYTNKKAAVLVKKVLESAIANAEHNDGADIDDLKVTKIFVDEGPSMKRIMPRAKGRADRILKRTSHITVVVSDR

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 9 Entity 9 polymer

Description description	50S ribosomal protein L32
Molecular weight formula_weight	6332.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Q

AVQQNKPTRSKRGMRRSHDALTAVTSLSVDKTSGEKHLRHHITADGYYRGRKVIAK

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 10 Entity 10 polymer

Description description	50S ribosomal protein L34
Molecular weight formula_weight	5397.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

MKRTFQPSVLKRNRSHGFRARMATKNGRQVLARRRAKGRARLTVSK

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 11 Entity 11 non-polymer

Description description	;[(2~{S},3~{S},4~{R},6~{R})-4-[[2-[[(5~{S})-3-[3-fluoranyl-4-[6-(2-methyl-1,2,3,4-tetrazol-5-yl)pyridin-3-yl]phenyl]-2-oxidanylidene-1,3-oxazolidin-5-yl]methylamino]-2-oxidanylidene-ethyl]-methyl-amino]-6-methyl-2-(phenylcarbonyloxy)oxan-3-yl] benzoate ;
Molecular weight formula_weight	778.8 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.27 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	556086

E. coli 50S ribosome bound to antibiotic analog SLC30

1. Protein Identity and Related Structures Protein Identity & Related Structures

50S ribosomal protein L2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

50S ribosomal protein L15

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

50S ribosomal protein L4

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

50S ribosomal protein L3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

50S ribosomal protein L13

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

50S ribosomal protein L22

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

50S ribosomal protein L32

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

50S ribosomal protein L34

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

8e48__assembly_1__model_1

8e48__assembly_1__model_1 | I(q)

8e48__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

5. Entities and Polymers Entities & Polymers (11)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer
