Mycobacterium tuberculosis RNAP elongation complex

Method: ELECTRON MICROSCOPY D_max: 182.1 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8e95
沉积日期 deposition_date	2022-08-26
结构标题 title	Mycobacterium tuberculosis RNAP elongation complex
关键词 keywords	RNA polymerase, transcription factor, elongation, pausing, TRANSCRIPTION, TRANSFERASE-DNA-RNA complex; TRANSCRIPTION, TRANSFERASE/DNA/RNA
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	47.28 Å
回转半径 Rg (电子) rg_electron	47.06 Å
零角强度 I(0) i0	1873540000.00
分子量 molecular_weight	341880.0 kDa
排除体积 excluded_volume	420930 Å³
包络体积 envelope_volume	615340 Å³
水化壳体积 shell_volume	104440 Å³
包络直径 envelope_diameter	192.5 Å
壳层 Rg shell_rg	54.45 Å
包络 Rg envelope_rg	47.35 Å
形状 Rg shape_rg	47.08 Å
总 Rg total_rg	47.26 Å
总原子数 total_atoms	23943
残基数 n_residues	2977
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

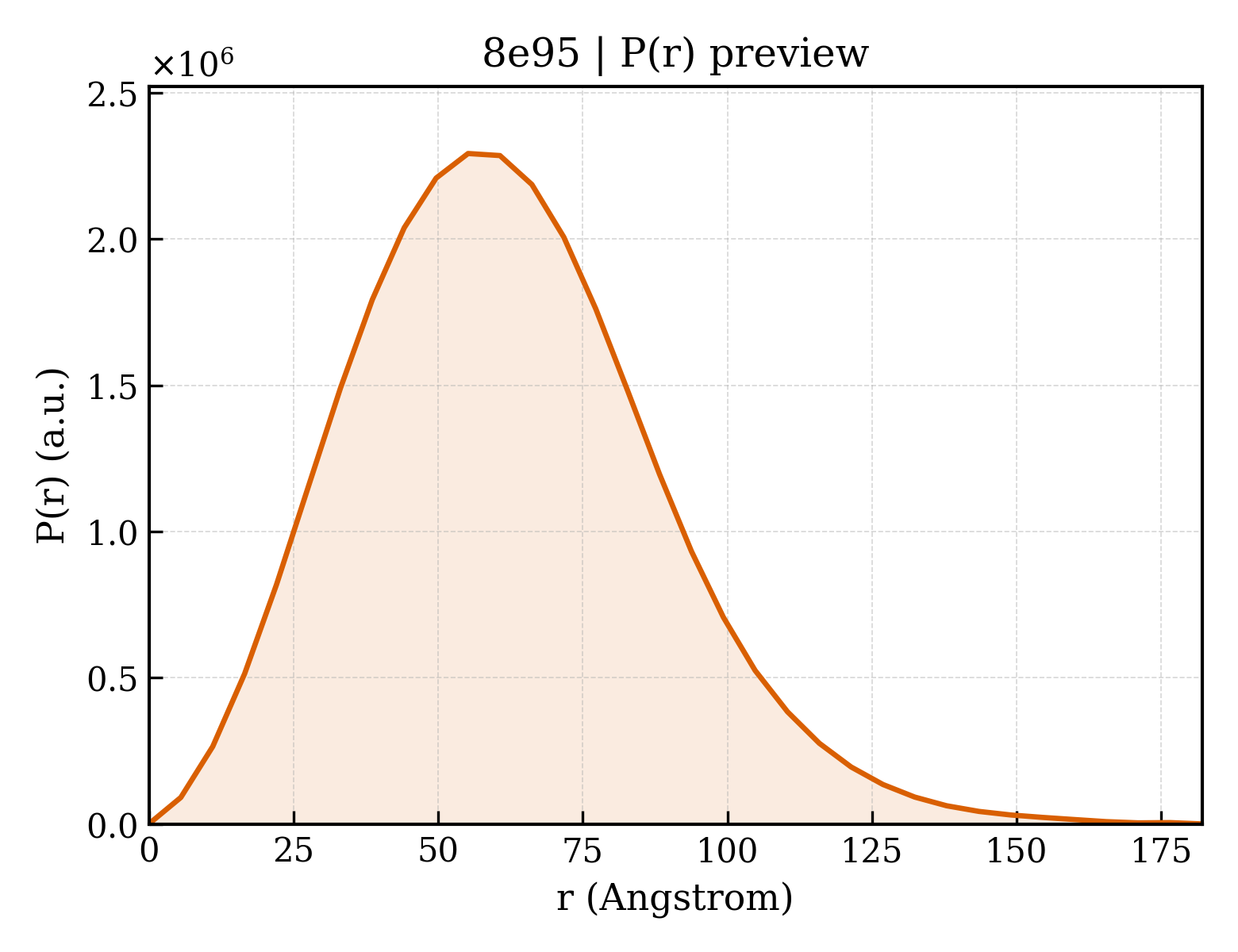

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	182.1 Å
Rg (实空间) rg_real	47.24 Å
Rg 误差 (实空间) rg_real_error	1.76 Å
I(0) (实空间) i0_real	1.8740e+09
I(0) 误差 (实空间) i0_real_error	3.6220e+07
Rg (倒空间) rg_reciprocal	47.28 Å
I(0) (倒空间) i0_reciprocal	1874000000.0000
解质量估计 total_estimate	0.7998
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	55.2 Å
偏度 Skewness skewness	0.467
峰度 Kurtosis kurtosis	0.247
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	557200000.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.469; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.987

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	DNA-directed RNA polymerase subunit alpha
分子量 formula_weight	37745.3 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	23943

MLISQRPTLSEDVLTDNRSQFVIEPLEPGFGYTLGNSLRRTLLSSIPGAAVTSIRIDGVLHEFTTVPGVKEDVTEIILNLKSLVVSSEEDEPVTMYLRKQGPGEVTAGDIVPPAGVTVHNPGMHIATLNDKGKLEVELVVERGRGYVPAVQNRASGAEIGRIPVDSIYSPVLKVTYKVDATRVEQRTDFDKLILDVETKNSISPRDALASAGKTLVELFGLARELNVEAEGIEIGPSPAEADHIASFALPIDDLDLTVRSYNCLKREGVHTVGELVARTESDLLDIRNFGQKSIDEVKIKLHQLGLSLKDSPPSFDPSEVAGYDVATGTWSTEGAYDEQDYAETEQL

来源 Source

来源生物 organism	Mycobacterium tuberculosis
NCBI 分类编号 ncbi_taxonomy_id	1773
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	DNA-directed RNA polymerase subunit beta
分子量 formula_weight	129372.0 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

LADSRQSKTAASPSPSRPQSSSNNSVPGAPNRVSFAKLREPLEVPGLLDVQTDSFEWLIGSPRWRESAAERGDVNPVGGLEEVLYELSPIEDFSGSMSLSFSDPRFDDVKAPVDECKDKDMTYAAPLFVTAEFINNNTGEIKSQTVFMGDFPMMTEKGTFIINGTERVVVSQLVRSPGVYFDETIDKSTDKTLHSVKVIPSRGAWLEFDVDKRDTVGVRIDRKRRQPVTVLLKALGWTSEQIVERFGFSEIMRSTLEKDNTVGTDEALLDIYRKLRPGEPPTKESAQTLLENLFFKEKRYDLARVGRYKVNKKLGLHVGEPITSSTLTEEDVVATIEYLVRLHEGQTTMTVPGGVEVPVETDDIDHFGNRRLRTVGELIQNQIRVGMSRMERVVRERMTTQDVEAITPQTLINIRPVVAAIKEFFGTSQLSQFMDQNNPLSGLTHKRRLSALGPGGLSRERAGLEVRDVHPSHYGRMCPIETPEGPNIGLIGSLSVYARVNPFGFIETPYRKVVDGVVSDEIVYLTADEEDRHVVAQANSPIDADGRFVEPRVLVRRKAGEVEYVPSSEVDYMDVSPRQMVSVATAMIPFLEHDDANRALMGANMQRQAVPLVRSEAPLVGTGMELRAAIDAGDVVVAEESGVIEEVSADYITVMHDNGTRRTYRMRKFARSNHGTCANQCPIVDAGDRVEAGQVIADGPCTDDGEMALGKNLLVAIMPWEGHNYEDAIILSNRLVEEDVLTSIHIEEHEIDARDTKLGAEEITRDIPNISDEVLADLDERGIVRIGAEVRDGDILVGKVTPKGETELTPEERLLRAIFGEKAREVRDTSLKVPHGESGKVIGIRVFSREDEDELPAGVNELVRVYVAQKRKISDGDKLAGRHGNKGVIGKILPVEDMPFLADGTPVDIILNTHGVPRRMNIGQILETHLGWCAHSGWKVDAAKGVPDWAARLPDELLEAQPNAIVSTPVFDGAQEAELQGLLSCTLPNRDGDVLVDADGKAMLFDGRSGEPFPYPVTVGYMYIMKLHHLVDDKIHARSTGPYSMITQQPLGGKAQFGGQRFGEMECWAMQAYGAAYTLQELLTIKSDDTVGRVKVYEAIVKGENIPEPGIPESFKVLLKELQSLCLNVEVLSSDGAAIELREGEDEDLERAAANLGINLSRNESASVEDLA

来源 Source

来源生物 organism	Mycobacterium tuberculosis
NCBI 分类编号 ncbi_taxonomy_id	1773
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	;DNA-directed RNA polymerase subunit beta' ;
分子量 formula_weight	147097.1 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

GAMLDVNFFDELRIGLATAEDIRQWSYGEVKKPETINYRTLKPEKDGLFCEKIFGPTRDWECYCGKYKRVRFKGIICERCGVEVTRAKVRRERMGHIELAAPVTHIWYFKGVPSRLGYLLDLAPKDLEKIIYFAAYVITSVDEEMRHNELSTLEAEMAVERKAVEDQRDGELEARAQKLEADLAELEAEGAKADARRKVRDGGEREMRQIRDRAQRELDRLEDIWSTFTKLAPKQLIVDENLYRELVDRYGEYFTGAMGAESIQKLIENFDIDAEAESLRDVIRNGKGQKKLRALKRLKVVAAFQQSGNSPMGMVLDAVPVIPPELRPMVQLDGGRFATSDLNDLYRRVINRNNRLKRLIDLGAPEIIVNNEKRMLQESVDALFDNGRRGRPVTGPGNRPLKSLSDLLKGKQGRFRQNLLGKRVDYSGRSVIVVGPQLKLHQCGLPKLMALELFKPFVMKRLVDLNHAQNIKSAKRMVERQRPQVWDVLEEVIAEHPVLLNRAPTLHRLGIQAFEPMLVEGKAIQLHPLVCEAFNADFDGDQMAVHLPLSAEAQAEARILMLSSNNILSPASGRPLAMPRLDMVTGLYYLTTEVPGDTGEYQPASGDHPETGVYSSPAEAIMAADRGVLSVRAKIKVRLTQLRPPVEIEAELFGHSGWQPGDAWMAETTLGRVMFNELLPLGYPFVNKQMHKKVQAAIINDLAERYPMIVVAQTVDKLKDAGFYWATRSGVTVSMADVLVPPRKKEILDHYEERADKVEKQFQRGALNHDERNEALVEIWKEATDEVGQALREHYPDDNPIITIVDSGATGNFTQTRTLAGMKGLVTNPKGEFIPRPVKSSFREGLTVLEYFINTHGARKGLADTALRTADSGYLTRRLVDVSQDVIVREHDCQTERGIVVELAERAPDGTLIRDPYIETSAYARTLGTDAVDEAGNVIVERGQDLGDPEIDALLAAGITQVKVRSVLTCATSTGVCATCYGRSMATGKLVDIGEAVGIVAAQSIGEPGTQLTMRTFHQGGVGEDITGGLPRVQELFEARVPRGKAPIADVTGRVRLEDGERFYKITIVPDDGGEEVVYDKISKRQRLRVFKHEDGSERVLSDGDHVEVGQQLMEGSADPHEVLRVQGPREVQIHLVREVQEVYRAQGVSIHDKHIEVIVRQMLRRVTIIDSGSTEFLPGSLIDRAEFEAENRRVVAEGGEPAAGRPVLMGITKASLATDSWLSAASFQETTRVLTDAAINCRSDKLNGLKENVIIGKLIPAGTGINRYRNIAVQPTEEARAAAYTIPSYEDQYYSPDFGAATGAAVPLDDYGYSDYR

来源 Source

来源生物 organism	Mycobacterium tuberculosis
NCBI 分类编号 ncbi_taxonomy_id	1773
宿主生物 host_organism	Escherichia coli

Entity 4 polymer

描述 description	DNA-directed RNA polymerase subunit omega
分子量 formula_weight	11819.1 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

VSISQSDASLAAVPAVDQFDPSSGASGGYDTPLGITNPPIDELLDRVSSKYALVIYAAKRARQINDYYNQLGEGILEYVGPLVEPGLQEKPLSIALREIHADLLEHTEGE

来源 Source

来源生物 organism	Mycobacterium tuberculosis
NCBI 分类编号 ncbi_taxonomy_id	1773
宿主生物 host_organism	Escherichia coli

Entity 5 polymer

描述 description	DNA (33-MER)
分子量 formula_weight	16521.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	P

CCGGCATGAGAGGGTATTCGCCGCCTACCTCTCCTAGCCCGCAAGTATCCGACG

Entity 6 polymer

描述 description	DNA (25-MER)
分子量 formula_weight	16589.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	Q

CGTCGGATACTTGCGGGCTAGCCTCTTTTGGCGGCGAATACCCTCTCATGCCGG

Entity 7 polymer

描述 description	;RNA (5'-R(PCPGPGPAPGPAPGPGPUPA)-3') ;
分子量 formula_weight	6510.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	R

GCAUUCAAAGCGGAGAGGUA

Entity 8 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 9 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▼

6. 折叠分类 (SCOP + CATH) 5 domains

CATH v4.4 (5 domains)

结构域编号 domain_id	8e95A01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	170 — Beta Complex
拓扑 Topology topology	120 — RNA Polymerase Alpha Subunit; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	12 — DNA-directed RNA polymerase, insert domain

结构域编号 domain_id	8e95B01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	170 — Beta Complex
拓扑 Topology topology	120 — RNA Polymerase Alpha Subunit; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	12 — DNA-directed RNA polymerase, insert domain

结构域编号 domain_id	8e95C01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1110 — Dna-directed Rna Polymerase Ii 140kd Polypeptide; Chain: B; domain 3
同源超家族 H-superfamily homologous superfamily	10 — RNA polymerase Rpb2, domain 2

结构域编号 domain_id	8e95D01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	274 — Enzyme I; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	100 — RNA polymerase Rpb1, domain 3

结构域编号 domain_id	8e95D02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	132 — Topoisomerase I; Chain A, domain 4
同源超家族 H-superfamily homologous superfamily	30 — RNA polymerase Rpb1 funnel domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.90 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	593911
