1. Protein Identity and Related Structures Protein Identity & Related Structures

COMM domain-containing protein 10

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain T； UniProt 12–202	Not recorded	COMM domain-containing protein 9 × 1 （Q9P000） COMM domain-containing protein 5 × 1 （Q9GZQ3） COMM domain-containing protein 7 × 1 （Q86VX2）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293.15 K；2 uM crown ether and 10% glycerol and grown in 22% ethanol and 5 mM EDTA	Resolution 3.33 Å R-free 0.278

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8ESD	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8F2R Human CCC complex Deposited 2022-11-08	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain J 5–202（198 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2；50 mM HEPES pH7.2, 150 mM NaCl, 2mM beta-mercaptoethanol, 0.01% Triton-X100 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.12 Å
8F2U Human CCC complex Deposited 2022-11-08	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain J 1–202（202 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2；50 mM HEPES pH7.2, 150 mM NaCl, 2mM beta-mercaptoethanol, 0.01% Triton-X100 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.53 Å
8P0W Structure of the human Commander complex COMMD ring Deposited 2023-05-11	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain J 1–202（202 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9ZMY Crystal structure of the human Commd10 HN domain in domain swapped conformation Deposited 2025-12-11	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 12–127（116 aa） Fragment：HN domain Chain B 12–127（116 aa） Fragment：HN domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；293 K；30% PEG400 in 0.1 M Tris pH 8.0	Resolution 1.62 Å R-free 0.241
9ZN0 Crystal structure of the Commd10 S50E HN domain mutant in domain swapped conformation Deposited 2025-12-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 12–127（116 aa） Chain C 12–127（116 aa）	Not recorded	LEA PENTANOIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；293 K；0.1 M Tris (pH 8.5), 0.1 M Mg formate, and 30% PE14/4, with 10% glycerol used as cryoprotectant	Resolution 2.12 Å R-free 0.243
9ZN0 Crystal structure of the Commd10 S50E HN domain mutant in domain swapped conformation Deposited 2025-12-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 12–127（116 aa） Chain D 12–127（116 aa）	Not recorded	LEA PENTANOIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；293 K；0.1 M Tris (pH 8.5), 0.1 M Mg formate, and 30% PE14/4, with 10% glycerol used as cryoprotectant	Resolution 2.12 Å R-free 0.243

5 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	COMDA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain T； PDBConstruct 1–191； UniProt 12–202

COMM domain-containing protein 9

Homo sapiens

UniProt Q9P000

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain N； UniProt 5–198	Not recorded	COMM domain-containing protein 10 × 1 （Q9Y6G5） COMM domain-containing protein 5 × 1 （Q9GZQ3） COMM domain-containing protein 7 × 1 （Q86VX2）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293.15 K；2 uM crown ether and 10% glycerol and grown in 22% ethanol and 5 mM EDTA	Resolution 3.33 Å R-free 0.278

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8ESD	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4NKN The Crystal Structure of the N-terminal domain of COMMD9 Deposited 2013-11-12	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 2–117（116 aa） Fragment：N-terminal domain (UNP residues 1-116) Chain B 2–117（116 aa） Fragment：N-terminal domain (UNP residues 1-116) Chain E 2–117（116 aa） Fragment：N-terminal domain (UNP residues 1-116)	Mutation：L67M, I101M Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：L67M, I101M Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：L67M, I101M Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291.15 K；20% PEG 3350, 0.2M Mg Nitrate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 291.15K	Resolution 2.79 Å R-free 0.249
4NKN The Crystal Structure of the N-terminal domain of COMMD9 Deposited 2013-11-12	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain C 2–117（116 aa） Fragment：N-terminal domain (UNP residues 1-116) Chain D 2–117（116 aa） Fragment：N-terminal domain (UNP residues 1-116) Chain F 2–117（116 aa） Fragment：N-terminal domain (UNP residues 1-116)	Mutation：L67M, I101M Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：L67M, I101M Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：L67M, I101M Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291.15 K；20% PEG 3350, 0.2M Mg Nitrate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 291.15K	Resolution 2.79 Å R-free 0.249
4OE9 The crystal structure of the n-terminal domain of COMMD9 Deposited 2014-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–117（117 aa） Fragment：COMMD9, unp residues 1-117	Mutation：L67M, I101M Non-standard monomer：Yes (specific site not provided by mmCIF)	CIT CITRIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.9；291.15 K；28% mPEG 5000, 0.2M citric acid, pH 4.9, VAPOR DIFFUSION, HANGING DROP, temperature 291.15K	Resolution 1.55 Å R-free 0.165
4OE9 The crystal structure of the n-terminal domain of COMMD9 Deposited 2014-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–117（117 aa） Fragment：COMMD9, unp residues 1-117	Mutation：L67M, I101M Non-standard monomer：Yes (specific site not provided by mmCIF)	CIT CITRIC ACID × 1 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.9；291.15 K；28% mPEG 5000, 0.2M citric acid, pH 4.9, VAPOR DIFFUSION, HANGING DROP, temperature 291.15K	Resolution 1.55 Å R-free 0.165
6BP6 Crystal structure of Commd9 COMM domain Deposited 2017-11-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 115–198（84 aa） Chain B 115–198（84 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1 M HEPES (pH 7.0), 6% Jeffamine M-600	Resolution 2.17 Å R-free 0.285
8F2R Human CCC complex Deposited 2022-11-08	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain I 1–198（198 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2；50 mM HEPES pH7.2, 150 mM NaCl, 2mM beta-mercaptoethanol, 0.01% Triton-X100 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.12 Å
8F2U Human CCC complex Deposited 2022-11-08	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain I 1–198（198 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2；50 mM HEPES pH7.2, 150 mM NaCl, 2mM beta-mercaptoethanol, 0.01% Triton-X100 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.53 Å
8P0W Structure of the human Commander complex COMMD ring Deposited 2023-05-11	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain I 1–198（198 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å

6 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	COMD9_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain N； PDBConstruct 1–194； UniProt 5–198

COMM domain-containing protein 5

Homo sapiens

UniProt Q9GZQ3

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain F； UniProt 149–222	Not recorded	COMM domain-containing protein 10 × 1 （Q9Y6G5） COMM domain-containing protein 9 × 1 （Q9P000） COMM domain-containing protein 7 × 1 （Q86VX2）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293.15 K；2 uM crown ether and 10% glycerol and grown in 22% ethanol and 5 mM EDTA	Resolution 3.33 Å R-free 0.278

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8ESD	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8F2R Human CCC complex Deposited 2022-11-08	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain E 20–224（205 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2；50 mM HEPES pH7.2, 150 mM NaCl, 2mM beta-mercaptoethanol, 0.01% Triton-X100 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.12 Å
8F2U Human CCC complex Deposited 2022-11-08	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain E 1–224（224 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2；50 mM HEPES pH7.2, 150 mM NaCl, 2mM beta-mercaptoethanol, 0.01% Triton-X100 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.53 Å
8P0W Structure of the human Commander complex COMMD ring Deposited 2023-05-11	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain E 1–224（224 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	COMD5_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain F； PDBConstruct 1–74； UniProt 149–222

COMM domain-containing protein 7

Homo sapiens

UniProt Q86VX2

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain S； UniProt 131–200	Not recorded	COMM domain-containing protein 10 × 1 （Q9Y6G5） COMM domain-containing protein 9 × 1 （Q9P000） COMM domain-containing protein 5 × 1 （Q9GZQ3）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293.15 K；2 uM crown ether and 10% glycerol and grown in 22% ethanol and 5 mM EDTA	Resolution 3.33 Å R-free 0.278

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8ESD	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8F2R Human CCC complex Deposited 2022-11-08	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain G 1–200（200 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2；50 mM HEPES pH7.2, 150 mM NaCl, 2mM beta-mercaptoethanol, 0.01% Triton-X100 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.12 Å
8F2U Human CCC complex Deposited 2022-11-08	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain G 1–200（200 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2；50 mM HEPES pH7.2, 150 mM NaCl, 2mM beta-mercaptoethanol, 0.01% Triton-X100 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.53 Å
8P0W Structure of the human Commander complex COMMD ring Deposited 2023-05-11	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain G 1–200（200 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	COMD7_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain S； PDBConstruct 1–70； UniProt 131–200

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8esd
Deposition date deposition_date	2022-10-13
Structure title title	Crystal structure of COMMD7-COMMD9-COMMD5-COMMD10 tetramer
Keywords keywords	Complex, Commander, Retriever, Commd5, Commd7, Commd9, Commd10, Commd, ENDOCYTOSIS; ENDOCYTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	29.67 Å
Radius of gyration Rg (electron density) rg_electron	28.96 Å
Forward intensity I(0) i0	53511400.00
Molecular weight molecular_weight	58194.0 kDa
Excluded volume excluded_volume	73490 Å³
Envelope volume envelope_volume	98065 Å³
Hydration-shell volume shell_volume	29773 Å³
Envelope diameter envelope_diameter	97.5 Å
Shell Rg shell_rg	34.44 Å
Envelope Rg envelope_rg	29.36 Å
Shape Rg shape_rg	28.93 Å
Total Rg total_rg	29.65 Å
Total atoms total_atoms	4089
Residues n_residues	514
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

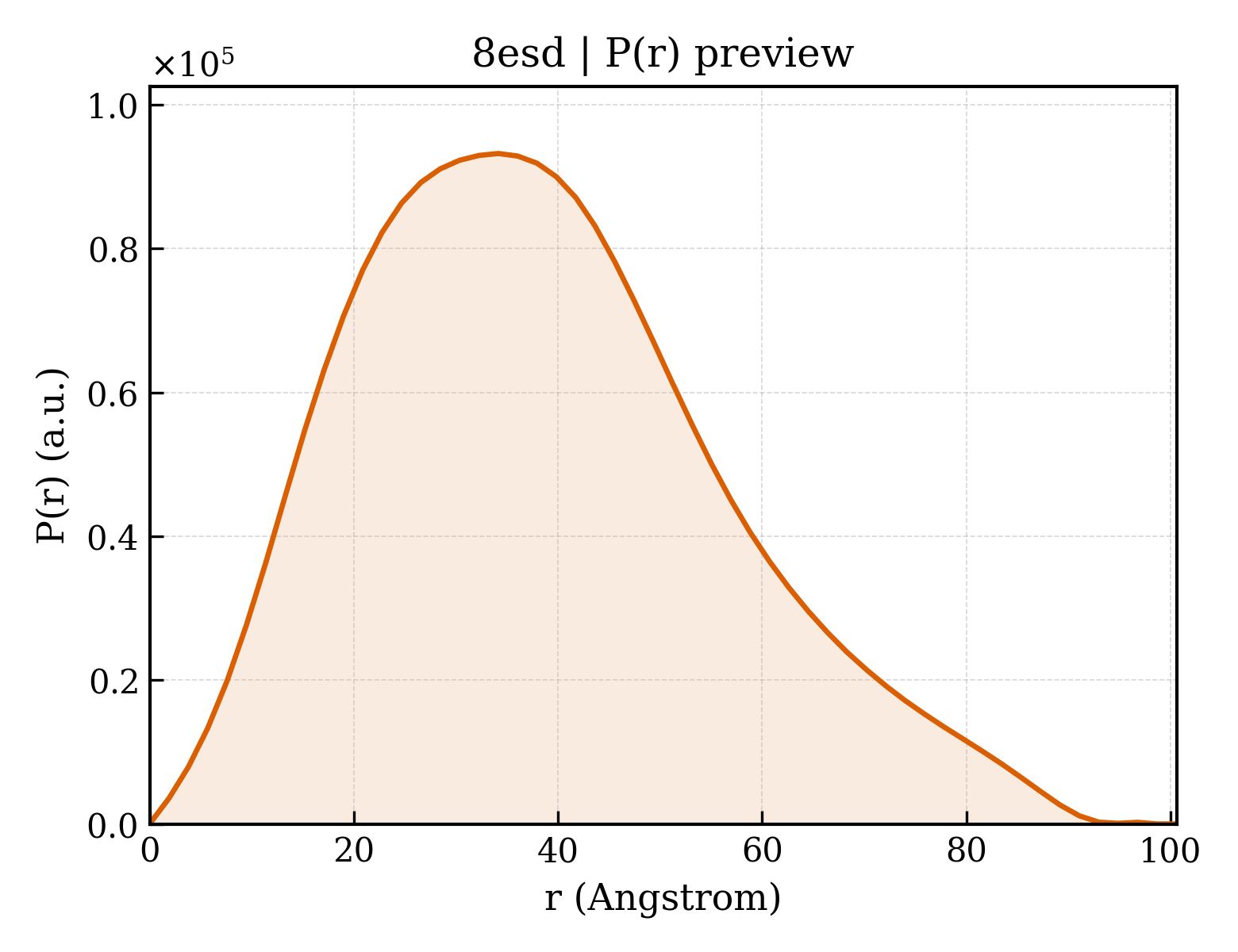

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	100.6 Å
Rg (real space) rg_real	29.79 Å
Rg uncertainty (real space) rg_real_error	1.12 Å
I(0) (real space) i0_real	5.3510e+07
I(0) uncertainty (real space) i0_real_error	9.1090e+05
Rg (reciprocal space) rg_reciprocal	29.74 Å
I(0) (reciprocal space) i0_reciprocal	53510000.0000
Solution quality estimate total_estimate	0.8773
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	34.2 Å
Skewness Skewness skewness	0.454
Kurtosis Kurtosis kurtosis	-0.251
Angular range angular_range	— – 0.2650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	10180000.0000
Real-space data points n_real_points	54
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.836; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.938; Smooth: 0.955

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	COMM domain-containing protein 10
Molecular weight formula_weight	21828.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	T
Atom count atom_count	4110

SPSMKKAVSLINAIDTGRFPRLLTRILQKLHLKAESSFSEEEEEKLQAAFSLEKQDLHLVLETISFILEQAVYHNVKPAALQQQLENIHLRQDKAEAFVNTWSSMGQETVEKFRQRILAPCKLETVGWQLNLQMAHSAQAKLKSPQAVLQLGVNNEDSKSLEKVLVEFSHKELFDFYNKLETIQAQLDSLT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	COMM domain-containing protein 9
Molecular weight formula_weight	21457.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

TAEHFAALQSLLKASSKDVVRQLCQESFSSSALGLKKLLDVTCSSLSVTQEEAEELLQALHRLTRLVAFRDLSSAEAILALFPENFHQNLKNLLTKIILEHVSTWRTEAQANQISLPRLVDLDWRVDIKTSSDSISRMAVPTCLLQMKIQEDPSLCGDKPSISAVTVELSKETLDTMLDGLGRIRDQLSAVASK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	COMM domain-containing protein 5
Molecular weight formula_weight	8636.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

LPHVADFRWRVDVAISTSALARSLQPSVLMQLKLSDGSAYRFEVPTAKFQELRYSVALVLKEMADLEKRCERRLD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	COMM domain-containing protein 7
Molecular weight formula_weight	8172.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

INQLIDMEWKFGVTSGSSELEKVGSIFLQLKLVVKKGNQTENVYIELTLPQFYSFLHEMERVRTSMECFC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

▶

8. Citations (1)

▶

Unit-cell length a length_a	215.191 Å
Unit-cell length b length_b	74.895 Å
Unit-cell length c length_c	63.632 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	96.40 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	monoclinic

Resolution resolution	3.330 Å
Low-resolution limit resolution_low	38.500 Å
R factor r_factor	0.2420
R_work r_work	0.2378
R_free r_free	0.2783

fit	/app/data/saxs_computation/es/8esd/8esd.fit
pddf	/app/data/pr_computation/es/8esd/8esd.pr.out
profile	/app/data/saxs_computation/es/8esd/8esd.dat
