8giy

E. coli clamp loader with closed clamp

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA polymerase III subunit delta

Escherichia coli K-12

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	DNA polymerase III subunit tau × 3 （P06710） ;DNA polymerase III subunit delta' ; × 1 （P28631） DNA polymerase III subunit psi × 1 （P28632） Beta sliding clamp × 2 （P0A988） PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MAGNESIUM ION × 3 ZINC ION × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HOLA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–343； UniProt 1–343

DNA polymerase III subunit tau

Escherichia coli K-12

UniProt P06710

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	DNA polymerase III subunit delta × 1 （P28630） ;DNA polymerase III subunit delta' ; × 1 （P28631） DNA polymerase III subunit psi × 1 （P28632） Beta sliding clamp × 2 （P0A988） PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MAGNESIUM ION × 3 ZINC ION × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DPO3X_ECOLI
Isoform	P06710-2
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–430； UniProt 1–430 Author chain C； PDBConstruct 1–430； UniProt 1–430 Author chain D； PDBConstruct 1–430； UniProt 1–430

;DNA polymerase III subunit delta' ;

Escherichia coli K-12

UniProt P28631

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	DNA polymerase III subunit delta × 1 （P28630） DNA polymerase III subunit tau × 3 （P06710） DNA polymerase III subunit psi × 1 （P28632） Beta sliding clamp × 2 （P0A988） PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MAGNESIUM ION × 3 ZINC ION × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HOLB_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 1–334； UniProt 1–334

DNA polymerase III subunit psi

Escherichia coli K-12

UniProt P28632

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	DNA polymerase III subunit delta × 1 （P28630） DNA polymerase III subunit tau × 3 （P06710） ;DNA polymerase III subunit delta' ; × 1 （P28631） Beta sliding clamp × 2 （P0A988） PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MAGNESIUM ION × 3 ZINC ION × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HOLD_ECOLI
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain F； PDBConstruct 1–137； UniProt 1–137

Beta sliding clamp

Escherichia coli K-12

UniProt P0A988

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	DNA polymerase III subunit delta × 1 （P28630） DNA polymerase III subunit tau × 3 （P06710） ;DNA polymerase III subunit delta' ; × 1 （P28631） DNA polymerase III subunit psi × 1 （P28632） PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MAGNESIUM ION × 3 ZINC ION × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DPO3B_ECOLI
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain H； PDBConstruct 1–366； UniProt 1–366 Author chain I； PDBConstruct 1–366； UniProt 1–366

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8giy
Deposition date deposition_date	2023-03-14
Structure title title	E. coli clamp loader with closed clamp
Keywords keywords	clamp loader, DNA clamp, AAA+, ATPase, DNA BINDING PROTEIN-DNA complex; DNA BINDING PROTEIN/DNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8giy__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

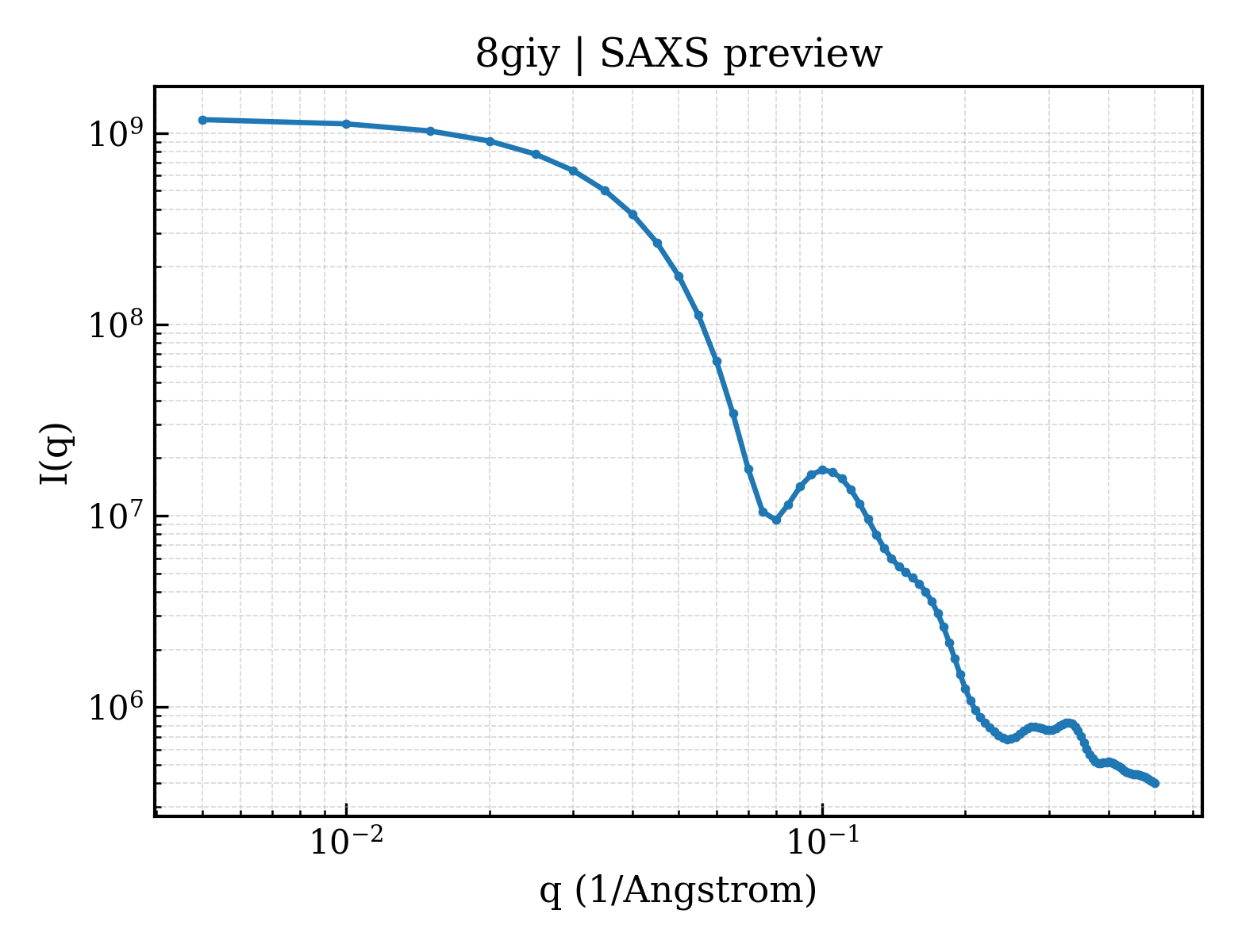

8giy__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

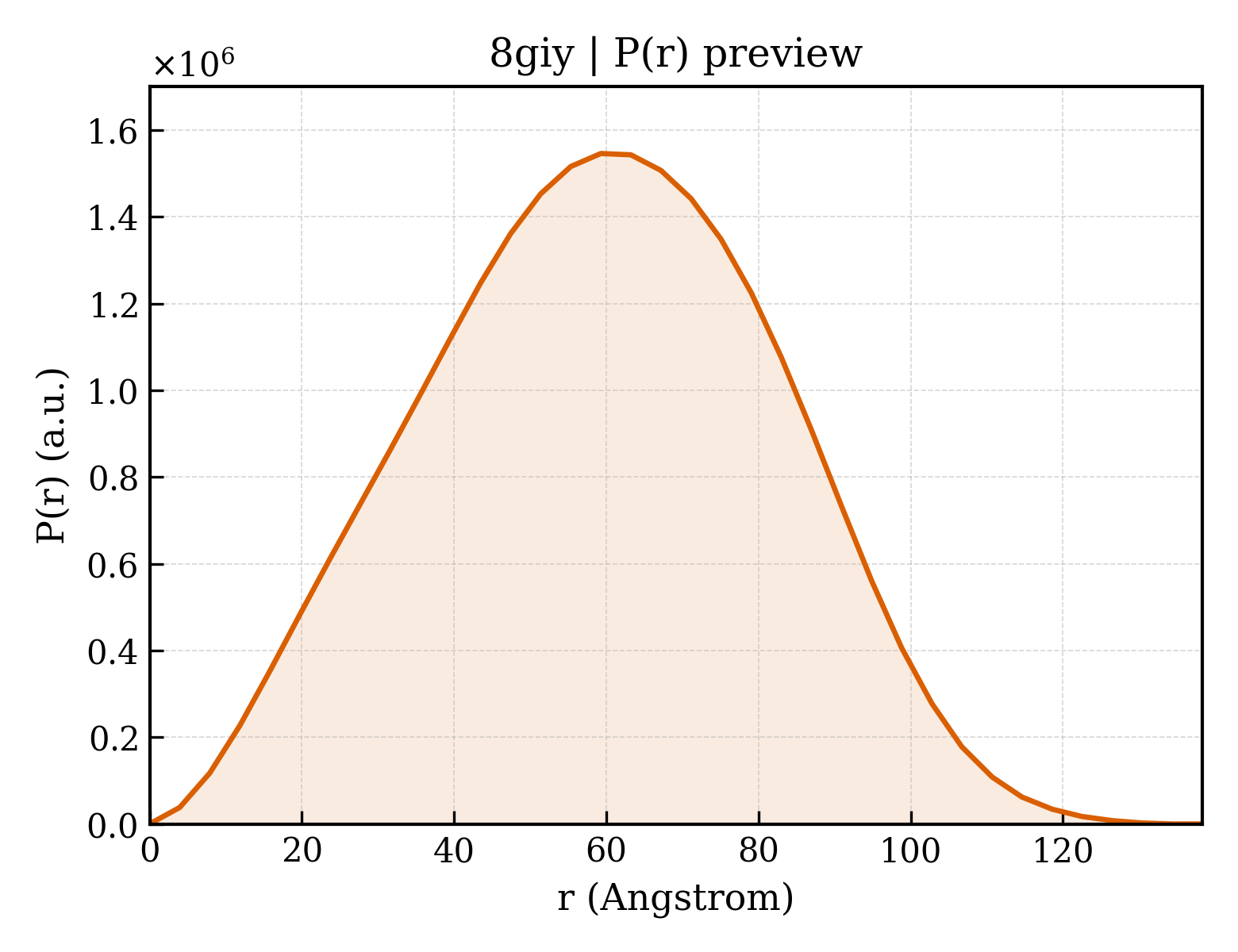

8giy__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	45.30 Å
Rg (electron density)	44.40 Å
Total Rg	44.78 Å
Atom count	39815
Residues	2532
Excluded volume	353960 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8giy__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	DNA polymerase III subunit delta
Molecular weight formula_weight	38745.6 kDa
EC 编号 ec_number	2.7.7.7
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	39815

MIRLYPEQLRAQLNEGLRAAYLLLGNDPLLLQESQDAVRQVAAAQGFEEHHTFSIDPNTDWNAIFSLCQAMSLFASRQTLLLLLPENGPNAAINEQLLTLTGLLHDDLLLIVRGNKLSKAQENAAWFTALANRSVQVTCQTPEQAQLPRWVAARAKQLNLELDDAANQVLCYCYEGNLLALAQALERLSLLWPDGKLTLPRVEQAVNDAAHFTPFHWVDALLMGKSKRALHILQQLRLEGSEPVILLRTLQRELLLLVNLKRQSAHTPLRALFDKHRVWQNRRGMMGEALNRLSQTQLRQAVQLLTRTELTLKQDYGQSVWAELEGLSLLLCHKPLADVFIDG

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	DNA polymerase III subunit tau
Molecular weight formula_weight	47601.8 kDa
EC 编号 ec_number	2.7.7.7
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,C,D

MSYQVLARKWRPQTFADVVGQEHVLTALANGLSLGRIHHAYLFSGTRGVGKTSIARLLAKGLNCETGITATPCGVCDNCREIEQGRFVDLIEIDAASRTKVEDTRDLLDNVQYAPARGRFKVYLIDEVHMLSRHSFNALLKTLEEPPEHVKFLLATTDPQKLPVTILSRCLQFHLKALDVEQIRHQLEHILNEEHIAHEPRALQLLARAAEGSLRDALSLTDQAIASGDGQVSTQAVSAMLGTLDDDQALSLVEAMVEANGERVMALINEAAARGIEWEALLVEMLGLLHRIAMVQLSPAALGNDMAAIELRMRELARTIPPTDIQLYYQTLLIGRKELPYAPDRRMGVEMTLLRALAFHPRMPLPEPEVPRQSFAPVAPTAVMTPTQVPPQPQSAPQQAPTVPLPETTSQVLAARQQLQRVQGATKAKKE

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli BL21

Entity 3 Entity 3 polymer

Description description	;DNA polymerase III subunit delta' ;
Molecular weight formula_weight	36980.5 kDa
EC 编号 ec_number	2.7.7.7
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MRWYPWLRPDFEKLVASYQAGRGHHALLIQALPGMGDDALIYALSRYLLCQQPQGHKSCGHCRGCQLMQAGTHPDYYTLAPEKGKNTLGVDAVREVTEKLNEHARLGGAKVVWVTDAALLTDAAANALLKTLEEPPAETWFFLATREPERLLATLRSRCRLHYLAPPPEQYAVTWLSREVTMSQDALLAALRLSAGSPGAALALFQGDNWQARETLCQALAYSVPSGDWYSLLAALNHEQAPARLHWLATLLMDALKRHHGAAQVTNVDVPGLVAELANHLSPSRLQAILGDVCHIREQLMSVTGINRELLITDLLLRIEHYLQPGVVLPVPHL

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli BL21

Entity 4 Entity 4 polymer

Description description	DNA polymerase III subunit psi
Molecular weight formula_weight	15188.3 kDa
EC 编号 ec_number	2.7.7.7
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MTSRRDWQLQQLGITQWSLRRPGALQGEIAIAIPAHVRLVMVANDLPALTDPLVSDVLRALTVSPDQVLQLTPEKIAMLPQGSHCNSWRLGTDEPLSLEGAQVASPALTDLRANPTARAALWQQICTYEHDFFPRND

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli BL21

Entity 5 Entity 5 polymer

Description description	Beta sliding clamp
Molecular weight formula_weight	40630.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,I

MKFTVEREHLLKPLQQVSGPLGGRPTLPILGNLLLQVADGTLSLTGTDLEMEMVARVALVQPHEPGATTVPARKFFDICRGLPEGAEIAVQLEGERMLVRSGRSRFSLSTLPAADFPNLDDWQSEVEFTLPQATMKRLIEATQFSMAHQDVRYYLNGMLFETEGEELRTVATDGHRLAVCSMPIGQSLPSHSVIVPRKGVIELMRMLDGGDNPLRVQIGSNNIRAHVGDFIFTSKLVDGRFPDYRRVLPKNPDKHLEAGCDLLKQAFARAAILSNEKFRGVRLYVSENQLKITANNPEQEEAEEILDVTYSGAEMEIGFNVSYVLDVLNALKCENVRMMLTDSVSSVQIEDAASQSAAYVVMPMRL

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli BL21

Entity 6 Entity 6 non-polymer

Description description	PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 7 Entity 7 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 8 Entity 8 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	3.70 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	373000
