8j4i
;Unveiling the Role of Human Prohibitin 2 as a Mitochondrial Calcium Channel in Parkinson's Disease ;

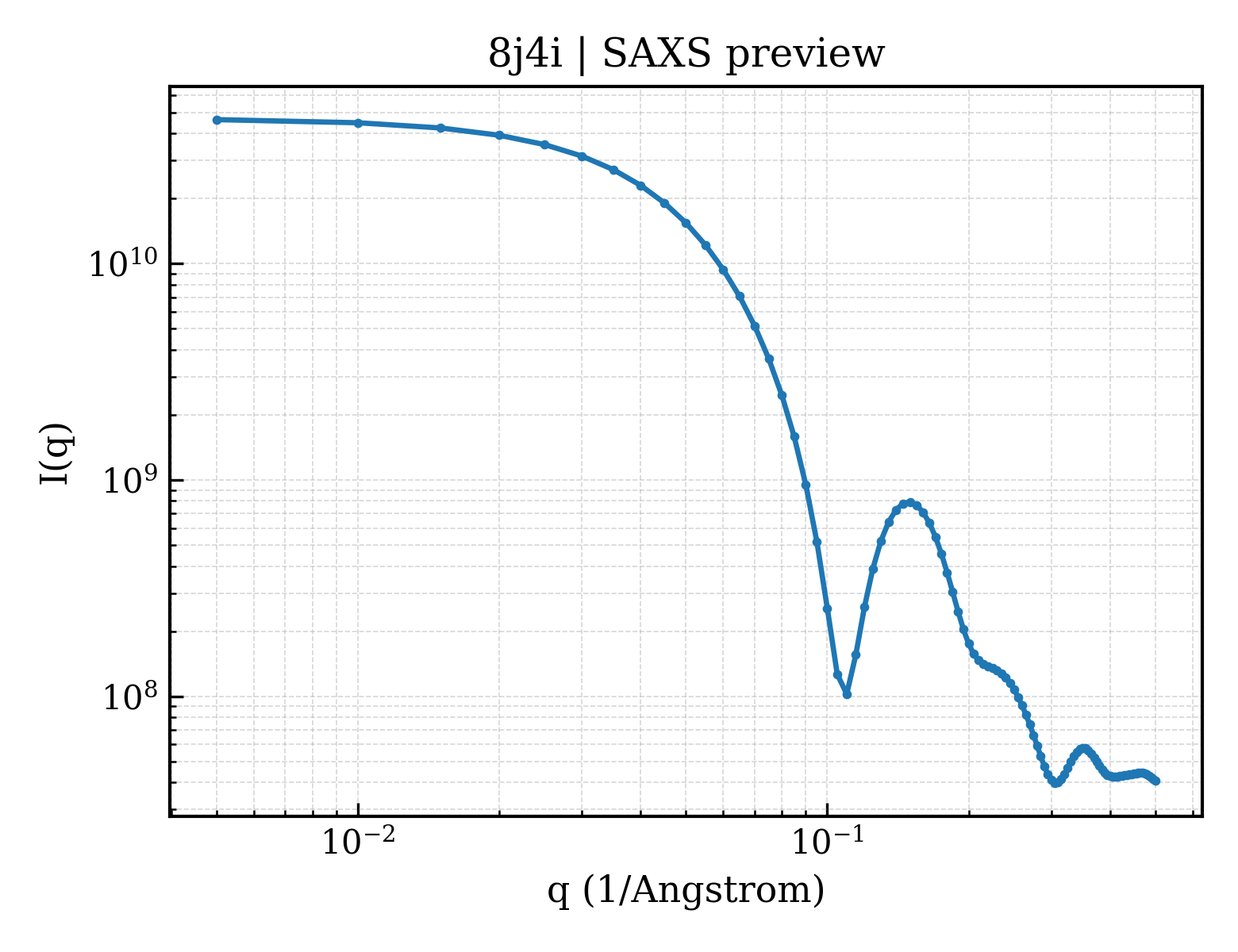

SAXS 散射曲线 SAXS Profile

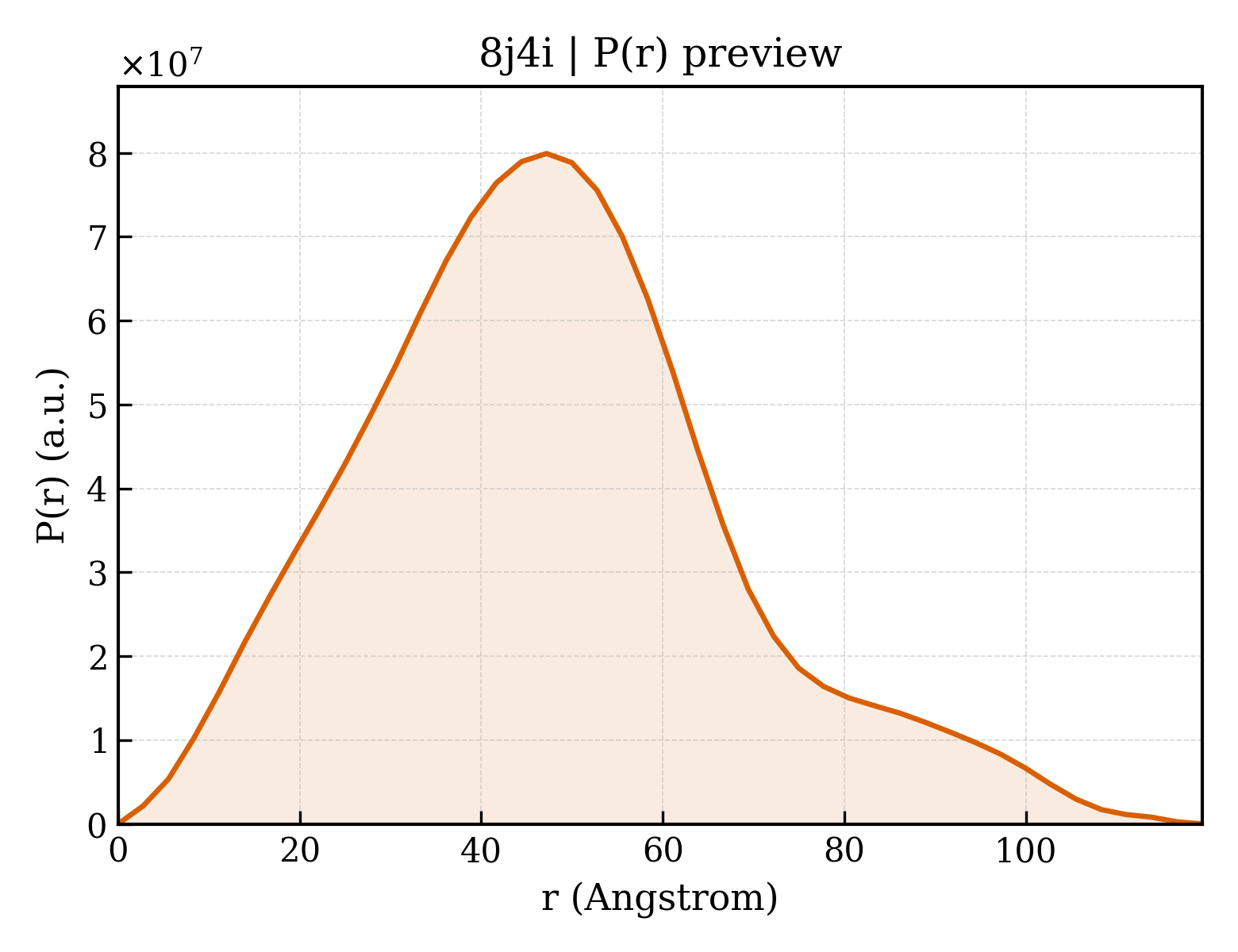

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 8j4i |
| 沉积日期 deposition_date | 2023-04-20 |
| 最后修订 last_revision | 2024-06-05 |
| 结构标题 title | ;Unveiling the Role of Human Prohibitin 2 as a Mitochondrial Calcium Channel in Parkinson's Disease ; |
| 关键词 keywords | Mitochondria calcium uptake, Calcium channel, Prohibitin 2, Ion-conducting pore, TRANSPORT PROTEIN; TRANSPORT PROTEIN |
| 实验方法 method | SOLUTION NMR |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 36.46 Å |
| 回转半径 Rg (电子) rg_electron | 36.36 Å |
| 零角强度 I(0) i0 | 46804800000.00 |
| 分子量 molecular_weight | 1904200.0 kDa |
| 排除体积 excluded_volume | 2411400 ų |
| 包络体积 envelope_volume | 357130 ų |
| 水化壳体积 shell_volume | 73627 ų |
| 包络直径 envelope_diameter | 132.0 Å |
| 壳层 Rg shell_rg | 45.97 Å |
| 包络 Rg envelope_rg | 40.08 Å |
| 形状 Rg shape_rg | 36.24 Å |
| 总 Rg total_rg | 36.86 Å |
| 总原子数 total_atoms | 273420 |
| 残基数 n_residues | 17100 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 119.4 Å |
| Rg (实空间) rg_real | 36.45 Å |
| Rg 误差 (实空间) rg_real_error | 1.15 Å |
| I(0) (实空间) i0_real | 4.6800e+10 |
| I(0) 误差 (实空间) i0_real_error | 8.5200e+08 |
| Rg (倒空间) rg_reciprocal | 36.46 Å |
| I(0) (倒空间) i0_reciprocal | 46810000000.0000 |
| 解质量估计 total_estimate | 0.8169 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 47.2 Å |
| 偏度 Skewness skewness | 0.455 |
| 峰度 Kurtosis kurtosis | 0.142 |
| 角度范围 angular_range | — – 0.2150 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 62490000.0000 |
| 实空间数据点数 n_real_points | 44 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.631; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.727 |
