Cryo-EM structure of actomyosin-5a-S1 with the full-length lever (nucleotide free)

Method: ELECTRON MICROSCOPY
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Calmodulin-1

Mus musculus

UniProt P0DP26

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein heterocomplex Heteromer Protein 10 Actin, alpha skeletal muscle × 3 （P68135） Unconventional myosin-Va × 1 （Q99104） Consistent with protein count

Other States of the Same Protein in the Database

Monomer

None

Homodimer

None

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex
7b1g 7cqp 7yv9 8of8 8w41 9cfu 9cfv 9cfw 9cfx 9ijj

10 assemblies

View Construct and Data Evidence
UniProt name CALM1_MOUSE
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–148； UniProt 2–149 Author chain B； PDBConstruct 1–148； UniProt 2–149 Author chain C； PDBConstruct 1–148； UniProt 2–149 Author chain D； PDBConstruct 1–148； UniProt 2–149 Author chain E； PDBConstruct 1–148； UniProt 2–149 Author chain F； PDBConstruct 1–148； UniProt 2–149

Actin, alpha skeletal muscle

OrganismNot specified

UniProt P68135

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein heterocomplex Heteromer Protein 10 Calmodulin-1 × 6 （P0DP26） Unconventional myosin-Va × 1 （Q99104） Consistent with protein count

Other States of the Same Protein in the Database

Monomer
1ijj 1ijj 1j6z 1nwk 1qz5 1s22 1wua 2asm 2aso 2asp 2fxu 2gwj

40 assemblies; showing the first 12

Homodimer
1lcu 1rdw 1rfq 1yxq 2a5x 2gwk 2hmp 2q1n 2q1n 2q31 2q31 2q36

14 assemblies; showing the first 12

Homotetramer
8dmx 8ru0 9fjo

3 assemblies

Other homooligomers
2y83 3b5u 3g37 3j8i 3j8j 3j8k 3mfp 4a7n 5mva 5mvy 5onv 5ooc

42 assemblies; showing the first 12

Heteromeric or nucleic-acid complex
1eqy 1esv 1kxp 1lot 1m8q 1ma9 1mvw 1o18 1o19 1o1a 1o1b 1o1c

255 assemblies; showing the first 12

View Construct and Data Evidence
UniProt name ACTS_RABIT
Isoform —
PDB entities 2
Chains and sequence ranges Author chain J； PDBConstruct 1–375； UniProt 3–377 Author chain K； PDBConstruct 1–375； UniProt 3–377 Author chain L； PDBConstruct 1–375； UniProt 3–377

Unconventional myosin-Va

Mus musculus

UniProt Q99104

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein heterocomplex Heteromer Protein 10 Calmodulin-1 × 6 （P0DP26） Actin, alpha skeletal muscle × 3 （P68135） Consistent with protein count

Other States of the Same Protein in the Database

Monomer
3wb8 3wb8 3wb8 3wb8 3wb8 3wb8 3wb8 3wb8 8rbg

9 assemblies

Homodimer

None

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex
2ix7 4kp3 4zlk 6ku0 6ku0 8of8 8r9v 8rbf

8 assemblies

View Construct and Data Evidence
UniProt name MYO5A_MOUSE
Isoform —
PDB entities 3
Chains and sequence ranges Author chain M； PDBConstruct 1–907； UniProt 1–907

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8of8
Deposition date deposition_date2023-03-14
Structure title titleCryo-EM structure of actomyosin-5a-S1 with the full-length lever (nucleotide free)
Keywords keywords;myosin, cytoskeletal motor, myosin-va, myo5a, myosin-5a, S1, rigor, nucleotide free, apo, lever, 6IQ, actomyosin, actomyosin-5a, actin, actomyosin-va, actin bound, MOTOR PROTEIN ;; MOTOR PROTEIN
Experimental Method methodELECTRON MICROSCOPY
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8of8__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

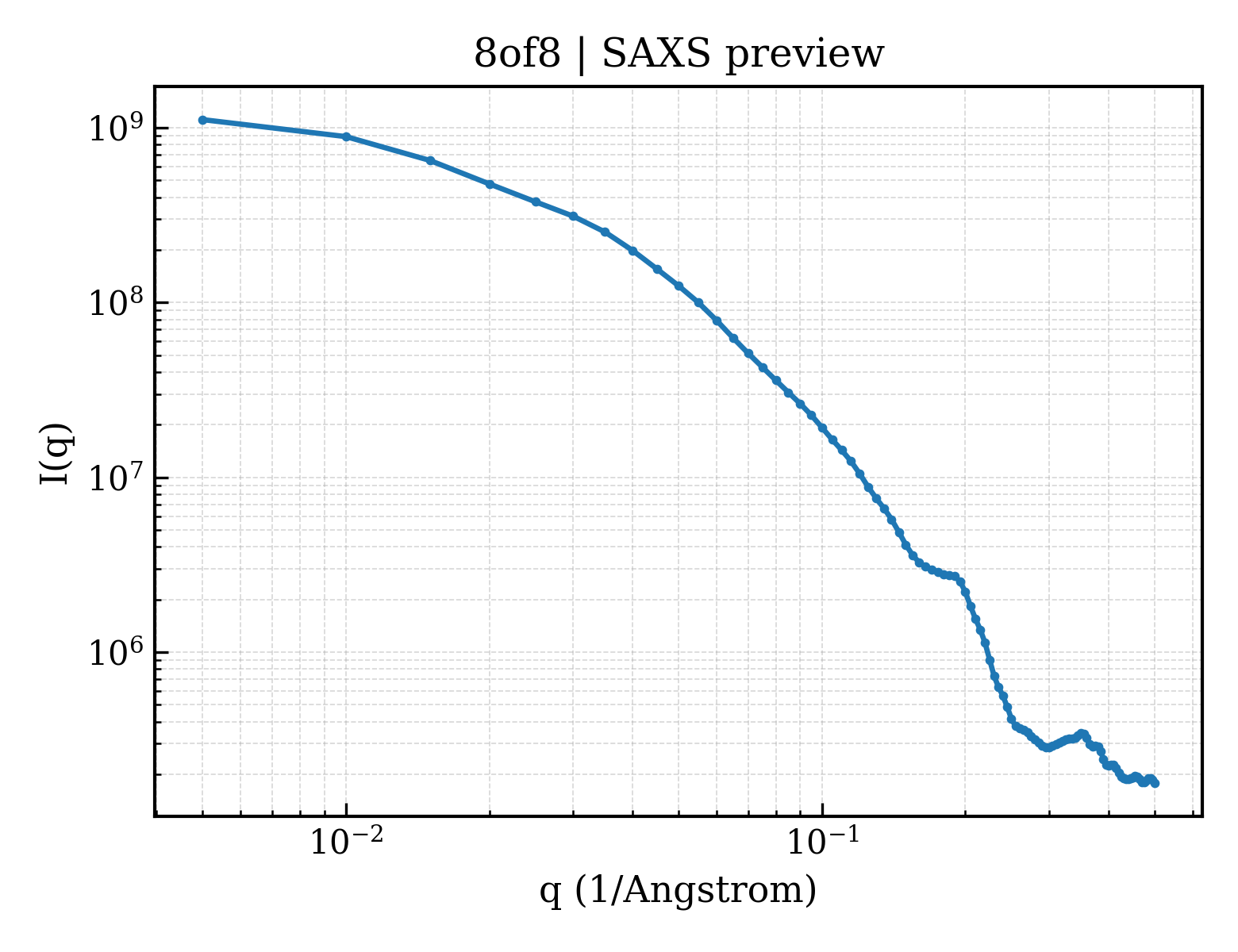

8of8__assembly_1__model_1 | I(q)

10-2 10-1 106 107 108 109 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

8of8__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）95.41 Å
Rg (electron density)100.30 Å
Total Rg99.92 Å
Atom count15859
Residues2865
Excluded volume251710 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 8of8__assembly_1__model_1 decameric （10） Success 4.1.3-1-20251215 (887e7ef) View Download
▶
