8pk0

human mitoribosomal large subunit assembly intermediate 1 with GTPBP10-GTPBP7

Method: ELECTRON MICROSCOPY D_max: 280.2 Å Quality: GOOD

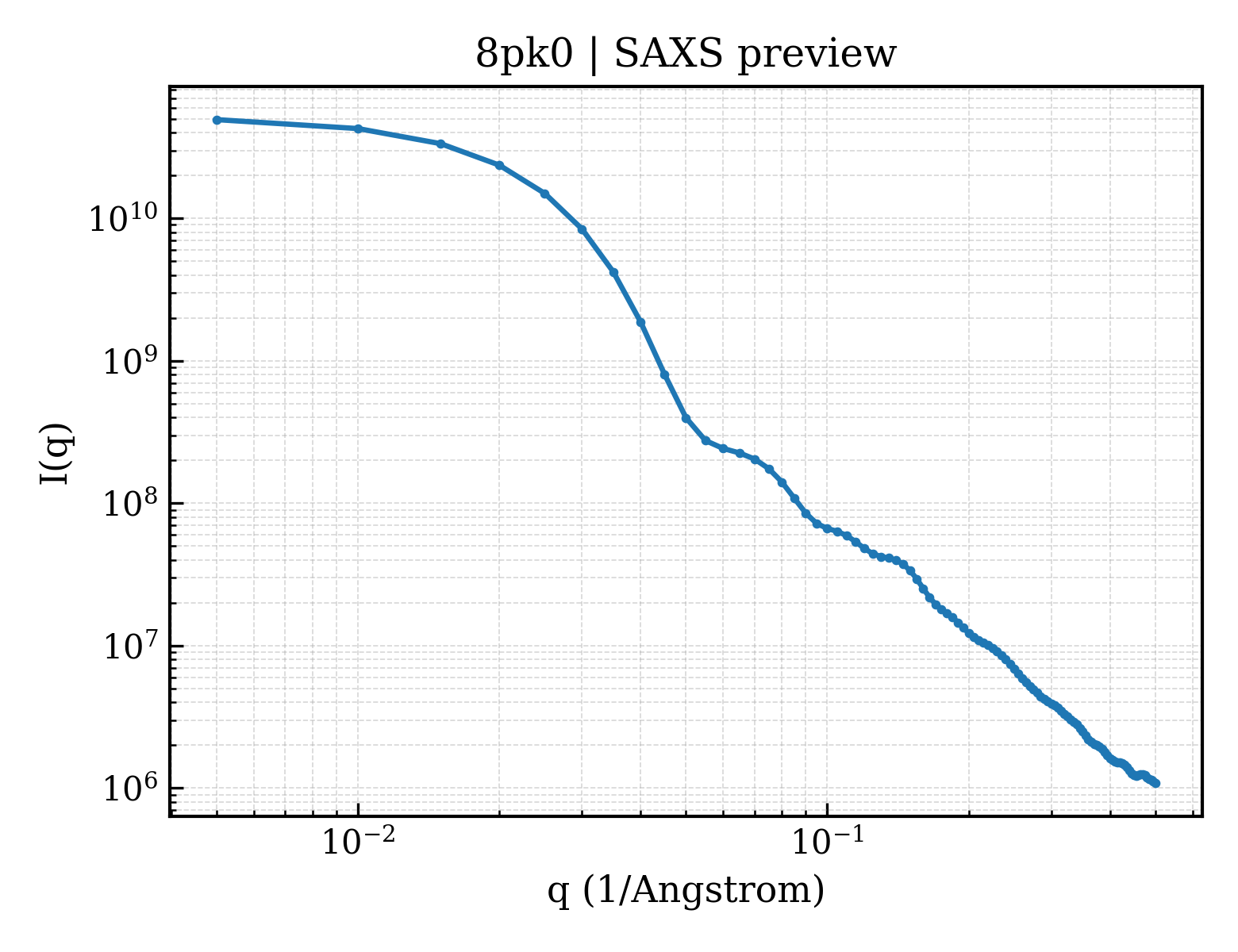

SAXS 散射曲线 SAXS Profile

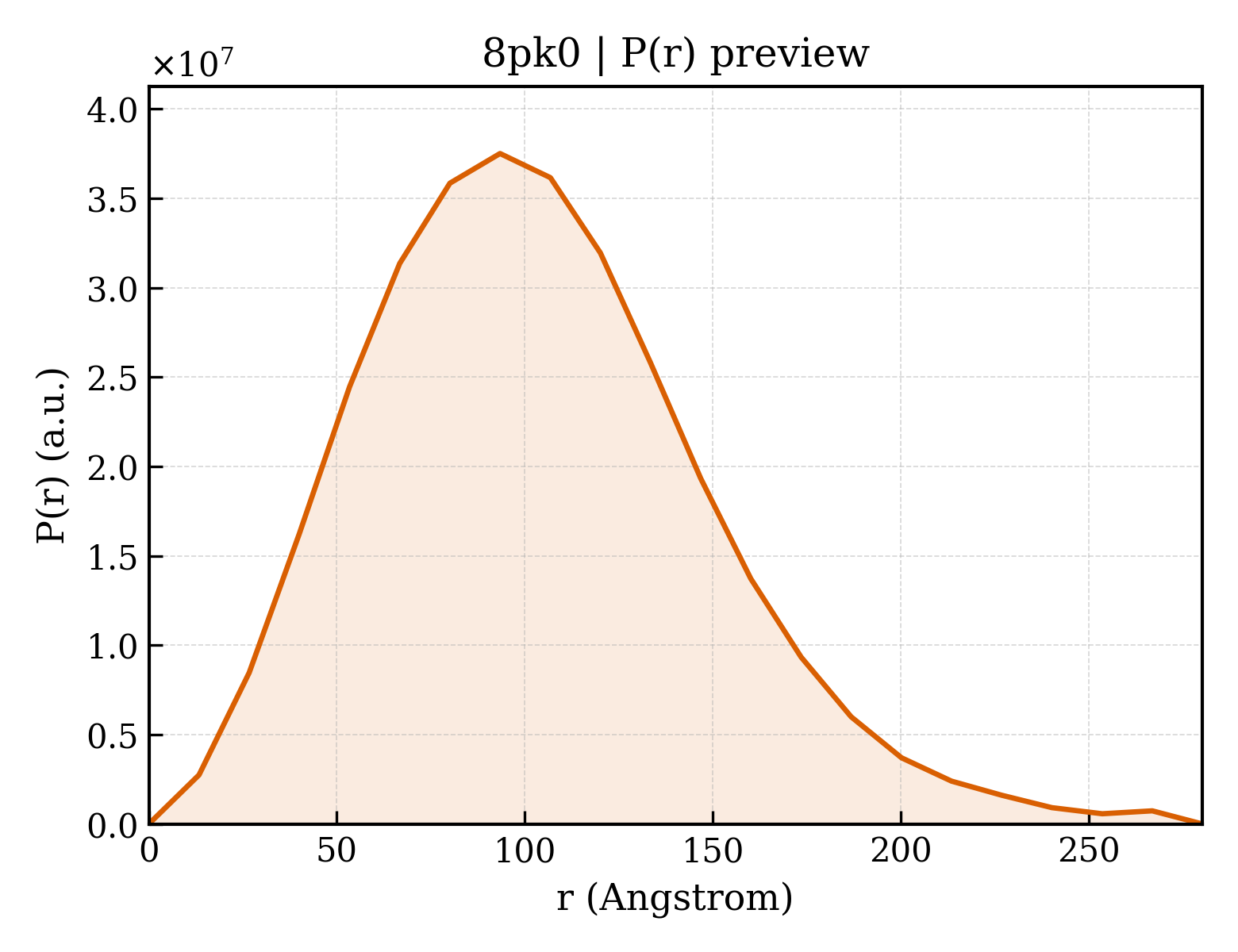

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8pk0
沉积日期 deposition_date	2023-06-23
结构标题 title	human mitoribosomal large subunit assembly intermediate 1 with GTPBP10-GTPBP7
关键词 keywords	mitochondria, maturation, biogenesis, ribosome, GTPBP7, GTPBP10, GTP Binding Protein 10, OBGH2, MTG1, LSU; RIBOSOME
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	75.97 Å
回转半径 Rg (电子) rg_electron	78.70 Å
零角强度 I(0) i0	51773300000.00
分子量 molecular_weight	1574100.0 kDa
排除体积 excluded_volume	1818200 Å³
包络体积 envelope_volume	3074800 Å³
水化壳体积 shell_volume	300520 Å³
包络直径 envelope_diameter	258.1 Å
壳层 Rg shell_rg	90.28 Å
包络 Rg envelope_rg	78.38 Å
形状 Rg shape_rg	78.92 Å
总 Rg total_rg	78.21 Å
总原子数 total_atoms	108702
残基数 n_residues	11234
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	280.2 Å
Rg (实空间) rg_real	79.17 Å
Rg 误差 (实空间) rg_real_error	1.64 Å
I(0) (实空间) i0_real	5.1780e+10
I(0) 误差 (实空间) i0_real_error	1.0270e+09
Rg (倒空间) rg_reciprocal	76.65 Å
I(0) (倒空间) i0_reciprocal	51870000000.0000
解质量估计 total_estimate	0.8809
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	93.4 Å
偏度 Skewness skewness	0.547
峰度 Kurtosis kurtosis	0.335
角度范围 angular_range	— – 0.1050 Å⁻¹
当前正则化参数 α current_alpha	0.9969
最高正则化参数 α highest_alpha	7067000000.0000
实空间数据点数 n_real_points	22
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.668; Stabil: 0.890; Sysdev: 1.000; Positv: 1.000; Valcen: 0.948; Smooth: 0.848

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (64)

Entity 1 polymer

描述 description	39S ribosomal protein L32, mitochondrial
分子量 formula_weight	21437.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	0
原子数 atom_count	108702

MALAMLVLVVSPWSAARGVLRNYWERLLRKLPQSRPGFPSPPWGPALAVQGPAMFTEPANDTSGSKENSSLLDSIFWMAAPKNRRTIEVNRCRRRNPQKLIKVKNNIDVCPECGHLKQKHVLCAYCYEKVCKETAEIRRQIGKQEGGPFKAPTIETVVLYTGETPSEQDQGKRIIERDRKRPSWFTQN

Entity 2 polymer

描述 description	39S ribosomal protein L22, mitochondrial
分子量 formula_weight	23683.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MAAAVLGQLGALWIHNLRSRGKLALGVLPQSYIHTSASLDISRKWEKKNKIVYPPQLPGEPRRPAEIYHCRRQIKYSKDKMWYLAKLIRGMSIDQALAQLEFNDKKGAKIIKEVLLEAQDMAVRDHNVEFRSNLYIAESTSGRGQCLKRIRYHGRGRFGIMEKVYCHYFVKLVEGPPPPPEPPKTAVAHAKEYIQQLRSRTIVHTL

Entity 3 polymer

描述 description	Mitochondrial assembly of ribosomal large subunit protein 1
分子量 formula_weight	26203.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	u

MGPGGRVARLLAPLMWRRAVSSVAGSAVGAEPGLRLLAVQRLPVGAAFCRACQTPNFVRGLHSEPGLEERAEGTVNEGRPESDAADHTGPKFDIDMMVSLLRQENARDICVIQVPPEMRYTDYFVIVSGTSTRHLHAMAFYVVKMYKHLKCKRDPHVKIEGKDTDDWLCVDFGSMVIHLMLPETREIYELEKLWTLRSYDDQLAQIAPETVPEDFILGIEDDTSSVTPVELKCE

Entity 4 polymer

描述 description	39S ribosomal protein L33, mitochondrial
分子量 formula_weight	7635.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1

MFLSAVFFAKSKSKNILVRMVSEAGTGFCFNTKRNRLREKLTLLHYDPVVKQRVLFVEKKKIRSL

Entity 5 polymer

描述 description	39S ribosomal protein L23, mitochondrial
分子量 formula_weight	17849.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

MARNVVYPLYRLGGPQLRVFRTNFFIQLVRPGVAQPEDTVQFRIPMEMTRVDLRNYLEGIYNVPVAAVRTRVQHGSNKRRDHRNVRIKKPDYKVAYVQLAHGQTFTFPDLFPEKDESPEGSAADDLYSMLEEERQQRQSSDPRRGGVPSWFGL

Entity 6 polymer

描述 description	MIEF1 upstream open reading frame protein
分子量 formula_weight	8460.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	v

MAPWSREAVLSLYRALLRQGRQLRYTDRDFYFASIRREFRKNQKLEDAEARERQLEKGLVFLNGKLGRII

Entity 7 polymer

描述 description	39S ribosomal protein L34, mitochondrial
分子量 formula_weight	10183.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2

MAVLAGSLLGPTSRSAALLGGRWLQPRAWLGFPDAWGLPTPQQARGKARGNEYQPSNIKRKNKHGWVRRLSTPAGVQVILRRMLKGRKSLSH

Entity 8 polymer

描述 description	39S ribosomal protein L24, mitochondrial
分子量 formula_weight	24953.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V

MRLSALLALASKVTLPPHYRYGMSPPGSVADKRKNPPWIRRRPVVVEPISDEDWYLFCGDTVEILEGKDAGKQGKVVQVIRQRNWVVVGGLNTHYRYIGKTMDYRGTMIPSEAPLLHRQVKLVDPMDRKPTEIEWRFTEAGERVRVSTRSGRIIPKPEFPRADGIVPETWIDGPKDTSVEDALERTYVPCLKTLQEEVMEAMGIKETRKYKKVYWY

Entity 9 polymer

描述 description	Acyl carrier protein, mitochondrial
分子量 formula_weight	17434.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	w

MASRVLSAYVSRLPAAFAPLPRVRMLAVARPLSTALCSAGTQTRLGTLQPALVLAQVPGRVTQLCRQYSDMPPLTLEGIQDRVLYVLKLYDKIDPEKLSVNSHFMKDLGLDSLDQVEIIMAMEDEFGFEIPDIDAEKLMCPQEIVDYIADKKDVYE

Entity 10 polymer

描述 description	39S ribosomal protein L35, mitochondrial
分子量 formula_weight	21558.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	3

MAASAFAGAVRAASGILRPLNILASSTYRNCVKNASLISALSTGRFSHIQTPVVSSTPRLTTSERNLTCGHTSVILNRMAPVLPSVLKLPVRSLTYFSARKGKRKTVKAVIDRFLRLHCGLWVRRKAGYKKKLWKKTPARKKRLREFVFCNKTQSKLLDKMTTSFWKRRNWYVDDPYQKYHDRTNLKV

Entity 11 polymer

描述 description	39S ribosomal protein L27, mitochondrial
分子量 formula_weight	16102.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W

MASVVLALRTRTAVTSLLSPTPATALAVRYASKKSGGSSKNLGGKSSGRRQGIKKMEGHYVHAGNIIATQRHFRWHPGAHVGVGKNKCLYALEEGIVRYTKEVYVPHPRNTEAVDLITRLPKGAVLYKTFVHVVPAKPEGTFKLVAML

Entity 12 polymer

描述 description	5-methylcytosine rRNA methyltransferase NSUN4
分子量 formula_weight	43140.5 kDa
EC 编号 ec_number	2.1.1.-
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	x

MAALTLRGVRELLKRVDLATVPRRHRYKKKWAATEPKFPAVRLALQNFDMTYSVQFGDLWPSIRVSLLSEQKYGALVNNFAAWDHVSAKLEQLSAKDFVNEAISHWELQSEGGQSAAPSPASWACSPNLRCFTFDRGDISRFPPARPGSLGVMEYYLMDAASLLPVLALGLQPGDIVLDLCAAPGGKTLALLQTGCCRNLAANDLSPSRIARLQKILHSYVPEEIRDGNQVRVTSWDGRKWGELEGDTYDRVLVDVPCTTDRHSLHEEENNIFKRSRKKERQILPVLQVQLLAAGLLATKPGGHVVYSTCSLSHLQNEYVVQGAIELLANQYSIQVQVEDLTHFRRVFMDTFCFFSSCQVGELVIPNLMANFGPMYFCKMRRLT

Entity 13 polymer

描述 description	39S ribosomal protein L37, mitochondrial
分子量 formula_weight	48183.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	5

MALASGPARRALAGSGQLGLGGFGAPRRGAYEWGVRSTRKSEPPPLDRVYEIPGLEPITFAGKMHFVPWLARPIFPPWDRGYKDPRFYRSPPLHEHPLYKDQACYIFHHRCRLLEGVKQALWLTKTKLIEGLPEKVLSLVDDPRNHIENQDECVLNVISHARLWQTTEEIPKRETYCPVIVDNLIQLCKSQILKHPSLARRICVQNSTFSATWNRESLLLQVRGSGGARLSTKDPLPTIASREEIEATKNHVLETFYPISPIIDLHECNIYDVKNDTGFQEGYPYPYPHTLYLLDKANLRPHRLQPDQLRAKMILFAFGSALAQARLLYGNDAKVLEQPVVVQSVGTDGRVFHFLVFQLNTTDLDCNEGVKNLAWVDSDQLLYQHFWCLPVIKKRVVVEPVGPVGFKPETFRKFLALYLHGAA

Entity 14 polymer

描述 description	39S ribosomal protein L28, mitochondrial
分子量 formula_weight	30202.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	X

MPLHKYPVWLWKRLQLREGICSRLPGHYLRSLEEERTPTPVHYRPHGAKFKINPKNGQRERVEDVPIPIYFPPESQRGLWGGEGWILGQIYANNDKLSKRLKKVWKPQLFEREFYSEILDKKFTVTVTMRTLDLIDEAYGLDFYILKTPKEDLCSKFGMDLKRGMLLRLARQDPQLHPEDPERRAAIYDKYKEFAIPEEEAEWVGLTLEEAIEKQRLLEEKDPVPLFKIYVAELIQQLQQQALSEPAVVQKRASGQ

Entity 15 polymer

描述 description	Transcription termination factor 4, mitochondrial
分子量 formula_weight	44012.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	y

MAAFGRQVLDWHRLIPLTWACMARQTPHLGEQRRTTASLLRKLTTASNGGVIEELSCVRSNNYVQEPECRRNLVQCLLEKQGTPVVQGSLELERVMSSLLDMGFSNAHINELLSVRRGASLQQLLDIISEFILLGLNPEPVCVVLKKSPQLLKLPIMQMRKRSSYLQKLGLGEGKLKRVLYCCPEIFTMRQQDINDTVRLLKEKCLFTVQQVTKILHSCPSVLREDLGQLEYKFQYAYFRMGIKHPDIVKSEYLQYSLTKIKQRHIYLERLGRYQTPDKKGQTQIPNPLLKDILRVSEAEFLARTACTSVEEFQVFKKLLAREEEESESSTSDDKRASLDEDEDDDDEEDNDEDDNDEDDDDEDDDEAEDNDEDEDDDEEE

Entity 16 polymer

描述 description	39S ribosomal protein L38, mitochondrial
分子量 formula_weight	44659.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	6

MAAPWWRAALCECRRWRGFSTSAVLGRRTPPLGPMPNSDIDLSNLERLEKYRSFDRYRRRAEQEAQAPHWWRTYREYFGEKTDPKEKIDIGLPPPKVSRTQQLLERKQAIQELRANVEEERAARLRTASVPLDAVRAEWERTCGPYHKQRLAEYYGLYRDLFHGATFVPRVPLHVAYAVGEDDLMPVYCGNEVTPTEAAQAPEVTYEAEEGSLWTLLLTSLDGHLLEPDAEYLHWLLTNIPGNRVAEGQVTCPYLPPFPARGSGIHRLAFLLFKQDQPIDFSEDARPSPCYQLAQRTFRTFDFYKKHQETMTPAGLSFFQCRWDDSVTYIFHQLLDMREPVFEFVRPPPYHPKQKRFPHRQPLRYLDRYRDSHEPTYGIY

Entity 17 polymer

描述 description	39S ribosomal protein L47, mitochondrial
分子量 formula_weight	29508.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

MAAAGLALLCRRVSSALKSSRSLITPQVPACTGFFLSLLPKSTPNVTSFHQYRLLHTTLSRKGLEEFFDDPKNWGQEKVKSGAAWTCQQLRNKSNEDLHKLWYVLLKERNMLLTLEQEAKRQRLPMPSPERLDKVVDSMDALDKVVQEREDALRLLQTGQERARPGAWRRDIFGRIIWHKFKQWVIPWHLNKRYNRKRFFALPYVDHFLRLEREKRARIKARKENLERKKAKILLKKFPHLAEAQKSSLV

Entity 18 polymer

描述 description	Mitochondrial ribosome-associated GTPase 1
分子量 formula_weight	37292.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	z

MRLTPRALCSAAQAAWRENFPLCGRDVARWFPGHMAKGLKKMQSSLKLVDCIIEVHDARIPLSGRNPLFQETLGLKPHLLVLNKMDLADLTEQQKIMQHLEGEGLKNVIFTNCVKDENVKQIIPMVTELIGRSHRYHRKENLEYCIMVIGVPNVGKSSLINSLRRQHLRKGKATRVGGEPGITRAVMSKIQVSERPLMFLLDTPGVLAPRIESVETGLKLALCGTVLDHLVGEETMADYLLYTLNKHQRFGYVQHYGLGSACDNVERVLKSVAVKLGKTQKVKVLTGTGNVNIIQPNYPAAARDFLQTFRRGLLGSVMLDLDVLRGHPPAETLP

Entity 19 polymer

描述 description	39S ribosomal protein L39, mitochondrial
分子量 formula_weight	38764.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	7

MEALAMGSRALRLWLVAPGGGIKWRFIATSSASQLSPTELTEMRNDLFNKEKARQLSLTPRTEKIEVKHVGKTDPGTVFVMNKNISTPYSCAMHLSEWYCRKSILALVDGQPWDMYKPLTKSCEIKFLTFKDCDPGEVNKAYWRSCAMMMGCVIERAFKDEYMVNLVRAPEVPVISGAFCYDVVLDSKLDEWMPTKENLRSFTKDAHALIYKDLPFETLEVEAKVALEIFQHSKYKVDFIEEKASQNPERIVKLHRIGDFIDVSEGPLIPRTSICFQYEVSAVHNLQPTQPSLIRRFQGVSLPVHLRAHFTIWDKLLERSRKMVTEDQSKATEECTST

Entity 20 polymer

描述 description	39S ribosomal protein L30, mitochondrial
分子量 formula_weight	18582.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

MAGILRLVVQWPPGRLQTVTKGVESLICTDWIRHKFTRSRIPEKVFQASPEDHEKYGGDPQNPHKLHIVTRIKSTRRRPYWEKDIIKMLGLEKAHTPQVHKNIPSVNAKLKVVKHLIRIKPLKLPQGLPAEENMSNTCLKSTGELVVQWHLKPVEQKAHES

Entity 21 polymer

描述 description	39S ribosomal protein L40, mitochondrial
分子量 formula_weight	24534.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	8

MTASVLRSISLALRPTSGLLGTWQTQLRETHQRASLLSFWELIPMRSEPLRKKKKVDPKKDQEAKERLKRKIRKLEKATQELIPIEDFITPLKFLDKARERPQVELTFEETERRALLLKKWSLYKQQERKMERDTIRAMLEAQQEALEELQLESPKLHAEAIKRDPNLFPFEKEGPHYTPPIPNYQPPEGRYNDITKVYTQVEFKR

Entity 22 polymer

描述 description	39S ribosomal protein L42, mitochondrial
分子量 formula_weight	16691.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a

MAVAAVKWVMSKRTILKHLFPVQNGALYCVCHKSTYSPLPDDYNCNVELALTSDGRTIVCYHPSVDIPYEHTKPIPRPDPVHNNEETHDQVLKTRLEEKVEHLEEGPMIEQLSKMFFTTKHRWYPHGRYHRCRKNLNPPKDR

Entity 23 polymer

描述 description	39S ribosomal protein L41, mitochondrial
分子量 formula_weight	15404.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	9

MGVLAAAARCLVRGADRMSKWTSKRGPRSFRGRKGRGAKGIGFLTSGWRFVQIKEMVPEFVVPDLTGFKLKPYVSYLAPESEETPLTAAQLFSEAVAPAIEKDFKDGTFDPDNLEKYGFEPTQEGKLFQLYPRNFLR

Entity 24 polymer

描述 description	Large ribosomal subunit protein mL43
分子量 formula_weight	23352.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	b

XTARGTPSRFLASVLHNGLGRYVQQLQRLSFSVSRDGASSRGAREFVEREVIDFARRNPGVVIYVNSRPCCVPRVVAEYLNGAVREESIHCKSVEEISTLVQKLADQSGLDVIRIRKPFHTDNPSIQGQWHPFTNKPTTFRGLRPREVQDPAPAQDTGLRLSAVAPQILLPGWPDPPDLPTVDPISSSLTSAPAPMLSAVSCLPIVPALTTVCSA

Entity 25 polymer

描述 description	16S rRNA + pre-H68-71 segment
分子量 formula_weight	509550.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	A

GCUAAACCUAGCCCCAAACCCACUCCACCUUACUACCAGACAACCUUAGCCAAACCAUUUACCCAAAUAAAGUAUAGGCGAUAGAAAUUGAAACCUGGCGCAAUAGAUAUAGUACCGCAAGGGAAAGAUGAAAAAUUAUAACCAAGCAUAAUAUAGCAAGGACUAACCCCUAUACCUUCUGCAUAAUGAAUUAACUAGAAAUAACUUUGCAAGGAGAGCCAAAGCUAAGACCCCCGAAACCAGACGAGCUACCUAAGAACAGCUAAAAGAGCACACCCGUCUAUGUAGCAAAAUAGUGGGAAGAUUUAUAGGUAGAGGCGACAAACCUACCGAGCCUGGUGAUAGCUGGUUGUCCAAGAUAGAAUCUUAGUUCAACUUUAAAUUUGCCCACAGAACCCUCUAAAUCCCCUUGUAAAUUUAACUGUUAGUCCAAAGAGGAACAGCUCUUUGGACACUAGGAAAAAACCUUGUAGAGAGAGUAAAAAAUUUAACACCCAUAGUAGGCCUAAAAGCAGCCACCAAUUAAGAAAGCGUUCAAGCUCAACACCCACUACCUAAAAAAUCCCAAACAUAUAACUGAACUCCUCACACCCAAUUGGACCAAUCUAUCACCCUAUAGAAGAACUAAUGUUAGUAUAAGUAACAUGAAAACAUUCUCCUCCGCAUAAGCCUGCGUCAGAUUAAAACACUGAACUGACAAUUAACAGCCCAAUAUCUACAAUCAACCAACAAGUCAUUAUUACCCUCACUGUCAACCCAACACAGGCAUGCUCAUAAGGAAAGGUUAAAAAAAGUAAAAGGAACUCGGCAAAUCUUACCCCGCCUGUUUACCAAAAACAUCACCUCUAGCAUCACCAGUAUUAGAGGCACCGCCUGCUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUCCAGUGACACAUGUUUAACGGCCGCGGUACCCUAACCGUGCAAAGGUAGCAUAAUCACUUGUUCCUUAAAUAGGGACCUGUAUGAAUGGCUCCACGAGGGUUCAGCUGUCUCUUACUUUUAACCAGUGAAAUUGACCUGCCCGUGAAGAGGCGGGCAUAACACAGCAAGACGAGAAGACCCUAUGGAGCUUUAAUUUAUUAAUGCAAACAGUACCUAACAAACCCACAGGUCCUAAACUACCAAACCUGCAUUAAAAAUUUCGGUUGGGGCGACCUCGGAGCAGAACCCAACCUCCGAGCAGUACAUGCUAAGACUUCACCAGUCAAAGCGAACUACUAUACUCAAUUGAUCCAAUAACUUGACCAACGGAACAAGUUACCCUAGGGAUAACAGCGCAAUCCUAUUCUAGAGUCCAUAUCAACAAUAGGGUUUACGACCUCGAUGUUGGAUCAGGACAUCCCGAUGGUGCAGCCGCUAUUAAAGGUUCGUUUGUUCAACGAUUAAAGUCCUACGUGAUCUGAGUUCAGACCGGAGUAAUCCAGGUCGGUUUCUAUCUACUUUCAAAUUCCUCCCUGUACGAAAGGACAAGAGAAAUAAGGCCUACUUCACAAAGCGCCUUCCCCCGUAAAUGAUAUCAUCUCAACUUAGUAUUAUACCCACACCCACCCAAGAACAGGGUU

Entity 26 polymer

描述 description	39S ribosomal protein L44, mitochondrial
分子量 formula_weight	37583.3 kDa
EC 编号 ec_number	3.1.26.-
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	c

MASGLVRLLQQGHRCLLAPVAPKLVPPVRGVKKGFRAAFRFQKELERQRLLRCPPPPVRRSEKPNWDYHAEIQAFGHRLQENFSLDLLKTAFVNSCYIKSEEAKRQQLGIEKEAVLLNLKSNQELSEQGTSFSQTCLTQFLEDEYPDMPTEGIKNLVDFLTGEEVVCHVARNLAVEQLTLSEEFPVPPAVLQQTFFAVIGALLQSSGPERTALFIRDFLITQMTGKELFEMWKIINPMGLLVEELKKRNVSAPESRLTRQSGGTTALPLYFVGLYCDKKLIAEGPGETVLVAEEEAARVALRKLYGFTENRRPWNYSKPKETLRAEKSITAS

Entity 27 polymer

描述 description	CP tRNA-Val
分子量 formula_weight	22961.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	B

CAGAGUGUAGCUUAACACAAAGCACCCAACUUACACUUAGGAGAUUUCAACUUAACUUGACCGCUCUGACCA

Entity 28 polymer

描述 description	39S ribosomal protein L45, mitochondrial
分子量 formula_weight	35402.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d

MAAPIPQGFSCLSRFLGWWFRQPVLVTQSAAIVPVRTKKRFTPPIYQPKFKTEKEFMQHARKAGLVIPPEKSDRSIHLACTAGIFDAYVPPEGDARISSLSKEGLIERTERMKKTMASQVSIRRIKDYDANFKIKDFPEKAKDIFIEAHLCLNNSDHDRLHTLVTEHCFPDMTWDIKYKTVRWSFVESLEPSHVVQVRCSSMMNQGNVYGQITVRMHTRQTLAIYDRFGRLMYGQEDVPKDVLEYVVFEKQLTNPYGSWRMHTKIVPPWAPPKQPILKTVMIPGPQLKPEEEYEEAQGEAQKPQLA

Entity 29 polymer

描述 description	39S ribosomal protein L2, mitochondrial
分子量 formula_weight	33355.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MALCALTRALRSLNLAPPTVAAPAPSLFPAAQMMNNGLLQQPSALMLLPCRPVLTSVALNANFVSWKSRTKYTITPVKMRKSGGRDHTGRIRVHGIGGGHKQRYRMIDFLRFRPEETKSGPFEEKVIQVRYDPCRSADIALVAGGSRKRWIIATENMQAGDTILNSNHIGRMAVAAREGDAHPLGALPVGTLINNVESEPGRGAQYIRAAGTCGVLLRKVNGTAIIQLPSKRQMQVLETCVATVGRVSNVDHNKRVIGKAGRNRWLGKRPNSGRWHRKGGWAGRKIRPLPPMKSYVKLPSASAQS

Entity 30 polymer

描述 description	39S ribosomal protein L46, mitochondrial
分子量 formula_weight	31748.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e

MAAPVRRTLLGVAGGWRRFERLWAGSLSSRSLALAAAPSSNGSPWRLLGALCLQRPPVVSKPLTPLQEEMASLLQQIEIERSLYSDHELRALDENQRLAKKKADLHDEEDEQDILLAQDLEDMWEQKFLQFKLGARITEADEKNDRTSLNRKLDRNLVLLVREKFGDQDVWILPQAEWQPGETLRGTAERTLATLSENNMEAKFLGNAPCGHYTFKFPQAMRTESNLGAKVFFFKALLLTGDFSQAGNKGHHVWVTKDELGDYLKPKYLAQVRRFVSDL

Entity 31 polymer

描述 description	39S ribosomal protein L3, mitochondrial
分子量 formula_weight	38689.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MPGWRLLTQVGAQVLGRLGDGLGAALGPGNRTHIWLFVRGLHGKSGTWWDEHLSEENVPFIKQLVSDEDKAQLASKLCPLKDEPWPIHPWEPGSFRVGLIALKLGMMPLWTKDGQKHVVTLLQVQDCHVLKYTSKENCNGKMATLSVGGKTVSRFRKATSILEFYRELGLPPKQTVKIFNITDNAAIKPGTPLYAAHFRPGQYVDVTAKTIGKGFQGVMKRWGFKGQPATHGQTKTHRRPGAVATGDIGRVWPGTKMPGKMGNIYRTEYGLKVWRINTKHNIIYVNGSVPGHKNCLVKVKDSKLPAYKDLGKNLPFPTYFPDGDEEELPEDLYDENVCQPGAPSITFA

Entity 32 polymer

描述 description	39S ribosomal protein L48, mitochondrial
分子量 formula_weight	23970.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	f

MSGTLEKVLCLRNNTIFKQAFSLLRFRTSGEKPIYSVGGILLSISRPYKTKPTHGIGKYKHLIKAEEPKKKKGKVEVRAINLGTDYEYGVLNIHLTAYDMTLAESYAQYVHNLCNSLSIKVEESYAMPTKTIEVLQLQDQGSKMLLDSVLTTHERVVQISGLSATFAEIFLEIIQSSLPEGVRLSVKEHTEEDFKGRFKARPELEELLAKLK

Entity 33 polymer

描述 description	39S ribosomal protein L4, mitochondrial
分子量 formula_weight	34970.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MLQFVRAGARAWLRPTGSQGLSSLAEEAARATENPEQVASEGLPEPVLRKVELPVPTHRRPVQAWVESLRGFEQERVGLADLHPDVFATAPRLDILHQVAMWQKNFKRISYAKTKTRAEVRGGGRKPWPQKGTGRARHGSIRSPLWRGGGVAHGPRGPTSYYYMLPMKVRALGLKVALTVKLAQDDLHIMDSLELPTGDPQYLTELAHYRRWGDSVLLVDLTHEEMPQSIVEATSRLKTFNLIPAVGLNVHSMLKHQTLVLTLPTVAFLEDKLLWQDSRYRPLYPFSLPYSDFPRPLPHATQGPAATPYHC

Entity 34 polymer

描述 description	39S ribosomal protein L49, mitochondrial
分子量 formula_weight	19225.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	g

MAATMFRATLRGWRTGVQRGCGLRLLSQTQGPPDYPRFVESVDEYQFVERLLPATRIPDPPKHEHYPTPSGWQPPRDPPPNLPYFVRRSRMHNIPVYKDITHGNRQMTVIRKVEGDIWALQKDVEDFLSPLLGKTPVTQVNEVTGTLRIKGYFDQELKAWLLEKGF

Entity 35 polymer

描述 description	39S ribosomal protein L9, mitochondrial
分子量 formula_weight	30296.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MAAPVVTAPGRALLRAGAGRLLRGGVQELLRPRHEGNAPDLACNFSLSQNRGTVIVERWWKVPLAGEGRKPRLHRRHRVYKLVEDTKHRPKENLELILTQSVENVGVRGDLVSVKKSLGRNRLLPQGLAVYASPENKKLFEEEKLLRQEGKLEKIQTKAGEATVKFLKSCRLEVGMKNNVKWELNPEIVARHFFKNLGVVVAPHTLKLPEEPITRWGEYWCEVTVNGLDTVRVPMSVVNFEKPKTKRYKYWLAQQAAKAMAPTSPQI

Entity 36 polymer

描述 description	39S ribosomal protein L50, mitochondrial
分子量 formula_weight	18349.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	h

MAARSVSGITRRVFMWTVSGTPCREFWSRFRKEKEPVVVETVEEKKEPILVCPPLRSRAYTPPEDLQSRLESYVKEVFGSSLPSNWQDISLEDSRLKFNLLAHLADDLGHVVPNSRLHQMCRVRDVLDFYNVPIQDRSKFDELSASNLPPNLKITWSY

Entity 37 polymer

描述 description	39S ribosomal protein L10, mitochondrial
分子量 formula_weight	29322.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MAAAVAGMLRGGLLPQAGRLPTLQTVRYGSKAVTRHRRVMHFQRQKLMAVTEYIPPKPAIHPSCLPSPPSPPQEEIGLIRLLRREIAAVFQDNRMIAVCQNVALSAEDKLLMRHQLRKHKILMKVFPNQVLKPFLEDSKYQNLLPLFVGHNMLLVSEEPKVKEMVRILRTVPFLPLLGGCIDDTILSRQGFINYSKLPSLPLVQGELVGGLTCLTAQTHSLLQHQPLQLTTLLDQYIREQREKDSVMSANGKPDPDTVPDS

Entity 38 polymer

描述 description	39S ribosomal protein L51, mitochondrial
分子量 formula_weight	15125.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	i

MAGNLLSGAGRRLWDWVPLACRSFSLGVPRLIGIRLTLPPPKVVDRWNEKRAMFGVYDNIGILGNFEKHPKELIRGPIWLRGWKGNELQRCIRKRKMVGSRMFADDLHNLNKRIRYLYKHFNRHGKFR

Entity 39 polymer

描述 description	39S ribosomal protein L11, mitochondrial
分子量 formula_weight	20716.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MSKLGRAARGLRKPEVGGVIRAIVRAGLAMPGPPLGPVLGQRGVSINQFCKEFNERTKDIKEGIPLPTKILVKPDRTFEIKIGQPTVSYFLKAAAGIEKGARQTGKEVAGLVTLKHVYEIARIKAQDEAFALQDVPLSSVVRSIIGSARSLGIRVVKDLSSEELAAFQKERAIFLAAQKEADLAAQEEAAKK

Entity 40 polymer

描述 description	39S ribosomal protein L52, mitochondrial
分子量 formula_weight	13682.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	j

MAALGTVLFTGVRRLHCSVAAWAGGQWRLQQGLAANPSGYGPLTELPDWSYADGRPAPPMKGQLRRKAERETFARRVVLLSQEMDAGLQAWQLRQQKLQEEQRKQENALKPKGASLKSPLPSQ

Entity 41 polymer

描述 description	39S ribosomal protein L13, mitochondrial
分子量 formula_weight	20765.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MSSFSRAPQQWATFARIWYLLDGKMQPPGKLAAMASIRLQGLHKPVYHALSDCGDHVVIMNTRHIAFSGNKWEQKVYSSHTGYPGGFRQVTAAQLHLRDPVAIVKLAIYGMLPKNLHRRTMMERLHLFPDEYIPEDILKNLVEELPQPRKIPKRLDEYTQEEIDAFPRLWTPPEDYRL

Entity 42 polymer

描述 description	39S ribosomal protein L53, mitochondrial
分子量 formula_weight	12167.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	k

MAAALARLGLRPVKQVRVQFCPFEKNVESTRTFLQTVSSEKVRSTNLNCSVIADVRHDGSEPCVDVLFGDGHRLIMRGAHLTALEMLTAFASHIRARDAAGSGDKPGADTGR

Entity 43 polymer

描述 description	39S ribosomal protein L14, mitochondrial
分子量 formula_weight	15973.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MAFFTGLWGPFTCVSRVLSHHCFSTTGSLSAIQKMTRVRVVDNSALGNSPYHRAPRCIHVYKKNGVGKVGDQILLAIKGQKKKALIVGHCMPGPRMTPRFDSNNVVLIEDNGNPVGTRIKTPIPTSLRKREGEYSKVLAIAQNFV

Entity 44 polymer

描述 description	39S ribosomal protein L54, mitochondrial
分子量 formula_weight	15844.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	l

MATKRLFGATRTWAGWGAWELLNPATSGRLLARDYAKKPVMKGAKSGKGAVTSEALKDPDVCTDPVQLTTYAMGVNIYKEGQDVPLKPDAEYPEWLFEMNLGPPKTLEELDPESREYWRRLRKQNIWRHNRLSKNKRL

Entity 45 polymer

描述 description	39S ribosomal protein L15, mitochondrial
分子量 formula_weight	33473.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MAGPLQGGGARALDLLRGLPRVSLANLKPNPGSKKPERRPRGRRRGRKCGRGHKGERQRGTRPRLGFEGGQTPFYIRIPKYGFNEGHSFRRQYKPLSLNRLQYLIDLGRVDPSQPIDLTQLVNGRGVTIQPLKRDYGVQLVEEGADTFTAKVNIEVQLASELAIAAIEKNGGVVTTAFYDPRSLDIVCKPVPFFLRGQPIPKRMLPPEELVPYYTDAKNRGYLADPAKFPEARLELARKYGYILPDITKDELFKMLCTRKDPRQIFFGLAPGWVVNMADKKILKPTDENLLKYYTS

Entity 46 polymer

描述 description	39S ribosomal protein L55, mitochondrial
分子量 formula_weight	15160.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	m

MAAVGSLLGRLRQSTVKATGPALRRLHTSSWRADSSRASLTRVHRQAYARLYPVLLVKQDGSTIHIRYREPRRMLAMPIDLDTLSPEERRARLRKREAQLQSRKEYEQELSDDLHVERYRQFWTRTKK

Entity 47 polymer

描述 description	39S ribosomal protein L16, mitochondrial
分子量 formula_weight	28496.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MWRLLARASAPLLRVPLSDSWALLPASAGVKTLLPVPSFEDVSIPEKPKLRFIERAPLVPKVRREPKNLSDIRGPSTEATEFTEGNFAILALGGGYLHWGHFEMMRLTINRSMDPKNMFAIWRVPAPFKPITRKSVGHRMGGGKGAIDHYVTPVKAGRLVVEMGGRCEFEEVQGFLDQVAHKLPFAAKAVSRGTLEKMRKDQEERERNNQNPWTFERIATANMLGIRKVLSPYDLTHKGKYWGKFYMPKRV

Entity 48 polymer

描述 description	Ribosomal protein 63, mitochondrial
分子量 formula_weight	12292.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	o

MFLTALLWRGRIPGRQWIGKHRRPRFVSLRAKQNMIRRLEIEAENHYWLSMPYMTREQERGHAAVRRREAFEAIKAAATSKFPPHRFIADQLDHLNVTKKWS

Entity 49 polymer

描述 description	39S ribosomal protein L17, mitochondrial
分子量 formula_weight	20083.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MRLSVAAAISHGRVFRRMGLGPESRIHLLRNLLTGLVRHERIEAPWARVDEMRGYAEKLIDYGKLGDTNERAMRMADFWLTEKDLIPKLFQVLAPRYKDQTGGYTRMLQIPNRSLDRAKMAVIEYKGNCLPPLPLPRRDSHLTLLNQLLQGLRQDLRQSQEASNHSSHTAQTPGI

Entity 50 polymer

描述 description	Peptidyl-tRNA hydrolase ICT1, mitochondrial
分子量 formula_weight	23674.2 kDa
EC 编号 ec_number	3.1.1.29
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	p

MAATRCLRWGLSRAGVWLLPPPARCPRRALHKQKDGTEFKSIYSLDKLYPESQGSDTAWRVPNGAKQADSDIPLDRLTISYCRSSGPGGQNVNKVNSKAEVRFHLATAEWIAEPVRQKIAITHKNKINRLGELILTSESSRYQFRNLADCLQKIRDMITEASQTPKEPTKEDVKLHRIRIENMNRERLRQKRIHSAVKTSRRVDMD

Entity 51 polymer

描述 description	39S ribosomal protein L18, mitochondrial
分子量 formula_weight	20607.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MALRSRFWGLFSVCRNPGCRFAALSTSSEPAAKPEVDPVENEAVAPEFTNRNPRNLELLSVARKERGWRTVFPSREFWHRLRVIRTQHHVEALVEHQNGKVVVSASTREWAIKKHLYSTRNVVACESIGRVLAQRCLEAGINFMVYQPTPWEAASDSMKRLQSAMTEGGVVLREPQRIYE

Entity 52 polymer

描述 description	Growth arrest and DNA damage-inducible proteins-interacting protein 1
分子量 formula_weight	25426.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	q

MAASVRQARSLLGVAATLAPGSRGYRARPPPRRRPGPRWPDPEDLLTPRWQLGPRYAAKQFARYGAASGVVPGSLWPSPEQLRELEAEEREWYPSLATMQESLRVKQLAEEQKRREREQHIAECMAKMPQMIVNWQQQQRENWEKAQADKERRARLQAEAQELLGYQVDPRSARFQELLQDLEKKERKRLKEEKQKRKKEARAAALAAAVAQDPAASGAPSS

Entity 53 polymer

描述 description	39S ribosomal protein L19, mitochondrial
分子量 formula_weight	33585.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MAACIAAGHWAAMGLGRSFQAARTLLPPPASIACRVHAGPVRQQSTGPSEPGAFQPPPKPVIVDKHRPVEPERRFLSPEFIPRRGRTDPLKFQIERKDMLERRKVLHIPEFYVGSILRVTTADPYASGKISQFLGICIQRSGRGLGATFILRNVIEGQGVEICFELYNPRVQEIQVVKLEKRLDDSLLYLRDALPEYSTFDVNMKPVVQEPNQKVPVNELKVKMKPKPWSKRWERPNFNIKGIRFDLCLTEQQMKEAQKWNQPWLEFDMMREYDTSKIEAAIWKEIEASKRS

Entity 54 polymer

描述 description	39S ribosomal protein S18a, mitochondrial
分子量 formula_weight	22224.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	r

MAALKALVSGCGRLLRGLLAGPAATSWSRLPARGFREVVETQEGKTTIIEGRITATPKESPNPPNPSGQCPICRWNLKHKYNYDDVLLLSQFIRPHGGMLPRKITGLCQEEHRKIEECVKMAHRAGLLPNHRPRLPEGVVPKSKPQLNRYLTRWAPGSVKPIYKKGPRWNRVRMPVGSPLLRDNVCYSRTPWKLYH

Entity 55 polymer

描述 description	39S ribosomal protein L20, mitochondrial
分子量 formula_weight	17479.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

MVFLTAQLWLRNRVTDRYFRIQEVLKHARHFRGRKNRCYRLAVRTVIRAFVKCTKARYLKKKNMRTLWINRITAASQEHGLKYPALIGNLVKCQVELNRKVLADLAIYEPKTFKSLAALASRRRHEGFAAALGDGKEPEGIFSRVVQYH

Entity 56 polymer

描述 description	39S ribosomal protein S30, mitochondrial
分子量 formula_weight	50429.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	s

MAAARCWRPLLRGPRLSLHTAANAAATATETTCQDVAATPVARYPPIVASMTADSKAARLRRIERWQATVHAAESVDEKLRILTKMQFMKYMVYPQTFALNADRWYQYFTKTVFLSGLPPPPAEPEPEPEPEPEPALDLAALRAVACDCLLQEHFYLRRRRRVHRYEESEVISLPFLDQLVSTLVGLLSPHNPALAAAALDYRCPVHFYWVRGEEIIPRGHRRGRIDDLRYQIDDKPNNQIRISKQLAEFVPLDYSVPIEIPTIKCKPDKLPLFKRQYENHIFVGSKTADPCCYGHTQFHLLPDKLRRERLLRQNCADQIEVVFRANAIASLFAWTGAQAMYQGFWSEADVTRPFVSQAVITDGKYFSFFCYQLNTLALTTQADQNNPRKNICWGTQSKPLYETIEDNDVKGFNDDVLLQIVHFLLNRPKEEKSQLLEN

Entity 57 polymer

描述 description	39S ribosomal protein L21, mitochondrial
分子量 formula_weight	22847.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MAASSLTVTLGRLASACSHSILRPSGPGAASLWSASRRFNSQSTSYLPGYVPKTSLSSPPWPEVVLPDPVEETRHHAEVVKKVNEMIVTGQYGRLFAVVHFASRQWKVTSEDLILIGNELDLACGERIRLEKVLLVGADNFTLLGKPLLGKDLVRVEATVIEKTESWPRIIMRFRKRKNFKKKRIVTTPQTVLRINSIEIAPCLL

Entity 58 polymer

描述 description	GTP-binding protein 10
分子量 formula_weight	42996.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	t

MVHCSCVLFRKYGNFIDKLRLFTRGGSGGMGYPRLGGEGGKGGDVWVVAQNRMTLKQLKDRYPRKRFVAGVGANSKISALKGSKGKDCEIPVPVGISVTDENGKIIGELNKENDRILVAQGGLGGKLLTNFLPLKGQKRIIHLDLKLIADVGLVGFPNAGKSSLLSCVSHAKPAIADYAFTTLKPELGKIMYSDFKQISVADLPGLIEGAHMNKGMGHKFLKHIERTRQLLFVVDISGFQLSSHTQYRTAFETIILLTKELELYKEELQTKPALLAVNKMDLPDAQDKFHELMSQLQNPKDFLHLFEKNMIPERTVEFQHIIPISAVTGEGIEELKNCIRKSLDEQANQENDALHKKQLLNLWISDTMSSTEPPSKHAVTTSKMDII

Entity 59 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 60 non-polymer

描述 description	S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) DECANETHIOATE
分子量 formula_weight	496.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 61 non-polymer

描述 description	S-ADENOSYLMETHIONINE
分子量 formula_weight	398.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 62 non-polymer

描述 description	PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER
分子量 formula_weight	522.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 63 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	96

Entity 64 non-polymer

描述 description	POTASSIUM ION
分子量 formula_weight	39.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	10

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.03 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	31656

fit	/app/data/saxs_computation/pk/8pk0/8pk0.fit
pddf	/app/data/pr_computation/pk/8pk0/8pk0.pr.out
profile	/app/data/saxs_computation/pk/8pk0/8pk0.dat

human mitoribosomal large subunit assembly intermediate 1 with GTPBP10-GTPBP7

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

冷冻电镜 EM 3D

5. 实体与聚合体信息 (64)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

Entity 29 polymer

聚合体 Polymer

Entity 30 polymer

聚合体 Polymer

Entity 31 polymer

聚合体 Polymer

Entity 32 polymer

聚合体 Polymer

Entity 33 polymer

聚合体 Polymer

Entity 34 polymer

聚合体 Polymer

Entity 35 polymer
