8q56

PglX methyltransferase of Salmonella BREX phage defence system (aka BrxX) bound to inhibitor Ocr

Method: X-RAY DIFFRACTION D_max: 129.3 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

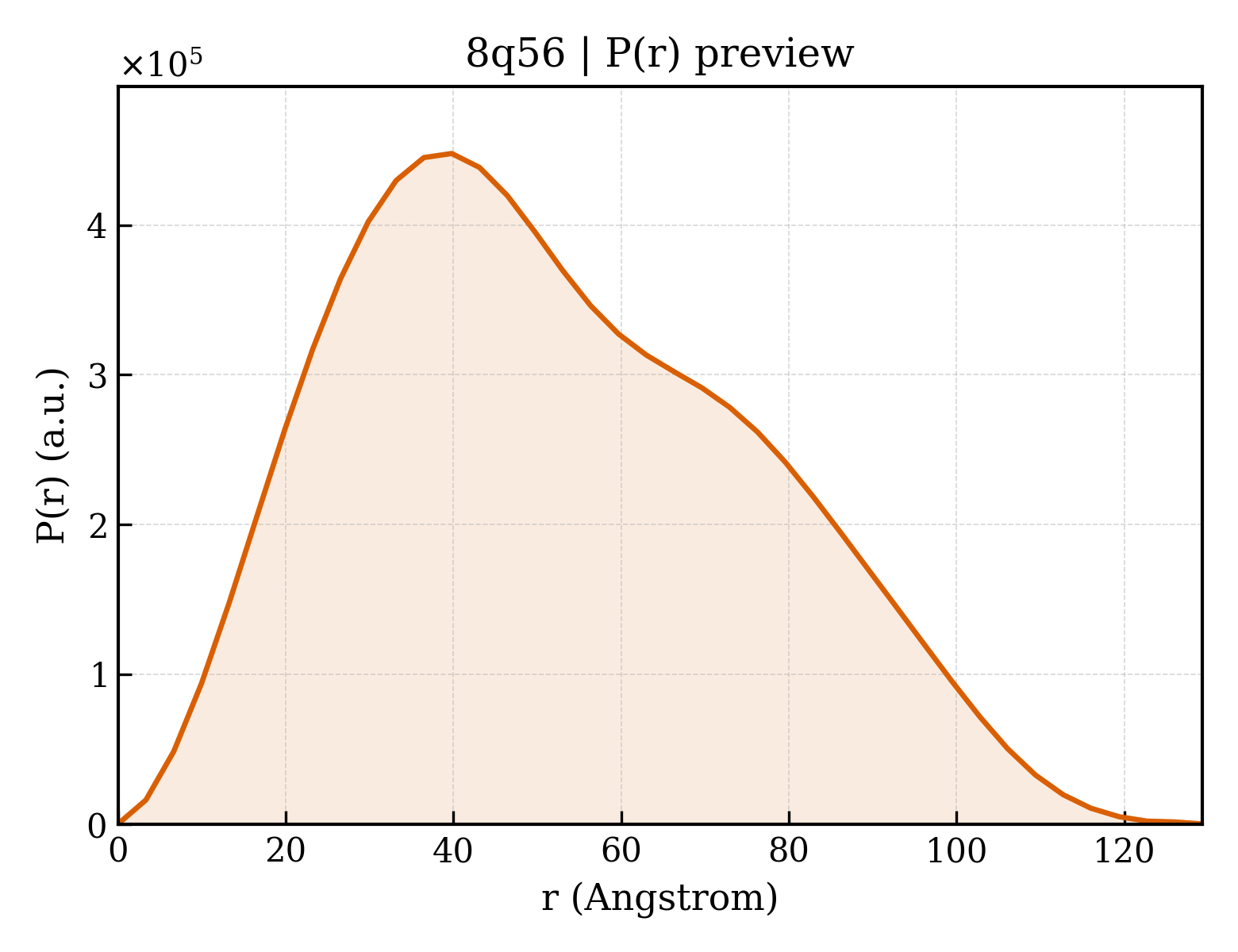

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8q56
沉积日期 deposition_date	2023-08-08
结构标题 title	PglX methyltransferase of Salmonella BREX phage defence system (aka BrxX) bound to inhibitor Ocr
关键词 keywords	Methyltransferase, Phage defense, DNA binding, DNA BINDING PROTEIN; DNA BINDING PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	40.32 Å
回转半径 Rg (电子) rg_electron	39.82 Å
零角强度 I(0) i0	345784000.00
分子量 molecular_weight	152770.0 kDa
排除体积 excluded_volume	191420 Å³
包络体积 envelope_volume	253420 Å³
水化壳体积 shell_volume	53159 Å³
包络直径 envelope_diameter	137.3 Å
壳层 Rg shell_rg	45.02 Å
包络 Rg envelope_rg	39.59 Å
形状 Rg shape_rg	39.81 Å
总 Rg total_rg	40.14 Å
总原子数 total_atoms	10796
残基数 n_residues	1318
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	129.3 Å
Rg (实空间) rg_real	40.40 Å
Rg 误差 (实空间) rg_real_error	0.99 Å
I(0) (实空间) i0_real	3.4580e+08
I(0) 误差 (实空间) i0_real_error	5.6310e+06
Rg (倒空间) rg_reciprocal	40.32 Å
I(0) (倒空间) i0_reciprocal	345800000.0000
解质量估计 total_estimate	0.8660
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	39.8 Å
偏度 Skewness skewness	0.347
峰度 Kurtosis kurtosis	-0.632
角度范围 angular_range	— – 0.1950 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	78560000.0000
实空间数据点数 n_real_points	40
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.885; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.948; Smooth: 0.651

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	site-specific DNA-methyltransferase (adenine-specific)
分子量 formula_weight	141507.4 kDa
EC 编号 ec_number	2.1.1.72
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	10798

MNTNNIKKYAPQARNQFRDAVIQKLTTLGISADKKGNLQIADAELVGETMRYGQFDYPKSTLTRRDRLVKRAREQGFDVLVEHCAYTWFNRLCAIRYMEIHGYLDHGFHMLSHPDNPTGFEVLDHVPEVAEALLPEKKAQLVEMKLSGNQDEAIYRELLLAQCHALHRAMPFLFEAVDDEAELLLPDNLTRTDSILRGLVDGIPEEDWQEVEVIGWLYQFYISEKKDAVIGKVVKSEDIPAATQLFTPNWIVQYLVQNSVGRQWLQTYPDSPLKGKMDYYIEPAEQTPEVQAQLAAITPASIEPESIKVLDPACGSGHILIEVYNVLKNIYEERGYRARDIPQLILENNIFGLDIDDRAAQLSGFALLMMARQDDRRIFTRDVRLNIVSLQESLHLDIAKLWQQLNFHQQNQTGSMGDMFAENTALAHTDSAEYQLLMRTLKRFVNAKTLGSLIQVPQEEEAELKAFLEALYRMEQEGDFQQKAAAKAFIPYIQQAWILAQRYDAVVANPPYMGGKGMNSELKEFAKNNFPDSKADLFAMFMQNAFSLLKENGFNAQVNMQSWMFLSSYEALRNWLLDNKTFITMAHLGARAFGQISGEVVQTTAWVIKNQHSERYQPVFFRLIDGREEVKKSDLLLRKNIFDKFTQHDFKNIPGMPIAYWIDLPSLLSFRHHKKLGEKIALKAGMSTGDNIKFQRYWYEVSIKKTLITNKESNTKIDIHNIKWFPCSSGGEYRKWYGNNEIVVNWENNGYEIRNFKFENGKTRSAVRNDEYYFREGITWSKISQGNFCVRYRPKGFVFDDTGRCGFSNNKNELLYAAGLMCTPVVNHYLSILAPTLSFTSGELASVPYPEIEDEIIELVTNAIEIAKNDWDSQEQSWDYVCSPLLEHNSTQLLRNIYKQKINTNIKLVETLLLIENTINNIFIDKLQLDKTIIKAVLQSEITLLCNPNYRYKNIQDHTDLTNKYYTDITIDILSYIIGCMMGRYSLDREGLVYAHEGNKGFAELVAEDAYKTFPADNDGILPLMDDEWFDDDVTSRVKEFVRTVWGEEHLQENLEFIAESLCLYAIKPKKGESALDTIRRYLSTQFWKDHMKMYKKRPIYWLFSSGKEKAFECLVYLHRYNDATLARMRTEYVVPLLARYQANIDRLNEQVDGASGGEATRLKRERDSLSKKFNELRSFDDRLRHYADMRISIDLDDGVKVNYGKFGDLLADVKAITGNAPEII

来源 Source

来源生物 organism	Salmonella enterica subsp. enterica serovar Typhimurium str. D23580
NCBI 分类编号 ncbi_taxonomy_id	568708
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

描述 description	Protein Ocr
分子量 formula_weight	13819.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MAMSNMTYNNVFDHAYEMLKENIRYDDIRDTDDLHDAIHMAADNAVPHYYADIFSVMASEGIDLEFEDSGLMPDTKDVIRILQARIYEQLTIDLWEDAEDLLNEYLEEVEEYEEDEE

来源 Source

来源生物 organism	Escherichia phage T7
NCBI 分类编号 ncbi_taxonomy_id	10760
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 non-polymer

描述 description	S-ADENOSYLMETHIONINE
分子量 formula_weight	398.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	238.458 Å
晶胞边长 b length_b	60.786 Å
晶胞边长 c length_c	146.637 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	114.89 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	monoclinic

分辨率 resolution	3.500 Å
最低分辨率 resolution_low	59.610 Å
R 因子 r_factor	0.2518
R_work r_work	0.2462
R_free r_free	0.2917

fit	/app/data/saxs_computation/q5/8q56/8q56.fit
pddf	/app/data/pr_computation/q5/8q56/8q56.pr.out
profile	/app/data/saxs_computation/q5/8q56/8q56.dat
