SAXSdb — 8qsh

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

14-3-3 protein sigma

Homo sapiens

UniProt P31947

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	ARAF peptide pS214 × 2 2-chloranyl-~{N}-[[1-(4-iodophenyl)sulfonylpiperidin-4-yl]methyl]ethanamide × 2 MAGNESIUM ION × 7 CHLORIDE ION × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	1433S_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–236； UniProt 1–231 Author chain J； PDBConstruct 6–236； UniProt 1–231

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8qsh
Deposition date deposition_date	2023-10-10
Structure title title	Ternary structure of 14-3-3s, ARAF phosphopeptide (pS214) and compound 23 (1083848).
Keywords keywords	14-3-3, protein-protein interaction stabilizer, PEPTIDE BINDING PROTEIN; PEPTIDE BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8qsh__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8qsh__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

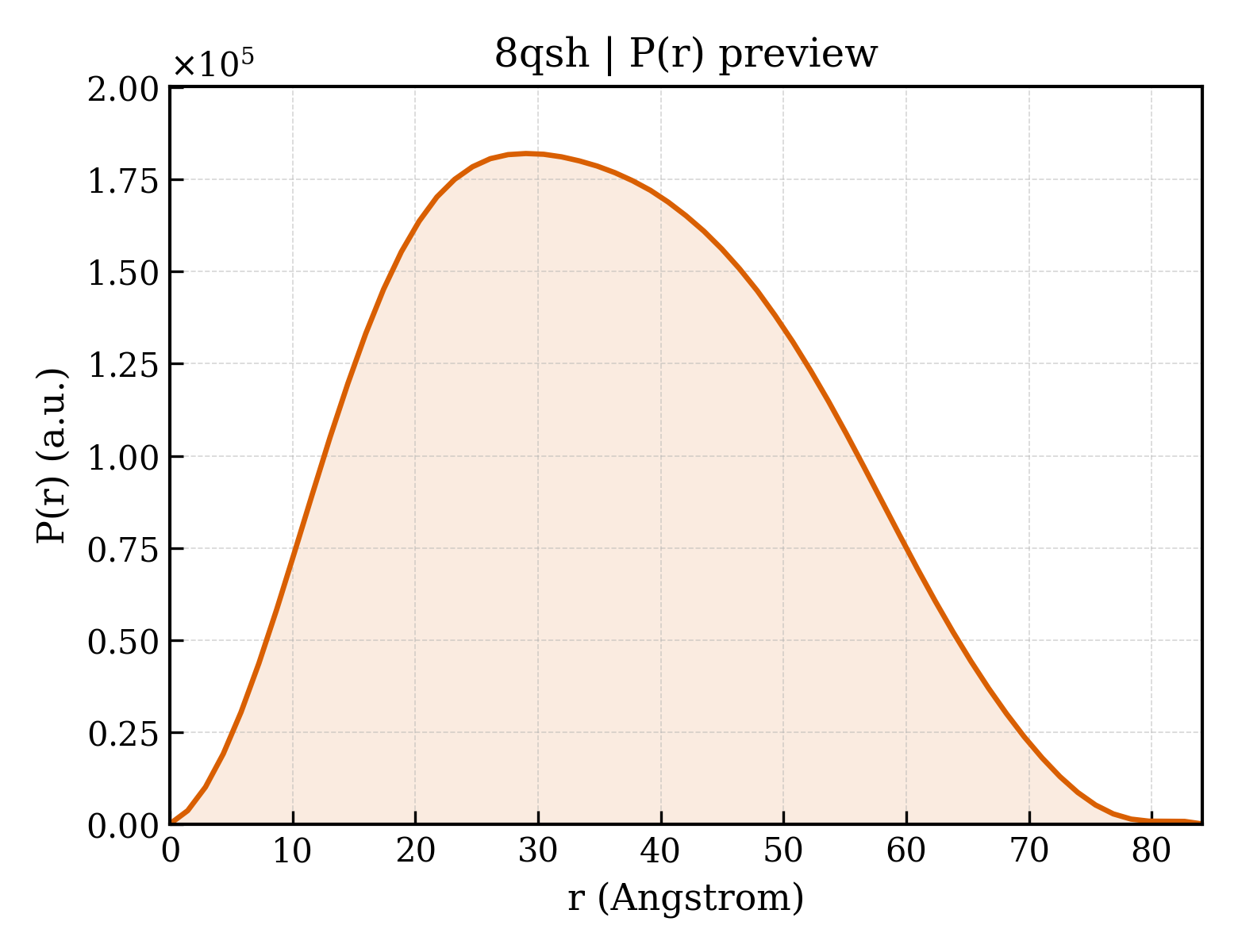

8qsh__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.61 Å
Rg (electron density)	26.72 Å
Total Rg	27.44 Å
Atom count	3886
Residues	482
Excluded volume	68794 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8qsh__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	14-3-3 protein sigma
Molecular weight formula_weight	26542.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,J
Atom count atom_count	4394

GAMGSMERASLIQKAKLAEQAERYEDMAAFMKGAVEKGEELSCEERNLLSVAYKNVVGGQRAAWRVLSSIEQKSNEEGSEEKGPEVREYREKVETELQGVCDTVLGLLDSHLIKEAGDAESRVFYLKMKGDYYRYLAEVATGDDKKRIIDSARSAYQEAMDISKKEMPPTNPIRLGLALNFSVFHYEIANSPEEAISLAKTTFDEAMADLHTLSEDSYKDSTLIMQLLRDNLTLWT

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	ARAF peptide pS214
Molecular weight formula_weight	1481.6 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,S

RIRSTSTPNVHM

Entity 3 Entity 3 non-polymer

Description description	2-chloranyl-~{N}-[[1-(4-iodophenyl)sulfonylpiperidin-4-yl]methyl]ethanamide
Molecular weight formula_weight	456.7 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 5 Entity 5 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	500

▶

Unit-cell length a length_a	61.184 Å
Unit-cell length b length_b	89.999 Å
Unit-cell length c length_c	118.089 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 2 21 21
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	54.380 Å
R factor r_factor	0.1917
R_work r_work	0.1904
R_free r_free	0.2149
