8spb

Caspase-4/Pro-IL-18 complex

Method: ELECTRON MICROSCOPY D_max: 122.0 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Caspase-4 subunit p20

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain A； UniProt 94–270 Chain B； UniProt 290–377 Chain a； UniProt 94–270 Chain b； UniProt 290–377	Not recorded	Interleukin-18 × 2 （Q14116）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.20 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8SPB	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6KMZ caspase-4 P22/P10 C258A in complex with human GSDMD-C domain Deposited 2019-08-01	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 105–289（185 aa） Chain B 105–289（185 aa） Chain a 290–377（88 aa） Chain b 290–377（88 aa）	Mutation：C258A Mutation：C258A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM Tris-HCl pH 7.5, 200 mM sodium tartrate, 20% (w/v) polyethylene glycol 3350, 5% glycerol and 4% 1,1,1,3,3,3-hexafluoro-2-propanol	Resolution 3.61 Å R-free 0.319
6KMZ caspase-4 P22/P10 C258A in complex with human GSDMD-C domain Deposited 2019-08-01	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 105–289（185 aa） Chain D 105–289（185 aa） Chain c 290–377（88 aa） Chain d 290–377（88 aa）	Mutation：C258A Mutation：C258A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM Tris-HCl pH 7.5, 200 mM sodium tartrate, 20% (w/v) polyethylene glycol 3350, 5% glycerol and 4% 1,1,1,3,3,3-hexafluoro-2-propanol	Resolution 3.61 Å R-free 0.319
6NRY Crystal structure of human caspase-4 Deposited 2019-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 92–377（286 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；25mM Bis-Tris, 20% PEG3350	Resolution 2.18 Å R-free 0.237
7WR0 P32 of caspase-4 C258A mutant Deposited 2022-01-26	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 102–377（276 aa）	Mutation：C258A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG3350, 0.2 M potassium chloride	Resolution 2.80 Å R-free 0.266
7WR1 P32 of caspase-4 C258A mutant in complex with OspC3 C-terminal ankyrin-repeat domain Deposited 2022-01-26	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 102–377（276 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；5% PEG8000, 0.1M Tris-HCl pH 7.5, % 2-propanol	Resolution 2.13 Å R-free 0.200
7WR1 P32 of caspase-4 C258A mutant in complex with OspC3 C-terminal ankyrin-repeat domain Deposited 2022-01-26	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 102–377（276 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；5% PEG8000, 0.1M Tris-HCl pH 7.5, % 2-propanol	Resolution 2.13 Å R-free 0.200
7WR4 Crystal structure of OspC3-calmodulin-caspase-4 complex Deposited 2022-01-26	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 102–377（276 aa）	Mutation：C258A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；25% PEG3350, 0.1 M HEPES pH 7.4, 0.2 M Ammonium sulfate, 0.3 M NDSB-195	Resolution 2.75 Å R-free 0.270
7WR5 Crystal structure of OspC3-calmodulin-caspase-4 complex binding with 2'-aF-NAD+ Deposited 2022-01-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 102–377（276 aa）	Mutation：C258A	5ZV [[(2~{R},3~{R},4~{S},5~{R})-5-(3-aminocarbonylpyridin-1-yl)-4-fluoranyl-3-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] [(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methyl hydrogen phosphate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG3350, 0.2 M Potassium acetate	Resolution 3.10 Å R-free 0.272
7WR6 Crystal structure of ADP-riboxanated caspase-4 in complex with Af1521 Deposited 2022-01-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 102–377（276 aa）	Mutation：C258A	5ZY [[(3~{a}~{S},5~{R},6~{R},6~{a}~{R})-2-azanylidene-3-[(4~{R})-4-azanyl-5-oxidanylidene-pentyl]-6-oxidanyl-3~{a},5,6,6~{a}-tetrahydrofuro[2,3-d][1,3]oxazol-5-yl]methoxy-oxidanyl-phosphoryl] [(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methyl hydrogen phosphate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9；293 K；27% PEG 3350, 0.05M CAPSO pH 9.0	Resolution 1.96 Å R-free 0.228
8J6K Crystal structure of pro-interleukin-18 and caspase-4 complex Deposited 2023-04-26	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 102–270（169 aa） Chain a 290–377（88 aa）	Mutation：C258A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.2 M Calcium acetate, 0.1M Tris-HCl pH 9.0, 13% PEG 8000, 0.01 M L-Glutathione reduced, 0.01 M L-Glutathione oxidized	Resolution 3.12 Å R-free 0.269

8 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CASP4_HUMAN
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 31–207； UniProt 94–270 Author chain a； PDBConstruct 31–207； UniProt 94–270 Author chain B； PDBConstruct 5–92； UniProt 290–377 Author chain b； PDBConstruct 5–92； UniProt 290–377

Interleukin-18

Homo sapiens

UniProt Q14116

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain C； UniProt 6–193 Chain c； UniProt 6–193	Not recorded	Caspase-4 subunit p20 × 2 （P49662） Caspase-4 subunit p10 × 2 （P49662）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.20 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 8SPB	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1J0S Solution structure of the human interleukin-18 Deposited 2002-11-21	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 37–193（157 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；303 K；Ionic strength (raw mmCIF value) 150mM KCl；Pressure ambient NMR sample composition 1mM interleukin-18 U-15N,13C; 50mM phosphate buffer K \| 90% H2O/10% D2O	Resolution not provided
2VXT Crystal structure of human IL-18 complexed to murine reference antibody 125-2H Fab Deposited 2008-07-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 37–193（157 aa）	Mutation：YES	CL CHLORIDE ION × 2 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；IL-18 AND 125-2H FAB WERE MIXED (1:3 MASS RATIO), INCUBATED OVERNIGHT AT 277 K, PURIFIED BY MONOQ ANION EXCHANGE CHROMATOGRAPHY, AND CONCENTRATED TO 10 MG/ML. THE COMPLEX WAS CRYSTALLIZED BY HANGING DROP VAPOR DIFFUSION BY MIXING COMPLEX (1.5 MICROLITERS [UL]) WITH 1.8 UL OF RESERVOIR SOLUTION (30% PEG 4000, 100 MM TRIS, PH 8.5, 0.2 M MGCL2) AND 0.3 UL OF 300 MM SULFO-BETAINE 201, AND SUSPENDING THE DROP OVER THE RESERVOIR AT 291 K. ROD-LIKE CRYSTALS APPEARED WITHIN ONE WEEK.	Resolution 1.49 Å R-free 0.196
3F62 Crystal Structure of Human IL-18 in complex with Ectromelia virus IL-18 Binding Protein Deposited 2008-11-05	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 37–193（157 aa） Fragment：UNP residues 37-193	Mutation：C38S, C68S, C76S, C127S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；30% Peg 3350, 0.5M KCl, 0.1M Sodium Citrate, pH 4.5, pH 7.5, VAPOR DIFFUSION, temperature 298K	Resolution 2.00 Å R-free 0.235
3WO2 Crystal structure of human interleukin-18 Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 37–193（157 aa）	Not recorded	CPS 3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 3 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100mM Bis-Tris-HCl, 2.5M ammonium sulfate, 0.2%(w/v) CHAPS, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277.0K	Resolution 2.33 Å R-free 0.271
3WO2 Crystal structure of human interleukin-18 Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 37–193（157 aa）	Not recorded	CPS 3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 3 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100mM Bis-Tris-HCl, 2.5M ammonium sulfate, 0.2%(w/v) CHAPS, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277.0K	Resolution 2.33 Å R-free 0.271
3WO2 Crystal structure of human interleukin-18 Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 37–193（157 aa）	Not recorded	CPS 3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 3 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100mM Bis-Tris-HCl, 2.5M ammonium sulfate, 0.2%(w/v) CHAPS, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277.0K	Resolution 2.33 Å R-free 0.271
3WO2 Crystal structure of human interleukin-18 Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 37–193（157 aa）	Not recorded	CPS 3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100mM Bis-Tris-HCl, 2.5M ammonium sulfate, 0.2%(w/v) CHAPS, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277.0K	Resolution 2.33 Å R-free 0.271
3WO3 Crystal structure of IL-18 in complex with IL-18 receptor alpha Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 37–193（157 aa）	Not recorded	SO4 SULFATE ION × 7 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；293 K；50mM N-Cyclohexyl-3-aminopropanesulfonic acid, 35% pentaerythritol ethoxylate (15/4 EO/OH), 350mM ammonium sulfate, 50mM LysoFos Choline 10, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 3.10 Å R-free 0.222
3WO3 Crystal structure of IL-18 in complex with IL-18 receptor alpha Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 37–193（157 aa）	Not recorded	SO4 SULFATE ION × 12 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；293 K；50mM N-Cyclohexyl-3-aminopropanesulfonic acid, 35% pentaerythritol ethoxylate (15/4 EO/OH), 350mM ammonium sulfate, 50mM LysoFos Choline 10, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 3.10 Å R-free 0.222
3WO3 Crystal structure of IL-18 in complex with IL-18 receptor alpha Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 37–193（157 aa）	Not recorded	SO4 SULFATE ION × 8 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；293 K；50mM N-Cyclohexyl-3-aminopropanesulfonic acid, 35% pentaerythritol ethoxylate (15/4 EO/OH), 350mM ammonium sulfate, 50mM LysoFos Choline 10, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 3.10 Å R-free 0.222
3WO3 Crystal structure of IL-18 in complex with IL-18 receptor alpha Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 37–193（157 aa）	Not recorded	SO4 SULFATE ION × 7 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；293 K；50mM N-Cyclohexyl-3-aminopropanesulfonic acid, 35% pentaerythritol ethoxylate (15/4 EO/OH), 350mM ammonium sulfate, 50mM LysoFos Choline 10, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 3.10 Å R-free 0.222
3WO3 Crystal structure of IL-18 in complex with IL-18 receptor alpha Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 37–193（157 aa）	Not recorded	SO4 SULFATE ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；293 K；50mM N-Cyclohexyl-3-aminopropanesulfonic acid, 35% pentaerythritol ethoxylate (15/4 EO/OH), 350mM ammonium sulfate, 50mM LysoFos Choline 10, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 3.10 Å R-free 0.222
3WO3 Crystal structure of IL-18 in complex with IL-18 receptor alpha Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 6 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain K 37–193（157 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；293 K；50mM N-Cyclohexyl-3-aminopropanesulfonic acid, 35% pentaerythritol ethoxylate (15/4 EO/OH), 350mM ammonium sulfate, 50mM LysoFos Choline 10, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 3.10 Å R-free 0.222
3WO4 Crystal structure of the IL-18 signaling ternary complex Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 37–193（157 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；277 K；100mM Tris-HCl, 18% polyethylene glycol 4000, 200mM magnesium chloride, 40mM hexaamminecobalt (III) chloride, pH 7.4, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 3.10 Å R-free 0.232
4EEE Crystal Structure of YLDV 14L IL-18 Binding Protein in Complex with Human IL-18 Deposited 2012-03-28	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 37–193（157 aa） Chain D 37–193（157 aa）	Mutation：C38S, K67A, C68S, E69A, K70A, I71A, C76S, C127S Mutation：C38S, K67A, C68S, E69A, K70A, I71A, C76S, C127S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；18% PEG 3350, 0.1M BIS-TRIS PROPANE/CITRIC ACID PH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.71 Å R-free 0.270
4EKX Crystal Structure of YLDV 14L IL-18 Binding Protein in Complex with Human IL-18 Deposited 2012-04-10	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 37–193（157 aa） Chain D 37–193（157 aa）	Mutation：C38S, K67A, C68S, E69A, K70A, I71A, C76S, C127S Mutation：C38S, K67A, C68S, E69A, K70A, I71A, C76S, C127S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；298 K；12% PEG 3350, pH 8.0, vapor diffusion, temperature 298K	Resolution 1.75 Å R-free 0.231
4EKX Crystal Structure of YLDV 14L IL-18 Binding Protein in Complex with Human IL-18 Deposited 2012-04-10	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 37–193（157 aa）	Mutation：C38S, K67A, C68S, E69A, K70A, I71A, C76S, C127S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；298 K；12% PEG 3350, pH 8.0, vapor diffusion, temperature 298K	Resolution 1.75 Å R-free 0.231
4EKX Crystal Structure of YLDV 14L IL-18 Binding Protein in Complex with Human IL-18 Deposited 2012-04-10	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 37–193（157 aa）	Mutation：C38S, K67A, C68S, E69A, K70A, I71A, C76S, C127S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；298 K；12% PEG 3350, pH 8.0, vapor diffusion, temperature 298K	Resolution 1.75 Å R-free 0.231
4HJJ Structure Reveals Function of the Dual Variable Domain Immunoglobulin (DVD-Ig) Molecule Deposited 2012-10-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 37–192（156 aa） Fragment：UNP resiudes 37-192	Not recorded	GOL GLYCEROL × 2 SO4 SULFATE ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；277 K；2M Ammonium Sulfate, 0.1M Sodium Acetate., pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.10 Å R-free 0.220
4R6U IL-18 receptor complex Deposited 2014-08-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 37–193（157 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；291 K；20% PEG3350, 0.03 M citric acid, 0.07 M Bis-Tris propane, pH 7.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.80 Å R-free 0.282
4R6U IL-18 receptor complex Deposited 2014-08-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 37–193（157 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；291 K；20% PEG3350, 0.03 M citric acid, 0.07 M Bis-Tris propane, pH 7.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.80 Å R-free 0.282
4XFS Structure of IL-18 SER Mutant I Deposited 2014-12-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 37–193（157 aa）	Mutation：K139A, K140A, E141A, E143A, L144A	DMS DIMETHYL SULFOXIDE × 3 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；47% PEG 2K MME, 0.1M HEPES, 5% DMSO	Resolution 1.91 Å R-free 0.229
4XFS Structure of IL-18 SER Mutant I Deposited 2014-12-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 37–193（157 aa）	Mutation：K139A, K140A, E141A, E143A, L144A	DMS DIMETHYL SULFOXIDE × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；47% PEG 2K MME, 0.1M HEPES, 5% DMSO	Resolution 1.91 Å R-free 0.229
4XFS Structure of IL-18 SER Mutant I Deposited 2014-12-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 37–193（157 aa） Chain B 37–193（157 aa）	Mutation：K139A, K140A, E141A, E143A, L144A Mutation：K139A, K140A, E141A, E143A, L144A	DMS DIMETHYL SULFOXIDE × 5 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；47% PEG 2K MME, 0.1M HEPES, 5% DMSO	Resolution 1.91 Å R-free 0.229
4XFT Structure of IL-18 SER Mutant III Deposited 2014-12-29	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 37–193（157 aa）	Mutation：K67A, E69A, K70A, I71A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；35% PEG 3350, 0.1M MES, 5% DMSO	Resolution 2.00 Å R-free 0.218
4XFT Structure of IL-18 SER Mutant III Deposited 2014-12-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 37–193（157 aa）	Mutation：K67A, E69A, K70A, I71A	DMS DIMETHYL SULFOXIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；35% PEG 3350, 0.1M MES, 5% DMSO	Resolution 2.00 Å R-free 0.218
4XFT Structure of IL-18 SER Mutant III Deposited 2014-12-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 37–193（157 aa） Chain B 37–193（157 aa）	Mutation：K67A, E69A, K70A, I71A Mutation：K67A, E69A, K70A, I71A	DMS DIMETHYL SULFOXIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；35% PEG 3350, 0.1M MES, 5% DMSO	Resolution 2.00 Å R-free 0.218
4XFU Structure of IL-18 SER Mutant V Deposited 2014-12-29	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 33–189（157 aa）	Mutation：P57R, K67A, E69A, K70A, I71A, S105R	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；35% PEG 3350, 0.1M Tris, 0.1M Sodium Acetate	Resolution 2.85 Å R-free 0.287
4XFU Structure of IL-18 SER Mutant V Deposited 2014-12-29	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 33–189（157 aa）	Mutation：P57R, K67A, E69A, K70A, I71A, S105R	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；35% PEG 3350, 0.1M Tris, 0.1M Sodium Acetate	Resolution 2.85 Å R-free 0.287
4XFU Structure of IL-18 SER Mutant V Deposited 2014-12-29	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 33–189（157 aa） Chain B 33–189（157 aa）	Mutation：P57R, K67A, E69A, K70A, I71A, S105R Mutation：P57R, K67A, E69A, K70A, I71A, S105R	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；35% PEG 3350, 0.1M Tris, 0.1M Sodium Acetate	Resolution 2.85 Å R-free 0.287
7AL7 The Crystal Structure of Human IL-18 in Complex With Human IL-18 Binding Protein Deposited 2020-10-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 36–193（158 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；0.2 M Calcium acetate hydrate, 0.1 M Sodium cacodylate trihydrate pH 6.5, 18% w/v Polyethylene glycol 8000	Resolution 1.80 Å R-free 0.232
8J6K Crystal structure of pro-interleukin-18 and caspase-4 complex Deposited 2023-04-26	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–193（193 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.2 M Calcium acetate, 0.1M Tris-HCl pH 9.0, 13% PEG 8000, 0.01 M L-Glutathione reduced, 0.01 M L-Glutathione oxidized	Resolution 3.12 Å R-free 0.269
8SV1 Caspase-1 complex with interleukin-18 Deposited 2023-05-15	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 6–193（188 aa） Chain c 6–193（188 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
8URV Solution NMR structure of pro-IL-18 Deposited 2023-10-26	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–193（193 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298.1 K；Ionic strength (raw mmCIF value) 50；Pressure 1 NMR measurement conditions pH 6.1；298.1 K；Ionic strength (raw mmCIF value) 50；Pressure 1 NMR sample composition 0.5 mM [U-13C; U-15N] pro-interleukin-18, 20 mM MES, 50 mM potassium chloride, 10 mM DTT, 97% H2O/3% D2O \| 97% H2O/3% D2O NMR sample composition 0.5 mM [U-13C; U-15N] pro-interleukin-18, 20 mM MES, 50 mM potassium chloride, 10 mM DTT, 100% D2O \| 100% D2O NMR sample composition 0.5 mM [5% U-13C; U-15N] pro-interleukin-18, 20 mM MES, 50 mM potassium chloride, 10 mM DTT, 97% H2O/3% D2O \| 97% H2O/3% D2O	Resolution not provided
9OD7 Structure of disulfide-stabilized IL-18 variant Deposited 2025-04-25	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 37–193（157 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；273.15 K；0.1M MIB buffer (mixing sodium malonate, imidazole, and boric acid in the molar ratios 2:3:3), pH 4.0, 25% PEG 1500	Resolution 1.90 Å R-free 0.195
9OD9 Structure of disulfide-stabilized IL-18 variant Deposited 2025-04-25	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 37–193（157 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291.15 K；0.1M sodium citrate, pH 5.0, 20% PEG 600	Resolution 1.60 Å R-free 0.188

19 other PDB entries and 36 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IL18_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–188； UniProt 6–193 Author chain c； PDBConstruct 1–188； UniProt 6–193

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

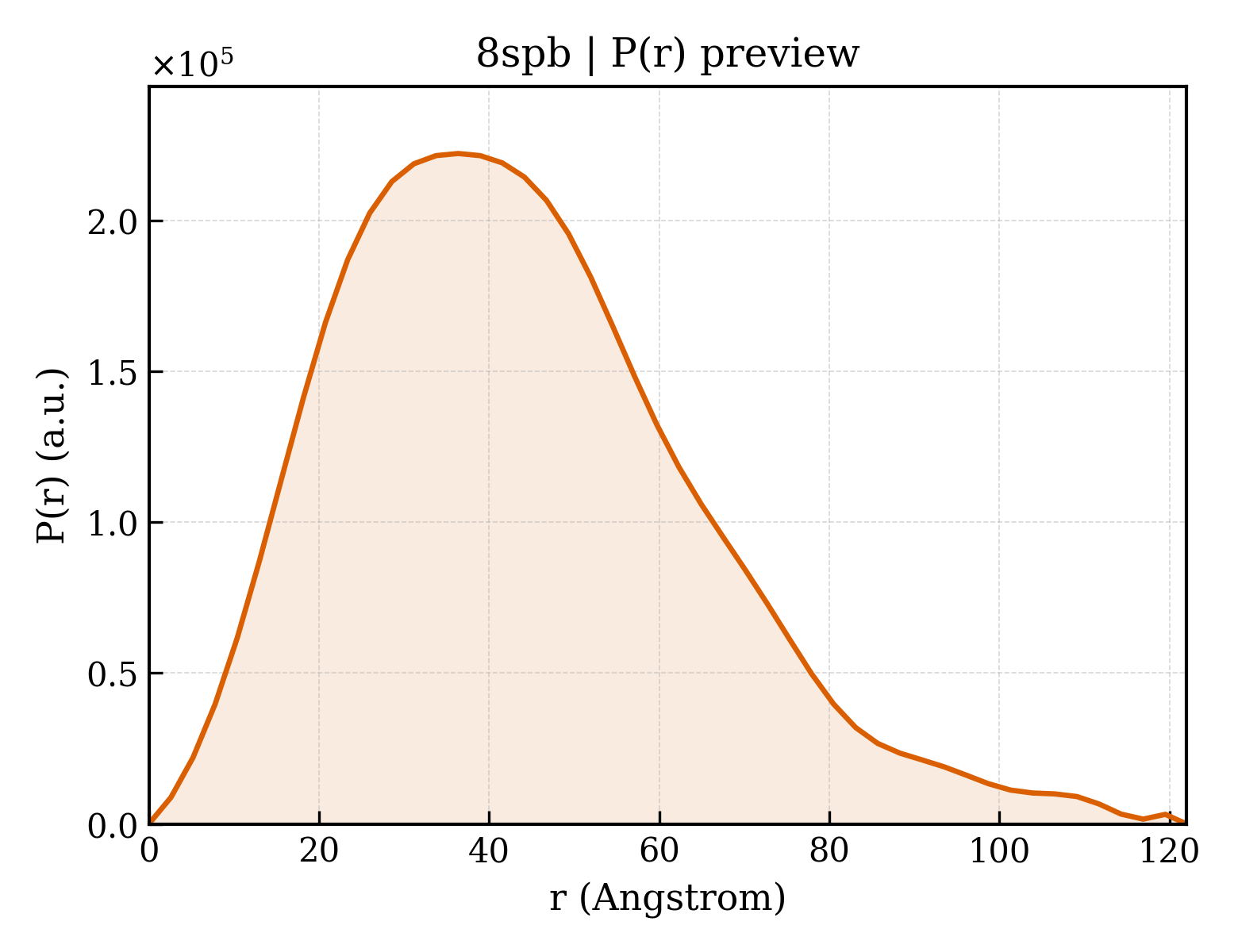

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8spb
Deposition date deposition_date	2023-05-02
Structure title title	Caspase-4/Pro-IL-18 complex
Keywords keywords	Innate immune, Complex, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.78 Å
Radius of gyration Rg (electron density) rg_electron	33.74 Å
Forward intensity I(0) i0	144311000.00
Molecular weight molecular_weight	95848.0 kDa
Excluded volume excluded_volume	119880 Å³
Envelope volume envelope_volume	160380 Å³
Hydration-shell volume shell_volume	41466 Å³
Envelope diameter envelope_diameter	129.9 Å
Shell Rg shell_rg	38.06 Å
Envelope Rg envelope_rg	34.66 Å
Shape Rg shape_rg	33.70 Å
Total Rg total_rg	34.20 Å
Total atoms total_atoms	6726
Residues n_residues	828
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	122.0 Å
Rg (real space) rg_real	34.02 Å
Rg uncertainty (real space) rg_real_error	1.38 Å
I(0) (real space) i0_real	1.4430e+08
I(0) uncertainty (real space) i0_real_error	2.4250e+06
Rg (reciprocal space) rg_reciprocal	33.87 Å
I(0) (reciprocal space) i0_reciprocal	144300000.0000
Solution quality estimate total_estimate	0.8074
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	36.4 Å
Skewness Skewness skewness	0.646
Kurtosis Kurtosis kurtosis	0.308
Angular range angular_range	— – 0.2350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	46080000.0000
Real-space data points n_real_points	48
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.672; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.774; Smooth: 0.703

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Caspase-4 subunit p20
Molecular weight formula_weight	23353.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,a
Atom count atom_count	6726

MGSSHHHHHHSSGLVPRGSHMENLYFQGGSAGPPESGESTDALKLCPHEEFLRLCKERAEEIYPIKERNNRTRLALIICNTEFDHLPPRNGADFDITGMKELLEGLDYSVDVEENLTARDMESALRAFATRPEHKSSDSTFLVLMSHGILEGICGTVHDEKKPDVLLYDTIFQIFNNRNCLSLKDKPKVIIVQAARGANRGELWVRD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli B

Entity 2 Entity 2 polymer

Description description	Caspase-4 subunit p10
Molecular weight formula_weight	10770.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,b

MGASAVYKTHVEKDFIAFCSSTPHNVSWRDSTMGSIFITQLITCFQKYSWCCHLEEVFRKVQQSFETPRAKAQMPTIERLSMTRYFYLFPGN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli B

Entity 3 Entity 3 polymer

Description description	Interleukin-18
Molecular weight formula_weight	21850.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,c

VEDNCINFVAMKFIDNTLYFIAEDDENLESDYFGKLESKLSVIRNLNDQVLFIDQGNRPLFEDMTDSDCRDNAPRTIFIISMYKDSQPRGMAVTISVKCEKISTLSCENKIISFKEMNPPDNIKDTKSDIIFFQRSVPGHDNKMQFESSSYEGYFLACEKERDLFKLILKKEDELGDRSIMFTVQNED

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Baculovirus expression vector pFastBac1-HM

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.20 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	200000

fit	/app/data/saxs_computation/sp/8spb/8spb.fit
pddf	/app/data/pr_computation/sp/8spb/8spb.pr.out
profile	/app/data/saxs_computation/sp/8spb/8spb.dat
